Hello.

Question about .338 LM barrel length (maybe applicable to other .338's too):
I'm interested to know your experiences of long barrels.
Idea is to shoot 300gr VLD bullets way over 1000m. Is there any benefit to have longer barrel than 30 inches?
I know the twist rate needs to be faster or equal than 1:9.3". I understand that velocity should be around 3000fps (900m/s).



[Frank Green]

Who says 9.3 or faster for twist?

A 10 twist will fly the 300’s. I feel that’s on the ragged edge. I’ve run 9.5 twist with no issues and 300gr bullets.

3000fps… even in a 30” barrel is going to be a stretch. Pretty much guarantee you will be past max normal working pressure. Be safe with what you’re doing. You will be probably in the mid 2800fps range with max working pressure. Maybe 2900fps.

All of the AI barrels we make are 9.35 twist. That’s what they want. Most others we make are 9.5.

Unless you get into custom solid bullets… I don’t know why you would need faster on the twist.

Later, Frank
Bartlein Barrels



[sierracharlie338]

Yeah I run a 26 inch barrel and am around 2800 with 285s. I think you’re over thinking it.



[ArtoR]

You answered to something I didn't ask.



[spife7980]

You answered to something I didn't ask.

I think you should read the reply and see how it might apply to your situation… seeing as you have one of the foremost authorities in the world on rifle barrels answering you.



[ArtoR]

My question was: how is the benefit with over 30 inches barrels, regarding velocity?



[oldrifleman]

You also made several statement as to velocity and barrel twist and Frank was suggesting some changes. You got some really good advice from someone who has seen most of it in the past.



[Edsel]

3000fps… even in a 30” barrel is going to be a stretch.

Later, Frank
Bartlein Barrels

How long should he go?

I know this would be getting silly, but 34”, perhaps?



[ArtoR]

I am willing to learn about other shooters' experiences and having purely technical approach. Nothing silly in that
How much benefit there would be with that 34" barrell?



[joetuono]

I am willing to learn about other shooters' experiences and having purely technical approach. Nothing silly in that
How much benefit there would be with that 34" barrell?

Google search the below test done by rifle shooter site. Only goes to 30 inches but will give you a good idea of attainable velocity.

338 Lapua Magnum: Barrel Length Versus Muzzle Velocity (30-17 inches)​



[ArtoR]

Thank you. I'd be interested about over 30 inches



[1moaoff]

My question was: how is the benefit with over 30 inches barrels, regarding velocity?

It will all be ymmv based on alot of variables. You asked basic with info and got a solid reply. Have u ever owned or shot a 338LM?



[1moaoff]

I am willing to learn about other shooters' experiences and having purely technical approach. Nothing silly in that
How much benefit there would be with that 34" barrell?

Technical approach would have alot of other variable options specified!



[culater]

Hello.

Question about .338 LM barrel length (maybe applicable to other .338's too):
I'm interested to know your experiences of long barrels.
Idea is to shoot 300gr VLD bullets way over 1000m. Is there any benefit to have longer barrel than 30 inches?
I know the twist rate needs to be faster or equal than 1:9.3". I understand that velocity should be around 3000fps (900m/s).

Get a 33XC if you’re looking for more horsepower



[surgeon260]

The practical tradeoffs of going over 30" are not worth it in my opinion. E.g. transporting the rifle, finding cases that fit, etc. 30" is already LONG, add a brake/can and things start getting ridiculous. A 30" Lapua will get you all the velocity you would ever need to well past 1000m. So would a 26" Lapua for that matter. If you want more velocity, I would move to a Lapua improved or XC as was mentioned.

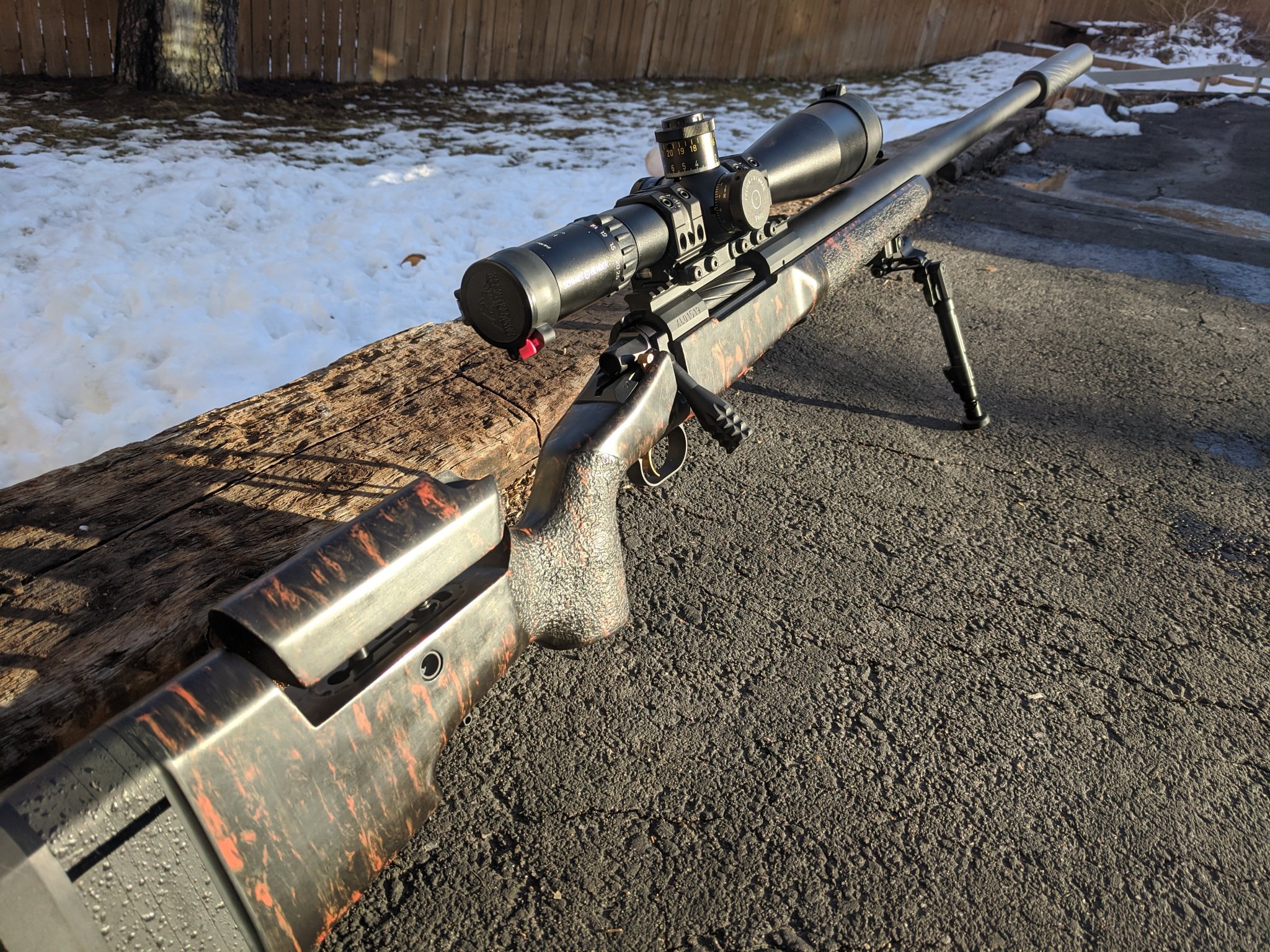

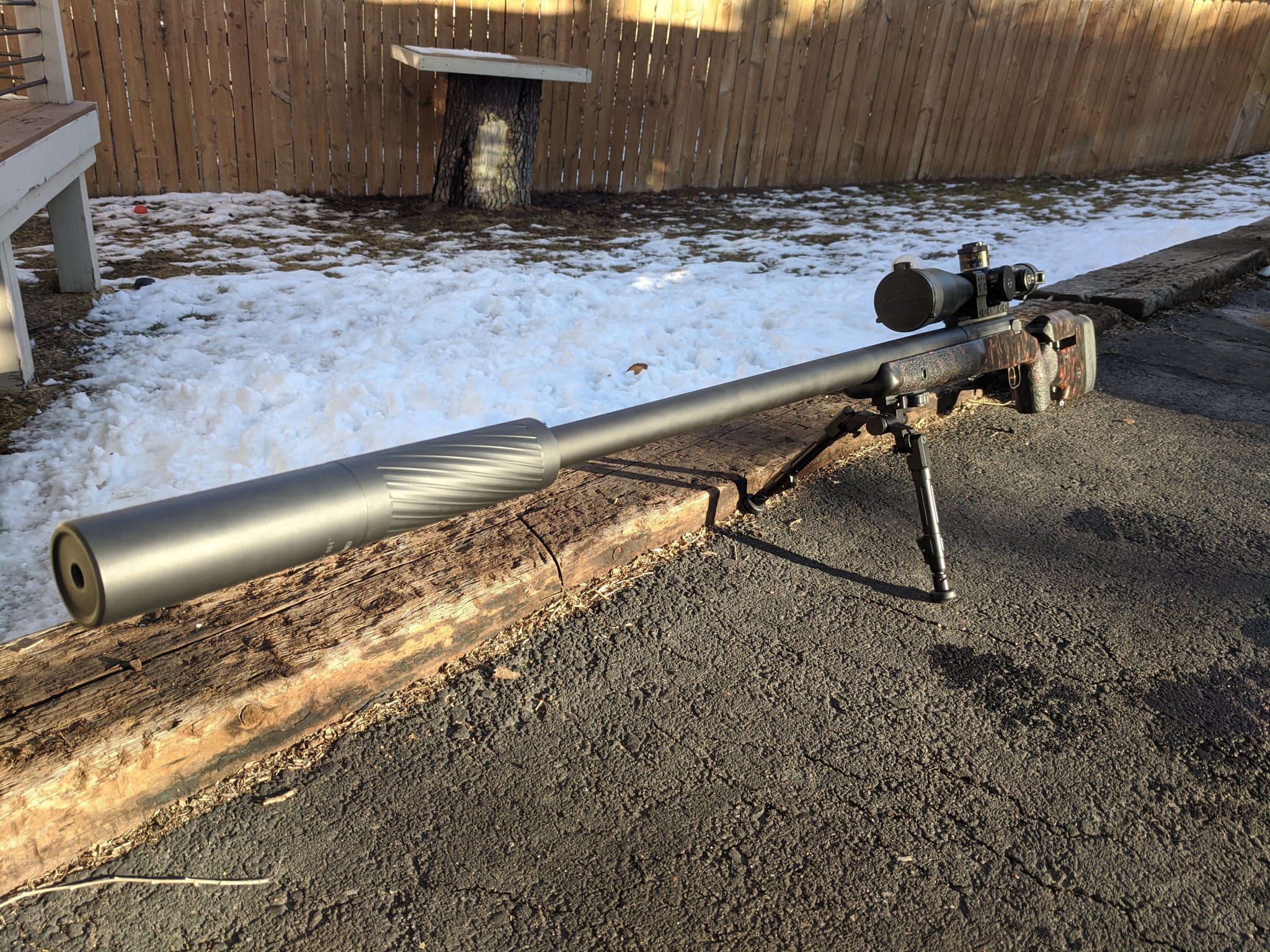

Here is a 30" Lapua improved with a can. I would not want to go any longer. I had to buy a new safe just to fit this beast.



[MO Fugga]

The practical tradeoffs of going over 30" are not worth it in my opinion. E.g. transporting the rifle, finding cases that fit, etc. 30" is already LONG, add a brake/can and things start getting ridiculous. A 30" Lapua will get you all the velocity you would ever need to well past 1000m. So would a 26" Lapua for that matter. If you want more velocity, I would move to a Lapua improved or XC as was mentioned.

Here is a 30" Lapua improved with a can. I would not want to go any longer. I had to buy a new safe just to fit this beast.

View attachment 8507929

View attachment 8507930

A new safe? What's wrong with under the pillow?



[surgeon260]

Not enough room for the 338 AND the Barrett.



[ArtoR]

The practical tradeoffs of going over 30" are not worth it in my opinion. E.g. transporting the rifle, finding cases that fit, etc. 30" is already LONG, add a brake/can and things start getting ridiculous. A 30" Lapua will get you all the velocity you would ever need to well past 1000m. So would a 26" Lapua for that matter. If you want more velocity, I would move to a Lapua improved or XC as was mentioned.

Here is a 30" Lapua improved with a can. I would not want to go any longer. I had to buy a new safe just to fit this beast.

View attachment 8507929

View attachment 8507930

The practical tradeoffs of going over 30" are not worth it in my opinion. E.g. transporting the rifle, finding cases that fit, etc. 30" is already LONG, add a brake/can and things start getting ridiculous. A 30" Lapua will get you all the velocity you would ever need to well past 1000m. So would a 26" Lapua for that matter. If you want more velocity, I would move to a Lapua improved or XC as was mentioned.

Here is a 30" Lapua improved with a can. I would not want to go any longer. I had to buy a new safe just to fit this beast.

View attachment 8507929

View attachment 8507930

Thank you! Now we're getting to the point.
Yes I understand that carrying that long rifle is clumsy and not practical.
Still I wanted to consider that, plus a specially tall safe.

Br, Arto



[Frank Green]

How long should he go?

I know this would be getting silly, but 34”, perhaps?

Really depends on what your doing with the gun. I wouldn't go any shorter than 27" and not any longer than 32". You can do 34" but I don't see it getting you anything extra unless your running like a 338 Lapua Improved or something with more case capacity.

Also the longer the barrel... you do tend to see more fouling can occur. Not always but something to keep in mind.



[Frank Green]

Google search the below test done by rifle shooter site. Only goes to 30 inches but will give you a good idea of attainable velocity.

338 Lapua Magnum: Barrel Length Versus Muzzle Velocity (30-17 inches)​

For most cartridges a good rule of thumb for a loss or gain per inch is about 25fps.

There are a lot of variables..... type of powder, bullet type and actual bullet diameter vs bore and groove size, case capacity etc...



[Numenur]

I vote for as long as you are willing to carry. 28" or something very close to that would be my minimum. A 300g bullet is going to need a slow powder get max velocity out of them. Slow powder needs lots of barrel volume to expand the gas.

I built a few 338 Edges which are fairly close to the same case volume. 28" was the shortest barrel I used, also the slowest. My favorite was a fluted #7 contour that was 32" long. Great velocity and a sweetheart to shoot.



[ArtoR]

Really depends on what your doing with the gun. I wouldn't go any shorter than 27" and not any longer than 32". You can do 34" but I don't see it getting you anything extra unless your running like a 338 Lapua Improved or something with more case capacity.

Also the longer the barrel... you do tend to see more fouling can occur. Not always but something to keep in mind.

Thank you for comment!



[Edsel]

Curious - is your rifle a Desert Tech bullpup, or something similar?



[surgeon260]

As far as velocity goes, 3k fps in a standard Lapua is not realistic (at least not safely). My Lapua improved is a max capacity, min taper design with about 12 grains more capacity than a standard Lapua, and I am right at 3k out of a 30" barrel with N570. RL33 will get you another 50 fps, but that powder is non-existent.



[Chickentoast]

Agree with above - go Improved before you go above 30".



[ArtoR]

Thank you.
I appreciate your replies a lot.

Br, Arto



[45-90]

You can get the velocity ya want with the XC33. Reamers, brass, dies, loaded rds, available. It uses the same 338 Lapua bolt head size.
They use 300 gr Bergers to achieve up to 3250 fps.
Some are running a bit slower to save barrel life.
They are using the 32" & 34" lengths some reported using 9 twists of those who stated twist rates.
Look at the 2k winners, they have build lists for their rifles, load data, powder preferences and why, how to prolong the barrel life.
Going long... this is one of the best setups.
I could build this , but I'm not good enough to complete with it, so it won't do me much good, unless I could buy some eyes to go with it.
But I'd check out the XC33, before building the Lapua.



[Top O' Texas]

N570 will yield the fastest velocity, but you'll need 36" at least to get 3k. It'll be close? I too want to get 300's going 3k (~6k if muzzle energy). Having a 4" mag box or single feed if throated long enough can help also. Since only shooting to 1k you're fine at 2,800 +/-. I like the more the better also, but sometimes velocity just gets chased.



[MikeRTacOps]

Go 26"

Mike R.



[Silvan]

Almost all factory rifles have 27’’ barrel.



[MikeRTacOps]

26 is the money

Mike R



[45-90]

If I had to choose standard or 338 Lapua improved (my choice), it would be 30" barrel 9 twist.
I have a 8 twist 30" on a lowly 308 Win.



[ArtoR]

Thank you for all the answers!
The .33XC looks really interesting and has more capability than .338LM.
.33XC is as expensive as .338
