Precision Rifle Gear 3dp mag pouches

[kylepmcg]

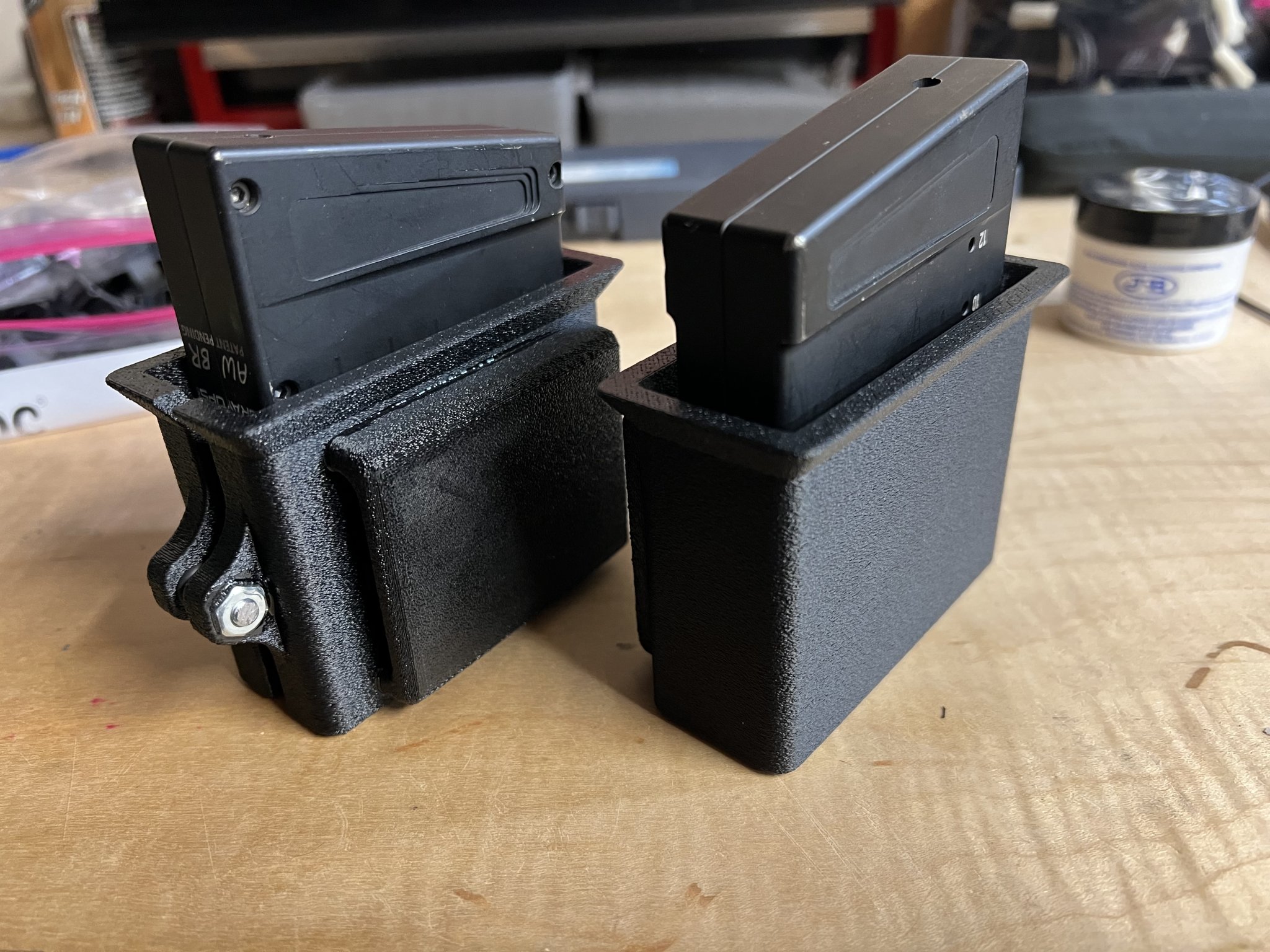

Modeled up some super basic adjustable retention mag pouches. 2 piece print and epoxied together. Single screw with rubber gaskety thing for tension. Not sure how helpful it’d be but if anyone wants the cad to print or modify I’ll send it to ya.



[RubiconJoey]

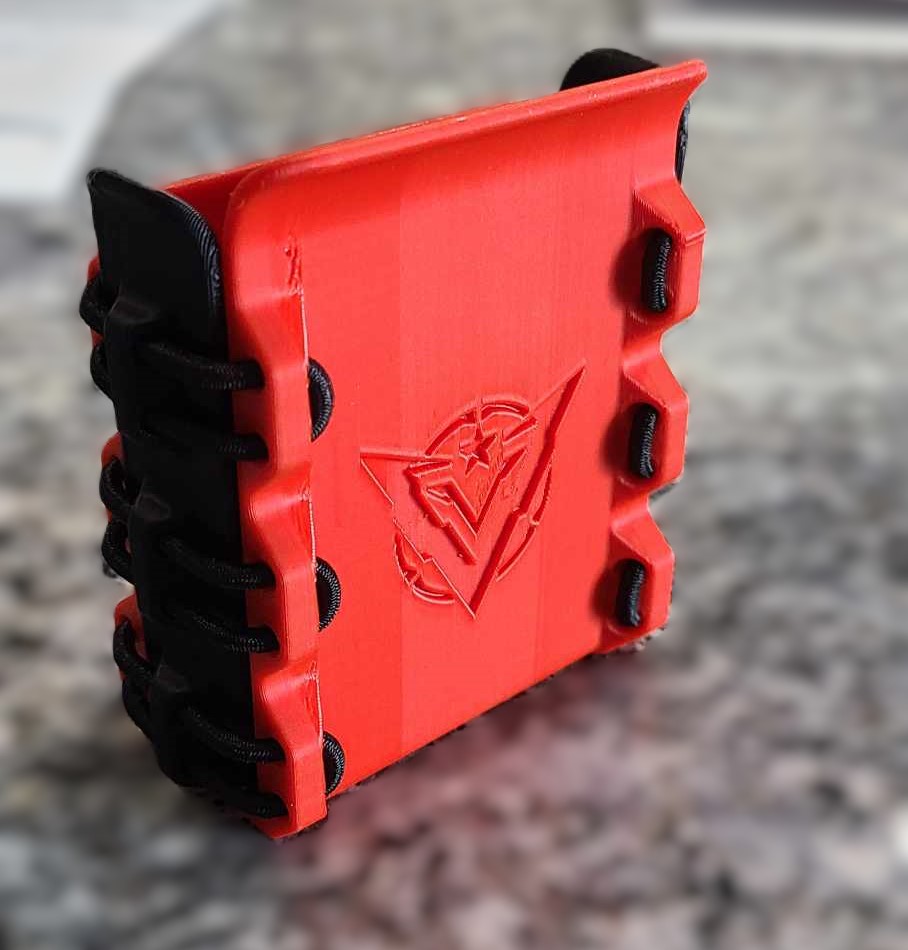

Nice! I made some of my own last week as well.



[mtn-goat]

Any chance I can convince one of you talented fellows to modify an STL for me? It's a base pad for a PX4 mag, and I'm trying to add a little bit of pinky rest. I tried it myself but man, the learning curve on CAD software is brutal. Seemed like I was going to be able to do it until the "refine shape" tool in FreeCAD didn't refine it at all...

Can offer grattitude, beer, $...



[st1650]

Any chance I can convince one of you talented fellows to modify an STL for me? It's a base pad for a PX4 mag, and I'm trying to add a little bit of pinky rest. I tried it myself but man, the learning curve on CAD software is brutal. Seemed like I was going to be able to do it until the "refine shape" tool in FreeCAD didn't refine it at all...

Can offer grattitude, beer, $...

STLs are a bitch to modify, STEP files are much easier

You're better off learning blender and modify them there than try to convert them into a model for Freecad/Solidworks/Fusion



[mtn-goat]

Yeah, thank you, I discovered this.
