So this has been a project that I started almost a year ago when it became apparent that getting 2 1/2" shells for some of my old shotguns was getting impossible. I started to do some searching about all-brass shotshells, which work fine in 2 1/2" chambers, but also wanted to use smokeless powder. Found a few threads on places like Chuckhawks and CastBoolits that talked about brass shotshells and smokeless. But I had some concerns about the head strength.... something that came up repeatedly in the other forums.

This led to some experimentation (with some input and cheerleading from @buffalowinter) and a process that seems to be working well for making up these shells. My first 'batch' I used on a quail hunt last fall. And they worked great. They performed as well as the factory rounds I brought, anyway. Both knocked down quail, pheasants and chukars! So, that test went great.

I post these here rather than in reloading because some of the folks with old trench guns may want to have an option for reloading the all-brass shells with something other than black powder. Cleaning a Model 97 of BP residue would suck more than cleaning an old SxS. And both have to be cleaned religiously immediately after firing BP cartridges. Red Dot is so much better! This is really a 'vintage' endeavor.

So first step is having MagTech all-brass shell casings. I have a good supply of 12 and 16 gauge available. They are loved by cowboy shooters and black-powder shooters as authentic-looking and reliable as well as simple to load. With Black powder.

The issue with these and smokeless shotshell powder is two-fold. First, they use a small rifle primer to fire. So you really need to get the powder 'around' the primer flash hole. The second issue is that because they are a pure extrusion, they have a 'hollow' base at the case rim, and the primer pocket protrudes inside the case about 0.100". This leaves a lot of powder 'below' the flash hole where I don't think it ignites properly. Not to mention the rim is, as a result, weak, compared to more modern shells. There is a very thin wall at the rim. Smokeless powder shells need a solid base at the case rim.

The solution is to cut brass disks and solder them into the base of these shells, strengthening the bottom and putting all the powder into the flame front area of the primer. Below, you can see the 'protruding' primer pocket. It sticks about 0.100" into the case.

shotshell 3.jpg

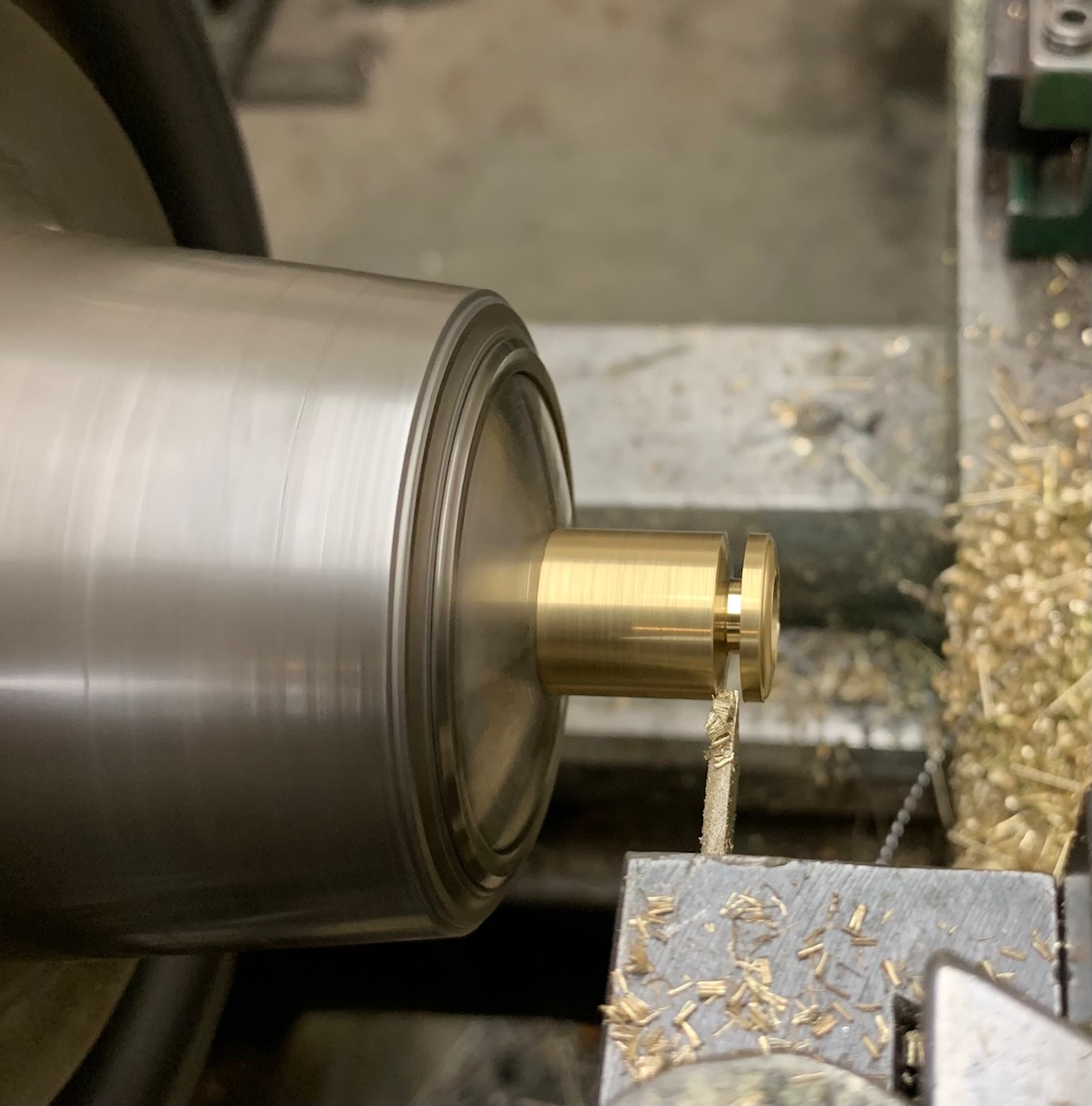

So from a brass bar .750" in diameter, I cut disks that are about .650", which fit into the shell. They are drilled a bit over 1/4 inches and chamfered so they will fit over the primer pocket internally. They are just slightly undersized, allowing room for solder to flow and bond in the bases. Soft Solder has a massive holding power and while it has a low melting point, the firing of the shotshell will not put enough heat into the base to melt it.

shotshell 1.jpg

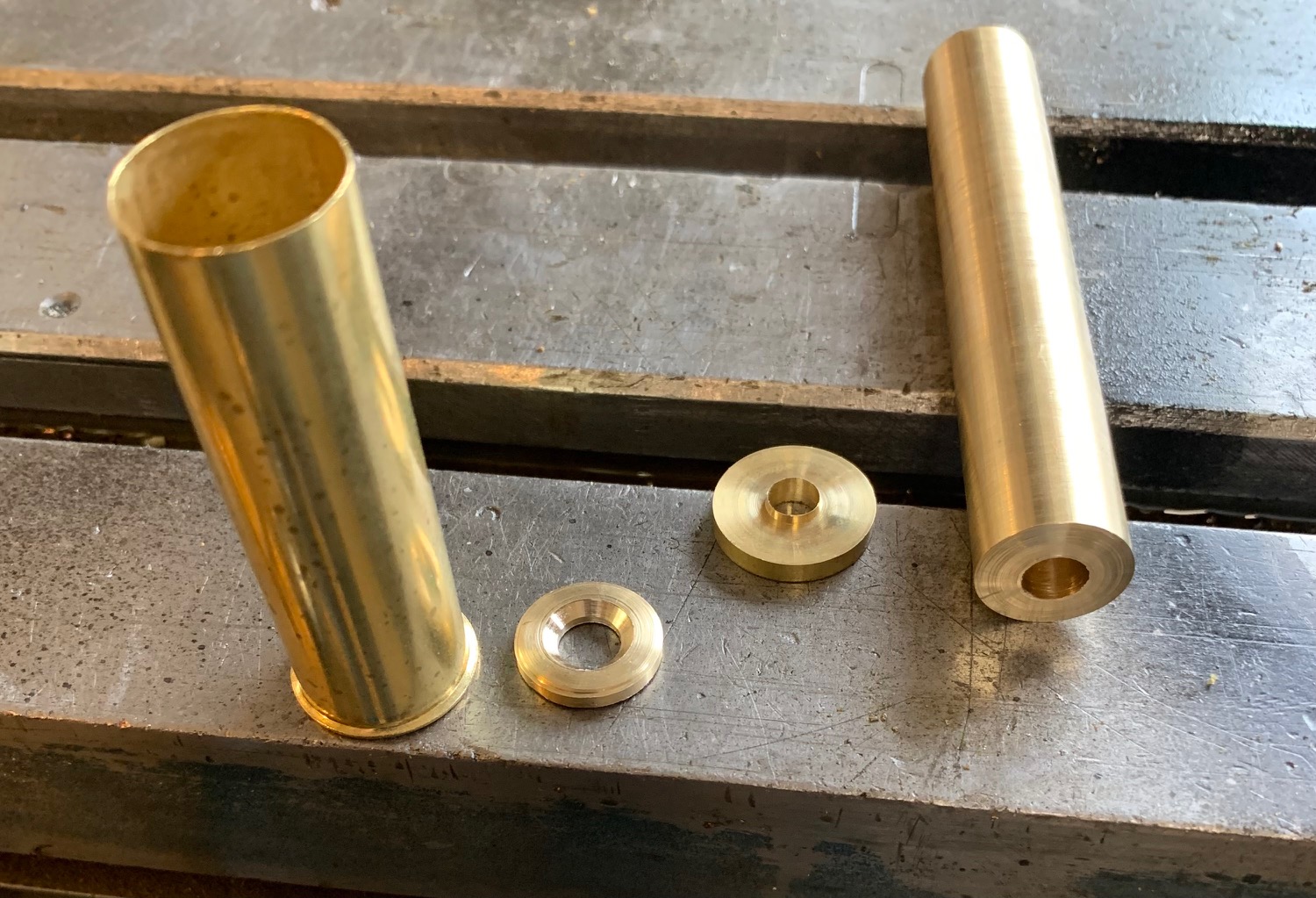

Once each 'disk' is sliced off (and chamfered) it is ready to solder into the case. Below you can see the bar, the disks and a case ready to go together.
shotshell 2.jpg

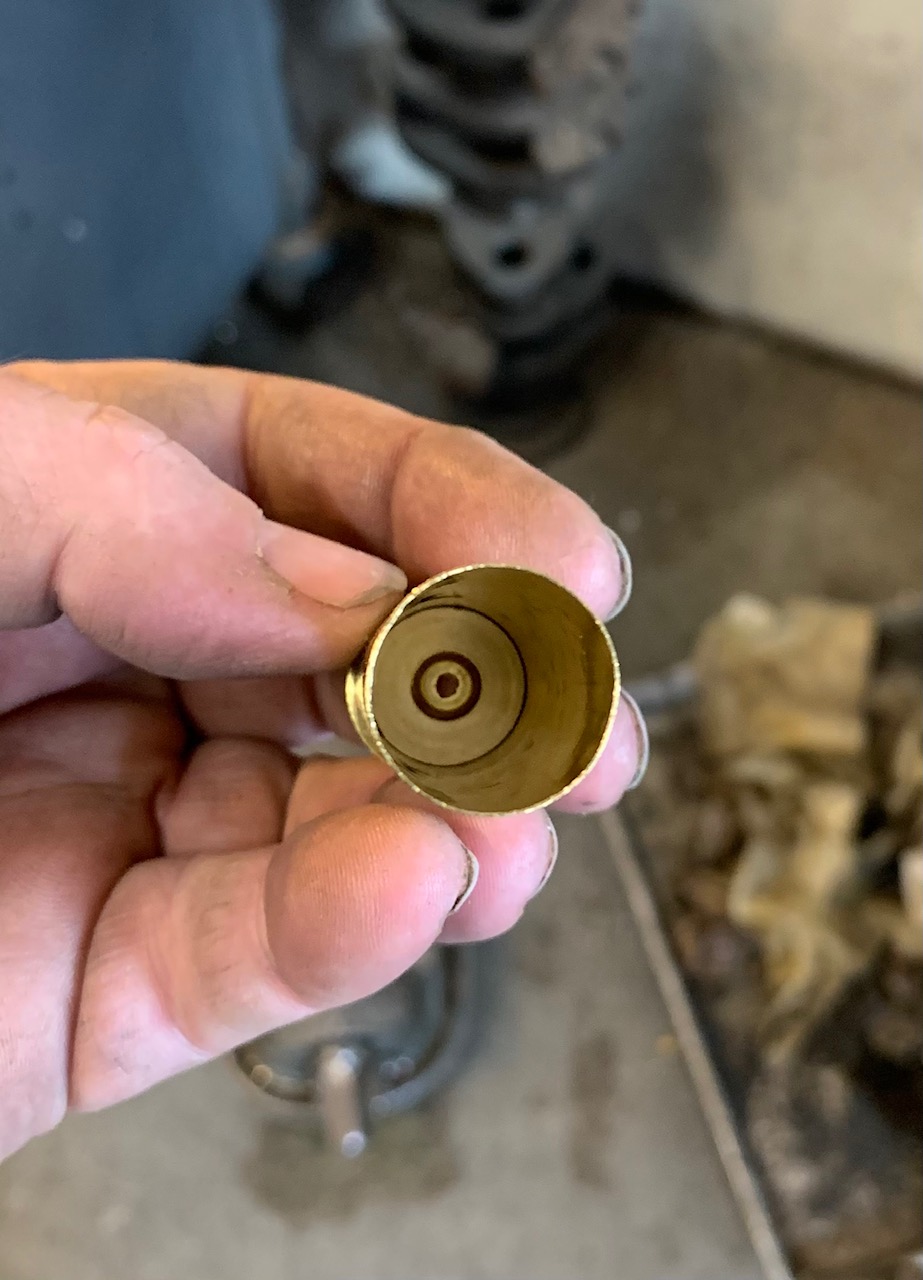

The disk (and base of the case) have tinning compound brushed on them and a small piece of solder (about 1/4" long) is snipped off a roll and dropped into the case. This will soft solder a reinforcement into the case as well as create a primer pocket that is going to be flush with the powder charge. It's a bit blurry in the picture below, but you can see the tinning compound liquid and the chunk of solder sitting in the bottom of the case on a vice.

shotshell 4.jpg

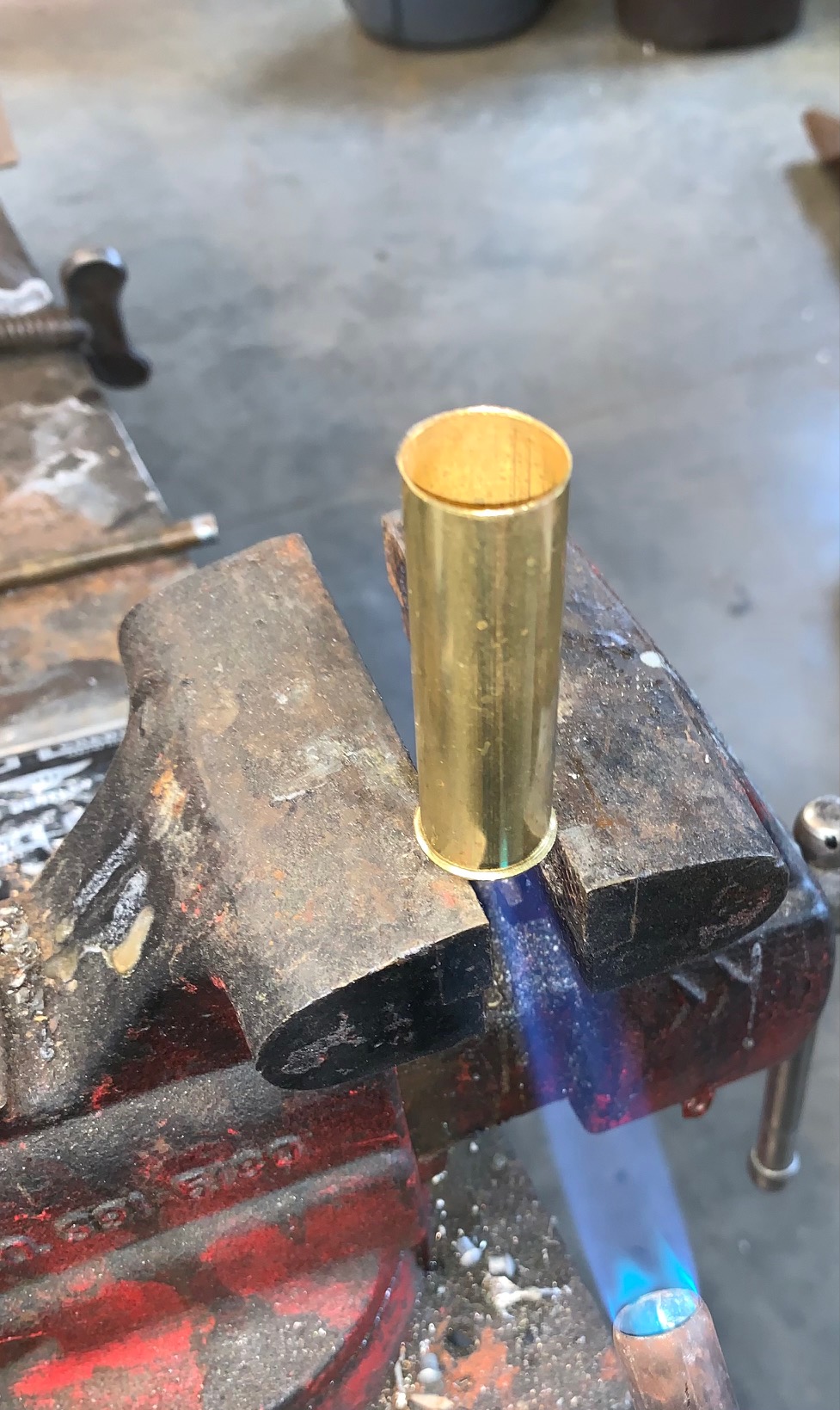

Using a fairly lazy flame and a plumbers torch (I am thinking about doing some kind of hot plate for the next batch) the base of the case is heated until the solder melts and flows between the case and the insert. Clean cases and fresh-machined brass take tin and solder brilliantly. By resting the case on vice jaws as below, the heat goes nicely right into the head.

shotshell 5.jpg

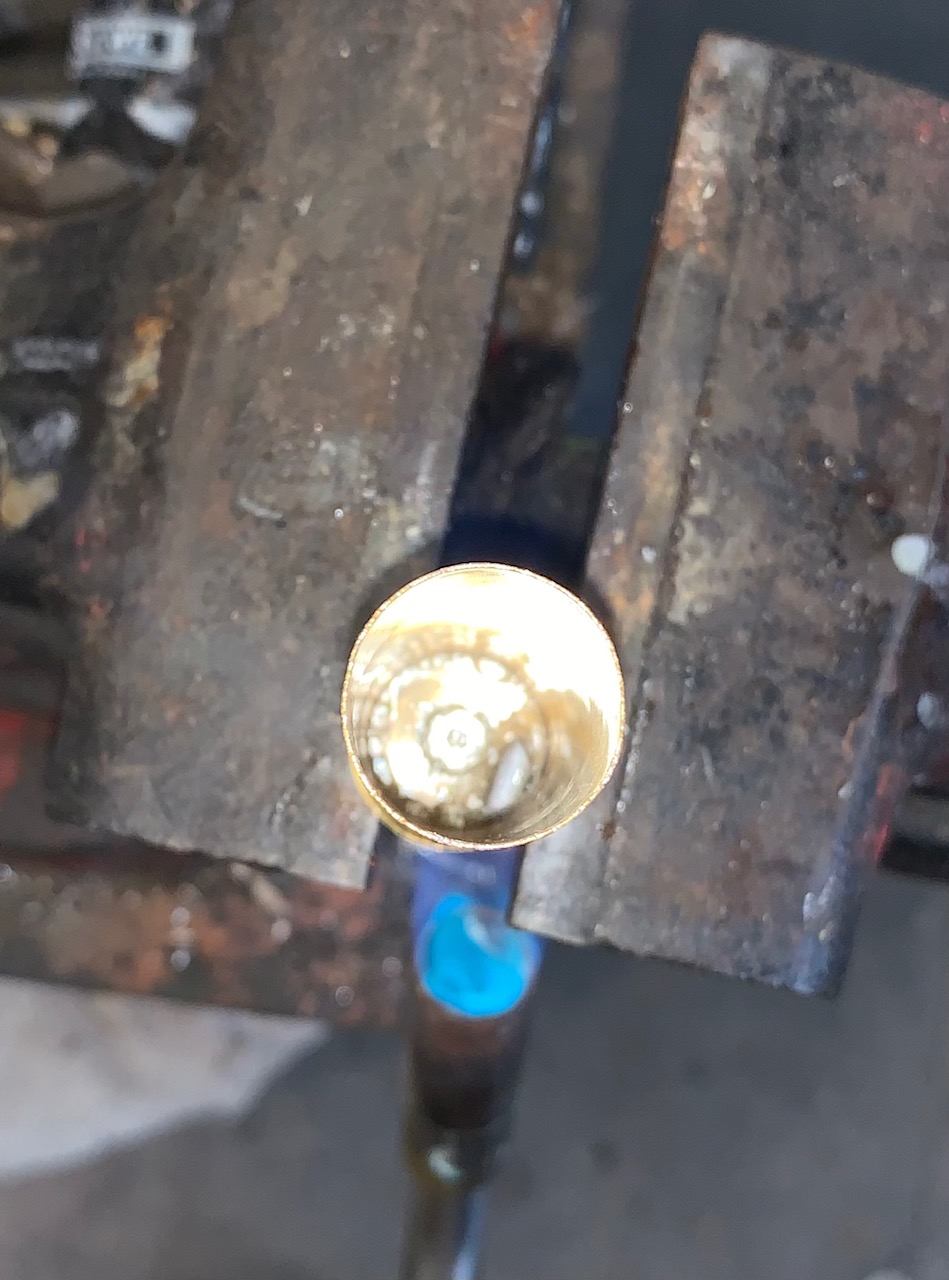

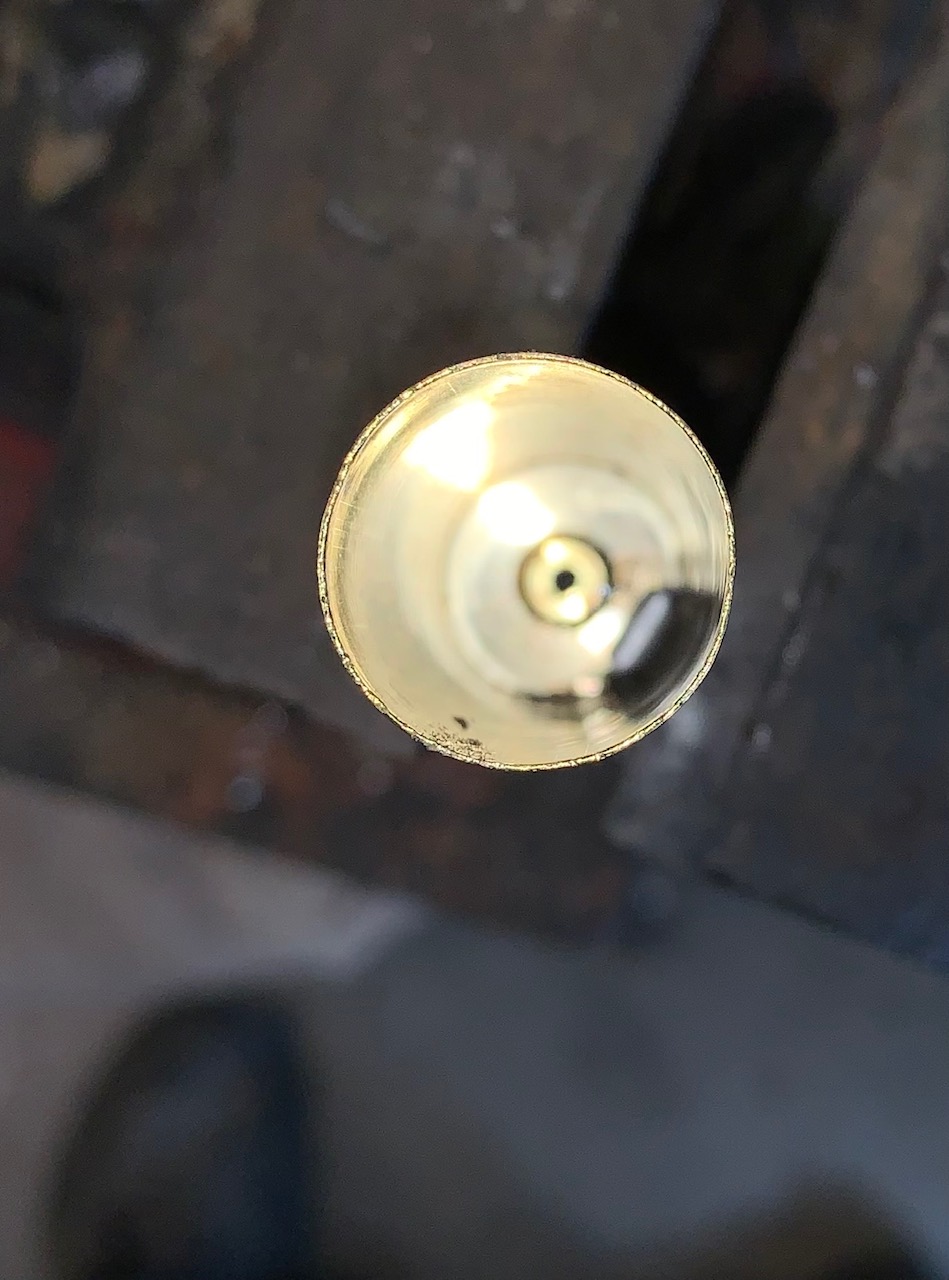

Here the solder is melting and flowing in and around the case head, creating a solid brass base on the shell. Again, a lazy flame and careful application of heat and the thin walls of the case won't be negatively affected. You don't want to heat the case too hot.... red is bad! A lazy flame will work great. You can see the 'bubbles' of the tinning compound, despite the blurry photo.

shotshell 7.jpg

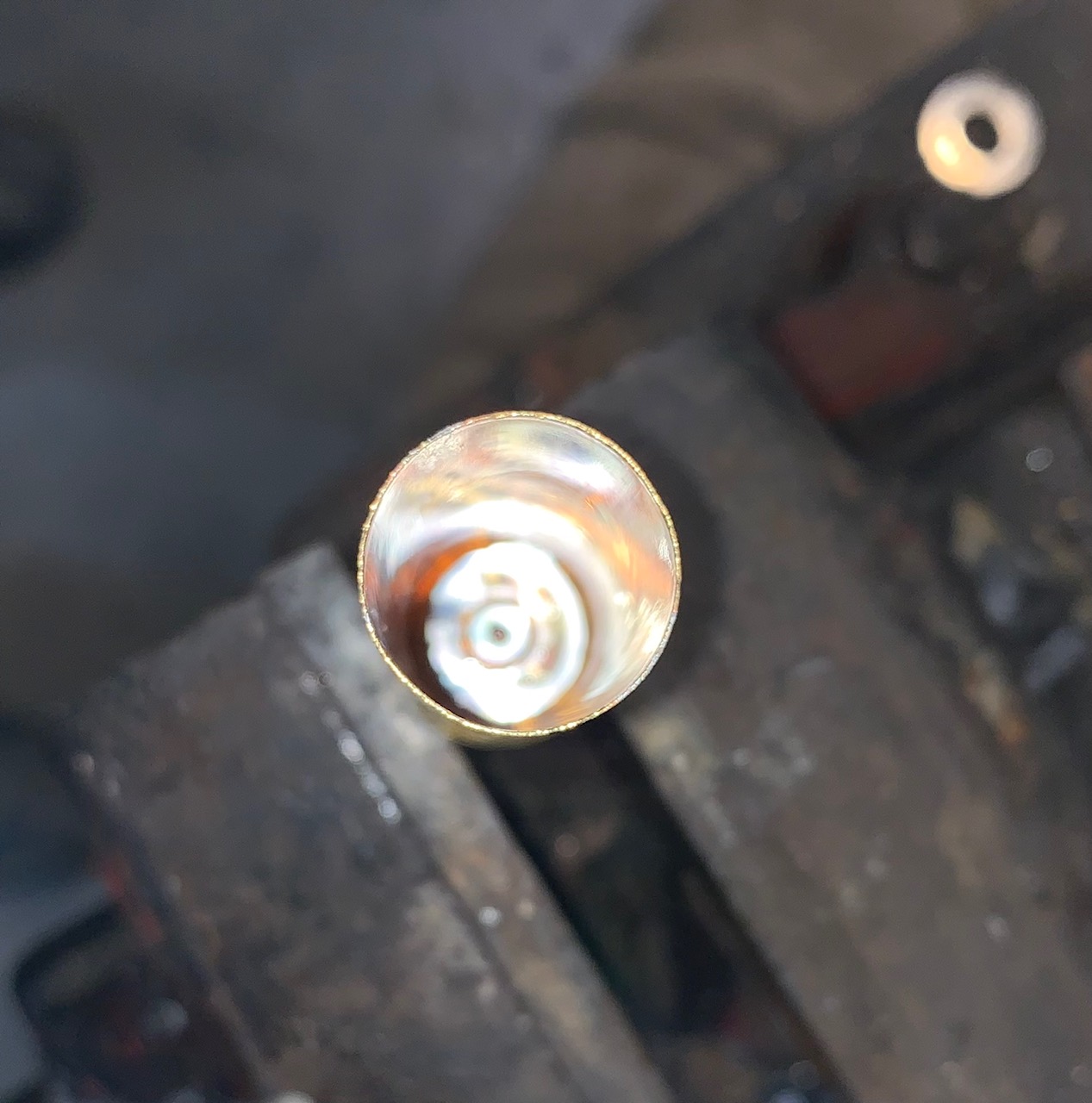

After a short application of flame (no more than about 30 seconds) the solder melts, the tinning compound acid remnants 'rise' to the top and the solder flows nicely into the case base. The acid washes out with warm water and soap and a bit of Scotchbrite on a stick.

shotshell 8.jpg


Next installment, I'll go into loading. The inside of the brass case is bigger than the inside of the plastic case. I considered using modern wads 'one size larger' but experimenting with this, I was concerned that they were too big for the forcing cones and chokes of the old guns. I tried 10 gauge wads in 12 gauge and 12 gauge in 16 ga. And both seemed too big to be safe in an old barrel.

So after much experimenting, I went with modern plastic wads in the 'standard' size (in this case, 16 ga), but used some fiber and card wads to supplement the plastic wads. More on this later. Also light powder charges and reasonable shot loads. No magnums here!

These are just the first 6 I knocked out for testing load in 16 gauge. They are for an old hammer gun that is still in proof (nitro proof) and will handle these loads fine. But has 2 1/2" chamber and there are simply no shells currently available to buy. They are made... but good luck finding any to purchase. So these first shells are to develop a load before I load up a bunch of shells.

FYI, I can convert about 150 cases in a day of turning, soldering and cleaning. And as they can be loaded many times, that's more than enough cases to have on hand for... a long time! It's a time investment that pays off long term.

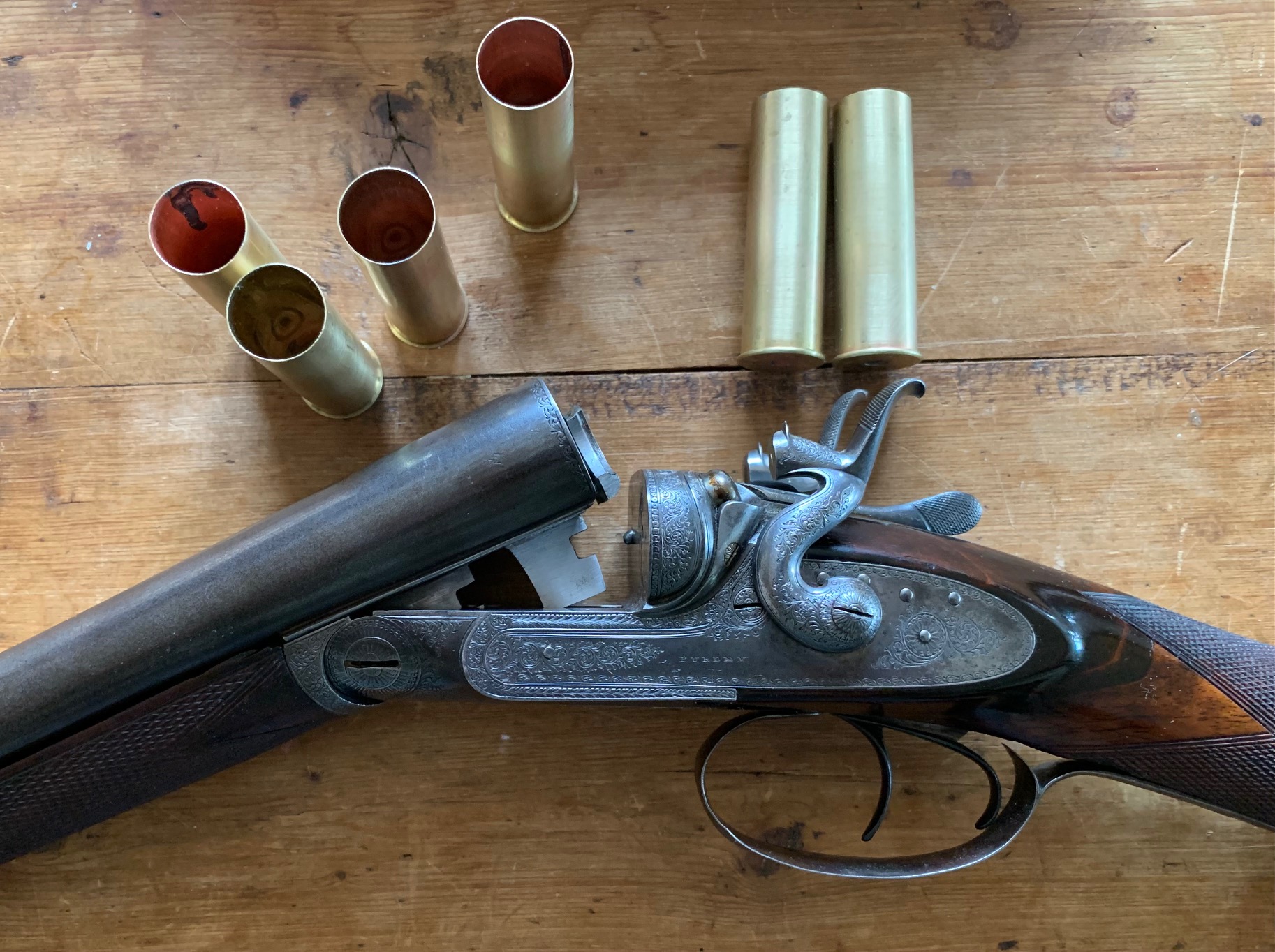

shotshell 9.jpg


The cases will have card wads over the shot and a bit of 'white glue' sealing them shut under their crimp. They pattern and shoot great. At least the 12 gauge shells I did last year do! These 16's are a work in progress. But they are perfect for 2 1/2" chambers as they don't have any 'crimp petals' to come out and raise pressures in the short chamber early guns.

For anyone who is cowboy or trench gun shooting.... or a vintage shotgun aficionado, perhaps this helps. It builds on the work of some folks at other forums. And I think the addition of a solid base makes these a much better shell. I'll have some load data, etc. next few weeks when I get enough shells converted to start loading a reasonable number at a sitting.

BTW, for those who are interested, dies for all brass shells are available at C4H... an amazing little company that makes THE most bizarre dies and shellholders. Husband and wife operation that is just fantastic to work with all the time. They make shotshell dies for brass-shells.

More to follow, but in case any of you vintage guys want to get your trench guns or cowboy guns shooting all-brass smokeless loads, this is how it starts.

So that's what I did in the machine shop today, if not the reloading room.

Cheers,

Sirhr


Attachments

  • shotshell 6.jpg
    shotshell 6.jpg
    369.5 KB · Views: 103
I have monkeyed around with Magtech 12 ga shells and found the “balloon” head construction gives bloopers-just like you found. I tried drooling some epoxy into the shell but wound up getting it all over the inside and didn’t make a good job of cleaning it while it was stilly soft-so I ruined two shells. I have read where some people have used plastic disks to essentially build up the insid to have the powder above the flash hole.
I just gave up and currently use real BP and felt and fiber wads in 10ga.
I don’t have a lathe to make the filler like the OP, but that’s genius. And I wouldn’t worry too much about possibly annealing the brass case as shotgun pressures are low.

Super interesting solution to a problem.

Did you ever do a write up on the reloading aspect? Never done shot shell reloading myself, but this looks like too fun of a project to not get the final findings of load development put to "paper" :)

Super interesting solution to a problem.

Did you ever do a write up on the reloading aspect? Never done shot shell reloading myself, but this looks like too fun of a project to not get the final findings of load development put to "paper" :)
I have to be careful there… I am not sure I want to post load data for these in case somebody blows themselves or their spendy double up!

This is out-there level experimental in a lot of ways!! Because wads, base shape, load capacity, etc are all very critical in a shot shell. Much more so than a metallic cartridge.

I will say that I looked up a lot of load data and between powder, loads, wads and shot charges, I used some formulas (like AA loadings) that are proven and light.

But watch substituting anything in shotshell
Loads. They may be lower pressure than out rifles. But the barrel walls are thin… and chokes do “things” to shot Columns and internal ballistics.

Sirhr

I have to be careful there… I am not sure I want to post load data for these in case somebody blows themselves or their spendy double up!

This is out-there level experimental in a lot of ways!! Because wads, base shape, load capacity, etc are all very critical in a shot shell. Much more so than a metallic cartridge.

I will say that I looked up a lot of load data and between powder, loads, wads and shot charges, I used some formulas (like AA loadings) that are proven and light.

But watch substituting anything in shotshell
Loads. They may be lower pressure than out rifles. But the barrel walls are thin… and chokes do “things” to shot Columns and internal ballistics.

Sirhr

No worries. As I said, I don't reload for shotguns, but have previously read the bit about "don't deviate from loading manuals for it" unlike rifle/pistol reloading. Glad to see it worked out for you.

  • Like
Reactions: ZG47A
As always @sirhrmechanic , Interesting stuff. I thought I’d add this for you.

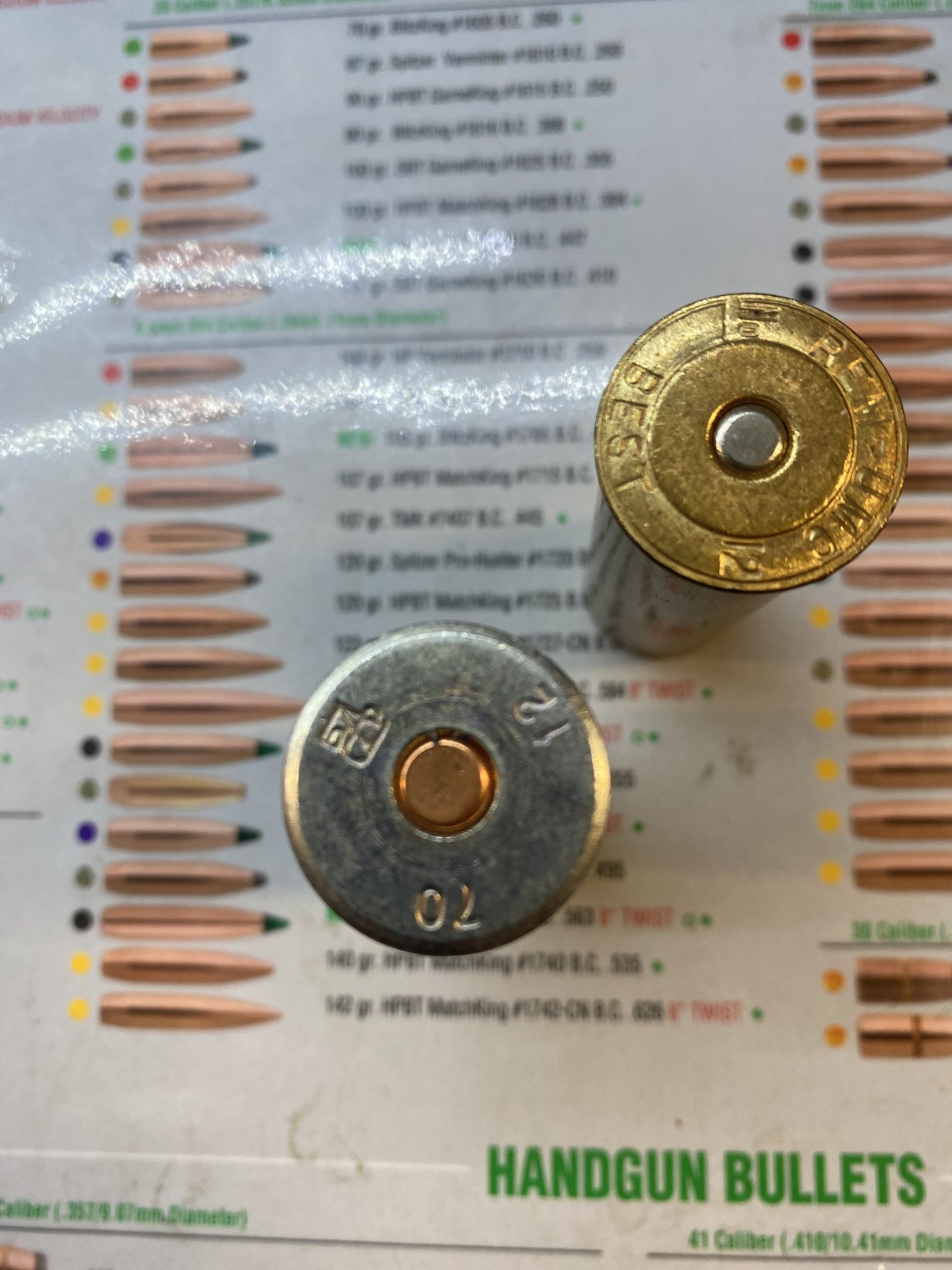

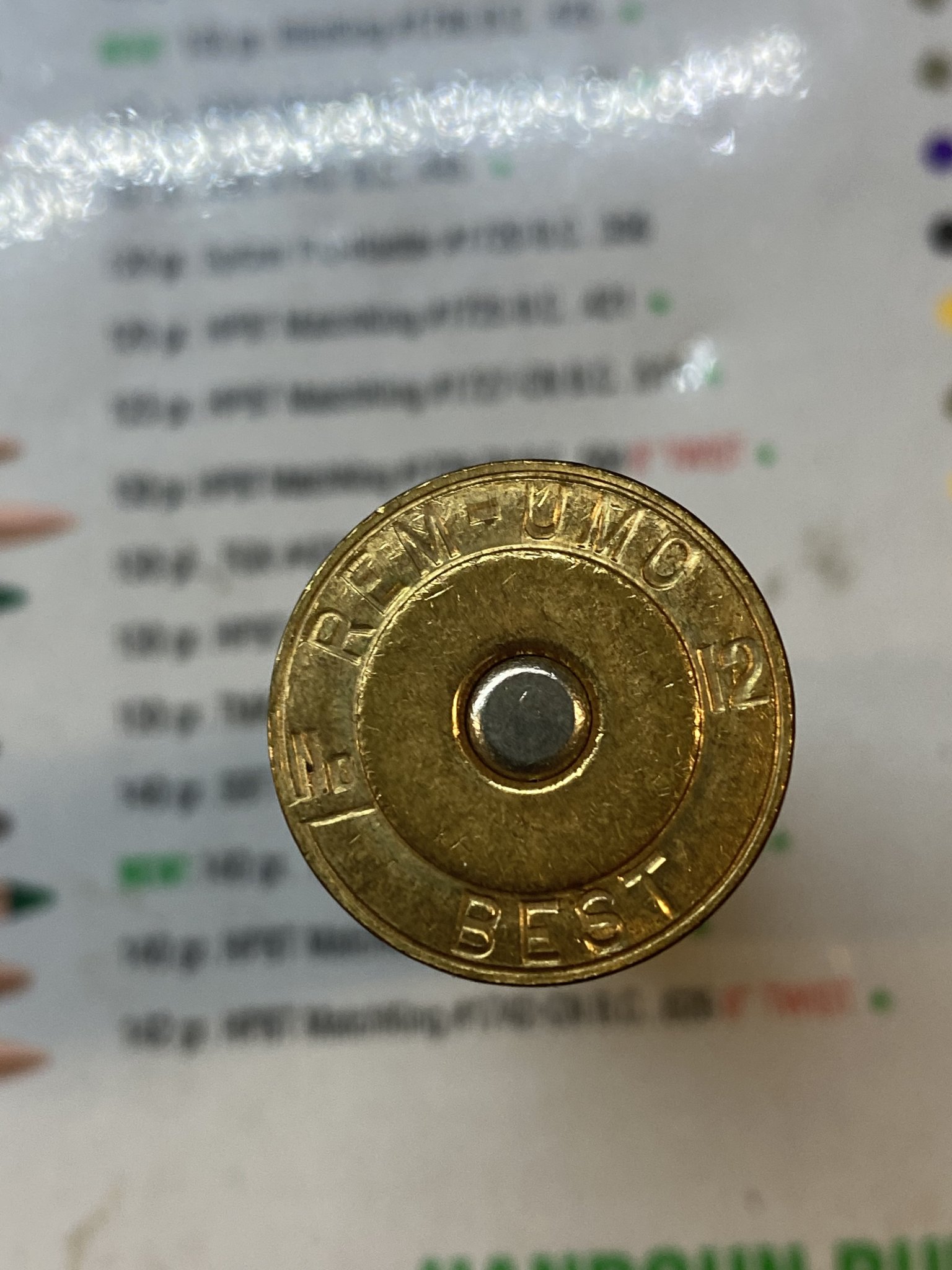

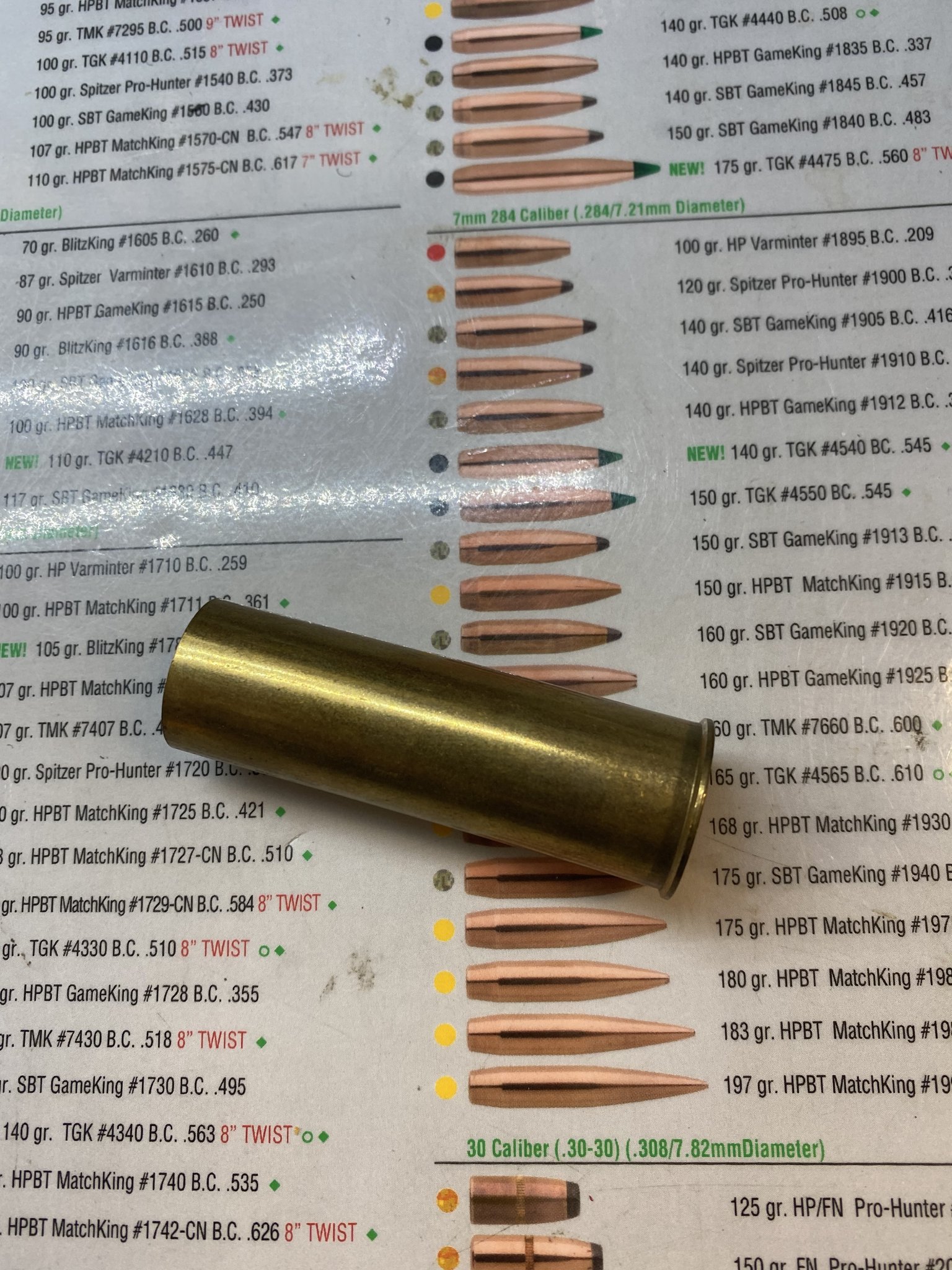

REM UMC BEST head stamped full brass 12ga round, unfired:

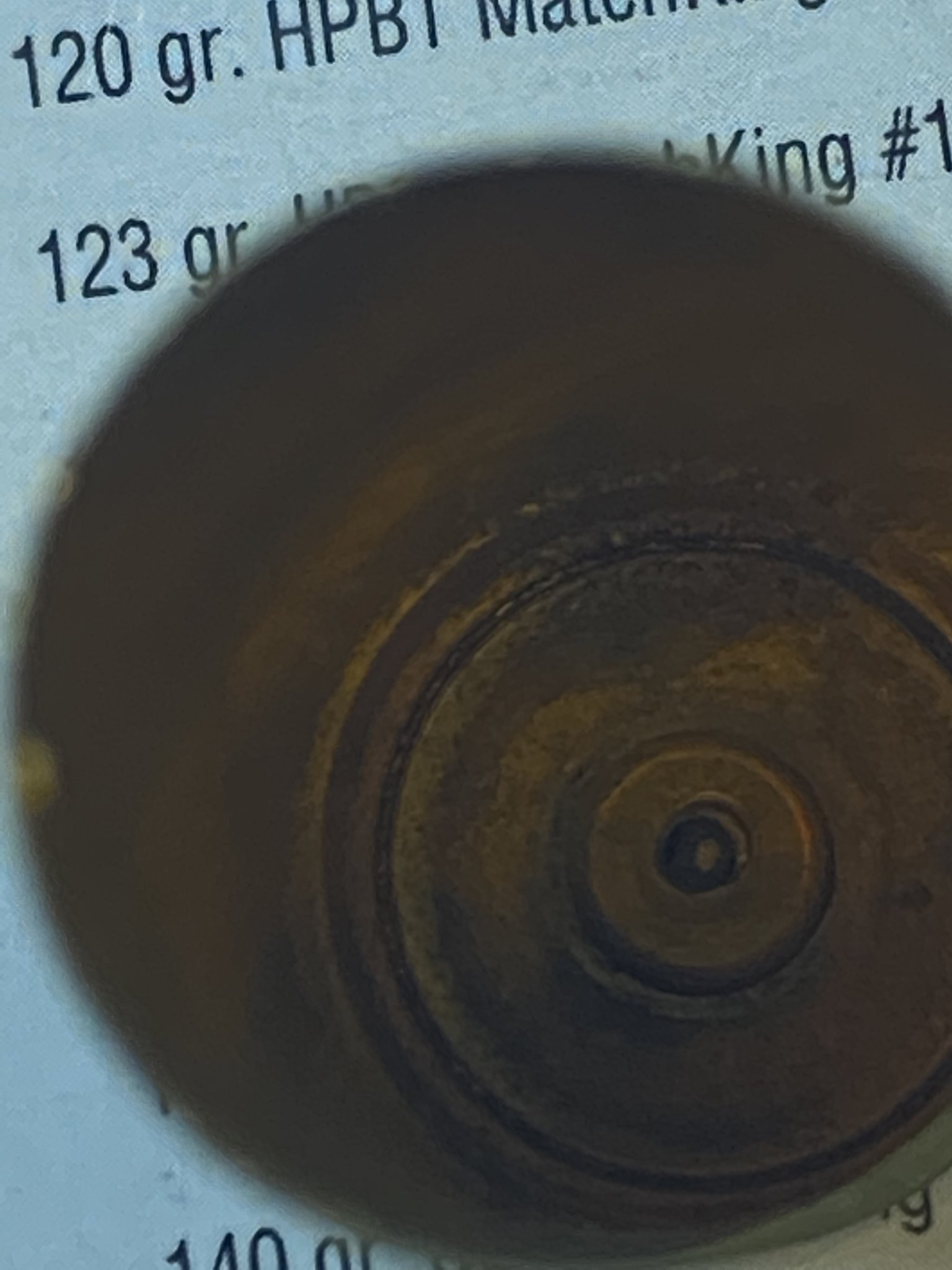

Note primer pocket isn’t much different from your brass above . Found this at a garage sale years ago.

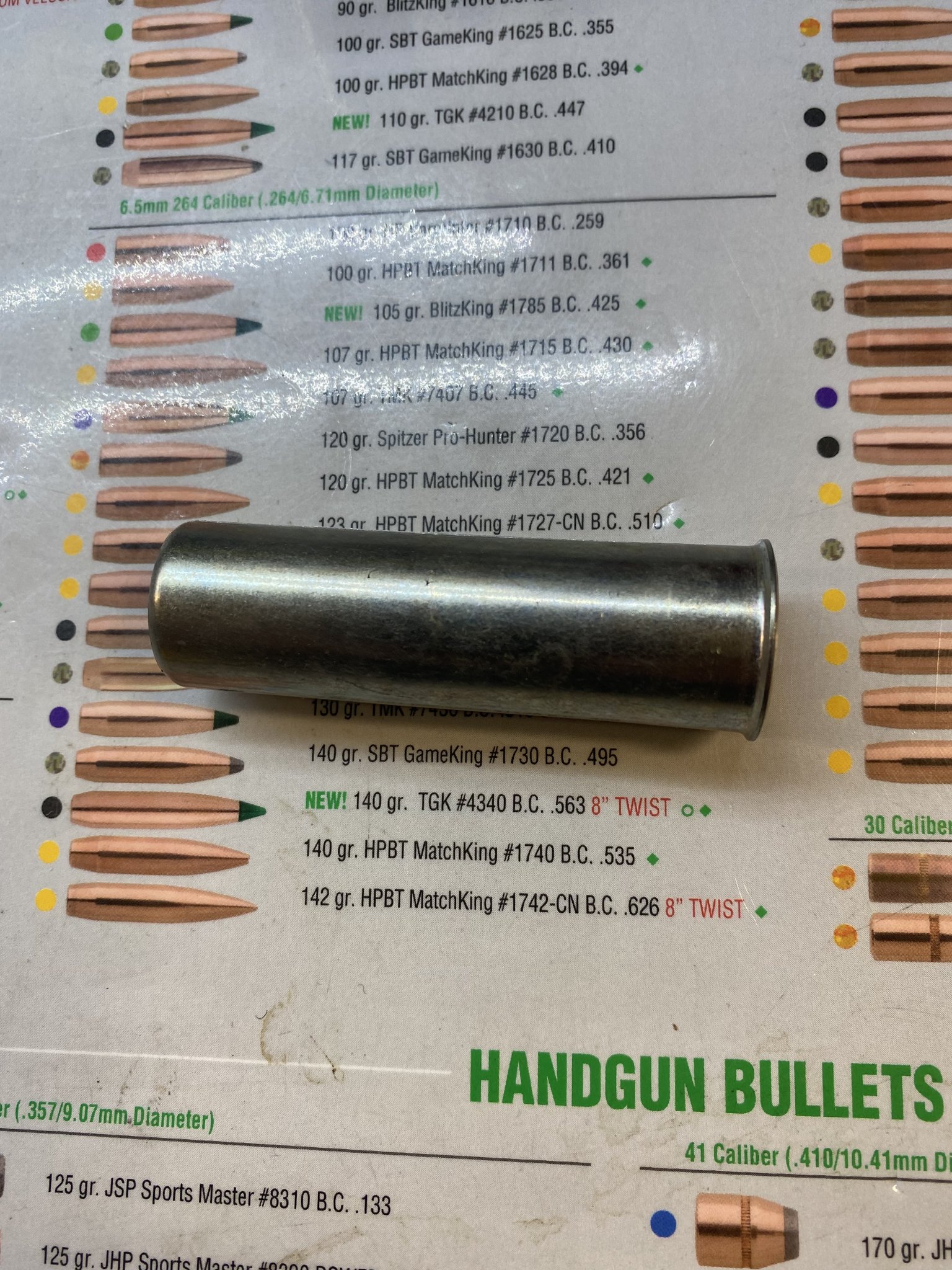

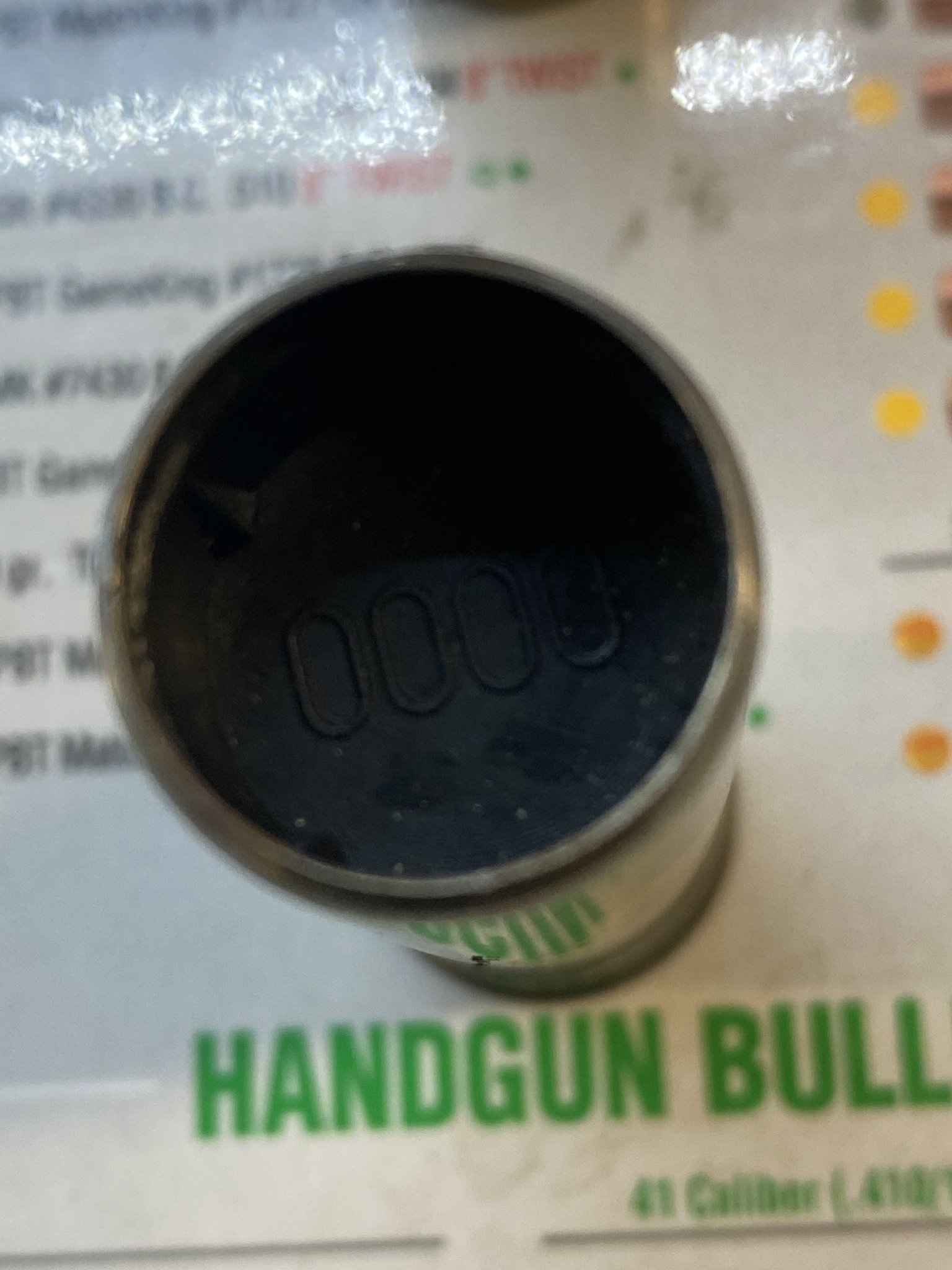

And then there’s Russian full steel case 12ga 0000 shot:



I don’t have any fired cases and I can’t remember how it’s primed. I’ve had this stuff for a long time. Probably came from Sportsman’s Guide or someplace else stupid. I remember it was cheap…

Last edited:
  • Like
Reactions: ZG47A
As always @sirhrmechanic , Interesting stuff. I thought I’d add this for you.
REM UMC BEST head stamped full brass 12ga round, unfired:

View attachment 7888714

View attachment 7888715

View attachment 7888716

Note primer pocket isn’t much different from your brass above . Found this at a garage sale years ago.

And then there’s Russian full steel case 12ga 0000 shot:

View attachment 7888717View attachment 7888718View attachment 7888719

I don’t have any fired cases and I can’t remember how it’s primed. I’ve had this stuff for a long time. Probably came from Sportsman’s Guide or someplace else stupid. I remember it was cheap…
Very cool! That Remington is an old balloon head BP shell. I have an old Parker one, too.

Not good for smokeless… without a base!

Which has been the point of this oddball little exercise!

Sirhr

  • Like
Reactions: VSP968
So supplemented the 12 gauges with about 100 16 gauges for a hammer gun... I wanted to make some 'snake shot' loads for my Colt SAA's. Apparently, you can't buy the old CCI shot capsules any more (only loaded rounds for stupid money). And the 'vintage' ones sellng on occasion on Gunbroker are priced stupidlyer.

Do we let that stop us here in Vintage? Well hell no! We come up with a way to make our own shot cartridges in the 'old' method. All brass.

In this case, (see what I did there?) I am using .45 Long Colt. Pretty generic. Plus I have a really crappy modern .45 LC SAA that I can test loads in and if it blows up, I don't mind much. (It didn't.)

Started with Starline .444 Marlin cases which have 'mostly' the same dimensions as the .45 LC. They make a good donor cartridge. Picked up a couple of hundred from Starline. First job was to trim all the casings to 1.625" length, which puts the finished cartridge well into the forcing cone of the cylinder chambers.

Then found a punch in my collection that I can use to make over-shot wads (cardboard) and over powder wads from 3/16 fiber.

Here's some photos... and as this is a pretty simple and foolproof round, I don't mind sharing the 'recipe' in case anyone wants to make them!!!

colt 5.jpg

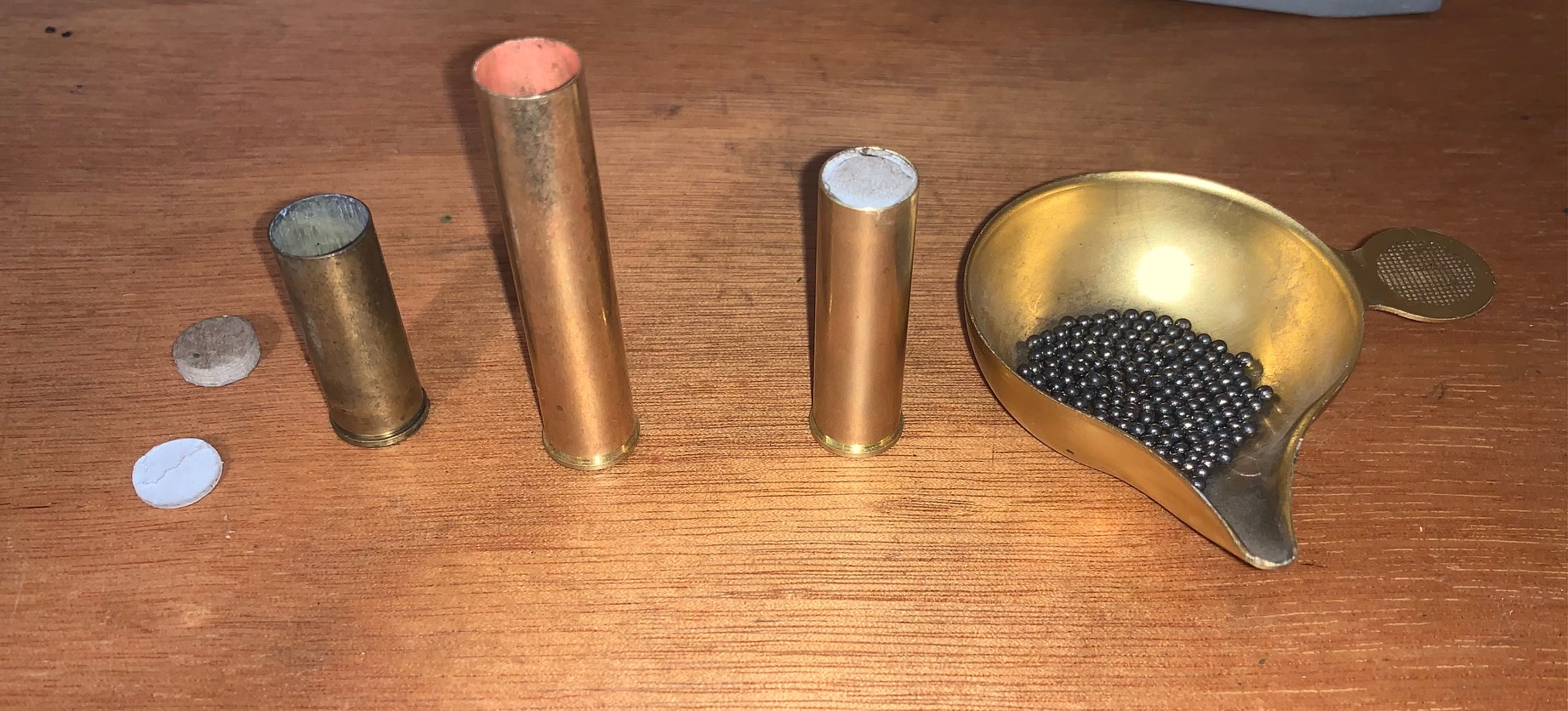

Left to right.... over shot and over powder wads. Standard .45 L.C. Case. .444 Marlin 'donor' case. .444 Marlin case cut down on a lathe to 1.625" OAL which puts it about .050" below the face of the cylinder. This actually puts it in the 'forcing cone' of the cylinder and so the fireformed round has a slight neck. See below. Last is 200 grains of number 8 shot. Which is a nice load. Not quite a full .410. But a pretty decent load for a shot cartridge.

colt 2.jpg

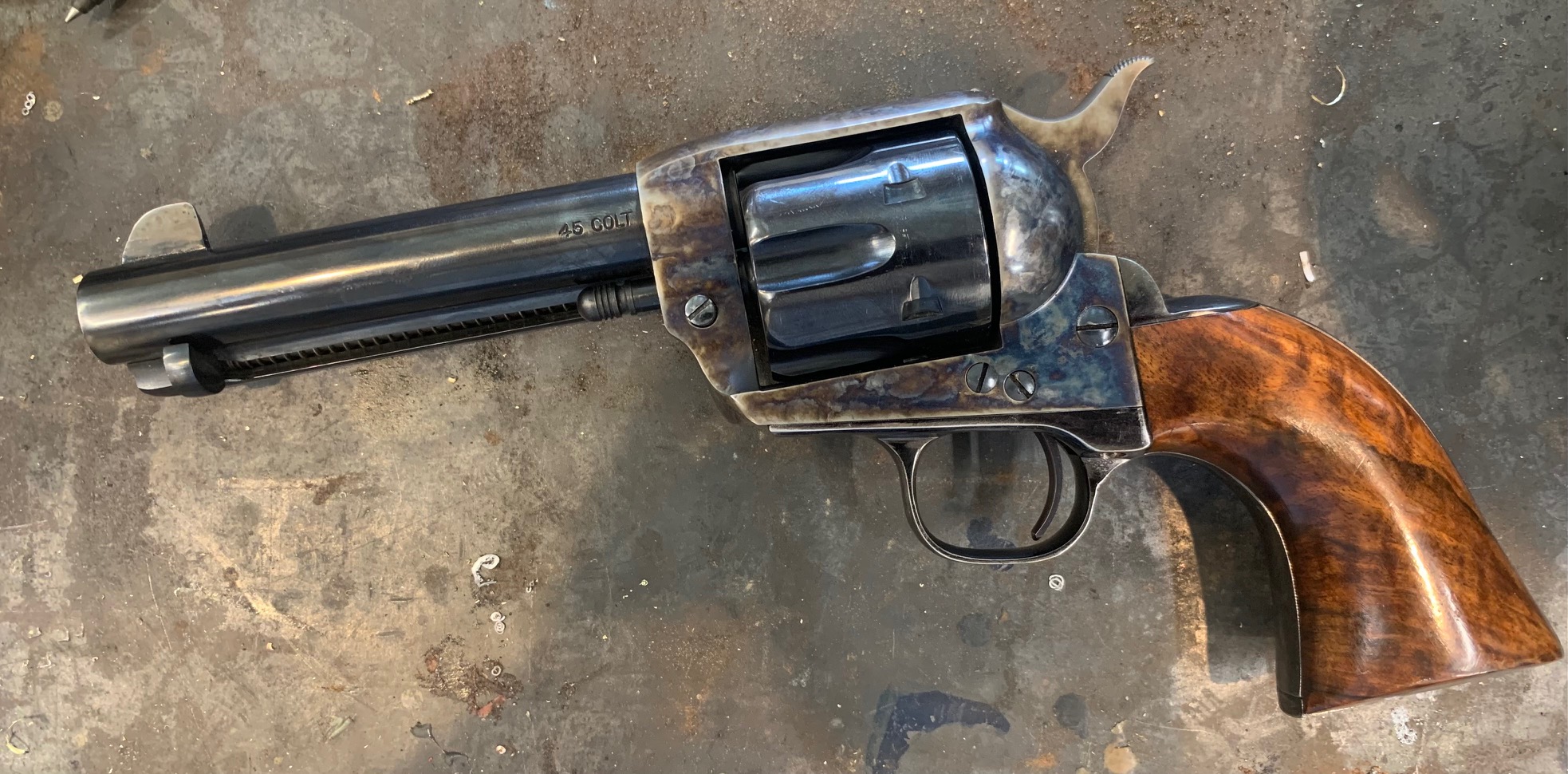

Test revolver... kind of a POS. Forgot who made it. But they used their toes in lieu of a bench vice. I need to take it apart because it jams all the time. Something is FUBAR with the hand. But it is ok for a test.

Load is Large Pistol Primer. 5.0 Grains of Bullseye. Over-powder fiber wad 3/16" thick. Over that is 200 grains of number 8 shot. And a cardboard wad crimped fairly aggressively with a bit of white glue added at the end to keep the card in place. Low recoil. No pressure signs. Here is the pattern at about 12 feet. Note the 'strike' from the over-powder wad. It was moving! For shooting snakes, rats, etc. it will do a perfect job!


colt 4.jpg

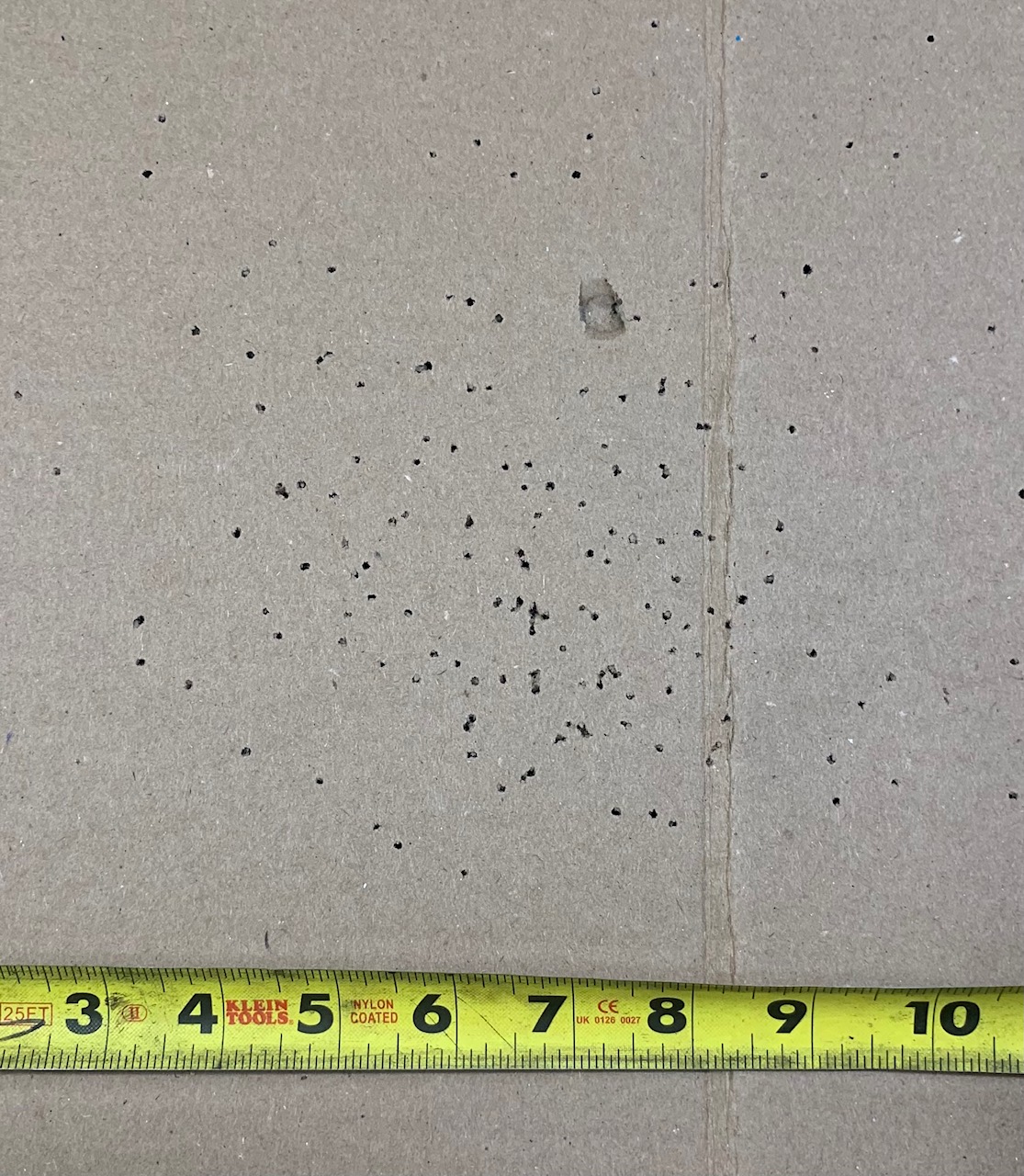

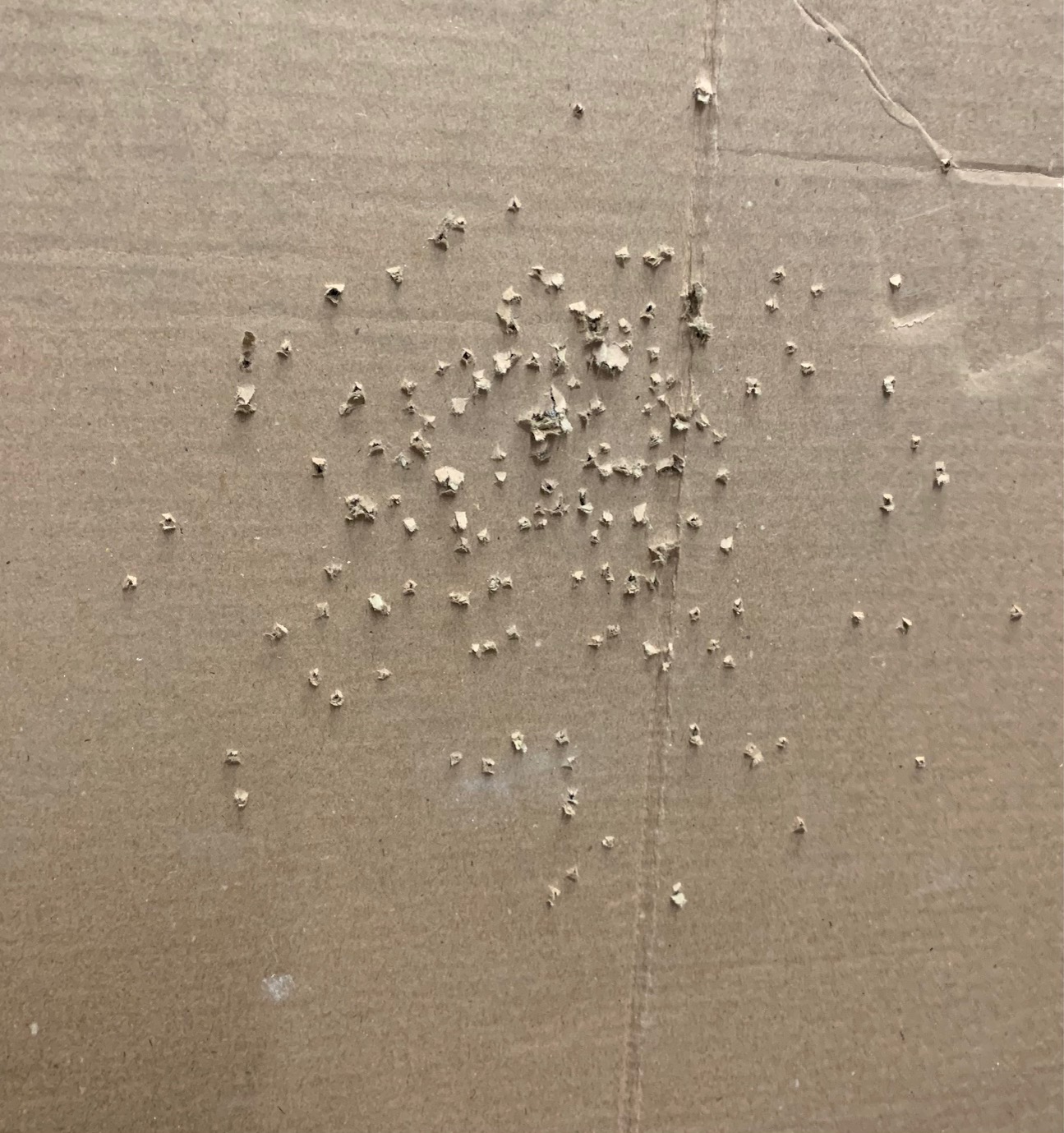

Back of the cardboard. Lots of energy in those little pellets at 12 feet! That's two layers of cardboard, BTW.
colt 3.jpg

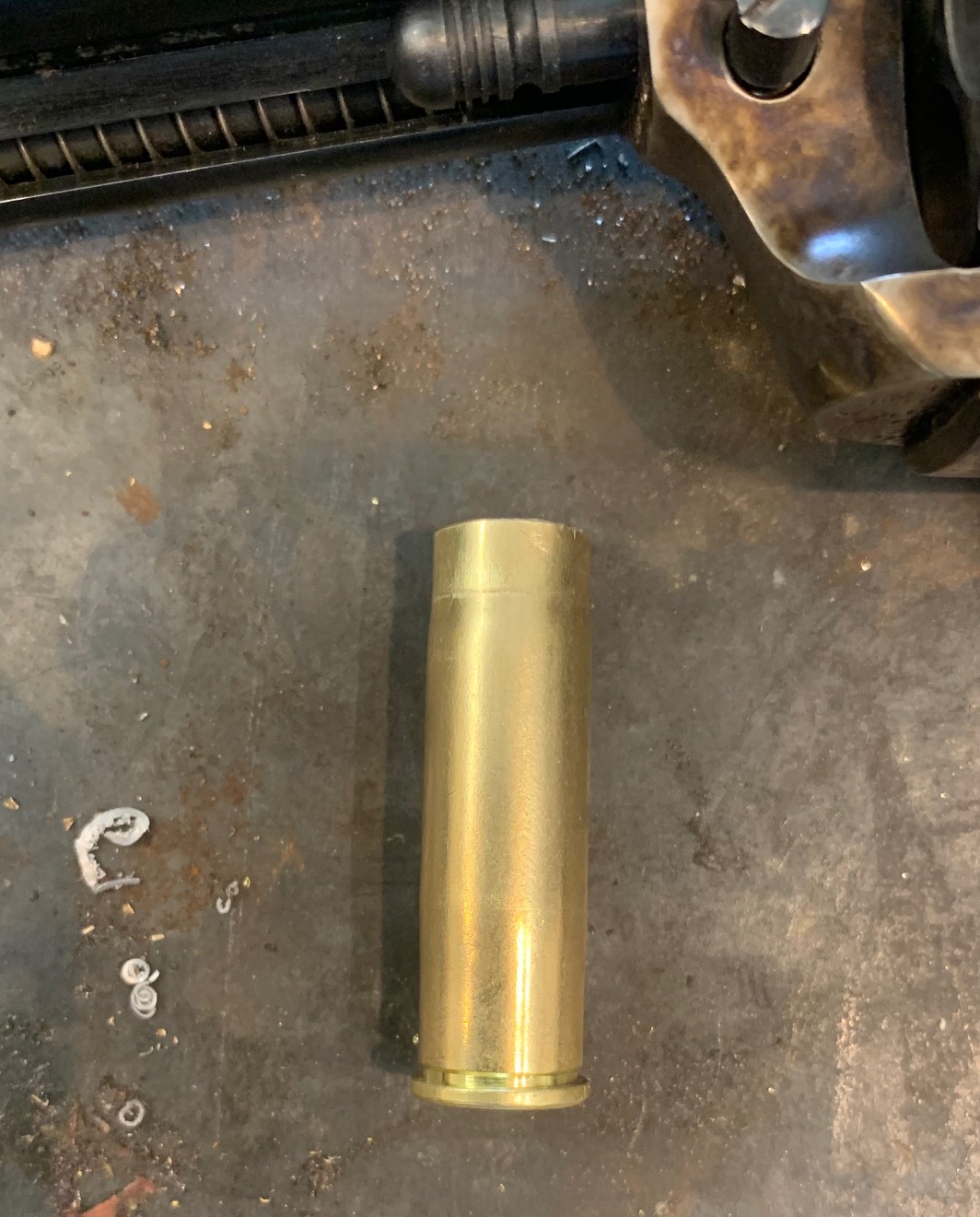

After fire forming, you can see that the case has a slight neck in it. Will 'probably take a little more shot and there is both a bit more room in the case after fire-forming... and plenty of margin in the Powder Charge for a bit more shot weight. I suspect it will end up at about 210 grains of shot after fire-forming some rounds. But the Bullseye Powder charge is 0.9 grains under a 'middle' charge for a 200 grain semi-wadcutter lead. So there is plenty of room for a few more pellets. Over-shot wad is held in with a bit of white glue, mainly to keep recoil from dislodging the 'other' cards in the chamber.

colt 1.jpg



Anyway, I wish that CCI would fire up its plastic extrusion line and get us some shot cartridges back. They are useful for all kinds of things. Snakes, Rats, Dragonflies buzzing the tractor for cheap practice...

Fun in the loading room today. It's too goddamned hot out to shoot. Might as well create a cool shot load.

Cheers,

Sirhr

Last edited:
That's really cool!

What happens if you take a 2 3/4" plastic shell and cut it down to load for the 2 1/2" chamber? Will that not work?
Great thought... and something I considered.

The problem is that you are not removing much from the plastic shell. And so you end up with this readlly FUBAR crimp. If you could still get paper shells, it would be no problem, because it uses a roll crimp and a top card. But with the modern plastic 'star crimp' you can' take a bit off the top and then re-star-crimp. At least not without some spendy equipment to put in a 'new' star crimp!

Cheers,

Sirhr

So supplemented the 12 gauges with about 100 16 gauges for a hammer gun... I wanted to make some 'snake shot' loads for my Colt SAA's. Apparently, you can't buy the old CCI shot capsules any more (only loaded rounds for stupid money). And the 'vintage' ones sellng on occasion on Gunbroker are priced stupidlyer.

Do we let that stop us here in Vintage? Well hell no! We come up with a way to make our own shot cartridges in the 'old' method. All brass.

In this case, (see what I did there?) I am using .45 Long Colt. Pretty generic. Plus I have a really crappy modern .45 LC SAA that I can test loads in and if it blows up, I don't mind much. (It didn't.)

Started with Starline .444 Marlin cases which have 'mostly' the same dimensions as the .45 LC. They make a good donor cartridge. Picked up a couple of hundred from Starline. First job was to trim all the casings to 1.625" length, which puts the finished cartridge well into the forcing cone of the cylinder chambers.

Then found a punch in my collection that I can use to make over-shot wads (cardboard) and over powder wads from 3/16 fiber.

Here's some photos... and as this is a pretty simple and foolproof round, I don't mind sharing the 'recipe' in case anyone wants to make them!!!

View attachment 7918781
Left to right.... over shot and over powder wads. Standard .45 L.C. Case. .444 Marlin 'donor' case. .444 Marlin case cut down on a lathe to 1.625" OAL which puts it about .050" below the face of the cylinder. This actually puts it in the 'forcing cone' of the cylinder and so the fireformed round has a slight neck. See below. Last is 200 grains of number 8 shot. Which is a nice load. Not quite a full .410. But a pretty decent load for a shot cartridge.

View attachment 7918778

Test revolver... kind of a POS. Forgot who made it. But they used their toes in lieu of a bench vice. I need to take it apart because it jams all the time. Something is FUBAR with the hand. But it is ok for a test.

Load is Large Pistol Primer. 5.0 Grains of Bullseye. Over-powder fiber wad 3/16" thick. Over that is 200 grains of number 8 shot. And a cardboard wad crimped fairly aggressively with a bit of white glue added at the end to keep the card in place. Low recoil. No pressure signs. Here is the pattern at about 12 feet. Note the 'strike' from the over-powder wad. It was moving! For shooting snakes, rats, etc. it will do a perfect job!


View attachment 7918780

Back of the cardboard. Lots of energy in those little pellets at 12 feet! That's two layers of cardboard, BTW.
View attachment 7918779

After fire forming, you can see that the case has a slight neck in it. Will 'probably take a little more shot and there is both a bit more room in the case after fire-forming... and plenty of margin in the Powder Charge for a bit more shot weight. I suspect it will end up at about 210 grains of shot after fire-forming some rounds. But the Bullseye Powder charge is 0.9 grains under a 'middle' charge for a 200 grain semi-wadcutter lead. So there is plenty of room for a few more pellets. Over-shot wad is held in with a bit of white glue, mainly to keep recoil from dislodging the 'other' cards in the chamber.

View attachment 7918777


Anyway, I wish that CCI would fire up its plastic extrusion line and get us some shot cartridges back. They are useful for all kinds of things. Snakes, Rats, Dragonflies buzzing the tractor for cheap practice...

Fun in the loading room today. It's too goddamned hot out to shoot. Might as well create a cool shot load.

Cheers,

Sirhr
Mike Venturino wrote an extensive article on shot rounds in 45lc. He was using 45 cal gas checks between powder and shot and also to contain the shot with a heavy roll crimp over them. Seems to work good.

  • Like
Reactions: sirhrmechanic
Mike Venturino wrote an extensive article on shot rounds in 45lc. He was using 45 cal gas checks between powder and shot and also to contain the shot with a heavy roll crimp over them. Seems to work good.
Interesting... I'd still rather use a fiber wad over the powder. But the gas check over the shot is an old and trusted way of making shot cartridges. If I had any gas checks handy ;-) That said, I might order some because they are more rugged and will store longer than cardboard wads.

Good tip!

Cheers,

Sirhr

  • Like
Reactions: Average guy
Interesting... I'd still rather use a fiber wad over the powder. But the gas check over the shot is an old and trusted way of making shot cartridges. If I had any gas checks handy ;-) That said, I might order some because they are more rugged and will store longer than cardboard wads.

Good tip!

Cheers,

Sirhr
I believe I read the article in handloader probably mid to late 2000’s. I always wanted to load some up, but never got around to doing it.

  • Like
Reactions: sirhrmechanic
Great thought... and something I considered.

The problem is that you are not removing much from the plastic shell. And so you end up with this readlly FUBAR crimp. If you could still get paper shells, it would be no problem, because it uses a roll crimp and a top card. But with the modern plastic 'star crimp' you can' take a bit off the top and then re-star-crimp. At least not without some spendy equipment to put in a 'new' star crimp!

Cheers,

Sirhr
Interesting. The reason that I ask is that years ago I had a customer that made a machine for Winchester to inspect their AA hulls before being loaded. He gave me a box of virgin hulls that had never been crimped and I took them home and ran them through my MEC.

They formed up pretty nicely from what I remember. There is the preform die that puts the folds in the hull and the the final die crimps it closed.

Interesting. The reason that I ask is that years ago I had a customer that made a machine for Winchester to inspect their AA hulls before being loaded. He gave me a box of virgin hulls that had never been crimped and I took them home and ran them through my MEC.

They formed up pretty nicely from what I remember. There is the preform die that puts the folds in the hull and the the final die crimps it closed.
I had a MEC years ago and gave it away when I stopped loading AA's. I don't remember... did they do 2.5" shells? Could you adjust them down?

And did you need 'virgin' hulls? What would happen if you used 2.75" hulls and tried to re-crimp?

Cheers,

Sirhr

Okay, this shows some promise-

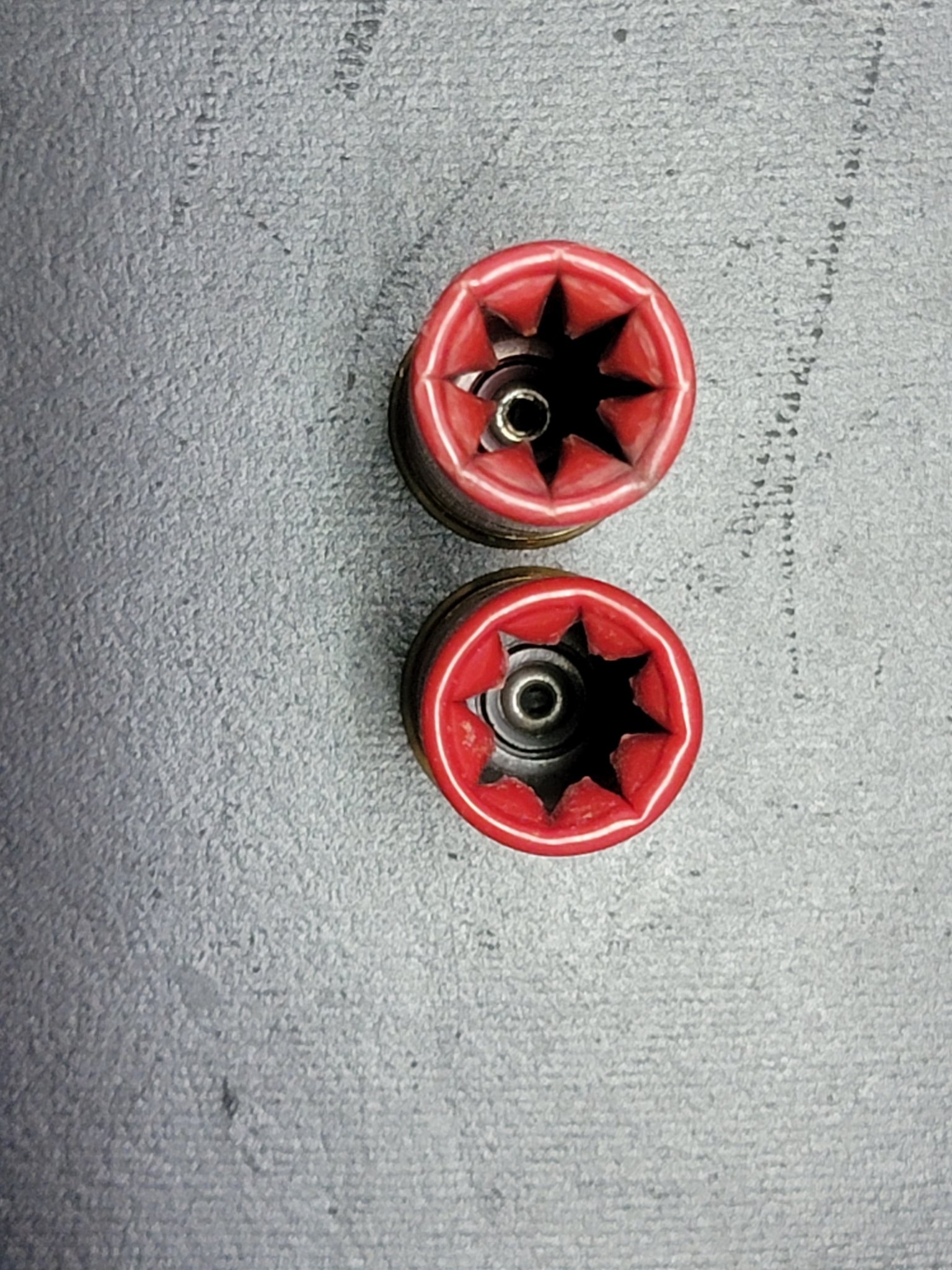

I took an empty uncut hull and ran it through to see what it would look like and then cut 1/4" off another, stack 1/4" of washers on the shellholder, and ran it through-



Bottom one is cut. Even when you cut off 1/4" off there is still some of the old fold remaining which looks like it helps.

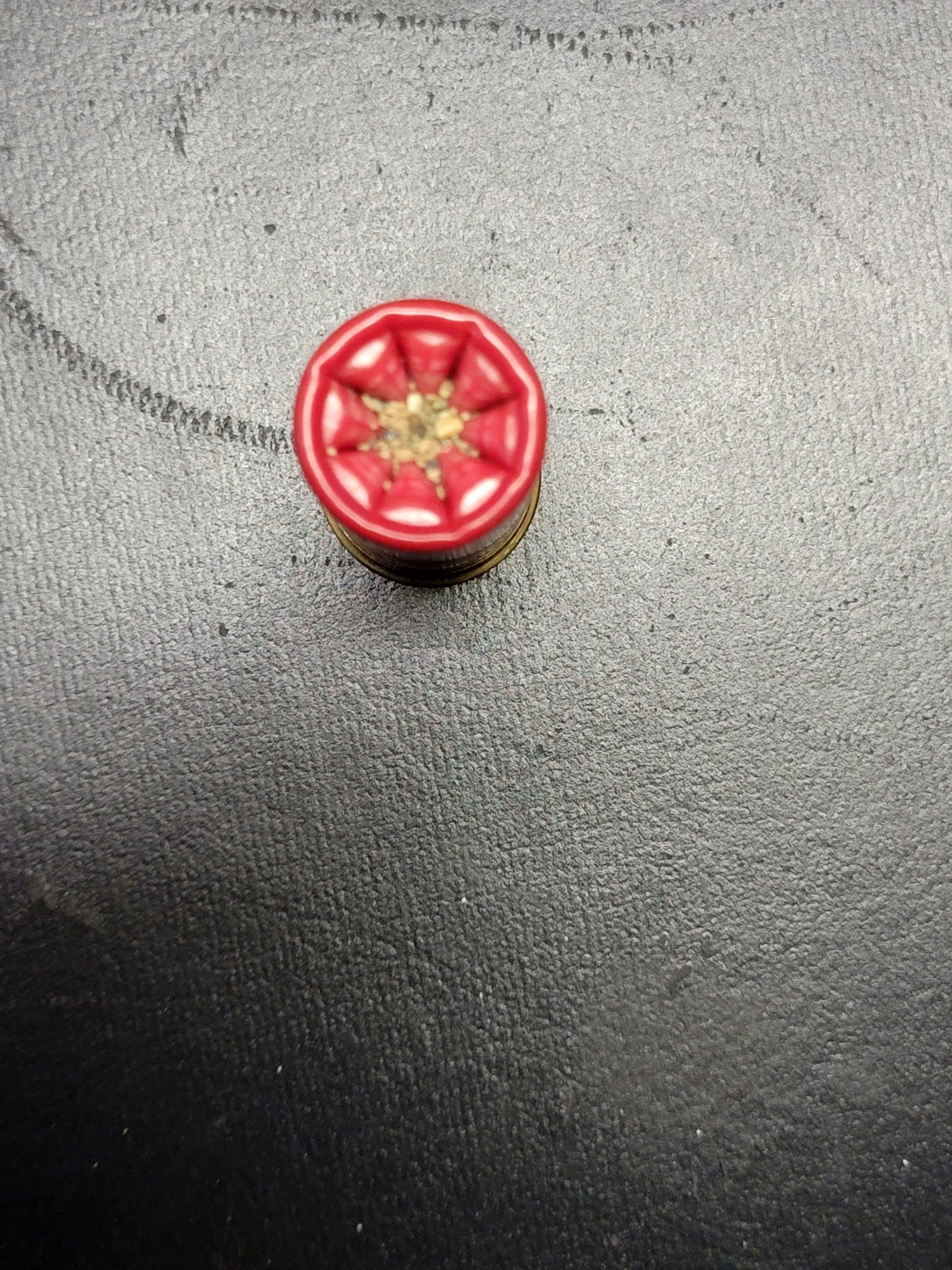

Next I tried a full size wad and used corn cob media as the powder and shot. It didn't come out perfect but as you probably know, reloading shotgun shells is just as much about dimensions of the internal components as it is the weight of them.


I think it shows promise if I messed around with the correct internals. I could shorten the petals on the wad as I think they were interfering with the primary crimp die. Hope that helps. I've got to get back to my other projects ..

  • Like
Reactions: sirhrmechanic
Okay, this shows some promise-

I took an empty uncut hull and ran it through to see what it would look like and then cut 1/4" off another, stack 1/4" of washers on the shellholder, and ran it through-

View attachment 7918915

Bottom one is cut. Even when you cut off 1/4" off there is still some of the old fold remaining which looks like it helps.

Next I tried a full size wad and used corn cob media as the powder and shot. It didn't come out perfect but as you probably know, reloading shotgun shells is just as much about dimensions of the internal components as it is the weight of them.
View attachment 7918943

I think it shows promise if I messed around with the correct internals. I could shorten the petals on the wad as I think they were interfering with the primary crimp die. Hope that helps. I've got to get back to my other projects ..
That shows great promise!!! Now if only I hadn’t given away my MEC!!!

Clearly, I need a bigger reloading room!

Sirhr

Nice work, Sirhr.

You need to call Buffalo Arms at 208 263 6953.

I started working there part time while going to school late last year. I was amazed for the first week at the amount of stuff they had.

They make new brass for almost anything you can think of, as well as loaded ammo for much of the obscure calibers.

I will be in Tuesday and Wednesday next week, so call and we can talk about reloading.


I passed up SO many guns in Afghanistan because I thought I couldn't get brass for them, only to see boxes of it on the shelves at BA right down the road from my house, lol.

  • Like
Reactions: camocorvette
