A Riddle Wrapped in an Action

[Lowlight]

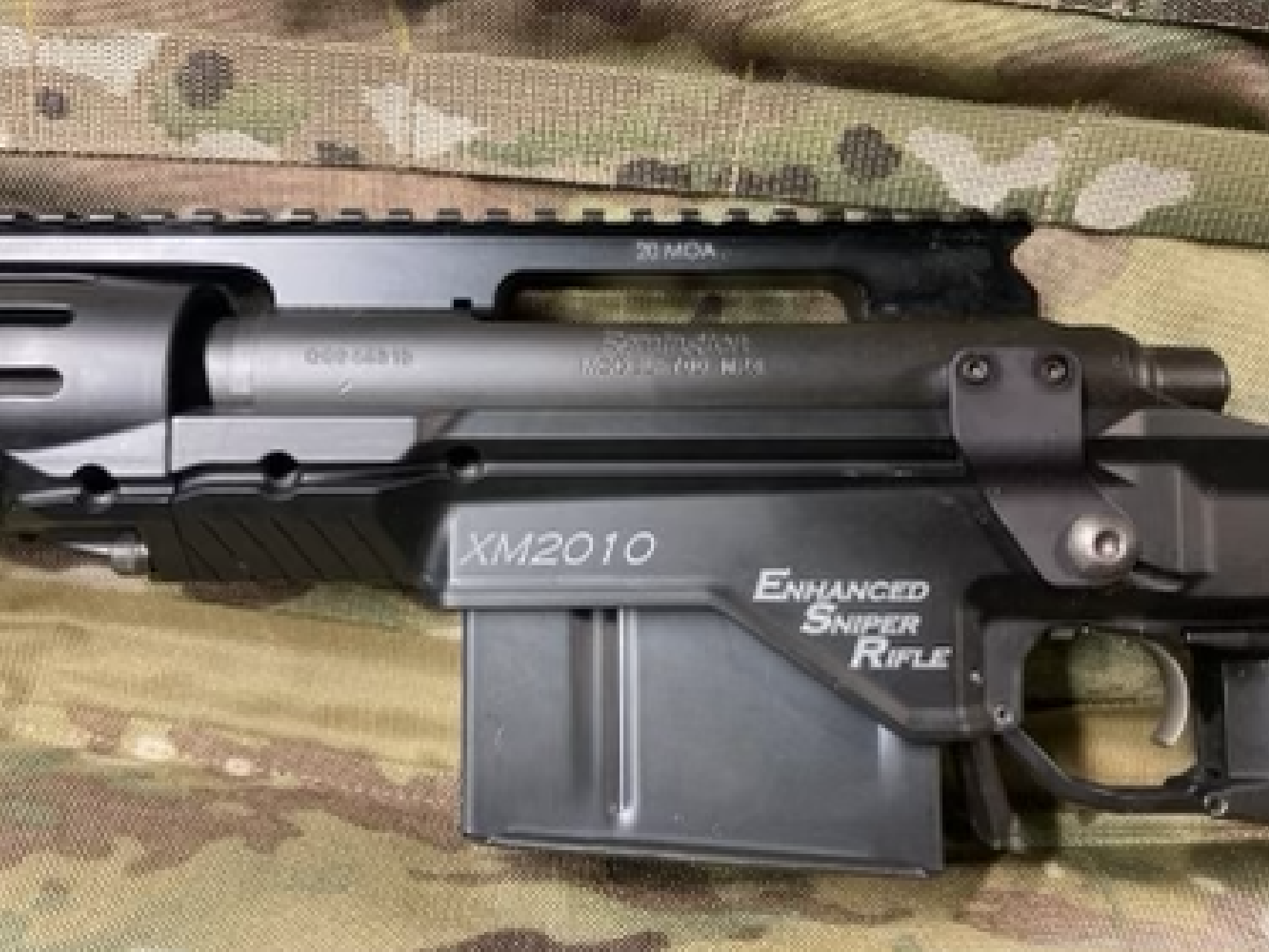

I got this image sent to me today,

That appears to be the rear sight holes they used to mount the action to the chassis externally

Anybody every see this and was it a way to prevent the action from loosening up in the Chassis ?



[Eric32]

I hope it's photo shopped.



[spife7980]

Thats a hurricane tie, its how they got the all weather certification



[Aftermath]

The 2 spots where a side bolt release would be cut in...are those screws or spot welds?



[fdkay]

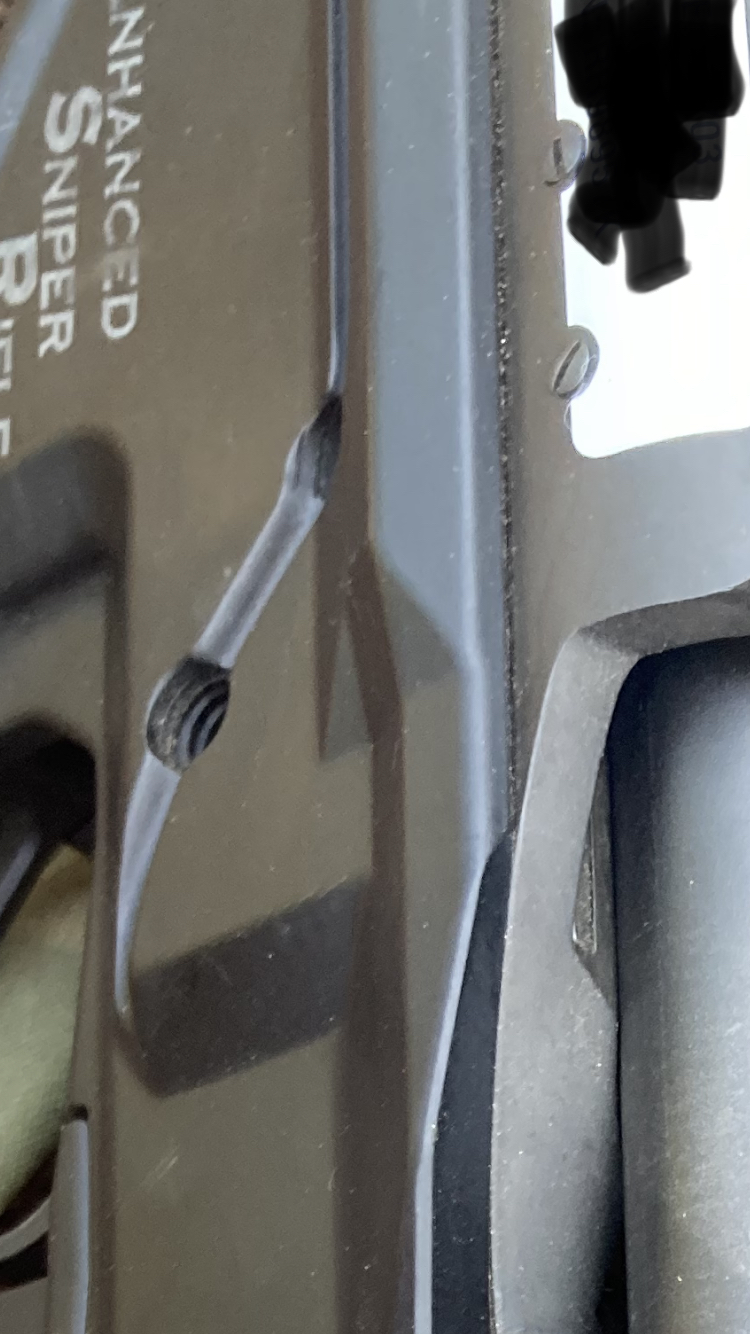

Don't see that fuckery here:



[fdkay]

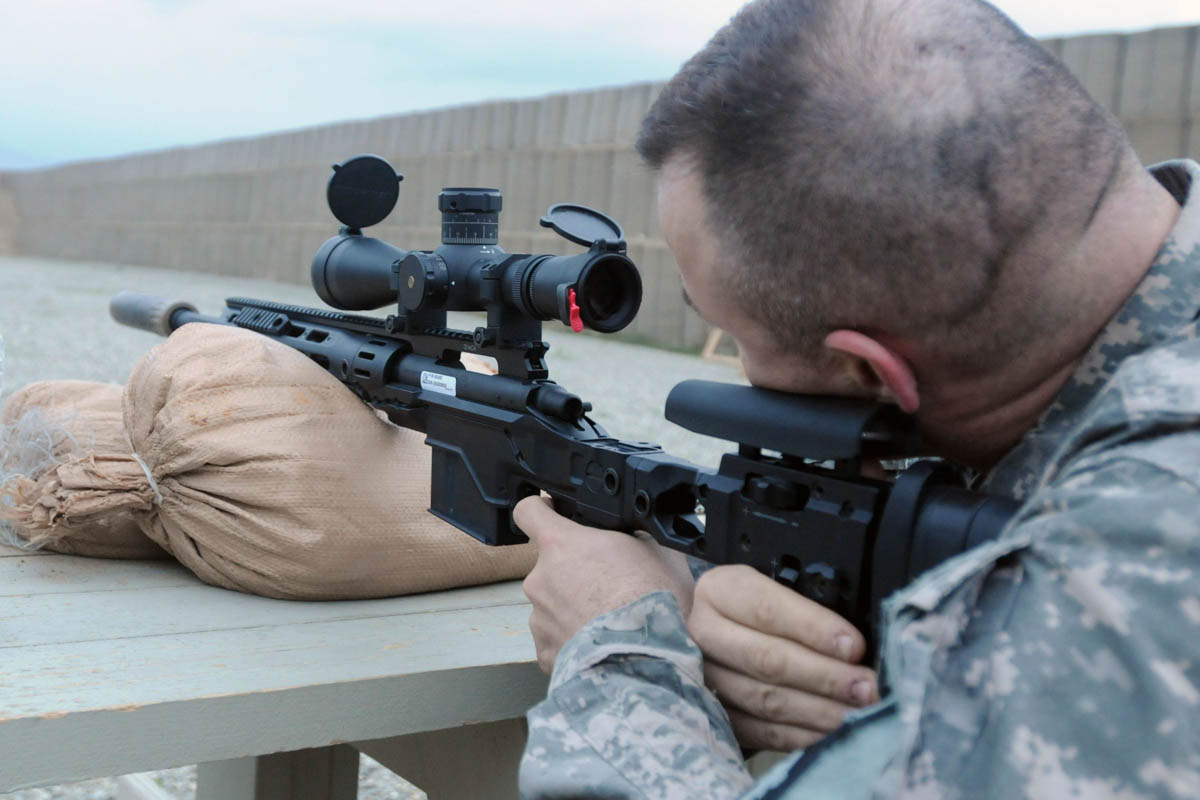

Or here:

First Remington XM2010 On Sale To Consumers -

Modern Pawn and Guns, Corpus Christi, Texas, are selling a Remington XM2010. It is a complete set include the Remington Arms Chassis System (RACS), Leupold MKIV ERT scope, AAC TiTan suppressor, Harris bipod and two cases (one hard, one soft). The suppressor means that it requires all the...

www.thefirearmblog.com



[JBoomhauer]

Or here… Not mine btw.



[Average guy]

I got this image sent to me today,

View attachment 8037538

That appears to be the rear sight holes they used to mount the action to the chassis externally

Anybody every see this and was it a way to prevent the action from loosening up in the Chassis ?

Maybe an early design that didn’t make The final edit



[BLEE]

Never seen that. Did they strip the receiver threads and ghetto fab that miscarriage of engineering to make up for it?



[Lowlight]

Not sure what is going on, just a giant What the fuck

Like I said I got the image forwarded to me asking if I ever saw it



[shlouf]

The 2 spots where a side bolt release would be cut in...are those screws or spot welds?

Screw holes in the receiver for iron sights
ETA: for the original m24 configuration



[n2ishun]

You can easily see in the other images how the threaded holes are there, they just don't have that funky block/thing.
Imma guess it was a after thought kind of thing that some random gunsmith added for some perceived issue ???
I can definitely see it adding some stiffness to the chassis mating....but....with bullet rotation torque at moment of firing the round ?????
Could it be an inertia dampener for that rotation ?



[Lowlight]

That was what we were thinking

The 2010 with the chassis had a reputation for coming loose, we were wonder if this was a civilian fix for a rifle that kept coming outta the chassis



[TicTacTex]

That bracket makes it shoot 1/4 minute all day.



[Im2bent]

That bracket makes it shoot 1/4 minute all day.

Not if you shoot a 20 round group....



[TicTacTex]

Not if you shoot a 20 round group....

If I do my part.



[FuhQ]

Being that it's a 700 action, the action screws are on the bottom of it. There's no view of the bottom of the rifle in question, so I'd assume the action screws are what's holding it into the chassis from the bottom. That strap on the side appears to be some sort of rigidity control to eliminate any type of flex in the action, or some type of SHTF setup to if the action screws worked loose, or maybe someone just made it and put it there to keep from having 3 open screw holes on the rifle? I would not assume that strap is the only thing mounting the action to the chassis.



[whatsupdoc]

That looks pointless, that is not going to hold squat if the action screws get loose.



[Rudy Gonsior]

I’ve never seen anything like this either. The original purpose of the treaded holes (in the chassis not the action) was to secure remote switches, so I’d suspect this is probably a one off solution.

Sometimes weird stuff gets fabricated in SOT shops in theater at the request of operators. It could help if we knew (at least roughly) who’s inquiring and where the rifle has be spending its vacation time.



[kc7pwx]

It's probably a new Comifornia compliance measure.



[Skunk]

Two in the Tang, One in the Thang!



[Mike Casselton]

@shlouf is correct.
Those holes in the side of the receiver are pretty normal on older 40x actions and they are for target peep sights



[Gtscotty]

Kinda looks like it was intended to control torque transfer to the chassis during recoil. Maybe bubba had an idea, or maybe bubba just doesn't like having threaded holes sitting empty on the side of his action/chassis.



[Mike Casselton]

Here's an image. Note the small mount block that the sight attaches to. It has the two screw holes in it.

Google Image Result for https://forum.accurateshooter.com/proxy.php?image=https%3A%2F%2Fencrypted-tbn0.gstatic.com%2Fimages%3Fq%3Dtbn%3AANd9GcSEvV9_DkUDROmag8iqFVgAGugCdXP29hrwMptP7GXfJGm39EKmYg%26s&hash=dd3f4b539b8753d7508b049fc91cc037



[Dstoenner]

Screw holes in the receiver for iron sights
ETA: for the original m24 configuration

Those holes were on the original 40x rimfire since the beginning and then carried over to the centerfire version

David



[Evolved_272]

That's piece of metal outside the reciever was a mount for a scope that was developed for that specific chassis....
