Aero m4E1 uppers/handguard

jLorenzo

Sergeant
Full Member
Minuteman
Feb 20, 2017
1,455
355
Anyone have experience with them? Seem more sturdy hand guard to upper fit wise. Thinking of getting one with the hand guard to put my white oak spr barrel onto. Currently on a PSA upper with PSA handguard that feels kind of light and flexy. Im paranoid about hand guard flex when shooting off a bipod even though I am cautious with the amount of load I use. Thoughts/experience with these uppers/hand guards?

I literally just got my 3rd set of these in today.

So here's some pics:



The above photo shows how the handguard interface is part of the upper. All forged as one piece. The pic below shows the barrel nut. The teeth protrude outwards towards the muzzle end, and they don't interfere with the gas tube.



The two pieces fit together nicely and are secured in place with 8 screws.



The rail blends well with the pic rail of the upper, and extends a little bit on each side of the upper for support against rotation.



I like designs like these for their added strength and features. Seekins, Larue, and many other companies have uppers similar to this. (But they usually cost a lot more $$$) Short of a monolithic, I think designs like these are the way to go.

Last edited:
I have put together three M4E1, and two M5E1 Aero sets. I think that they make a pretty good product. The Enhanced handguard is definitely a more robust design than the ATLAS handguards...but as much as I'm out banging around in the dark looking for hogs, I've yet to have an issue with the ATLAS.

The Enhanced is also a lot larger diameter, so you can run whatever gas block etc... under it. I actually prefer the thinner ATLAS.

  • Like
Reactions: Ravenworks
I literally just got my 3rd set of these in today.

So here's some pics:

View attachment 7670914

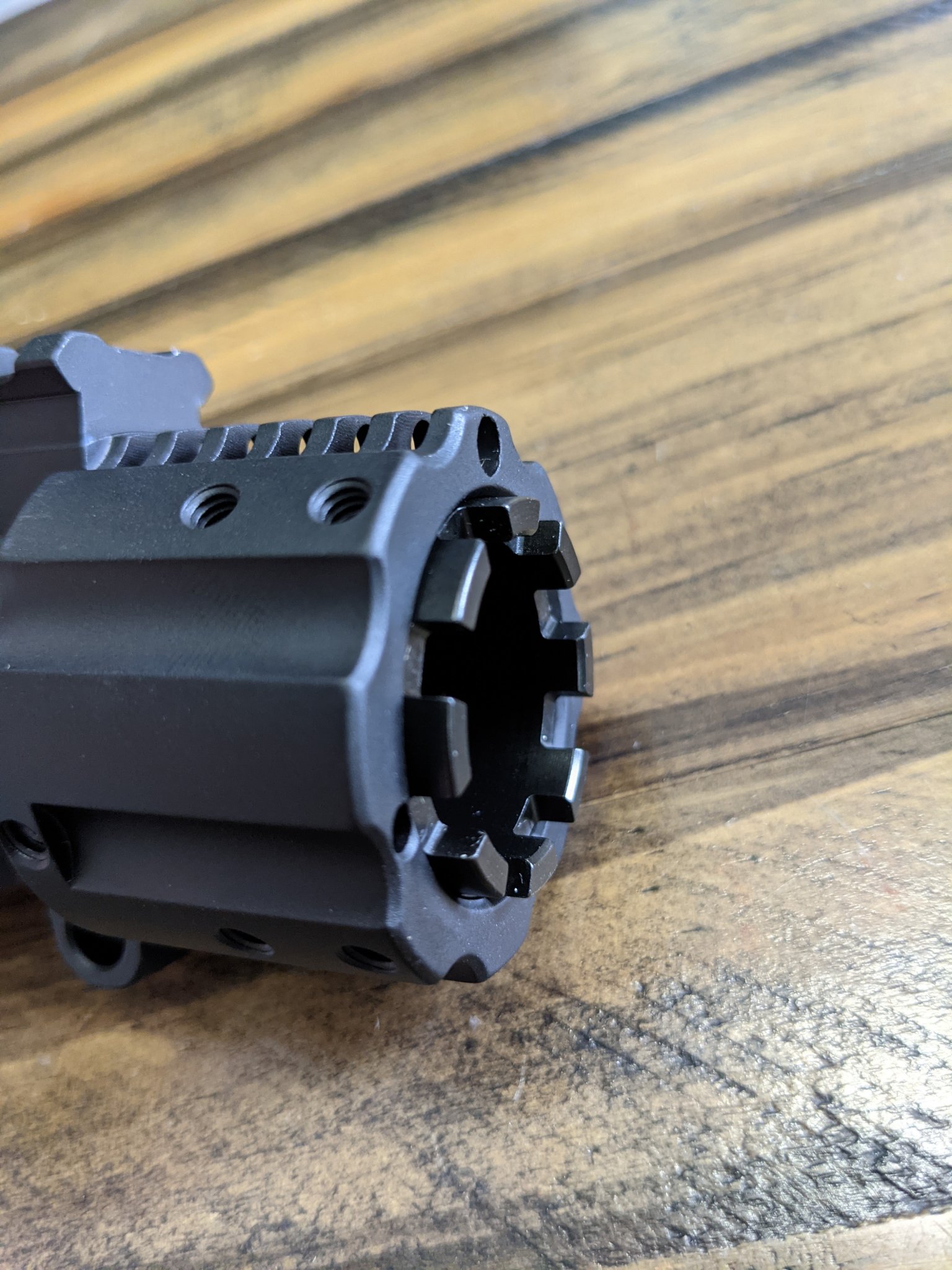

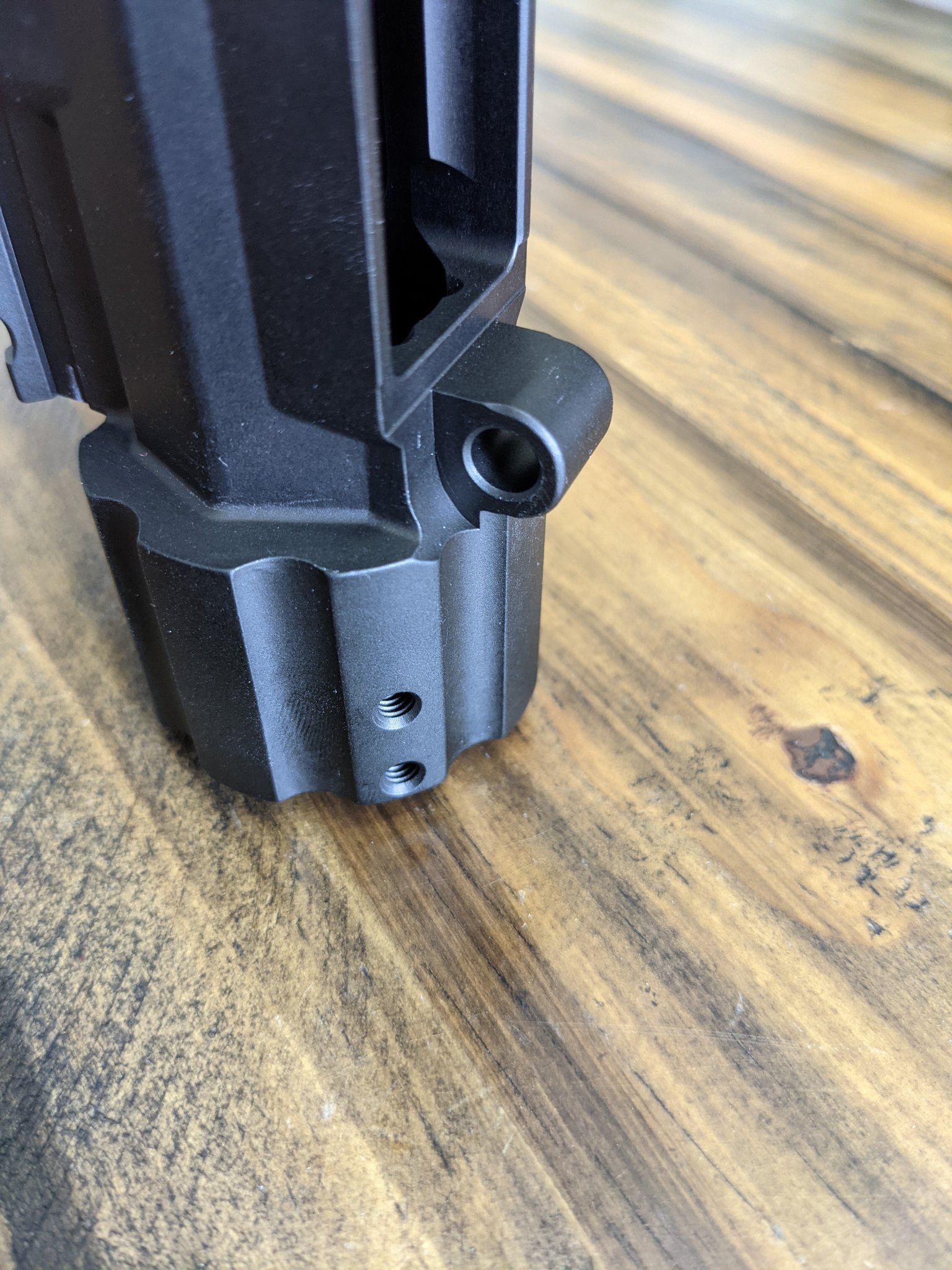

The above photo shows how the handguard interface is apart of the upper. All forged as one piece. The pic below shows the barrel nut. The teeth protrude outwards towards the muzzle end, and they don't interfere with the gas tube.

View attachment 7670918

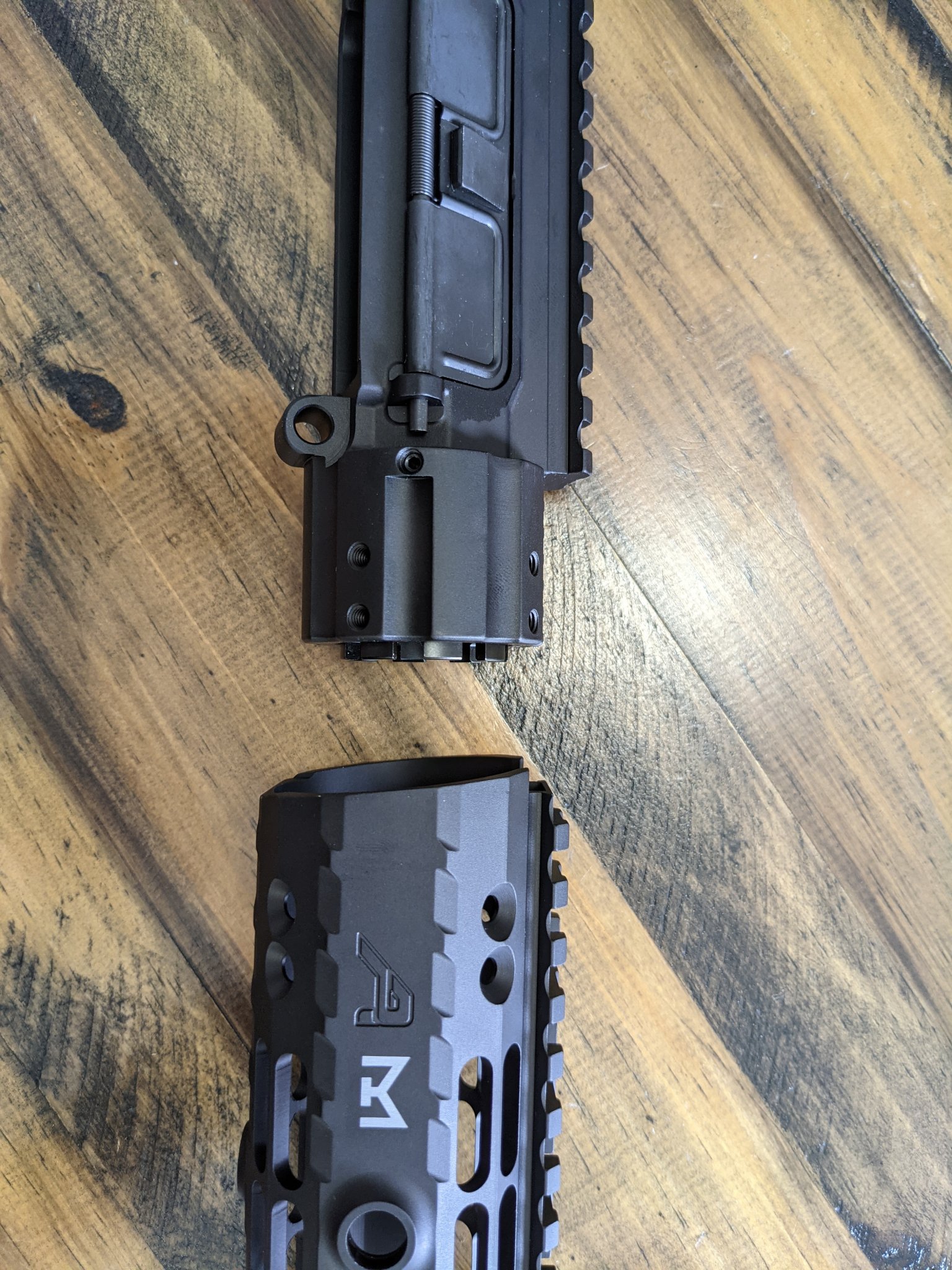

The two pieces fit together nicely and are secured in place with 8 screws.

View attachment 7670919

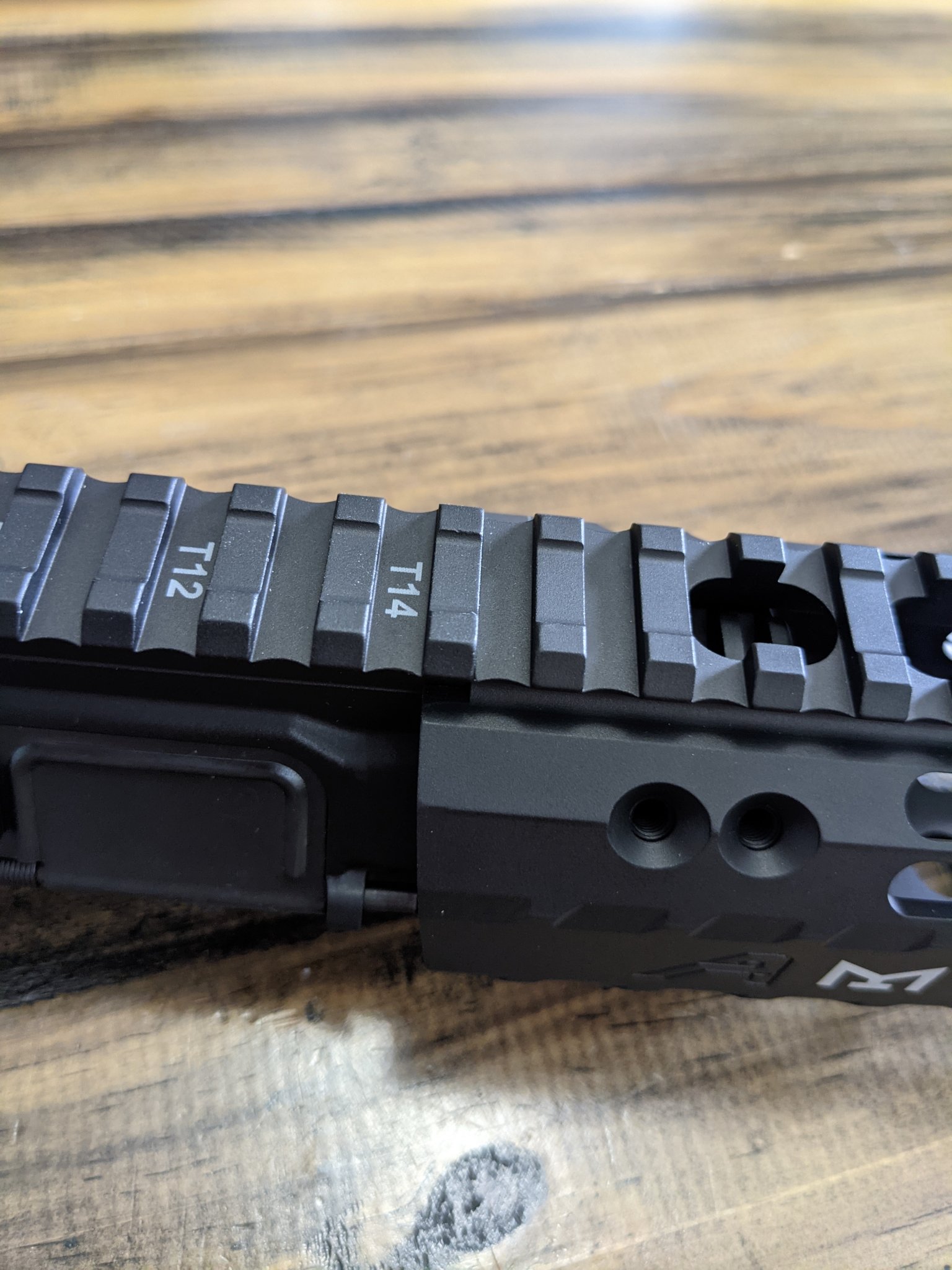

The rail blends well with the pic rail of the upper, and extends a little bit on each side of the upper for support against rotation.

View attachment 7670920

I like designs like these for their added strength and features. Seekins, Larue, and many other companies have uppers similar to this. (But they usually cost a lot more $$$) Short of a monolithic, I think designs like these are the way to go.
Thanks for the detailed pics. was looking for some like this.
