AI AXSR Barrel torque issue

[TacosGigante]

I can't get the quicklock screw to torque down to 49 in-lbs after I reinstalled my barrel. The barrel is screwed in all the way and does not seem to be twistable by hand but I can't get the screw to perceptibly tighten or trigger the torque wrench I am using. Any idea what the issue is?



[jbuck88]

Pictures? Can you feel it starting to grab?



[Jrb572]

Call Mile High and see if they want it sent in



[TacosGigante]

Pictures? Can you feel it starting to grab?

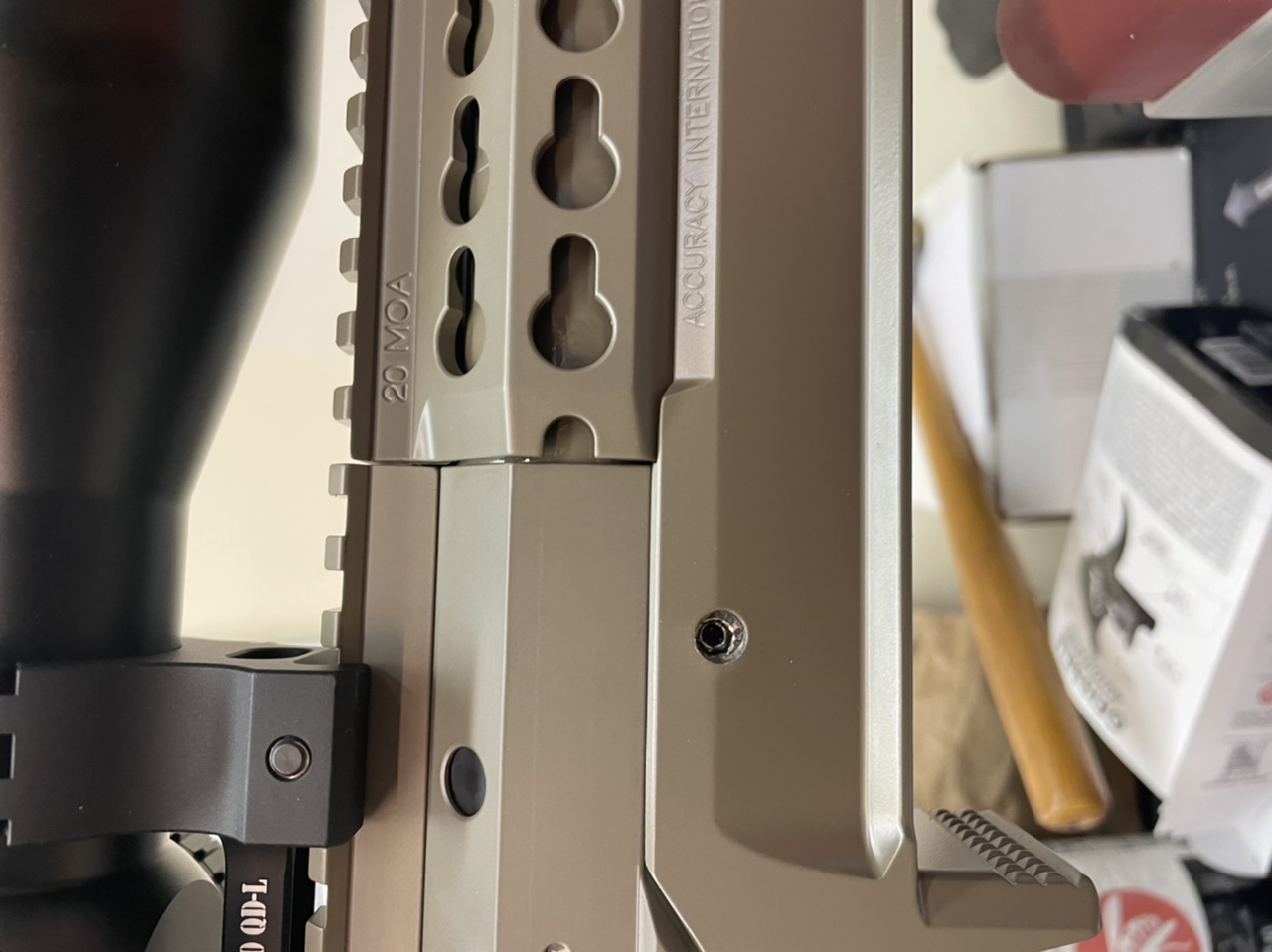

Here are some pics. The screw just spins. It feels a little tight and the driver ratchet will engage, then it will feel lose again. The barrel seems tight though.



[jbuck88]

Is the bolt head stripped? Looks rounded out.

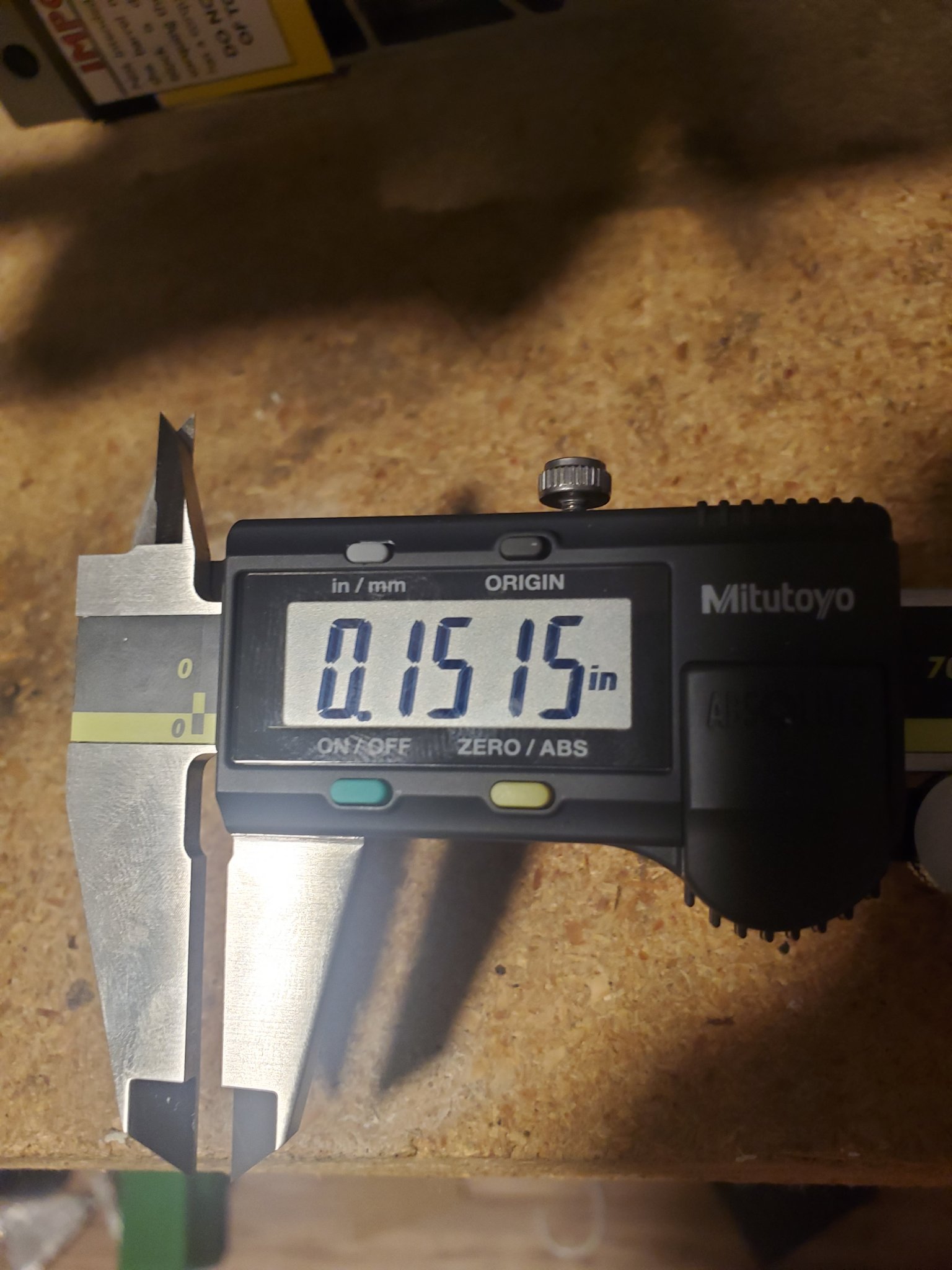

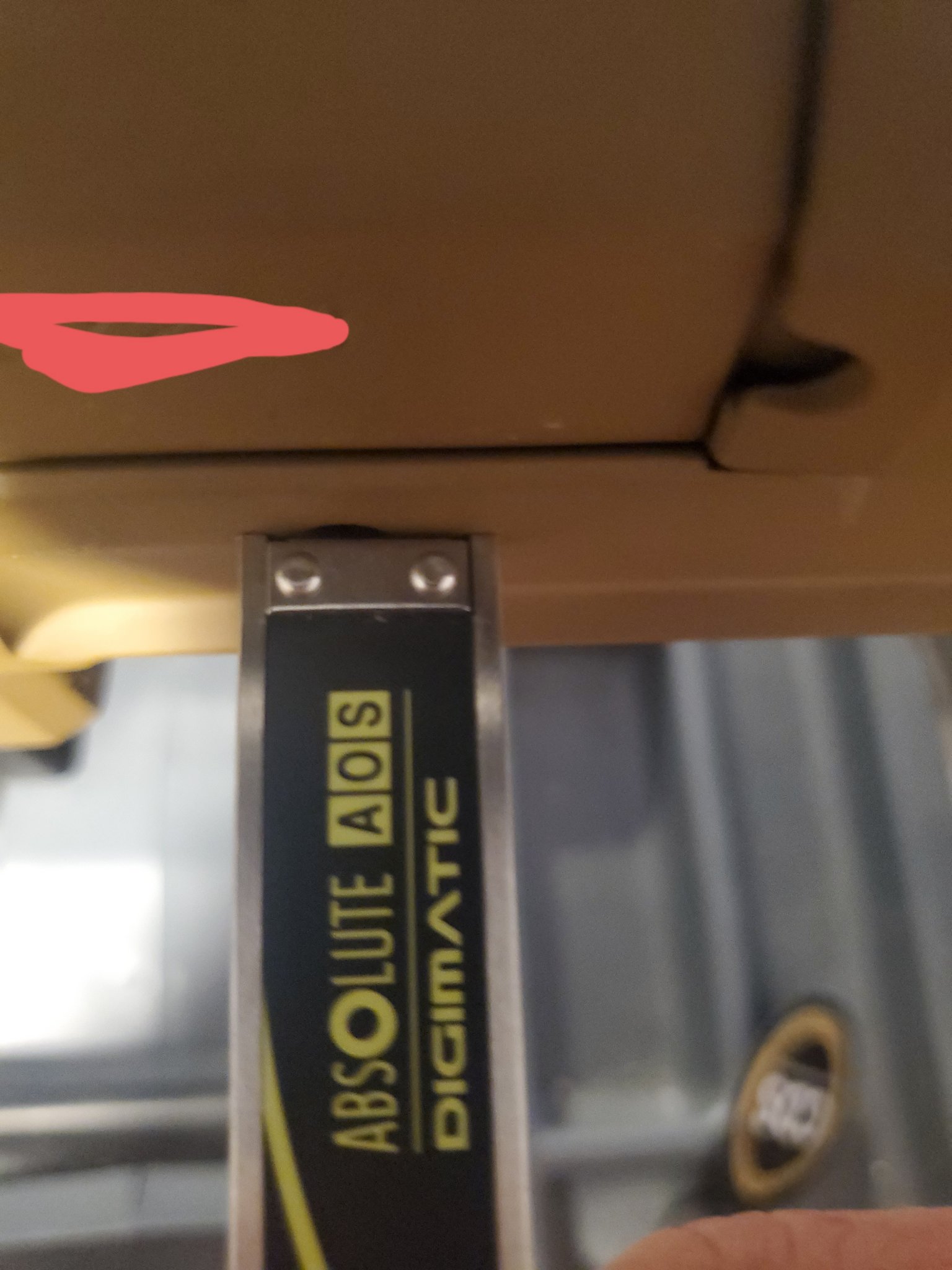

Otherwise the top surface of head on mine is counter sunk ~.1515"



[Eric32]

Unscrew the barrel and remove the washer and screw and take pictures also take pic of the inside of the action.



[hafejd30]

That looks rounded out. Can you see the bit slipping in the head when tightening?



[Huskydriver]

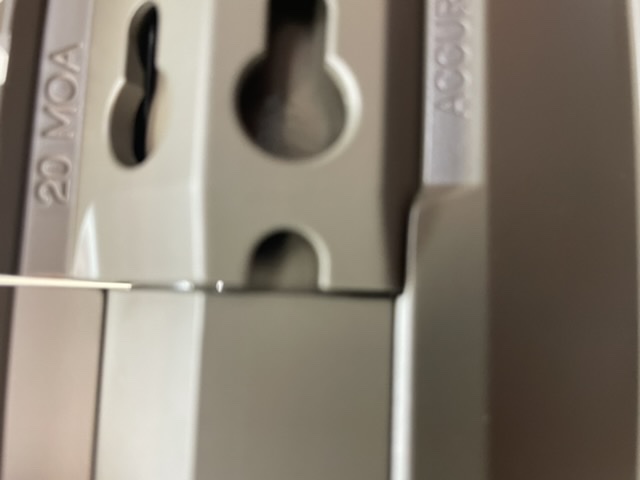

Here are some pics. The screw just spins. It feels a little tight and the driver ratchet will engage, then it will feel lose again. The barrel seems tight though.View attachment 7682727View attachment 7682728

Looks stripped as F...yea man I would ask mile high for a new quick loc screw.



[jbell]

Just remove the bolt and inspect it…



[samb300]

AXSR isn't bonded, just separate the action and chassis and inspect it (assuming it's not just a stripped screw).

If it's just the screw, you can likely get a new one from Ace Hardware while you wait for a "factory" replacement from Mile High.



[candyx]

If that screw head is that rounded out the threads might be stripped out as well.



[M4guru]

For next time... AI uses metric hardware...



[samb300]

For next time... AI uses metric hardware...

I'm pretty sure AXSR for the US market uses standard hardware, while the AX MKIII for the rest of the world is metric. Unsure of the QuickLoc screw though. All the other legacy rifles are metric.



[M4guru]

I'm pretty sure AXSR for the US market uses standard hardware, while the AX MKIII for the rest of the world is metric. Unsure of the QuickLoc screw though. All the other legacy rifles are metric.

Fair enough:

For next time...use the right tool



[M8541Reaper]

For next time... AI uses metric hardware...

That bolt head looks as worn out as a Dirtwood stripper at noon on a payday weekend.

OP buy a quality set of drivers.



[TacosGigante]

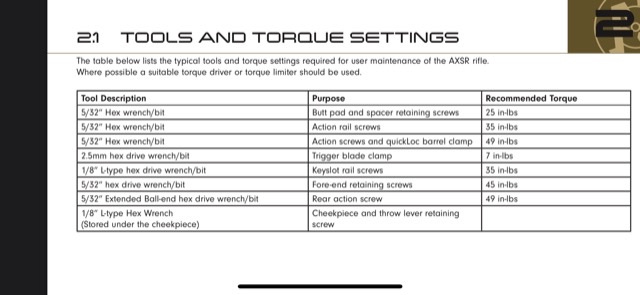

View attachment 7683043
That bolt head looks as worn out as a Dirtwood stripper at noon on a payday weekend.

OP buy a quality set of drivers.

I am using the size specified in the manual. This is the first time I have touched the quick lock.
