AI Delisle

[572]

I've gone down the rabbit hole on this one being stuck in the COVID Corrections Center. I've developed a dream/concept and I'm looking for input from the experts on feasibility which doesn't include potential cost. It is a good place to put the government stimulus check though. I hope this is the correct thread on the forums to post this.

1. Accuracy International rifles are the current tits!
2. The Delisle Carbine is the historic tits!
3. Making a modern day reproduction of the Delisle Carbine using the AI action re-barreled in .45ACP with a modified bolt length, the chassis modified to accept 1911 magazines, and a modified chopped chassis fore end for a 2" x 12" can with the AI BUIS would be tits!

Thoughts? (I have to wipe down my keyboard and wash my hands now)

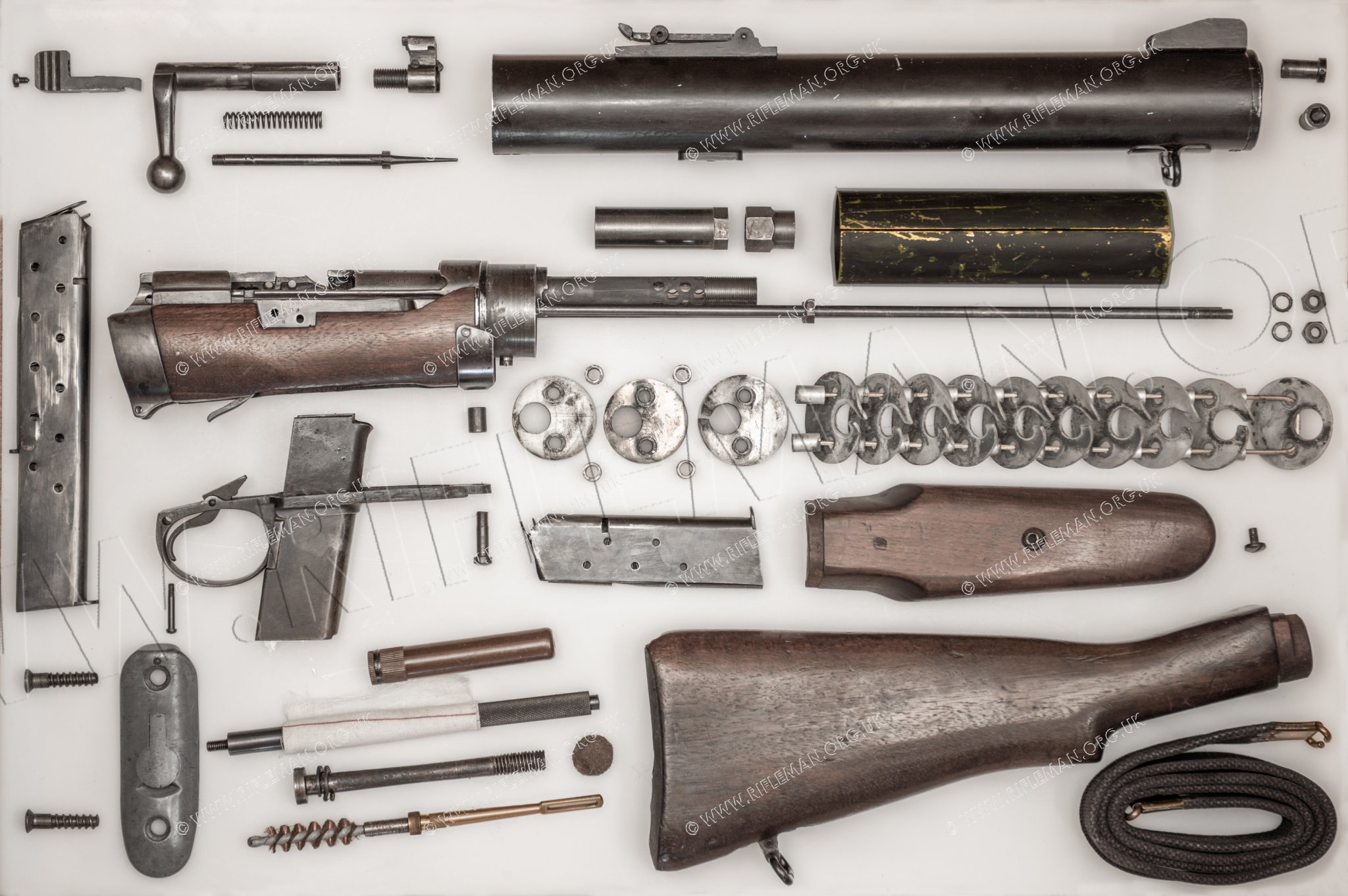

Images larcenied from the interwebs



[bachelorjack]

If only you could find a way to make it more heavy....



[572]

I assume the delisle is heavy, not familiar. Not familiar with the weight of AI's either.



[schmi015]

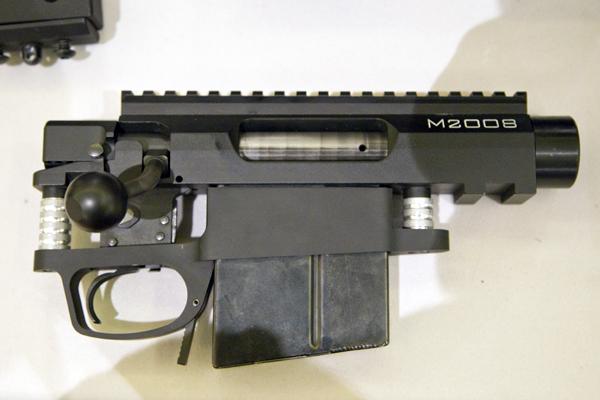

That photo on the right is a Badger Ordnance m2008 action. You might as well look for an AI Covert. But here is one better a truly modern take on the delisle. https://www.snipershide.com/shooting/threads/sold-9mm-cat-smasher.6941846/



[Lowlight]

My AI Covert,

What is really cool, now with the QuicLoc you can get it even smaller by removing the barrel. Great platform to play with



[Covertnoob5]

I've gone down the rabbit hole on this one being stuck in the COVID Corrections Center. I've developed a dream/concept and I'm looking for input from the experts on feasibility which doesn't include potential cost. It is a good place to put the government stimulus check though. I hope this is the correct thread on the forums to post this.

1. Accuracy International rifles are the current tits!
2. The Delisle Carbine is the historic tits!
3. Making a modern day reproduction of the Delisle Carbine using the AI action re-barreled in .45ACP with a modified bolt length, the chassis modified to accept 1911 magazines, and a modified chopped chassis fore end for a 2" x 12" can with the AI BUIS would be tits!

Thoughts? (I have to wipe down my keyboard and wash my hands now)

Images larcenied from the interwebs

Lol well seeing as how AI doesn’t sell just actions, you have to buy a rifle first. So cheapest would be a non folding AT probably from the PX. Then find someone to make a 1 off bottom metal, which could be Uber expensive. I think you’d run into some of the same issues that those of us who wanted an AI in a manners/foundation stock run into. Also, what about the bolt face?



[572]

Yeah it’s quite complicated. I know of one company that makes aftermarket AI receivers and bolts. It would be criminal to chop up a real one.

Problems;
The bolt length to engage the locking lugs and bolt travel relative to the position of the magazine to chamber the round from the mag to the chamber, the barrel/chamber depth in the receiver relative to a modified bolt length that will still engage the lugs, the receiver bottom lugs that mount to the chassis (can’t be cut into without some issues), proper bolt face for .45ACP, will the extractor hold the .45 shell, and will a .45 shell properly eject from the port, just to name a few issues.



[bachelorjack]

You're forgetting the problem of weight...



[Supersubes]

Yeah it’s quite complicated. I know of one company that makes aftermarket AI receivers and bolts. It would be criminal to chop up a real one.

Problems;
The bolt length to engage the locking lugs and bolt travel relative to the position of the magazine to chamber the round from the mag to the chamber, the barrel/chamber depth in the receiver relative to a modified bolt length that will still engage the lugs, the receiver bottom lugs that mount to the chassis (can’t be cut into without some issues), proper bolt face for .45ACP, will the extractor hold the .45 shell, and will a .45 shell properly eject from the port, just to name a few issues.

Not complicated, just ridiculous. Seriously, why? None of it makes any sense.



[bachelorjack]

The good idea fairy is all over this thread.

Please understand I personally have hunted and culled with a suppressed 45acp rifle of one type or another for over 10 years now...

So when I'm laughing, what does that tell you?



[Hoser]

A Deslisle clone would be awesome.

I knew of 2 places that were doing them. One companies didnt work. The other worked flawless, but it wasnt a true clone which isnt a biggie. He closed up shop 2 years ago I think.



[572]

It doesn’t make sense at all but it would be awesome. I can’t imagine it would eight more than my Ridgeback.



[572]

If I had a milling machine, a lathe, and the parts I’d say “hold my beer” and let you know if the results, but until then it’s still a cool idea. Someone with money might try it.



[schmi015]

Yeah it’s quite complicated. I know of one company that makes aftermarket AI receivers and bolts. It would be criminal to chop up a real one.

Problems;
The bolt length to engage the locking lugs and bolt travel relative to the position of the magazine to chamber the round from the mag to the chamber, the barrel/chamber depth in the receiver relative to a modified bolt length that will still engage the lugs, the receiver bottom lugs that mount to the chassis (can’t be cut into without some issues), proper bolt face for .45ACP, will the extractor hold the .45 shell, and will a .45 shell properly eject from the port, just to name a few issues.

Who makes an aftermarket AI receiver????



[slothlacrosse]

You're forgetting the problem of weight...

More weight = Less recoil. Gotta tam the beast!



[572]

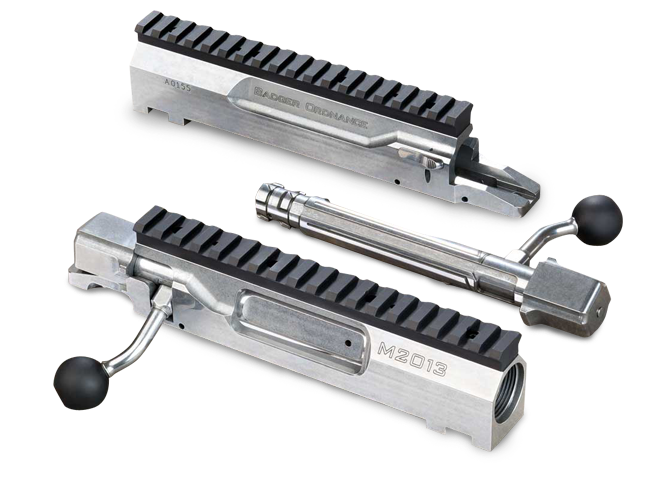

Badger Oridnance M2013 pattern receiver.



[schmi015]

Not to argue semantics but that's not an aftermarket AI reciever. There's AI and then there is everybody else.



[572]

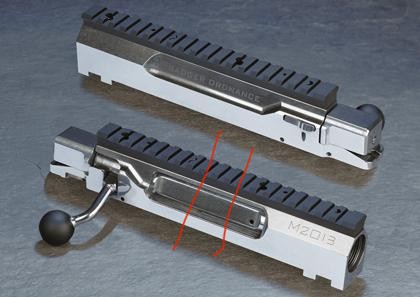

I figured out one possible fix. Cut the receiver in the middle of the ejection port and shorten the overall length of the receiver making the port large enough for the .45 round as well as cutting the bolt length to match the shortened receiver.



[572]

True



[Waorani]

Huh?



[Waorani]

At $1200-1400 for a Badger Ordnance M2013 - go for it!



[Supersubes]

I figured out one possible fix. Cut the receiver in the middle of the ejection port and shorten the overall length of the receiver making the port large enough for the .45 round as well as cutting the bolt length to match the shortened receiver. View attachment 7296167

Dude, just stop. Seriously. It would not be awesome.

What’s the significance of an AI/AI clone action? Why pick the biggest, clumsiest action made. Other than being a bolt action, it has absolutely nothing going for it with regard to your project.



[572]

Just think it would be cool!



[iceng]

Cut the receiver ? Wtf ? Then your magazine system, stock and action screws won't work.

Why not shorten the bolt and extent the barrel thru the receiver like a normal person ? It's how I build them, so much easier.

If you cut the receiver, you have to cut the bolt anyway...



[572]

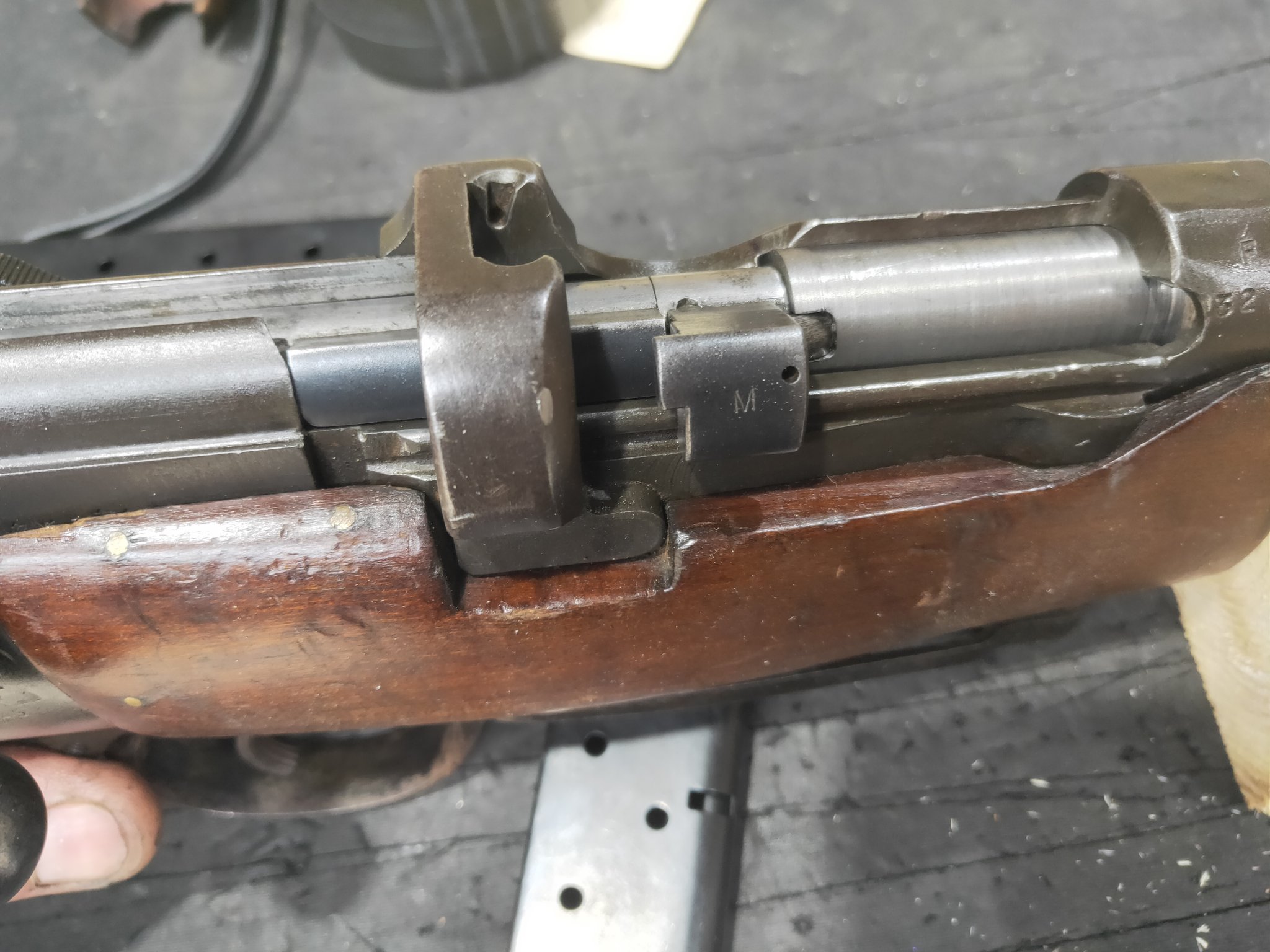

I figure that because the locking lugs on a SMLE are in the rear of the receiver and extending the barrel into the chamber area I lose the use of the locking lugs on the bolt.



[PBWalsh]

Just buy a freaking cheap Rem. Model 7 or 700 action, throw a 458 Socom barrel on it, and sling subsonic loads out it. Uses a standard .473” bolt face.

This talk of cutting a receiver in half is beyond stupid.

Piss buy an AIAT, unscrew the barrel, and screw on an integrally suppressed 458 Socom. DONE

Being cool in your mind only goes so far before stupid enters.



[572]

....right in the feels lol. Happy Easter, everyone.



[Covertnoob5]

Badger Oridnance M2013 pattern receiver. View attachment 7296147

That’s not even close to the quality of an AI lol



[Cascade Hemi]

OP, don't listen to the haters. This same thing happened when HK was trying to copy Special Weapons.



[kthomas]

Cut the receiver ? Wtf ? Then your magazine system, stock and action screws won't work.

Why not shorten the bolt and extent the barrel thru the receiver like a normal person ? It's how I build them, so much easier.

If you cut the receiver, you have to cut the bolt anyway...

Not only that, but you are effectively destroying and structurally degrading a device that that's designed to contain a ~60,000 psi explosion right by your face.



[572]

Designed that psi for center fire rifle but .45 is around 20,000 and +P is around 23,000.

Read some old content of some famous gun guy that does exactly that, cutting bolts and receivers. Frank De Haas had an article in Gun Magazine from 1989 about shortening Enfield actions and bolts.

Excerpt from his article a guy posted from another forum;

"It is a good idea to jot down the exact dimensions of the original bolt, i.e., the exact distance between the right locking lug and root of the bolt handle.

"Remove the striker and extractor from the bolt. Do not remove the extractor collar. If you plan to replace the dogleg bolt handle, that can be done next.

"Saw off the original handle and weld on a commercial one or one you have made. Chuck the bolt in the lathe with its rear end exposed. With a pointed lathe bit mounted in the tool post, scribe a line about two inches long along the left, lower part of the bolt so you will have index marks on the bolt after a section of it is removed. Beginning .750 inch ahead of the forward side of the bolt handle root and using the lathe, turn a recess in the bolt body .500-inch long and .065-inch deep. I used a cut-off bit for that task.

"After the circular recess has been turned in, use the cut-off bit or hacksaw to separate the rear part of the bolt at the front of the recess to leave a tenon on the rear part of the bolt. Do that with the front part of the bolt still in the chuck.

"To shorten the action, then turn or cut off the necessary amount from the front part of the bolt. Face off the cut end and, using a boring bit, bore the inside of the bolt deep enough to accept the tenon on the rear end of the bolt. It should be a fairly snug fit but loose enough so the rear part of the bolt can be pressed home by hand.

"All that is done with the front end of the bolt left chucked in the lathe to assure perfect alignment of the halves. If you intend to use silver solder to join the halves, make sure the joining shoulders are square.

"Now, with the bolt still in the lathe chuck, brush on some flux, insert the tenon, align the index marks, position the tail stock with a pad close to the rear of the bolt, heat the joint, apply the silver solder and force the joint together with the tail stock. Such a joint will be barely visible after the bolt is polished. I used low temperature silver solder. If you prefer to steel-weld the joint, you must turn in a bevel on each shoulder to form a 'shallow V."

Frank de Haas, Shortening the 1917 Enfield ActionRifle 121 , January-February 1989



[schlaiek]

it's your money and time, but this seems like a strange solution in search of a problem.



[572]

What else do I have to do under quarantine? Must be the COVID getting to my brain.



[bachelorjack]

The deslile clones—both of them were heavy and seemingly garage made. Having handled and shot representatives of a few of each companies work.

Im curious as to the age of the OP....



[schmi015]

OP, don't listen to the haters. This same thing happened when HK was trying to copy Special Weapons.

Which company still exists?

Attack of the Clones: Special Weapons MP5 :: Guns.com

The Heckler & Koch Machine Pistol 5, or MP5, is a classic and iconic gun design. It's typically seen as a submachine gun and has found extensive service around the world.

www.guns.com

HK Review: Special Weapons SW5 – Arizona Response Systems

www.arizonaresponsesystems.com



[572]

One of our own has apparently done this. I have to give this guy a beer and a PM.

45 ACP bolt gun done...with pictures

The stock is a stock I use when working on stuff so don't think that is the stock that will stay with it. Whatever stock I go with it will be light. I bead blasted the barreled actin then used Oxpho-Blue Creme to blue it. I still may coat it I am not sure yet. It has a Shilen barrel cut to an...

www.sniperforums.com



[ykrvak]



[PBWalsh]

One of our own has apparently done this. I have to give this guy a beer and a PM.

45 ACP bolt gun done...with pictures

The stock is a stock I use when working on stuff so don't think that is the stock that will stay with it. Whatever stock I go with it will be light. I bead blasted the barreled actin then used Oxpho-Blue Creme to blue it. I still may coat it I am not sure yet. It has a Shilen barrel cut to an...

www.sniperforums.com

Doesn’t looked like he sawed the action in two either. There is a difference.



[TacT-MecH]

Look into Marshal Precision. They have already started the process for you. I'm not sure about when/if they will be available for import, but they may help you along the way.

Marshal Precision Rifles - Long rifles dedicated to pistol ammo

At Marshal Precision we make dedicated fine long rifles and actions to use with pistol and revolver ammunition.

www.marshalprecision.com



[PBWalsh]

Look into Marshal Precision. They have already started the process for you. I'm not sure about when/if they will be available for import, but they may help you along the way.

Marshal Precision Rifles - Long rifles dedicated to pistol ammo

At Marshal Precision we make dedicated fine long rifles and actions to use with pistol and revolver ammunition.

www.marshalprecision.com

Thats freaking dope! Actually wouldn’t mind owning a 9mm variant in a KMW Sentinel.



[iceng]

9mm bolt action you say. Made one of those a while back. I should start a new thread and post a pic of it. Real slick way of doing them which I'm sure someone will rip off and commercialise.



[572]

Look into Marshal Precision. They have already started the process for you. I'm not sure about when/if they will be available for import, but they may help you along the way.

Marshal Precision Rifles - Long rifles dedicated to pistol ammo

At Marshal Precision we make dedicated fine long rifles and actions to use with pistol and revolver ammunition.

www.marshalprecision.com

Thanks



[Waorani]

Another, more realistic, option.

https://www.snipershide.com/shooting/threads/ruger-77-44-suppressed-sbr.6982921/
