AIAX Max Barrel Contour. MTU, Straight taper?

[Mr. F]

So im thinking about having a 6.5 barrel spun for PRS style matches but im not sure how large of a shank will the AXSA i have will take. Just want to confirm its good for 1.250" under the rail.



[SHGronk]

The standard barrel is 29.4mm at the action (well my Lothar Walther is), so I imagine you will be fine.



[Mr. F]

Anyone?



[ShtrRdy]

I've had a couple barrels spun up for my AT rifle. I went with a 1.200" shank to better match the original barrel on the rifle. Like the M24 contour.



[Huskydriver]

I think you would be fine but what muzzle attachment/supressor do you rock and what length you thinking?



[Mr. F]

On this im thinking 26" I have a few short sticks already and im going for speed on this one.



[Mr. F]

No suppressor, 419 break



[NoLegs24]

For an AX/ AT/ AW/ AWM = 1.250"

For an AXMC/ PSR/ ASR/ AXSR = 1.350"

Yes, I run 1.250" straight on my AX and AW.

And 1.350" straight for the big bro's



[Mr. F]

For an AX/ AT/ AW = 1.250"

For an AXMC/ PSR/ ASR/ AXSR = 1.350"

Yes, I run 1.250" straight on my AX and AW.

And 1.350" straight for the big bro's

Thanks



[Huskydriver]

I think you would be good to go then. Only concerns I would have had was diameter of the muzzle attachment fitting to the barrel and having enough clearance to account for barrel whip not touching the end of the hadguard



[Mr. F]

I think you would be good to go then. Only concerns I would have had was diameter of the muzzle attachment fitting to the barrel and having enough clearance to account for barrel whip not touching the end of the hadguard

Finishing a MTU/Heavy Var at 26" too thick for 5/8-24 threads on the 419 breck you think?



[b6graham]

Finishing a MTU/Heavy Var at 26" too thick for 5/8-24 threads on the 419 breck you think?

in the last year that's probably the most common combination of barrel/muzzlethread done for a prefit

works just fine...



[Mr. F]

Thanks



[Huxtable_hurt_me28]

For an AX/ AT/ AW/ AWM = 1.250"

For an AXMC/ PSR/ ASR/ AXSR = 1.350"

Yes, I run 1.250" straight on my AX and AW.

And 1.350" straight for the big bro's

I just place a order for a straight contour barrel today and realized I might be screwed when it comes to a muzzle break fitting flush with the barrel. Any breaks out there that won’t look like shit? It’s 1.250



[Huskydriver]

I just place a order for a straight contour barrel today and realized I might be screwed when it comes to a muzzle break fitting flush with the barrel. Any breaks out there that won’t look like shit? It’s 1.250

Use a suppressor you uncivilized barbarian....


@Mr. F has one that fits flush with his



[Huxtable_hurt_me28]

Noooo!!



[M8541Reaper]

I just place a order for a straight contour barrel today and realized I might be screwed when it comes to a muzzle break fitting flush with the barrel. Any breaks out there that won’t look like shit? It’s 1.250

Sidewinder Magnum Self Timing Muzzle Brake

The SIDEWINDER Self Timing Brake system was engineered from the ground up to reduce more recoil and muzzle flip, while being easier to install.

www.area419.com

The Sidewinder will probably look pretty good on it. It’s larger than the hellfire so it should go nicely with a thicc sticc



[Huxtable_hurt_me28]

Yea that Area419 break OD IS 1.275” hope I didn’t make a bad decision ordering this fat ass barrel



[NoLegs24]

People still care about brakes being flushed?

You'll be fine... with either brakes from APA or A419



[Huxtable_hurt_me28]

Is this thing going to look ridiculous?



[Steel head]

I just place a order for a straight contour barrel today and realized I might be screwed when it comes to a muzzle break fitting flush with the barrel. Any breaks out there that won’t look like shit? It’s 1.250

The area 419 collar and adapter are about 1.25ish.
They’d look fine on a 1.25 truck axle or coffee table glamour shots.



[Huxtable_hurt_me28]

Well I thinks it’s clear this is just to look cool on Instagram



[M8541Reaper]

Then snag a hellfire at 1.1”

either way...

performance > aesthetics

...but of it’s for IG, then stick with aesthetics



[Huxtable_hurt_me28]

Then snag a hellfire at 1.1”

either way...

performance > aesthetics

...but of it’s for IG, then stick with aesthetics

Hey everybody needs a sexy af back up rifle.



[b6graham]

sidewinder is fine on a 1.25" straight. collar is just bigger than barrel OD even if the brake itself is smaller



[Mr. F]

@Huxtable_hurt_me28 Thats a A419 Sidewinder on a straight 1.25

but as @NoLegs24 said ive seen hellfires and other .9” breaks on straight pipes too and honestly they look even better imo idk



[NoLegs24]

Gen3 FB on a 1.250” straight 30gay



[hic28]



[Mr. F]

People still care about brakes being flushed?

You'll be fine... with either brakes from APA or A419

@Huxtable_hurt_me28 Pay no attention to this comment... this is a guy that just a few days ago was debating the finer points of red vs blue vs FDE AT-Xs colors on the AI thread...

Nope if the brake collar is too thick over the barrel taper you get a smith to contour that shit down to .001" boy



[NoLegs24]

@Huxtable_hurt_me28 Pay no attention to this comment... this is a guy that just a few days ago was debating the finer points of red vs blue vs FDE AT-Xs colors on the AI thread...

Nope if the brake collar is too thick over the barrel taper you get a smith to contour that shit down to .001" boy

You're going to have to qoute me on that. Don't recall. Plus, I'ma have all the colors anyhow

Except blue, I don't think I can make that work... lol



[Mr. F]

You're going to have to qoute me on that. Don't recall. Plus, I'ma have all the colors anyhow

Except blue, I don't think I can make that work... lol

Blue Eyeliner, Sako guys use it all the time



[Huxtable_hurt_me28]

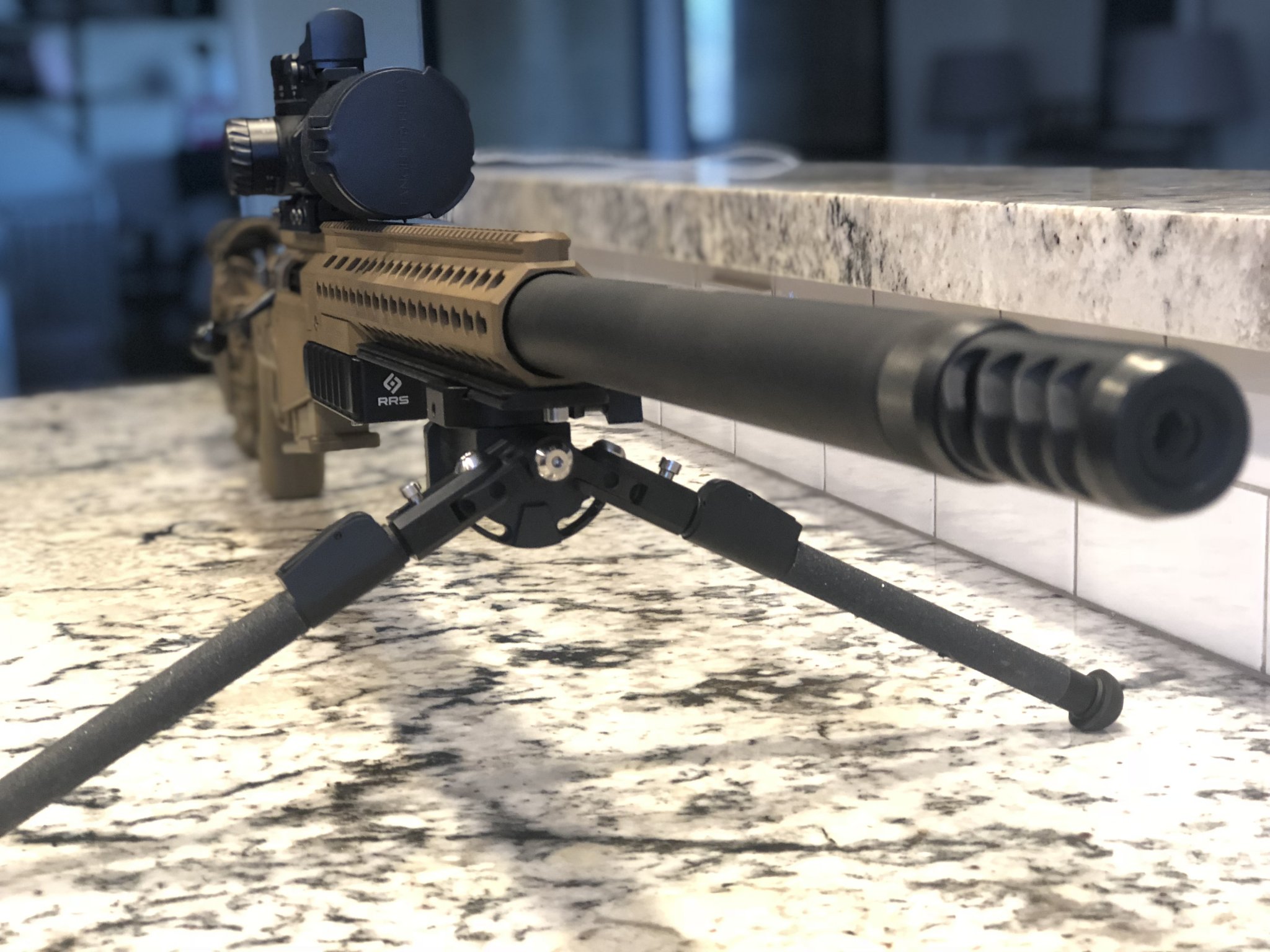

View attachment 7603725

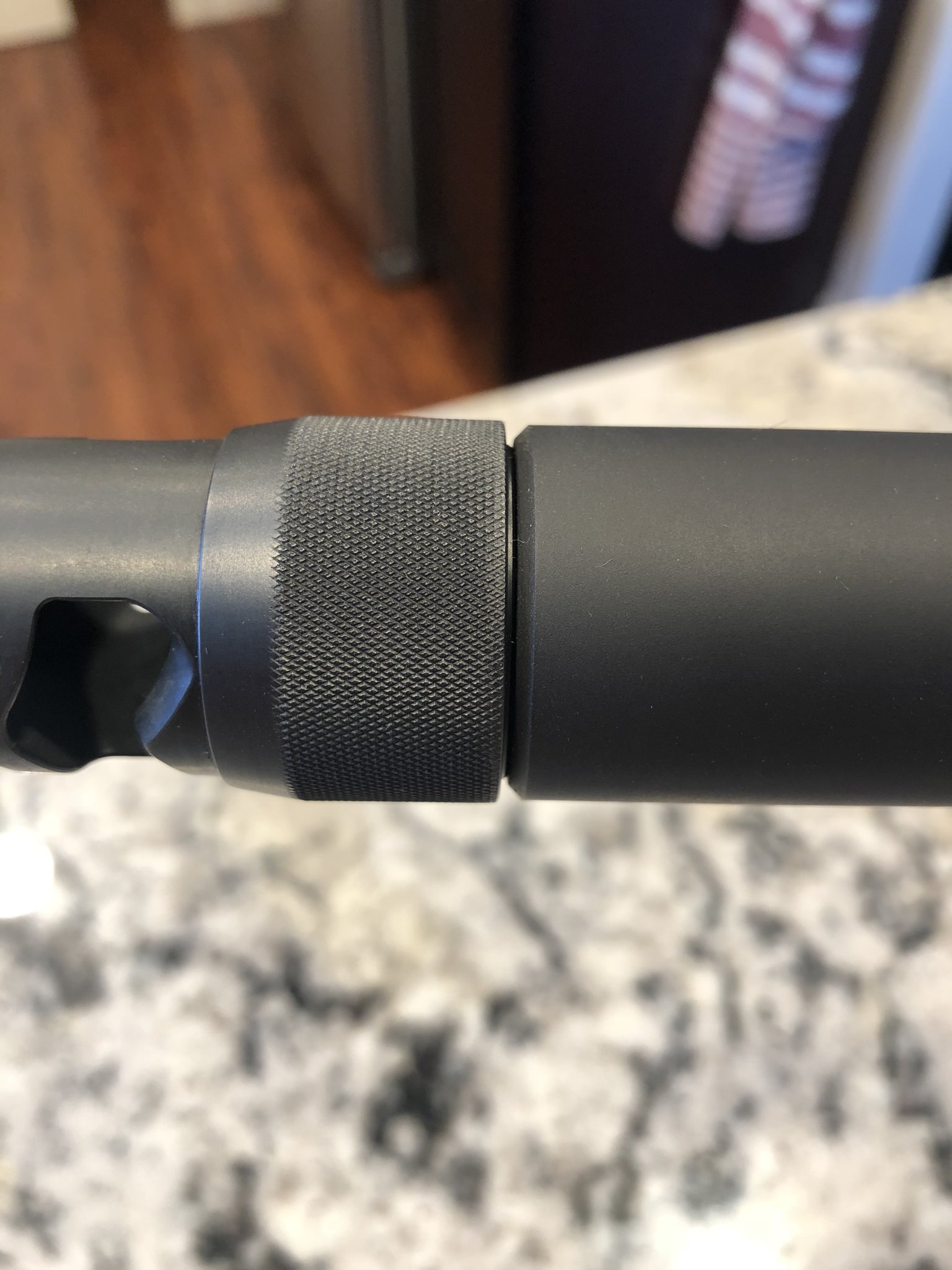

View attachment 7603726

Very nice! Just imagine I said like borat



[Huxtable_hurt_me28]

@Huxtable_hurt_me28 Pay no attention to this comment... this is a guy that just a few days ago was debating the finer points of red vs blue vs FDE AT-Xs colors on the AI thread...

Nope if the brake collar is too thick over the barrel taper you get a smith to contour that shit down to .001" boy

View attachment 7603725
View attachment 7603726

This looks pretty meaty, is this a straight contour



[Steel head]

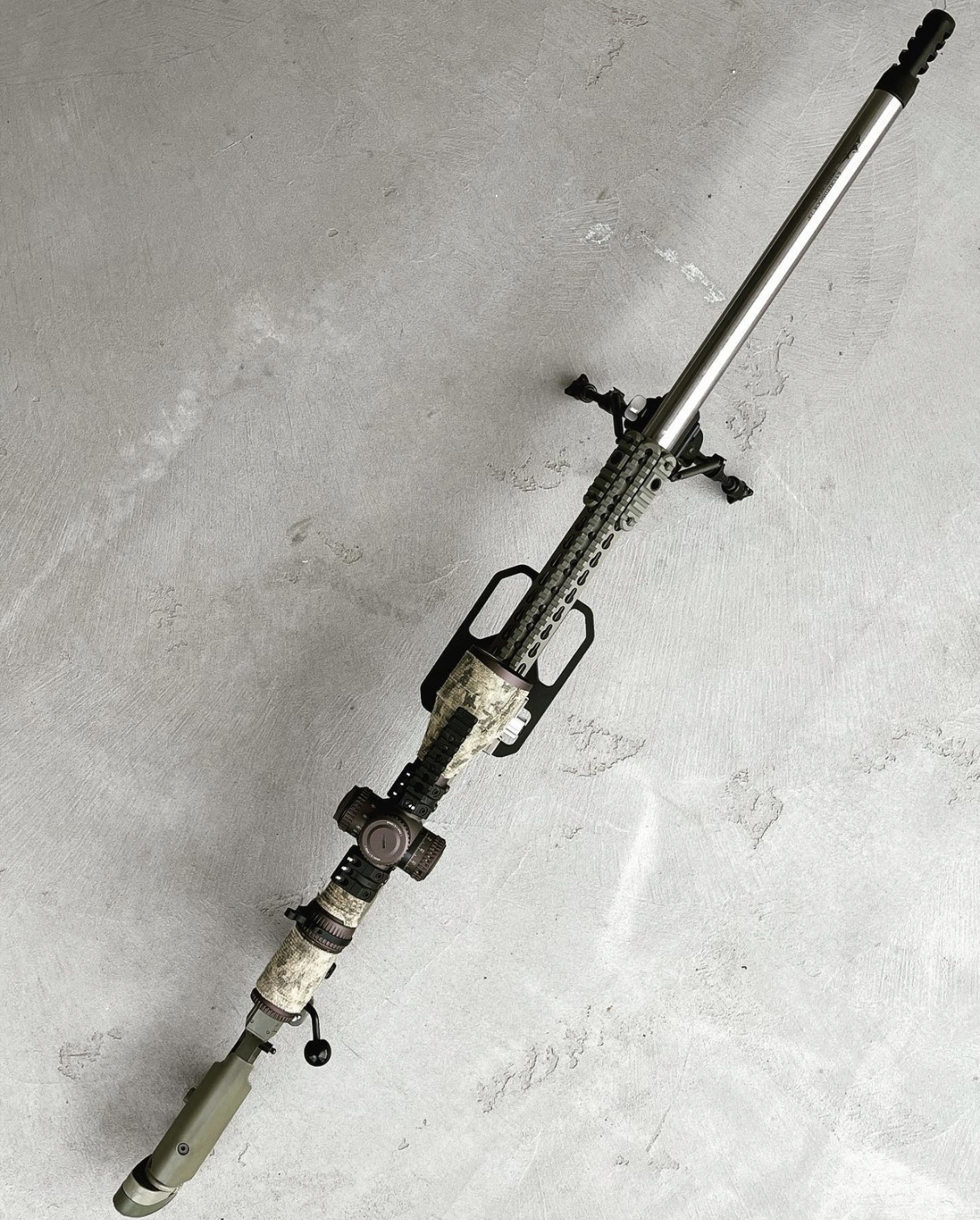

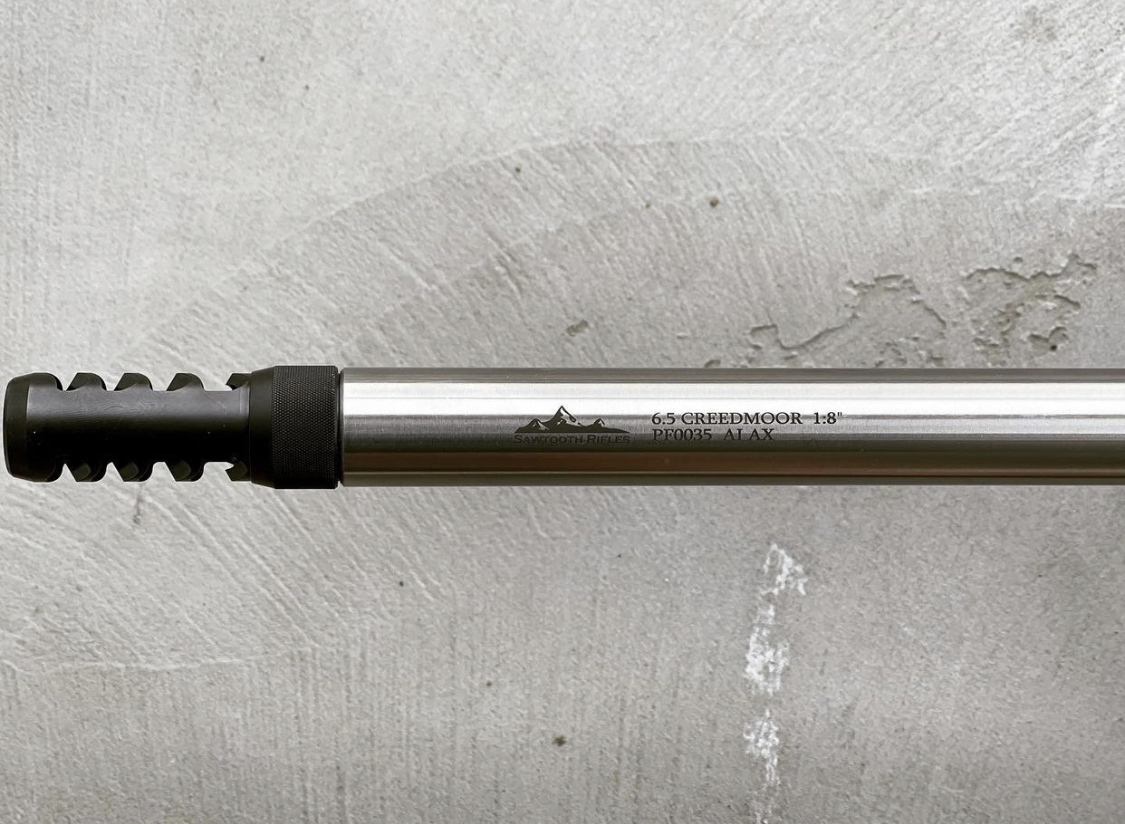

View attachment 7603719
View attachment 7603720
View attachment 7603721
@Huxtable_hurt_me28 Thats a A419 Sidewinder on a straight 1.25

but as @NoLegs24 said ive seen hellfires and other .9” breaks on straight pipes too and honestly they look even better imo idk

I think that transition from barrel to brake looks pretty clean.



[M8541Reaper]

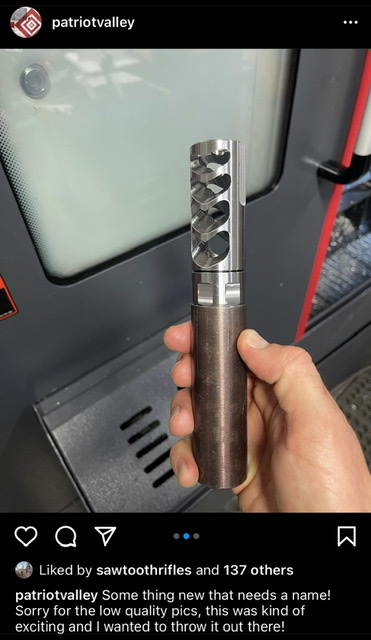

OP... Looks like PVA made this just for you. 1.25 OD brake about to be released.



[Huxtable_hurt_me28]

View attachment 7603719
View attachment 7603720
View attachment 7603721
@Huxtable_hurt_me28 Thats a A419 Sidewinder on a straight 1.25

but as @NoLegs24 said ive seen hellfires and other .9” breaks on straight pipes too and honestly they look even better imo idk

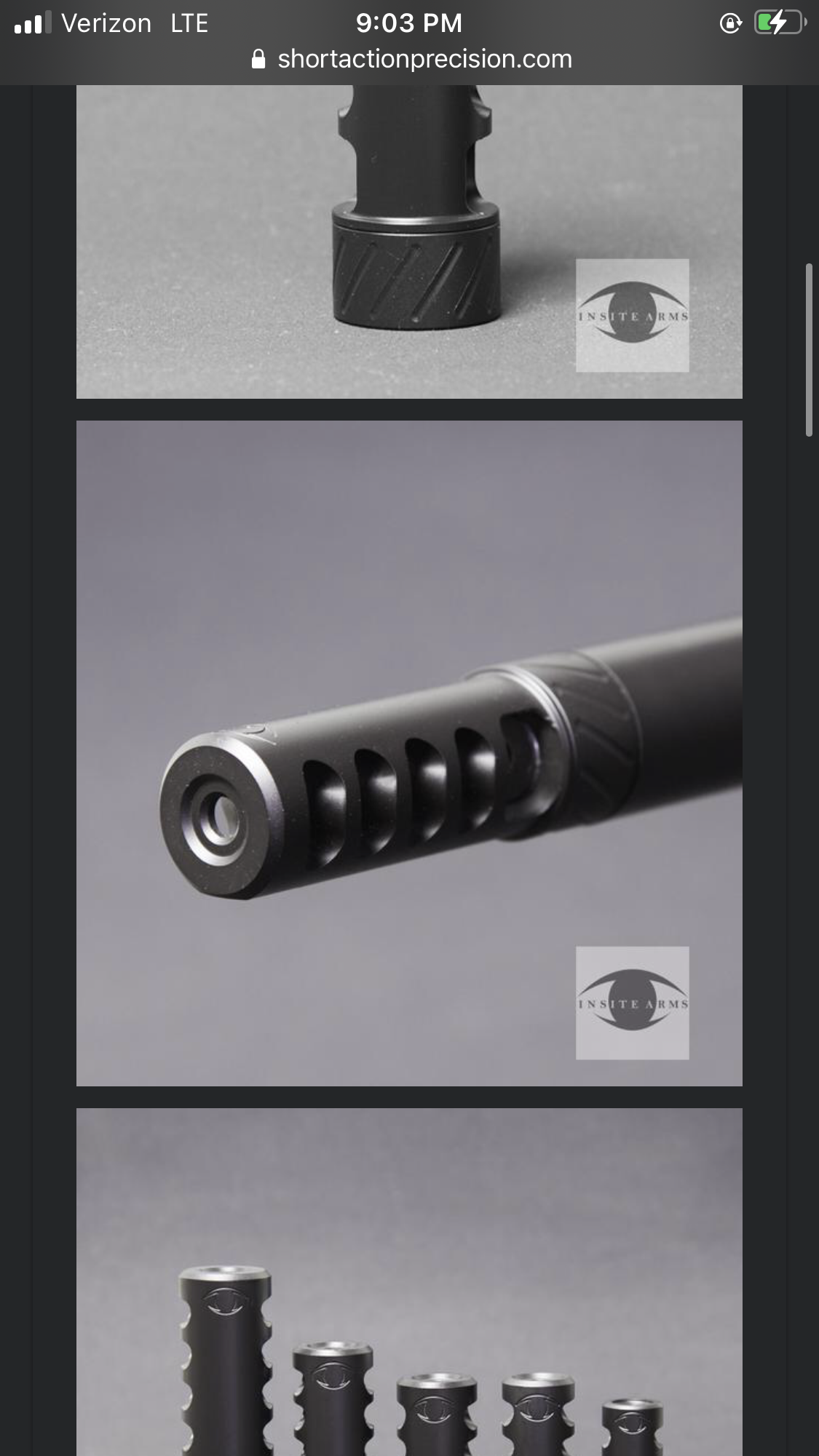

Have you seen the Insite arms?



[BCX]

Terminator T4 Plus is 1.250



[Cardboard Assassin]

Have you seen the Insite arms?

I have one (5 port) headed my way which will be on a 1.250" barrel



[Huxtable_hurt_me28]

I have one (5 port) headed my way which will be on a 1.250" barrel

I think that’s wat I’m going with, not going to have my other barrel for months though



[BOBBY_MILLER_5]

View attachment 7603725
View attachment 7603726

1.1" or 1.25" OD? On this barrel set up
