AR based Machine Gun clones: M60, m60e3, m249, & M240.

[buffalowinter]

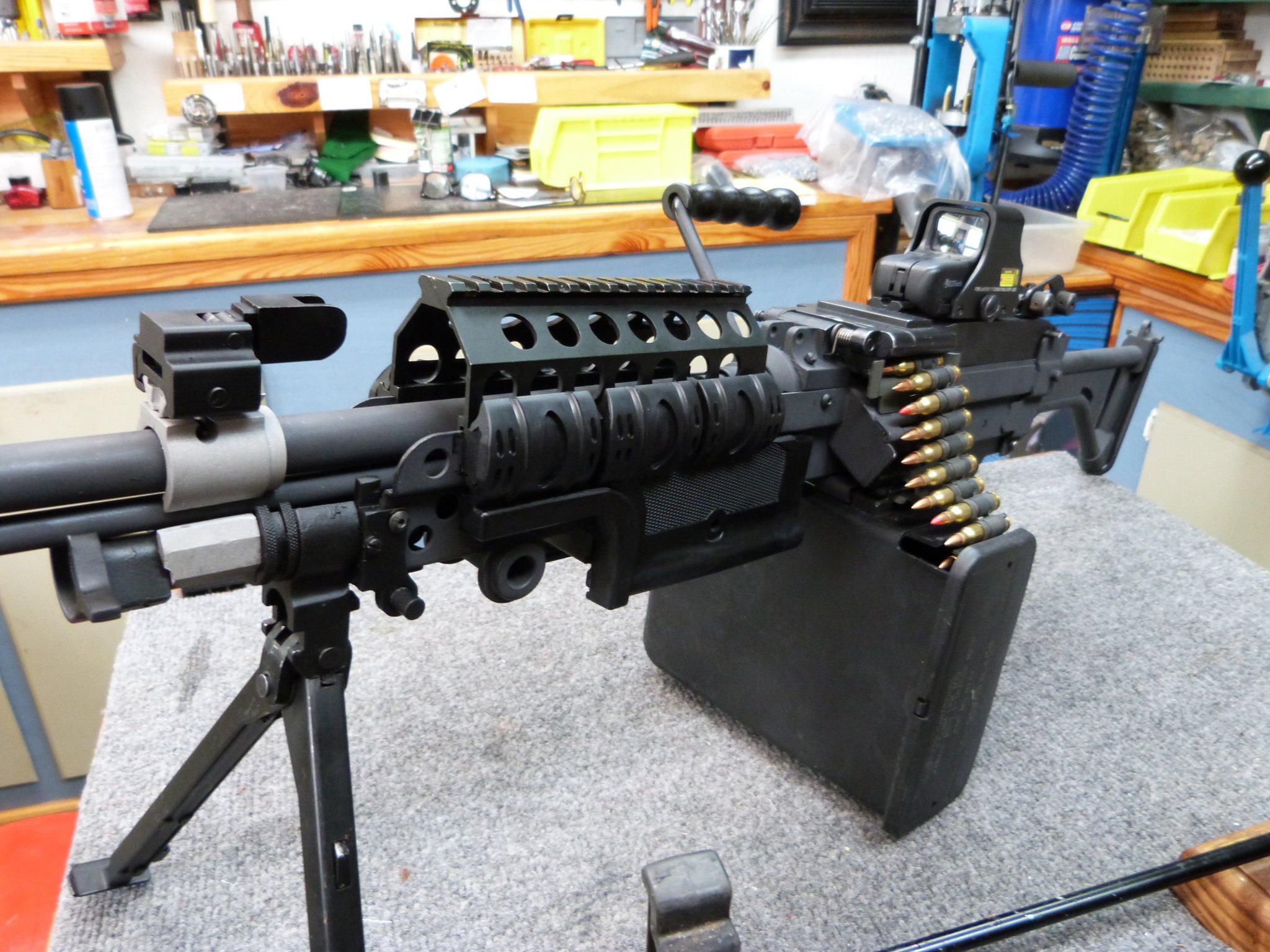

I built these semi-auto AR-15 Machine Gun clones/replicas, call them what you will. Why? Why not. It's fun...for me. They are all based on your standard semi-auto AR (except the M249 in .22lr). The first picture shows, from top to bottom, An M249 SAW based on a Marlin model 60 in .22 LR. This was my first replica build. They all utilize metal Airsoft parts for cosmetics. I must say I am impressed with the quality of the Airsoft replicas. They are pretty much made as exact mil-spec copies, just using cheaper aluminum parts. In other words, you can use or replace all parts with mil-spec steel parts.

I also built an M60 and M60E3. I used Bear Creek barrels and get about 1 MOA accuracy out of these. I put a binary trigger in the M60E3.



M60E3 shooting at 200yds

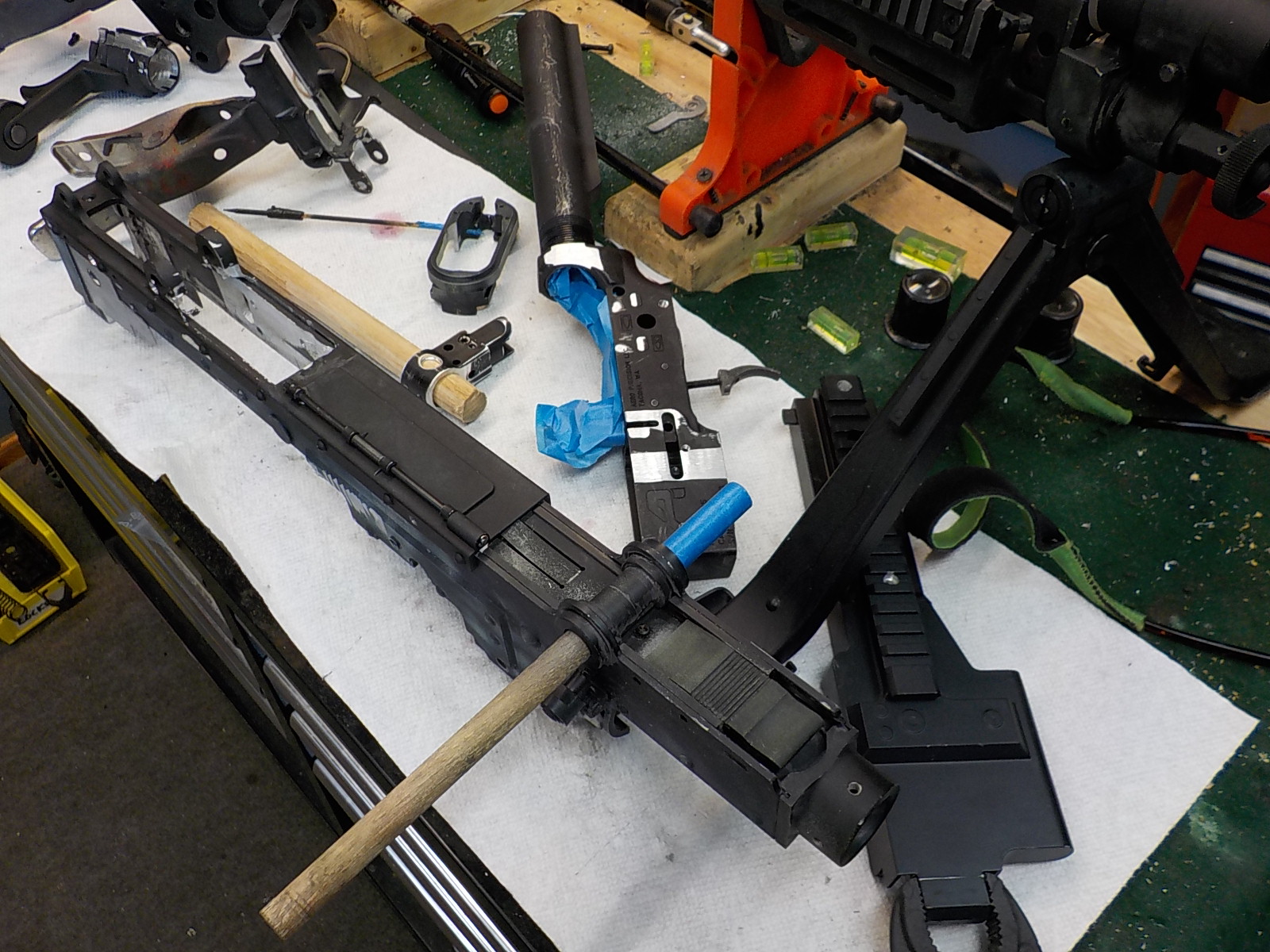

Finally, I just completed an M240L. Here are the parts during fabrication. Having to attach a long lever to the trigger dropped the standard Mil-spec trigger down to a nice 3 lb pull.

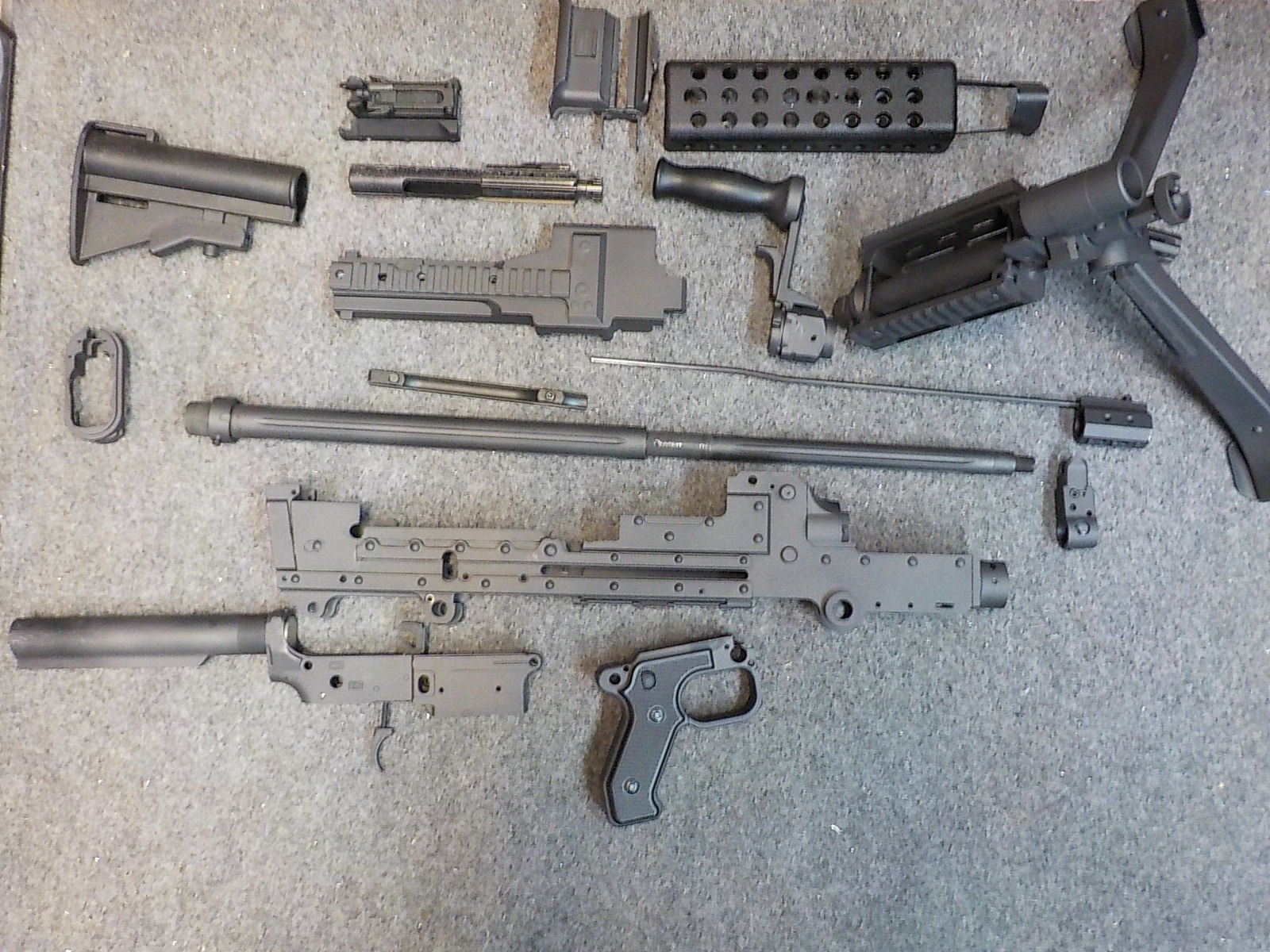

Parts before cerakote

Parts after cerakote

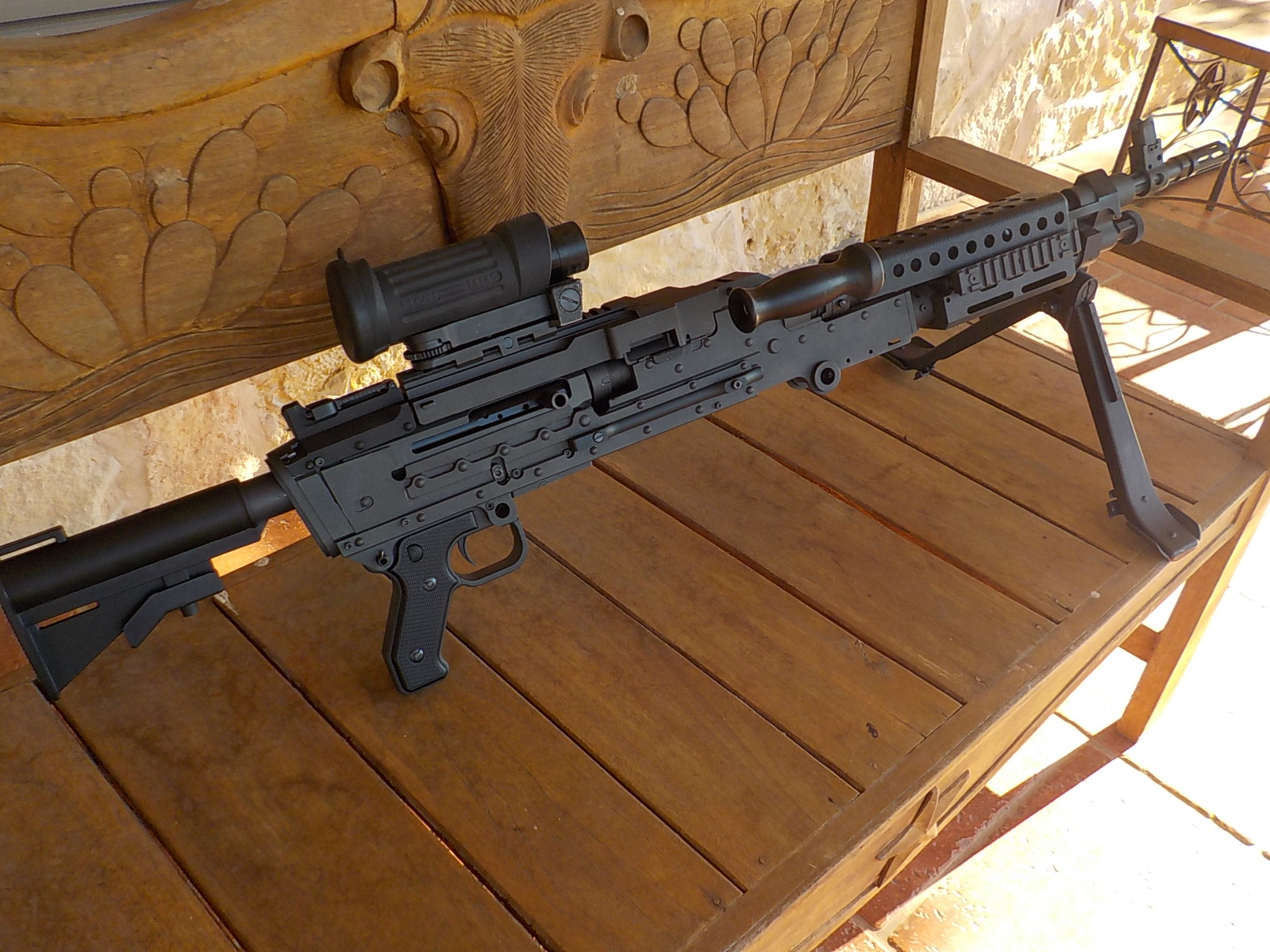

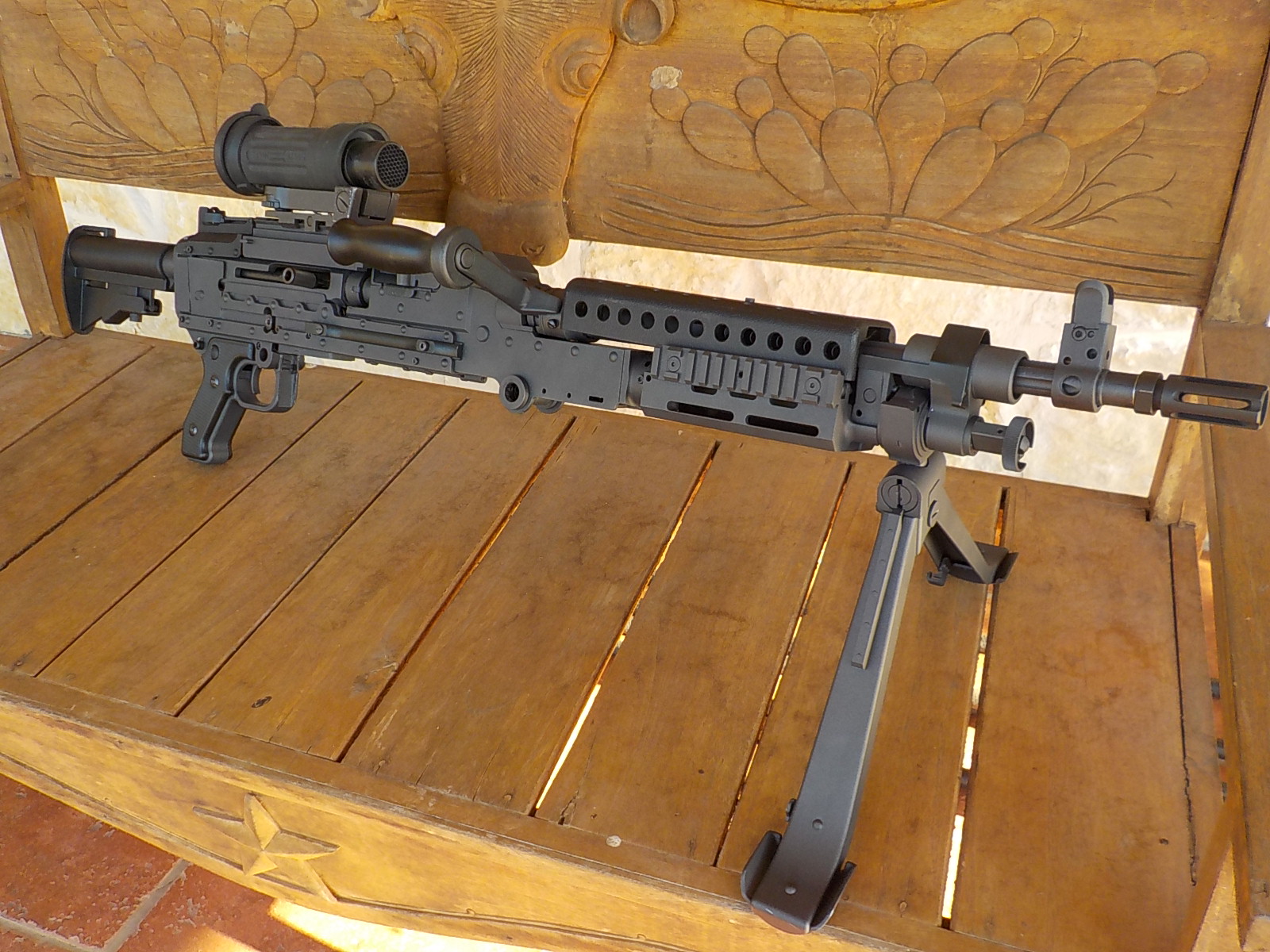

Final M240L



[Jamesr1]

Pretty cool hobby you have.



[towerofpower93]

Very cool



[GhostFace]

You sir are a boss!!!!



[ShooterwithNoName]

I like it... good work.

I have a soft spot for the M60. I have a set of RIA rails, a channel, and an old RIA trunnion. Have a overlapping torch cut receiver that I'm gonna use to build a jig, along with a stretch gauge. I have a big, long E1 barrel, gas system and bipod. Got some bolts, feed trays and a stock. Still gotta get a handguard and design a semi trigger. One of these years I'll get it all welded and riveted together.

Pretty cool projects.



[craigos]

they look awesome



[Greg Langelius *]

Ab Fab!

Greg



[W54/XM-388]

That's a lovely collection.



[kill_zone67]

Awesome collection!



[ddavis]

Wow. Very cool.



[Numb_Skull]

Can you operate the 240 with belts or only for show?



[YF12A]

Wow, nice work!



[atomic41]

Ok that's pretty darn cool. Nice work!



[Nik H]

WOW!!

That is amazing work



[sandwarrior]

I built these semi-auto AR-15 Machine Gun clones/replicas, call them what you will. Why? Why not. It's fun...for me. They are all based on your standard semi-auto AR (except the M249 in .22lr). The first picture shows, from top to bottom, An M249 SAW based on a Marlin model 60 in .22 LR. This was my first replica build. They all utilize metal Airsoft parts for cosmetics. I must say I am impressed with the quality of the Airsoft replicas. They are pretty much made as exact mil-spec copies, just using cheaper aluminum parts. In other words, you can use or replace all parts with mil-spec steel parts.View attachment 7046979

I also built an M60 and M60E3. I used Bear Creek barrels and get about 1 MOA accuracy out of these. I put a binary trigger in the M60E3.



M60E3 shooting at 200yds





View attachment 7046980

Finally, I just completed an M240L. Here are the parts during fabrication. Having to attach a long lever to the trigger dropped the standard Mil-spec trigger down to a nice 3 lb pull.
View attachment 7046984

Parts before cerakote

View attachment 7046985

Parts after cerakote
View attachment 7046987

Final M240L
View attachment 7046991


View attachment 7046992

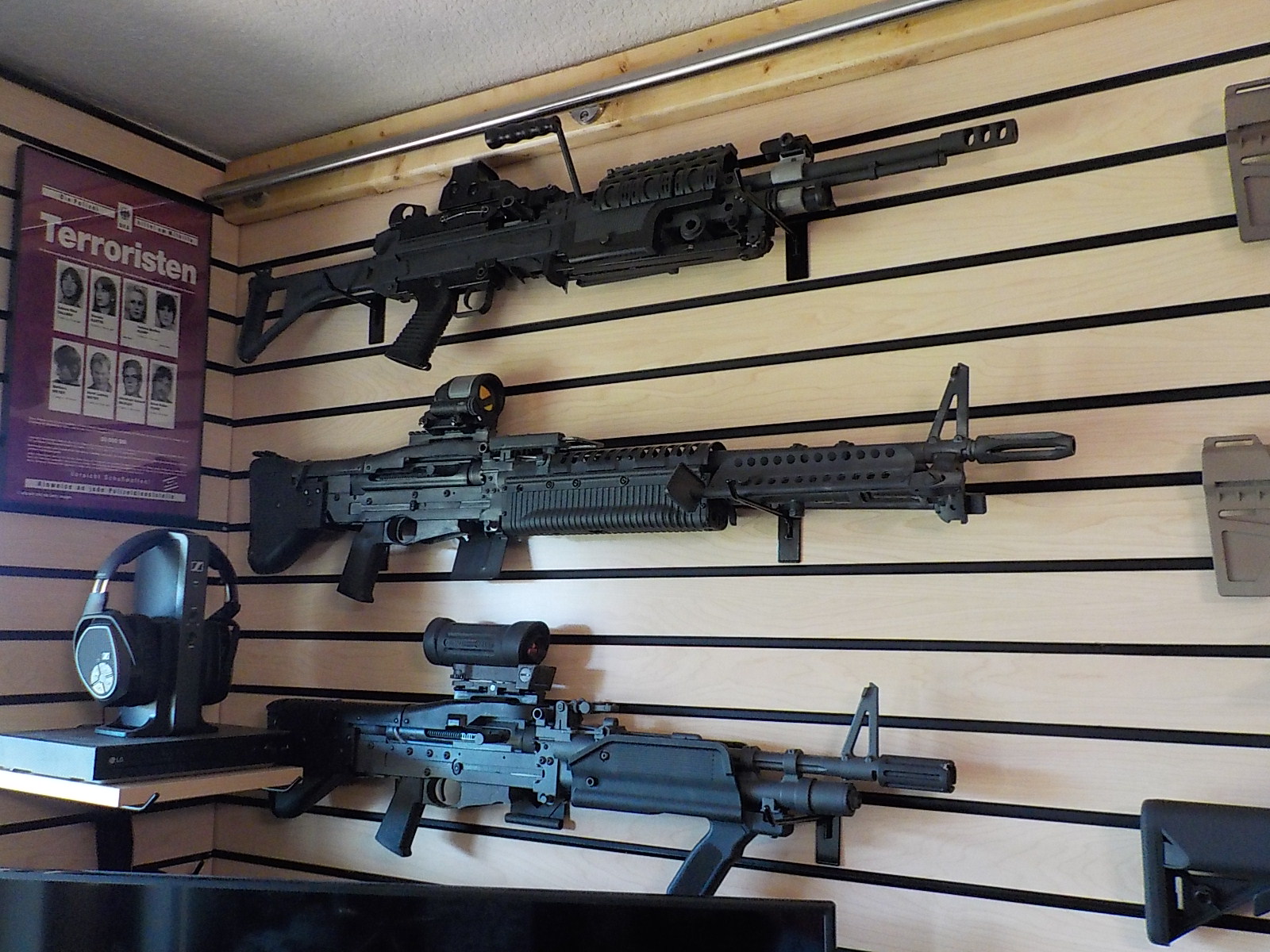

So, I gotta ask. Of the three guns you have on the wall, the middle one looks configured the way the M60's we had were configured. Except for the 'new' red dot/whatever kind of electronic sight. Those didn't exist back in my day. We had a vernier type sight mounted right in front of the feed tray cover.
