AR15 had rail help

[Jrb572]

Need some help. I am looking for a new Handguard / handrail for my AR15. Let me start and say I know absolutely nothing about AR platform stuff. I do not know if it matters if they are cheap or expensive. Figured I would ask here. I would like to match the Handrail on my POF 308. Can someone point me in the direction I could get one close to it?
The AR15 has a 20” barrel if that matters

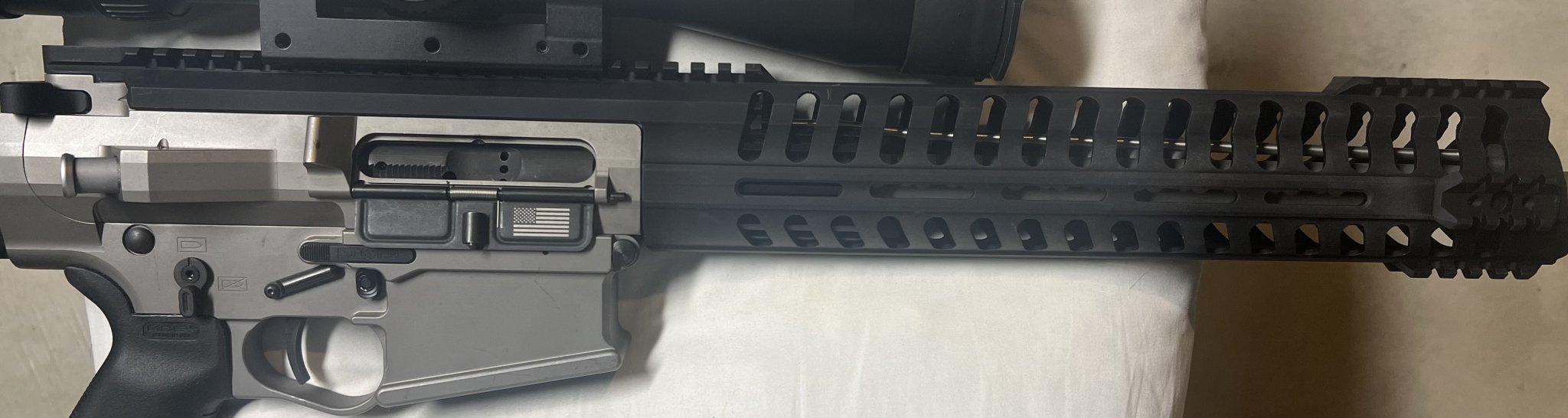

pic of what I’m trying to match



[JS8588]

GRIDLOK® LITE Rail for AR-15

The Strike Industries GRIDLOK® LITE Rail for AR-15 takes innovation from GRIDLOK® but this is a 1-piece design to minimize weight and offer a cost-effective option. Using the same Patent Pending Quick Rail Detach system, only one of very few handguards on the market today that can be removed at...

www.strikeindustries.com



[Jrb572]

Thank you I will take a look



[Merle]

AR15 ATLAS S-ONE M-LOK Handguard

Shop AR15 ATLAS S-ONE M-LOK Handguard and more at AeroPrecisionUSA.com!

www.aeroprecisionusa.com



[Jrb572]

Thanks. I have another question. It will not hurt the accuracy of the rifle by changing it out. Correct?



[JS8588]

Thanks. I have another question. It will not hurt the accuracy of the rifle by changing it out. Correct?

What's on there now?



[Jrb572]

I’ll have to get a picture. I’m not sure the type that is on it.



[msgriff]

Thanks. I have another question. It will not hurt the accuracy of the rifle by changing it out. Correct?

Most likely you will have to change out the barrel nut. That typically involves removing the muzzle device and gas block/gas tube. Although not difficult, it does require the correct tools/equipment/supplies. and if not done correctly can lead to some serious issues.



[Jrb572]

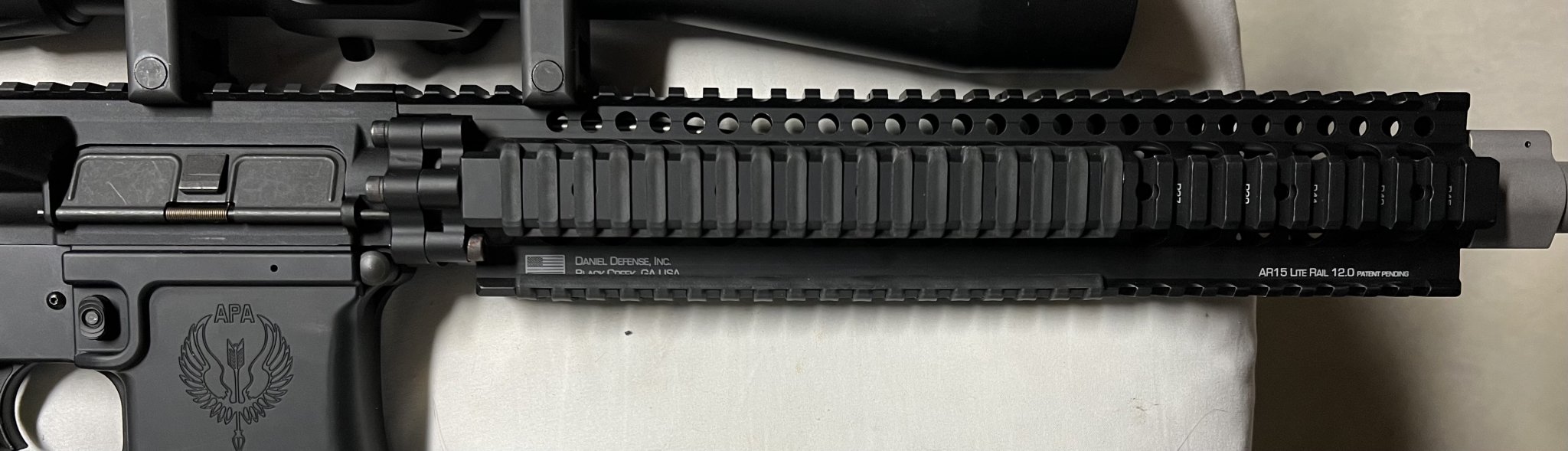

Here is the rail it has now.



[Merle]

Thanks. I have another question. It will not hurt the accuracy of the rifle by changing it out. Correct?

You wont have any issues if it is installed correctly. Might even improve accuracy.



[Jrb572]

Thanks. There is nothing wrong with the one on it. I just don’t like how it looks.



[Merle]

Here is the rail it has now.

View attachment 8094361

That's a classic there. You could probably get some good money for it. You'll need the specific Daniel Defense barrel nut wrench to remove it.



[Jrb572]

That's a classic there. You could probably get some good money for it.

I do not want to sell the Handguard. I won it at the Snipers Hide fall bash. I don’t remember what year. But would like to keep it because I could always put it back to how I won it.



[Bluedog82]

I do not want to sell the Handguard. I won it at the Snipers Hide fall bash. I don’t remember what year. But would like to keep it because I could always put it back to how I won it.

FYI I would not put the front scope ring on the rail itself, as it can flex and affect your accuracy. This is why cantilever mounts are very popular with ARs. What do you use this AR for?



[Jrb572]

It’s sat in the safe forever. I was going to use it for shooting coyotes.



[Bluedog82]

It’s sat in the safe forever. I was going to use it for shooting coyotes.

That’s a badass solid rail that I would personally keep on there, it won’t hold you back at all.



[Jrb572]

That’s a badass solid rail that I would personally keep on there, it won’t hold you back at all.

I know as stupid sounds I just don’t like how it looks



[Jrb572]

That’s a badass solid rail that I would personally keep on there, it won’t hold you back at all.

I’m going to look at another Daniel Defense rail. I just don’t like seeing the gas block



[msgriff]

Do you have a preference on length? You have a low profile gas block, so you could go longer than what you have. I have an Aero 12" S-One on a 16" mid-length gas lightweight, but the longer ones didn't fair well in some rail deflection tests. CMT has a similar design that looks like it would do better with deflection. Of course, you can add Picatinny rail sections at the front to look/function like the picture in your first post.
CMT rail:



[Jrb572]

As long as the gas block get tucked inside. I’m not picky on length.



[MarshallDodge]

Seekins makes a similar looking rail

MCSRV2 Rail System

MCSR Rail System Seekins Precision handguards are specifically designed to enhance the performance, accuracy, function, and sex appeal of your rifle! With several variations; we have the handguard that will meet your shooting style and needs. Upgrade yo

seekinsprecision.com

My only experience is a friend has one on his AR and really likes it. The gun will shoot sub MOA so there is something...



[Jrb572]

I’ll take a look. I forgot about them. Thanks.



[B y r o n]

Here is the rail it has now.

View attachment 8094361

Can't tell from the picture but be aware some handguards have compatibility issues. For example the Atlas S-One "Compatible with mil-spec AR15 upper receivers and barrels". So if your upper is billet or not mil-spec it won't fit. Also, if you are thinking of going to a piston conversion in the future, ensure that the handguard you choose is compatible for that.



[Jrb572]

How do you tell if it’s mill spec?



[msgriff]

How do you tell if it’s mill spec?

One way to tell is to look for a forge mark, usually below the rail between the shell deflector and charging handle slot. It doesn't matter what the mark is and there are exceptions.
