Arca Lever Clamp for Atlas

[Hoyt7mm]

I've run Arca clamps (Area 419) on my bipod for a while, but I like the idea of a quick release/lever clamp setup. This is the only one I have found so far...

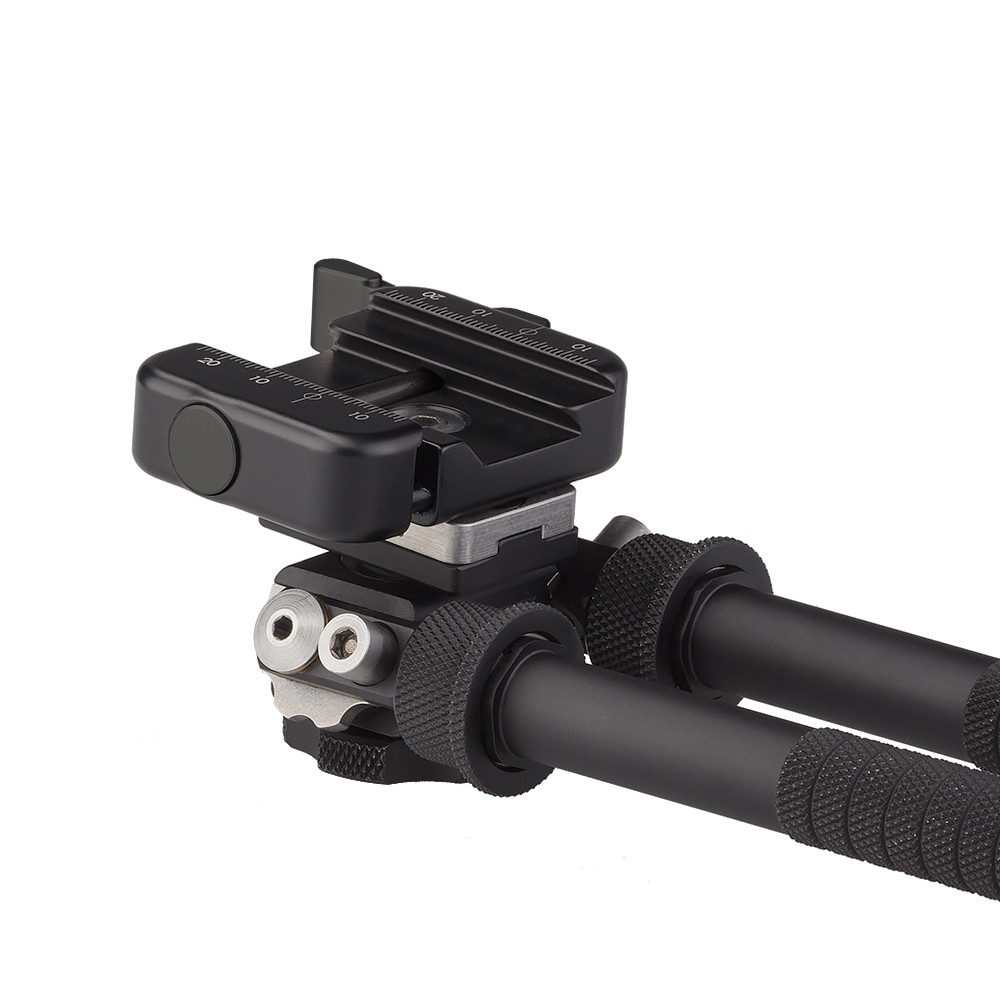

Really Right Stuff: BTCA Full-Size Lever Release Clamp (B2-AS II) Adapter

Distributor/Dealer of Precision Shooting Gear: Accuracy International, Spuhr, Thunder Beast, Nightforce, TAB Gear, RRS, and more.

www.milehighshooting.com

Are there any other/better options that I may have missed?



[canezach]

That's what I use on all my rifles and I'm happy with them.



[mlpkhl]

RRS SOAR - Home

soar.reallyrightstuff.com

This one goes to picatinny and the RRS dovetail standard



[b6graham]

the RRS Soar Lever is where it's at if you can stomach the price



[Victor Co Heather]

I have both the lever and the knob from RRS and I actually prefer the knob. Imho it's easier to adjust on the fly and locks down tight.



[Steel head]

I have both the lever and the knob from RRS and I actually prefer the knob. Imho it's easier to adjust on the fly and locks down tight.

I have the knob version.
it’s awesome



[b6graham]

I have the knob version.
it’s awesome

the new knob design is much better than the original



[drwood96]

The knob version is almost as fast as QD lever. Plus quicker when moving from Pic to ARCA or vice versa.



[Steel head]

the new knob design is much better than the original

mine is the silver 4 cuts knob.
No complaints.



[Jefe's Dope]

I have the knob and liked it so much I wanted the lever. Thanks for the input, I'll stick w/ the knob. ½ the price too.

RRS SOAR - Home

soar.reallyrightstuff.com



[claybrich]

I use the RRS SOAR lever release on my atlas.



[Bitchtitsbob]

I'm also looking for an Arca clamp, but for the Atlas 5-H. The popular Arca clamps seem to only be compatible with the standard Atlas bipods. Does anyone have any suggestions?



[b6graham]

I'm also looking for an Arca clamp, but for the Atlas 5-H. The popular Arca clamps seem to only be compatible with the standard Atlas bipods. Does anyone have any suggestions?

sell 5H, buy Super CAL



[Adam B]

I have this and really like it

ARCALOCK Clamp

THIS CLAMP WORKS ON ALL STANDARD ARCA/1.5″ DOVETAIL RAILS Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to...

www.area419.com



[SonicBurlap]

I'm also looking for an Arca clamp, but for the Atlas 5-H. The popular Arca clamps seem to only be compatible with the standard Atlas bipods. Does anyone have any suggestions?

Get the KRG ARCA Clamp, mount a KRG L2 Pic rail on it, if you have the BT35-LW17 5-H you are now good to go. If you own the
BT35-NC 5H you also need the ADM 5-H lever available from B&T Industries.



[Bitchtitsbob]

Get the KRG ARCA Clamp, mount a KRG L2 Pic rail on it, if you have the BT35-LW17 5-H you are now good to go. If you own the
BT35-NC 5H you also need the ADM 5-H lever available from B&T Industries.

Thanks for the reply. I've got the No Clamp 5-H. I was hoping there'd be a direct Arca adapter, but I guess I'll get the ADM lever.



[SonicBurlap]

Thanks for the reply. I've got the No Clamp 5-H. I was hoping there'd be a direct Arca adapter, but I guess I'll get the ADM lever.

It's the reason why the BT35-LW17 was more expensive than the BT35-NC, the ADM-5-H Lever is manufactured by American Defense Mfg. LLC for B&T Industries, buying the ADM clamp version would've given you a break of $14.95 over buying the bipod and then the ADM, so not all that much difference in the end if it's any solace.



[AXMC]

It's the reason why the BT35-LW17 was more expensive than the BT35-NC, the ADM-5-H Lever is manufactured by American Defense Mfg. LLC for B&T Industries, buying the ADM clamp version would've given you a break of $14.95 over buying the bipod and then the ADM, so not all that much difference in the end if it's any solace.



[SonicBurlap]

??? Did you forget to add your reply?



[AXMC]

Sorry, the site's been really glitchy for me the last couple days.
This is what you want if you want to run a typical arca clamp on the 5H.

Sawtooth Rifles Bipod Adapter: Atlas 5H

This bipod adapter is the link between an Atlas 5H bipod and RRS and Arca-Swiss style dovetail clamps to mount your bipod on your rifle chassis with the full length dovetail cuts. The extended cantilever design allows clearance between the bipod frame and the knobs on most screw knob style Arca...

www.sawtoothrifles.com

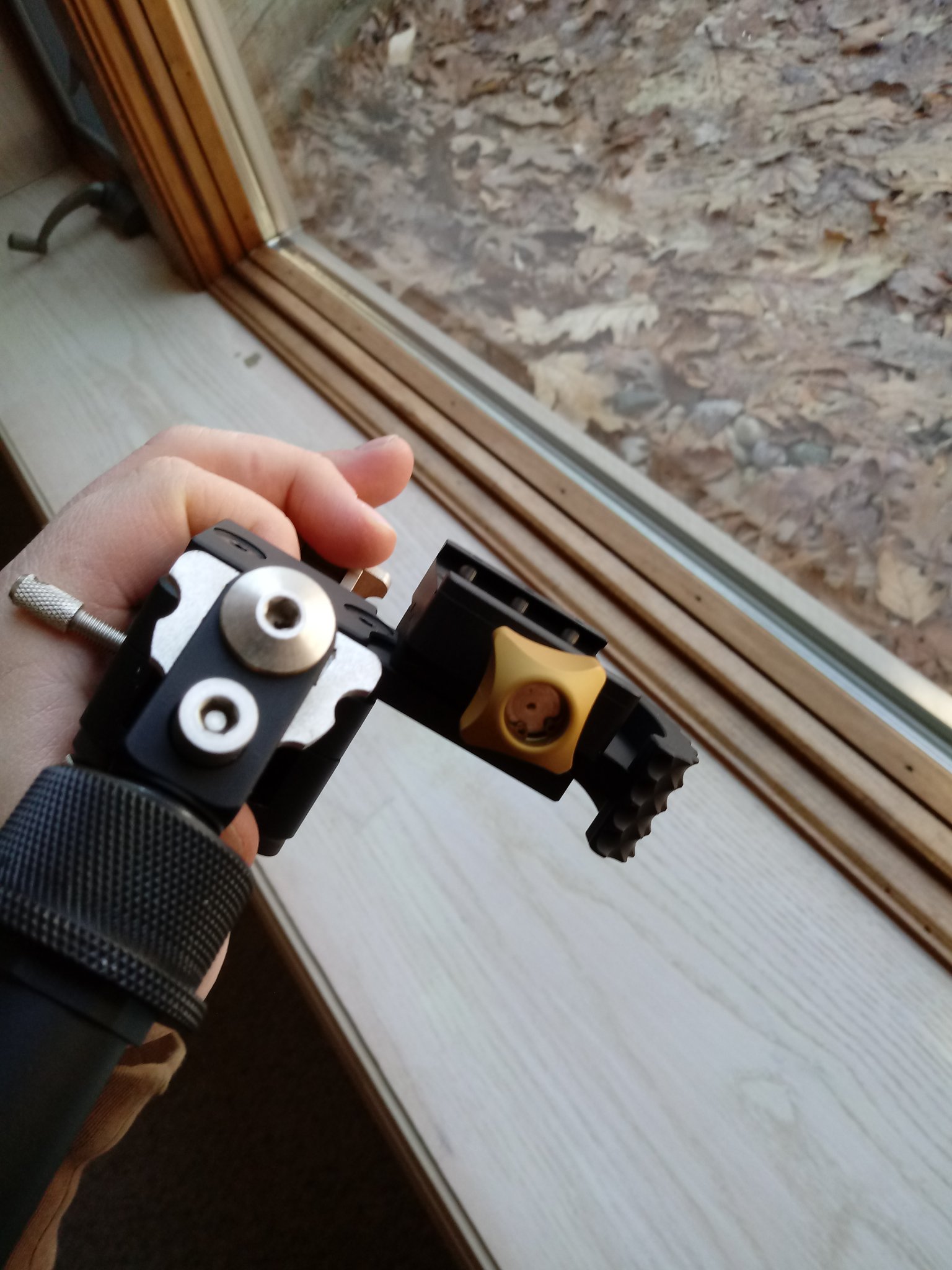

If you're using a clamp that fits the typical ARMS17-S interface, like the Area 419 clamp I'm using, Area 419 makes a great spigot adapter.

ARCALOCK Spigot Extension

Spigot extension for our ARCA clamp and any ARMS17-S accessory. For Harris: Allows use of our barricade stop with your Harris bipod Requires Harris Bipod Adapter Extends bipod out extra 1.25″ for better stability For Atlas: Adapts Atlas 5H to our ARCA clamp with no other parts necessary...

www.area419.com

Both work to get your lever or knob away from the leg connections on the 5H which make it very difficult to operate.
Hope this helps.



[AXMC]

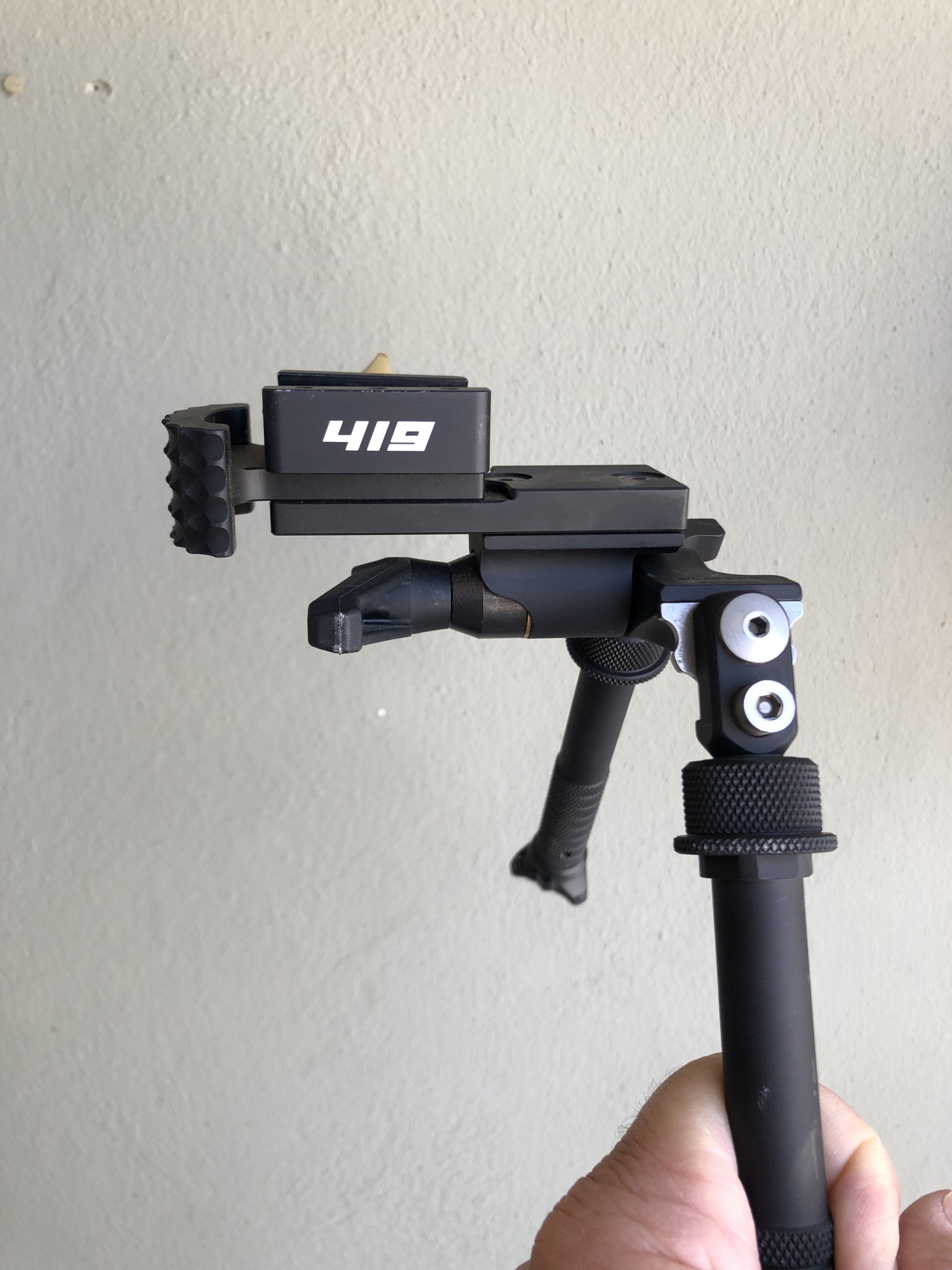

Here's a side view on the Area 419 version.



[jcheng]

I have this and really like it

ARCALOCK Clamp

THIS CLAMP WORKS ON ALL STANDARD ARCA/1.5″ DOVETAIL RAILS Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to...

www.area419.com

Same. I love the simplicity and modularity of the Area419 clamp.



[WATERWALKER]

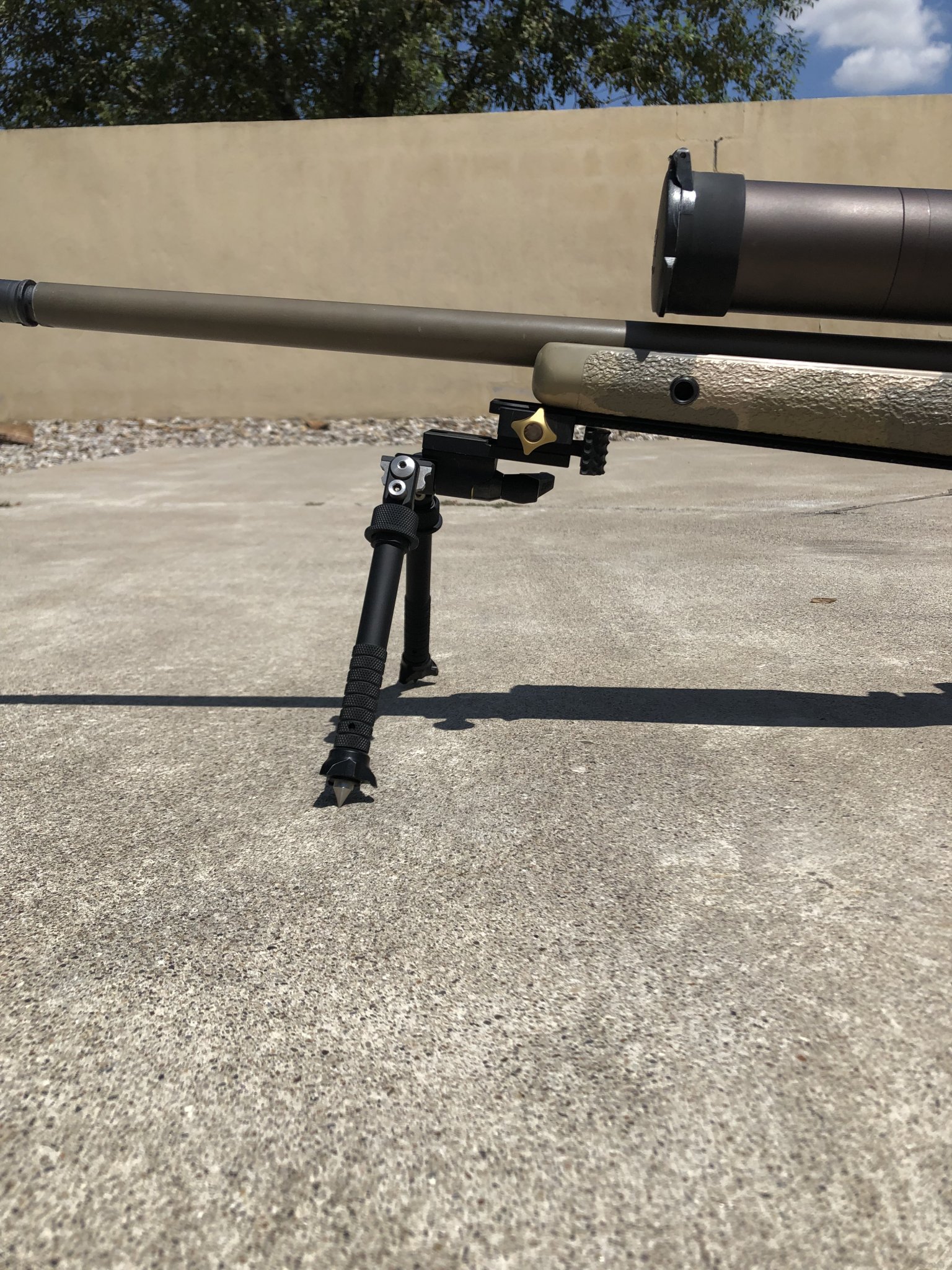

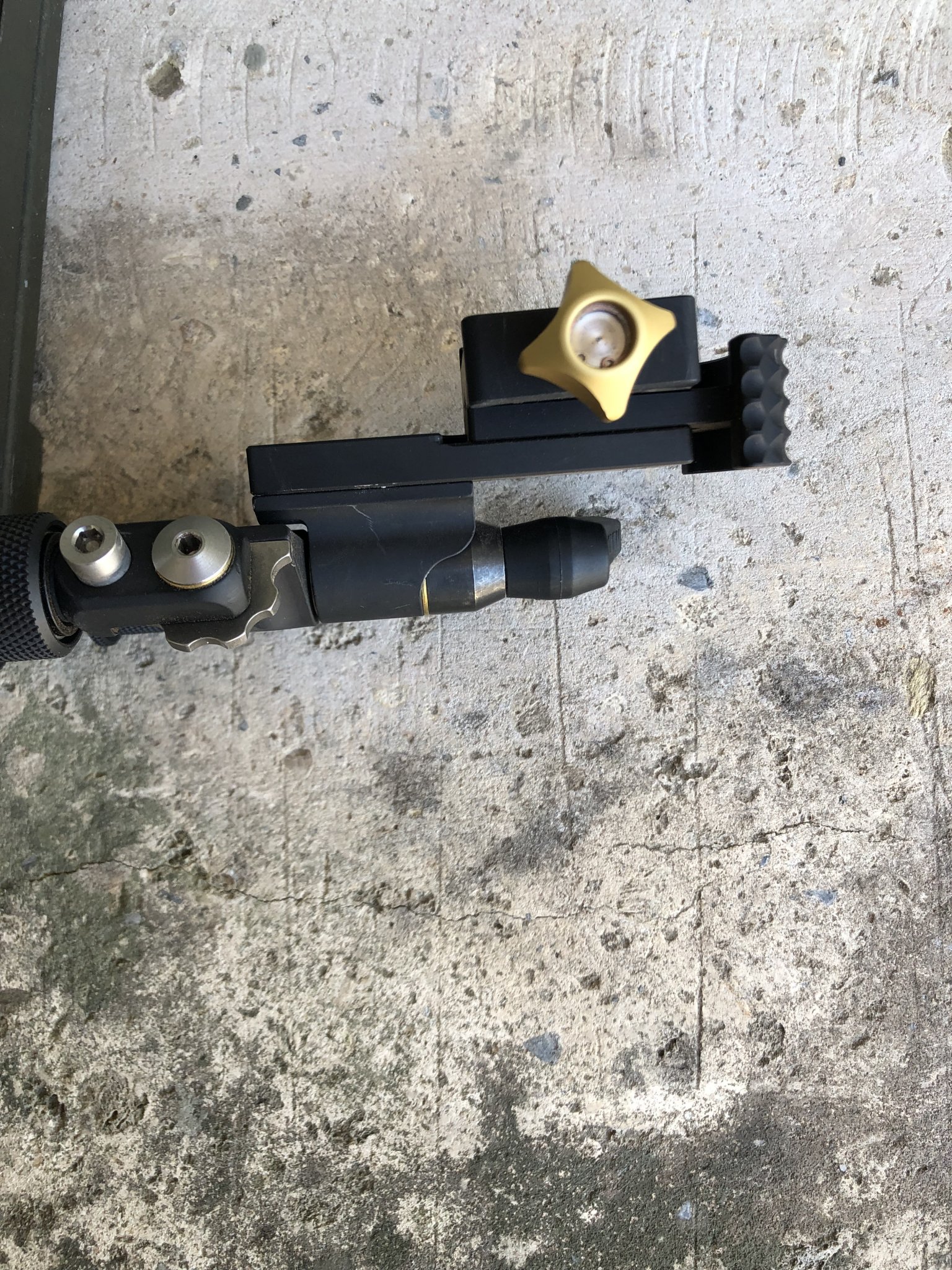

Here is the Area 419 mount w/ spigot. It provides more than enough clearance to manipulate the CAL Gen 2 w/ no issues.
