Precision Rifle Gear Atlas Bipod Feet Box

[DairyDictator]

I got sick of rummaging around in my bag to find different feet for my Atlas Bipod, so I made a box to keep them together.

It's designed to work with Hawk Hill spiked feet, but the standard rubber feet fit as well. I have not tried any other types of feet, so I can't promise they'll fit.

I have a version that will fit some extensions in the works as well.

STL and Solidworks files are in the zip.



[cgobeli]

That looks awesome



[Skg_Mre_Lght]

That would be awesome to have, especially the version for the extensions.



[DairyDictator]

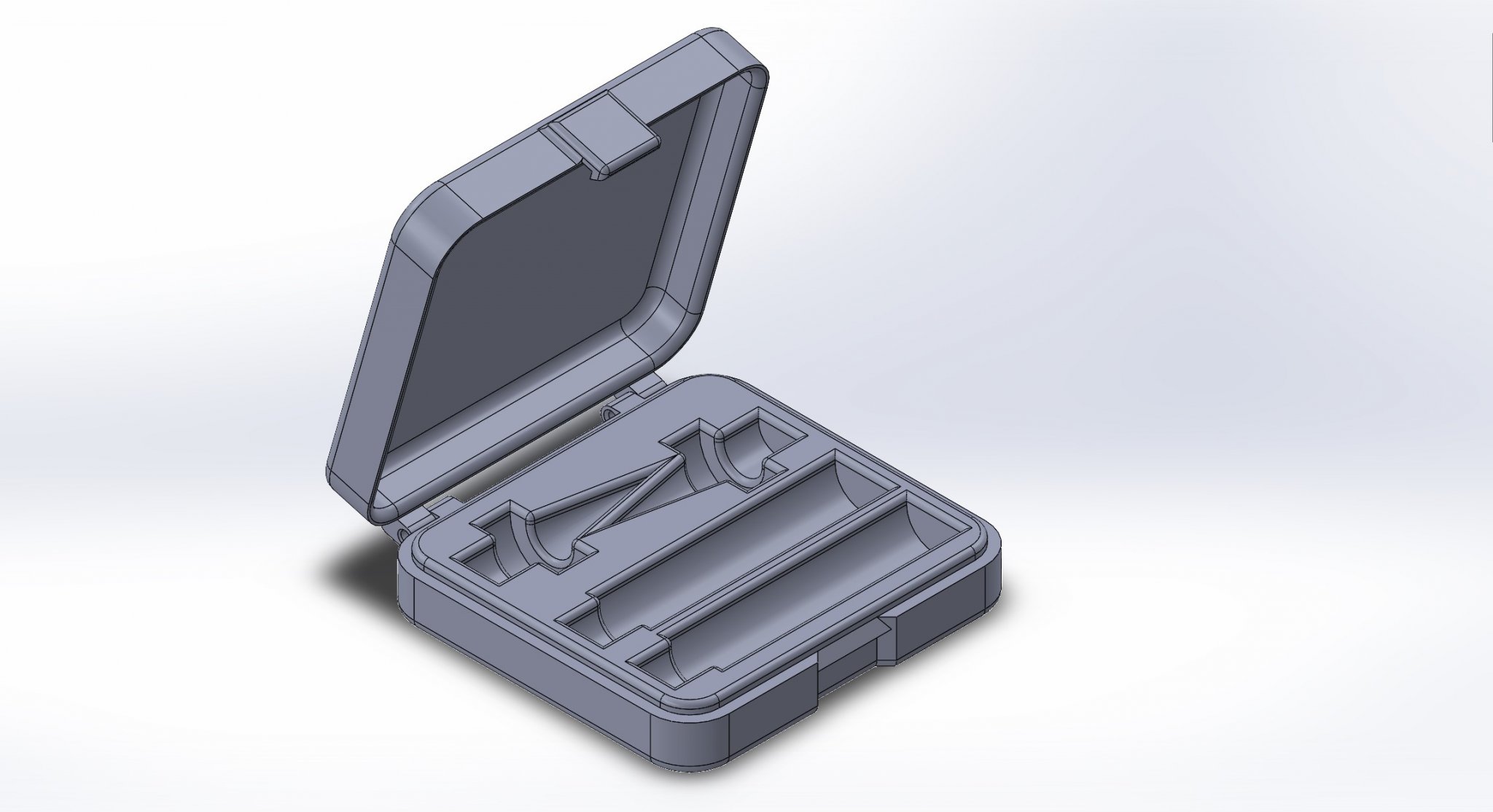

This one's still a work in progress, as I just got some measurements from a friend. I had to guess on a couple measurements, so I'm not 100% sure this fits how I'd like to. I wish I had some extensions and spikes to test the fit. I'm more confident in the extensions fitting than the spikes, since the extensions are a simple part with similar dimensions to the bipod itself.

I'm still going to include the files in case someone wants to print it and check the fit.

All the hinges are designed to take an M3x16 screw without any drilling.



[DairyDictator]

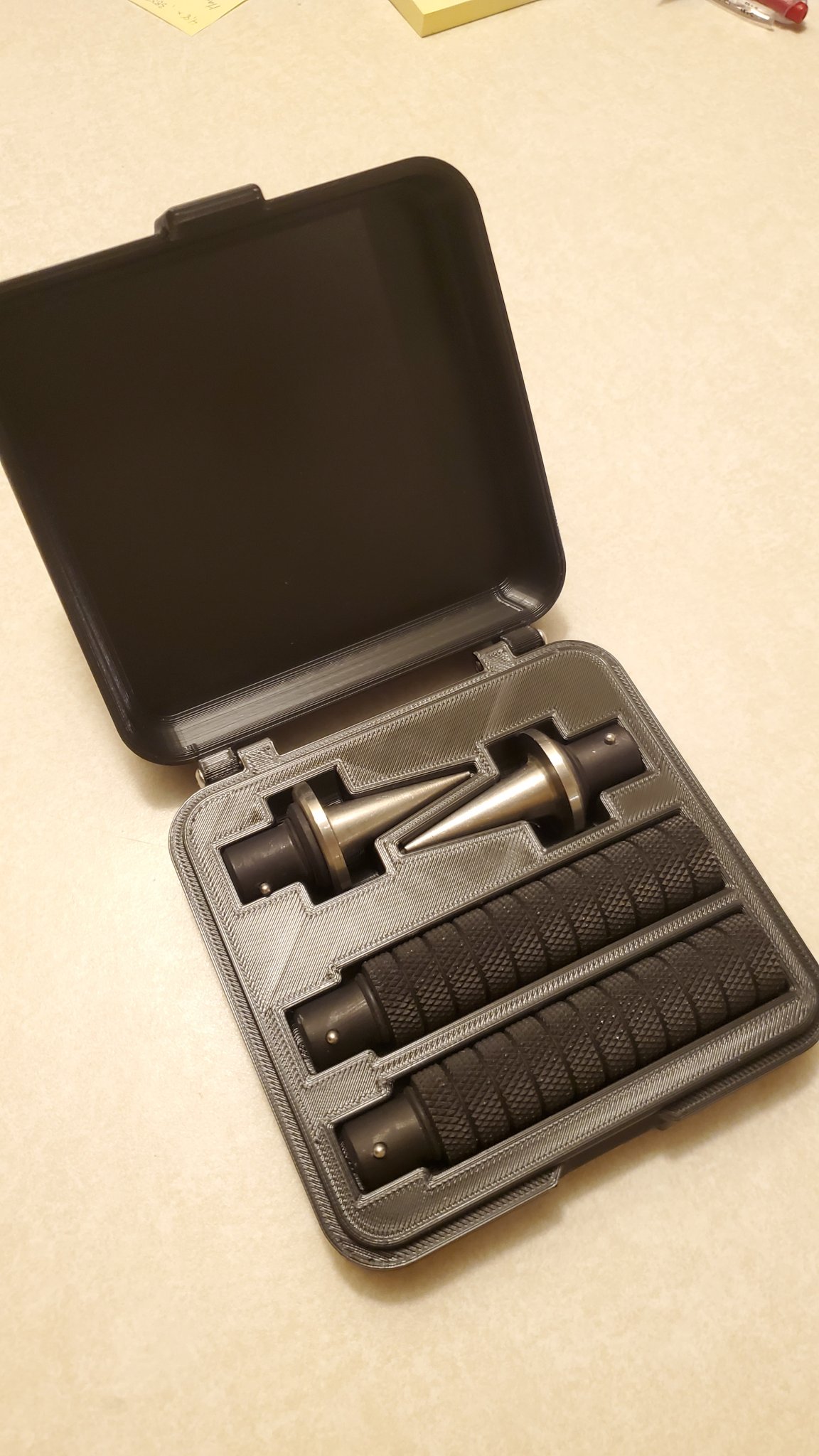

I got my hands on a set of spikes and extensions and made some modifications to the spike geometry. The box will fit spikes made by Atlas, the standard rubber feet, and the extensions.



[strikeeagle1]

^^^ that's what i said about images on a different thread. Maybe LowLight can clue us in .
