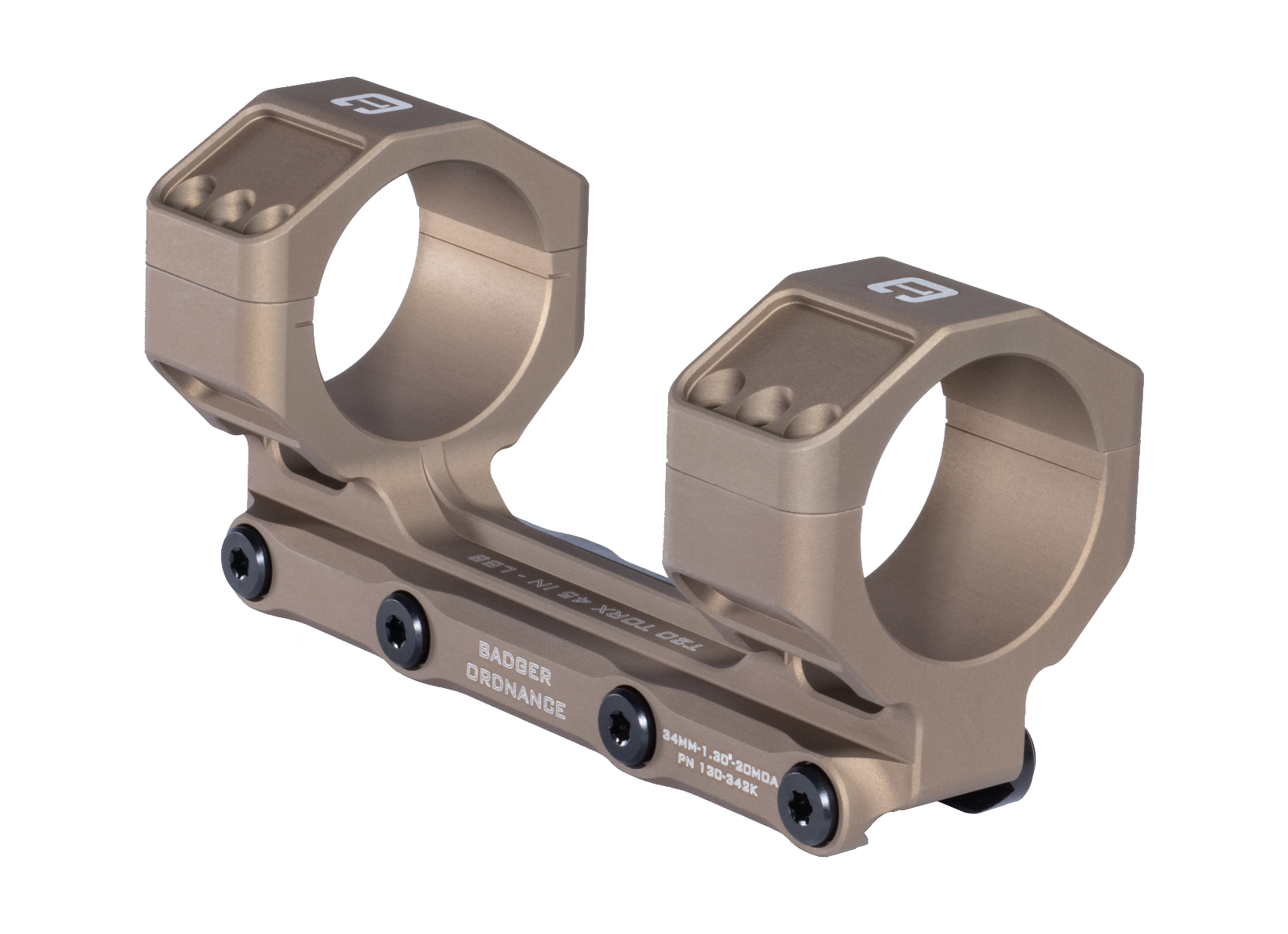

BADGER ORDNANCE CONDITION ONE MOUNTS

[Edsel]

I like the rings as close to the objective and ocular as far as possible, as opposed to having them choking on the erector assembly or "saddle…"

Anybody have any measurements?

Width of rings, space between rings?

Better yet, pictures of the scope mounts on rifles - would be most welcome…



[diggler1833]

I'd have to get home to measure first.

Wish I had a better photo of it, but this is what I found on this site of my rifle with the Badger.



[Edsel]

I'd have to get home to measure first.

Wish I had a better photo of it, but this is what I found on this site of my rifle with the Badger.

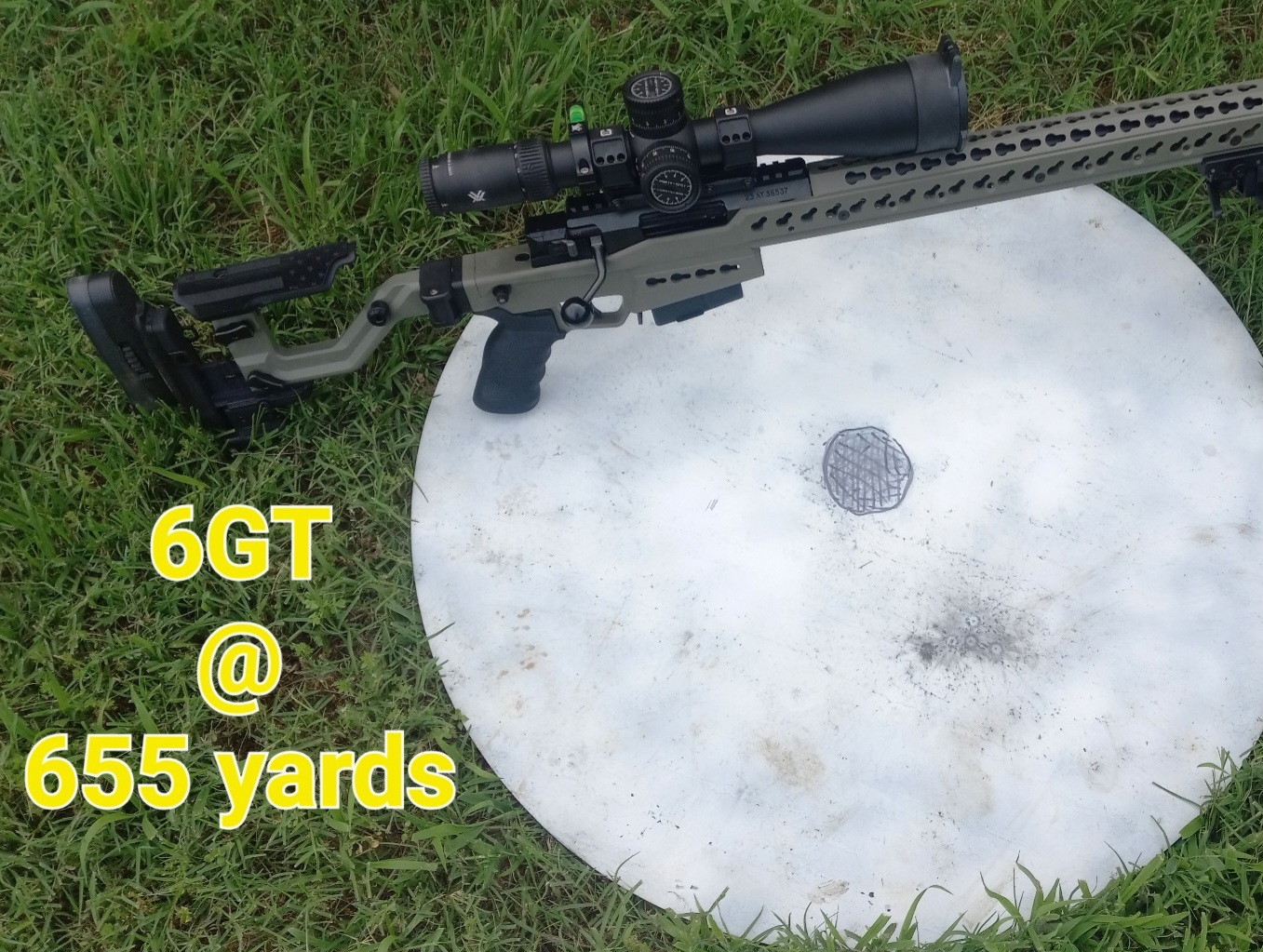

View attachment 8488966

Thanks!

Just the right rifle, too…

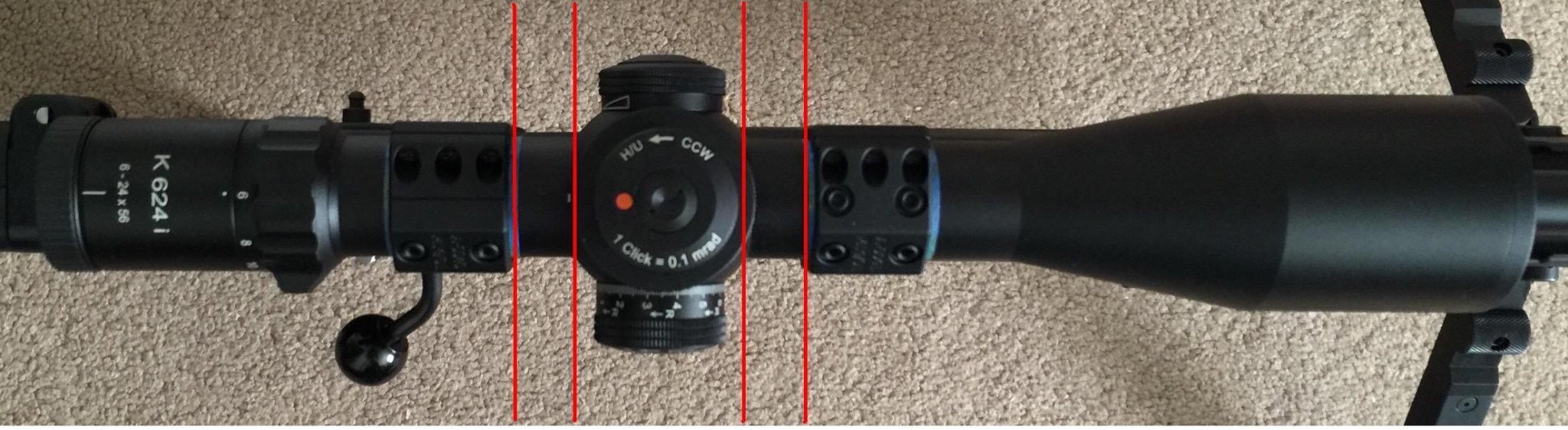

My Kahles k624is sit in Spuhr mounts that “fill the entire rail.”



[Edsel]

I'd have to get home to measure first.

Wish I had a better photo of it, but this is what I found on this site of my rifle with the Badger.

View attachment 8488966

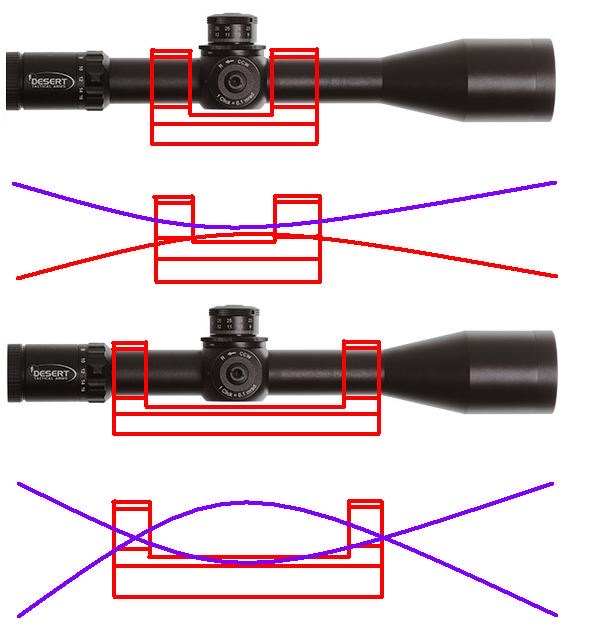

I never got to answer what the better method of mounting scopes was, with the consideration of flex during recoil.



[LA260]

I can get the measurements later on



[Edsel]

I can get the measurements later on

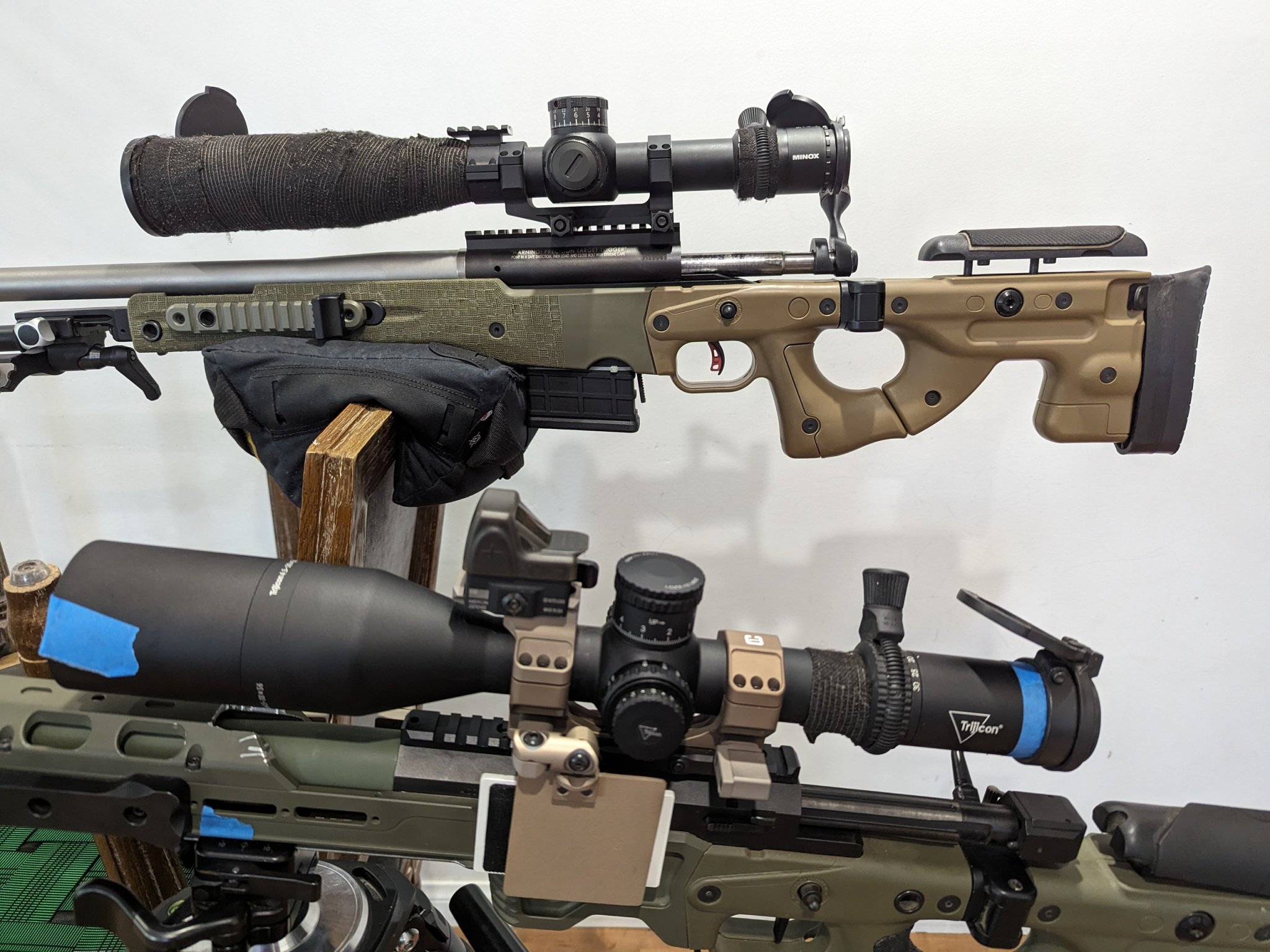

View attachment 8489175

Thanks, I appreciate the help.



[stanley_white]

I can get the measurements later on
View attachment 8489175

Who makes the ring with the rail for the red dot on the scope with the cantilever mount on the rear most rifle?

-Stan



[LA260]

Who makes the ring with the rail for the red dot on the scope with the cantilever mount on the rear most rifle?

-Stan

Aimpoint



[stanley_white]

Aimpoint

Thank you!

-Stan



[hafejd30]

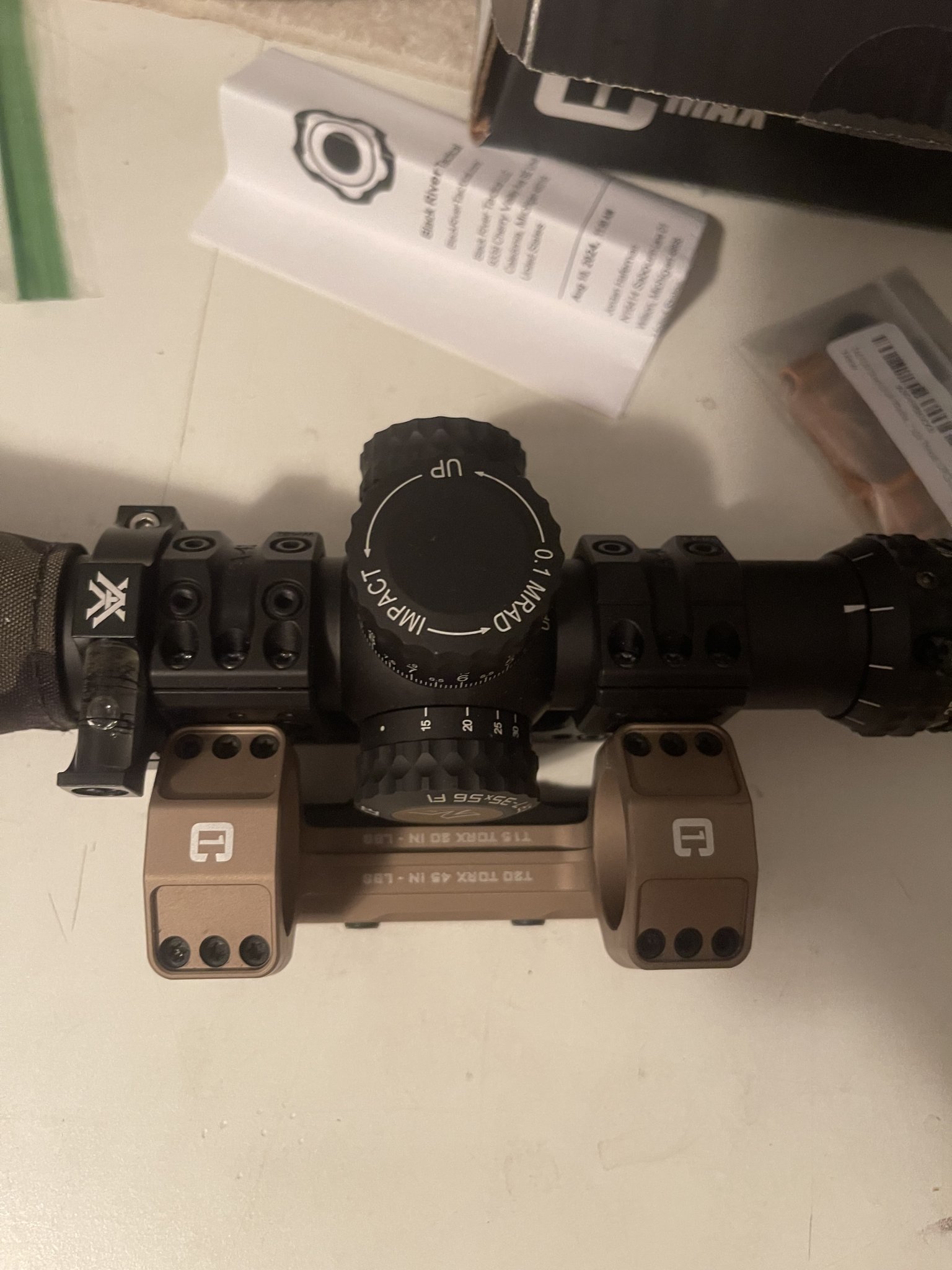

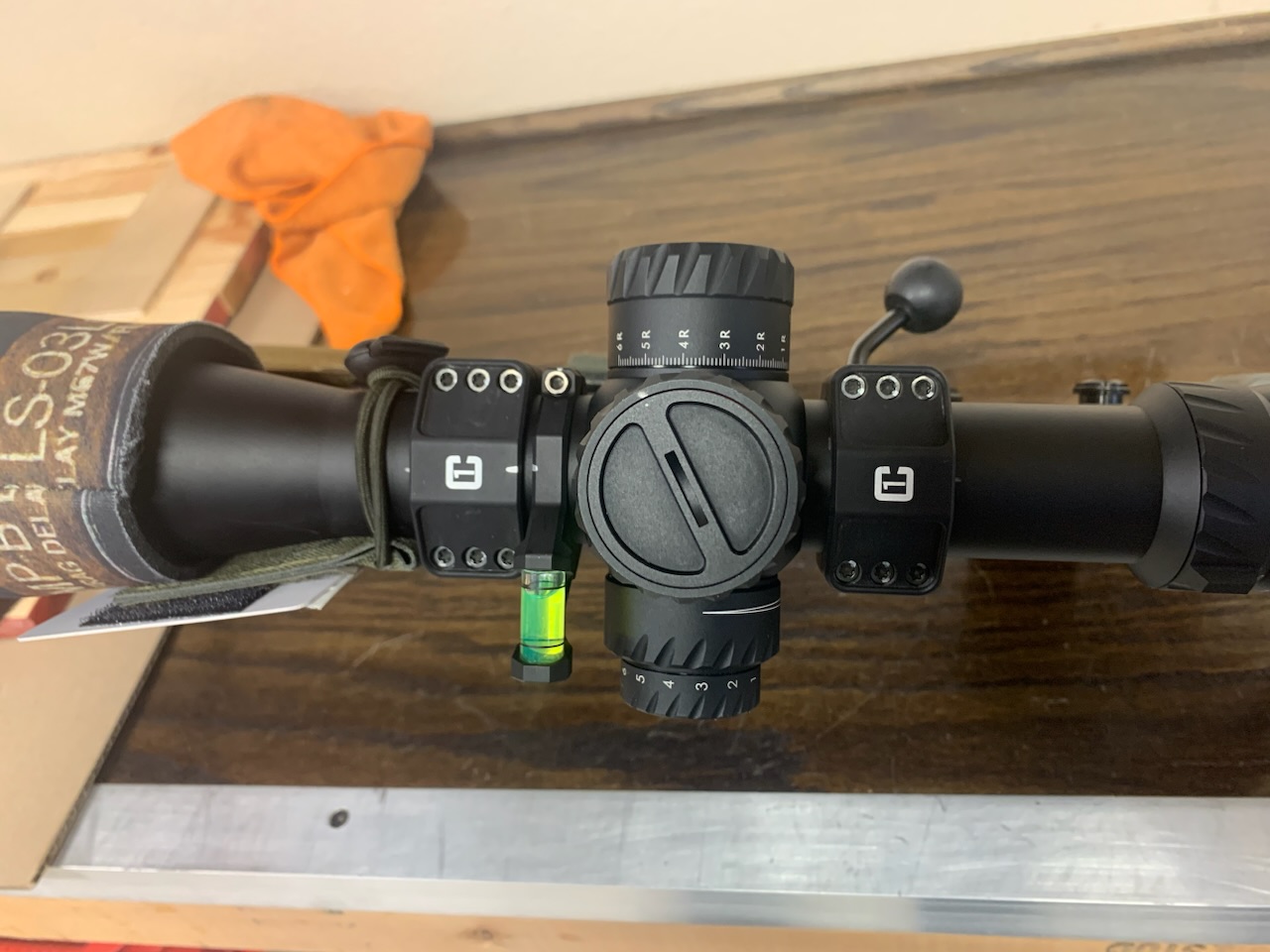

Here’s a couple. Covers basically same width as a spuhr



[M8541Reaper]

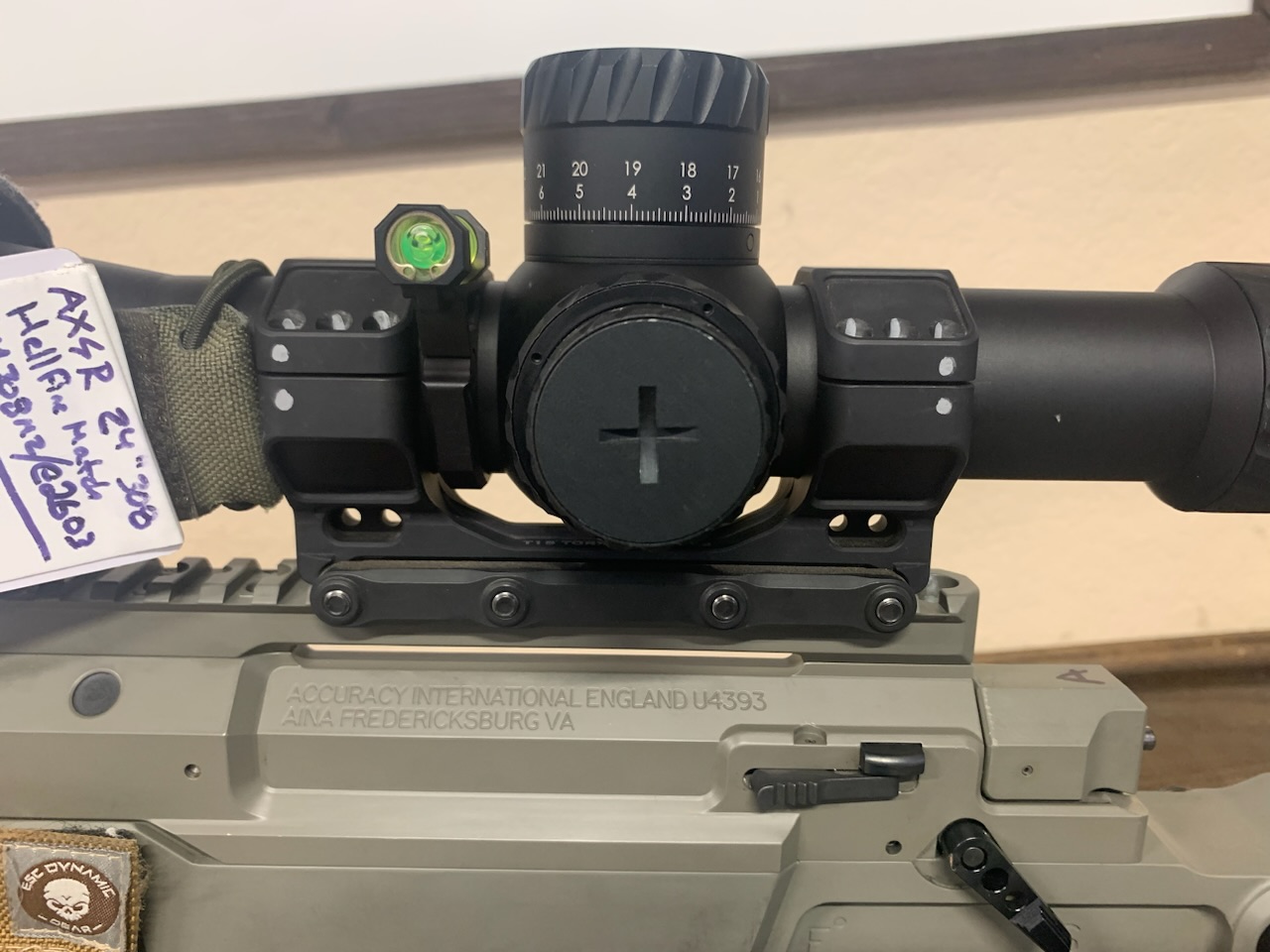

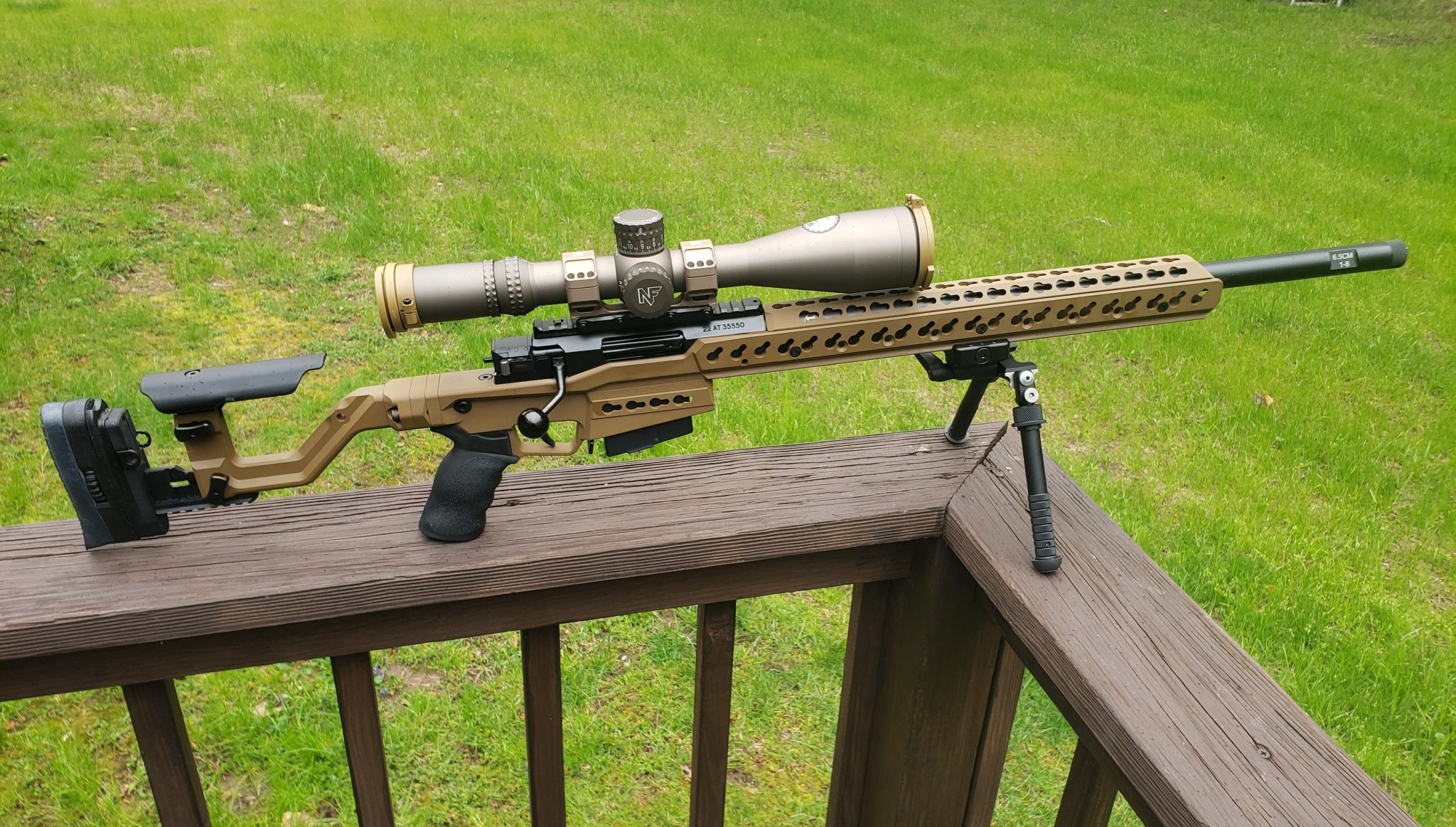

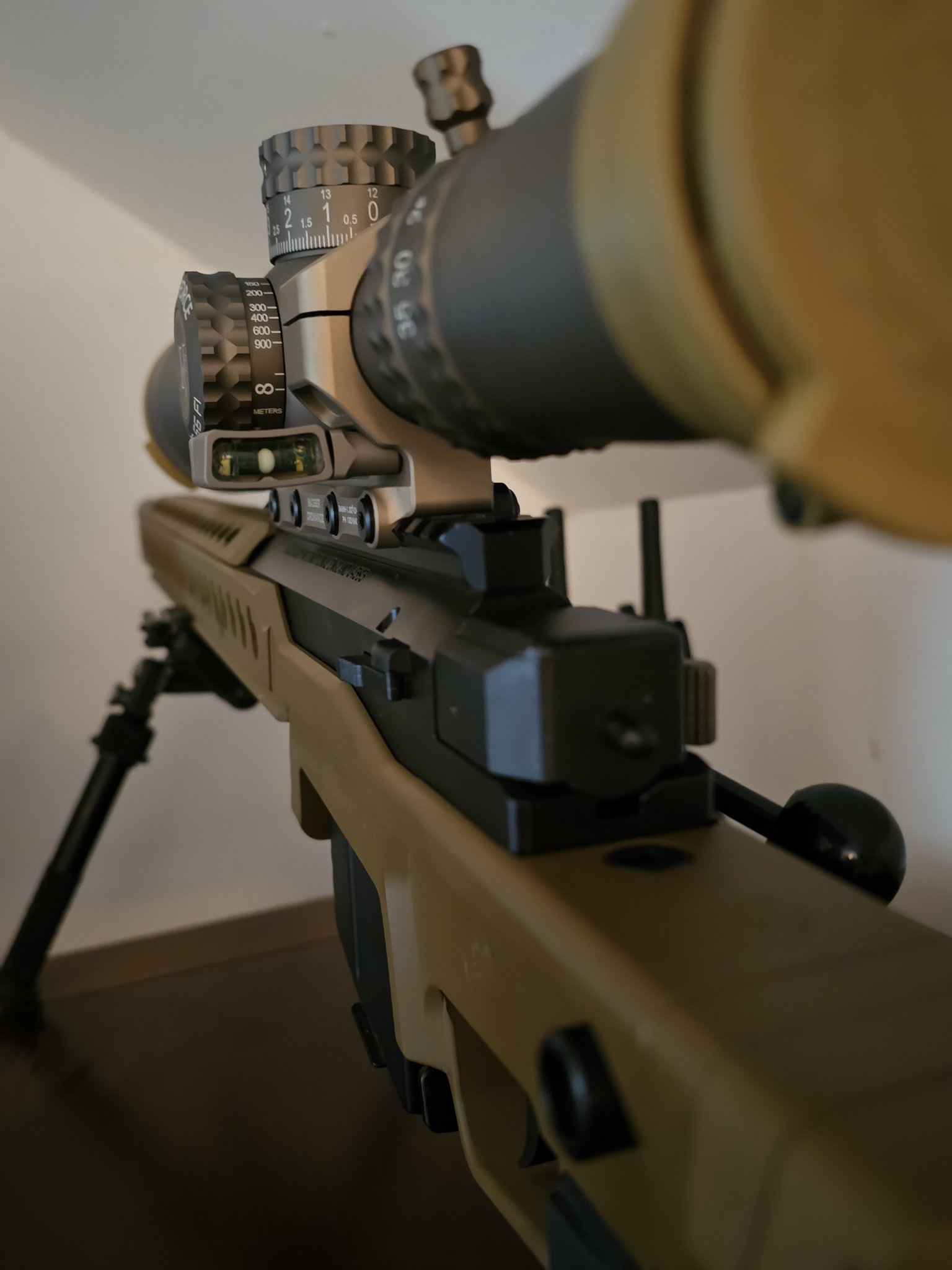

Enough room to have a Halo X level.



[Secant]

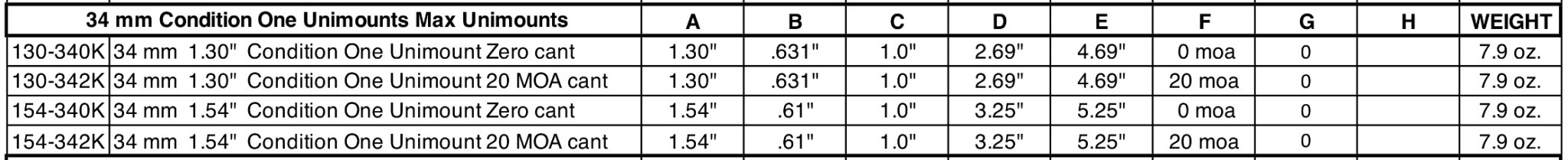

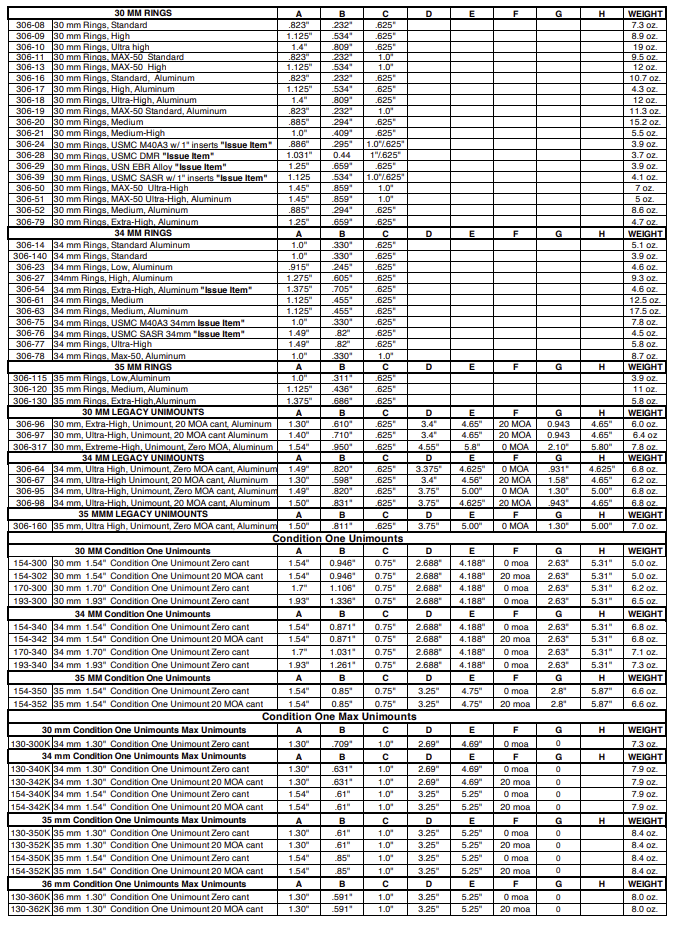

Not sure if that PDF loaded correctly from my phone, but it should be the cut sheet from Badger for all Max mount sizes/heights.

I can repost tomorrow from my computer, or you can ask BO, and they’ll send it to you.

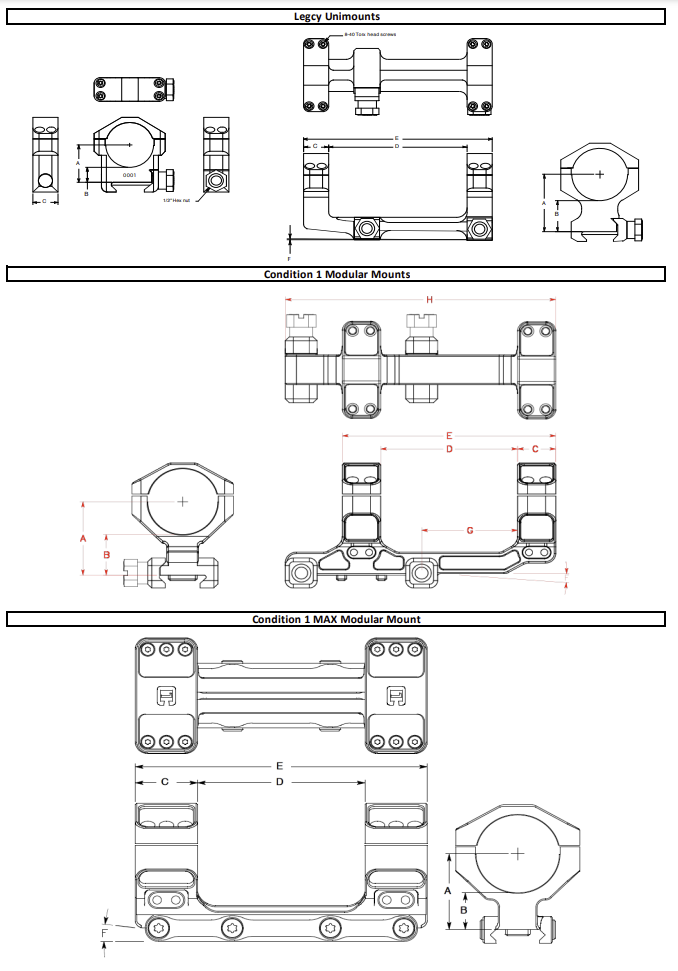

Edit to add image of cut sheet:



[matt33]

I really like BO mounts. The optional level is also cool.



[Edsel]

Thanks, guys!

Much appreciated…



[roostercogburn98]

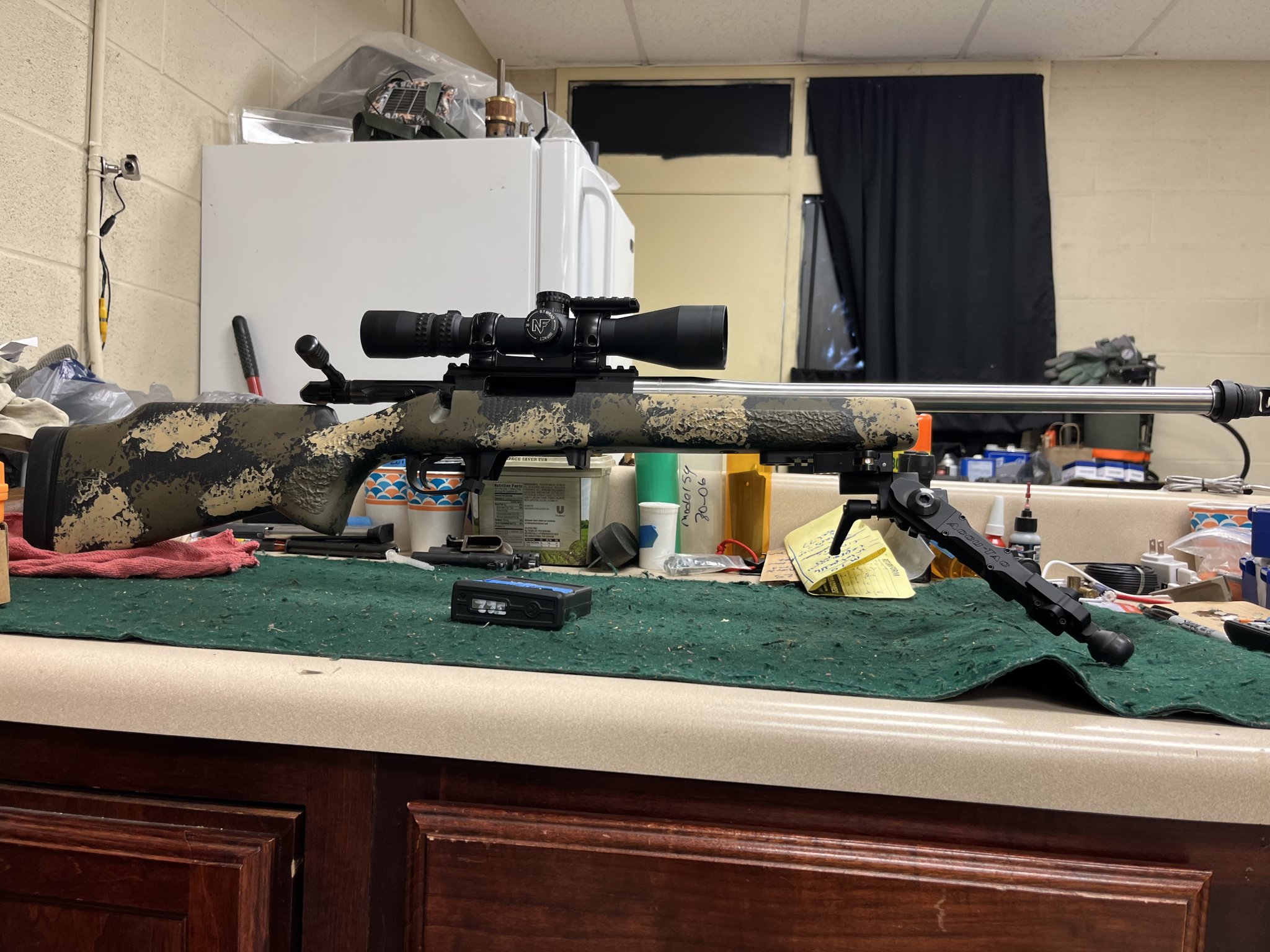

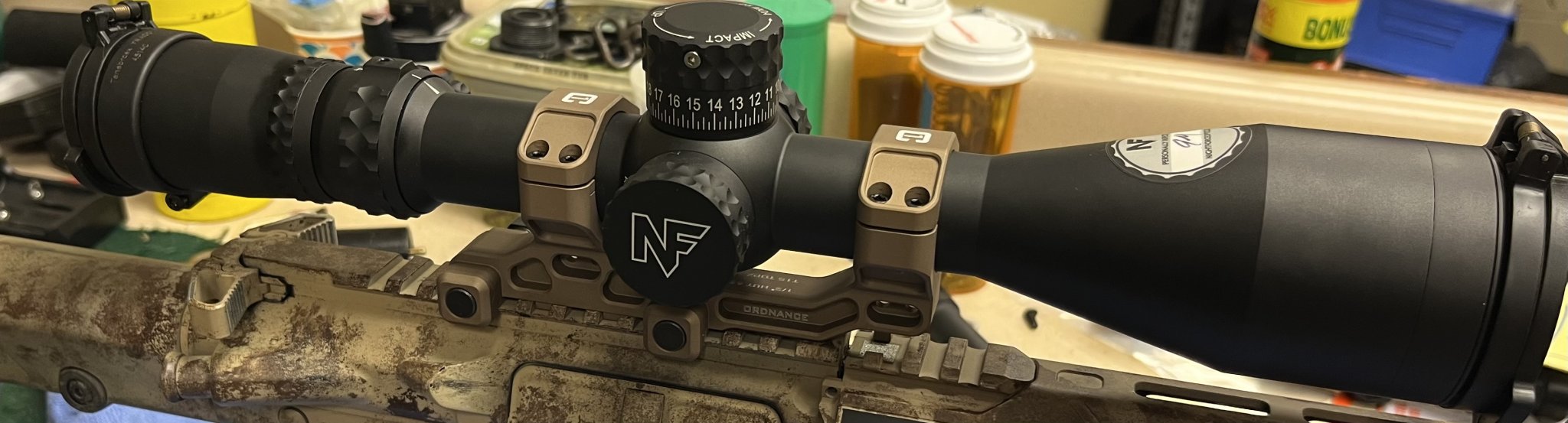

Scope makes a huge difference in how the mount sits as well.

Old school unimount

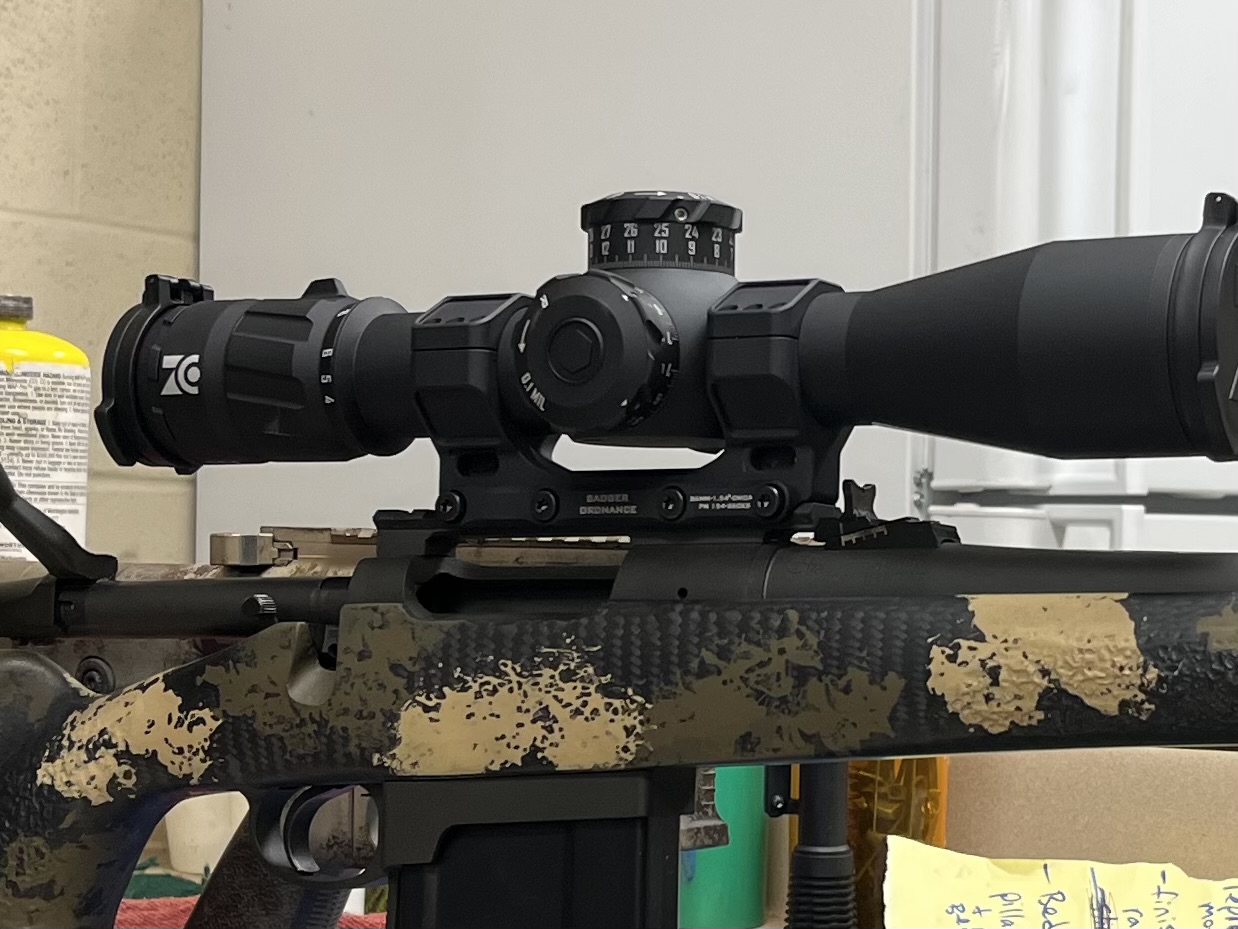

Standard C1

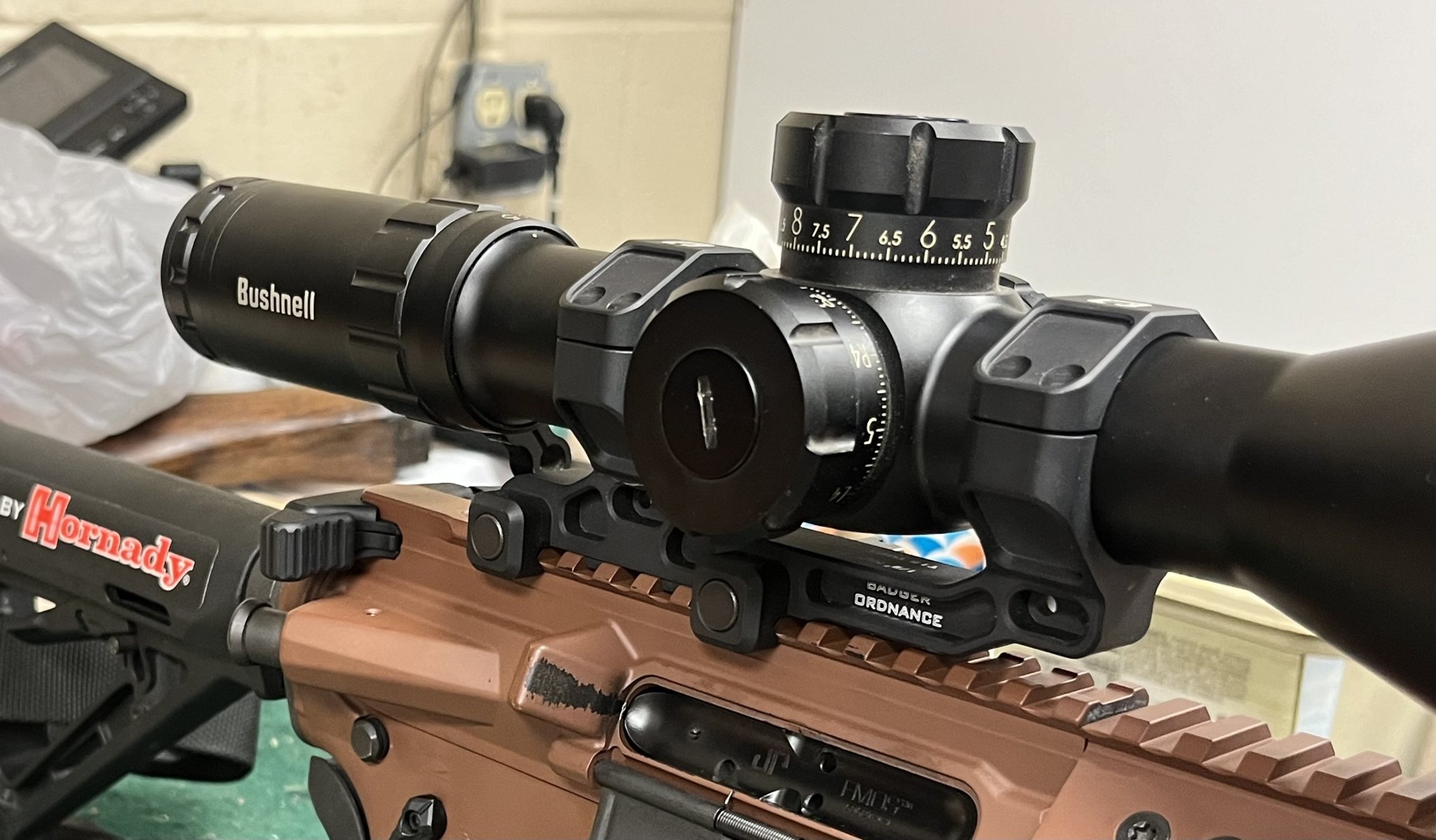

Another standard c1

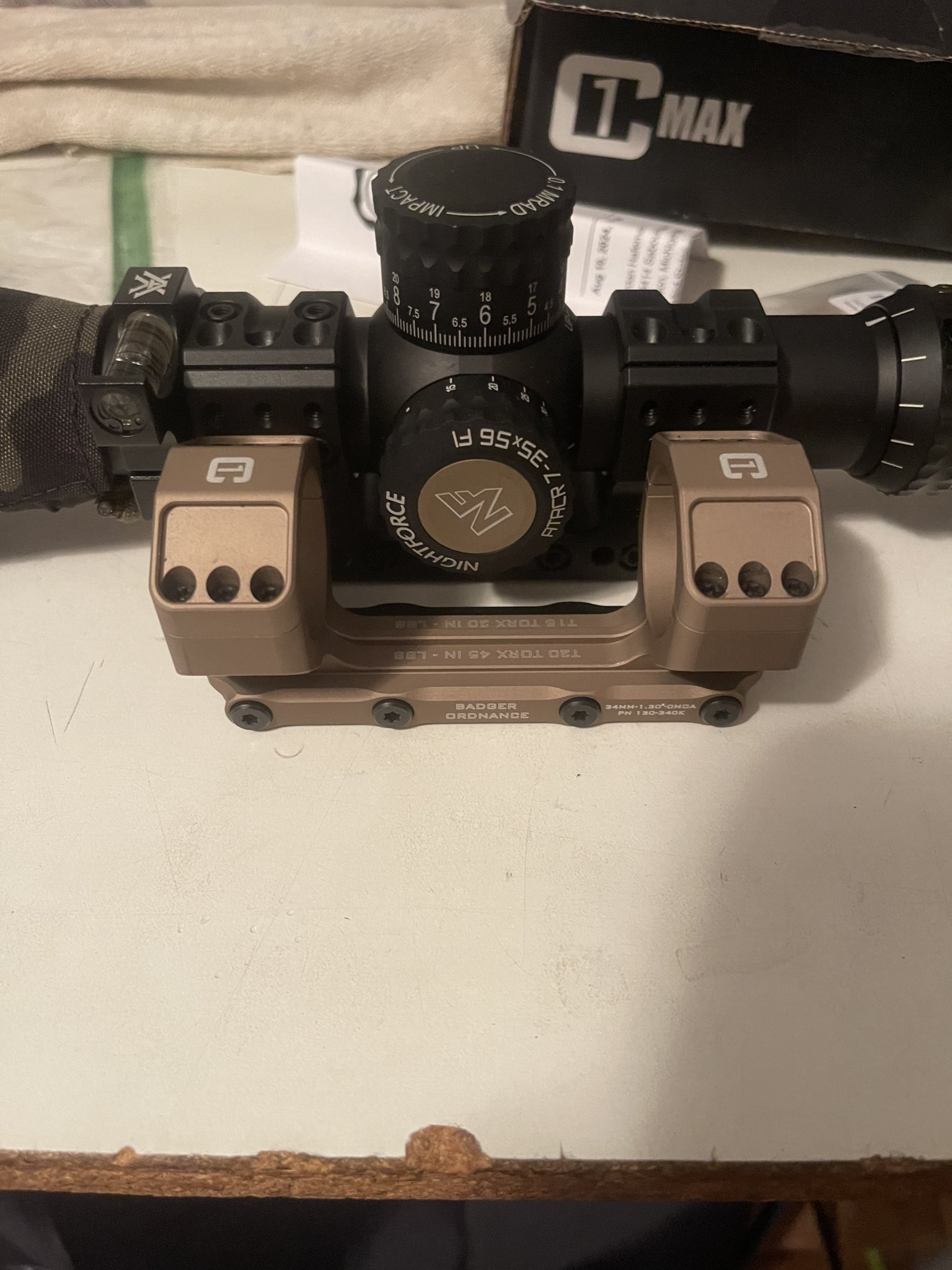

C1Max



[Edsel]

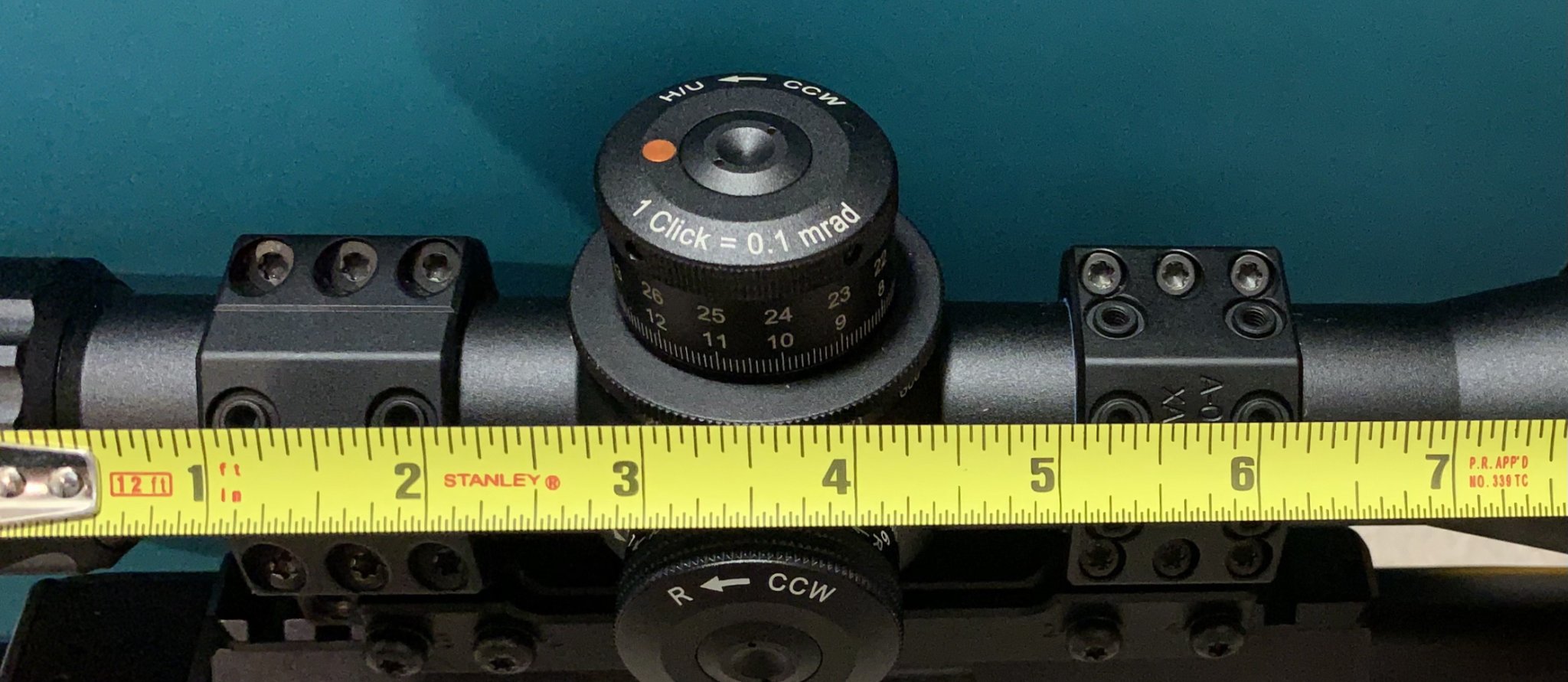

As a basis for comparison, this is a Spuhr ISMS 4003B.*

Overall Length (listed on box): 5.79”
Bore Height (listed on box): 1.5”
Tube Diameter (listed in box): 34mm
Ring Width (measured): 1.25”
Space Between Rings (measured): 3 3/8”
Cant: 0 MOA

Based on the information provided, 154-340K seems a decent contender…

I really miss the layout and aesthetic of the older, blocky, “flat, non - ribbed” Spuhr mounts (yes, I did have cracked rings despite using some really expensive torque limiters with fancy certifications - they were replaced).

* What the hell. This model has been discontinued



[Zoomie]

How do the mounts compare to the rings? Any advantages or disadvantages? I’ve been waiting for BO to restock the SASR rings but that seems to be dragging out a long time.



[Edsel]

How do the mounts compare to the rings? Any advantages or disadvantages? I’ve been waiting for BO to restock the SASR rings but that seems to be dragging out a long time.

I used to be a one - piece mount person, but got swayed otherwise by the Badger Ordnance MAX-50 series of rings.

Not really well - versed with the pros and cons, but offhand - here’s probably (at least in general, anyway) where each does better:

1. consistent concentricity: unimounts
2. return to zero after removal: unimounts
3. the modulus of elasticity under high impulse: unimounts
4. weight: rings

Nowadays, I’d really prefer minimalist, wide rings on my bolt guns (The MAX-50s are at 1”, while my older Spuhr goes at 1.25”). But I haven’t found anybody who makes them as wide as the latter.

On AR-15s with short rail segments - high amplitude flex is favored by cantilevered designs, but thankfully diminished by the small caliber.



[Zoomie]

I used to be a one - piece mount person, but got swayed otherwise by the Badger Ordnance MAX-50 series of rings.

Not really well - versed with the pros and cons, but offhand - here’s probably (at least in general, anyway) where each does better:

1. consistent concentricity: unimounts
2. return to zero after removal: unimounts
3. weight: rings

Nowadays, I’d really prefer minimalist, wide rings (The MAX-50s are at 1”, while my older Spuhr goes at 1.25”). But I haven’t found anybody who makes them.

Thanks. I really appreciate the modularity of the CO Mounts. But the SASR rings have never failed me. I also like the fact, as you mentioned, the rings are hybrid Max-50ish in design. Since BO never made the Max-50/34mm in 1.49 height, the SASR always seemed the best fit. YMMV.



[roostercogburn98]

How do the mounts compare to the rings? Any advantages or disadvantages? I’ve been waiting for BO to restock the SASR rings but that seems to be dragging out a long time.

I typically only use one piece mounts on gas guns. With the exception of some old redfield versions, and the SPUHR lightweight hunting mount on the 7-08.



[Edsel]

I wonder what’s going on with Badger Ordnance.

So many goodies out of stock.



[plong]

I wonder what’s going on with Badger Ordnance.

So many goodies out of stock.

Wondering about, and frustrated by, the same thing... fulfilling .Mil contract(s) or...? Been waiting for MAX ARCs to come back in stock since, forever, have an Acro waiting to team-up with my March MPVO...
