Badger ordnance M2013 bolt knob TPI

[Cartridge Coffin]

Just as the title states. Looking for a definitive answer on what thread pitch the badger ordnance M2013 uses for it's bolt knobs. I'd like to swap mine out but I have no good way of checking at the moment without just bringing my bolt into a hardware store. Any help would be greatly appreciated. TIA



[PinesAndProjectiles]

Measure the OD of the threads with a caliper.

Then, set the caliper to 1.000”

Place the jaws of the caliper on the threads, count the threads between the jaws.

Obviously your threads aren’t an inch long, so set the caliper to .250 or .500 and multiply by 4 or 2.



[Moses42ak]

I see nothing wrong with taking the bolt into the store. However, the threads are 5/16 - 24



[Hennig]

5/16x24

Grab a Sterk Golfball!



[Moses42ak]

@Hennig Where would one acquire a Sterk golf ball for their 2013? All I’m finding are Tikka handles/knobs.



[Cartridge Coffin]

5/16x24

Grab a Sterk Golfball!

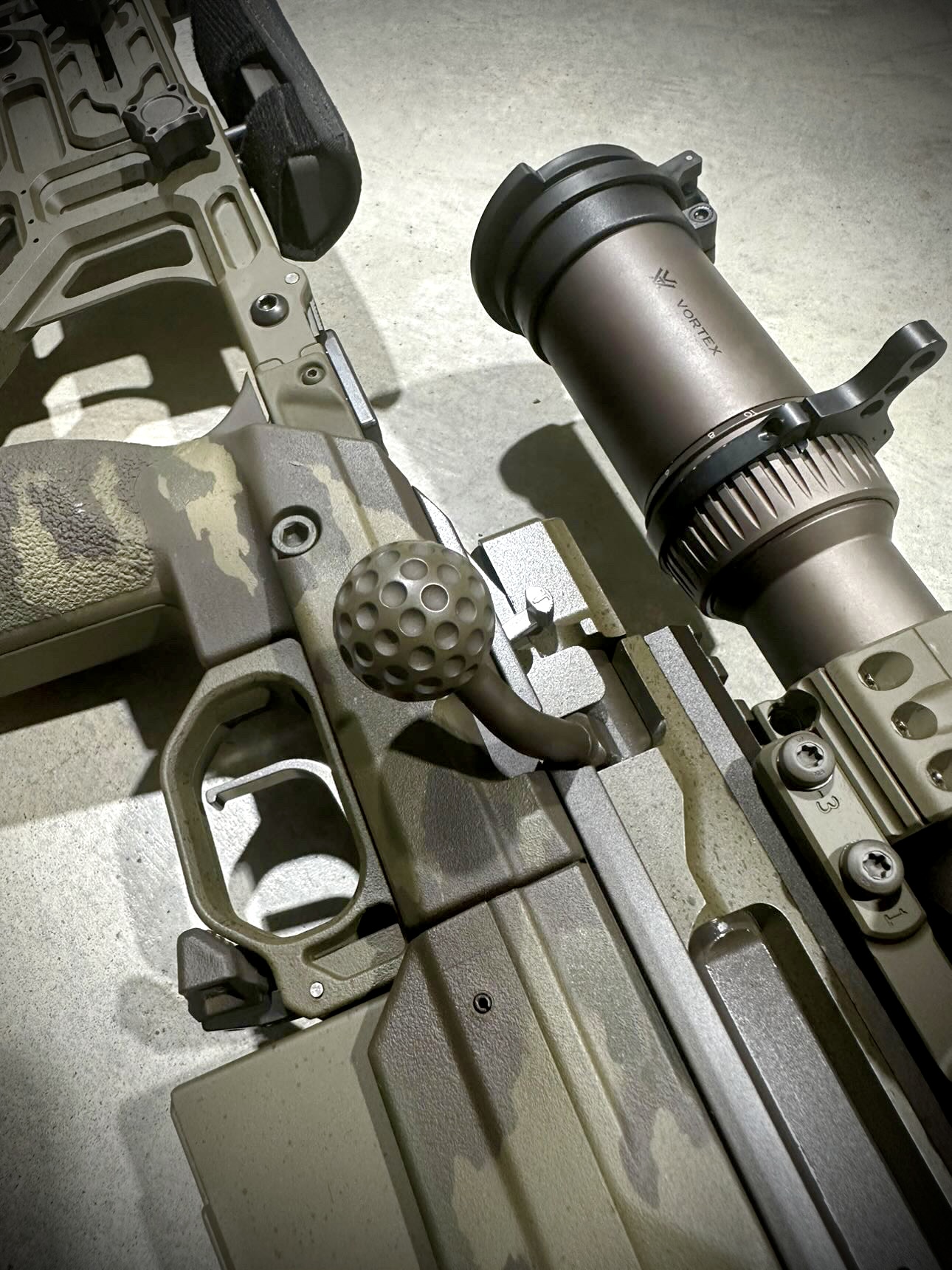

View attachment 8274695

Seriously, where did you get that? I contacted Sterk directly and they hinted that they were going to release them eventually but I still have yet to find one for sale. Any leads or info would be greatly appreciated.
