Does anyone know of a quality set of “jaws” or “clam shell” for lack of a better term that can be added to a bench vice to avoid having to have a separate dedicated barrel vice attached to a work bench. I have searched and googled and found a few things that might be acceptable but hoping for input that has actually gone this route to have enough grip to remove a shouldered barrel and still not damage the barrel or mar it.
-
Having trouble using the site?
Contact support
Barrel vice questions
- Thread starter Altoonabcm157
- Start date
I don't keep my viper attached to my bench. I use a couple of old C clamps when I need to use it. I've also seen some people toss their barrel vise in their bench vise when needed.
I figured that might be possible to just clamp a normal barrel vice into a bench vice but wasn’t sure the success with the twisting force and the barrel vice turning. Main goal is to avoid taking up bench space with something that I use a couple times a year

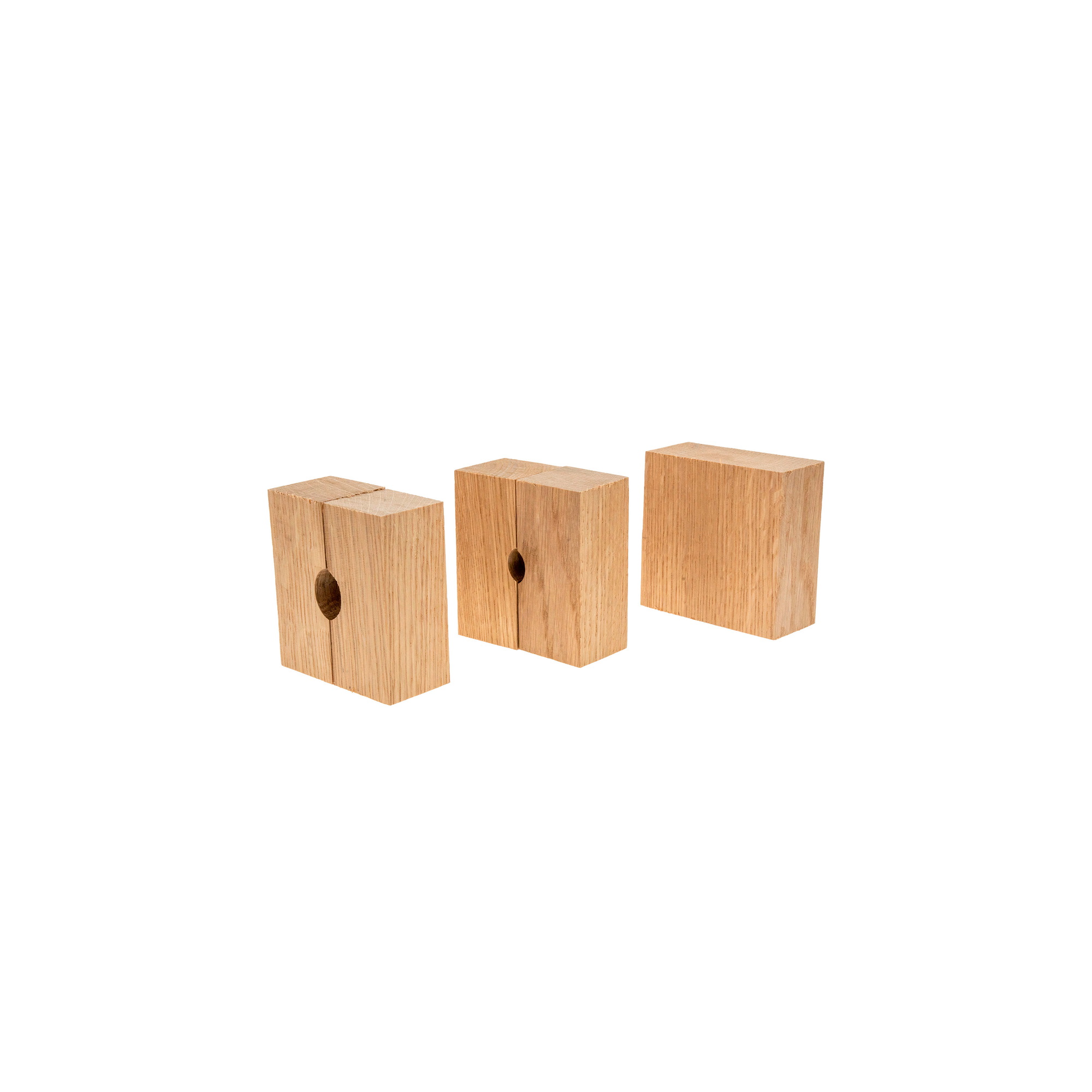

buy a set or two of the oak blocks used with the wheeler vise.
A little bit of rosin, bobs your uncle.
A little bit of rosin, bobs your uncle.
That’s basically what I was envisioning just was seeing who’s actually done it this way.
Fucking genius!
I saw a guy ban saw the red part in half so it followed the contours of the tapered barrels up by the receiver end.
Get a proper barrel vise and clamp it to your bench or in your vise. I had a set of jaws for my vise and it just doesn’t clamp the same and barrels would often spin when using leather to protect the finish. In regular barrel vise with nuts or bolts you torque they don’t spin.

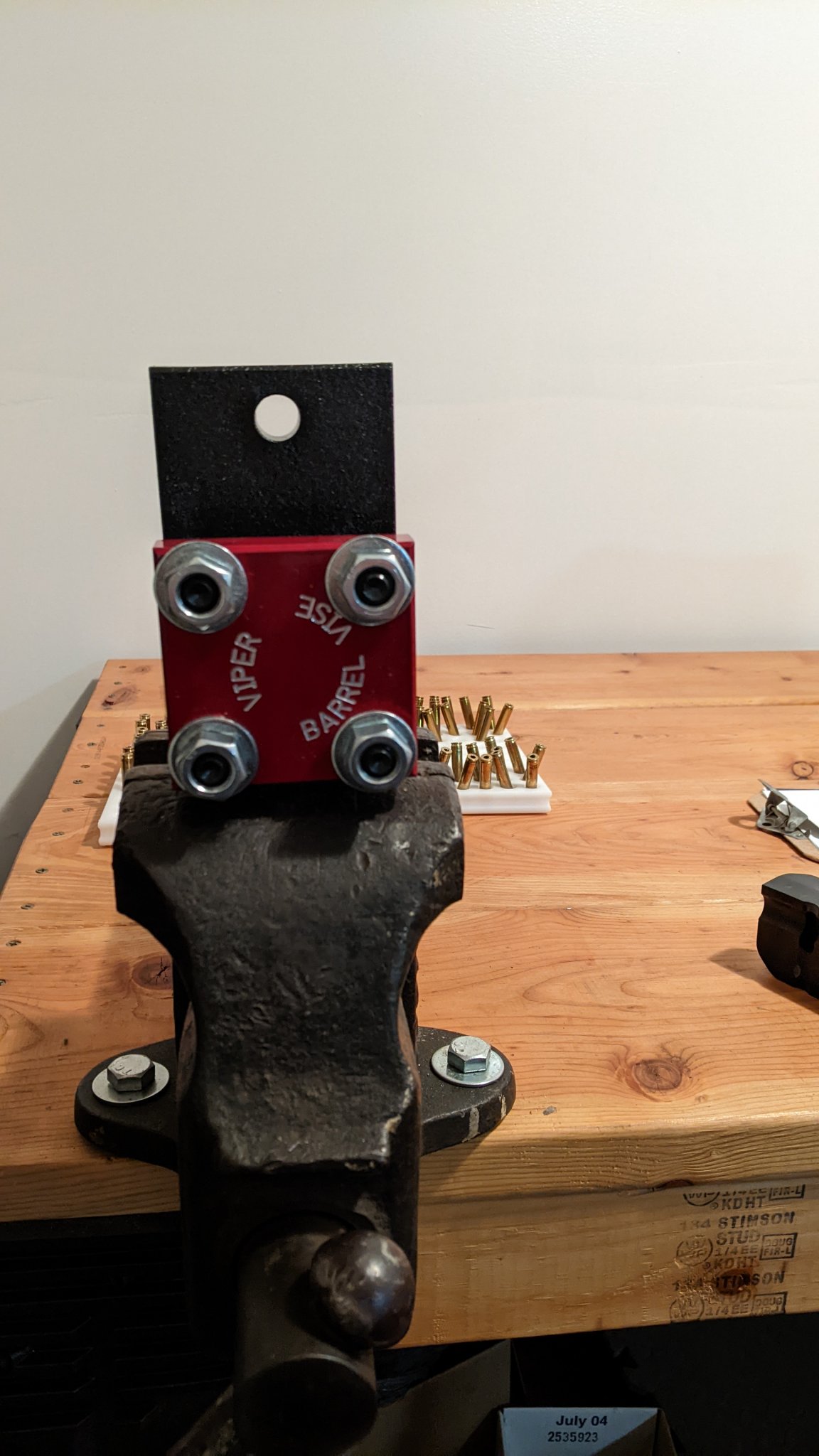

You can clamp it to your bench, a table, your bumper or any other surface you can get a clamp under. You can also clamp or bolt it to a small piece of 2x4 to use in your bench vise, or you can grab it with the vise like pictured in the post above.
I’d the PMA barrel vise over the Viper. I’ve had a viper for over 10 years that I’ve finally worn out and replaced it with the PMA. The PMA does a wider range of barrel sizes grabbing smaller and larger barrels and also goes to 1.5” which will fit a lot of suppressors for torquing in adaptors.
You can clamp it to your bench, a table, your bumper or any other surface you can get a clamp under. You can also clamp or bolt it to a small piece of 2x4 to use in your bench vise, or you can grab it with the vise like pictured in the post above.
I’d the PMA barrel vise over the Viper. I’ve had a viper for over 10 years that I’ve finally worn out and replaced it with the PMA. The PMA does a wider range of barrel sizes grabbing smaller and larger barrels and also goes to 1.5” which will fit a lot of suppressors for torquing in adaptors.
I tried the quickclamps but that didn't work for me.
When it's attaching a barrel, I've put my viper in my bench vise because I'm not putting a ton of torque like the OEMs.
But I've never tried with removing a barrel, that's whey I use plain old steel C clamps.
When it's attaching a barrel, I've put my viper in my bench vise because I'm not putting a ton of torque like the OEMs.
But I've never tried with removing a barrel, that's whey I use plain old steel C clamps.
I have a set of these Wheeler jaws and they are very handy for everything….except barrel removal/installation.
For your purposes, get an actual barrel vise or get a friend who has one (my personal approach haha)
For your purposes, get an actual barrel vise or get a friend who has one (my personal approach haha)
