Hello everyone!

My name is Arsen and I represent company Raven Euro.

Raven Euro LTD is a European company based in Burgas, Bulgaria (EU). Our main line of business is the manufacturing of premium grade carbon fiber stocks for hunting rifles. Our current products - carbon fiber stocks for Blaser R8 and R93 rifles - are rather well-known in Europe and have proven themselves as ideal stocks for both hunting and long range shooting. We have been manufacturing rifle stocks for over 10 years and we are proud to say that in that time we haven’t received a single warranty inquiry or complaint about factory defects. We expanded our products list and developed a new model of stock for bolt-action rifle - and we are glad to present a MT30 stock for Tikka T3x rifles.

We also can adapt this design to any custom action or Remington footprint, if you are interested. Any barrel contour, any bottom metal...all we need is the schematic and some blueprints of action and required bottom metal. We do all metalwork in house as our factory is equipped with CNC machinery to make us independent from any subcontractors. We also can provide full OEM/ODM manufacture services as well. In this case the pricing is calculated based upon the design required, stock features like adjustable mechanisms, electronic components integrated, etc - and the quantity of stocks you'd like to receive.

We use highly advanced aerospace grade technology, utilizing prepregs and high heat and pressure processes when producing our stocks, allowing for the most stable and repeatable result. These technologies and materials are top of the line and currently are the best available on the market.

Our stocks are of a monocoque construction with very high twist and turn resistance, no play, no flex, no wobble. This “enclosed” construction has an edge over “open” or “U-shape” stocks, which many other manufacturers produce. All internal parts are hidden, meaning an owner sees only the sleek carbon structure of the barrel channel with a matte finish; both effective and beautiful. This type of construction is extremely rigid, efficiently distributing the load over the entire surface. As an option to personalize a stock, we offer not only the standard carbon finish, but also our recently developed Carbon Camo finish – a hand-laid camouflage-like pattern that, due to individualized camouflage patterns, makes every stock appear different and unique. The inlets for actions are made from an epoxy compound to reinforce the internal structure of the stock and CNC cut and machined to size to ensure perfect and correct placement. We reinforce locally high-load areas like pillar zones, recoil lug areas or action mount zones to increase their durability and strength to use with Magnum calibers.

  • Like
Reactions: clcustom1911

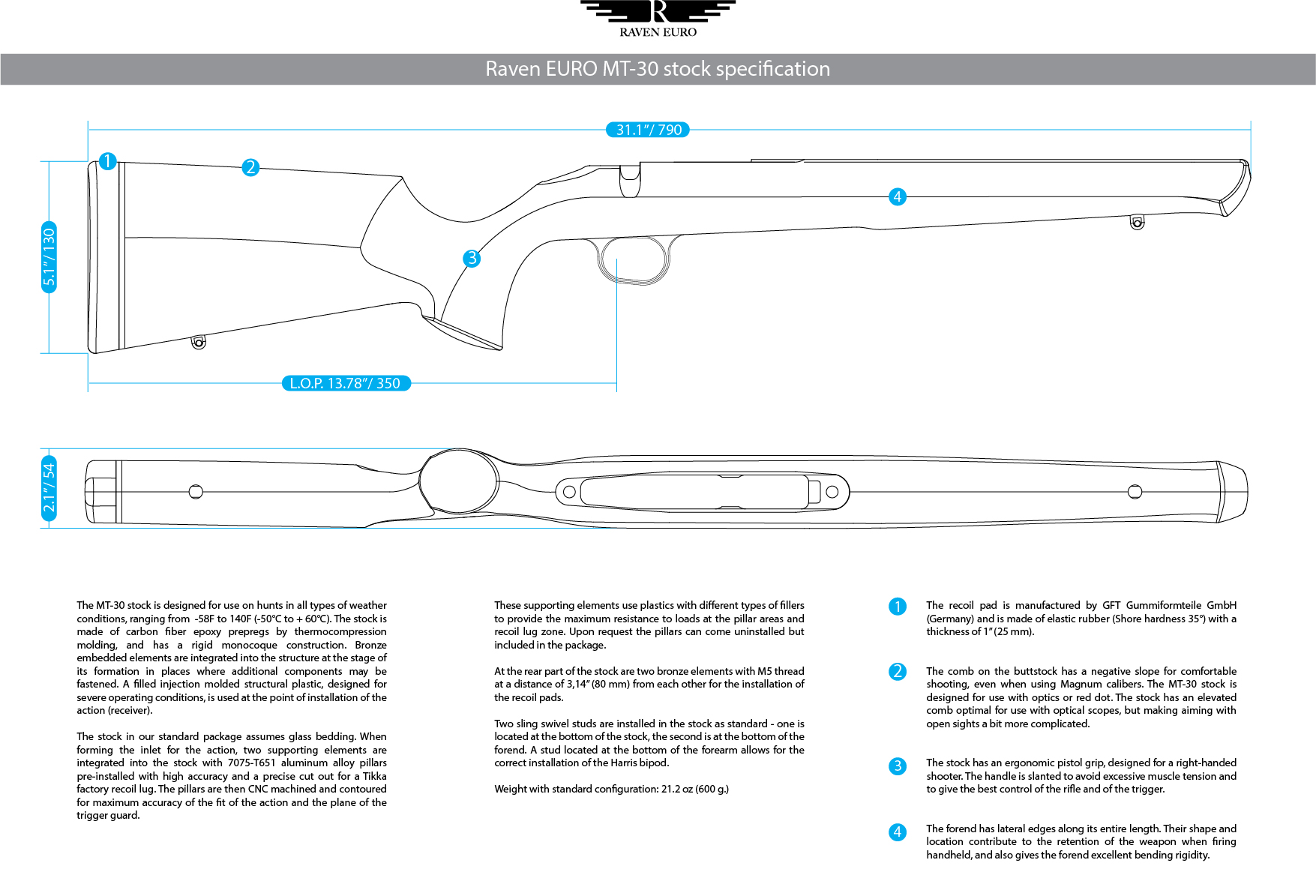

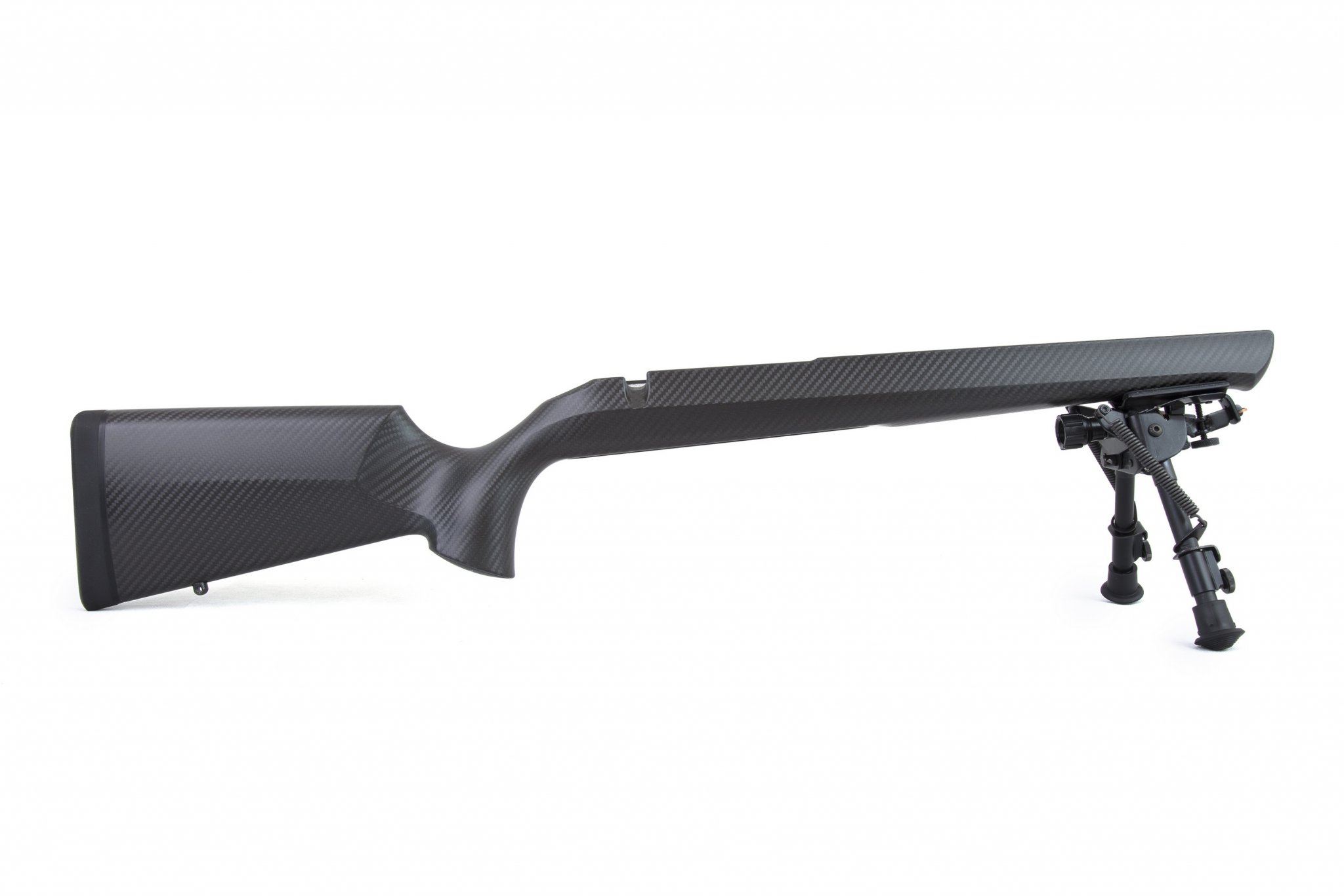

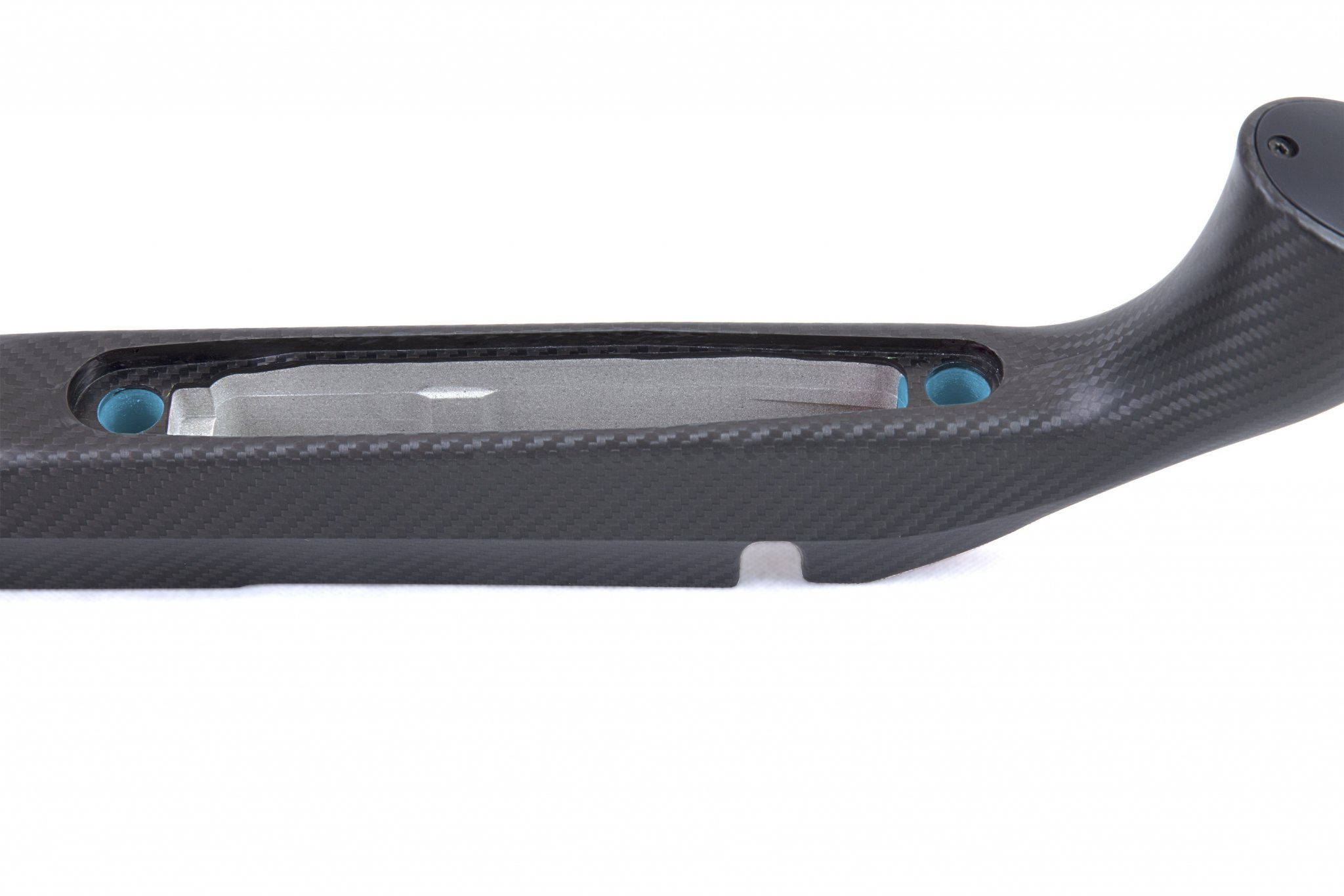

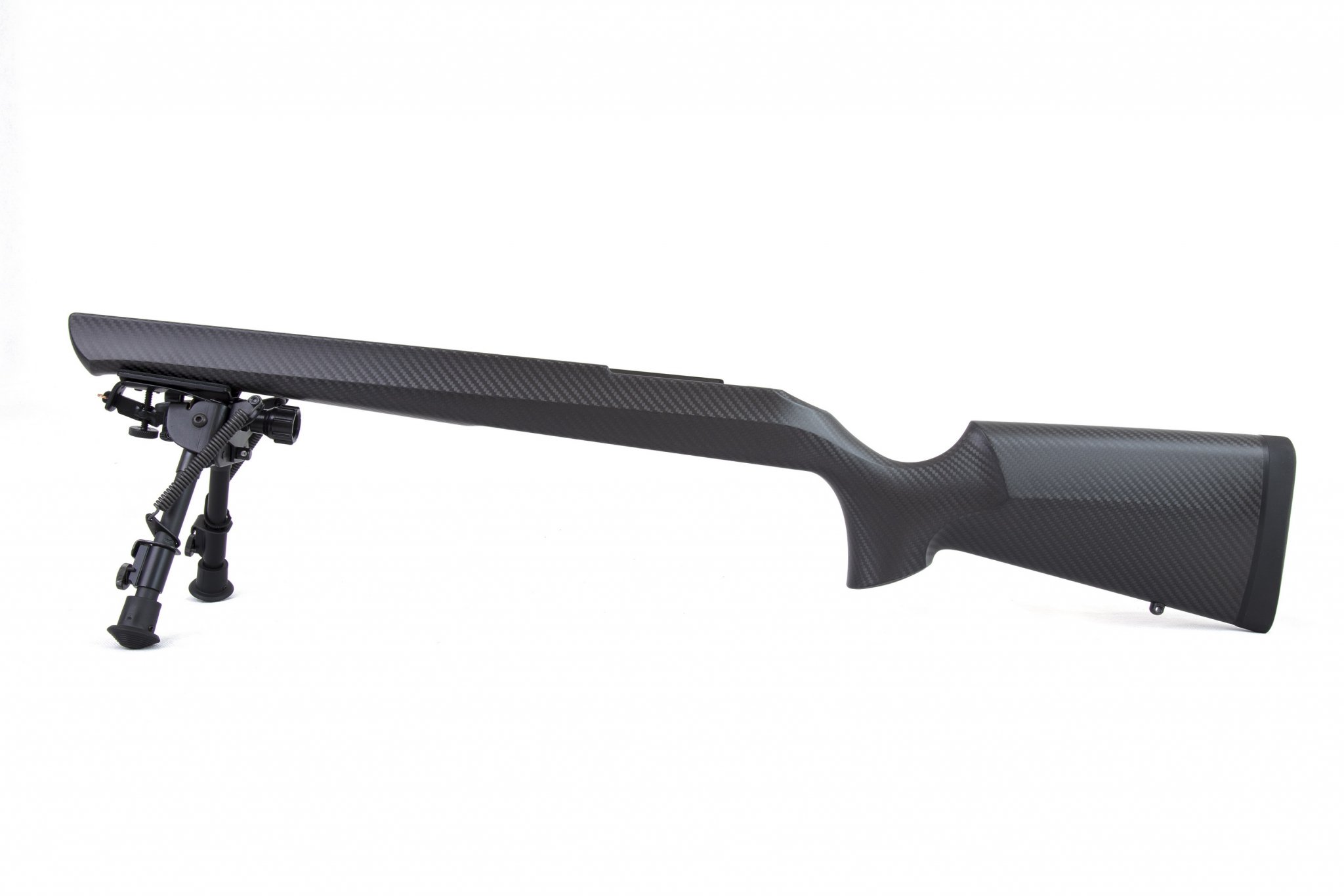

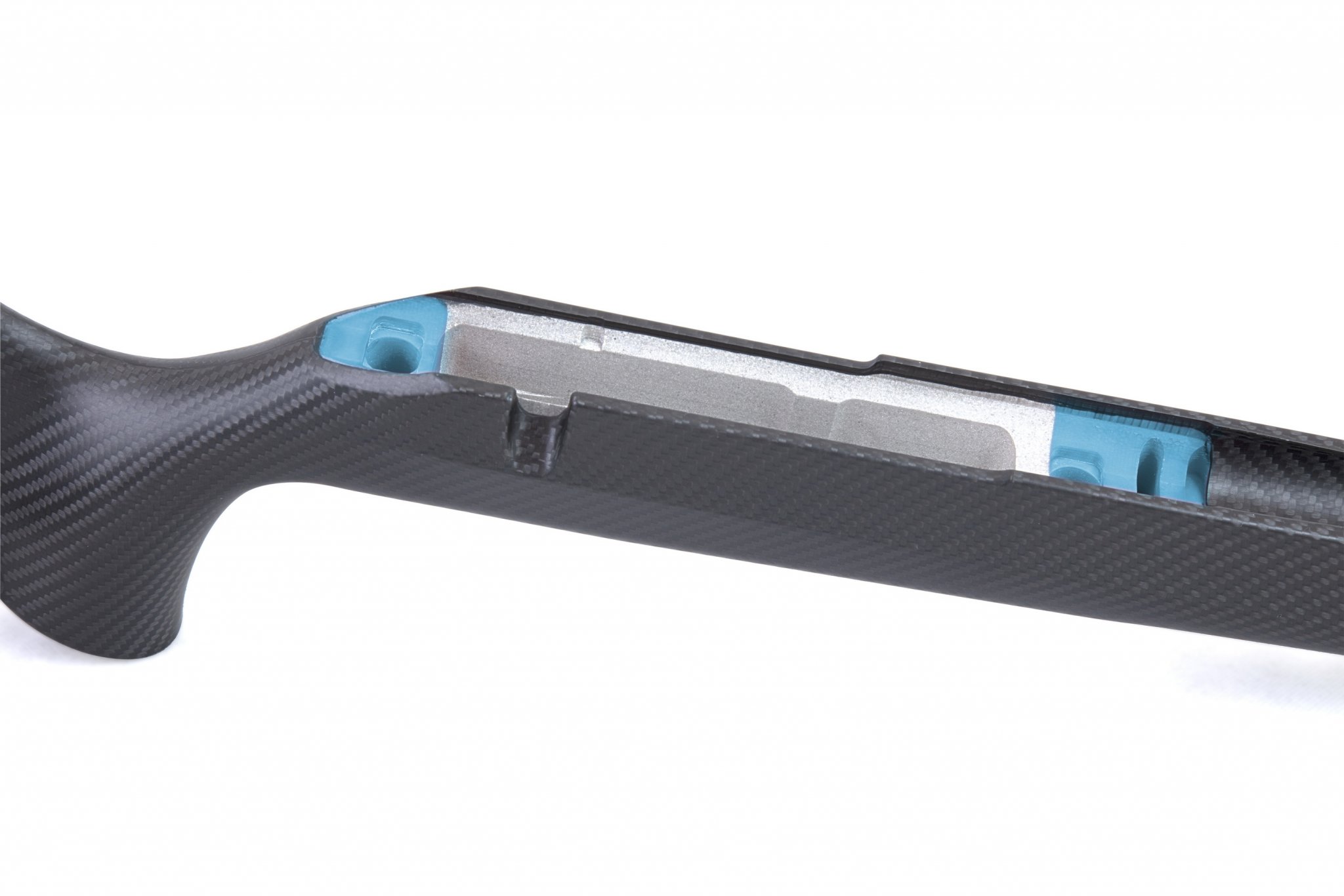

Here is our MT30 stock for Tikka T3x in standard carbon finish.
Prepared for pillar bedding, the trigger guard is factory Tikka T3x standard. The areas with pillars and with recoil lug are reinforced.


Attachments

  • 12_1.jpg
    112.2 KB · Views: 132
  • 13_1.jpg
    152.3 KB · Views: 145
  • 14_1.jpg
    150.6 KB · Views: 146

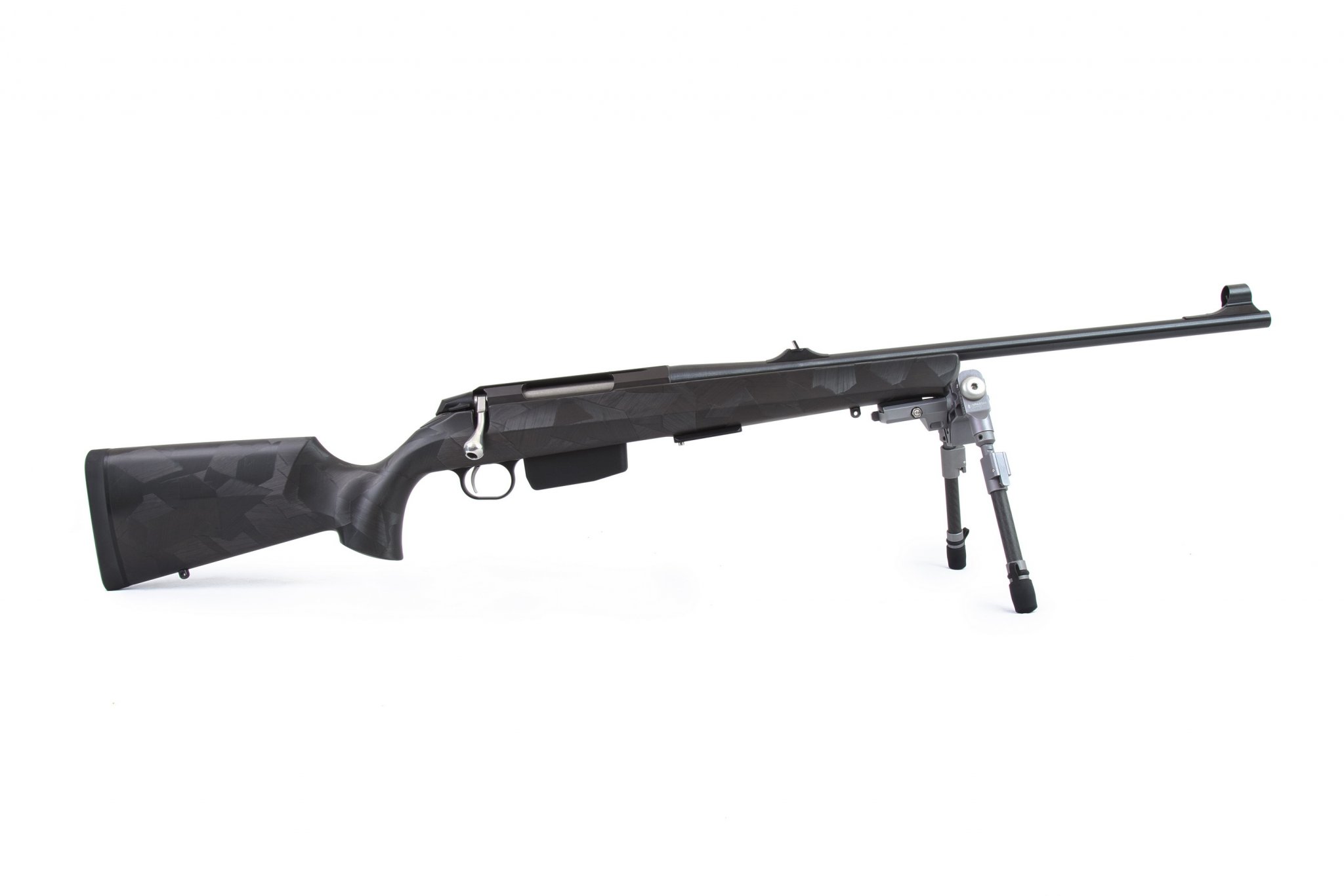

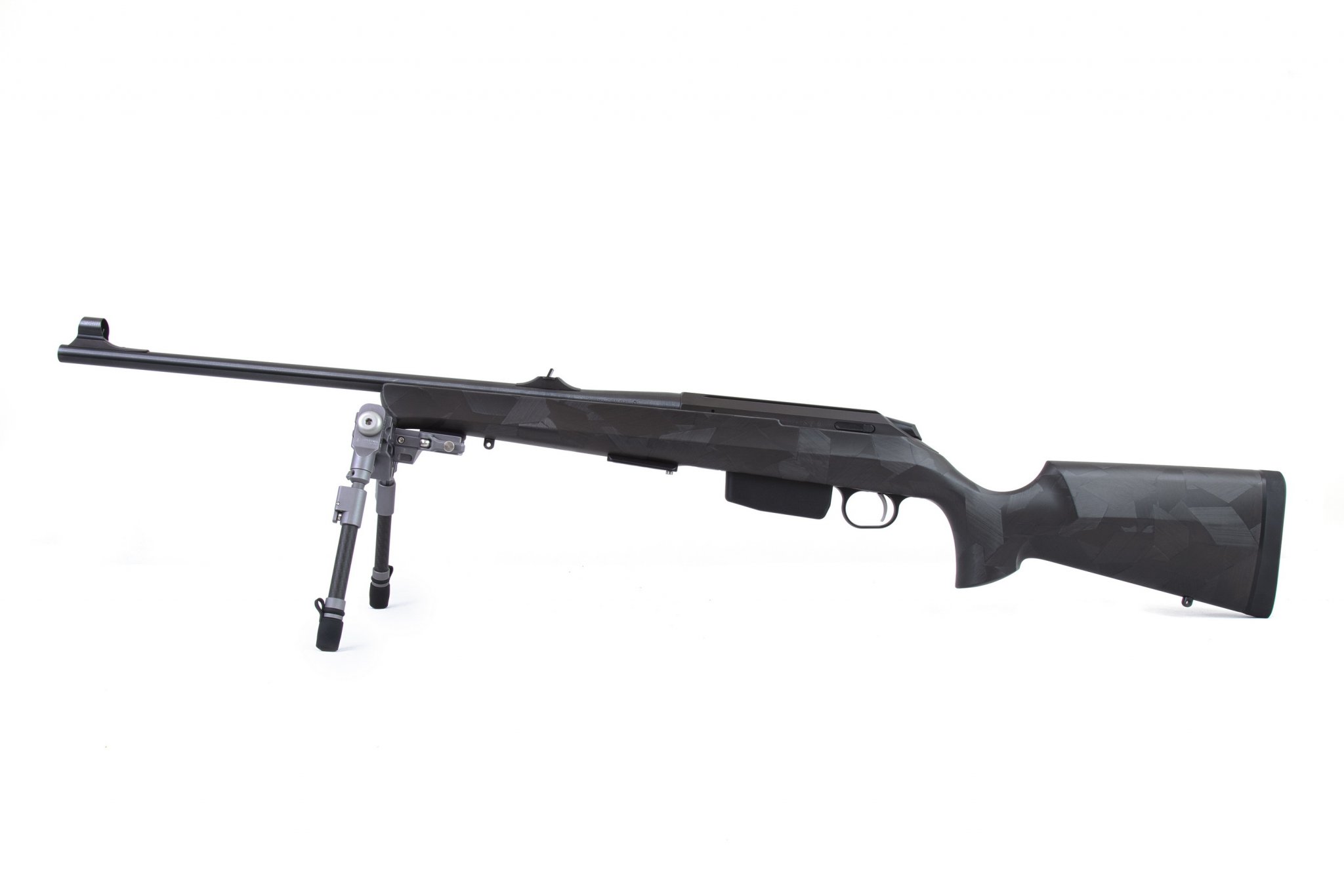

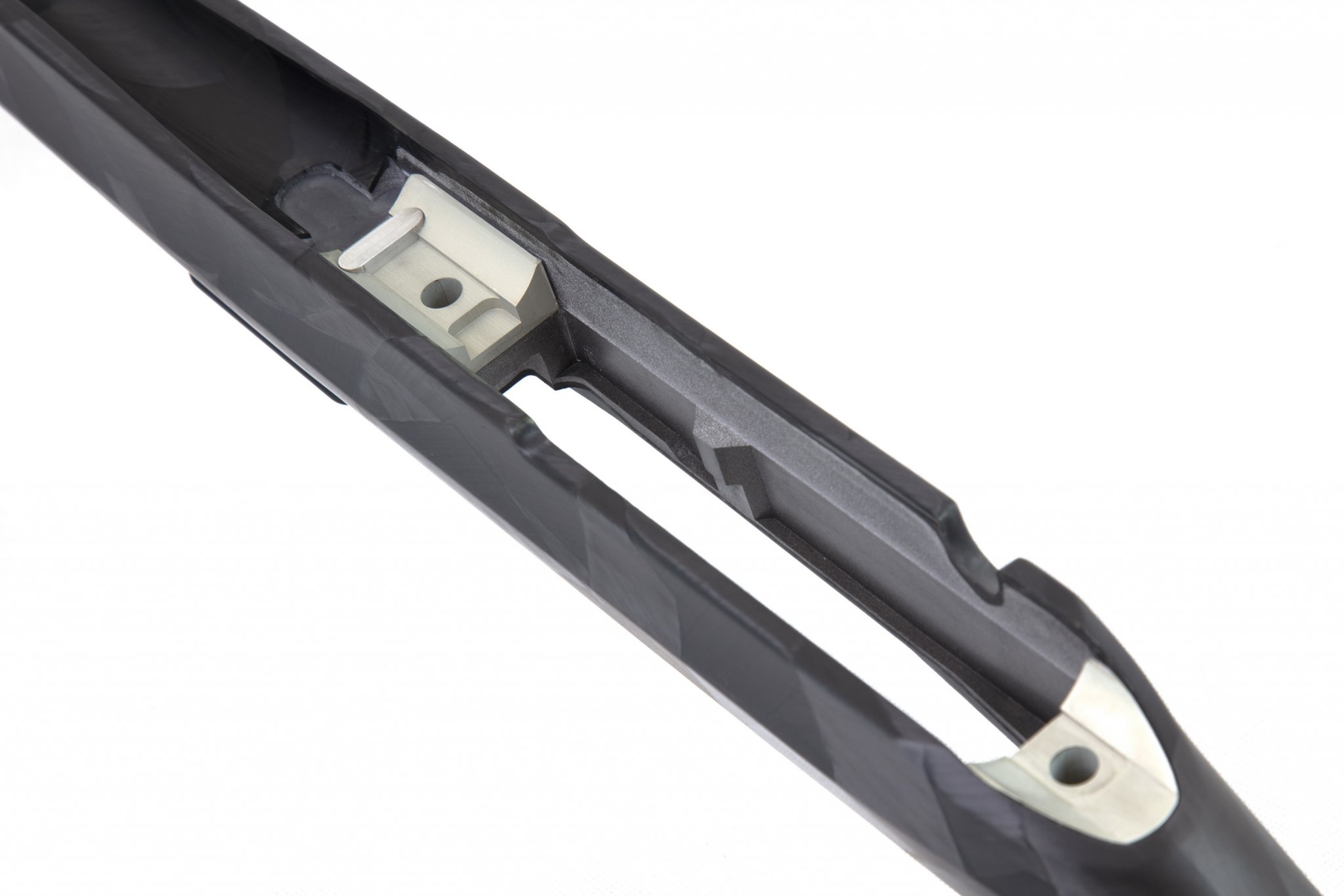

And here is MT30 stock in Carbon Camo finish - a hand-laid type of finish, where pieces of carbon are laid in the mold in a chaotic, camouflage-like pattern. As the patterns never repeat this type of finish makes every stock unique and personalized.
Also this modification is with PillarBlock system - aluminum 7075-T651 blocks installed for "drop-and-torque" action installation. Recoil lug is included and made from titanium, Grade 5


Attachments

  • 02_1.jpg
    83.8 KB · Views: 139
  • 09_1.jpg
    140.6 KB · Views: 121
  • 10_1.jpg
    136.1 KB · Views: 144
As I already mentioned, we can adapt this design to a Remington 700 footprint - SA, LA, any DBM, any barrel contour.

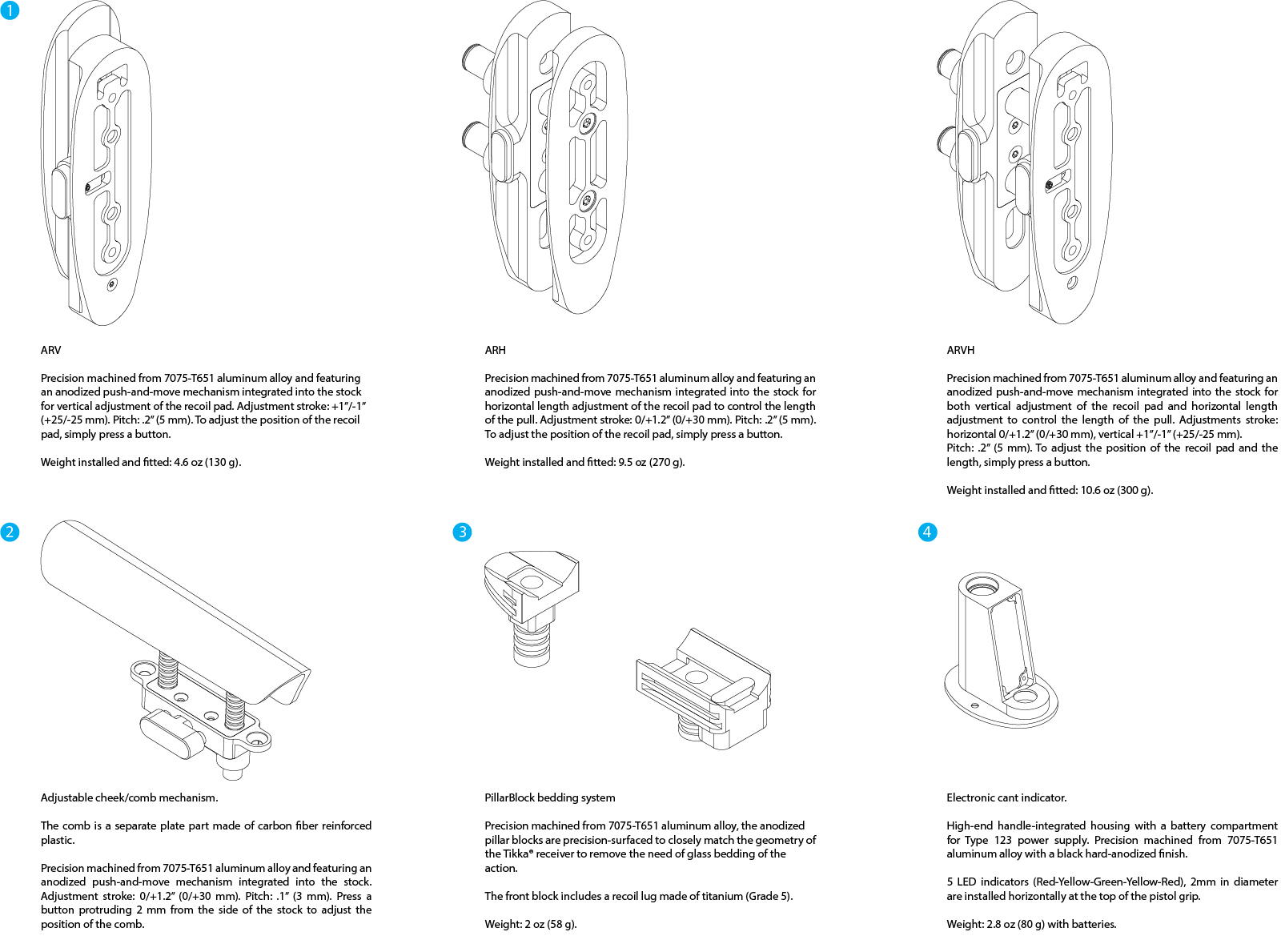

We also have developed our own butt plate adjustable mechanisms - vertical, length and both vertical and length adjustments. Simple and rigid, button-operated for fast adjustment. The comb is higher than factory Tikka, so this stock even without adjustable cheek is good for use with optics or red dots.

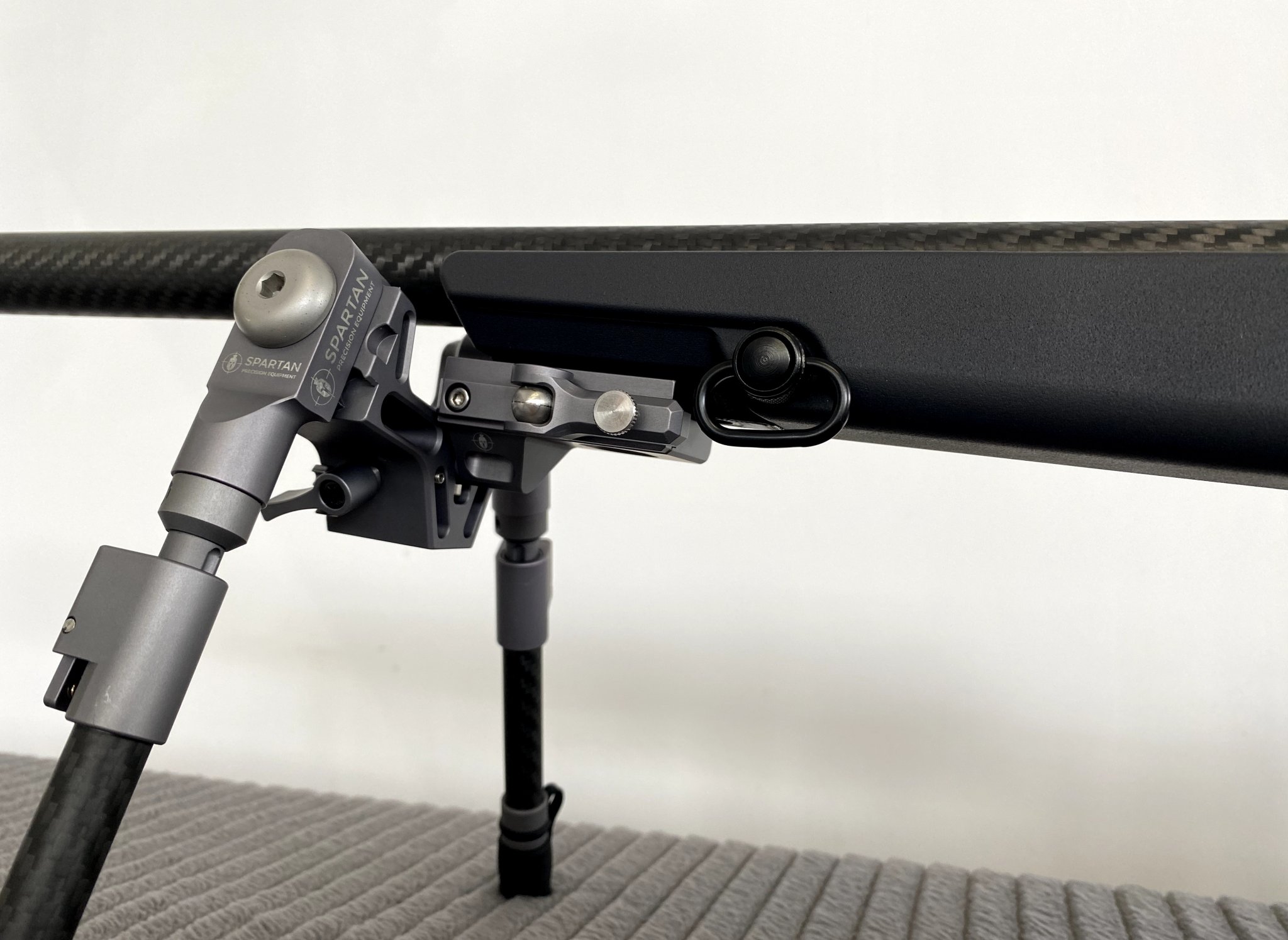

We make ARCA adapters too, it's installed on the pics, we can install a Harris stud or 3-slot Picatinny rail, all 7075-T651 alloy with hard anodizing.

  • Like
Reactions: GBWS
Hi everybody, apologies for the delay and for all the mess. Let's continue, shall we?

What is your length of pull adjustment range with the ARH and ARVH?

We used standard Tikka T3x LOP as a base, it's 13.78”/ 350mm
If we install ARH mechanism, we'll cut the stock accordingly to keep the LOP intact with the mechanism installed. Same deal with ARVH, but it will allow to adjust LOP up to +1.2" (30mm) with pitch of .02" (5mm)

What's the Tikka one cost and where do we buy it?
We offer it at at our web shop - but we also have a special promotion still actual, so it's a good opportunity to grab one - or become our dealer/distributor.

Hi guys,

Just a small drop of pics here - plastic version of our WIP for Rem 700 footprint stock.

Our designer just returned from IWA Outdoor fair in Nuremberg and added some final bits - and we're moving on with this project.

Don't mind the sharp edges - they are for 3D scan and modelling, we'll sure make it more soft and smooth.

What do you think about it?

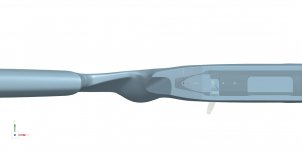

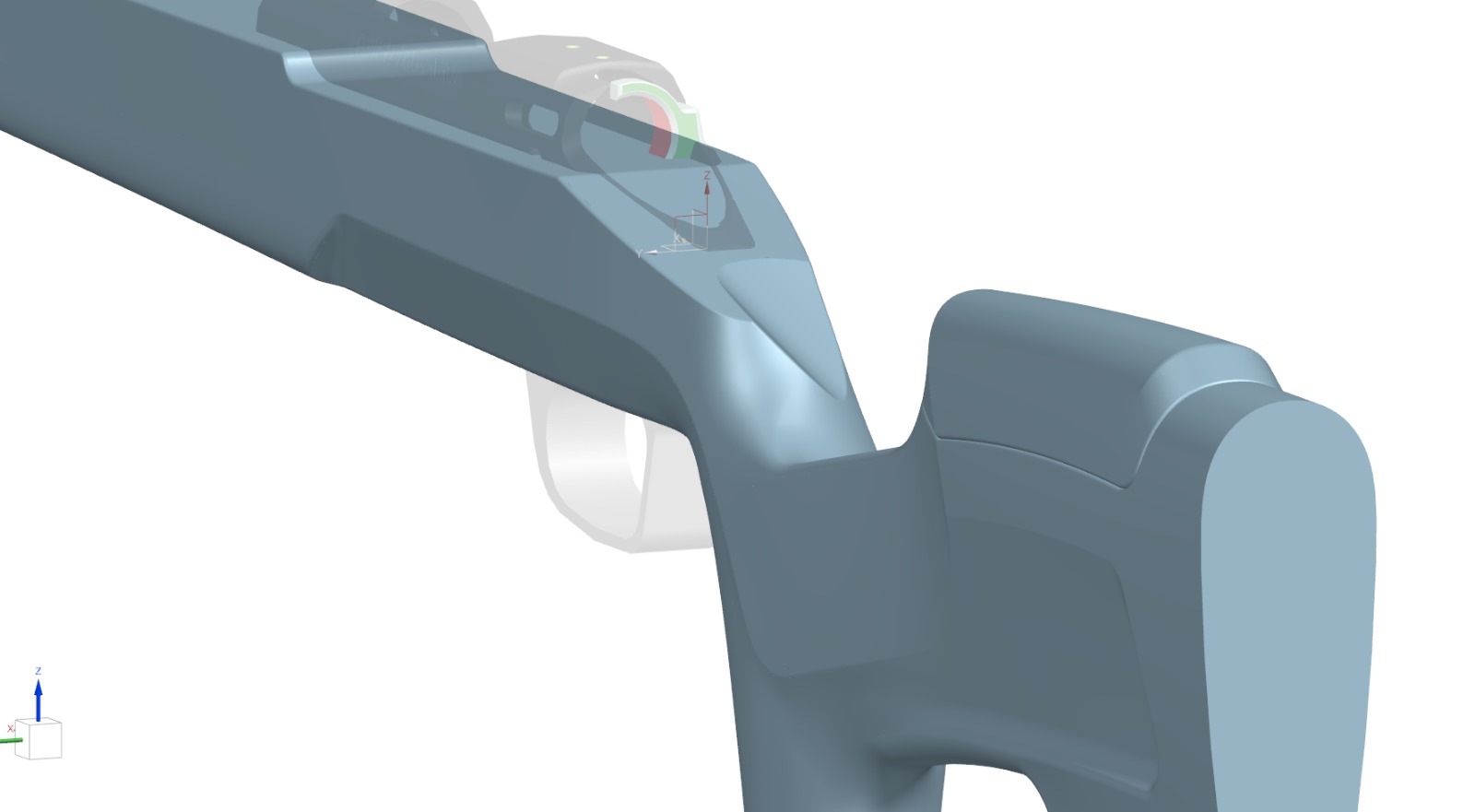

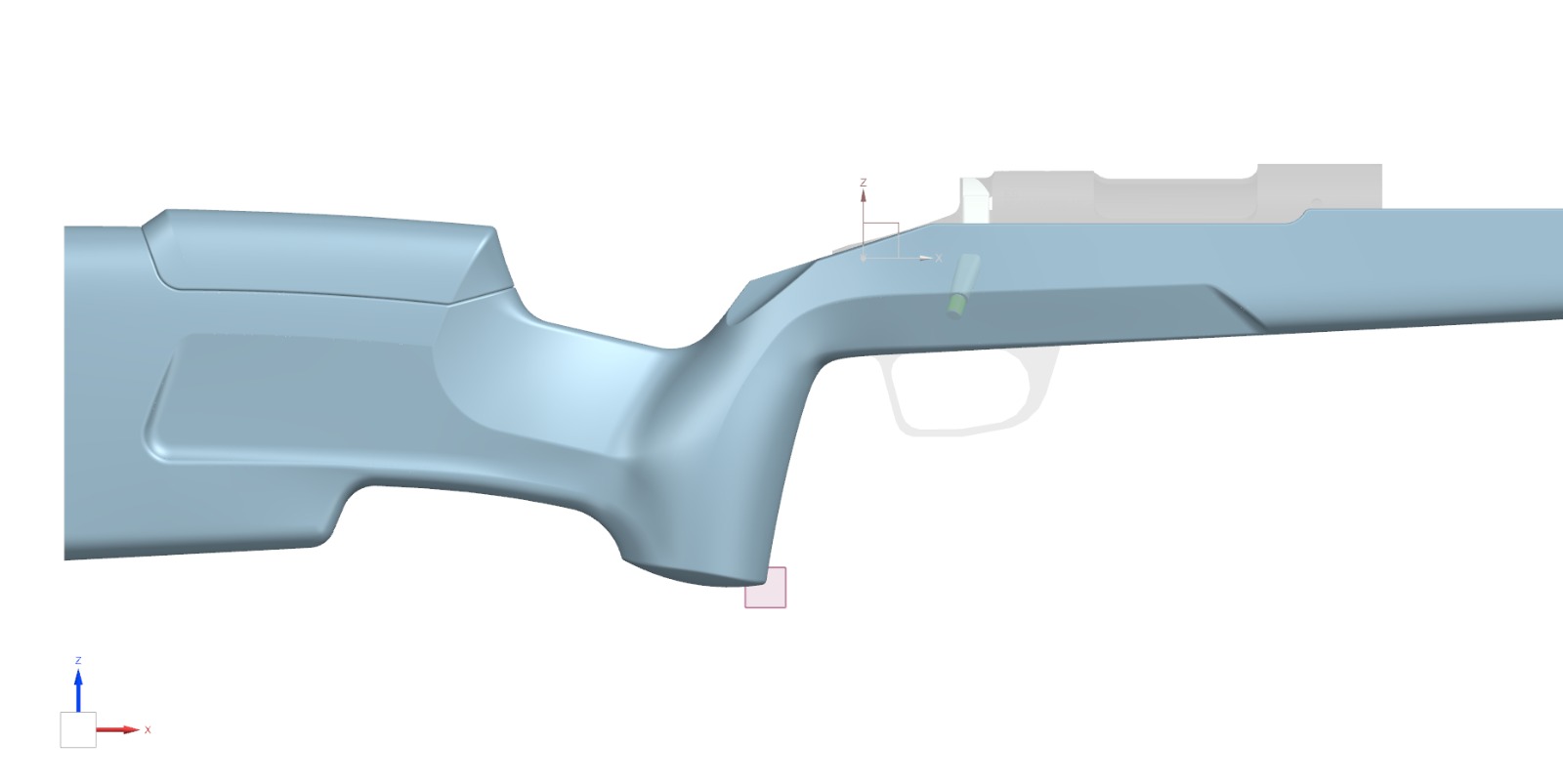

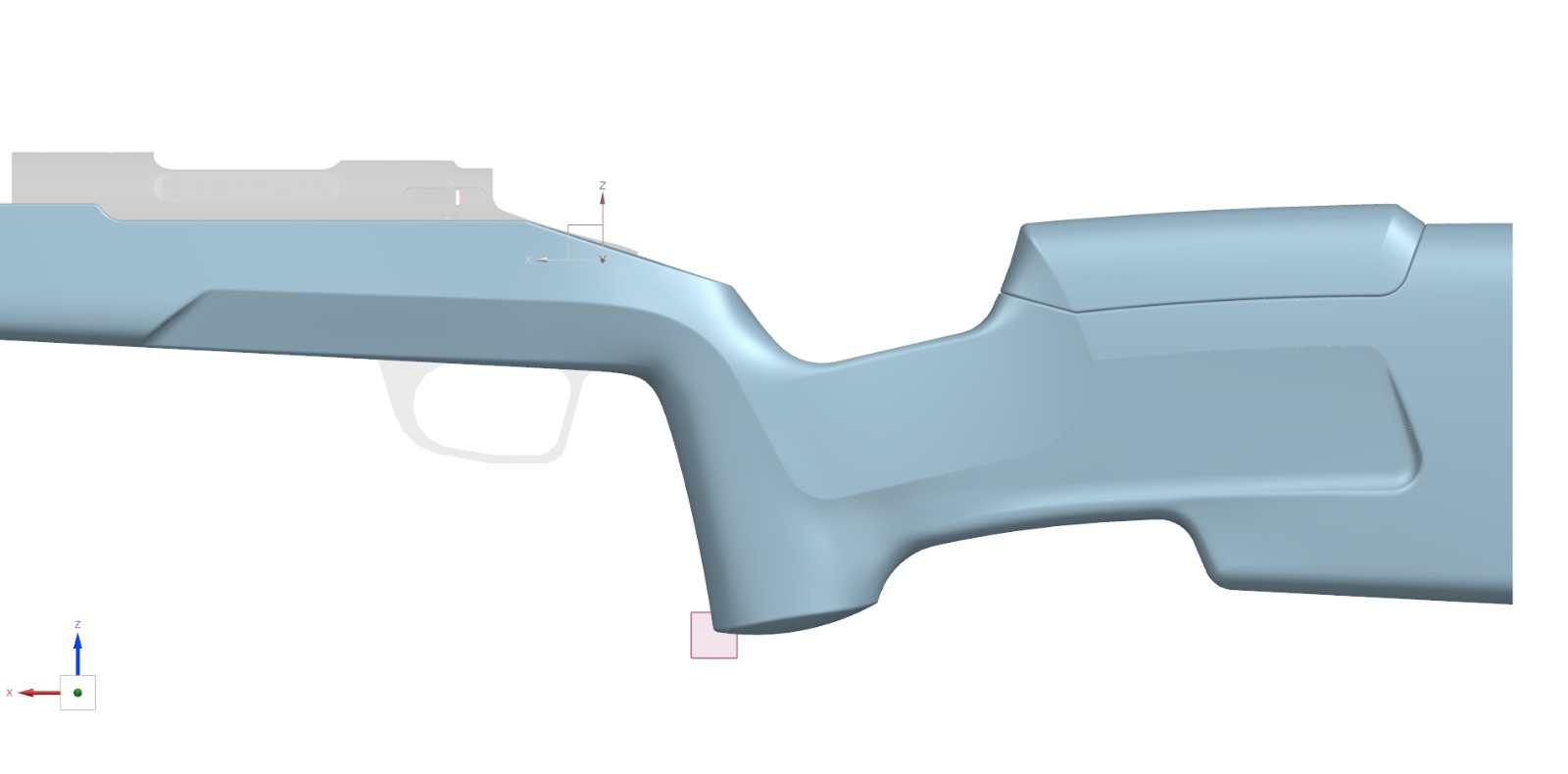

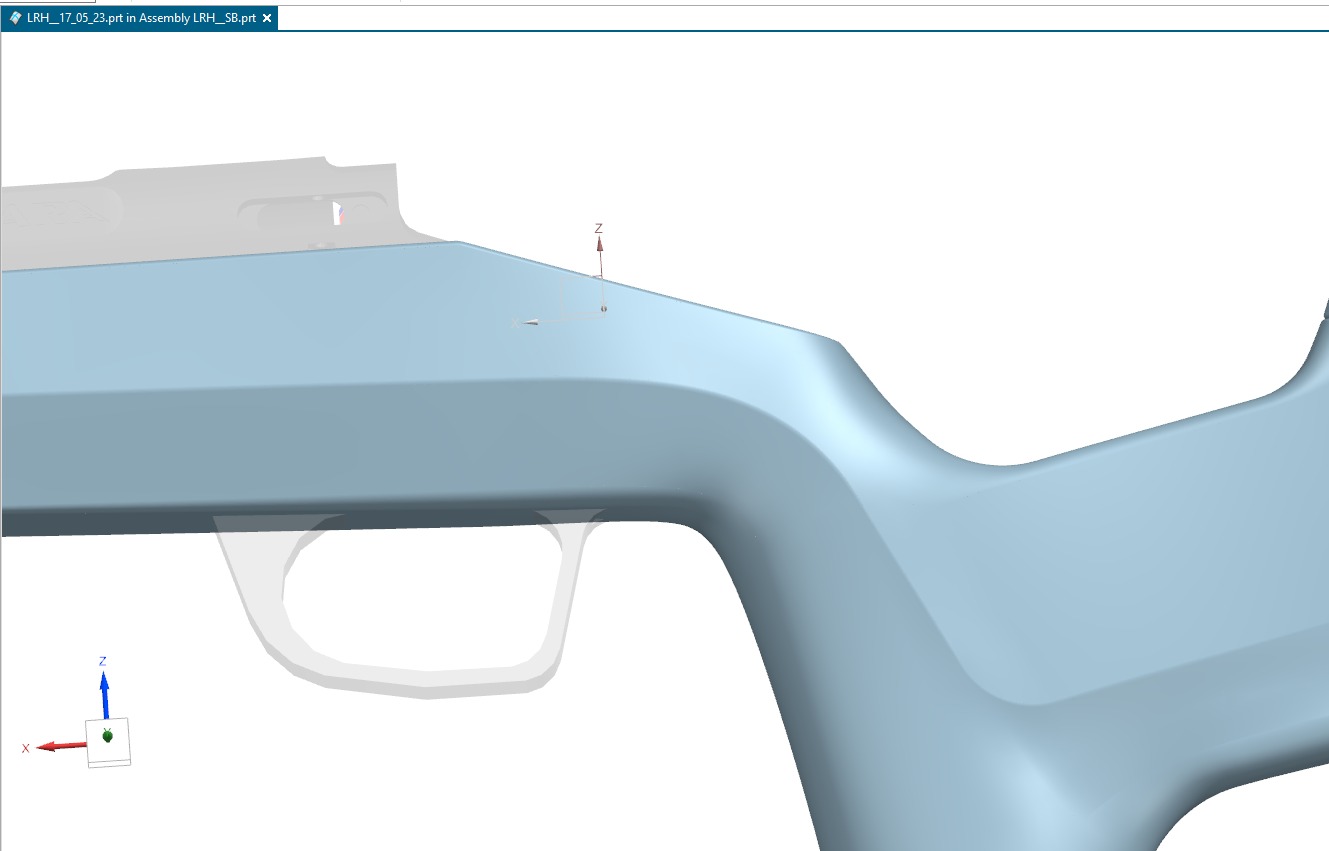

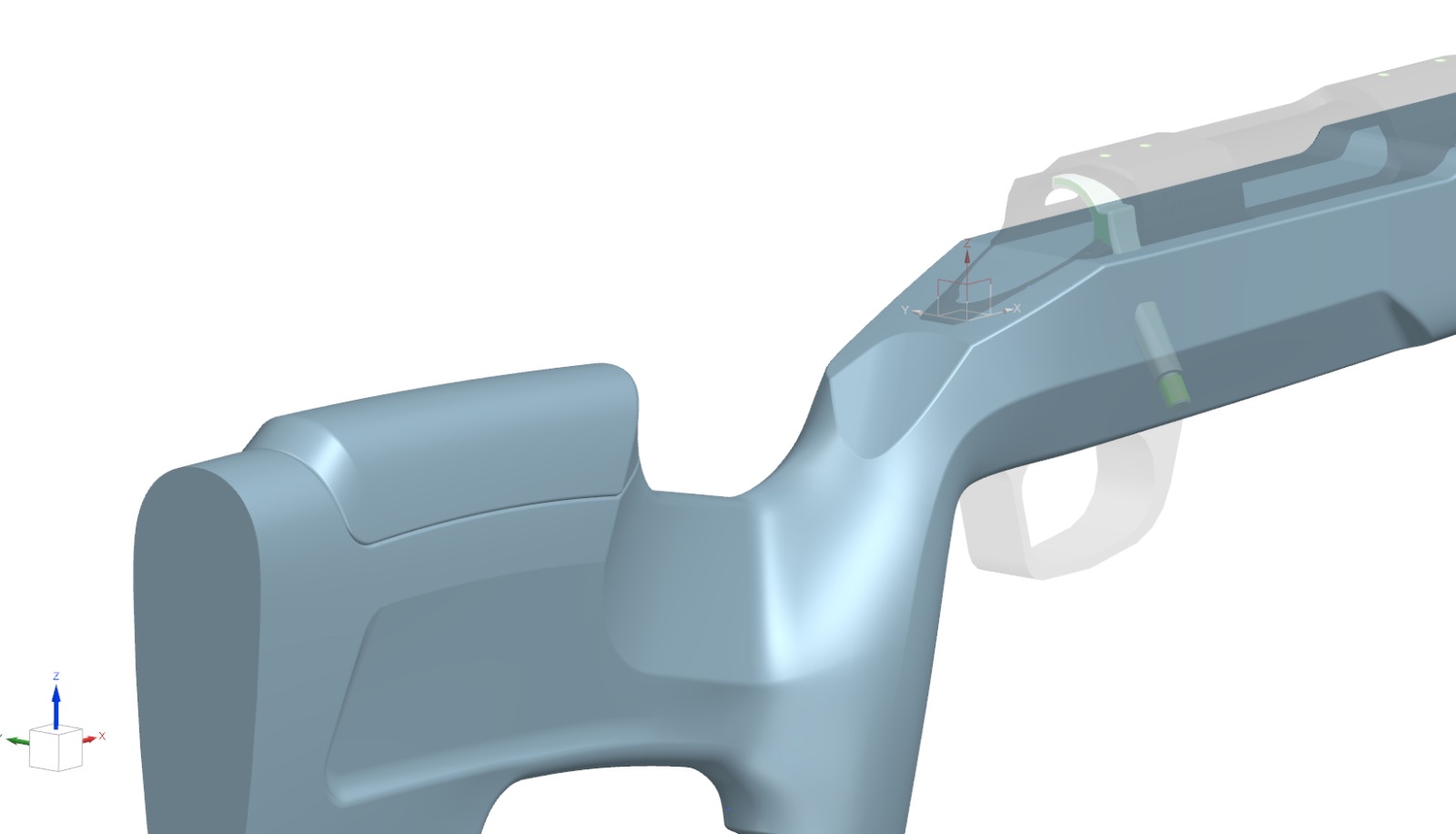

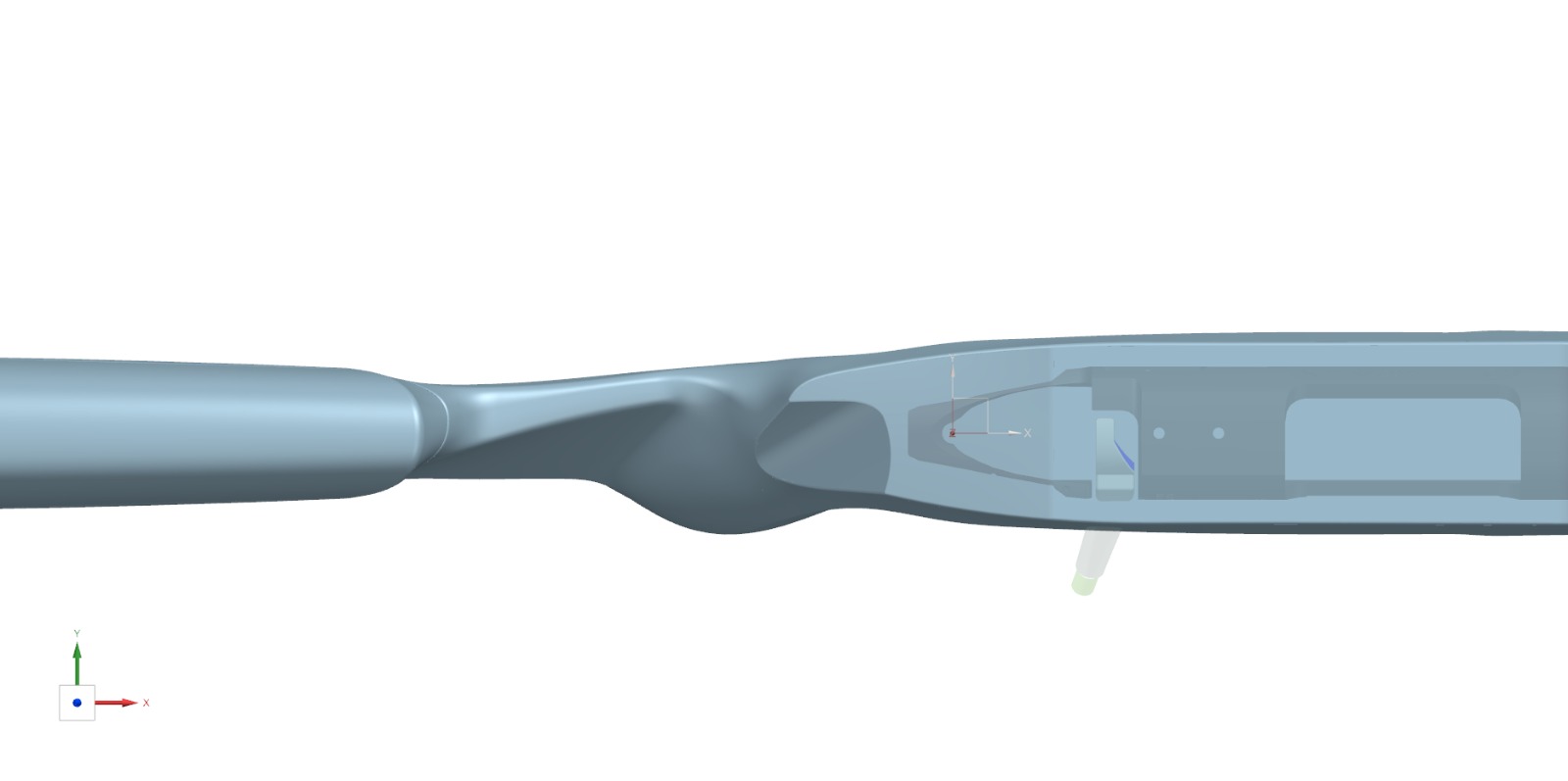

Kept you waiting, huh?

A small update of this project. The model is finished, so now some polishing, final thoughts - and we roll on into metal to proceed with the project.


The stock seems to be short, but that's done on purpose - LOP can be adjusted by spacers, thick recoil pad - or by installation of our adjustable mechanisms. The cheek is adjustable too.

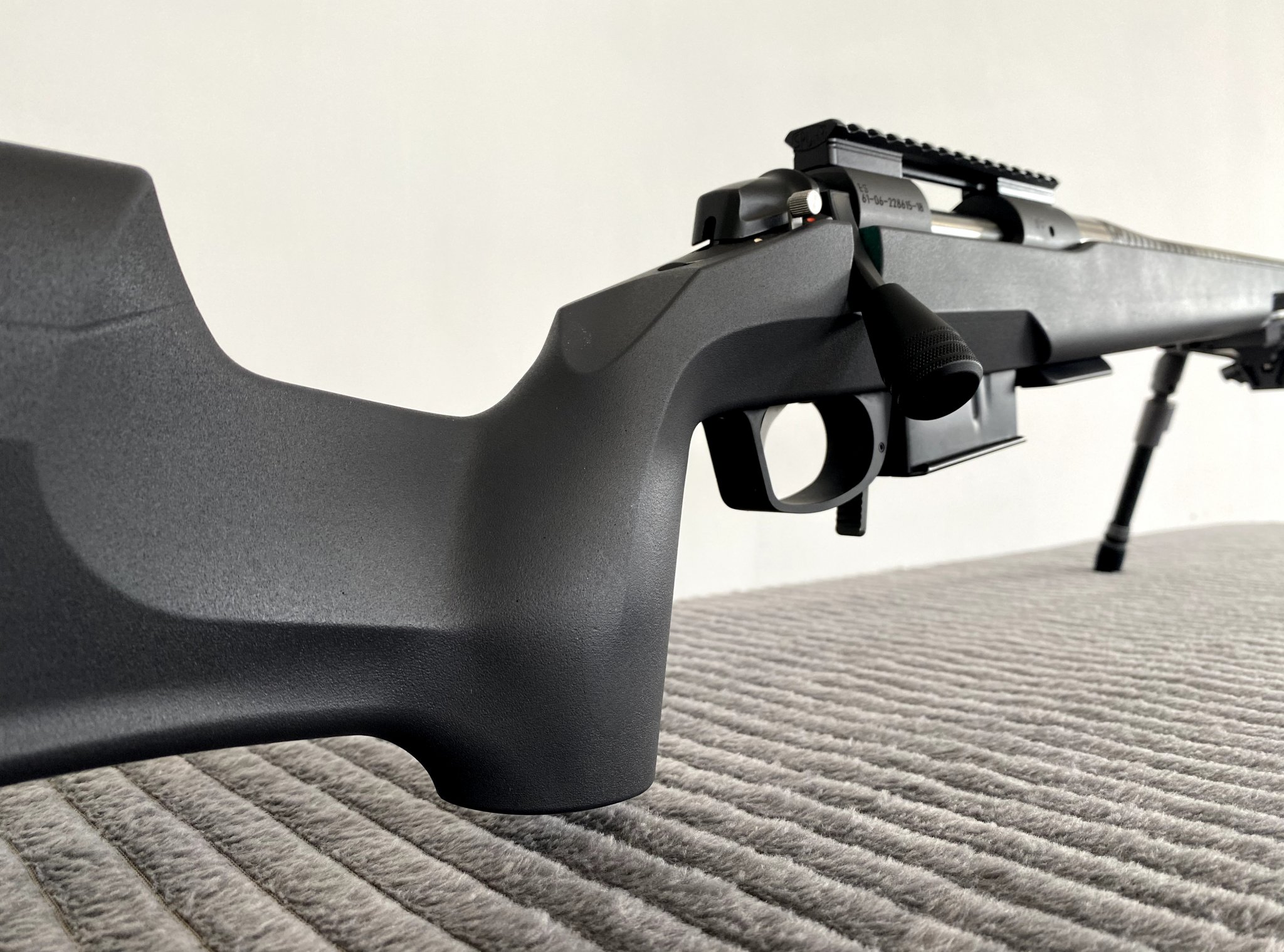

Saturday Special, fresh drop here, guys!

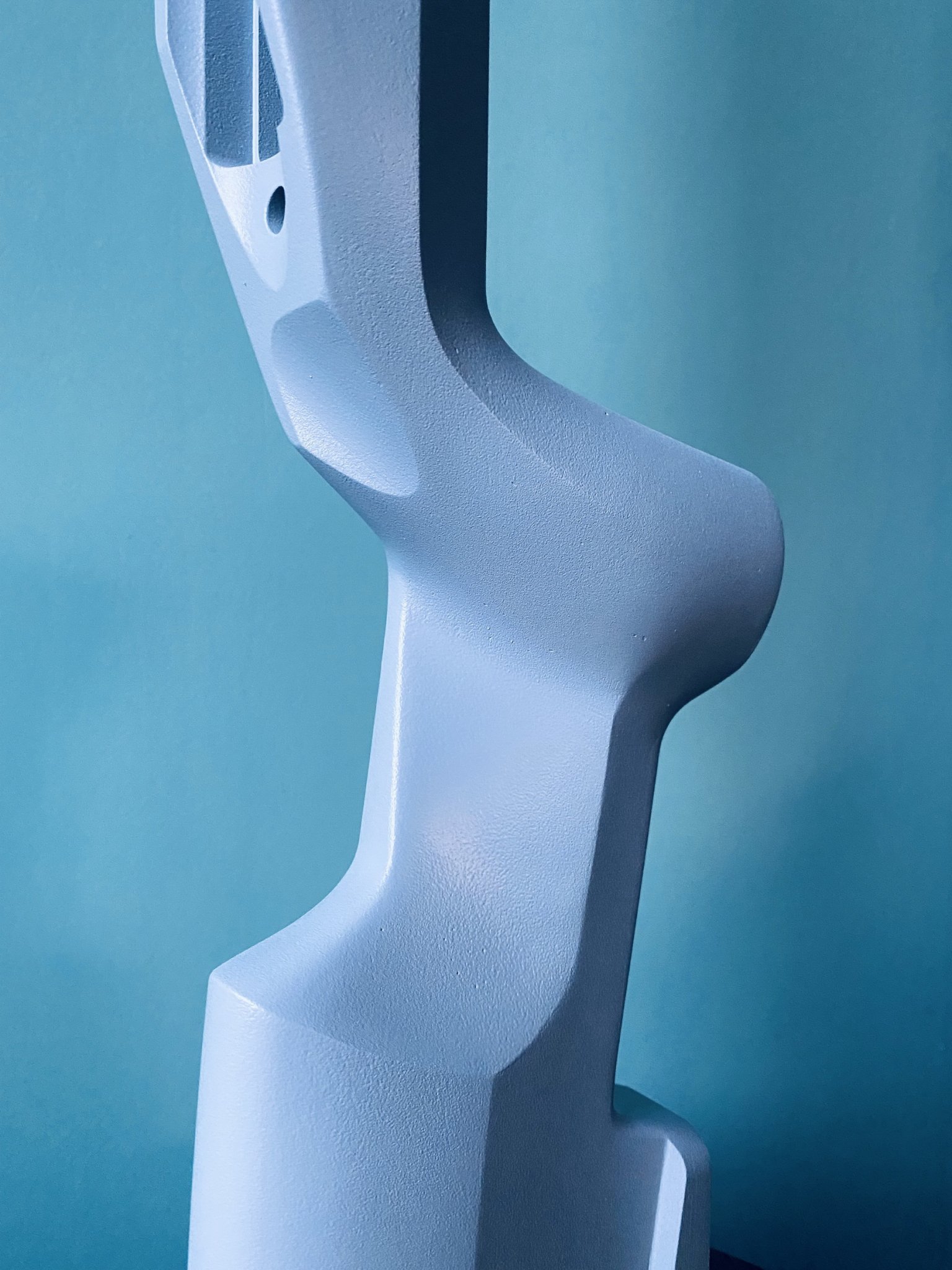

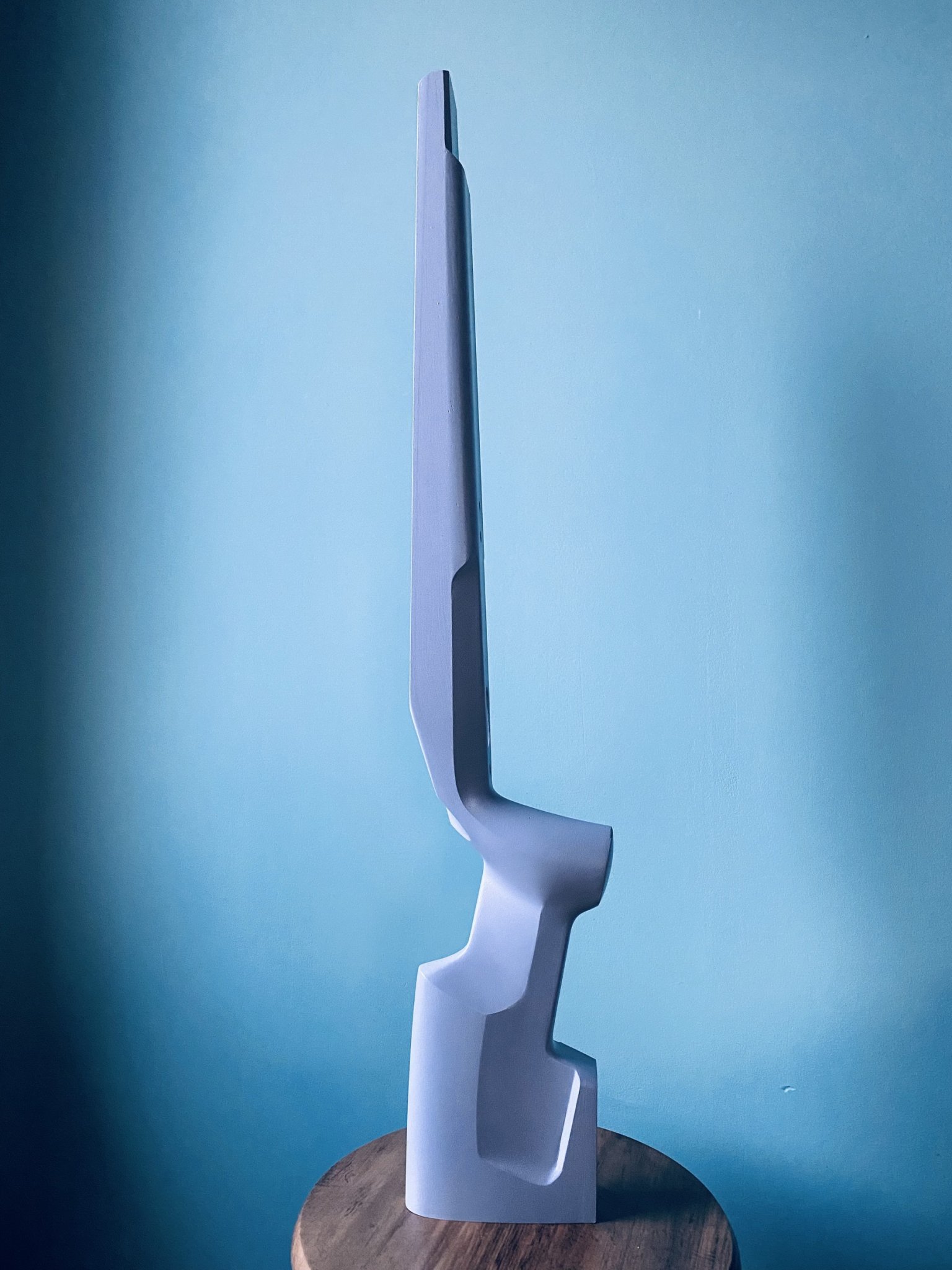

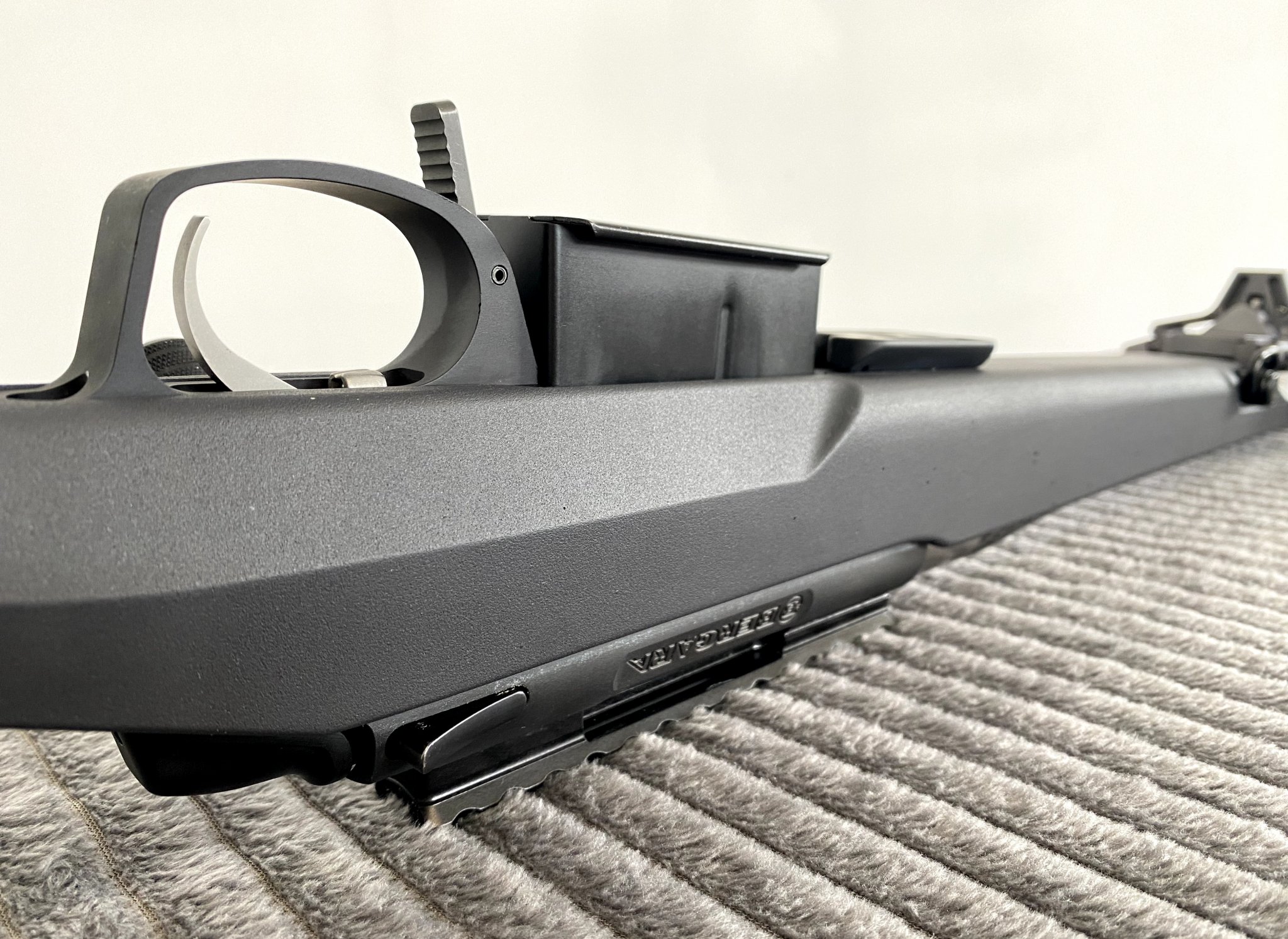

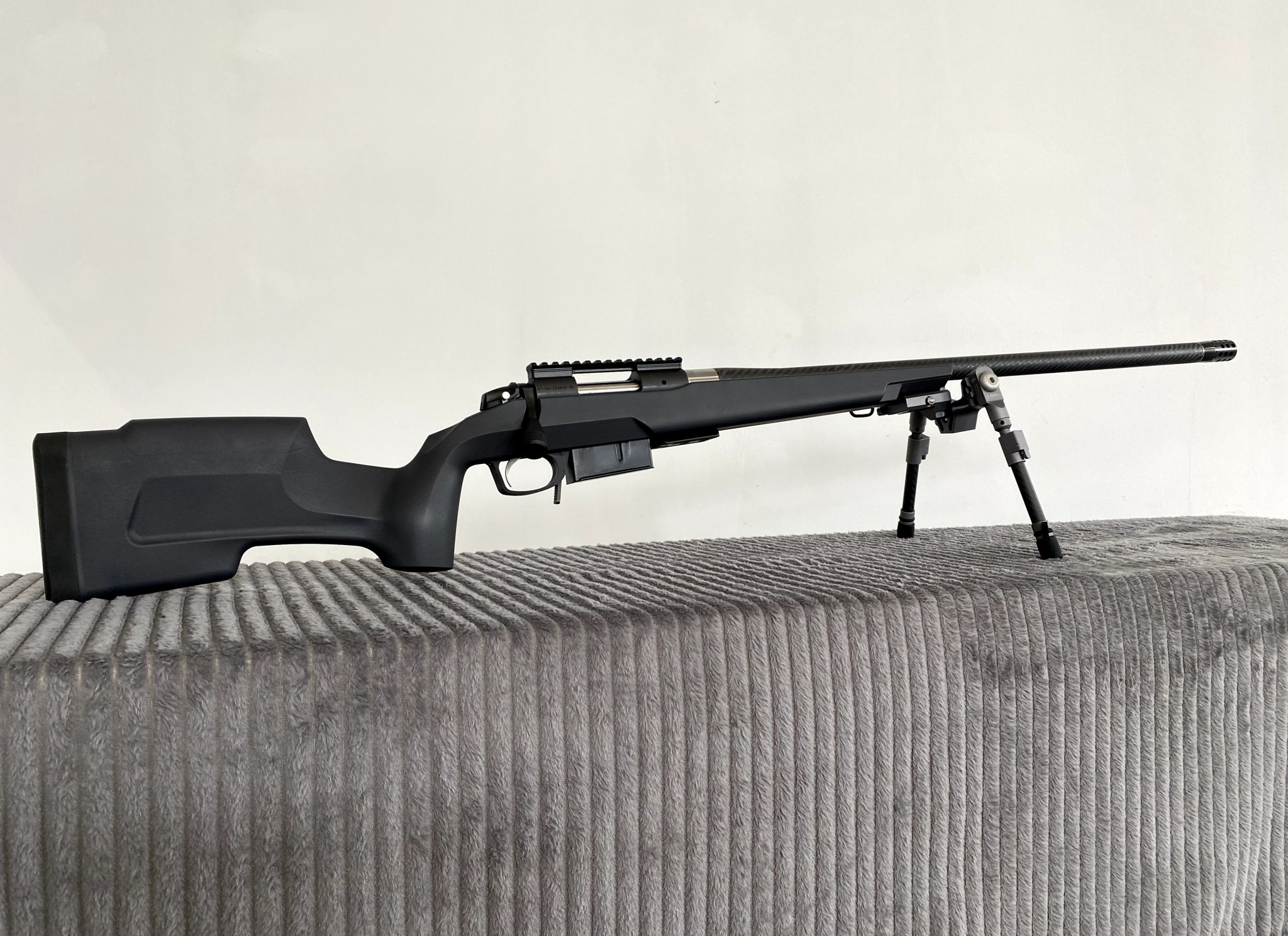

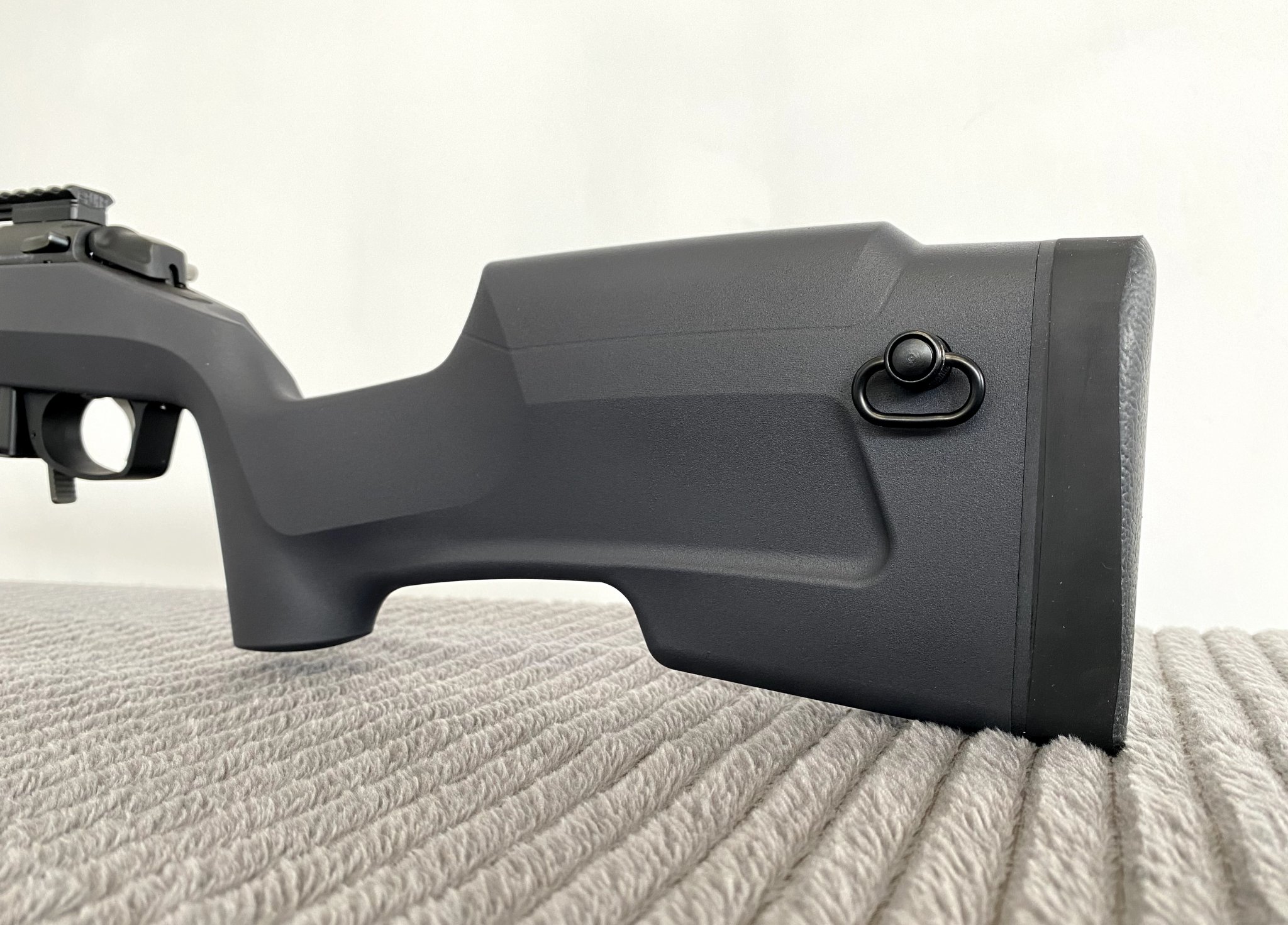

Well, here are some pics of our upcoming Remington stock. It's model plastic made to check the ergonomics, the feel and overall.
Currently no adjustable cheek mechanism installed, but it will be there.

We will go into metal very soon (we'll make the tooling and molds required for start of serial production) - and also will open the book for pre-orders. We'll need some months for the metal and after that we'll begin serial production, pre-orders first. All information about time, prices, options, everything - in a separate post.

So...what do you think? ;)



Last edited:
  • Like
Reactions: triumph001

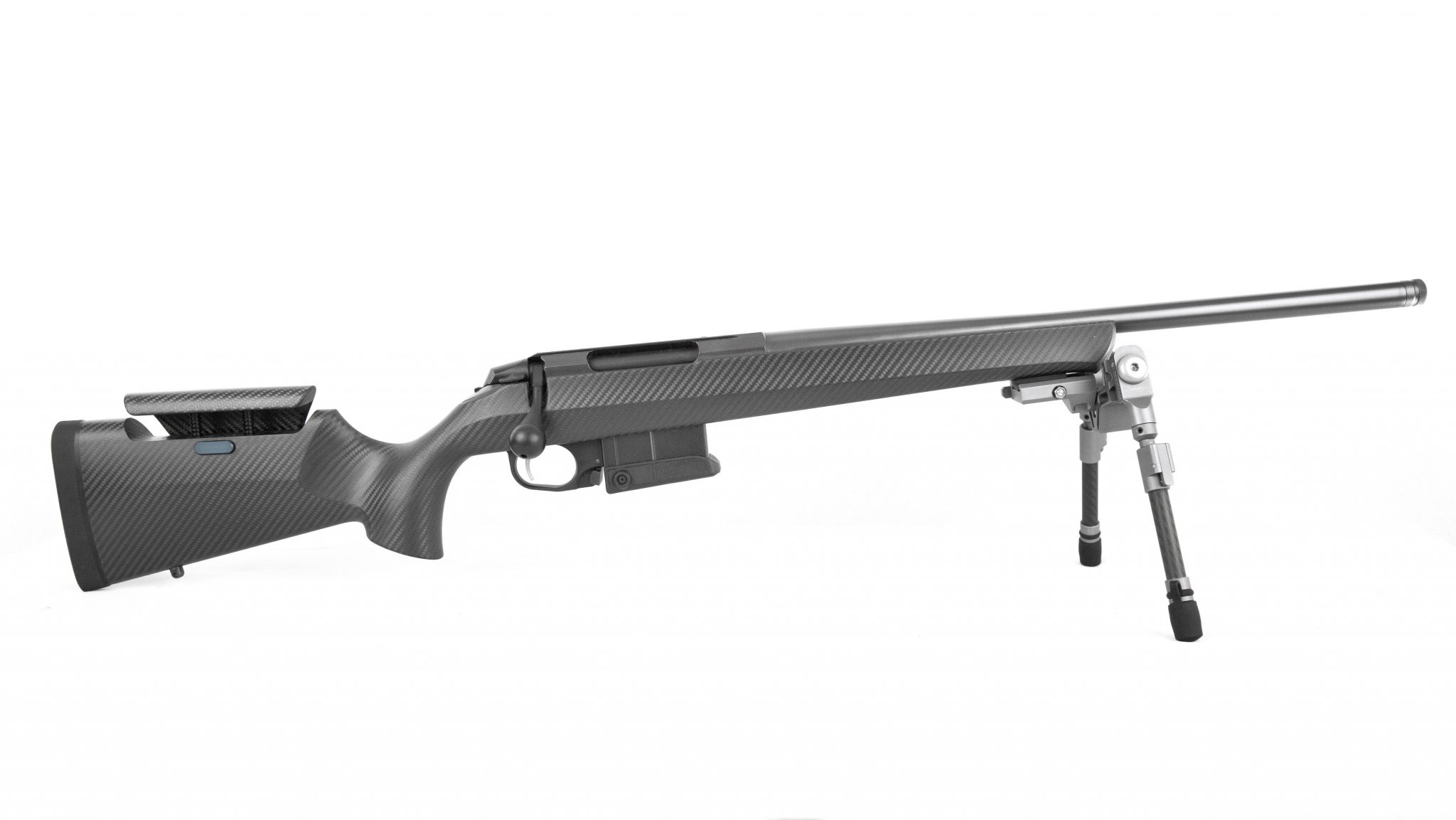

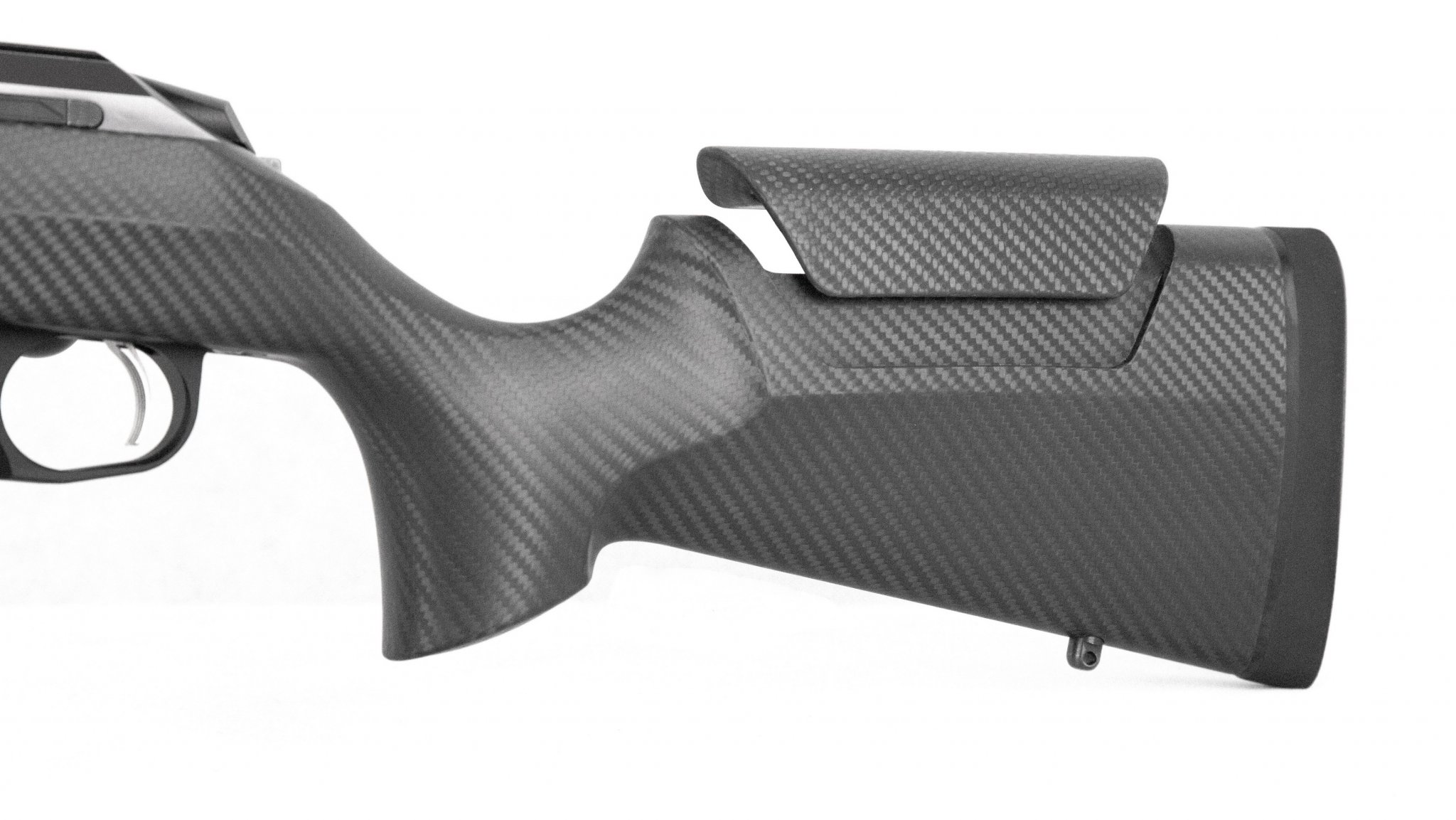

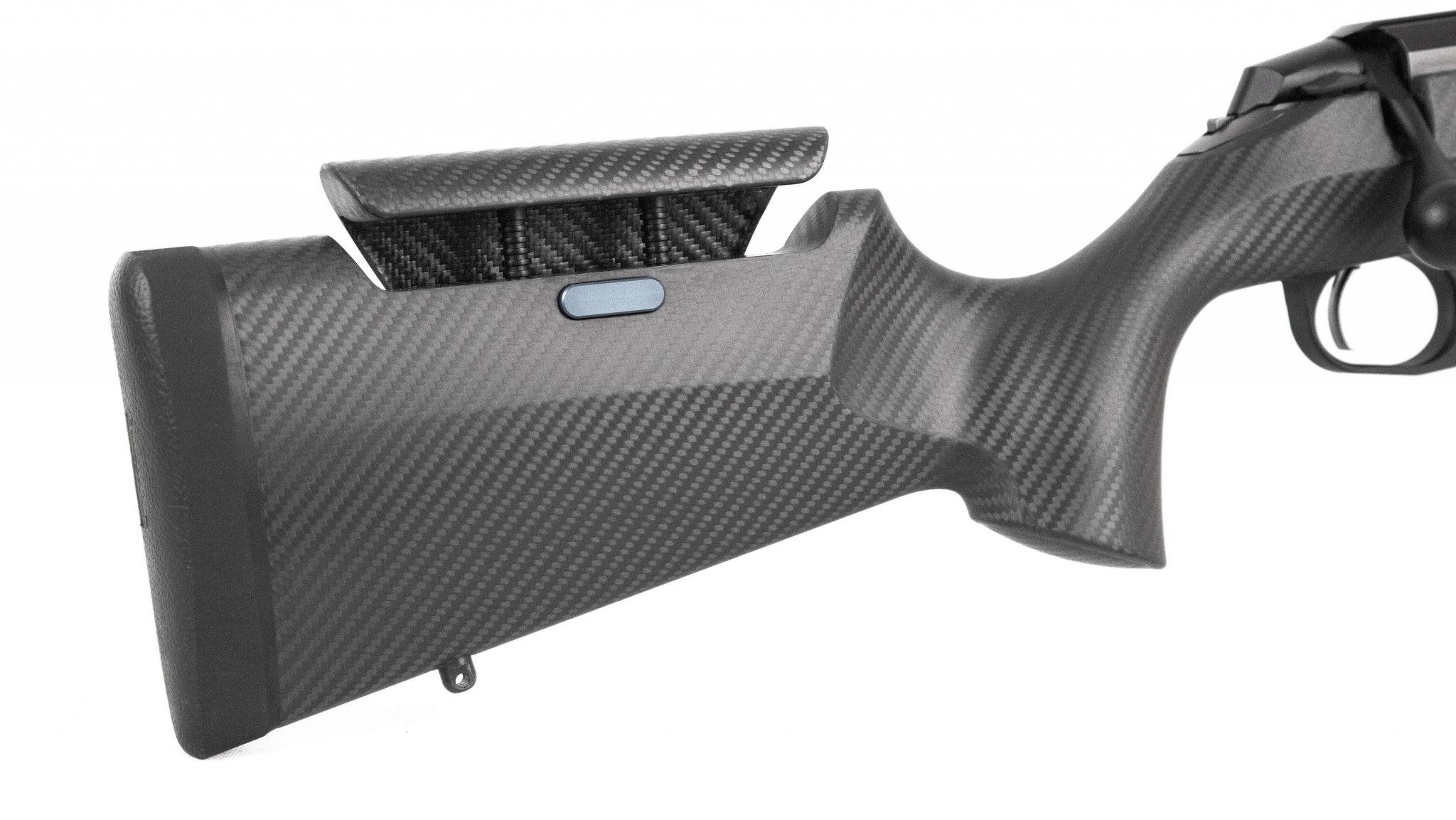

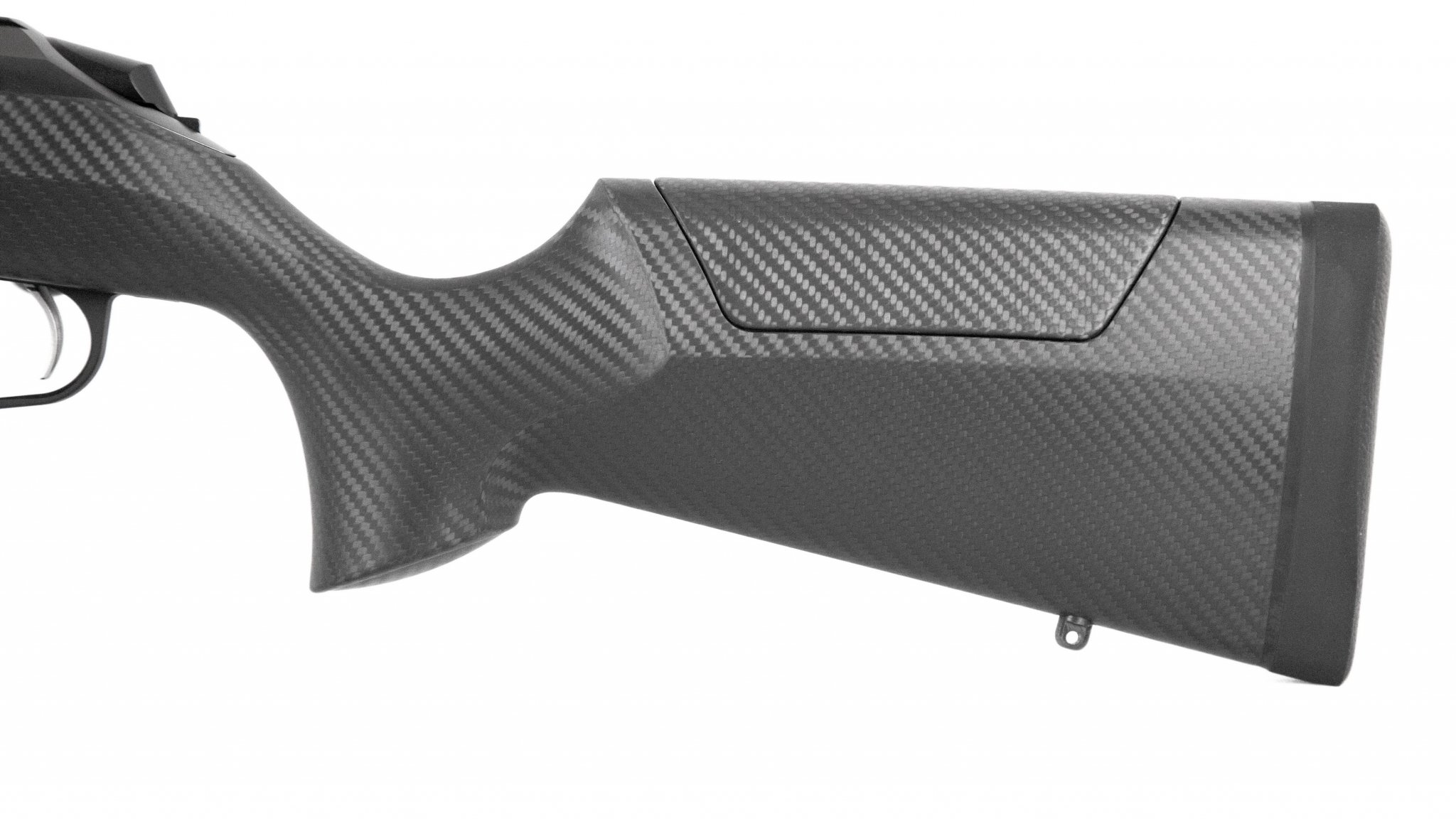

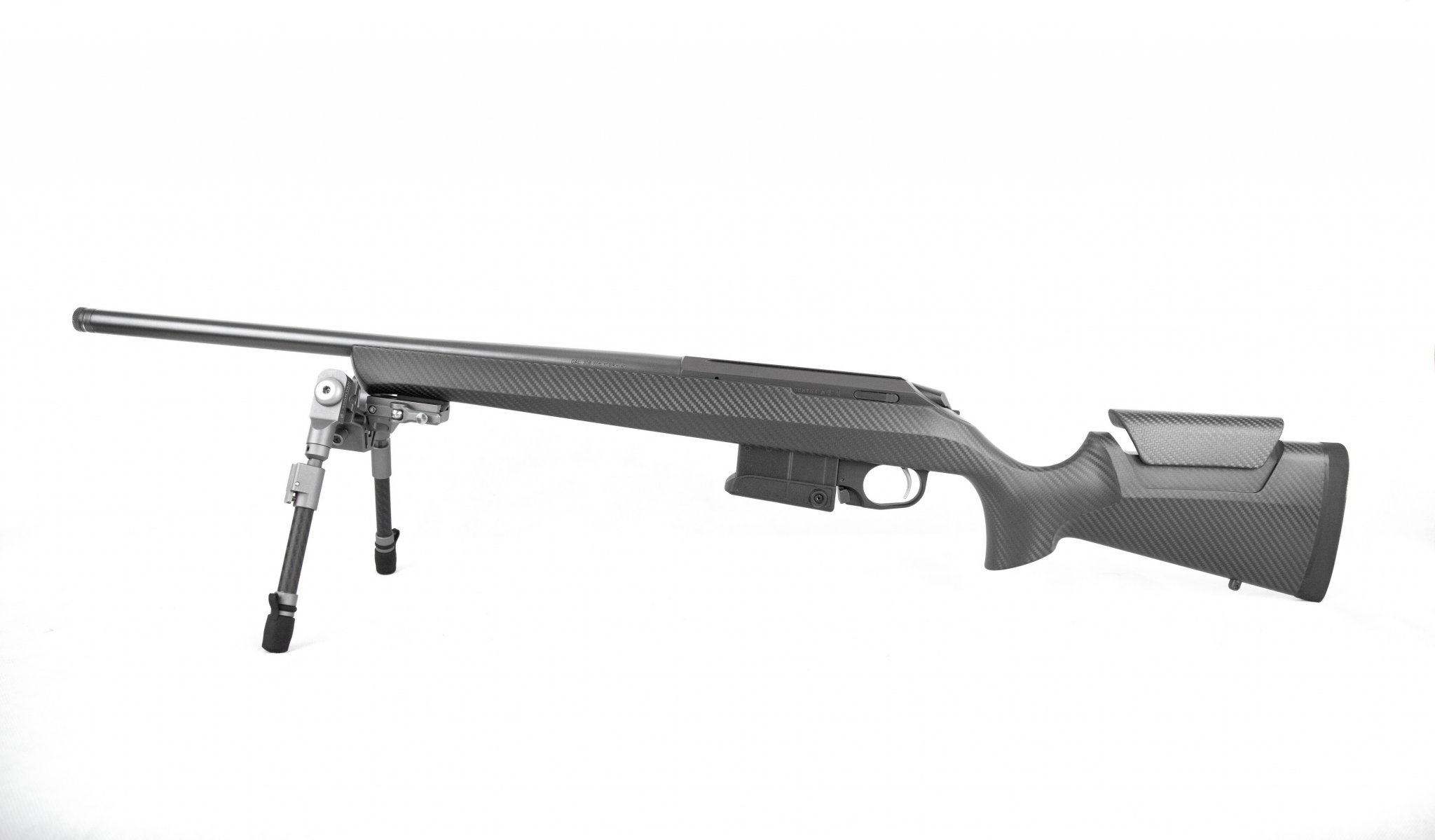

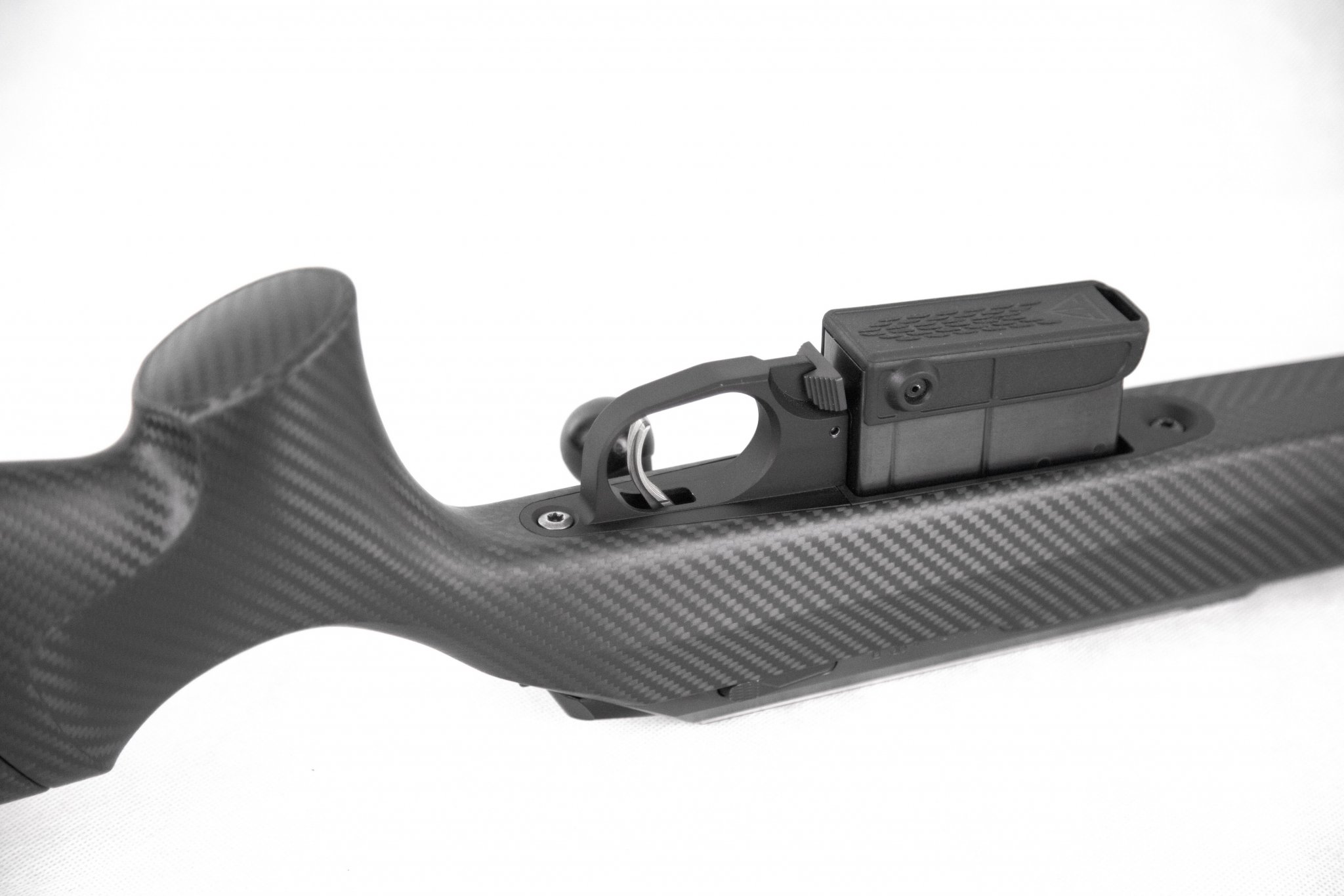

Another fresh model available for purchase - MT-32 for Tikka T3x CTR.

Adjustable cheek, PillarBlock system, CTR footprint DBM, factory or aftermarket, factory contours or prefit barrels - we think it's a nice stock for a custom build or for a swap for a nice hunting rifle.

What do you think about it?
View attachment 8185242
View attachment 8185243
View attachment 8185244
View attachment 8185245
View attachment 8185246
View attachment 8185247

Would be interested in this for a Remingotn 700 footprint
