I had this Magpul bipod mount and earlier today I was trying to figure out what to do with it. I didn't want to just drop it in a bin so I made a thing out of it for my vise.

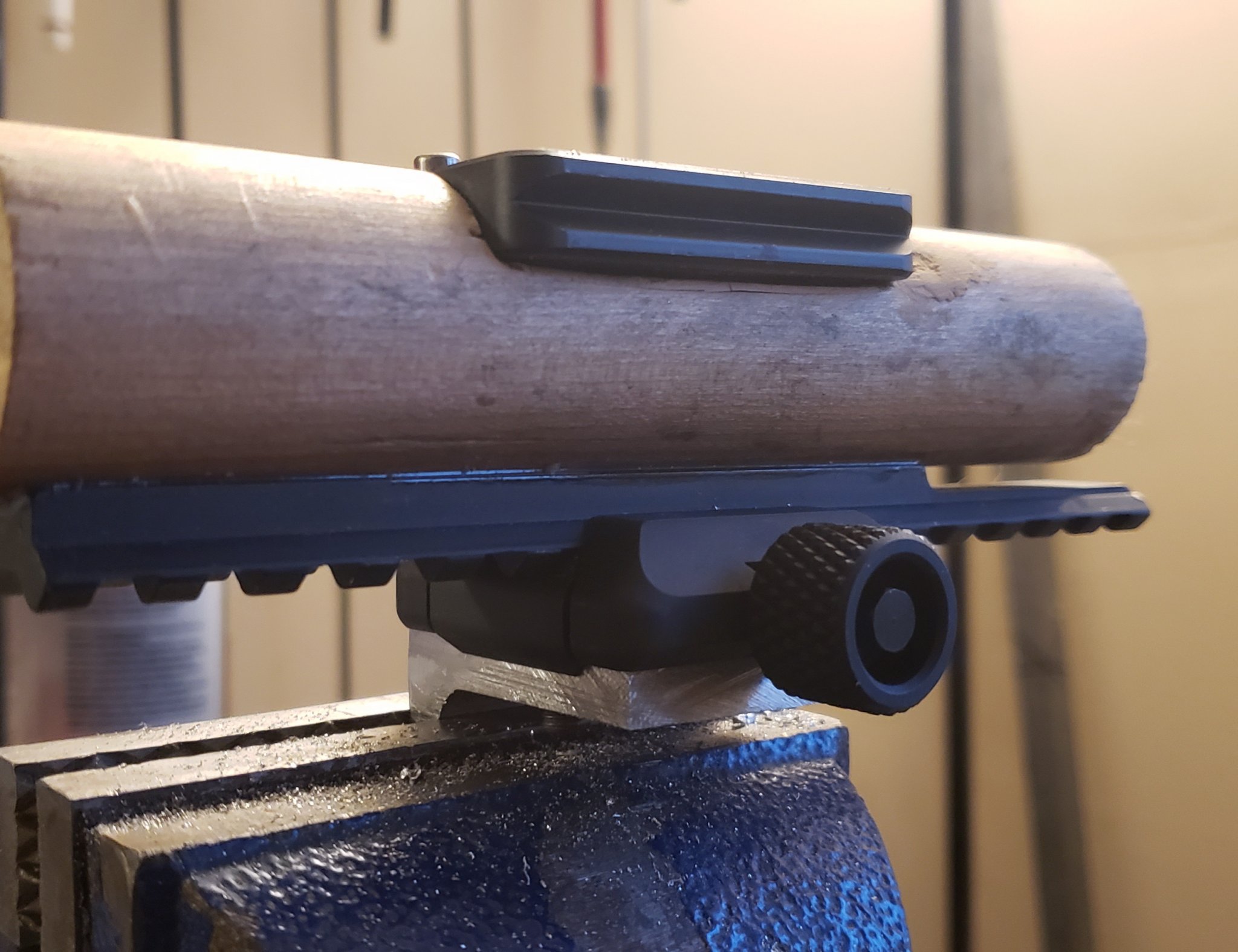

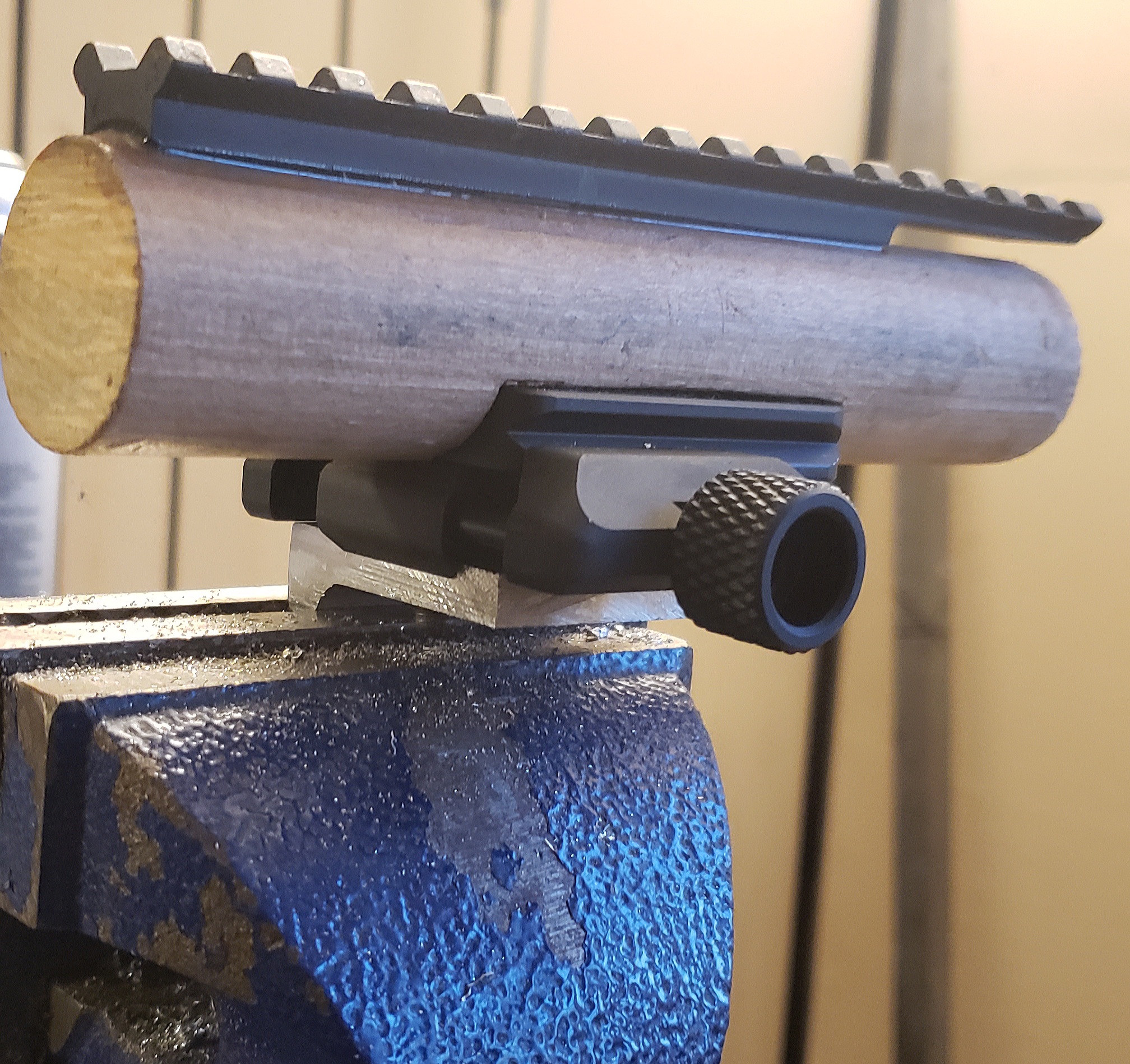

Some scrap 1/4" aluminum angle, 10-32 tap, and voila....

If I want I can secure a flat top upper, barreled action, anything picatinny, it doesn't seem like that will be a problem.

Or I can throw an arca rail in there to secure a chassis, my scope mounting "jig", etc...

I have some polymer vise blocks that slip into AICS magwells and AR vise blocks too but most my rifles have picatinny and/or arca interfaces on the underside. If I need to secure it to go hands free to mount an acessory or clean it, this seems like a more svelte solution.



[Keeper22]

Cool, looks very usefull. May have to build one myself.



[Trigger Monkey]

I think it took longer to lay out the hole spacing than anything else, I think it took me about 10 minutes or so total.

I had put together something in the same vein last year using a tripod ball head and arca clamp but it was big and not that good of a solution with a heavy rifle. I think this will be mucho better.



[carbonbased]

This reminds me of a discussion I had with RRS here:

RRS Anvil question: rifle+Arca vs rifle+picatinny clamping reliability & strength

So this is mainly directed towards @MPHReallyRightStuff but here’s the situation: Since the Anvil and new RRS clamps have the dual Arca/pic rail interface, what are the trade offs if I clamp on a pic rail instead of an Arca plate? Strength? Durability? I imagine Arca will be better against...

www.snipershide.com

TL;DR
Placing a rail right foreword the mag area:
Arca plates are too wide to hold comfortably. Picatinny is narrower but usually cut very sharply. How about a pic rail without any cutouts or just one cutout, and smoothed out like the Area419 rail? RRS agreed it would be strong enough.
