Borrowed:

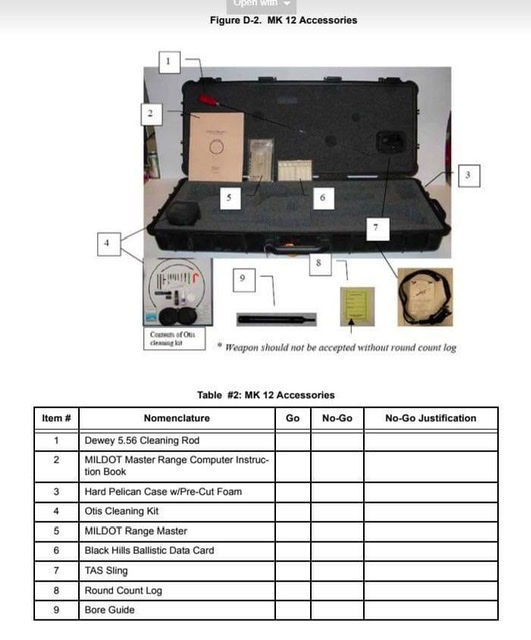

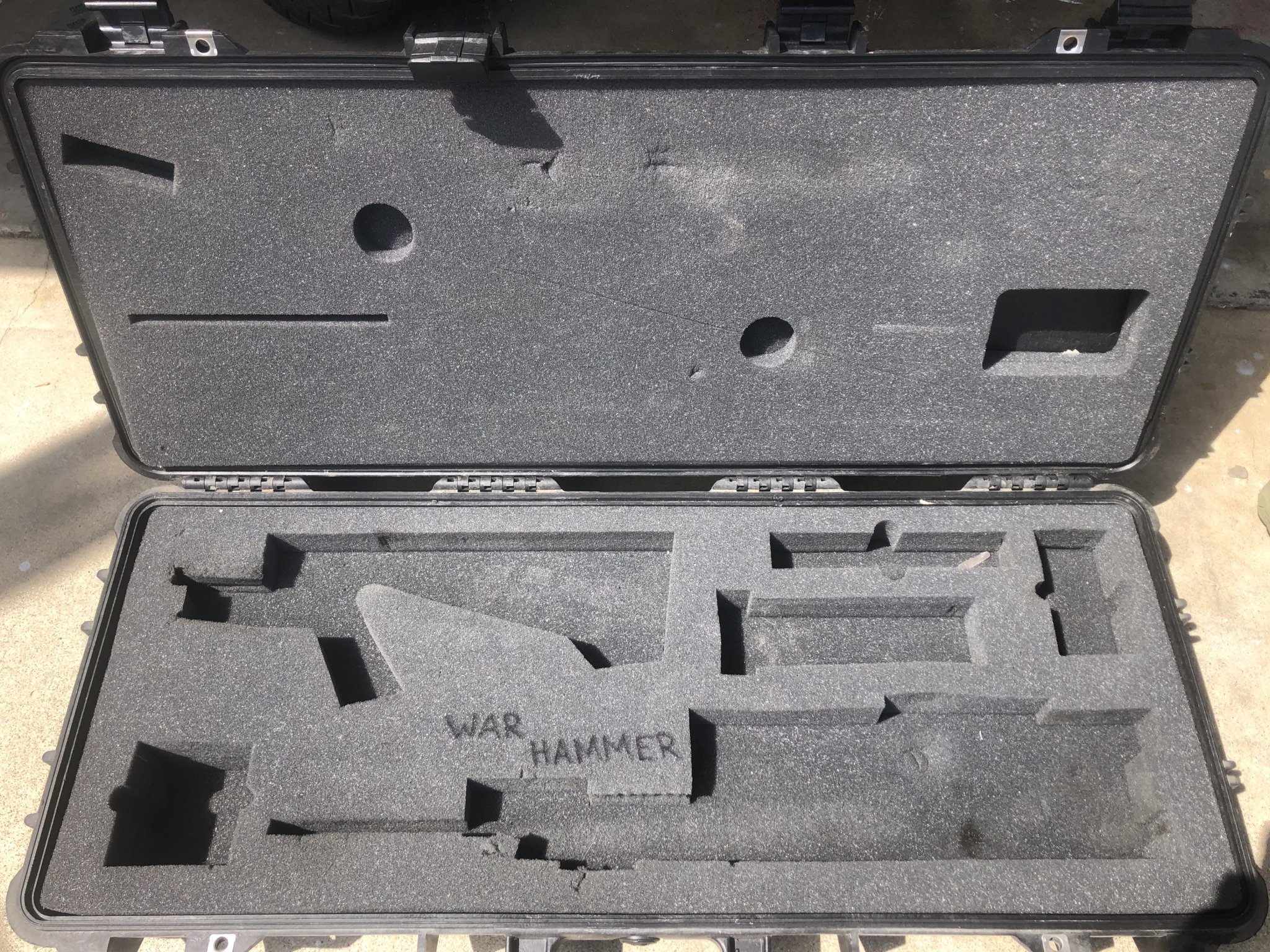

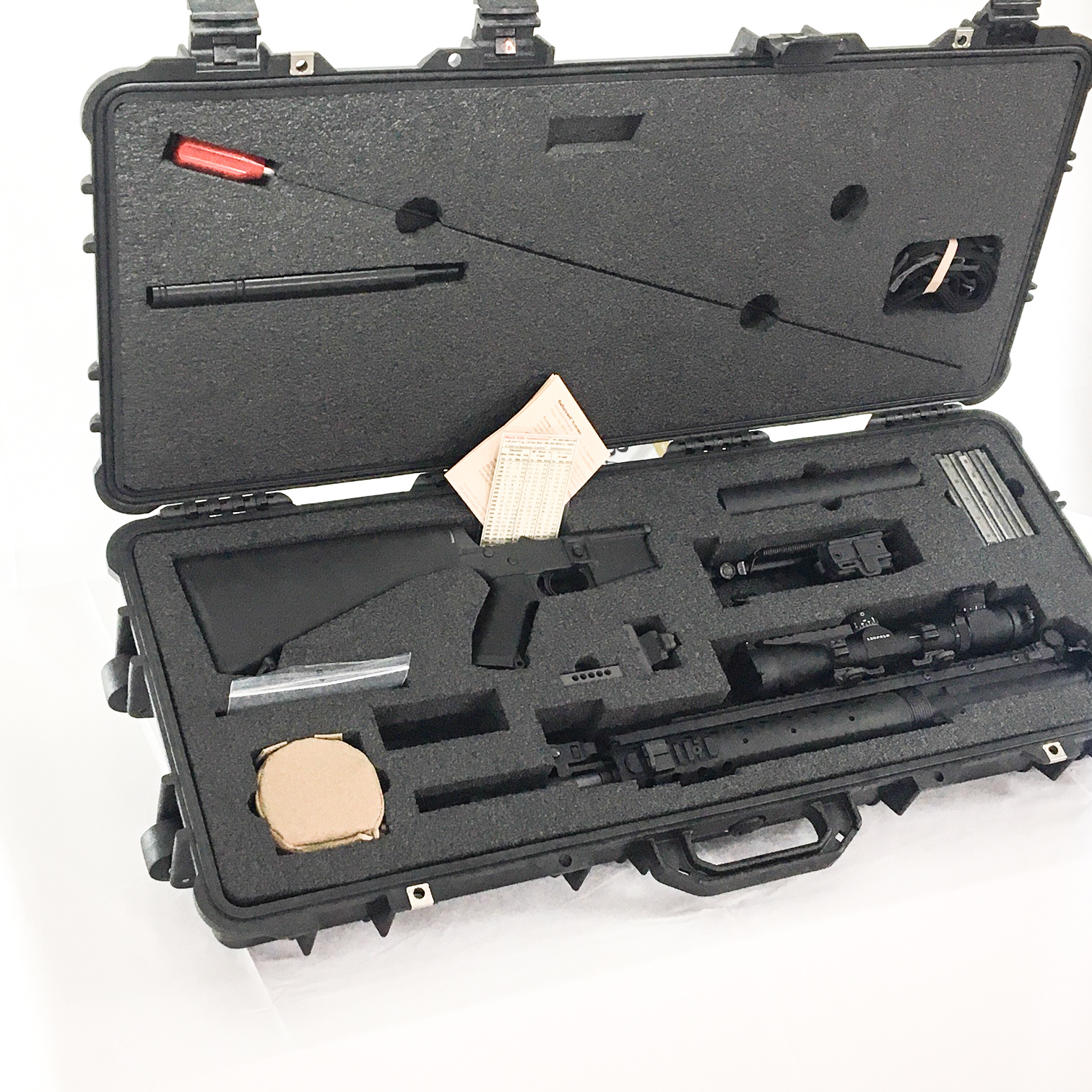

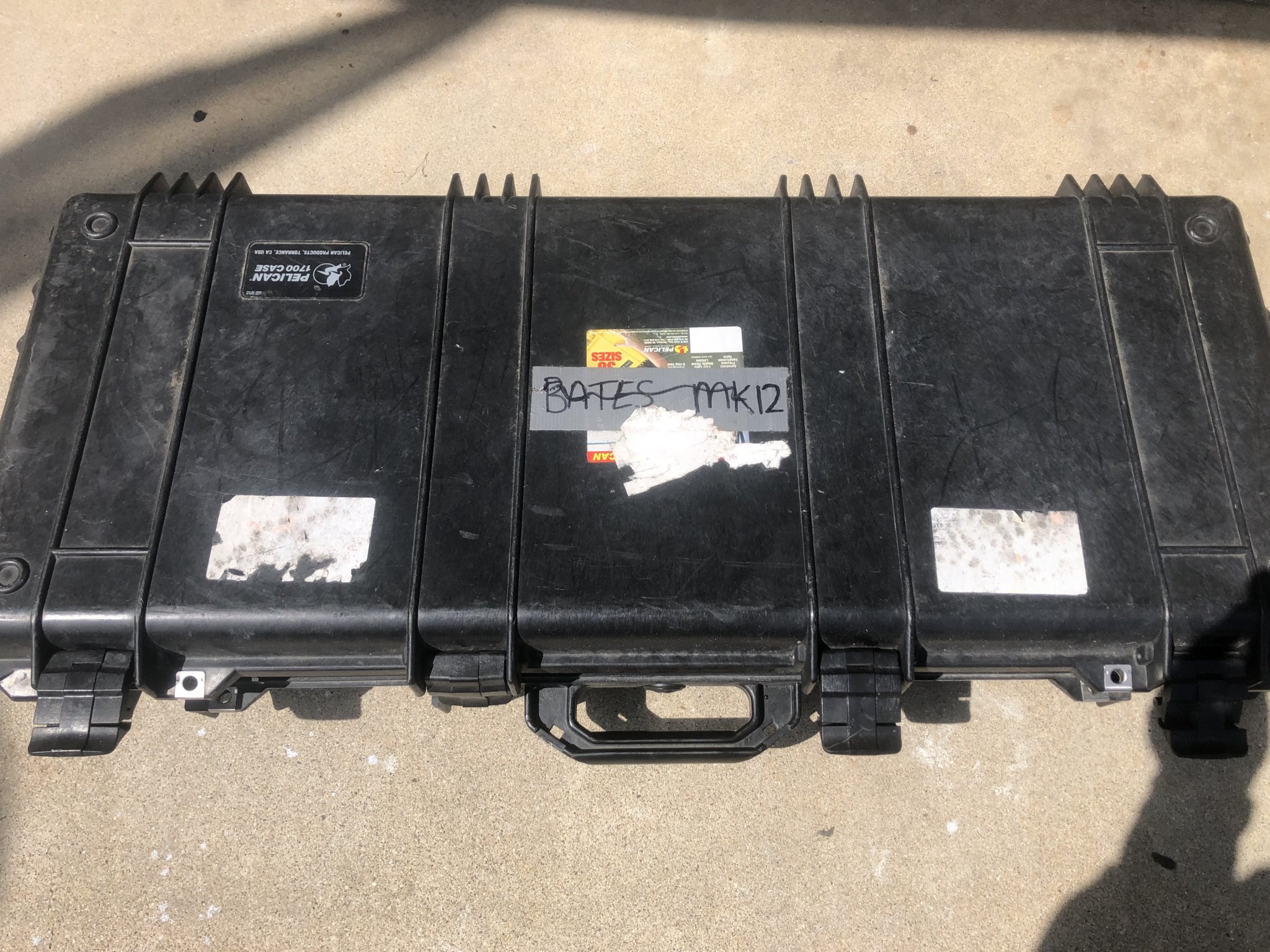

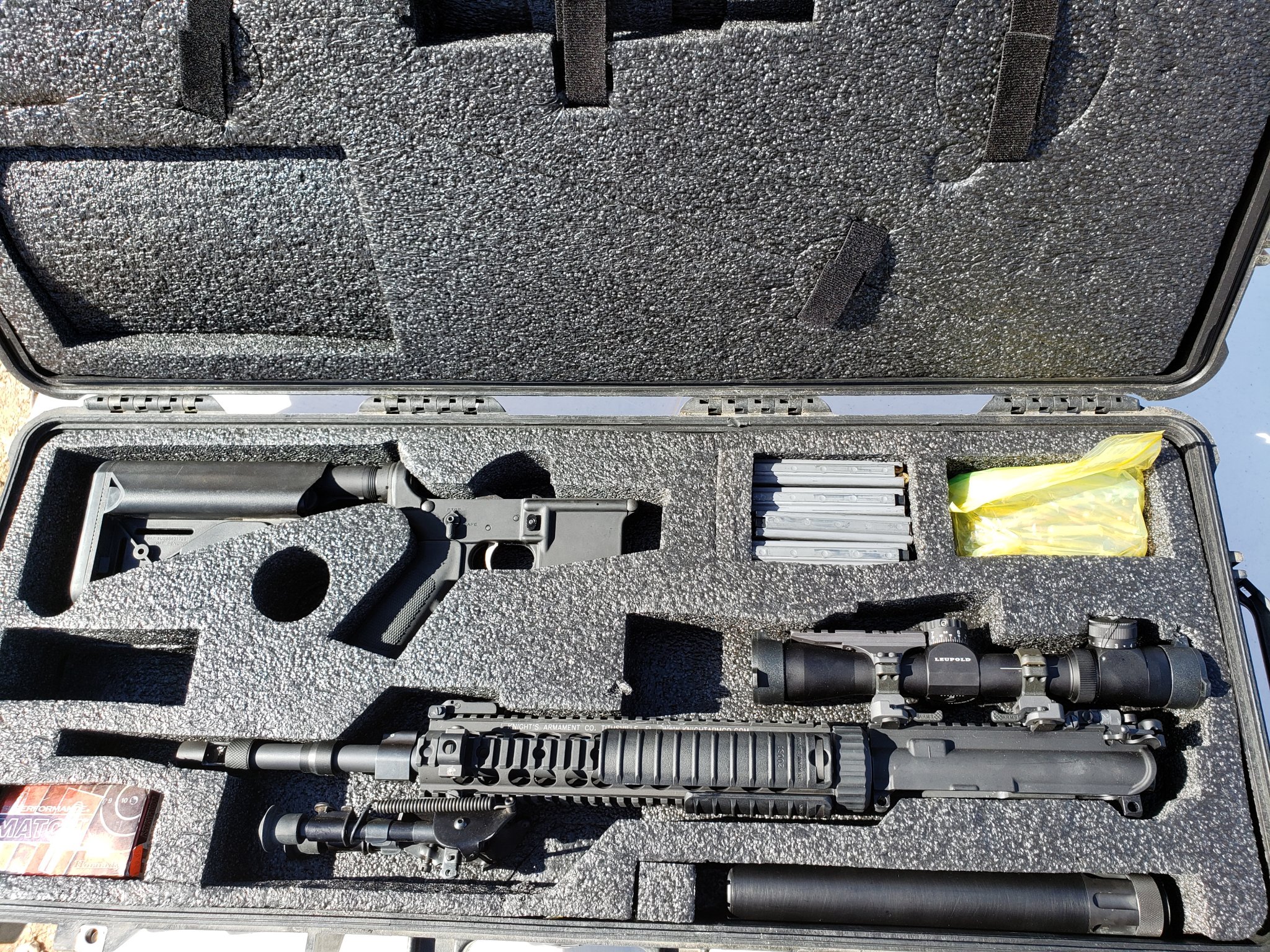

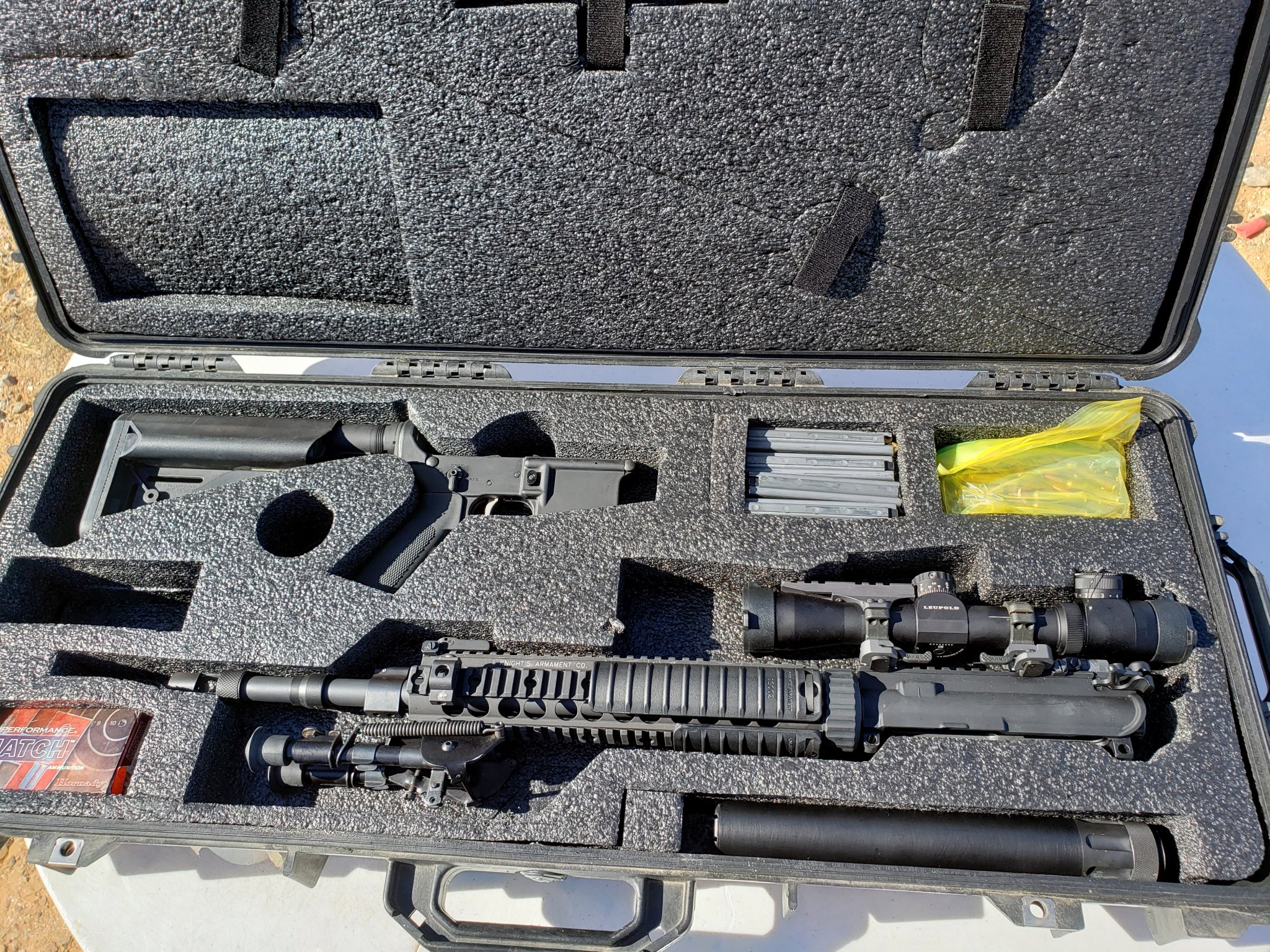

The rifles were issued as a kit in a Pelican 1700 case with cutouts. The kits included the rifle with suppressor, optic, bipod, an Eagle TAS-1 UMSS sling (unobtanium and also absolute crap), with a Dewey 1-piece cleaning rod plus Otis cleaning kit, and a cutout for magazines. An operator's manual was also included, however these have not been officially released for public consumption. However, the manuals are out there, and some companies building Mk12 uppers include one. Whether these are official .mil operator's manuals or specially made is currently unclear as the manual itself still contains language that it is not for distribution.
- Alternate .mil-spec parts due to NFA, NLA parts, or changes in name/markings for current production in [brackets]
- Extra notes about parts or availability are in (parenthesis)
LOWER

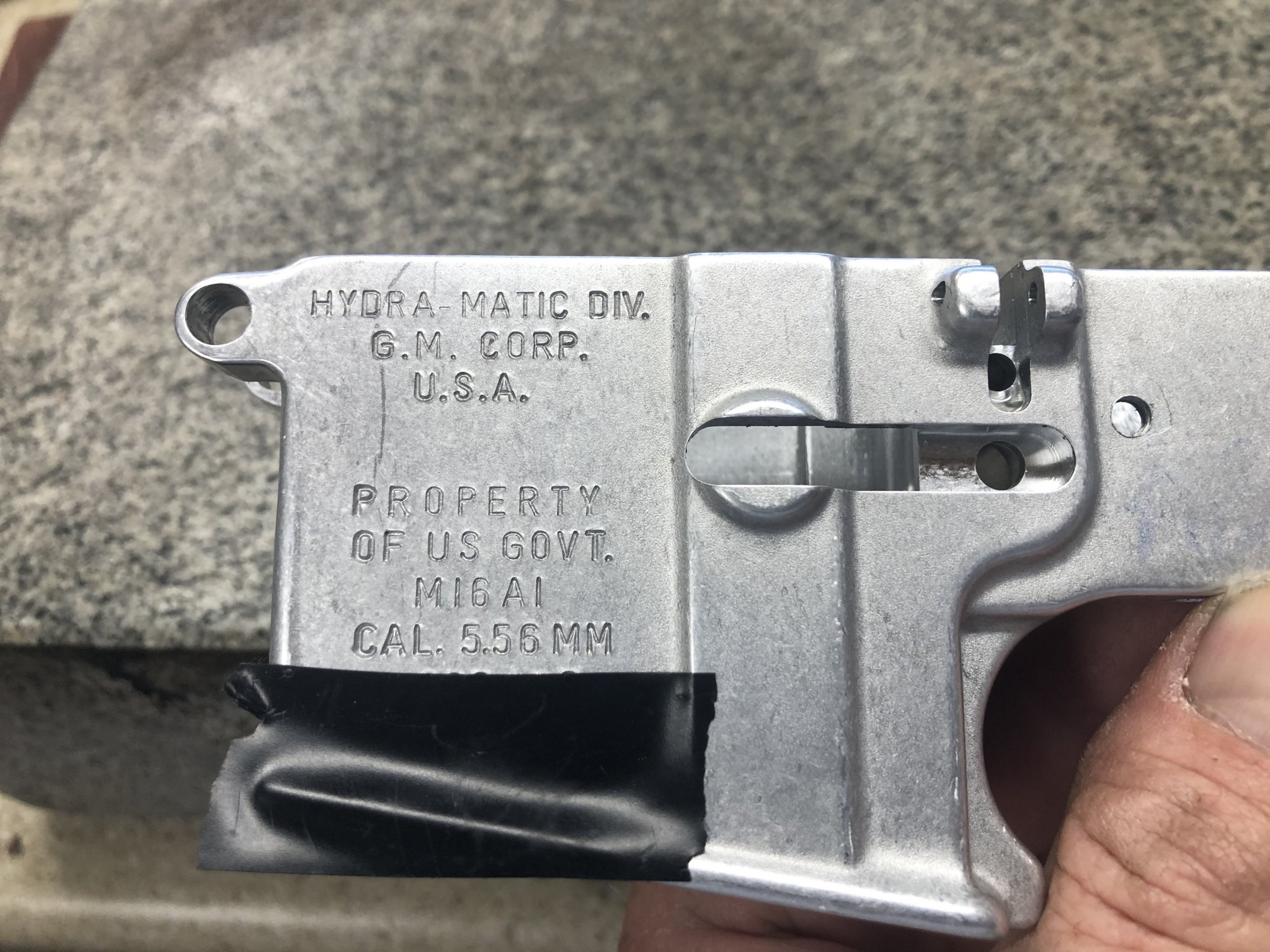

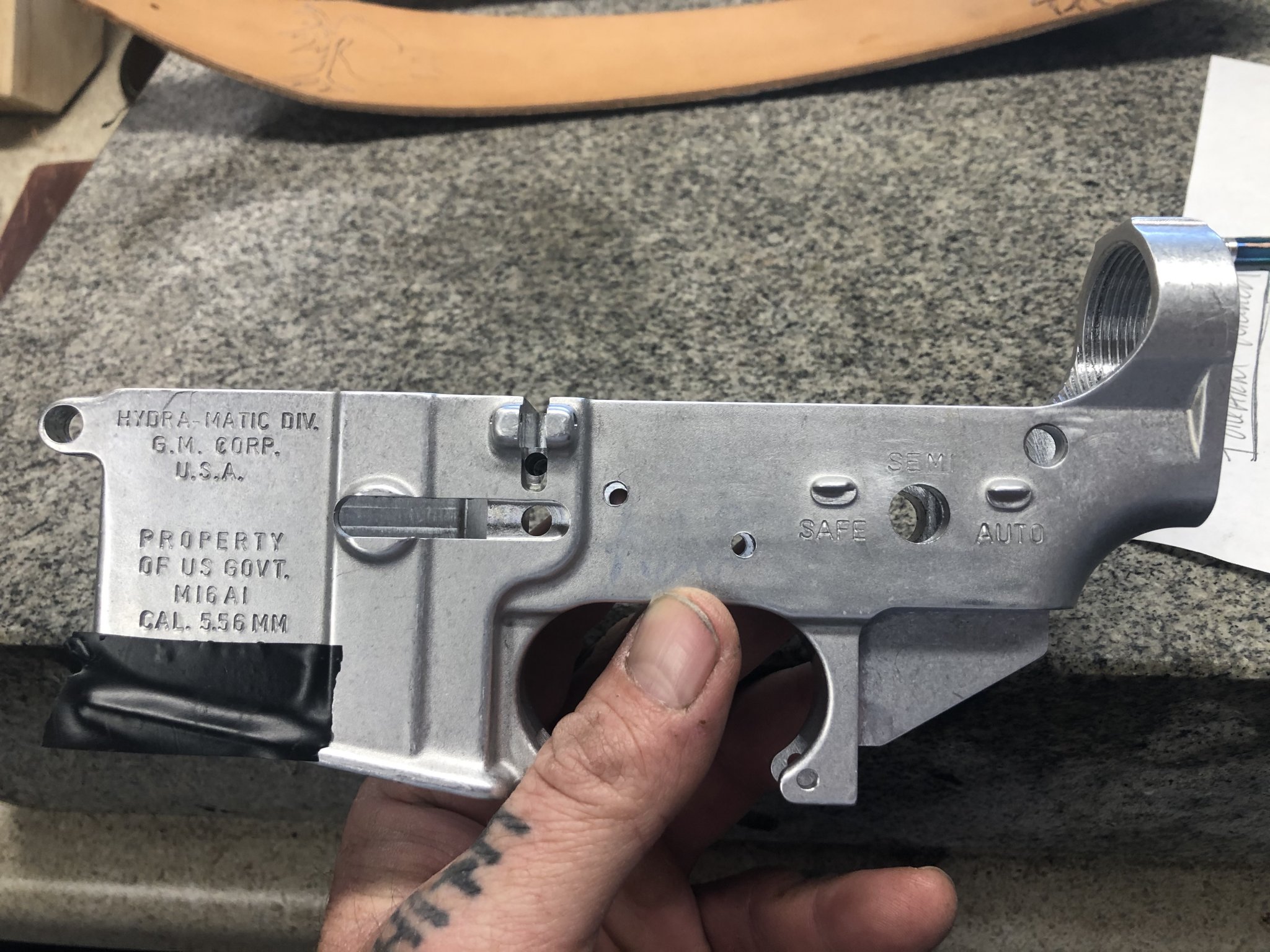

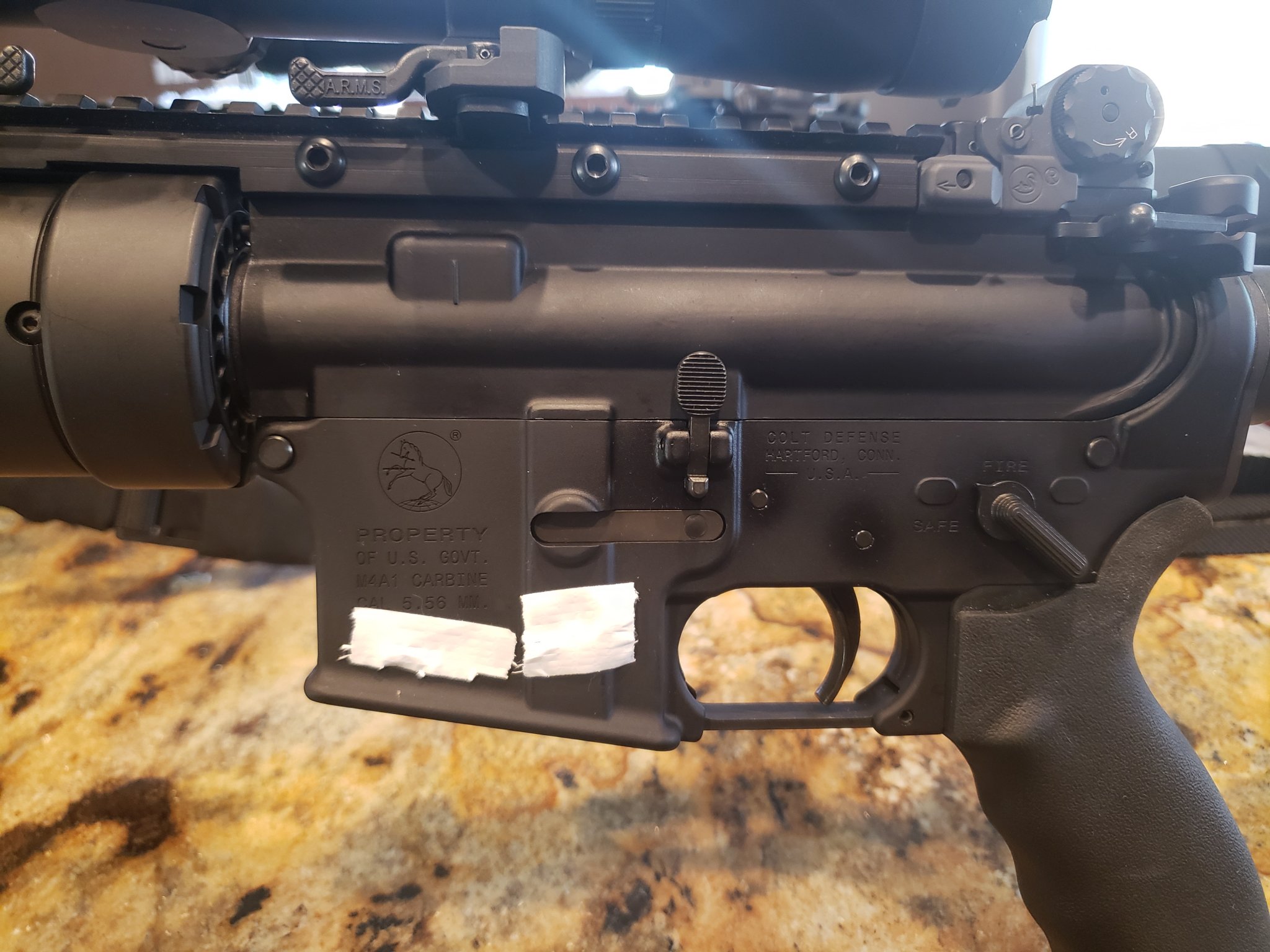

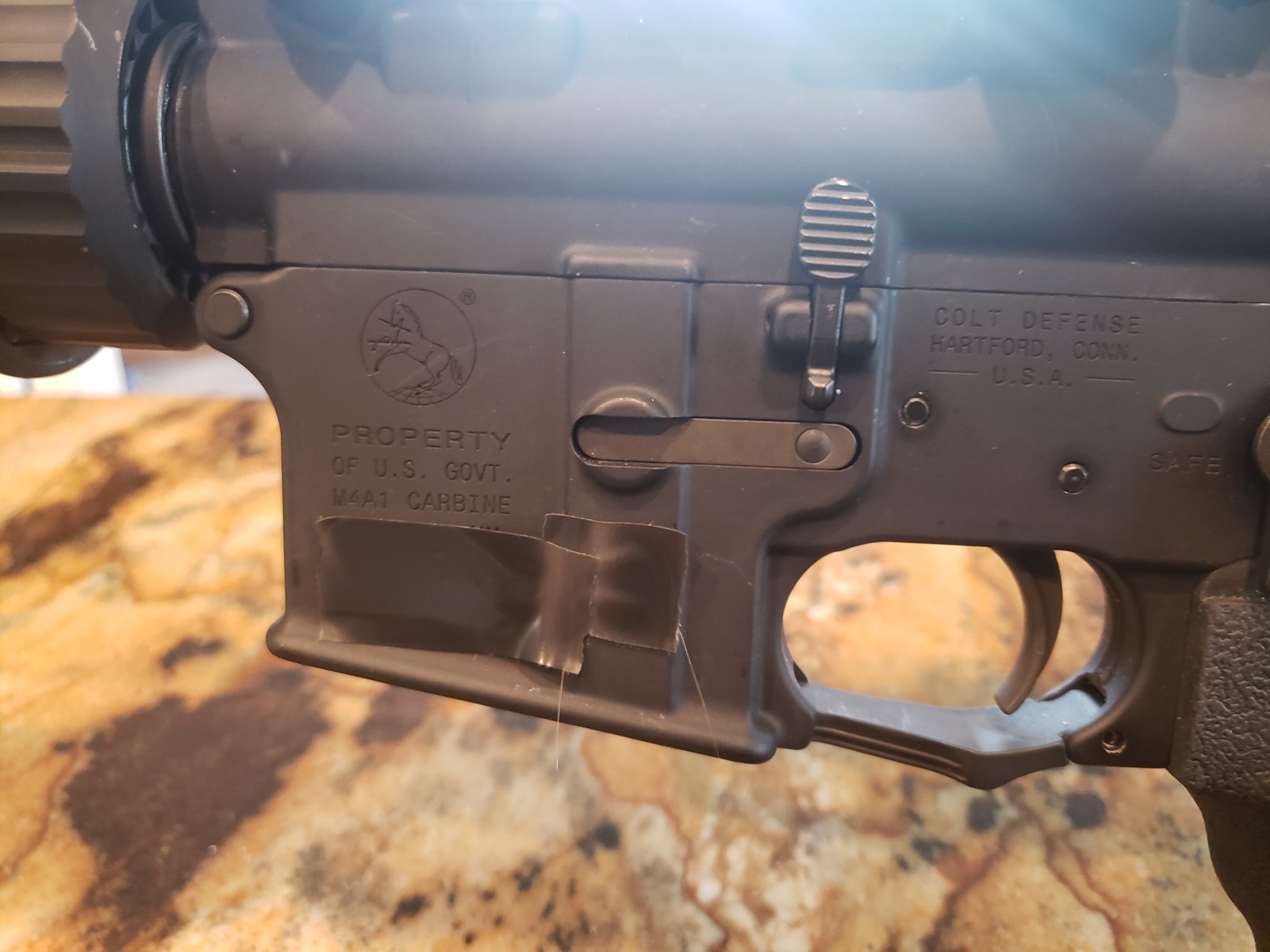

Lower receivers were standard across the SPR/Mk12 variants and the only variations would be between grips, stocks, and buffers. Most were marked either Colt or GM Hydramatic. All other parts were the same in regards to the lower parts. One caveat is the trigger, as the program originally selected the Knight's Armament 2-stage Full Auto Match trigger. Later on, some issues regarding negligent discharges occurred, and Geissele SSF triggers ultimately found their way into the Mk12 family. Whether 100% of all Mk12s eventually received the Geissele trigger isn't clear, so either is acceptable.
- Lower: M16A1 pattern [Nodak Spud NDSA1 or 80% re-profiled/finished/engraved]
- Trigger: Knight's 2-Stage Full Auto Match Trigger or Geissele SSF [KAC semi-auto Match or Geissele SSA/SSA-E]
- Grip: A1, A2, ERGO Original
- Stock: Originally issued with A1 stocks, both solid D and trapdoor E types; as A1 stocks dwindled, A2 were used; ModH rifles rebuilt with Ace SOCOM stocks
- Small parts: Standard M16A1 parts

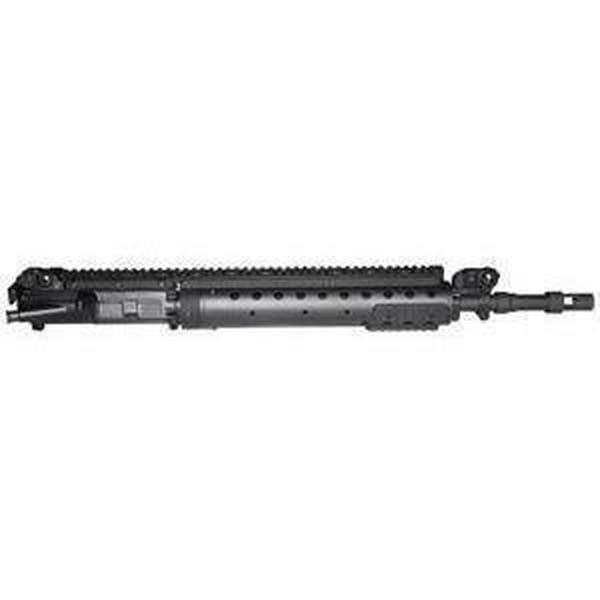

UPPER
The upper receivers, which ultimately differentiate the four variants of the Mk12, have the most variation between each other.

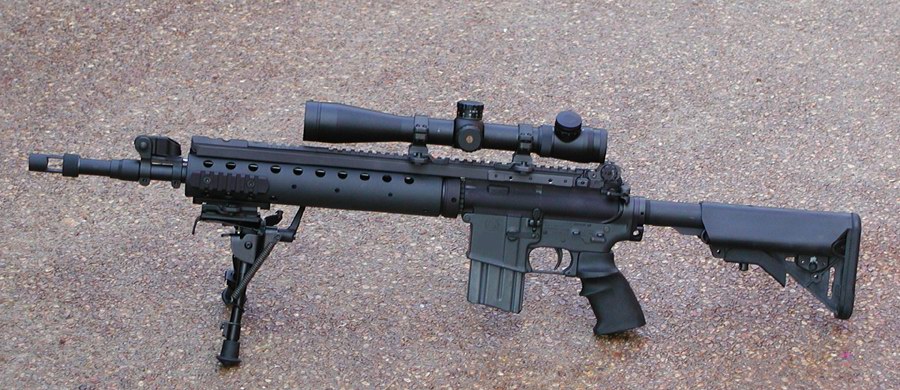

Early SPR/Mod0
- Upper: Colt, Diemaco, or Armalite marked, flat top, M4 feed-ramps
- Barrel: Douglas 416r SS, 18" SPR contour, 1/7 twist, flats milled for PRi FSB (Compass Lake, Centurion Arms, High Caliber Sales, and PRi can all supply barrels that meet the appropriate spec minus FSB flats)
- BCG: Colt M-16

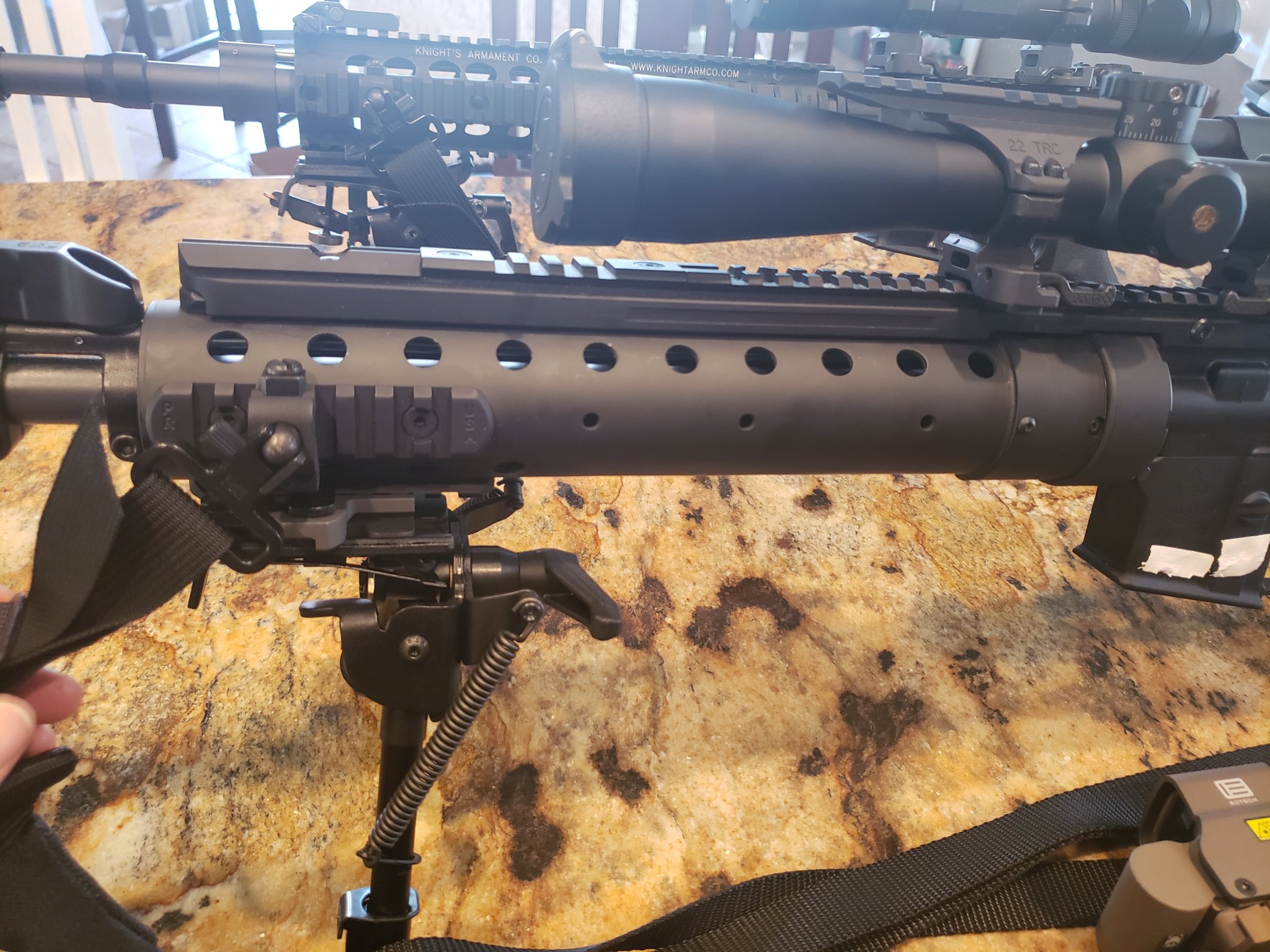

- Handguard: Precision Reflex Gen I carbon fiber free-float Handguard, rifle length (identified by button-head screws and one vent hole near barrel nut on lower half; no heat shields)
- A.R.M.S. #38 SPR MOD Sleeve (either the PEQ version or with uneven spacing on the front but not the full 1913 railed version)

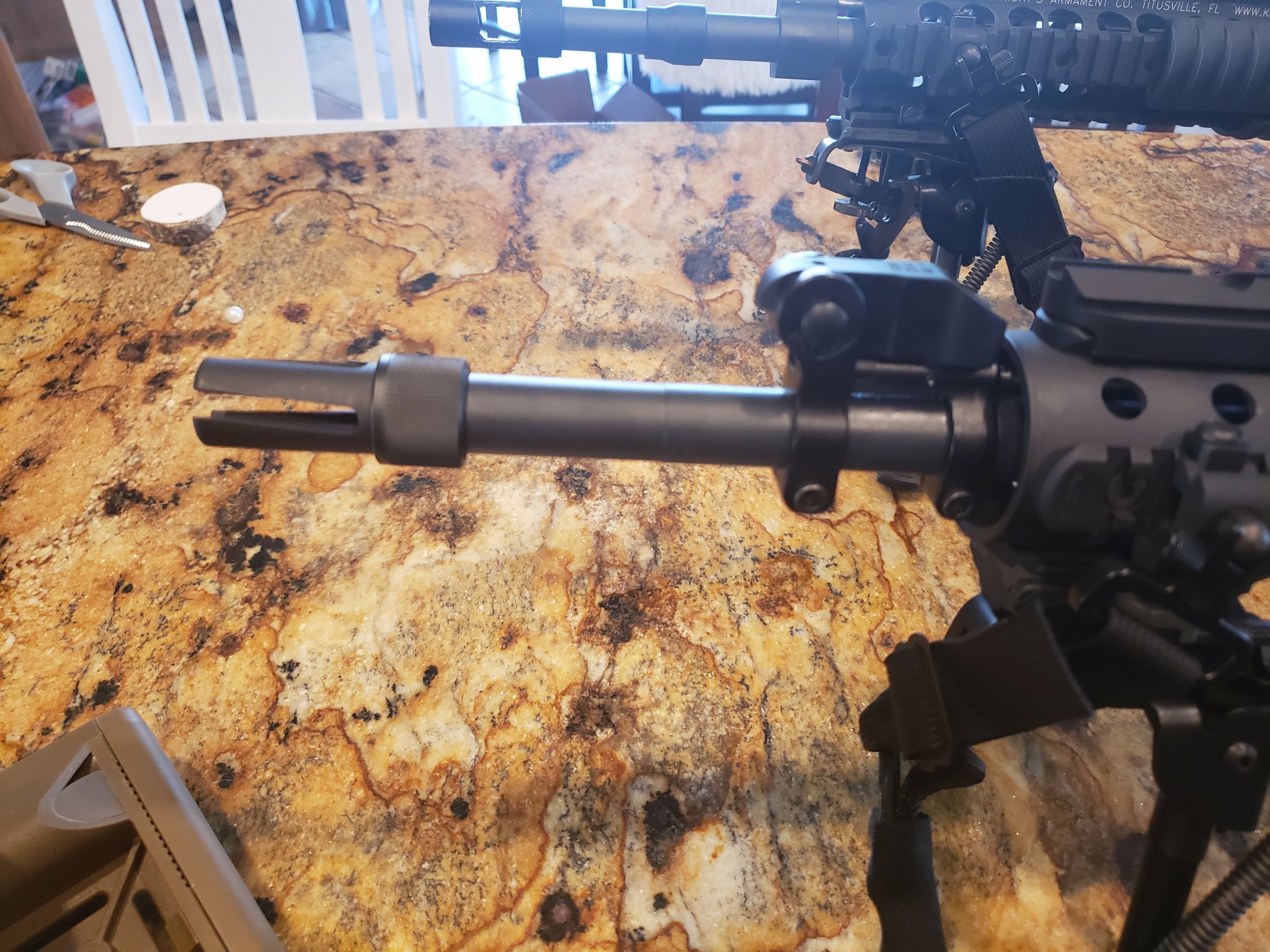

- FSB: PRi early folding front sight base and gas manifold, set-screw, with elevation wheel
- Charging handle: PRi Gas Buster M-84 with military latch
- Muzzle device: OPS Inc 12th Model brake/collar, and 12th Model suppressor [Allen Engineering AEM5 and brake/collar]
- Rear iron sight: A.R.M.S. #40
- Scope rings: A.R.M.S. #22 Medium rings, #22 Tactical Ring Cap and #22 Tactical Ring Rail (rings should not include "lever-stop" hump as produced later by A.R.M.S.)
- Optic: Leupold Vari-X III 3.5-10x40mm LR, M3 turrets, illuminated Mil-Dot reticle (use .308 turret) [Leupold LR/T 3.5-10x40 LR, M3 turrets, Illuminated Mil-Dot reticle]
- Bipod: Versa-Pod with A.R.M.S. #42, or a Harris with A.R.M.S. #32 (Versa-Pod far inferior to Harris)
Late Mod0
- Upper: Colt or Diemaco marked, flat top, M4 feed-ramps
- Barrel: Douglas 416r SS, 18" SPR contour, 1/7 twist, flats milled for PRi FSB (Compass Lake, Centurion Arms, High Caliber Sales, and PRi can all supply barrels that meet the appropriate spec minus FSB flats)
- BCG: Colt M-16.
- Handguard: Precision Reflex Gen III carbon fiber free-float handguard, rifle length
- A.R.M.S. #38 SPR-PEQ-2-3 Sleeve
- FSB: PRi folding FSB, set-screw, .750 (original production had PRi's full address engraved on sight tower; those engraved with "PRi USA" are later manufacture)
- Charging handle: PRi Gas Buster M-84 with military latch
- Muzzle device: OPS Inc. 12th Model brake/collar, and 12th Model suppressor [Allen Engineering AEM5 and brake/collar]
- Rear iron sight: A.R.M.S. #40
- Scope Rings: A.R.M.S. #22 Medium rings (rings should not include "lever-stop" hump as produced later by A.R.M.S.)
- Optic: Leupold 3-9x36mm TS-30, Mk4 MR/T 2.5-8x36mm TS-30A2, M2 turrets with Mk262 BDC, illuminated TMR reticle
- Bipod: Harris with either A.R.M.S. #32 or KAC RAS bipod adapter

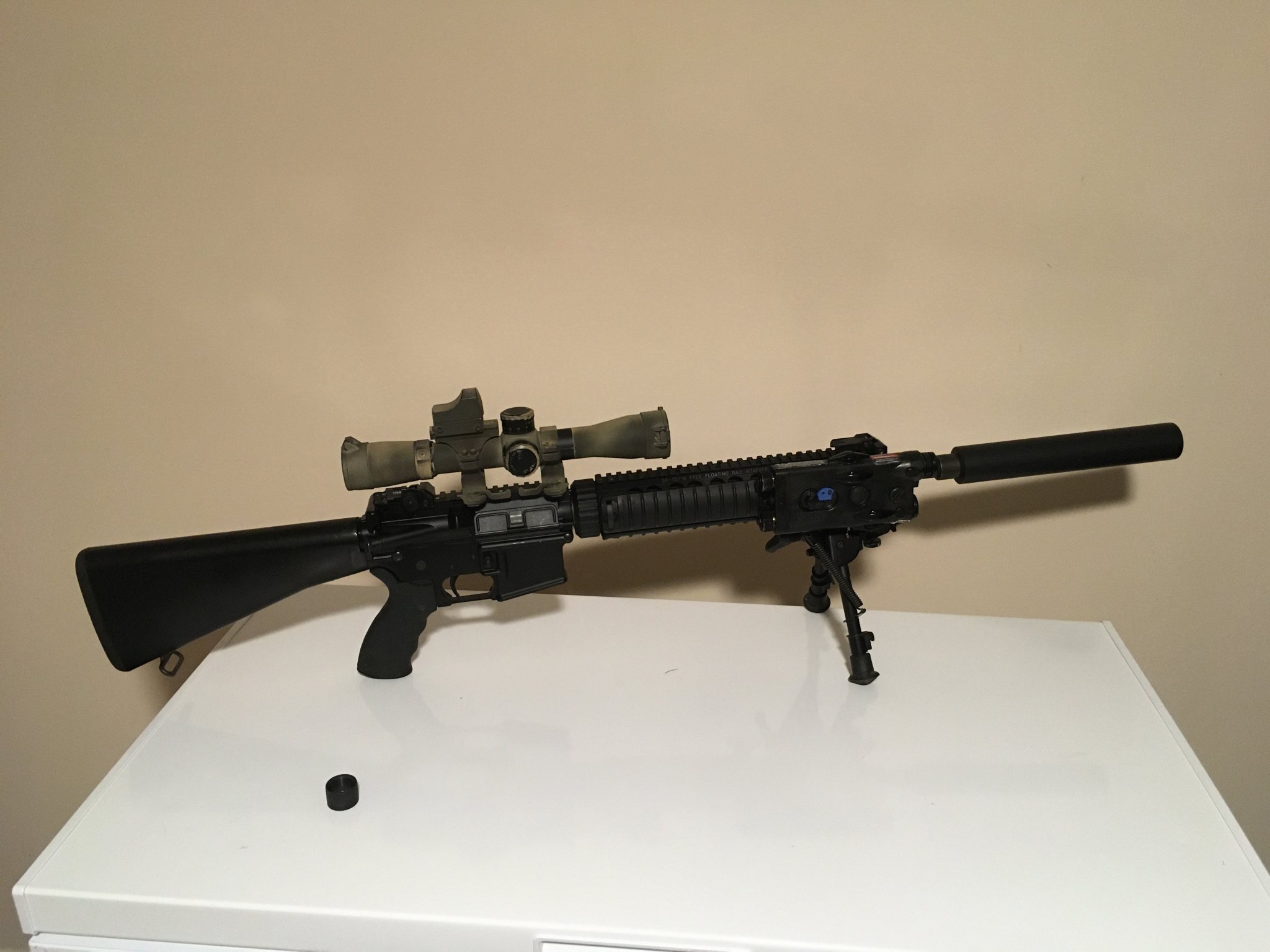

SPR/A, SPR/B, Mod1
- Upper: Colt or Diemaco marked, flat top, M4 feed-ramps
- Barrel: Douglas 416r SS, 18" SPR contour, 1/7 twist, flats milled for PRi FSB (Compass Lake, Centurion Arms, High Caliber Sales, and PRi can all supply barrels that meet the appropriate spec minus FSB flats)
- BCG: Colt M-16

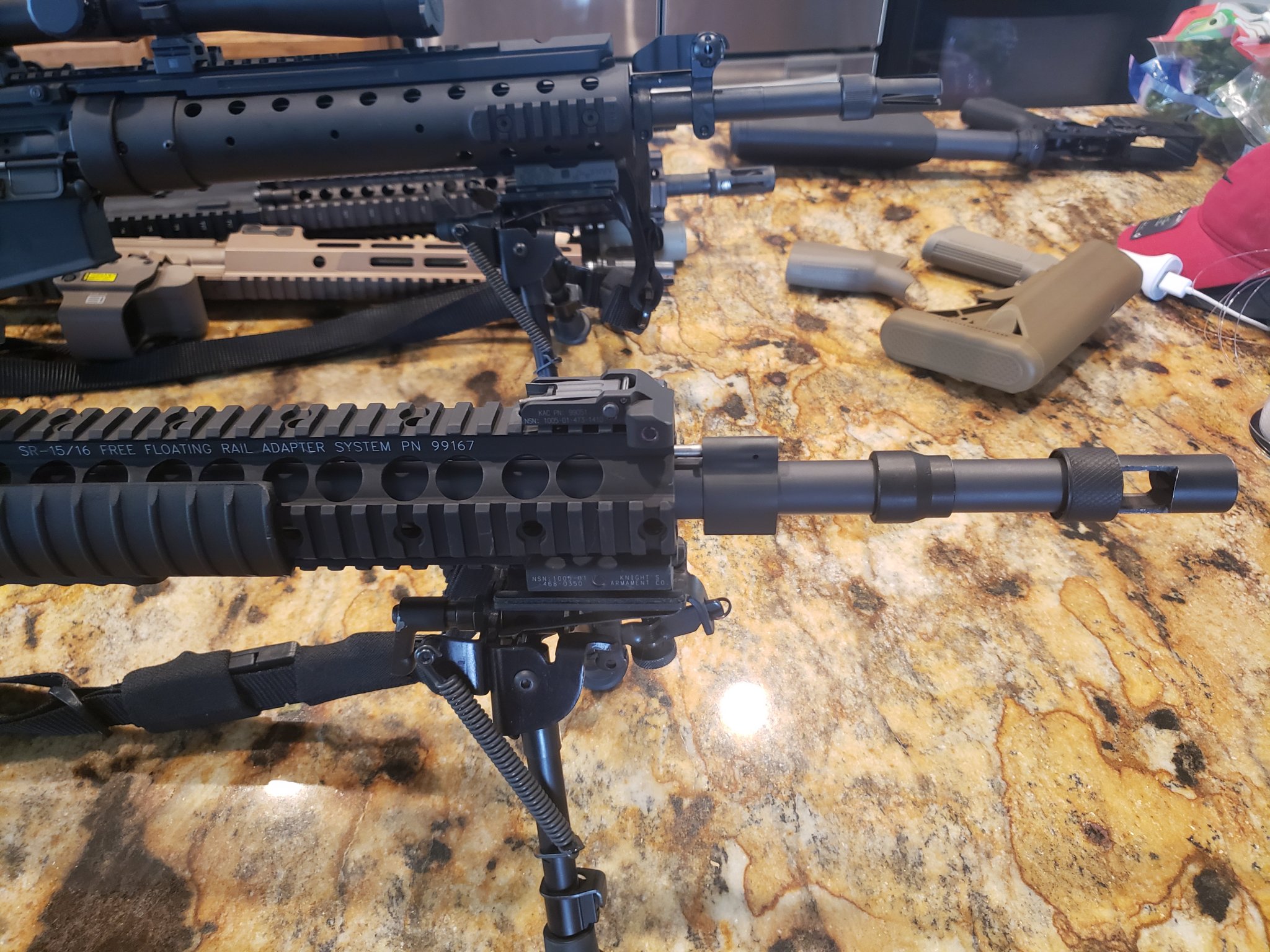

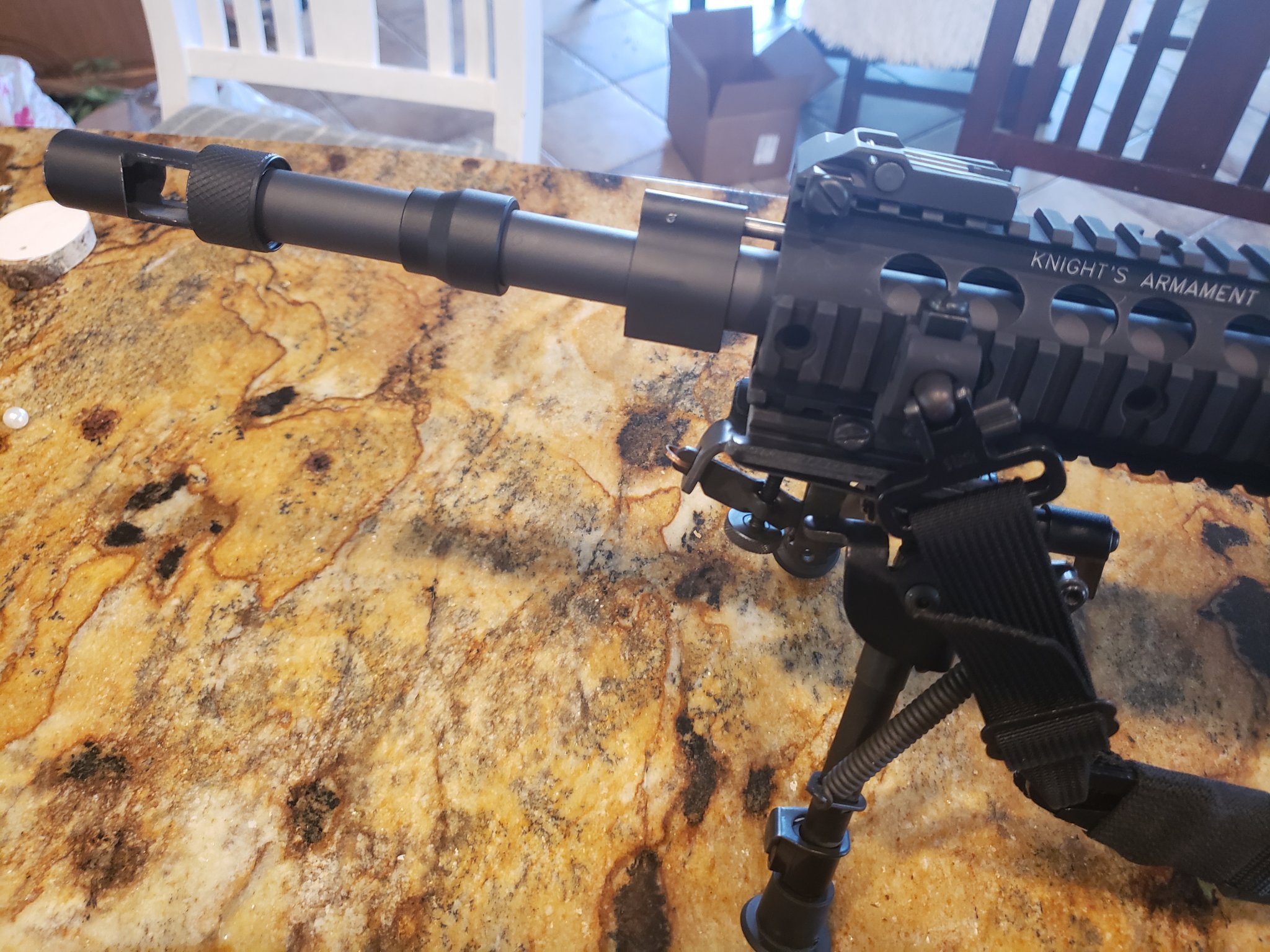

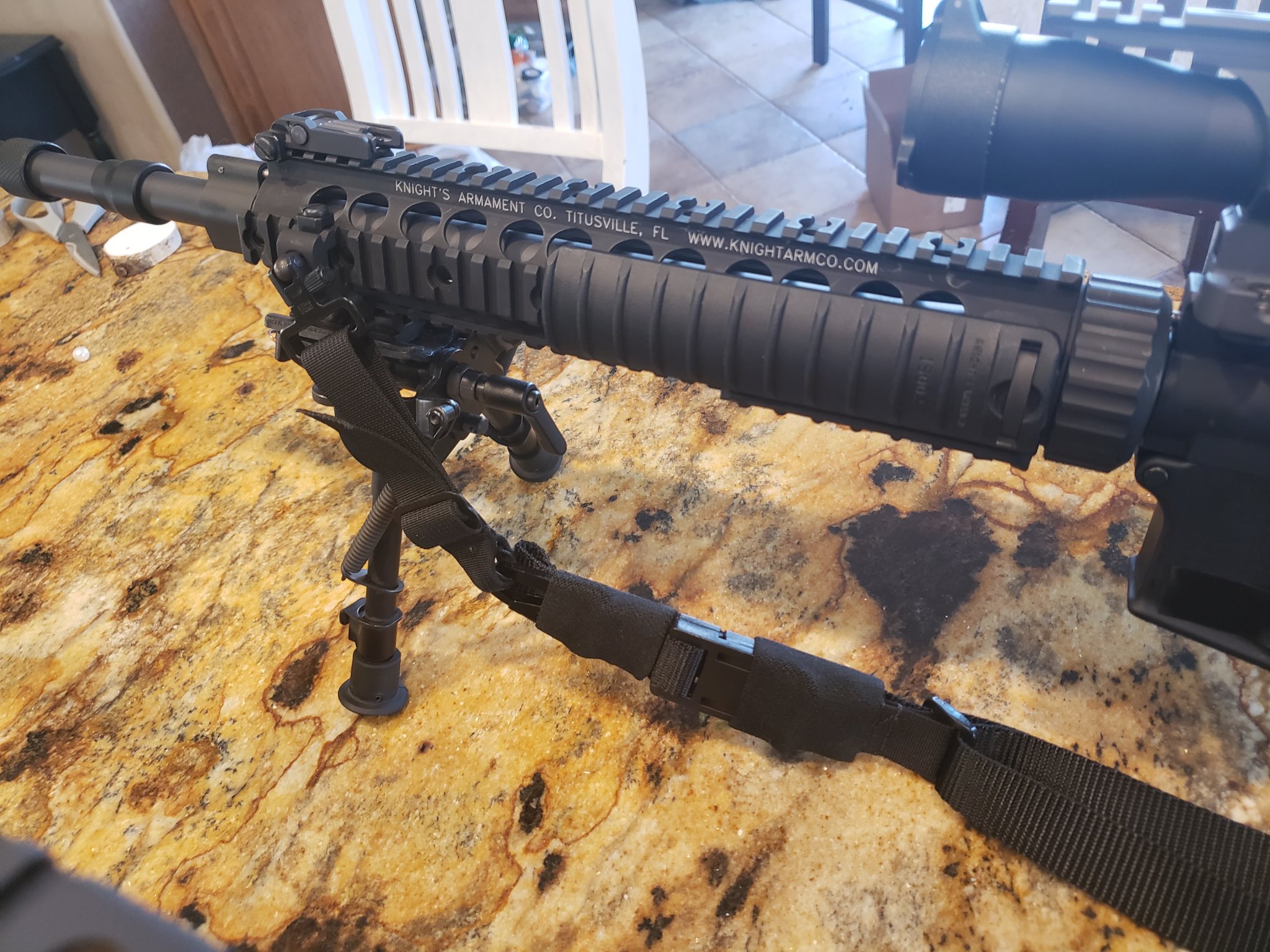

- Handguard: Knight's Armament M4 Match FF RAS, rifle length (now called the SR15/16 Match FF RAS)

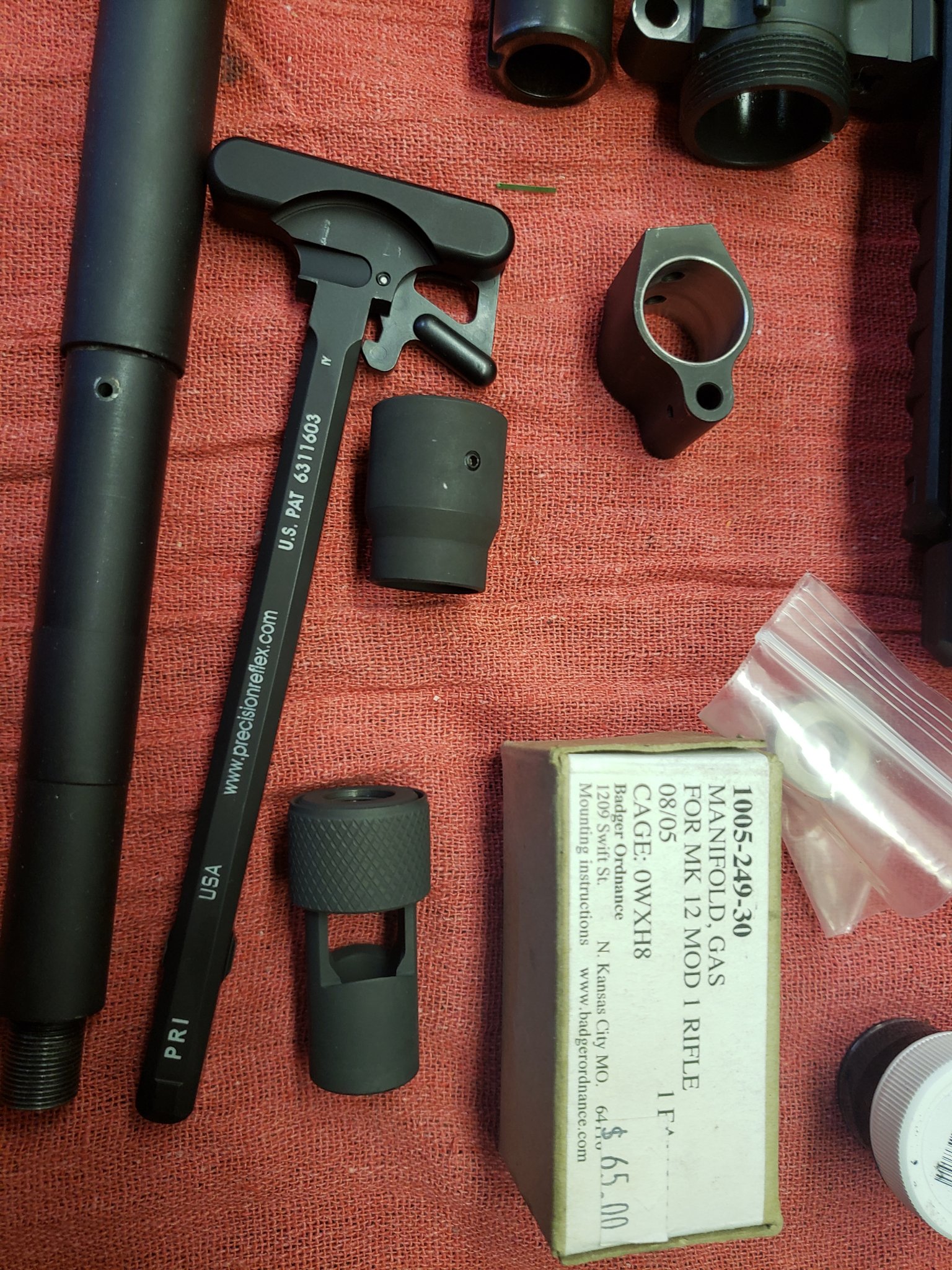

- Gas block: NSWC Crane pattern (Badger Ordnance parkerized/NSN version is correct, has open front of gas tube hole)
- Charging handle: PRi Gas Buster M-84 with military latch
- Muzzle device: OPS Inc. 12th Model brake/collar, and 12th Model suppressor [Allen Engineering AEM5 and brake/collar]
- Scope rings: A.R.M.S. #22 High rings (A.R.M.S. rings should not include "lever-stop" hump as produced later by A.R.M.S.)
- Optic: Leupold Mk4 MR/T 2.5-8x36mm TS-30A2, M2 turrets with Mk262 BDC, illuminated TMR reticle or NightForce 2.5-10x24 (optionally with NightForce rings)
- Bipod: Harris with KAC RAS bipod adapter (BRM-S, A.R.M.S. #32 could still optionally be used)

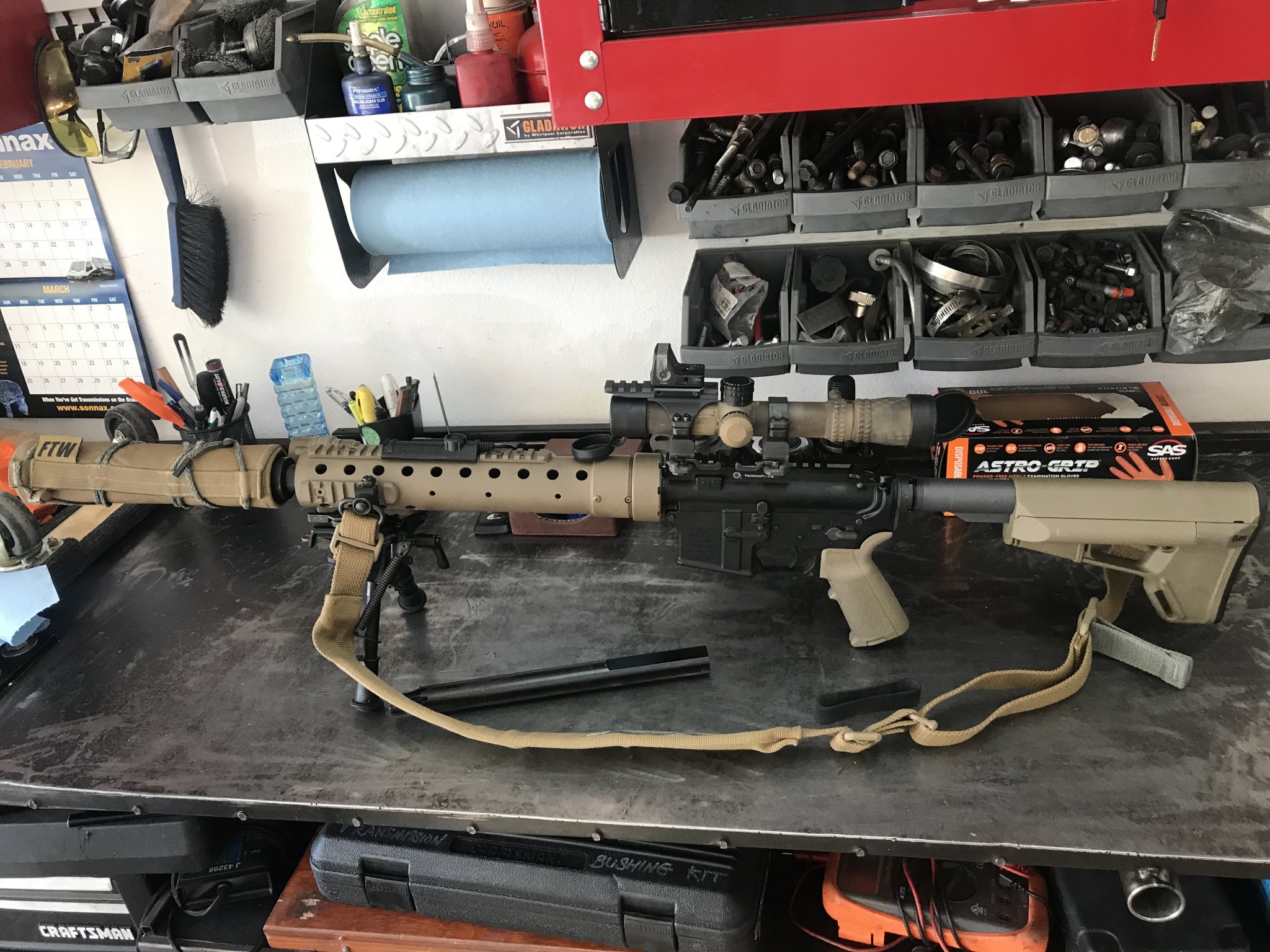

ModH, Mod "Holland"
- Upper: Colt or Diemaco marked, flat top, M4 feed-ramps
- Barrel: Noveske 16" Recon, mid-length gas system, profiled for OPS Inc. 12th Model brake/collar (will require aftermarket contouring of most barrels)
- BCG: Colt M-16
- Handguard: Precision Reflex Gen III carbon fiber free-float handguard, FDE, rifle length
- Charging handle: PRi Gas Buster M-84 with military latch
- Muzzle Device: OPS. Inc. 12th Model brake/collar, and 12th Model suppressor [Allen Engineering AEM5 and brake/collar]
- Scope Rings: A.R.M.S. #22 Medium rings on PRi recce rail (rings should not include "lever-stop" hump as produced later by A.R.M.S.) or LaRue LT-104 SPR mount
- Optic: Leupold 3-9x36mm TS-30, Mk4 MR/T 2.5-8x36mm TS-30A2, M2 turrets with Mk262 BDC, illuminated TMR reticle, Leupold Vari-X III 3.5-10x40mm LR, M3 turrets, illuminated Mil-Dot reticle (use .308 turret) [Leupold LR/T 3.5-10x40mm LR, M3 turrets, illuminated Mil-Dot reticle]; S&B Short-Dot
- Bipod: Harris with either A.R.M.S. #32 or KAC RAS bipod adapter
- Iron sights: (apparently PRI were supplied but never used)
