Night Vision Fusion Monoculars finally available

[CustomNightVision]

CONTACT US TODAY FOR THE BEST DEALS AND CURRENT PROMOS! (832-621-5832)
We got our first shipment of F14 / Jerry F Fusion Monoculars. These combine a 640 12um thermal with a traditional night vision tube. We will be testing these over the next few days and post some photos and videos. We sourced proper hand selected Photonis 3 Pin Pad Tubes for these units to ensure full functionality including the manual gain.



[Ranger93]

Tagged for more info.



[Twistid]

Price??



[Conqueror]

It bugs me that they seem to use the same old style of powered mount that prevents you from running, say, a PVS-14 on the other eye at the same time.



[patriot_man]

It bugs me that they seem to use the same old style of powered mount that prevents you from running, say, a PVS-14 on the other eye at the same time.

well they had to reverse engineer it from someone so I’m not surprised



[Conqueror]

True. It just sucks because it's going to push me to spend another 10k over the Jerry F price for fusion binos when they are available from CoreVision or someone else.



[CustomNightVision]

Price??

I see them sell for $11-13k. We are selling for $10.5k with full warranty and proper tube with functional gain control that doesn’t void tube warranty. Most people are altering us style 11769 to get these to work.



[CustomNightVision]

True. It just sucks because it's going to push me to spend another 10k over the Jerry F price for fusion binos when they are available from CoreVision or someone else.

Corevision stuff is very far from reality and a ton more expensive



[Conqueror]

Corevision stuff is very far from reality and a ton more expensive

Isn't that literally what I said? "when they are available" and "10k over the price of the Jerry F."



[TheHorta]

I should have my Jerry-F with 3000 FOM L3 WP tube this week. I’ll report back, probably in a dedicated thread.



[GreenMushroom]

I should have my Jerry-F with 3000 FOM L3 WP tube this week. I’ll report back, probably in a dedicated thread.

I don't get the photonis tube. If you're spending that kind of coin why not a couple k more for a nice filmless tube.



[CustomNightVision]

I don't get the photonis tube. If you're spending that kind of coin why not a couple k more for a nice filmless tube.

Because these units use European style 3 pin pad pigtails. You would have to void a l3 warranty if used in these systems because of soldering. If a 10160 l3 was used the manual gain would not be functional.

Photonis tubes actually kick ass. You need to go out and try one out. We mostly sell L3 filmless but photonis tubes are very impressive.



[CustomNightVision]

I should have my Jerry-F with 3000 FOM L3 WP tube this week. I’ll report back, probably in a dedicated thread.

Is the manual gain working or did they void the warranty on the l3 tube? We decided to source the correct tubes that this unit uses from Photonis to ensure full warranty and manual gain functionality.



[RKM556]

Excited to hear more. I really hope these are decent!



[TheHorta]

Two ways to use L3:

Solder gain leads, void warranty.
Use as 10160 auto-gain and keep warranty. That said, I’m fully happy with my 3700 FOM DTNVS, which of course uses auto-gain. But I do want to be able to crank the NV tube all the way down, so I’ll risk it.

I’ve personally never had a tube go bad, so I’m willingly taking a risk and going the solder route. I think L3 factory tube warranty is only 2 years anyway, so it’s a minuscule risk in my opinion.



[Conqueror]

@TheHorta did you buy those crazy tubes naked or take them out of some device?



[TheHorta]

@TheHorta did you buy those crazy tubes naked or take them out of some device?

Nekkid. $4500/ea.



[Conqueror]

Damn son. I bet even the testers at L3 were like “wtf” when those results printed out.



[CustomNightVision]

Bump



[Evolution 9]

Bump

You were going to post pics and videos… did I miss them somewhere?

If these perform well at all, I’d post pics and videos of what the user sees on the display and the units will sell themselves.



[CustomNightVision]

You were going to post pics and videos… did I miss them somewhere?

If these perform well at all, I’d post pics and videos of what the user sees on the display and the units will sell themselves.

I will be doing this soon. have not had time to get any quality content yet.



[CustomNightVision]

You were going to post pics and videos… did I miss them somewhere?

If these perform well at all, I’d post pics and videos of what the user sees on the display and the units will sell themselves.



[RKM556]

Looks great. @TheHorta did yours make it in?



[TheHorta]

Looks great. @TheHorta did yours make it in?

En route. Will have this week. Only difference will be the NV tube in the unit. Mine will have a >2800 FOM L3 WP. Won’t make any difference in photos.

Will report back when it arrives. Will probably do a different thread to not pollute/derail Kosher’s.



[CustomNightVision]

BUMP



[TheHorta]

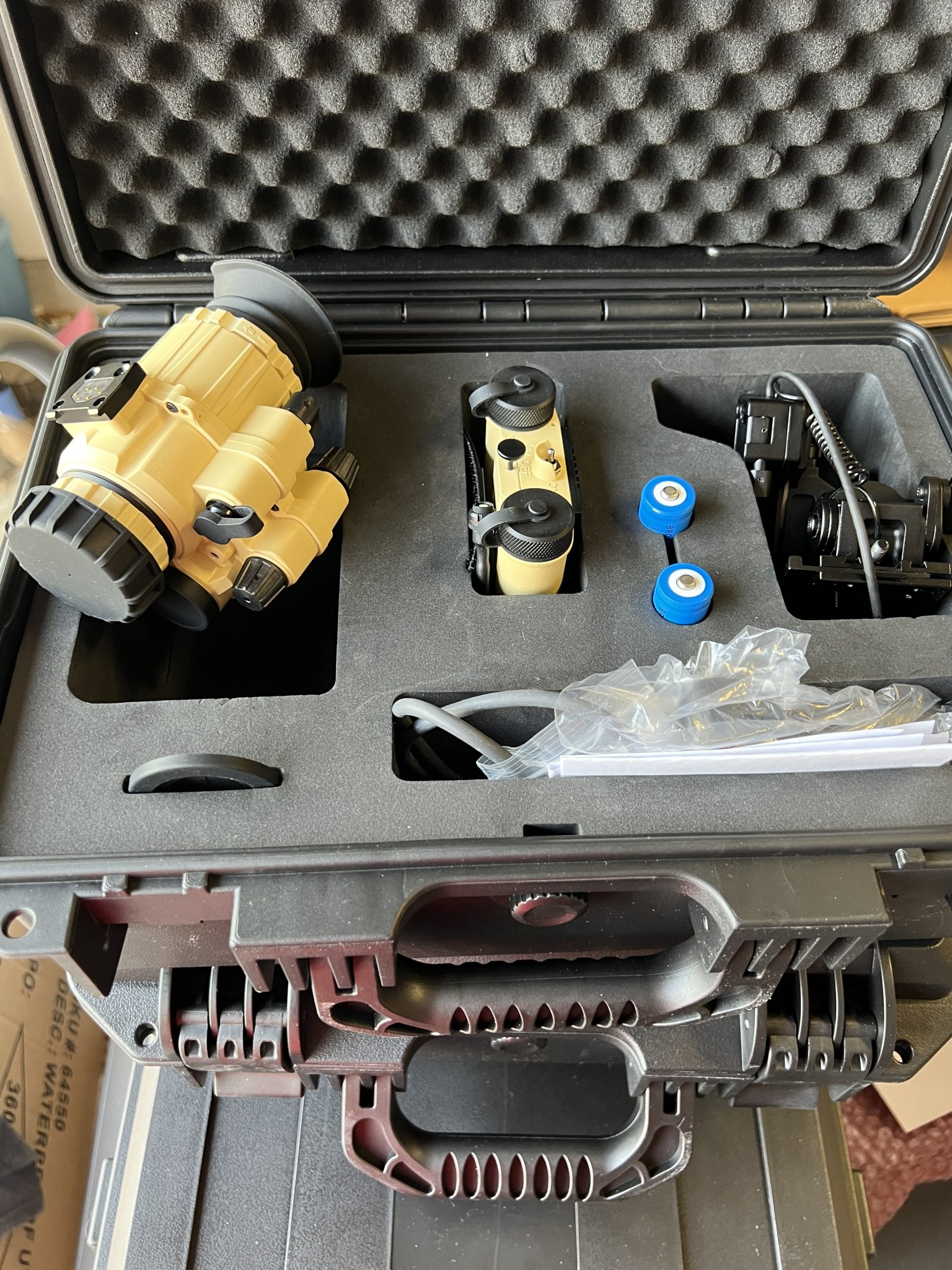

Received mine. Kosher is correct. With these current Jerry/AGM housings, if you want gain control, you need to use Photonis tubes. Mine has an L3 installed and there is no gain control (autogain), which is fine for straight-up NODs, but for a true fusion device manual gain control is almost a necessity. Also, for support and warranty purposes trying to go direct and get your own Jerry-F has turned out to be a not-so-good idea. You get no effective warranty or support, and this device is going to absolutely demand both (already having issues).

So, as much as I’d personally like to have a legit alternative for this aside from AGM, and one that offers an L3 WP tube option, that’s just not going to be practical. (Although it seems likely that iRay either has already, or soon will release a version that supports L3 tubes).

That said, even with my non-AGM minted model, this is the best 100% legit fusion NOD out there at a reasonable price. It’s the same price as a decent set of binos and is 10-times more useful than straight NV. It also beats the stuffin’ outta using a COTI/eCOTI and clobbers cobbled-together “dual band” (bridging NV and Thermal monoculars).

As much as it pains me to say (because I’m not an AGM fan) if I were to do it over, I’d just get one of these AGM units from a trusted Hide vendor, like Kosher.



[CustomNightVision]

Received mine. Kosher is correct. With these current Jerry/AGM housings, if you want gain control, you need to use Photonis tubes. Mine has an L3 installed and there is no gain control (autogain), which is fine for straight-up NODs, but for a true fusion device manual gain control is almost a necessity. Also, for support and warranty purposes trying to go direct and get your own Jerry-F has turned out to be a not-so-good idea. You get no effective warranty or support, and this device is going to absolutely demand both (already having issues).

So, as much as I’d personally like to have a legit alternative for this aside from AGM, and one that offers an L3 WP tube option, that’s just not going to be practical. (Although it seems likely that iRay either has already, or soon will release a version that supports L3 tubes).

That said, even with my non-AGM minted model, this is the best 100% legit fusion NOD out there at a reasonable price. It’s the same price as a decent set of binos and is 10-times more useful than straight NV. It also beats the stuffin’ outta using a COTI/eCOTI and clobbers cobbled-together “dual band” (bridging NV and Thermal monoculars).

As much as it pains me to say (because I’m not an AGM fan) if I were to do it over, I’d just get one of these AGM units from a trusted Hide vendor, like Kosher.

Thank you for the feedback. Ive been using the F14 for the last few nights and its definitely a solid little unit.



[CustomNightVision]

bump.



[CustomNightVision]

bump



[CustomNightVision]

bump



[CustomNightVision]

BUMP!
