Gunsmithing an Aluminum Bedding Block

[powereng]

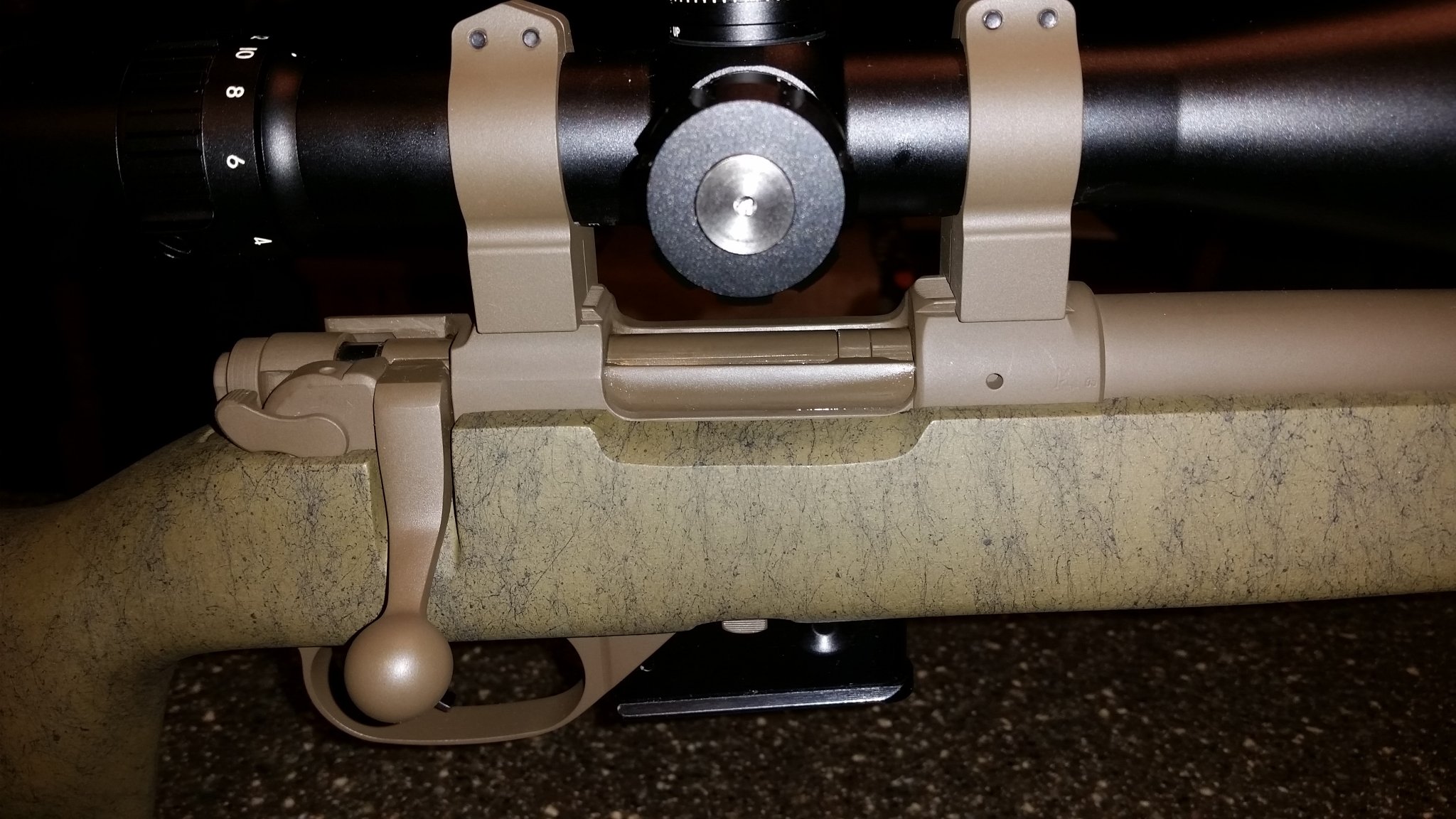

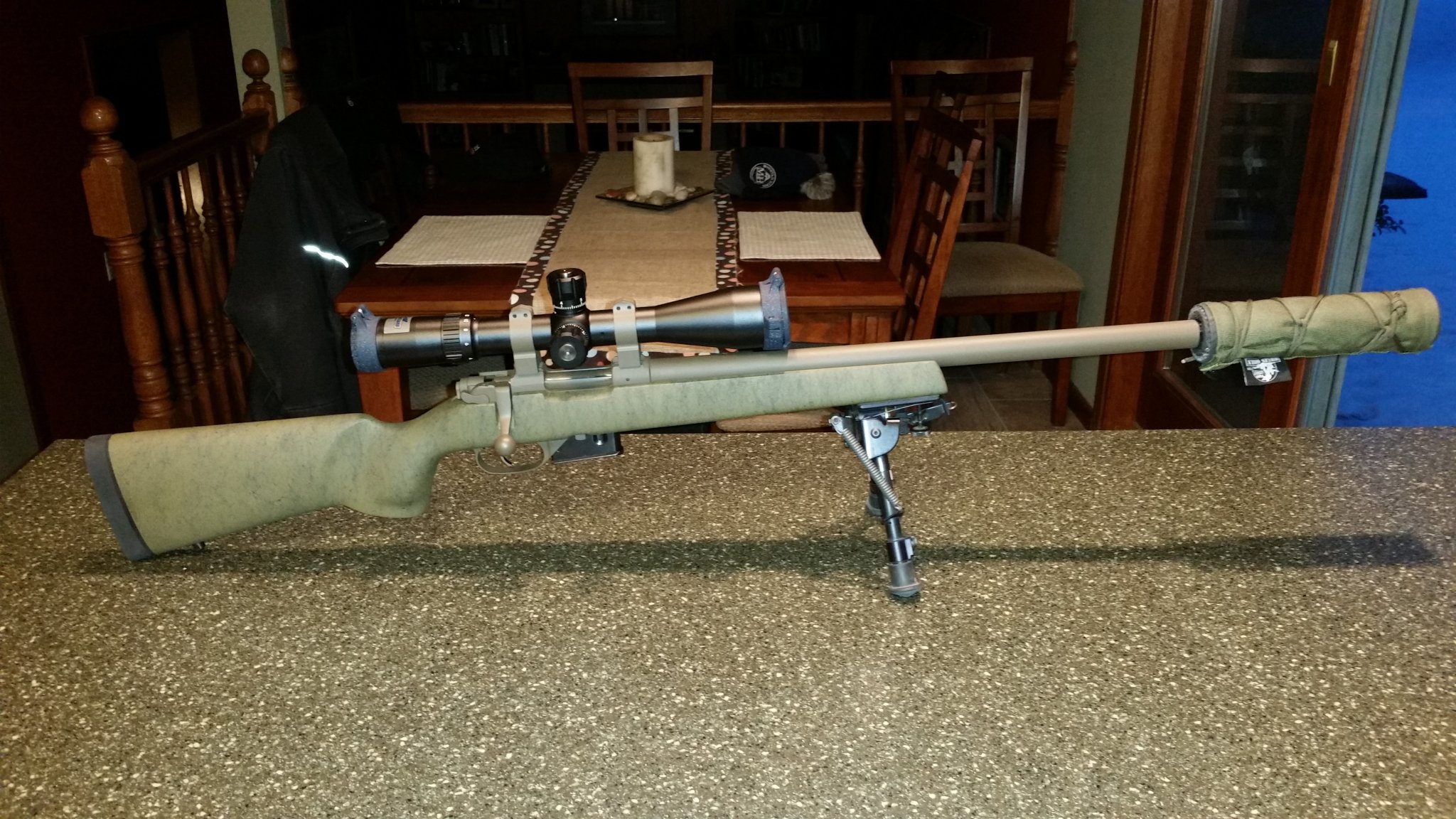

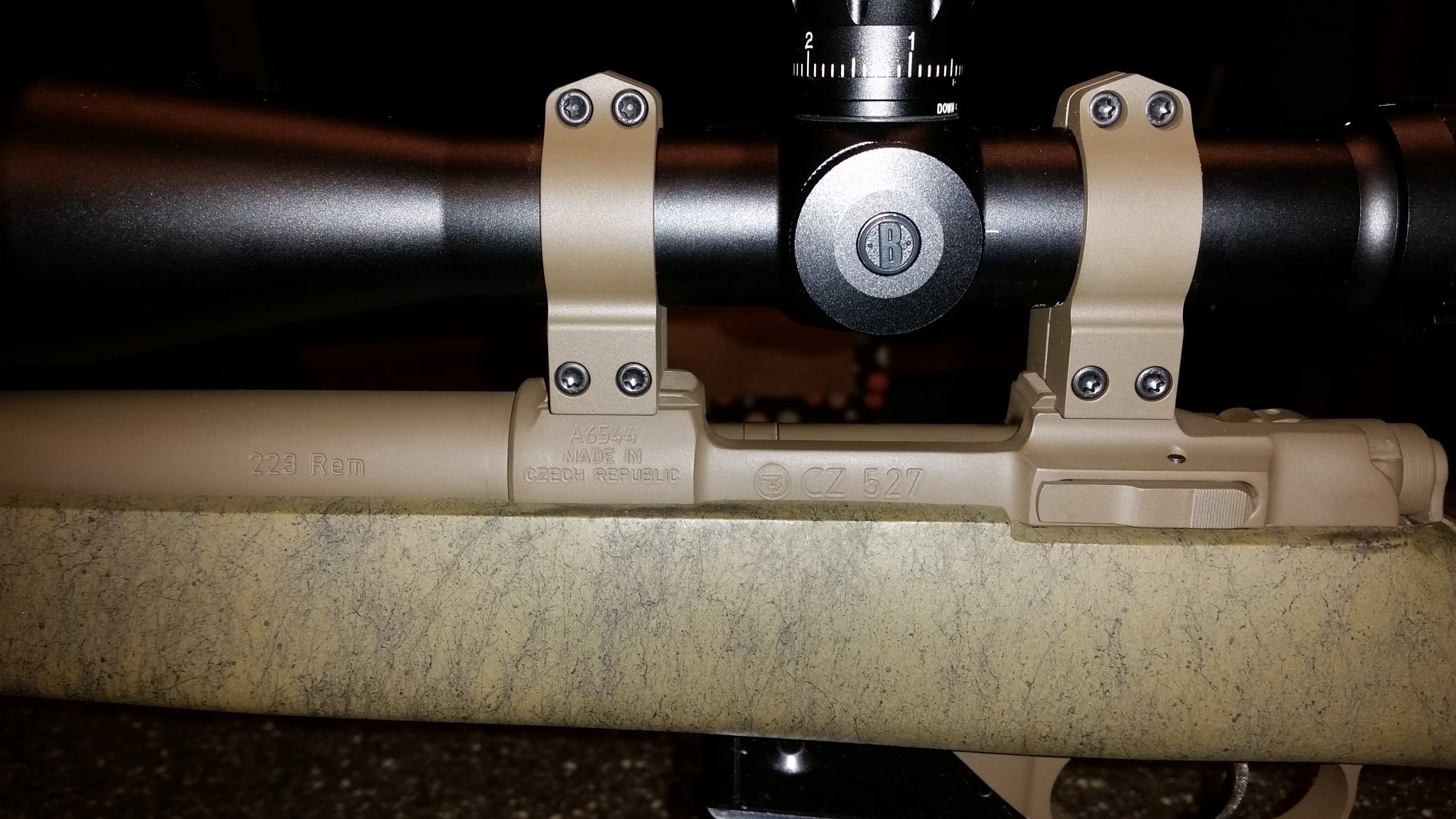

I have CZ 527 (223) in an HS precision stock with an aluminum bedding block. The rifle has always had trouble feeding from the factory CZ 5 round magazines, especially the last round. Can the existing aluminum bedding block be re-milled to either lower the action or raise the bottom metal to accommodate better feeding?



[ShtrRdy]

Seems like it should be possible. I would first look at the mag retention latch to see if there was some way to modify or replace it to hold the magazine a little higher.



[Buzzinga]

If you were to send in a Manners stock, they would remove the pillars before inletting. You would then need to put in new ones.



[Mike Casselton]

If you were to send in a Manners stock, they would remove the pillars before inletting. You would then need to put in new ones.

The stock is an H-S Precision.
The stock has no pillars. It has an actual bedding block made from 6061-T6 aluminum.
Drilling the block out and installing pillars isn't the answer.

I would recommend first trying a different magazine. If that doesn't work, then look at how the magazine goes/fits into the bottom metal as pointed out above.

Spitballing here:
Is the ceracoating original?
If not, did you have this issue prior to coating?
Maybe the coating raised the receiver in the block by a couple thousands and lowered the bottom metal the same, causing just enough gap to create the issue.



[Mike Casselton]

If you're gonna mill something off, do it from the bottom metal side. It would just be a thin flat cut.
