Has anyone machined a MDT ACC Elite Chassis?

Dkas

Supporter
Supporter
Minuteman
Dec 15, 2023
7
5
Bradenton Florida

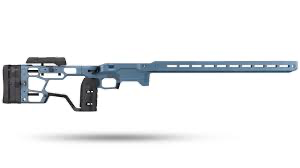

Has anyone machined a MDT ACC Elite chassis to fit LeftHhand T3X yet?

MDT only carries the ACC Elite in right hand so I was half way debating trying to find a way to machine it to be ambidextrous.


I don’t think this title is going to get you many clicks.

I would change the title to more of a question asking if anyone has machined an MDT elite. Might get more responses.

  • Like
Reactions: Dkas

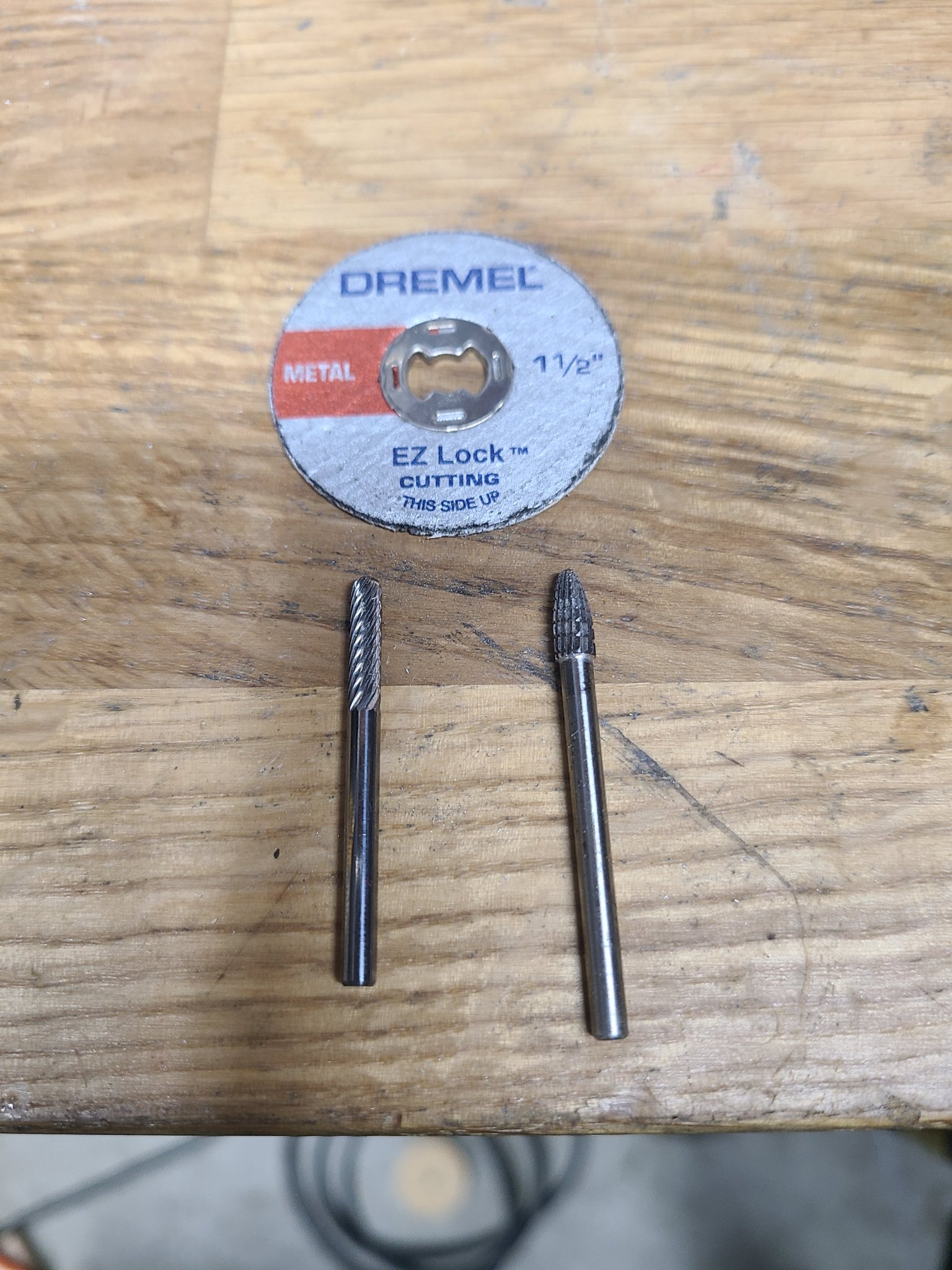

Not one of those but I did my Mdt Xrs for my t1x. Got it from black friday 2022. Used my Foredom (better than dremel).

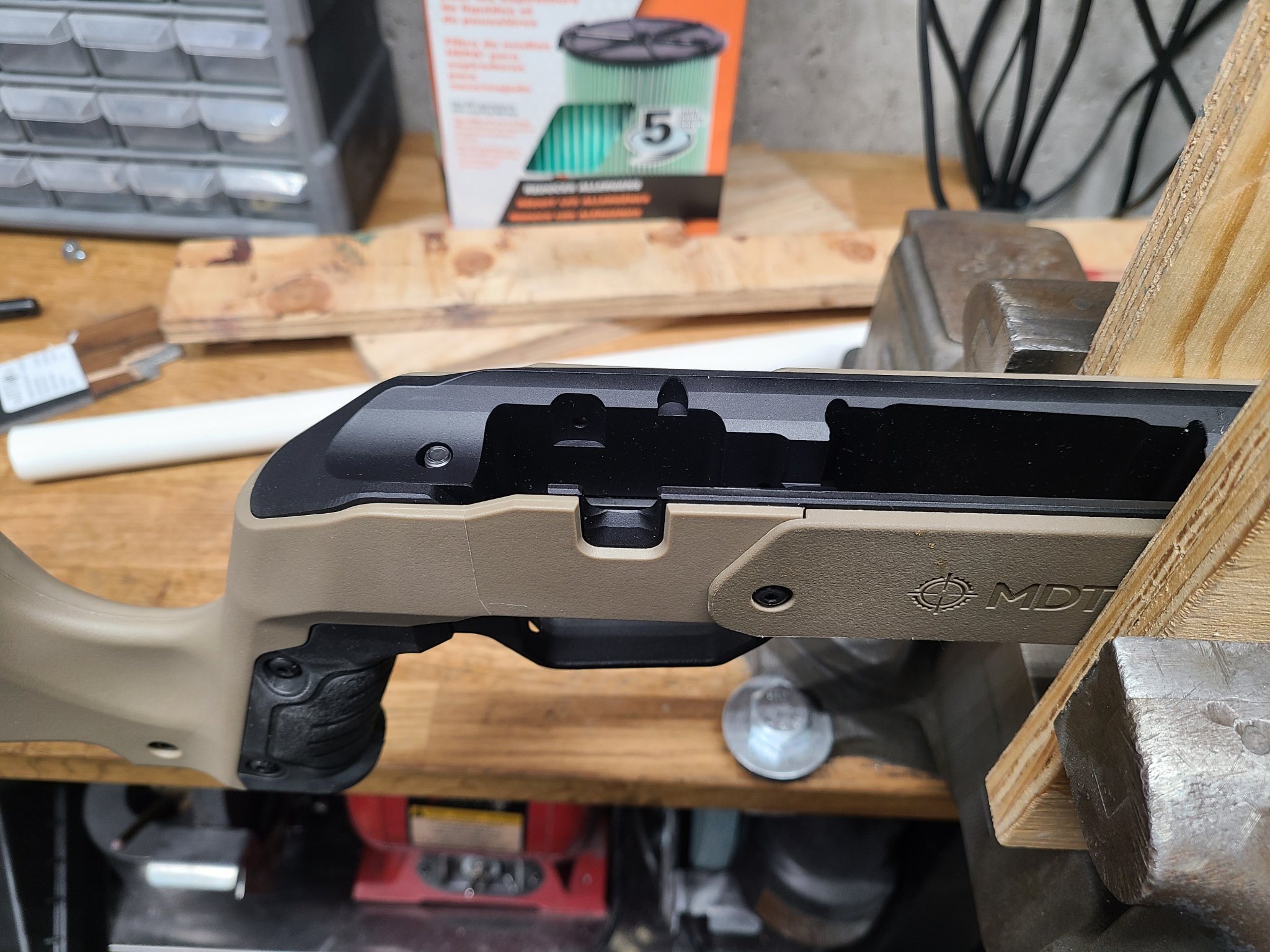

Before

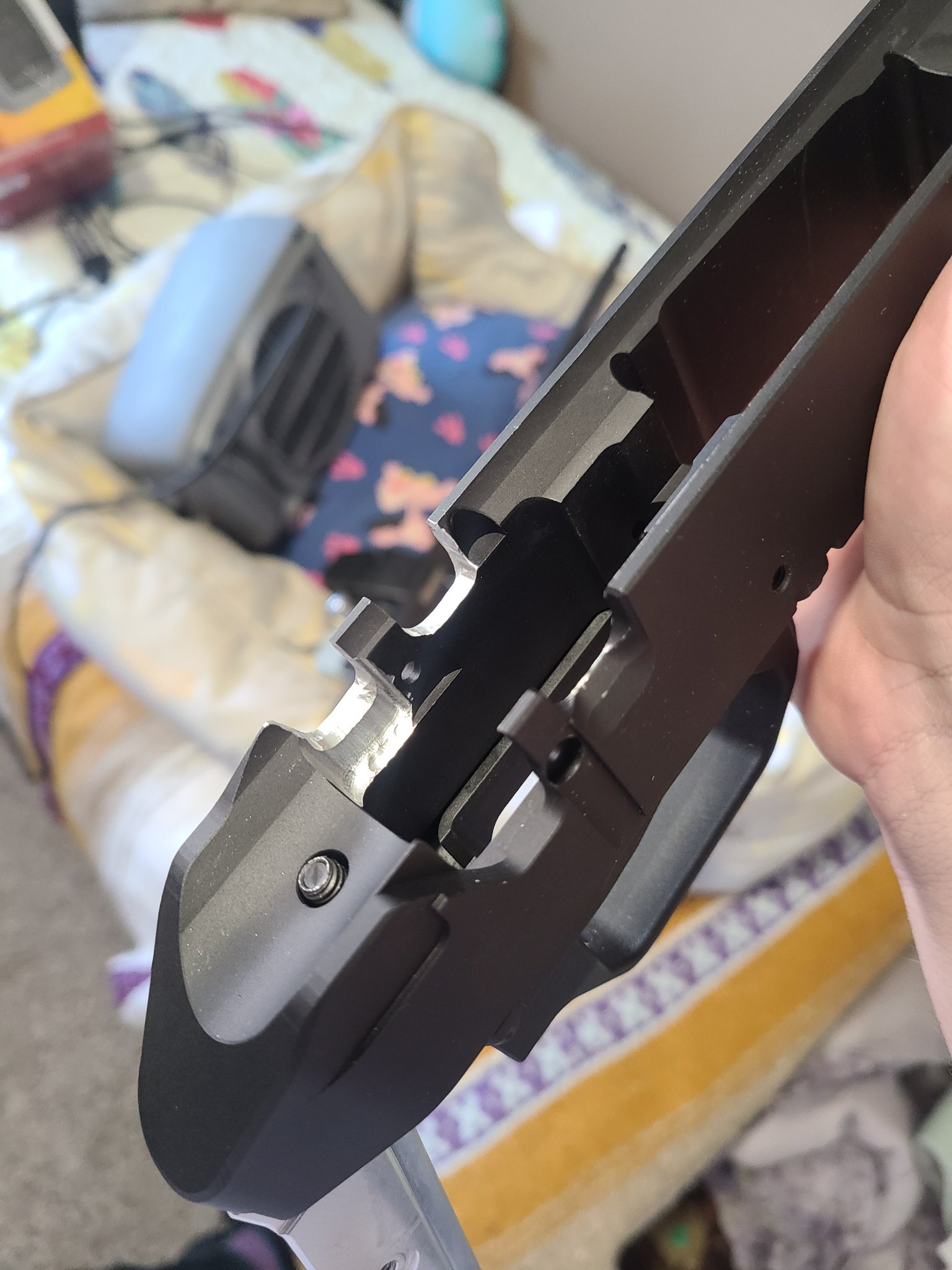

After. Covered aluminum with some black nail polish. Too many layers.


Normally shoot with my Thunderbeast 22td.

Last edited:
  • Like
Reactions: Dkas
Yeah, I emailed MDT about a left-handed option and they said they didn’t have those. I would assume if they could have machined it they would’ve told me.

I’ll see if I can find a local shop that can do good work before I try to do it myself.

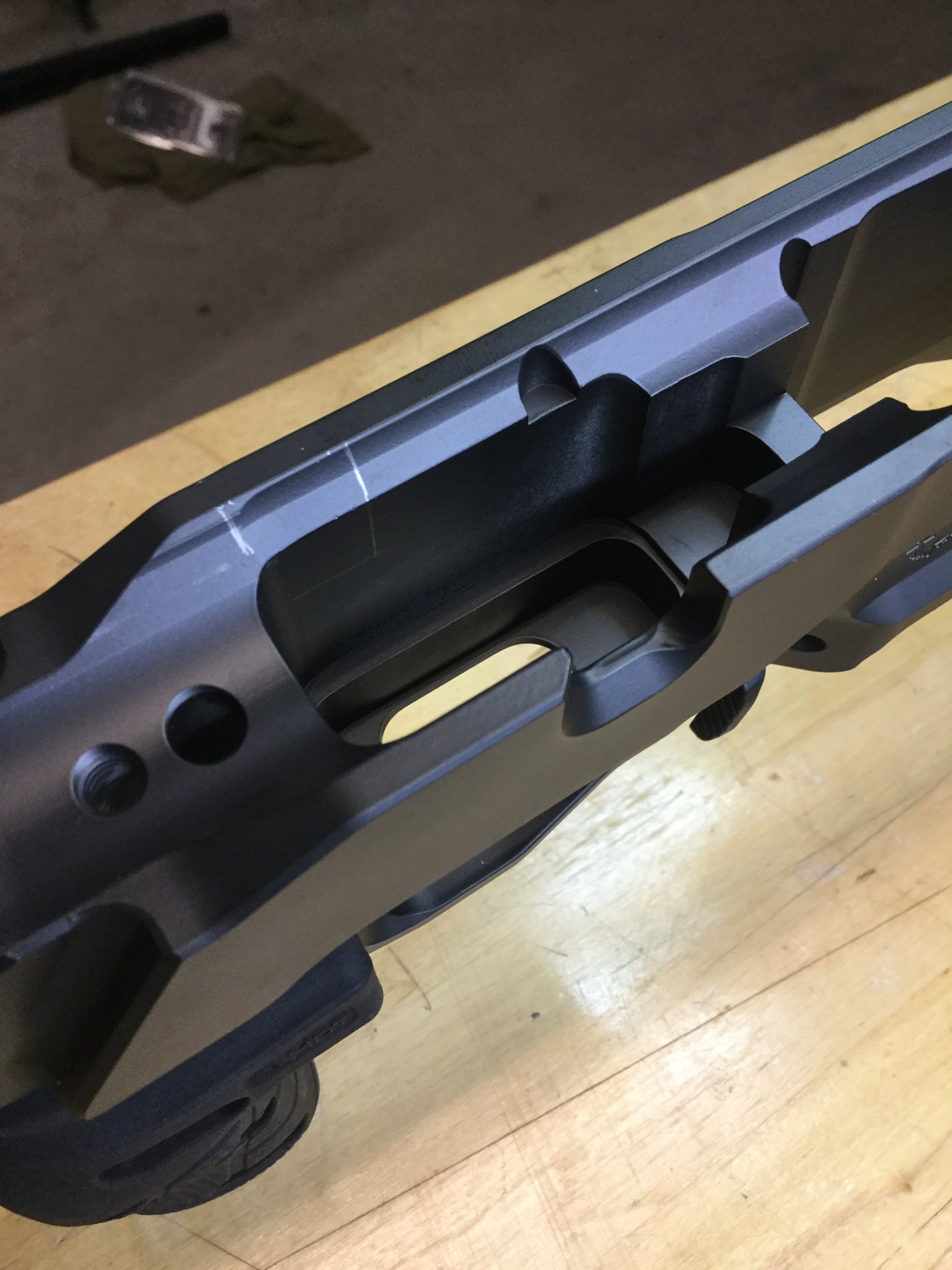

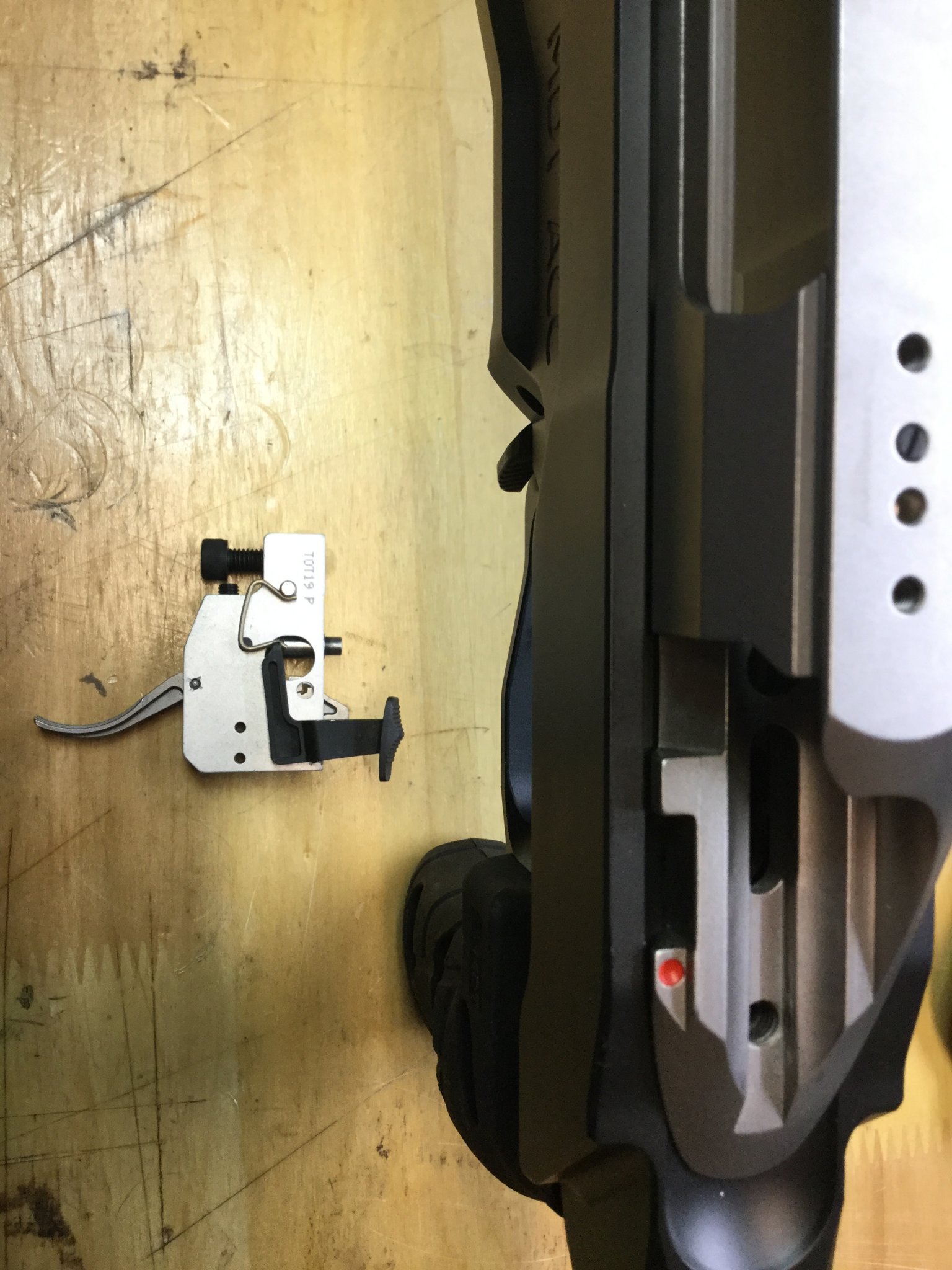

Sorry for the late reply, but I did it on a regular ACC with a Dremel and some files. Lay the action in without the trigger group so you can mark the cuts.

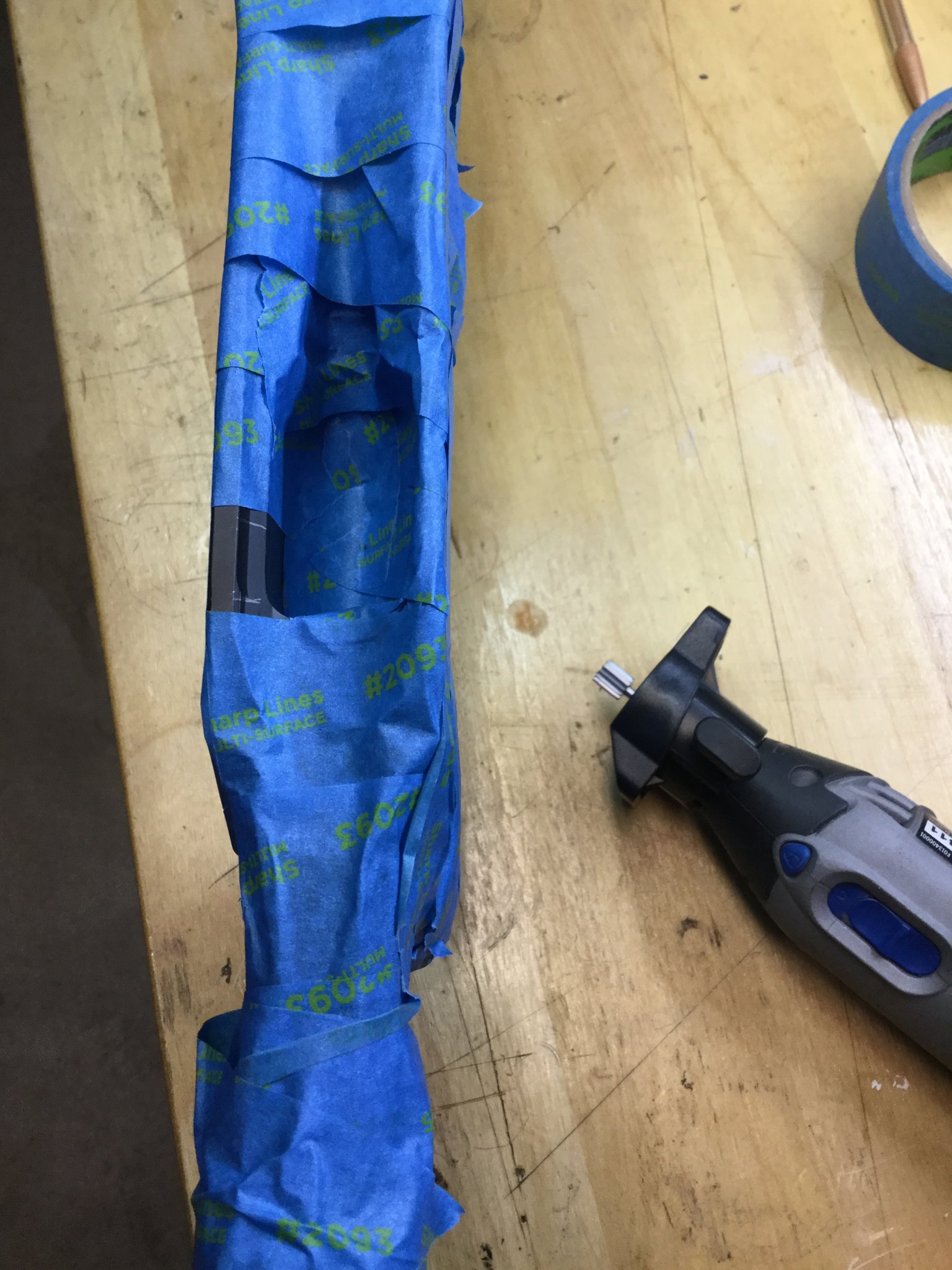

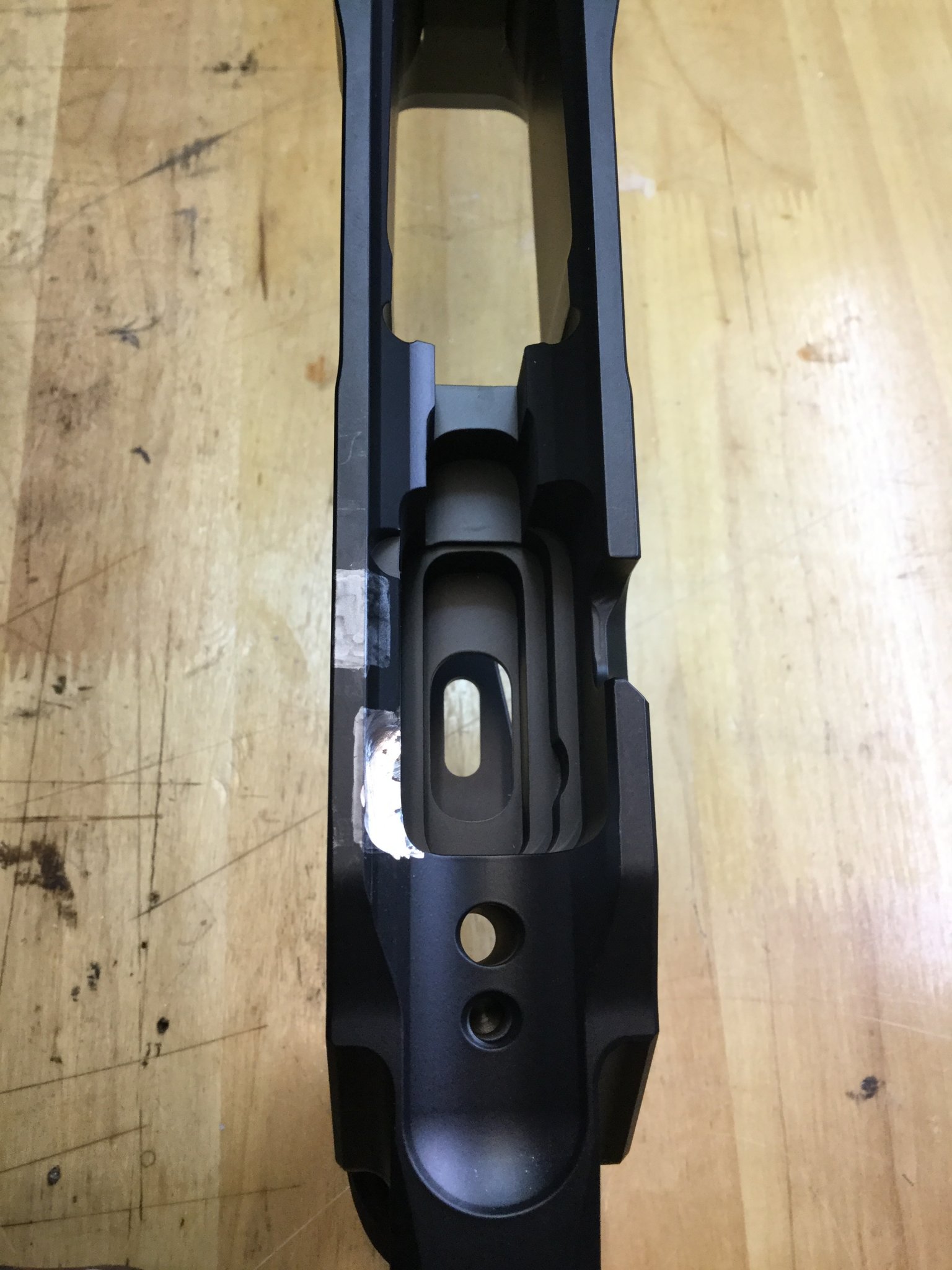

For the safety/trigger relief cut, get the dremel router attachment so you can adjust the depth of the cuts. The top edge of the chassis is enough for stability (nobody will see this relief area, except for you).

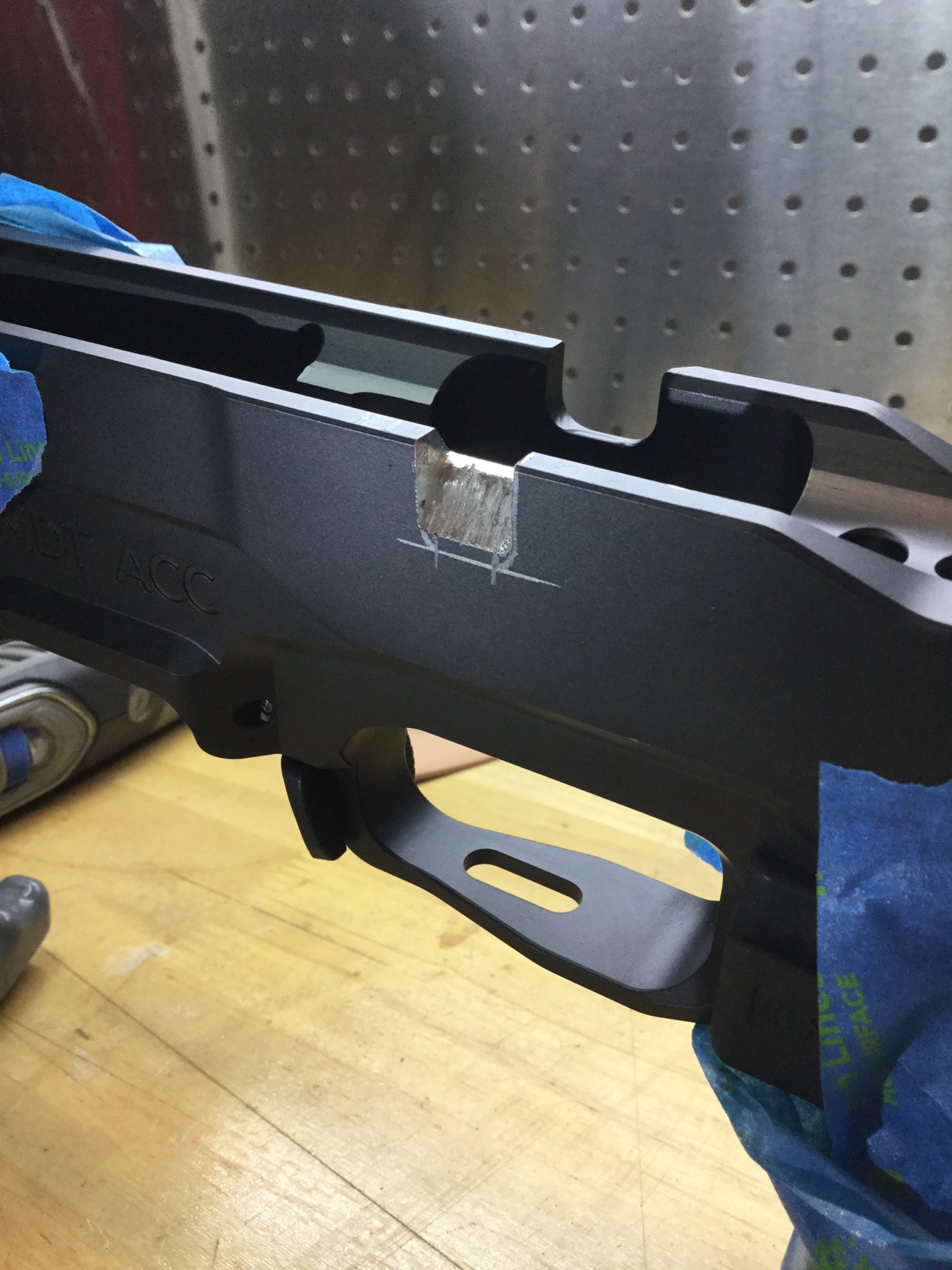

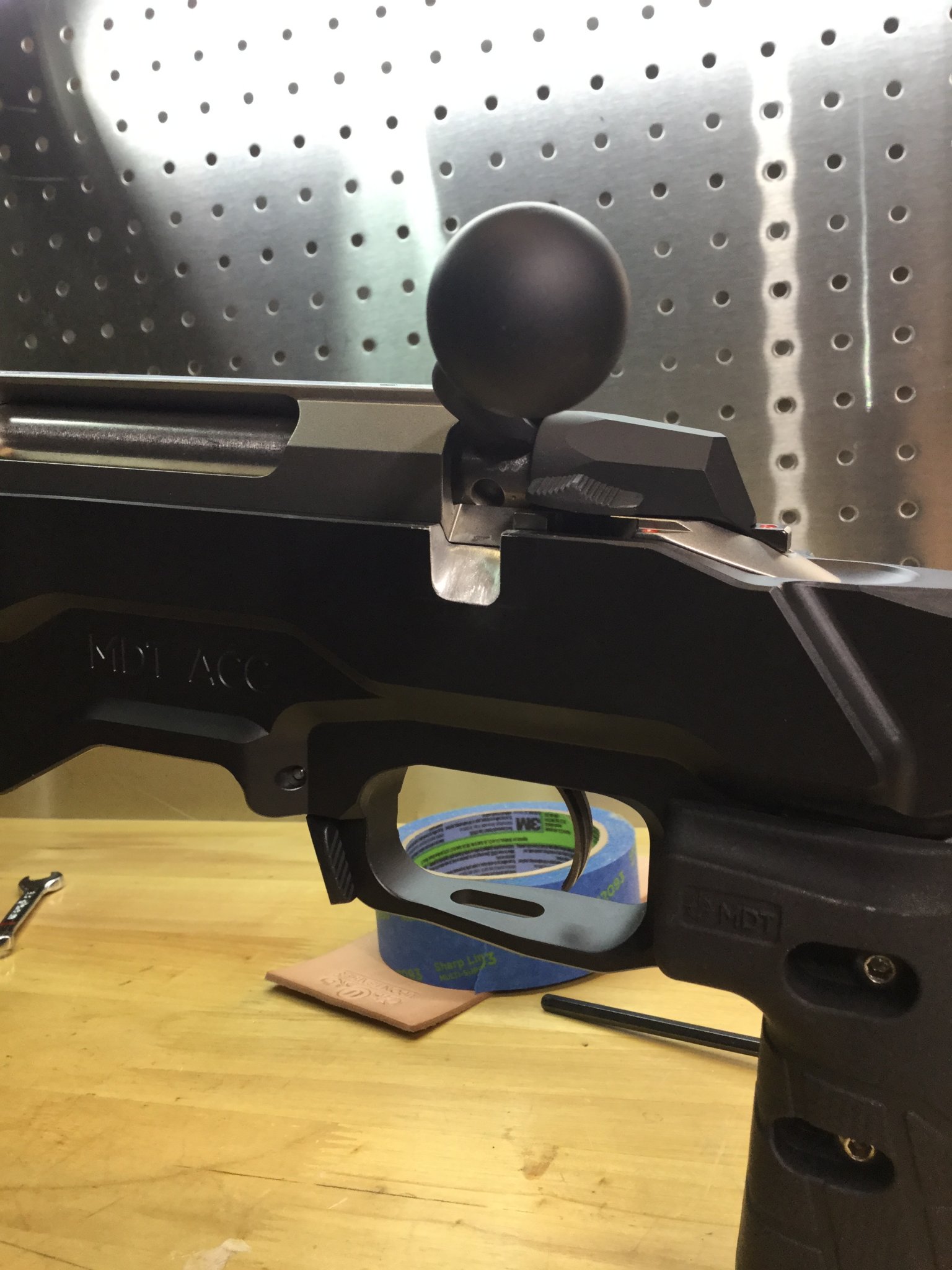

For the bolt relief, I started the vertical cuts with the dremel. The bottom angle area was started with a dremel then finished with files.

Edit to change techniques.


Attachments

  • FBD84241-867D-4C99-854B-05FBEF855ED3.jpeg
    379.5 KB · Views: 50
  • 46D36782-98E7-40B8-85E1-79EDFDACBA59.jpeg
    348.2 KB · Views: 44
  • CD8789DB-7DD9-4417-BE5A-63A56580780D.jpeg
    400.7 KB · Views: 49
  • 9EC5FF41-8BC2-4D90-99D7-C7350639AB07.jpeg
    313.5 KB · Views: 43
  • 2D5A44BD-DEA1-4575-BA81-6445E121B7F1.jpeg
    384.1 KB · Views: 47
  • B6ADECC0-C5BD-45C0-8E71-EBDEE96A7DD3.jpeg
    399 KB · Views: 51
  • 961670EC-7030-4757-AECB-C10A01036202.jpeg
    318.5 KB · Views: 51
Last edited:
  • Like
Reactions: spife7980
