Help! ‘Trimming’ 1 x fired Lapua brass for the chamfer / deburr on a Henderson.. already under case length

[Strbrd22]

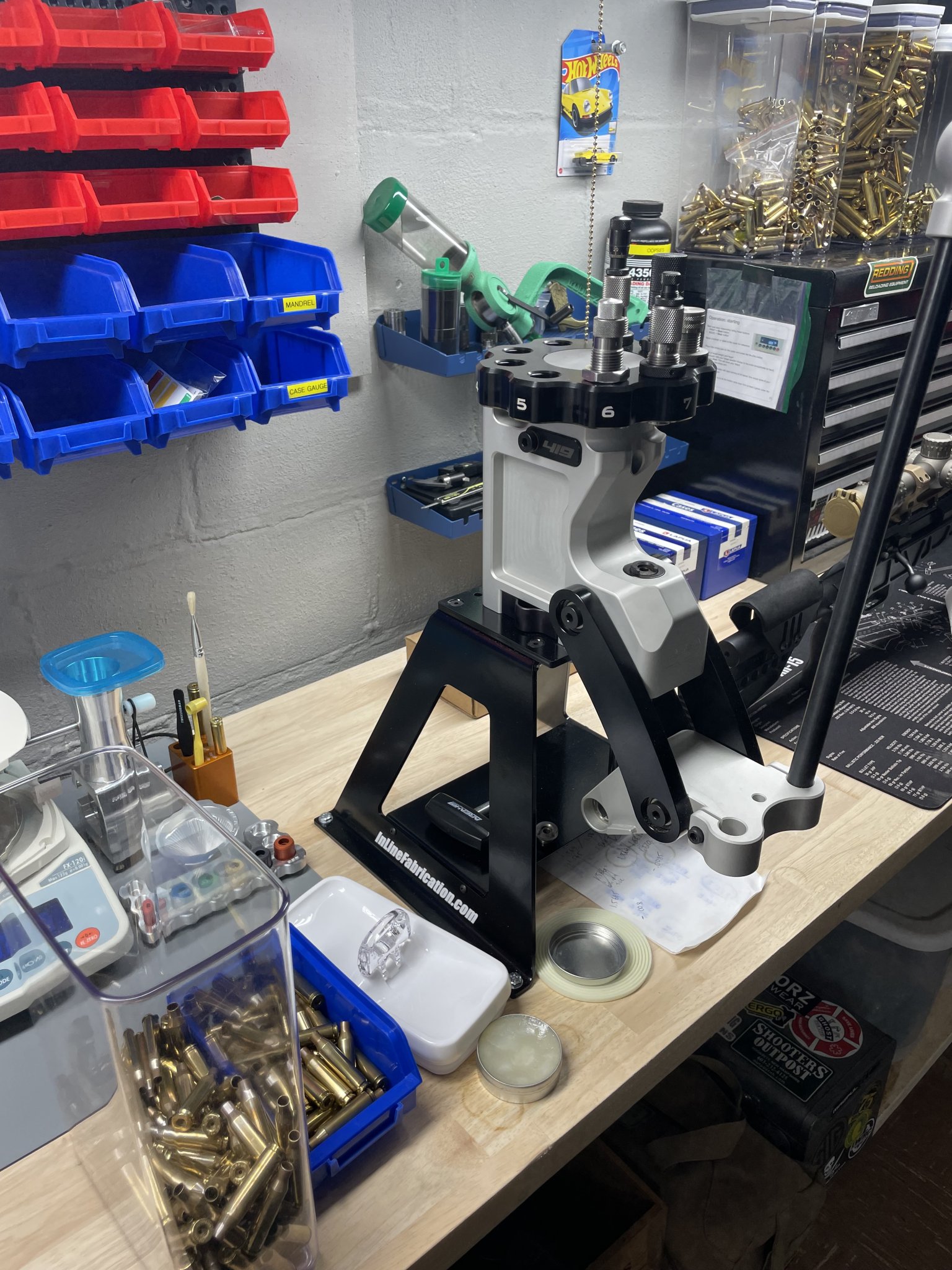

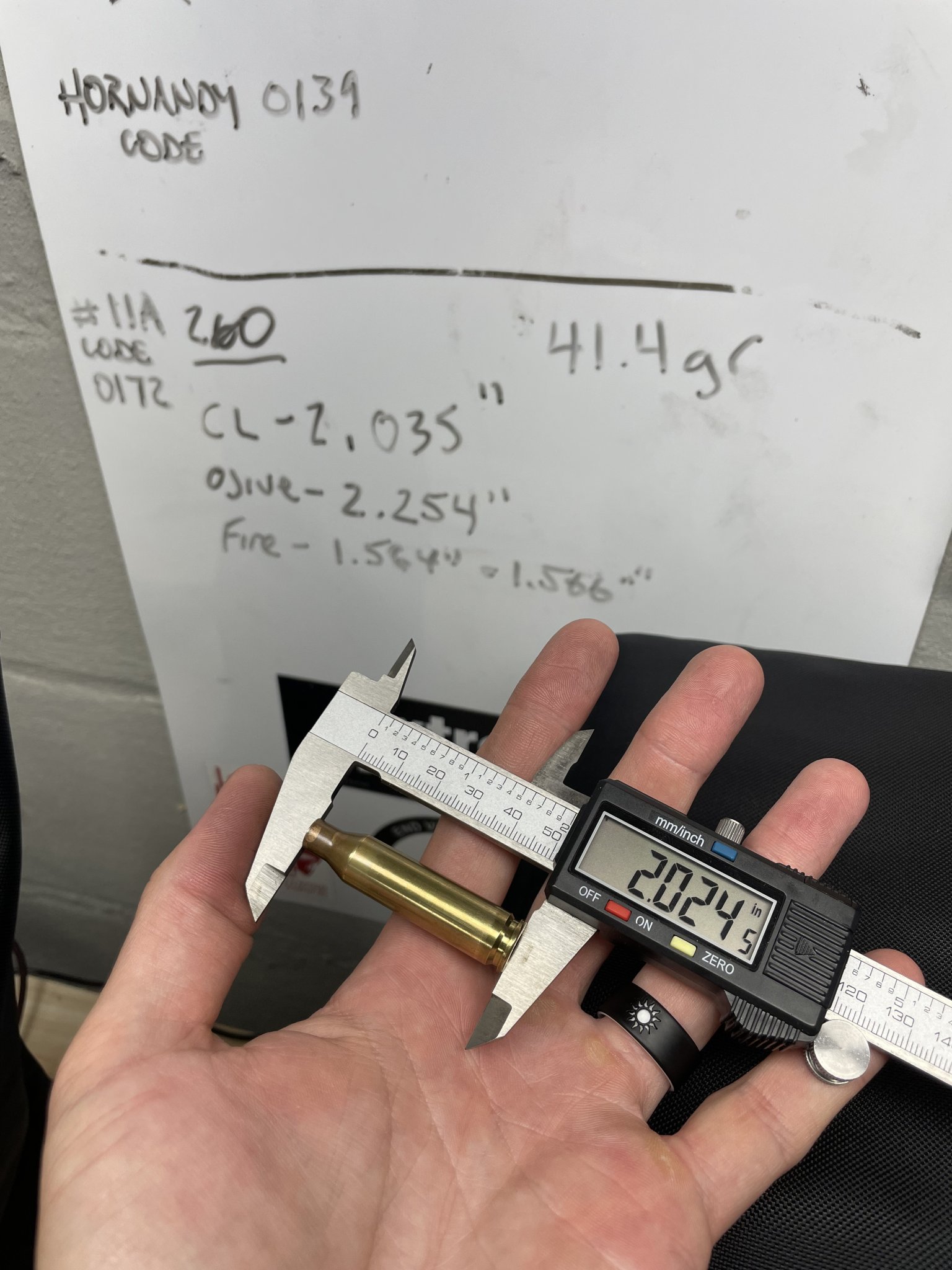

Looking for some help / advice. Traditionally, have used (and still own) an RCBS case prep center for chamfer / deburr. More recently, I picked up a Henderson trimmer. After talking on the phone w Henderson, they made it clear the trimmer is NOT a chamfer / deburr machine but just happens to accomplish this while trimming (which is awesome). My problem is, after annealing and FL resizing (bumping the shoulder back .002 as well), my 1x fired Lapua brass is coming in UNDER spec… so, nothing to trim and therefore no Henderson C/DB? I included a picture of my CL reading after resizing and on the white board is the spec for my 260 case length… what should I do? Thanks in advance!



[hlee]

Well, there is always manual chamfering and deburring…



[Strbrd22]

Well, there is always manual chamfering and deburring…

For sure. Just kinda… sucks to buy a $700 piece of equipment and have it collect dust I’d just use my RCBS I just wanted to know if I was missing something.



[stello1001]

What do you mean what should you do? You don't trim it.

If you wanna chamfer/deburr then just do those steps manually by hand, you don't have to.

I certainly would though.



[vh20]

I don't load or shoot 260, but I believe 2.035 is the max case length, and 2.025 is the trim length. I don't know the min. case length, but for the cartridges I shoot it is .020 less than the max length, and the typical trim length is 0.010 less than max. I believe your options are:
1) Set the Henderson trim length to just kiss the case mouth of your 2.024 case enough to chamfer without taking away any length, and then trim them all to that length, or -
2) Manually chamfer/debur any cases under 2.025 and catch them up on the next firing cycle with the Henderson when they have grown a little (past 2.025)



[spife7980]

Do number 1 ^



[CK1.0]

https://www.midsouthshooterssupply.com/item/00005050180/lock-n-load-case-prep-duo



[vh20]

Do number 1 ^

That's what I do. Brand new Lapua brass, run a -0.002 mandrel through it, find the shortest one, set the Giraud up to just chamfer that case without shortening it, then run them all through it so that they all end up the same length (and chamfered).



[max1840]

I use a Giraud to trim when required including chamfer and debur. I use the RCBS that you still have to chamfer, debur and brush when trimming is not required.



[Hoser]

Brass that is a little short isnt going to hurt anything. Just trim them all back to the exact same length and go shoot.
