Help identifying dbm inlet

[Austin1321]

Bought a Manners that was supposed to be m5 inlet. Ordered a Hawkins m5 and installed but around the mag well area I have big gaps on both sides. I don’t think manners would be so far off on the inlet so it leads me to believe it may be inletted for another dbm. I’ve searched the web trying to find some inlet specs but have come up empty. All I could find is that the surgeon/Kmw bottom metals are a little bigger but no technical specs. Any help is appreciated.

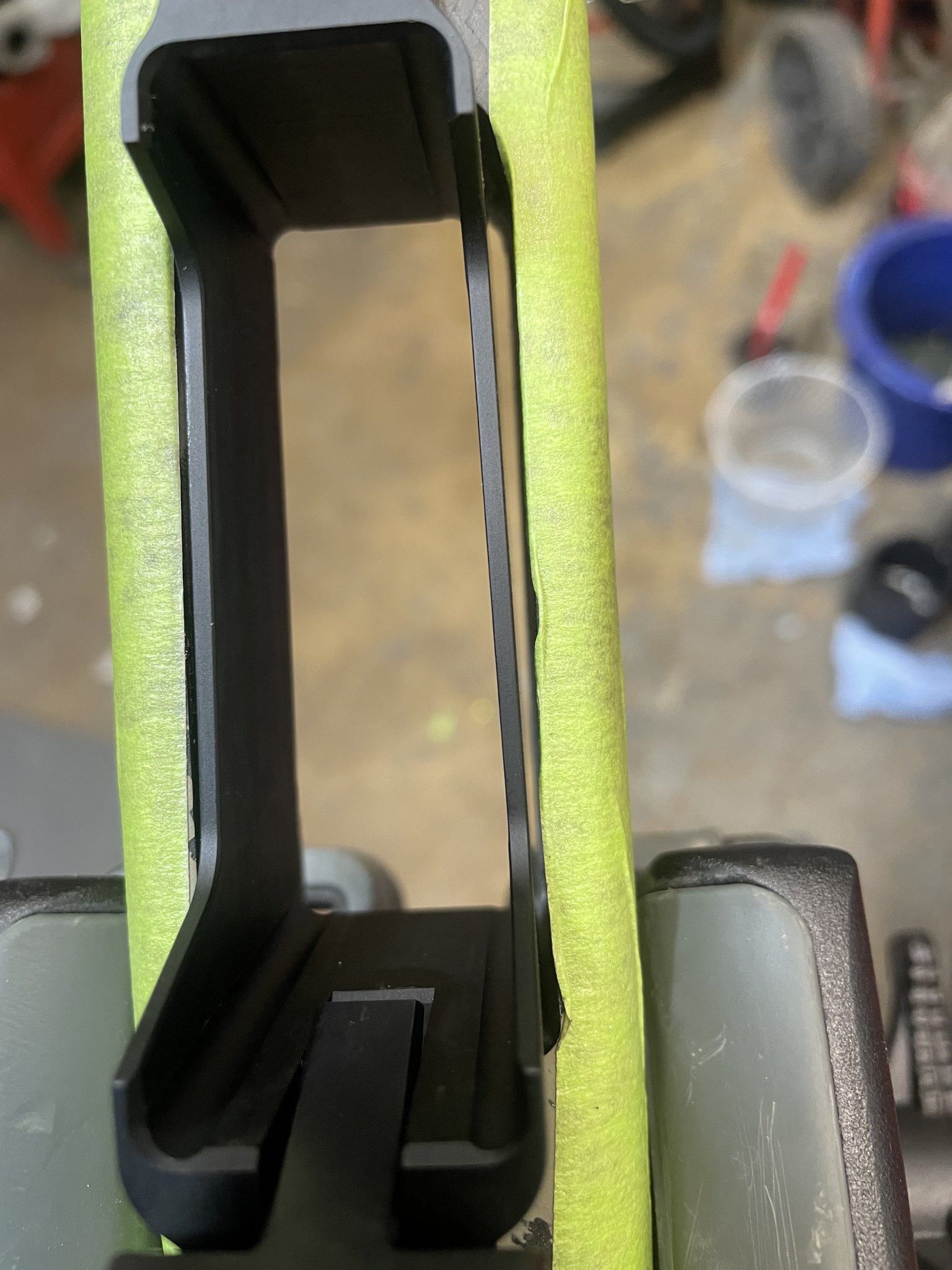

Attached pics of stock with m5 installed and gaps on both sides.



[Terry Cross]

Good chance it is KMW or Surgeon. They do quite a few for the KMW.

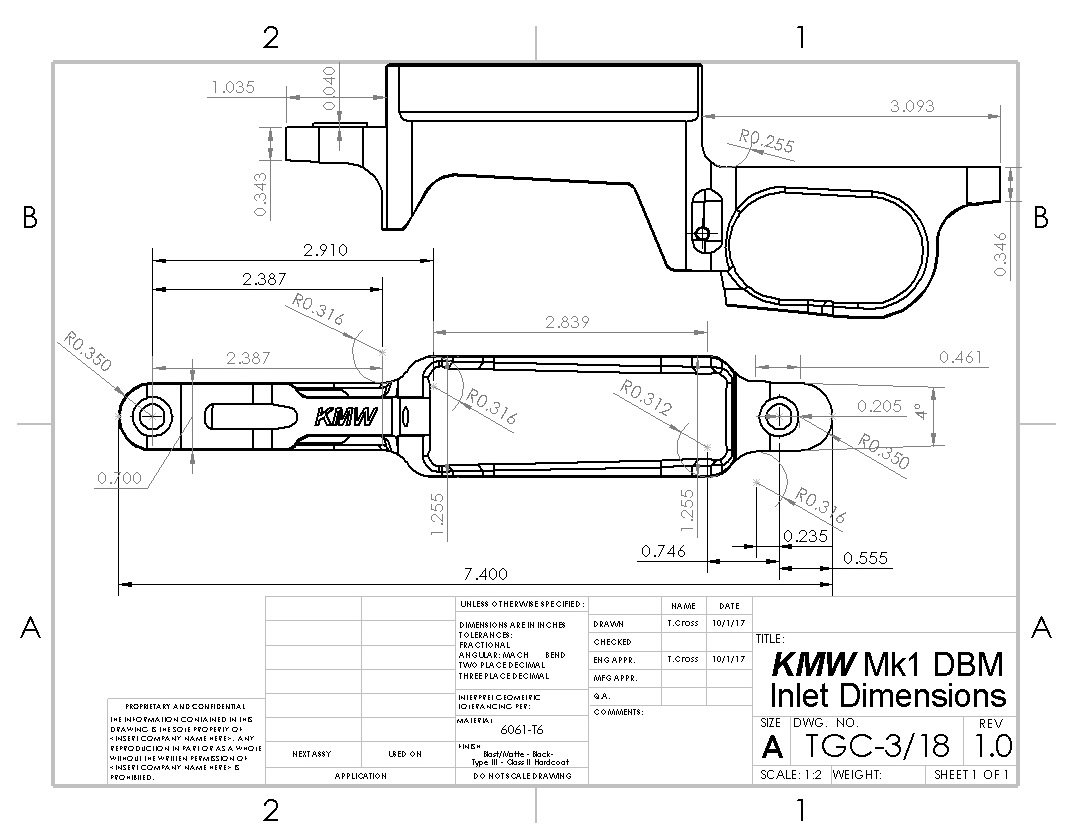

See if this dim print helps.



[Austin1321]

Good chance it is KMW or Surgeon. They do quite a few for the KMW.
See if this dim print helps.
View attachment 7710305

Just the man I was going to call. That’s exactly what I needed and appears my suspicions were correct. Guess I’ll be buying a Kmw! Thanks a bunch.
