Help needed-scope ring height for 56 mm objective on Bergara rifle
- Thread starter Puncher71
- Start date

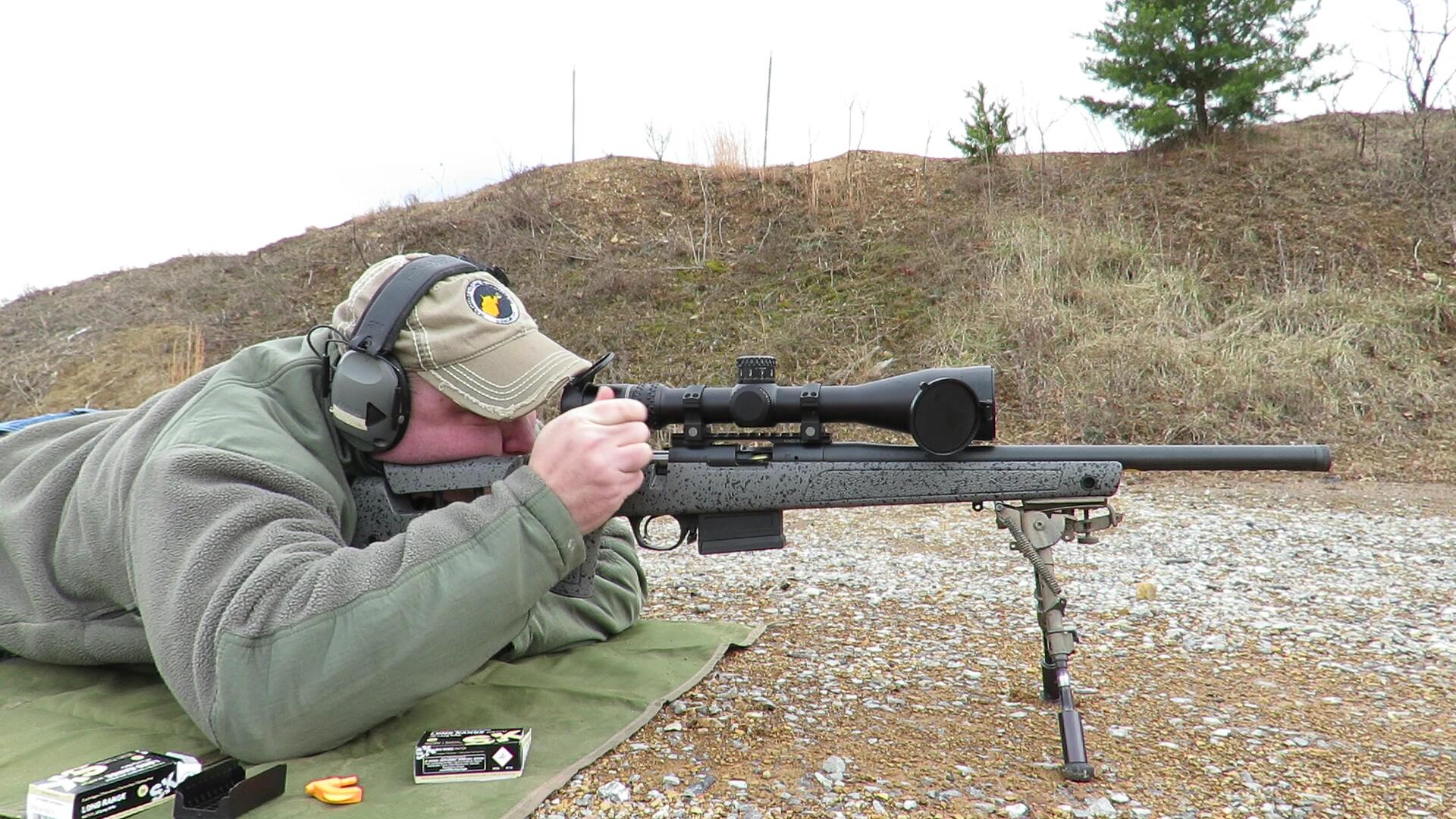

1.0" high rings should be the ticket. The is a Burris XTR III 5.5-30X56 in 1.0" NF rings on a Bergara B-14R, that'll give you an idea of the clearance you'll have.
Put quarters on your scope base where the rings would be. Then place the scope on top of the quarters. Stack the quarters until your objective lens has enough clearance. Then measure the stack of quarters. That’ll give you how much height you need from the base to the BOTTOM of the rings.
If the rings go to the middle of the scope tube for measurement, then you’ll do the math as an additional step.
If the rings go to the middle of the scope tube for measurement, then you’ll do the math as an additional step.
Rifle Scopes - Ring Height Info - How to Measure Correctly
Guys, Lately, on average of about 1 per day, I have seen quite a few posts (mostly from newbies) regarding questions about what ring height should be used. They usually request pics for comparison. For all new guys, there is a systematic way of calculating ring height that doesn't require more...
www.snipershide.com
