Hey Primary Arms CEO Marsh.......

Fret

USAF Retired
Full Member
Minuteman
Nov 14, 2017
904
1,536
N Idaho
I picked up a couple of your PLx-C Novas and wondering what barrel length and ammo (both 308 and 5.56) the BDC drops on the reticle will work OK with. There's no chart for this in the manual like you have your other reticles. Thanks!

  • Like
Reactions: PappyM3 and Fret
  • Like
Reactions: Cutout and Fret
I sent the PA CS an email asking for the drops for the Nova BDC reticle in mil or MOA I was told they did not have that information and to use the chart in the manual...thanks a lot for zero help.

I sent the PA CS an email asking for the drops for the Nova BDC reticle in mil or MOA I was told they did not have that information and to use the chart in the manual...thanks a lot for zero help.

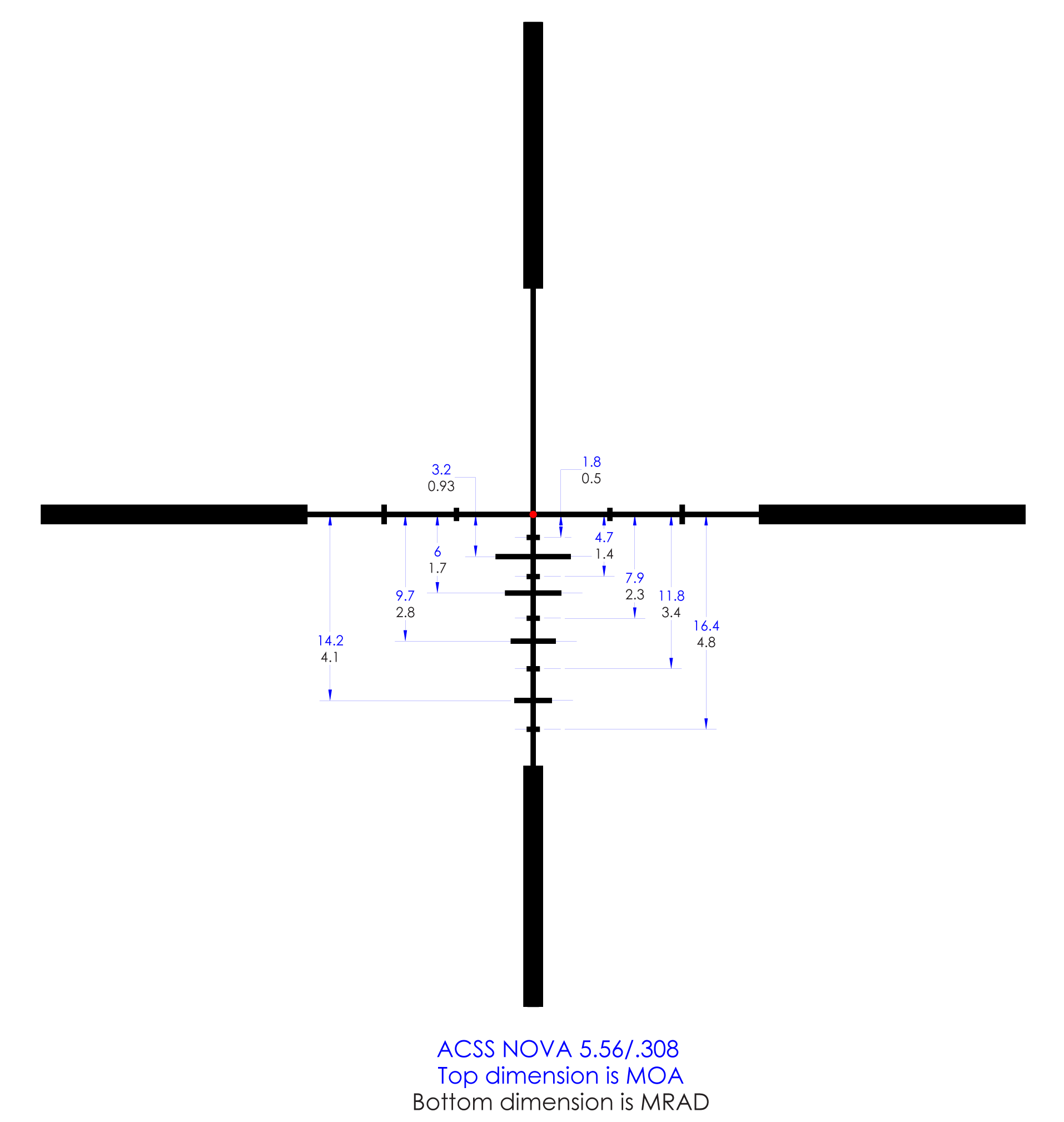

We do not own the IP for the BDC ACSS version and are prohibited from publishing the exact measurements. What I mean is the exact measurements is what is given to the factory to manufacture and is usually to 4 decimal points. Let me get a rounded off version that will work for your purposes. I will get that for customer service as well. Sorry for this hassle

Last edited:
I bet I could make you one with Gravity Ballistics, and it would be close to on-point

Because you used GB it would be open source and not owned by anyone

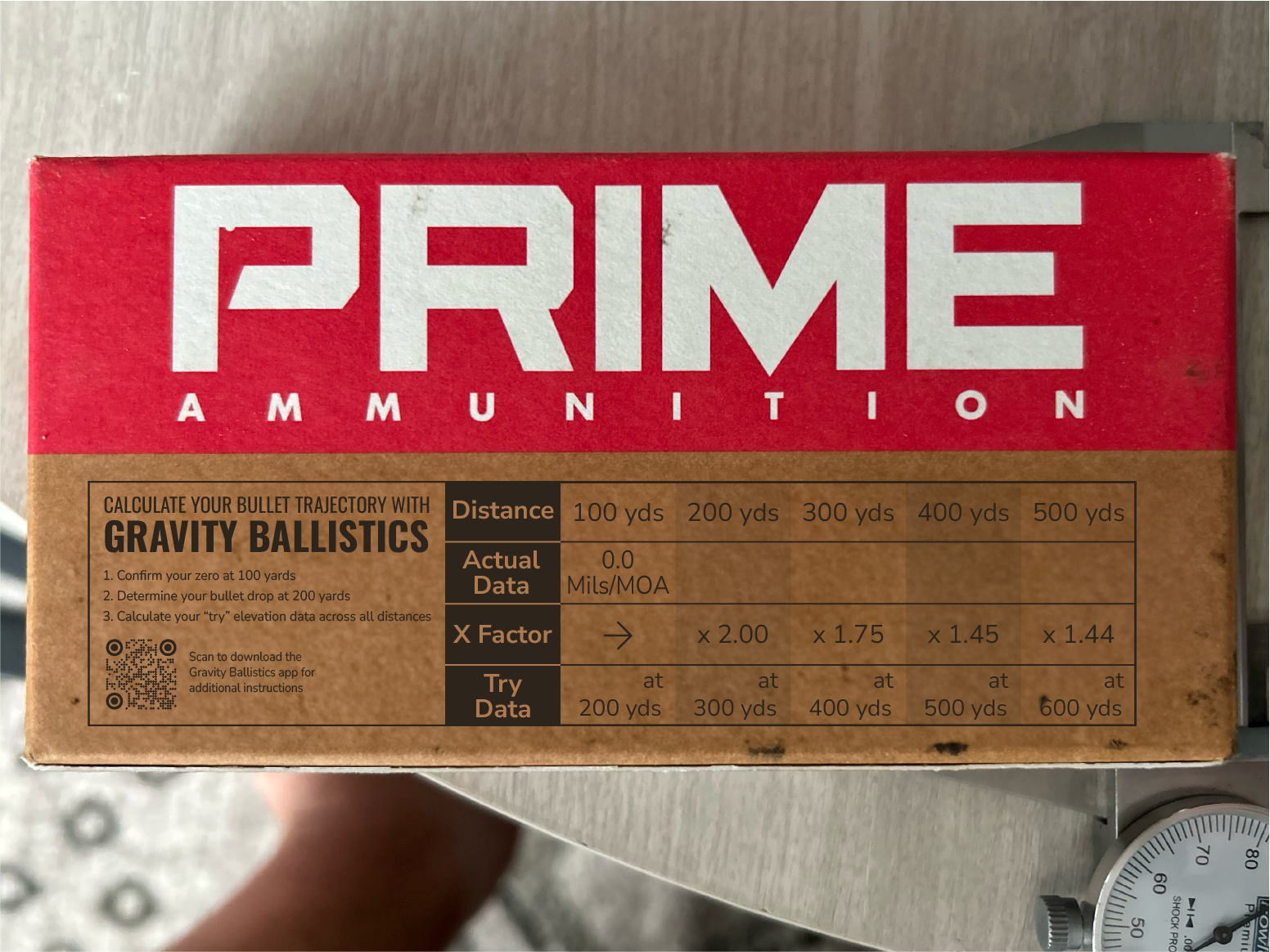

My next goal this year to put it on ammo

I had mock-ups made for different boxes of ammo, but it will translate to drop in a number of ways

I have my dope for the actual drops for my load in the rifle it's on. I was just trying to see where the drop in the BDC on the reticle lines up. Maybe tweak the zero distance slightly to get it all to line up without having to get out and shoot a bunch before I have some rough data.

Based on the chart in the manual there seems to be some variance in the data printed with x round at y velocity. Running the numbers in my AB app or others it varies by about .3 mils which isn't too bad for general information.

I would have thought since it was labeled as ACSS that the info would be owned by PA. It's a cheap optic and I guess I shouldn't have expected specific data. In hindsight I should have just got the Mil based reticle and it would have been easier. Lesson learned. It's the first budget LVPO I have purchased and probably the last.



I would have thought since it was labeled as ACSS that the info would be owned by PA….
The ACSS reticles seem to all be designed by Dimitri Mikroulis, not in-house by PA. He’s prevented release of reticle drop data in the past too (meters version of the Raptor reticle, for one).

  • Like
Reactions: lash
The chevron is fine..it's a proven system. The reticle subtensions need to be mils instead of retarded ass .223 or 308 or 300blk BDV because there are too many different cartridges out there with all kinds of ballistics...just make the fucking things in mils so people can generate their own drop cards. I would buy ton of the prisms if the reticle wasn't so useless.

And put simple tree reticles with .2 tens hashes and a small aiming dot in the scopes. Don't need all that bullshit and won't have to pay licensing fees.

PA would be a great option for cheap hunting and plinking scopes and prisms if this was the case. Yea it's chicom oem but so is everything else. As long as they have a good warranty then it's no different than vortex.

The chevron is fine..it's a proven system. …
It’s proven to be a poor option. The idea to use it with the Bindon aiming concept is bad because BAC induces massive lateral parallax error.

Beyond BAC, its infinitely small aiming point is infinitely vague, and then the rest of it easily occludes short range elevation and windage holds. Full length crosshairs are far more effective for quick sight picture acquisition than chevrons.

Proof of it being a poor concept is that everyone is professionally moving away from them. The DoD has completely switched away from chevrons and there are no new military optics have them.

  • Like
Reactions: Thorbeast
I am not big on chevrons in precision optics. I think it is a mistake to put it there. I do not mind the chevron on low power optics. It is not my favourite option, but it does not get in the way either.

As far ACSS reticles go, they clearly work very well for PA's customers. Over the years, I have learned that the most dedicated fanboys in the riflescope world are the Nightforce zombies and ACSS groupies. When I say anything less than complimentary about either one of these, I start getting all sort of hate mail.

While I find them a little annoying and quite amusing, if I were running a riflescope company, I would make sure I keep them happy. ACSS reticles in their current form clearly do well for PA commercially.

ILya
