Clark Gunny Sergeant Full Member Minuteman Jul 4, 2003 2,705 144 WA the everblue state Sep 28, 2017 #1 Sep 28, 2017 #1 The extractor will not snap over the case rim when the bolt head is down in a 0.700" hole.
Danny1788 Private Full Member Minuteman Mar 24, 2012 221 49 36 Central coast, CA Sep 29, 2017 #2 Sep 29, 2017 #2 I usually cut the counterbore .720", usually .715" will work but just to be sure I open them up to .720" with a boring bar.
I usually cut the counterbore .720", usually .715" will work but just to be sure I open them up to .720" with a boring bar.

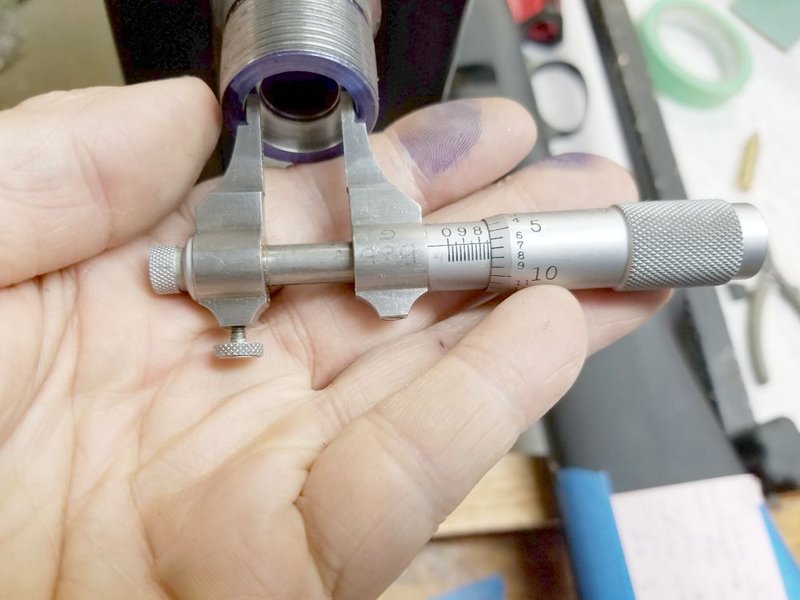

Clark Gunny Sergeant Full Member Minuteman Jul 4, 2003 2,705 144 WA the everblue state Sep 29, 2017 #3 Sep 29, 2017 #3 I was calculating and measuring and thought 0.717" was going to work. It did not. I just kept boring out 0.002" at a time until it worked at 0.731". Attachments PTG bolt extractor clearance in R700 Breech 0.031 inches 9-26-2017.jpg 63 KB · Views: 21
I was calculating and measuring and thought 0.717" was going to work. It did not. I just kept boring out 0.002" at a time until it worked at 0.731".
