I am looking for a bipod

[cuirc]

I have a Savage bench rest that is more than thirty years old. In the past I have always used a machine rest but now i want to put a bipod on it. Problem is no one in the gun sales business including Savage can tell me which one. On the bottom of the forearm in has a slot, the length of the forearm where it would go. I have been told a need an adapter to go from this slot to a pick rail. If anyone knows how to put a bibod on this reifle I would be grateful for any help you can provide.
Thank you



[roostercogburn98]

Pics of the underside would help



[Rider47]

If your rail slot is like that of a Remington 40X, then one solution would be to buy the T-nuts to fit the slot and use these to bolt on either a Picatinny rail or an arca rail. The link below shows a Track Plate that can be installed for BR use, but if you call Whidden Gunworks, they will sell you just the T-nuts for a few dollars. I have now converted all my Picatinny rails to arca rails which can be purchased on eBay for a fraction of the cost for "gun market" specific products. Many currently available bipods will attach with either Picatinny or arca rails. The arca rail would likely be easier to mount and provide a sturdier attachment.

Track Plate - Whidden Gunworks

The Track Plate is light weight, has an easily installed stand-off rail insert, catamaran-style runners to prevent rocking, and can be easily stowed in your range bag

www.whiddengunworks.com

Universal Quick Release Plate Slide Rail - 200mm Length - Arca-Swiss Compatible | eBay

Find many great new & used options and get the best deals for Universal Quick Release Plate Slide Rail - 200mm Length - Arca-Swiss Compatible at the best online prices at eBay! Free shipping for many products!

www.ebay.com

PS - I also make my own bipods at a fraction of the cost of "gun market" specific bipods.



[cuirc]

If your rail slot is like that of a Remington 40X, then one solution would be to buy the T-nuts to fit the slot and use these to bolt on either a Picatinny rail or an arca rail. The link below shows a Track Plate that can be installed for BR use, but if you call Whidden Gunworks, they will sell you just the T-nuts for a few dollars. I have now converted all my Picatinny rails to arca rails which can be purchased on eBay for a fraction of the cost for "gun market" specific products. Many currently available bipods will attach with either Picatinny or arca rails. The arca rail would likely be easier to mount and provide a sturdier attachment.

Track Plate - Whidden Gunworks

The Track Plate is light weight, has an easily installed stand-off rail insert, catamaran-style runners to prevent rocking, and can be easily stowed in your range bag

www.whiddengunworks.com

Universal Quick Release Plate Slide Rail - 200mm Length - Arca-Swiss Compatible | eBay

Find many great new & used options and get the best deals for Universal Quick Release Plate Slide Rail - 200mm Length - Arca-Swiss Compatible at the best online prices at eBay! Free shipping for many products!

www.ebay.com

PS - I also make my own bipods at a fraction of the cost of "gun market" specific bipods.

I will look at that since I have a 40 x also. Thank you for the information



[TheBigCountry]

Pics of the underside would help

I have asked OP for pics of his other rifle in another thread and he won’t post them so….



[Mike Casselton]

I have asked OP for pics of his other rifle in another thread and he won’t post them so….

People want help, but they don't want to help themselves.



[TheBigCountry]

People want help, but they don't want to help themselves.

View attachment 8365092

Kids these days



[cuirc]

People want help, but they don't want to help themselves.

View attachment 8365092

Please don't say I won't post them I said the next time I go to the safe which will be today of tomorrow I will take all the pictures requested and post them.



[cuirc]

Thakn you for your comment Mike have a good day



[TheBigCountry]

Please don't say I won't post them I said the next time I go to the safe which will be today of tomorrow I will take all the pictures requested and post them.

What’s stopping you from going to the safe right now?



[gunjunkie45]

Are you referring to an Anshutz style rail?
If so this was Google's first suggestion.

ANSCHUTZ ADAPTOR SETS

GTSW324 - ANSCHUTZ T-NUT STUD ADAPTOR SET Designed To Convert A Pre-Installed Anschutz Rail To A Picatinny Bipod Mount. Uses M-Lok™ Hardware And A Custom T-Nut Steel & Aluminum Parts Type III Black Hard Anodized Finished & Black Oxide Finish GTSW325 - ANSCHUTZ T-NUT RAIL ADAPTOR SET Designed To...

grovtec.com



[cuirc]

What’s stopping you from going to the safe right now?

I have a schedule to maintain Retirement isnt not working I am occupied now more than when I am working. When I do gun work or reloading I go to the safe when I do other work I don't. It is what it is,
Have a good day



[Mike Casselton]

I have a couple of rifles that use these inside the rail. One is an Anschutz, the other is a B&C.

Don't get the ones without the set screw.



[Aftermath]

Harris is a great choice. Here's a good thread about them.

Harris Bipods, "You have a problem?" "Let me help you."

Those people, like Emelio, sure are nice to do business with. It is so nice to talk to an actual person that knows their shit rather than talking to a machine. Someone actually answering the phone. You have my business. FM

www.snipershide.com



[powdahound76]

@Aftermath

Thanks for linking that.



[db2000]

Not sure what you need because frankly I’m not going to read all of this and no pics.
But….this works for me on a Vanguard. Fits very tight and secure. Also I like their bipods.

SLING STUD RAIL ADAPTER

Recommended Mounting Specifications:THIS STUD MOUNT ADAPTER IS DESIGNED TO UTILIZE THE STANDARDSLING STUD ON YOUR RIFLE STOCK. 1: MOUNT THE THREADED POST OVER THE SLING STUD.2: SLIDE 1/8 X 3/4 STEEL PIN THRU HOLE TO LOCK WITH SLING STUD (STUD CYLINDER INSIDE DIAMETER IS .450" OR 29/64")3: SLIP...

accu-tac.com



[fdkay]

I'm guessing he has an older Savage tactical when they sold them in the Choate Ultimate Sniper or Ultimate Varmint stock.
They have two style of adapters, one with a thumbscrew to lock it in place, the other locks in place when you tighten the bipod down.
This is the same guy that has a thread about his short action M24 that he has promised photographs for a while now.

https://eabco.com/choate-short-bipod-adaptor-fits-sniper-varmint-tactical-forend-rail/

https://eabco.com/choate-long-bipod-lug-for-sniper-and-varmint-stock/



[Rider47]

Why are you giving the OP a hassle over his failure to post a pix to your schedule? If you have a problem with this and aren't going to help him without an image, just move on. What is your problem? - Have you no life? FYI - 1) Many people do not like to post online images of their firearms, and 2) Many people are not tech adept and posting an image presents a challenge. And 3) What he said. Sheesh!



[6brshooter]

Why are you giving the OP a hassle over his failure to post a pix to your schedule? If you have a problem with this and aren't going to help him without an image, just move on. What is your problem? - Have you no life? FYI - 1) Many people do not like to post online images of their firearms, and 2) Many people are not tech adept and posting an image presents a challenge. And 3) What he said. Sheesh!

Lol at all this. Its a pic of rail on forend, that's not gonna give away his retirement location, sheeeeeesh! More than likely its an anchutz rail and depending on which bipod, a rail or sling swivel adapter is needed. Savage made a precision action bench rest and f class rifle starting maybe 15yrs back. If op's rifle is 30 yrs old as claimed, it could be a "homebuild" and who knows what slot is on it. There are a couple different sizes and styles, hence pictures and measurements would greatly help.

Rider47, no offense, but you'd have lasted 10sec on the old SH days. If you think these replies are gruff or abrasive, good lord, if you saw replies to "which rings or height do I need" from the 09ish days, you'd wet yourself.



[cuirc]

Lol at all this. Its a pic of rail on forend, that's not gonna give away his retirement location, sheeeeeesh! More than likely its an anchutz rail and depending on which bipod, a rail or sling swivel adapter is needed. Savage made a precision action bench rest and f class rifle starting maybe 15yrs back. If op's rifle is 30 yrs old as claimed, it could be a "homebuild" and who knows what slot is on it. There are a couple different sizes and styles, hence pictures and measurements would greatly help.

Rider47, no offense, but you'd have lasted 10sec on the old SH days. If you think these replies are gruff or abrasive, good lord, if you saw replies to "which rings or height do I need" from the 09ish days, you'd wet yourself.

Thank You for that.



[cuirc]

Thank You for that.

Thank You for that I am actually enjoying this the Savage bench rest I refer to is a store bought I got it for in the early 90s



[TheBigCountry]

Thank You for that I am actually enjoying this the Savage bench rest I refer to is a store bought I got it for in the early 90s

You know you are replying to yourself?



[TheBigCountry]

Why are you giving the OP a hassle over his failure to post a pix to your schedule? If you have a problem with this and aren't going to help him without an image, just move on. What is your problem? - Have you no life? FYI - 1) Many people do not like to post online images of their firearms, and 2) Many people are not tech adept and posting an image presents a challenge. And 3) What he said. Sheesh!



[reelserious]

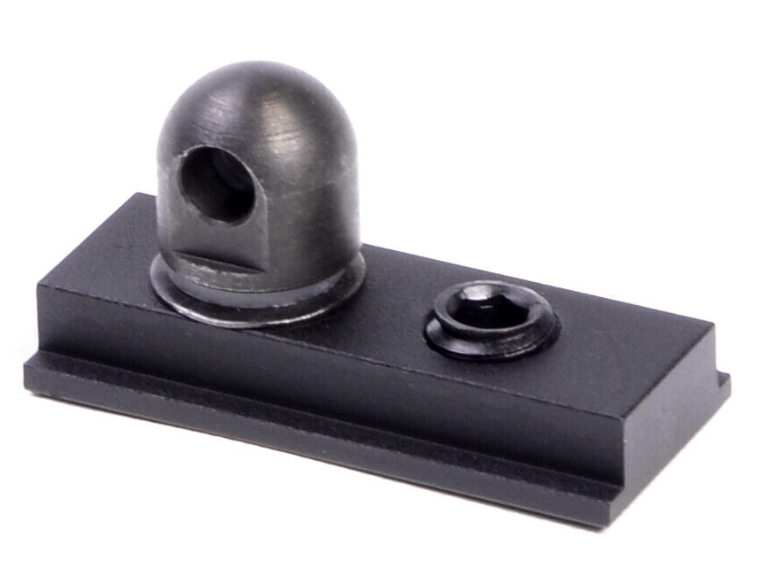

I have a couple of rifles that use these inside the rail. One is an Anschutz, the other is a B&C.

View attachment 8365170

Don't get the ones without the set screw.

this is what I use on my foundation stock, its very solid



[Mike Casselton]

I like them too.
Just don't rely on the bipod keeping it in place. I learned that lesson the hard way after dropping my Anschutz on the concrete...

They make the set screw version for a reason.
