Gunsmithing Impact 737R tennon print

[super_poot]

Does anyone have a print for an impact 737R handy?
Don't have an action on hand to measure it yet.



[cwinner]

1.0625x16TPI...... all the ones I've done I shoot for 0.940" tenon length and 0.950" headspace.



[Banango]

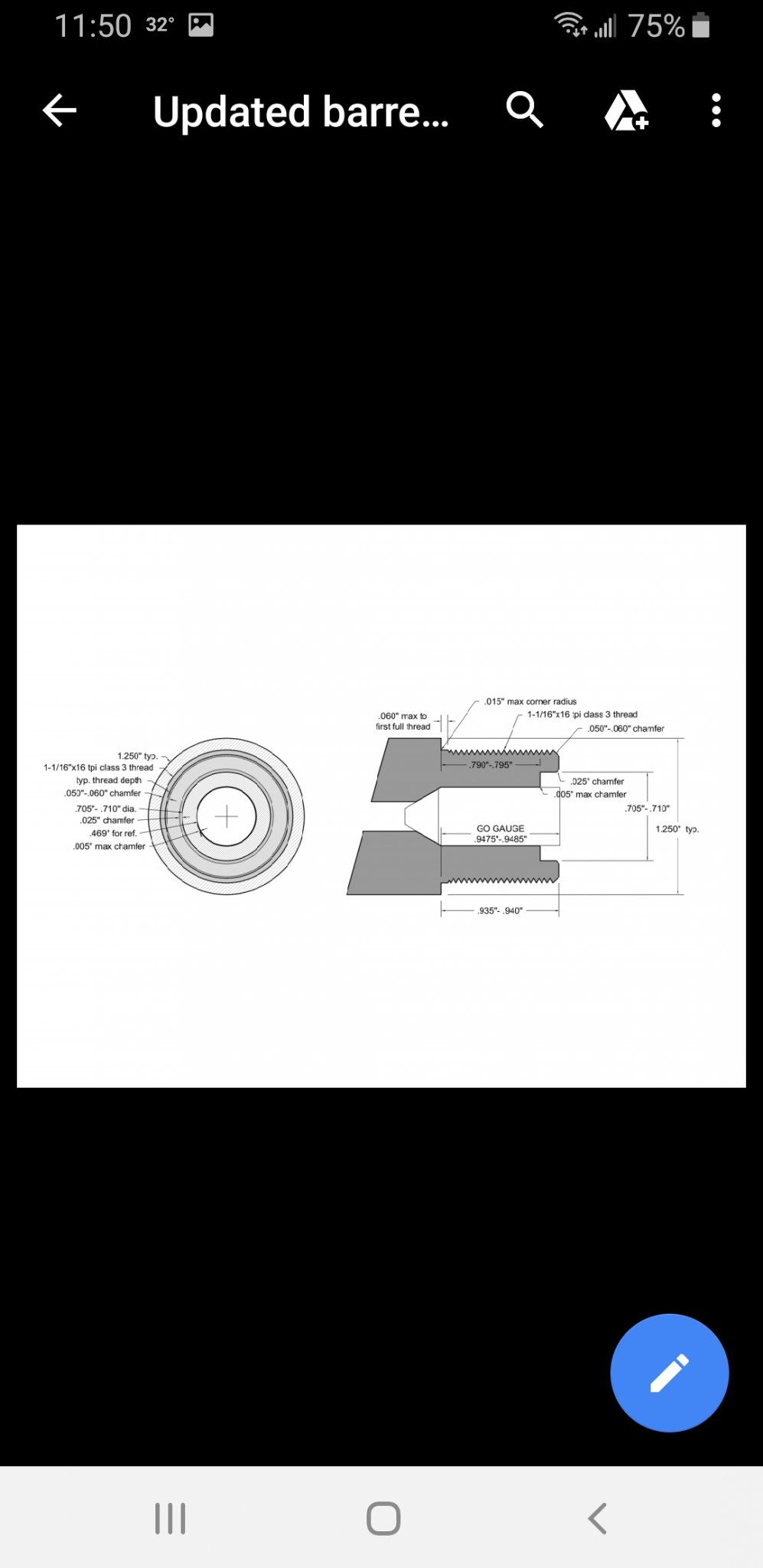

Here you go. Got this from tate streater.



[FisherT&C]

1.0625x16TPI...... all the ones I've done I shoot for 0.940" tenon length and 0.950" headspace.

Are you saying the go gauge protrudes .010?



[cwinner]

Yes..... approximately .010" longer than the tennon if it's exactly .0940" to the shoulder...... I just finished one and set up at .948"HS so in this case it protrudes .008" past..... you have about .004" to play with between go and no go.
