Suppressors INTRODUCING THE GRIFFIN ARMAMENT DUAL-LOK 5 & 7 SUPPRESSORS

[GRIFFIN_ARMAMENT]

DUAL-LOK 5 & 7 SUPPRESSORS

Griffin Armament has been satisfying customers for nearly two decades with cutting edge sound suppressors. Suppressors offering active retention systems are oftentimes demanded by government customers and Griffin has spent considerable research and development efforts to engineer and manufacture a next generation system in this category. A quality mounting system should be accurate, robust, reliable, require minimal training, and be free of wear prone metal on metal teeth or ratchets, thereby guaranteeing a longer trouble-free service life with minimal maintenance needed. Griffin’s patent pending DUAL-LOK™ mounting system, the subject of one of 6 pending patents related to the series, was designed around these objectives. The suppressor itself should have minimal flash signature, weight, POI shift, and gas blow back, as well as maximum strength, durability, and sound performance. These were the company internal performance categories that were scrutinized and met during the development.

Griffin Armament was the US pioneer of tubeless suppressor technology when in 2010 nearly the whole Griffin centerfire suppressor line was engineered this way. If lower system weights are desired, tubeless construction is ideal, as traditional double walled construction is omitted. Deleting the outer tube saves weight but also imposes other engineering difficulties which need to be overcome. However, with over a decade of tubeless suppressor manufacturing experience, Griffin has matched or exceeded the durability and useful service life of traditionally constructed suppressors. DUAL-LOK™ suppressors are manufactured of 718 inconel and 17-4 stainless steel, from industry leading suppliers. Griffin utilizes cutting edge CAD design, industry leading tooling and machining practices, and integration of laser welding to provide ideal construction to the tubeless DUAL-LOK™ suppressors.

Internal flow and balancing of optimized sound suppression is also a fundamental study in suppressor engineering, as that is the chief reason to use the items. Griffin has integrated its patented ECO-FLOW™ baffle design into these suppressors. This design provides optimal flash reduction, and flow, which reduces blow back in semi automatic and full automatic operating systems. This provides the end user with reduced sound pressure and gas at the shooter's ear and face, a more enjoyable shooting experience. The patent pending flash hiding end cap features high performance internal and external flash reducing features as well as optimally tuned gas vents which not only enhance flash reduction even further but also increases sound performance to ECO-FLOW™ baffles.

The DUAL-LOK™ mounting system is machined into the suppressor body, for maximum accuracy and durability. It features a precision taper interface (one locking feature) between the mount and the device ensuring accuracy and repeatable POI shift. An ACME thread provides speed and ease of attachment. A robust wave spring provides a reliable and positive heat resistant spring action to the redundant locking collar (second locking feature). The locking collar is semi permanently installed to the mount via factory pressed stainless steel splined taper pins. Since the mount has no wear prone metal on metal sliding actions like many other mounts, there is no need for the operator to disassemble the system. This locking ring includes three anti-rotation teeth (or splines) which ensure the suppressor will not come off inadvertently. The muzzle device integrates 60 machined anti-rotation grooves which is doubled by the collar’s two locking positions. How is this achieved? The collar’s two locking positions are machined out of phase of one another by 3 degrees which provides the system with 120 different locations to lock and ensures that when the suppressor is firmly screwed onto the taper a locking spline will be at an ideal location to ensure a rigid and locked suppressor. When the suppressor is firmly attached, only one of the two lock positions will work, allowing the spring to push the locking collar rearward over the splines. Every time the operator attaches the suppressor, they will articulate the collar to this same locking position.

Substantial efforts are taken in the manufacturing and inspection of the DUAL-LOK™ products to ensure Griffin customers are outfitted with some of the best suppressor systems in the world.


“The DUAL-LOK™ suppressors are world class, cutting edge suppressors second to none. I have obsessed over silencer research and design from a young age and was dedicated to combining the best available technology from every facet of our R&D into one product family. We are dedicating ourselves to this product group moving forward. Expect to see it prevalent throughout industry for years to come. I have confidence that demanding customers will be well satisfied by the DUAL-LOK™ series. These silencers deliver everything the discerning customer needs, without any excess weight, diameter, or length for unbelievably competitive performance to weight ratios.”

- Austin Green, Founder and Engineer


DUAL-LOK™ suppressors are machined in Griffin’s Watertown Wisconsin facility by freedom loving Americans.


Key points :

• Utility patents pending
• Wear free mounting system, requires no consumable parts
• Taper lock interface ensures security and accuracy
• ACME thread provides speed of attachment
• Locking ring incorporates 3 anti-rotation teeth to eliminate inadvertent loosening
• 120 effective positions ensure a rock-solid suppressor mount and provide extremely low POI shift
• 17-4 stainless steel & 718 Inconel
• Laser welded tubeless design
• Patent pending flash reducing and flow optimized end cap
• ¾” wrench flats on muzzle devices
• Collar Nitrided black for increased surface hardness, corrosion, and wear resistance
• Suppressor body H900 heat treated and Cerekoted

DUAL-LOK™ 5 Specs:

DIMS : 1.5”x 6.5”
Weight : 11.8oz
Sound pressure Level : (135DB) 11.5" Griffin MK1, (134DB) 16” Griffin MK1
MSRP : $1,045

DUAL-LOK™ 7 Specs:

DIMS : 1.5”x 7”
Weight : 12.6oz
Sound pressure Level : (139DB) 16” 308win AR10, (125DB) 9.5” 300BLK SUB, (136DB) 11.5" 5.56mm Griffin MK1
MSRP : $1,095

Muzzle devices supported :

DUAL-LOK™ Titanium Minimalist Brake (6AL4V)
DUAL-LOK™ Minimalist Brake
DUAL-LOK™ Minimalist Flash Suppressor
DUAL-LOK™ 2 Port Paladin Brake
DUAL-LOK™ 2.25” Stealth Flash Suppressor
DUAL-LOK™ Tactical Compensator

Thread pitches supported:

1/2x28 (.22cal & 9mm)
5/8x24 (.30cal & .45cal)
14x1mm LH (.30cal)
18x1mm (.30cal & .338cal)
3/4x24 (.30cal & .338cal)



[jzerfoss]

@GRIFFIN_ARMAMENT These look awesome. Any update on the OTB model release date?



[Clayman]

DUAL-LOK 5 & 7 SUPPRESSORS

Griffin Armament has been satisfying customers for nearly two decades with cutting edge sound suppressors. Suppressors offering active retention systems are oftentimes demanded by government customers and Griffin has spent considerable research and development efforts to engineer and manufacture a next generation system in this category. A quality mounting system should be accurate, robust, reliable, require minimal training, and be free of wear prone metal on metal teeth or ratchets, thereby guaranteeing a longer trouble-free service life with minimal maintenance needed. Griffin’s patent pending DUAL-LOK™ mounting system, the subject of one of 6 pending patents related to the series, was designed around these objectives. The suppressor itself should have minimal flash signature, weight, POI shift, and gas blow back, as well as maximum strength, durability, and sound performance. These were the company internal performance categories that were scrutinized and met during the development.

Griffin Armament was the US pioneer of tubeless suppressor technology when in 2010 nearly the whole Griffin centerfire suppressor line was engineered this way. If lower system weights are desired, tubeless construction is ideal, as traditional double walled construction is omitted. Deleting the outer tube saves weight but also imposes other engineering difficulties which need to be overcome. However, with over a decade of tubeless suppressor manufacturing experience, Griffin has matched or exceeded the durability and useful service life of traditionally constructed suppressors. DUAL-LOK™ suppressors are manufactured of 718 inconel and 17-4 stainless steel, from industry leading suppliers. Griffin utilizes cutting edge CAD design, industry leading tooling and machining practices, and integration of laser welding to provide ideal construction to the tubeless DUAL-LOK™ suppressors.

Internal flow and balancing of optimized sound suppression is also a fundamental study in suppressor engineering, as that is the chief reason to use the items. Griffin has integrated its patented ECO-FLOW™ baffle design into these suppressors. This design provides optimal flash reduction, and flow, which reduces blow back in semi automatic and full automatic operating systems. This provides the end user with reduced sound pressure and gas at the shooter's ear and face, a more enjoyable shooting experience. The patent pending flash hiding end cap features high performance internal and external flash reducing features as well as optimally tuned gas vents which not only enhance flash reduction even further but also increases sound performance to ECO-FLOW™ baffles.

The DUAL-LOK™ mounting system is machined into the suppressor body, for maximum accuracy and durability. It features a precision taper interface (one locking feature) between the mount and the device ensuring accuracy and repeatable POI shift. An ACME thread provides speed and ease of attachment. A robust wave spring provides a reliable and positive heat resistant spring action to the redundant locking collar (second locking feature). The locking collar is semi permanently installed to the mount via factory pressed stainless steel splined taper pins. Since the mount has no wear prone metal on metal sliding actions like many other mounts, there is no need for the operator to disassemble the system. This locking ring includes three anti-rotation teeth (or splines) which ensure the suppressor will not come off inadvertently. The muzzle device integrates 60 machined anti-rotation grooves which is doubled by the collar’s two locking positions. How is this achieved? The collar’s two locking positions are machined out of phase of one another by 3 degrees which provides the system with 120 different locations to lock and ensures that when the suppressor is firmly screwed onto the taper a locking spline will be at an ideal location to ensure a rigid and locked suppressor. When the suppressor is firmly attached, only one of the two lock positions will work, allowing the spring to push the locking collar rearward over the splines. Every time the operator attaches the suppressor, they will articulate the collar to this same locking position.

Substantial efforts are taken in the manufacturing and inspection of the DUAL-LOK™ products to ensure Griffin customers are outfitted with some of the best suppressor systems in the world.


“The DUAL-LOK™ suppressors are world class, cutting edge suppressors second to none. I have obsessed over silencer research and design from a young age and was dedicated to combining the best available technology from every facet of our R&D into one product family. We are dedicating ourselves to this product group moving forward. Expect to see it prevalent throughout industry for years to come. I have confidence that demanding customers will be well satisfied by the DUAL-LOK™ series. These silencers deliver everything the discerning customer needs, without any excess weight, diameter, or length for unbelievably competitive performance to weight ratios.”

- Austin Green, Founder and Engineer


DUAL-LOK™ suppressors are machined in Griffin’s Watertown Wisconsin facility by freedom loving Americans.


Key points :

• Utility patents pending
• Wear free mounting system, requires no consumable parts
• Taper lock interface ensures security and accuracy
• ACME thread provides speed of attachment
• Locking ring incorporates 3 anti-rotation teeth to eliminate inadvertent loosening
• 120 effective positions ensure a rock-solid suppressor mount and provide extremely low POI shift
• 17-4 stainless steel & 718 Inconel
• Laser welded tubeless design
• Patent pending flash reducing and flow optimized end cap
• ¾” wrench flats on muzzle devices
• Collar Nitrided black for increased surface hardness, corrosion, and wear resistance
• Suppressor body H900 heat treated and Cerekoted

DUAL-LOK™ 5 Specs:

DIMS : 1.5”x 6.5”
Weight : 11.8oz
Sound pressure Level : (135DB) 11.5" Griffin MK1, (134DB) 16” Griffin MK1
MSRP : $1,045

DUAL-LOK™ 7 Specs:

DIMS : 1.5”x 7”
Weight : 12.6oz
Sound pressure Level : (139DB) 16” 308win AR10, (125DB) 9.5” 300BLK SUB, (136DB) 11.5" 5.56mm Griffin MK1
MSRP : $1,095

View attachment 7911662

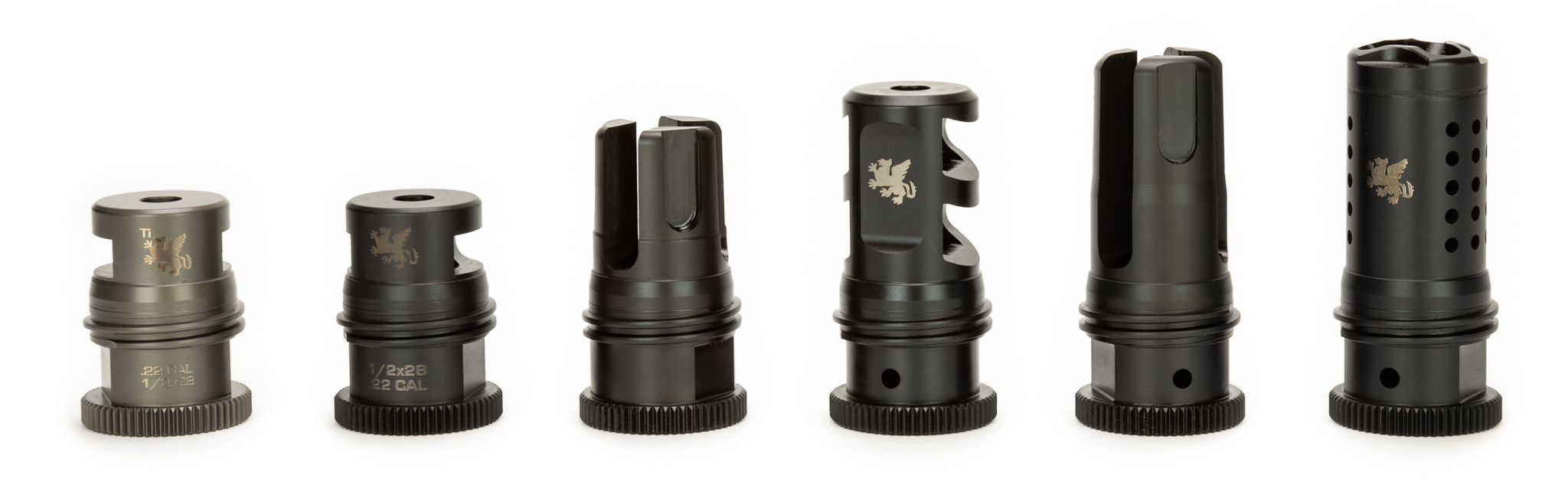

Muzzle devices supported :

DUAL-LOK™ Titanium Minimalist Brake (6AL4V)
DUAL-LOK™ Minimalist Brake
DUAL-LOK™ Minimalist Flash Suppressor
DUAL-LOK™ 2 Port Paladin Brake
DUAL-LOK™ 2.25” Stealth Flash Suppressor
DUAL-LOK™ Tactical Compensator

Thread pitches supported:

1/2x28 (.22cal & 9mm)
5/8x24 (.30cal & .45cal)
14x1mm LH (.30cal)
18x1mm (.30cal & .338cal)
3/4x24 (.30cal & .338cal)

With you guys joining as a Pewscience corporate member, will we be seeing these tested by Jay? Particularly interested in the test data on the DUAL-LOK 5 on the MK18.



[GRIFFIN_ARMAMENT]

@GRIFFIN_ARMAMENT These look awesome. Any update on the OTB model release date?

That will likely be in a month or 2, I don't have a specific date at this time. I believe we're going to release the DUAL-LOK HRT prior to those



[GRIFFIN_ARMAMENT]

With you guys joining as a Pewscience corporate member, will we be seeing these tested by Jay? Particularly interested in the test data on the DUAL-LOK 5 on the MK18.

Unfortunately even though we are now a corporate sponsor, we don't get any breaks on pricing for reviews. We spent a hefty fee on the sound testing equipment we have and make sure to keep the system up to date and calibrated. So we'll continue to put out the sound test videos like we have been and actually will be trying to introduce more flash testing content.



[jzerfoss]

That will likely be in a month or 2, I don't have a specific date at this time. I believe we're going to release the DUAL-LOK HRT prior to those

Looking forward to it! If the added overall length is minimal and the suppression is decent I'll be getting one of the OTB models.



[GRIFFIN_ARMAMENT]

I think we should be releasing the dual lok somewhat sooner than 2 months. (different person here) I heard the HRT was maybe 2 months out for some kind of cooperative promo video opportunity. The OTB cans are basically good to go, just needing the release photo/video work, so I think they are in front of the HRT in the que. I did POI test one and POI was like .4MOA low with the can on a 25" barrel M40A5 so it was pretty impressive. The sound performance is pretty strong as OTB cans go.



[jzerfoss]

I think we should be releasing the dual lok somewhat sooner than 2 months. (different person here) I heard the HRT was maybe 2 months out for some kind of cooperative promo video opportunity. The OTB cans are basically good to go, just needing the release photo/video work, so I think they are in front of the HRT in the que. I did POI test one and POI was like .4MOA low with the can on a 25" barrel M40A5 so it was pretty impressive. The sound performance is pretty strong as OTB cans go.

That's good news. Is the OTB sound performance better than the current Dual lok 5/7?



[Digetydog]

DUAL-LOK 5 & 7 SUPPRESSORS

Griffin Armament has been satisfying customers for nearly two decades with cutting edge sound suppressors. Suppressors offering active retention systems are oftentimes demanded by government customers and Griffin has spent considerable research and development efforts to engineer and manufacture a next generation system in this category. A quality mounting system should be accurate, robust, reliable, require minimal training, and be free of wear prone metal on metal teeth or ratchets, thereby guaranteeing a longer trouble-free service life with minimal maintenance needed. Griffin’s patent pending DUAL-LOK™ mounting system, the subject of one of 6 pending patents related to the series, was designed around these objectives. The suppressor itself should have minimal flash signature, weight, POI shift, and gas blow back, as well as maximum strength, durability, and sound performance. These were the company internal performance categories that were scrutinized and met during the development.

Griffin Armament was the US pioneer of tubeless suppressor technology when in 2010 nearly the whole Griffin centerfire suppressor line was engineered this way. If lower system weights are desired, tubeless construction is ideal, as traditional double walled construction is omitted. Deleting the outer tube saves weight but also imposes other engineering difficulties which need to be overcome. However, with over a decade of tubeless suppressor manufacturing experience, Griffin has matched or exceeded the durability and useful service life of traditionally constructed suppressors. DUAL-LOK™ suppressors are manufactured of 718 inconel and 17-4 stainless steel, from industry leading suppliers. Griffin utilizes cutting edge CAD design, industry leading tooling and machining practices, and integration of laser welding to provide ideal construction to the tubeless DUAL-LOK™ suppressors.

Internal flow and balancing of optimized sound suppression is also a fundamental study in suppressor engineering, as that is the chief reason to use the items. Griffin has integrated its patented ECO-FLOW™ baffle design into these suppressors. This design provides optimal flash reduction, and flow, which reduces blow back in semi automatic and full automatic operating systems. This provides the end user with reduced sound pressure and gas at the shooter's ear and face, a more enjoyable shooting experience. The patent pending flash hiding end cap features high performance internal and external flash reducing features as well as optimally tuned gas vents which not only enhance flash reduction even further but also increases sound performance to ECO-FLOW™ baffles.

The DUAL-LOK™ mounting system is machined into the suppressor body, for maximum accuracy and durability. It features a precision taper interface (one locking feature) between the mount and the device ensuring accuracy and repeatable POI shift. An ACME thread provides speed and ease of attachment. A robust wave spring provides a reliable and positive heat resistant spring action to the redundant locking collar (second locking feature). The locking collar is semi permanently installed to the mount via factory pressed stainless steel splined taper pins. Since the mount has no wear prone metal on metal sliding actions like many other mounts, there is no need for the operator to disassemble the system. This locking ring includes three anti-rotation teeth (or splines) which ensure the suppressor will not come off inadvertently. The muzzle device integrates 60 machined anti-rotation grooves which is doubled by the collar’s two locking positions. How is this achieved? The collar’s two locking positions are machined out of phase of one another by 3 degrees which provides the system with 120 different locations to lock and ensures that when the suppressor is firmly screwed onto the taper a locking spline will be at an ideal location to ensure a rigid and locked suppressor. When the suppressor is firmly attached, only one of the two lock positions will work, allowing the spring to push the locking collar rearward over the splines. Every time the operator attaches the suppressor, they will articulate the collar to this same locking position.

Substantial efforts are taken in the manufacturing and inspection of the DUAL-LOK™ products to ensure Griffin customers are outfitted with some of the best suppressor systems in the world.


“The DUAL-LOK™ suppressors are world class, cutting edge suppressors second to none. I have obsessed over silencer research and design from a young age and was dedicated to combining the best available technology from every facet of our R&D into one product family. We are dedicating ourselves to this product group moving forward. Expect to see it prevalent throughout industry for years to come. I have confidence that demanding customers will be well satisfied by the DUAL-LOK™ series. These silencers deliver everything the discerning customer needs, without any excess weight, diameter, or length for unbelievably competitive performance to weight ratios.”

- Austin Green, Founder and Engineer


DUAL-LOK™ suppressors are machined in Griffin’s Watertown Wisconsin facility by freedom loving Americans.


Key points :

• Utility patents pending
• Wear free mounting system, requires no consumable parts
• Taper lock interface ensures security and accuracy
• ACME thread provides speed of attachment
• Locking ring incorporates 3 anti-rotation teeth to eliminate inadvertent loosening
• 120 effective positions ensure a rock-solid suppressor mount and provide extremely low POI shift
• 17-4 stainless steel & 718 Inconel
• Laser welded tubeless design
• Patent pending flash reducing and flow optimized end cap
• ¾” wrench flats on muzzle devices
• Collar Nitrided black for increased surface hardness, corrosion, and wear resistance
• Suppressor body H900 heat treated and Cerekoted

DUAL-LOK™ 5 Specs:

DIMS : 1.5”x 6.5”
Weight : 11.8oz
Sound pressure Level : (135DB) 11.5" Griffin MK1, (134DB) 16” Griffin MK1
MSRP : $1,045

DUAL-LOK™ 7 Specs:

DIMS : 1.5”x 7”
Weight : 12.6oz
Sound pressure Level : (139DB) 16” 308win AR10, (125DB) 9.5” 300BLK SUB, (136DB) 11.5" 5.56mm Griffin MK1
MSRP : $1,095

View attachment 7911662
Muzzle devices supported :

DUAL-LOK™ Titanium Minimalist Brake (6AL4V)
DUAL-LOK™ Minimalist Brake
DUAL-LOK™ Minimalist Flash Suppressor
DUAL-LOK™ 2 Port Paladin Brake
DUAL-LOK™ 2.25” Stealth Flash Suppressor
DUAL-LOK™ Tactical Compensator

Thread pitches supported:

1/2x28 (.22cal & 9mm)
5/8x24 (.30cal & .45cal)
14x1mm LH (.30cal)
18x1mm (.30cal & .338cal)
3/4x24 (.30cal & .338cal)

Have you updated your written instructions and/or instruction videos? The instructions that came with my Rev9 were useless and pointed me to a video that was pooly lit, filmed from a distance that made it impossible to see what the host was door, and jumped from topic to topic without explaining anything.

The can works fine, but I was very disappointed with the instructions.



[GRIFFIN_ARMAMENT]

That's good news. Is the OTB sound performance better than the current Dual lok 5/7?

The PSR (OTB) are better performing by several DB. The mounting solutions are more niche, and only the PSR 30 can take a muzzle mount and that is recommended for 5.56mm mounts only as the extra bore clearance affords easy compatibility of the then 9" long muzzle can. So there are some caveats to the OTB stuff, it will probably always be niche. The POI shift on the M40A5 I have was very small, and the cans have two interfacing diameters so they are great for precision rifles that for example may have to take a real world hostage shot, as the total possible runout is controlled at the lower limit of the perfect condition Dual lok interface, by simple diameter and distance.

Have you updated your written instructions and/or instruction videos? The instructions that came with my Rev9 were useless and pointed me to a video that was pooly lit, filmed from a distance that made it impossible to see what the host was door, and jumped from topic to topic without explaining anything.

The can works fine, but I was very disappointed with the instructions.

I don't know about that- I think the current instructions are similar. There is very little to know about the Dual Lok cans- they have clear instructions on the mounting procedure, and they are solidly welded together so they are very easy on the uptake compared to more feature heavy cans like the REV/RES / Optimus / Bushwhacker where the configurations and mounting system options are very myriad.



[Riverlife87]

The dual lok PSRs look sweet!!



[Digetydog]

The PSR (OTB) are better performing by several DB. The mounting solutions are more niche, and only the PSR 30 can take a muzzle mount and that is recommended for 5.56mm mounts only as the extra bore clearance affords easy compatibility of the then 9" long muzzle can. So there are some caveats to the OTB stuff, it will probably always be niche. The POI shift on the M40A5 I have was very small, and the cans have two interfacing diameters so they are great for precision rifles that for example may have to take a real world hostage shot, as the total possible runout is controlled at the lower limit of the perfect condition Dual lok interface, by simple diameter and distance.

I don't know about that- I think the current instructions are similar. There is very little to know about the Dual Lok cans- they have clear instructions on the mounting procedure, and they are solidly welded together so they are very easy on the uptake compared to more feature heavy cans like the REV/RES / Optimus / Bushwhacker where the configurations and mounting system options are very myriad.

Have you bothered to update the Rev 9 instructions yet?
