I have a Spuhr I bought long ago off these forums on my Tikka Tac A1, but I just got a new AR10 and need another scope mount. I love the bubble on the Spuhr to ensure I am level, but god damn are they expensive. Are there any alternatives out there which have an integrated bubble that I am just overlooking?
-
Having trouble using the site?
Contact support
Is Spuhr the only (quality) Scope Mount which offers an integrated level bubble?
- Thread starter brian2382
- Start date
Accu-Tag rings have an integrated level. AADLand Engineering mounts have (or at least did at one time) an integrated level. Hawkins heavy tactical rings and mounts have a level mounted on the front cap that’s probably more visible than any of them.
The new ARC M-Brace mounts come with a level, and the new Badger modular mounts have the ability to add a level in a very similar manner to the M-Brace.
Those are just the ones I can think of off the top of my head. Most modern optics mounts either have or have the ability to add one to them.
The new ARC M-Brace mounts come with a level, and the new Badger modular mounts have the ability to add a level in a very similar manner to the M-Brace.
Those are just the ones I can think of off the top of my head. Most modern optics mounts either have or have the ability to add one to them.
Wow, I could not have asked for more information right off that bat! I really appreciate your help! I will research all of those. Admittedly, other than Badger I have never heard of any of those companies.
I've had the ARC M10 QD-L and Spuhr, both have built in levels but as others have mentioned they are low and very near your eye, unless you are really young with excellent close up vision you're probably going to break your cheekweld to see it. I just ordered the M-Brace and hoping it will arrive soon. ERA-TAC also offers mounts and rings that have accessory options to fit on top, one of these accessories is a bubble level which works well too.
probably minority, but I've found I prefer levels that are independent of the mounting ring itself, so that they can be placed somewhere more visible.
Right now I've been using the vector optics level + ADI. Yes, it's chinese made, but having tested it against some of the tools I have for QC work, it is actually properly calibrated and repeatable.
Right now I've been using the vector optics level + ADI. Yes, it's chinese made, but having tested it against some of the tools I have for QC work, it is actually properly calibrated and repeatable.
This has all been amazing information! Thank you all, it seems like the ARC M-Brace was the most recommended and highly spoke of so I will likely go with that!
One nice thing about my old spuhr was the mounting of the scope, with its 10 degree piece of metal which made the scope perfectly level to the rings, does the ARC M-Brace, or any of these other options have similar or their own version of mounting a scope truly level? Or do they require additional equipment?
One nice thing about my old spuhr was the mounting of the scope, with its 10 degree piece of metal which made the scope perfectly level to the rings, does the ARC M-Brace, or any of these other options have similar or their own version of mounting a scope truly level? Or do they require additional equipment?
A plumb bob is a good cheap investment if you plan on leveling a lot of scopes or want perfect level every time.
I'm unfamiliar with that technique, I will search around, unless you know of a source which explains how to do it
Basically use the plum bob against a wall, and the line on the bob will five you a perfectly vertical reference line. level the rifle, then use the reference line to line up your reticle. once everything's lined up, torque to spec and double check, then you can verify if the reticle and turrets are correctly aligned with each other by dialing elevation.
Audere mounts are Spuhr quality at a significantly lower cost.
However, a level below your scope is impractical in use, and a scope mounted (or alternate mount mounted level) will be better.
However, a level below your scope is impractical in use, and a scope mounted (or alternate mount mounted level) will be better.
With the larger footprint of the AR-10 upper I have gotten away with non-cantilevered mounts with an adjustable LOP stock like a Luth or Magpul PRS/UBR style, with a standard length adjustable stock you might be on the ragged edge.
I still prefer ERA-TAC for this, while not built in the level attachment on the ring plate makes it easier to view than behind the mount levels. Spuhr makes a cantilever mount and some of those have levels
+1 for EraTac option.
www.eurooptic.com
There is a provision to add it to the top of their rings. Puts the level at the perfect location.
ERATAC Bubble Level for ERATAC Universal Interface (without ACI) T0940-0002
ERATAC Bubble Level for ERATAC Universal Interface (without ACI) T0940-0002 For Sale
There is a provision to add it to the top of their rings. Puts the level at the perfect location.

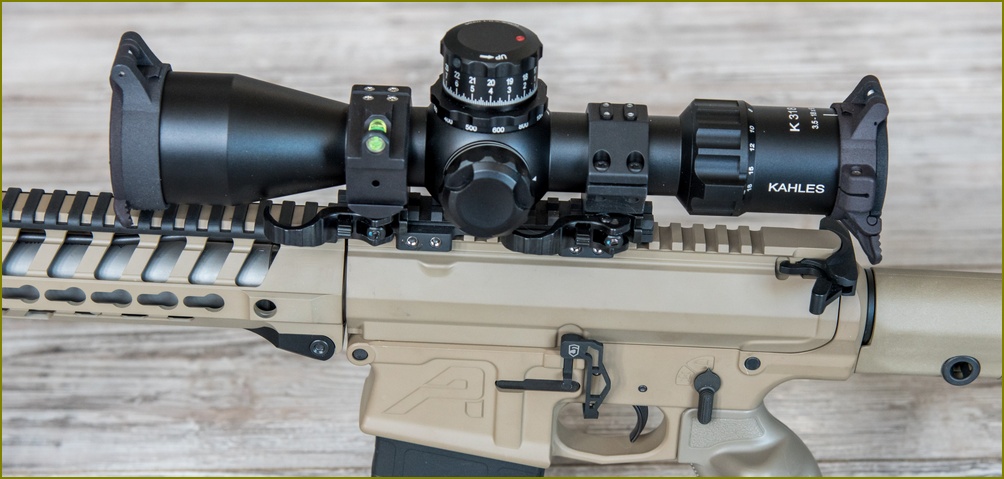

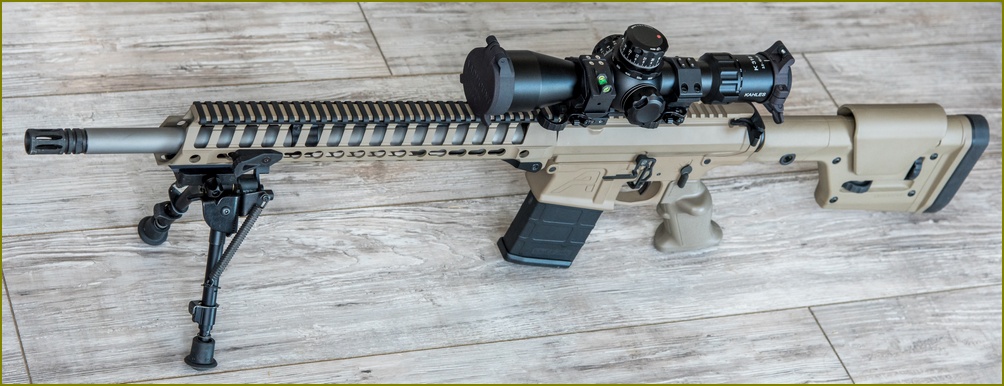

Using ERATAC rings with bubble level/ACI attachment, no cantilever on AR-10 upper

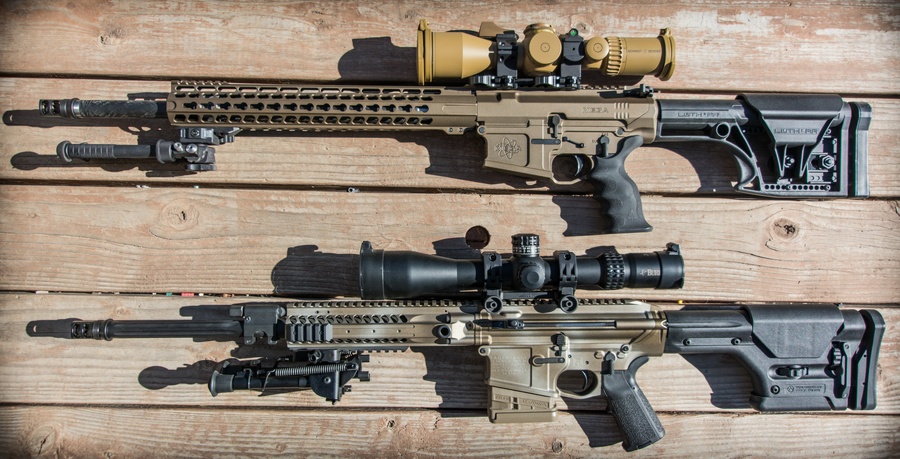

Top: Schmidt & Bender Ultra Short 5-20 in ERATAC 20 MOA mount, no cantilever. Bottom: Burris XTR II 4-20 in ARC M10 QD-L Mount - No cantilever
Top: Schmidt & Bender Ultra Short 5-20 in ERATAC 20 MOA mount, no cantilever. Bottom: Burris XTR II 4-20 in ARC M10 QD-L Mount - No cantilever
I had Spuhr mounts, now days i use Audere.
MKmachining import these in US.
Italian desing and Italian very nice guys behind this company.
www.audere.sm
Use cope PFR22 you can have -10% off everything on the Audere shop, including optic etc.
MKmachining import these in US.
Italian desing and Italian very nice guys behind this company.
