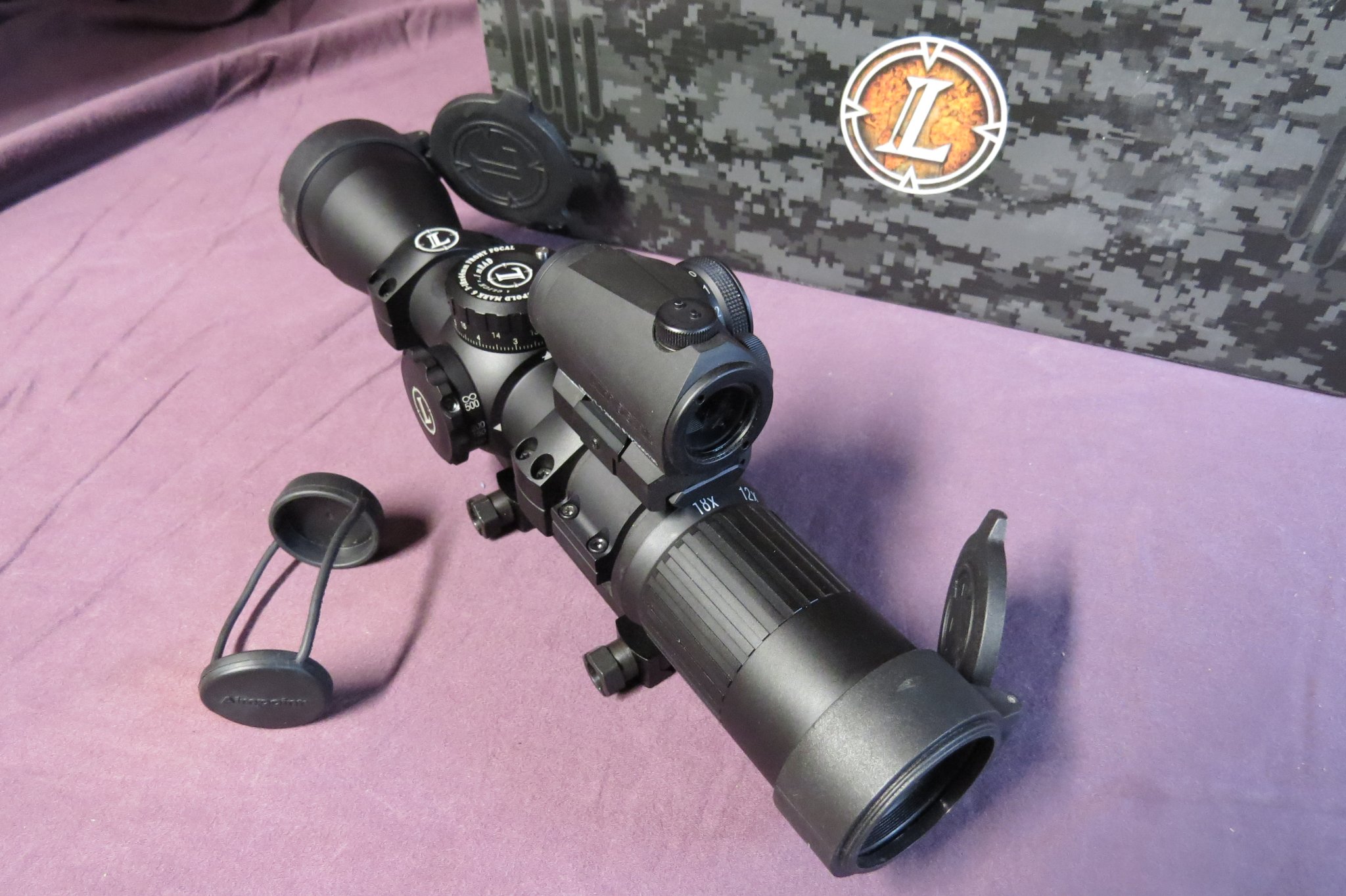

Up for sale is very lightly used Leupold DAGR (Dual Aperture Gunsight Riflescope). These set-ups have quite a bit of history behind them (our very own Lowlight did a review on these back in 2012 right here on the ‘Hide). I’ve included some information below but there is a ton written about these that a simple Google search will show you. Only produced for the civilian market in a very limited run they are a bit of an oddity and fairly scarce. These were priced in the $4,500 range on Midway for the very short time when they were available. It would make a great add-on to anyone building a reference rifle. Kit includes everything that was delivered from Leupold including the Berry-compliant carrying case and all instruction manuals.
$3,800. I will cover Shipping/Insurance in CONUS. Please feel free to reach out with comments or questions. Thanks for looking! Note: PayPal FF or payment terms can be discussed.
Some History:
SOCOM ECOS-O optic contract awarded to Leupold and Aimpoint
Apr 2, 2013
According to a SOCOM spokesperson, the ECOS-O is intended to satisfy the operational need for a system that will allow SOF operators to engage targets in close quarter battle situations as well as providing a long-range high-powered optic system to engage targets at the full range of the weapon system's capability.
ECOS-O combines the Leupold Mark 6 3-18x44mm riflescope and an Aimpoint Micro T-1 (2MOA) mini red dot sight into a compact, night-vision compatible riflescope scope system. The device fulfills the requirement for an environmentally hardened sighting system that offers unmagnified targeting from 0-300 meters and magnified targeting from 300-1000 meters. The system was primarily developed for use with the M4/ M4A1 Carbine and Mk17 SCAR, though it can also serve on the M14, M16, Mk11 or Mk12 rifles.
The ECOS-O contract was originally let as a 5-year, $49.9m solicitation in August 2012. Since, the contract value increased $1.6m dollars and was split into two awards: $42.8m to Leupold for both illuminated and non-illuminated reticle versions of the Mark 6 3-18x44 riflescope with accompanying mounts and $8.7m to Aimpoint for Micro T-1's with accompanying mounts.
SOCOM has so far spent $27,104 on 10 units for user assessment and operational test and evaluation prior to their full rate production decision. The scopes and sights are due to be delivered May 23, 2013.
Leupold originally submitted their Dual Aperture Gunsight Riflescope (DAGR) in response to the Navy's solicitation. NSWC Crane liked the the Mark 6 and the Micro T-1 configuration, but chose to replace Leupold's secondary optic mount, made by LaRue Tactical. Instead, NSWC Crane will source a T-shaped bracket for the Micro T-1, along with the Micro T-1 itself, directly from Aimpoint and assemble the ECOS-O in-house.

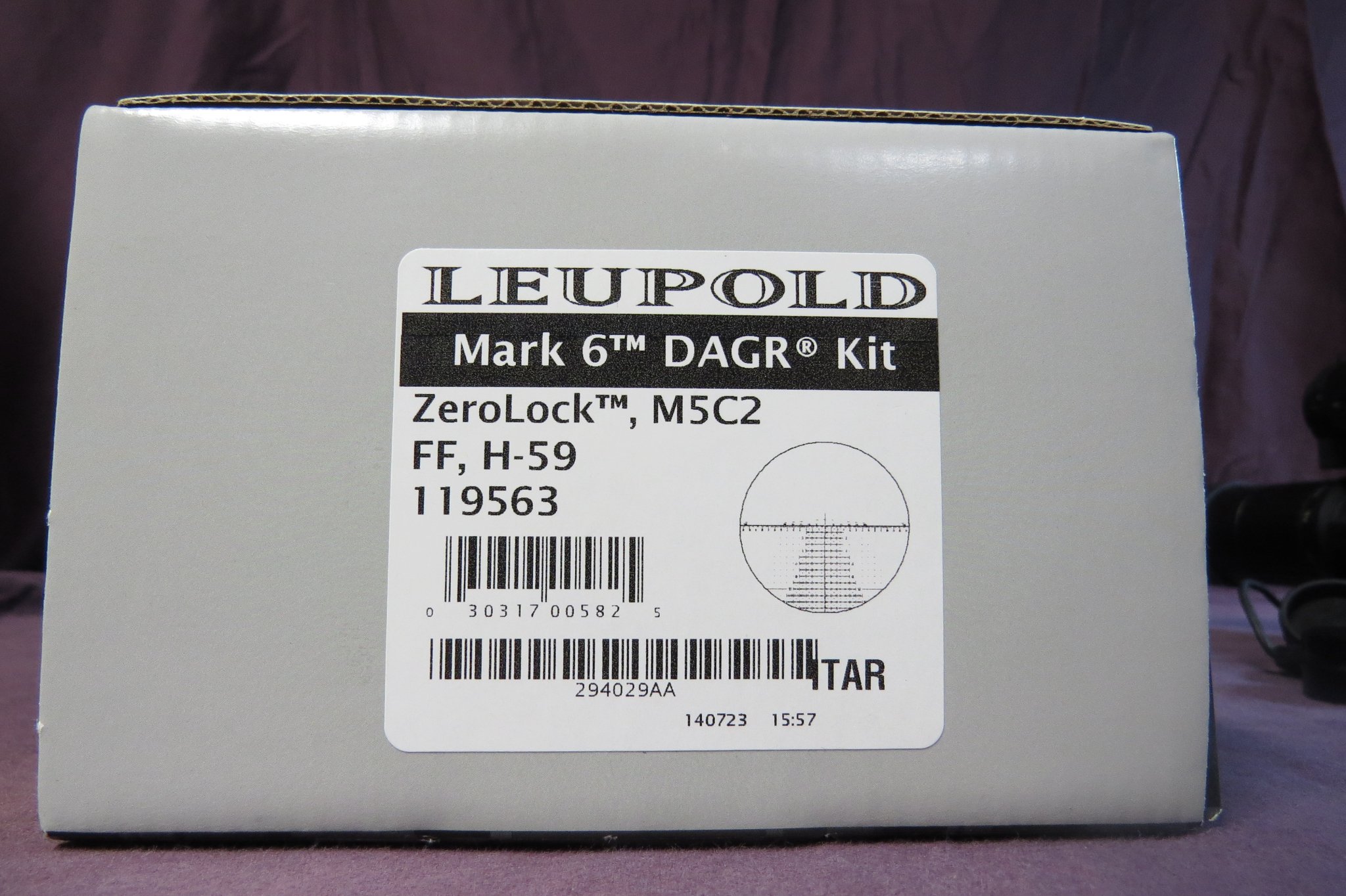

Leupold submitted a Mark 6 variant, designated M5C2, featuring a lowered, zero-stop elevation turret and reversed focus knob. The turret knob was made shorter than the commercially available M5B2 version so the 12 o'clock-mounted secondary optic could sits as close to the main optic's boreline as possible without the turret obscuring use of the secondary sight. The 12 o'clock mounting position was a specified requirement. This configuration has a Horus TReMor2 milling reticle in the front focal plane.
While the Navy took the lead on this project, ECOS-O will be fielded by all four services through SOCOM.
Leupold will perform their work in Beaverton, Oregon, while Aimpoint will perform their work in Jagershillgatan, Sweden.
Leupold's Press release:
BEAVERTON, Ore. — Leupold& Stevens and Aimpoint® are pleased to announce they have been awarded five-year contracts by the U.S. Navy Surface Warfare Center, Crane Division for Enhanced Combat Optical Sight – Optimized (ECOS-O) systems.
Leupold & Stevens' $42.8 million contract calls for the longtime supplier of military optics to provide Mark 6® 3-18x44mm riflescopes as the base for the next generation of integrated optical aiming systems for modern small arms. The Oregon-based manufacturer will also provide Mark 6 Integrated Mounting Systems (IMS®).
"This contract award reflects Leupold & Stevens' tremendous commitment to bringing cutting-edge technology to the U.S. military," said Kevin Trepa, Leupold & Stevens' vice president of global sales and business development. "Smaller, lighter, faster—and with more power—is now a reality."
The ECOS-O project integrates the Leupold® Mark 6® 3-18x44mm riflescope with the CQB-proven Aimpoint Micro T-1. With an overall length of less than 12 inches and weighing just 34.2 ounces, the ECOS-O system delivers an incredible field of view and rapid target acquisition at an unmatched length and weight. Adjustable diopter and variable 6X power magnification allows the operator to adapt the optic to any condition encountered in the field.
Aimpoint's $8.7 million contract for T-1 micro red dot sights and mounting brackets will go to the Navy Surface Warfare Center in Crane, Ind., where Crane armorers will integrate the system and deliver them to warfighters in the U.S. Army, Navy, Air Force and Marine Corps.
Built in Leupold's Beaverton, Ore, facility, the Mark 6 3-18x44mm riflescope is the latest in the company's proud military history. Leupold is a leading supplier of long-range optics to the U.S. military and has provided key riflescopes and spotting scopes for all branches since the 1980s.
Description:

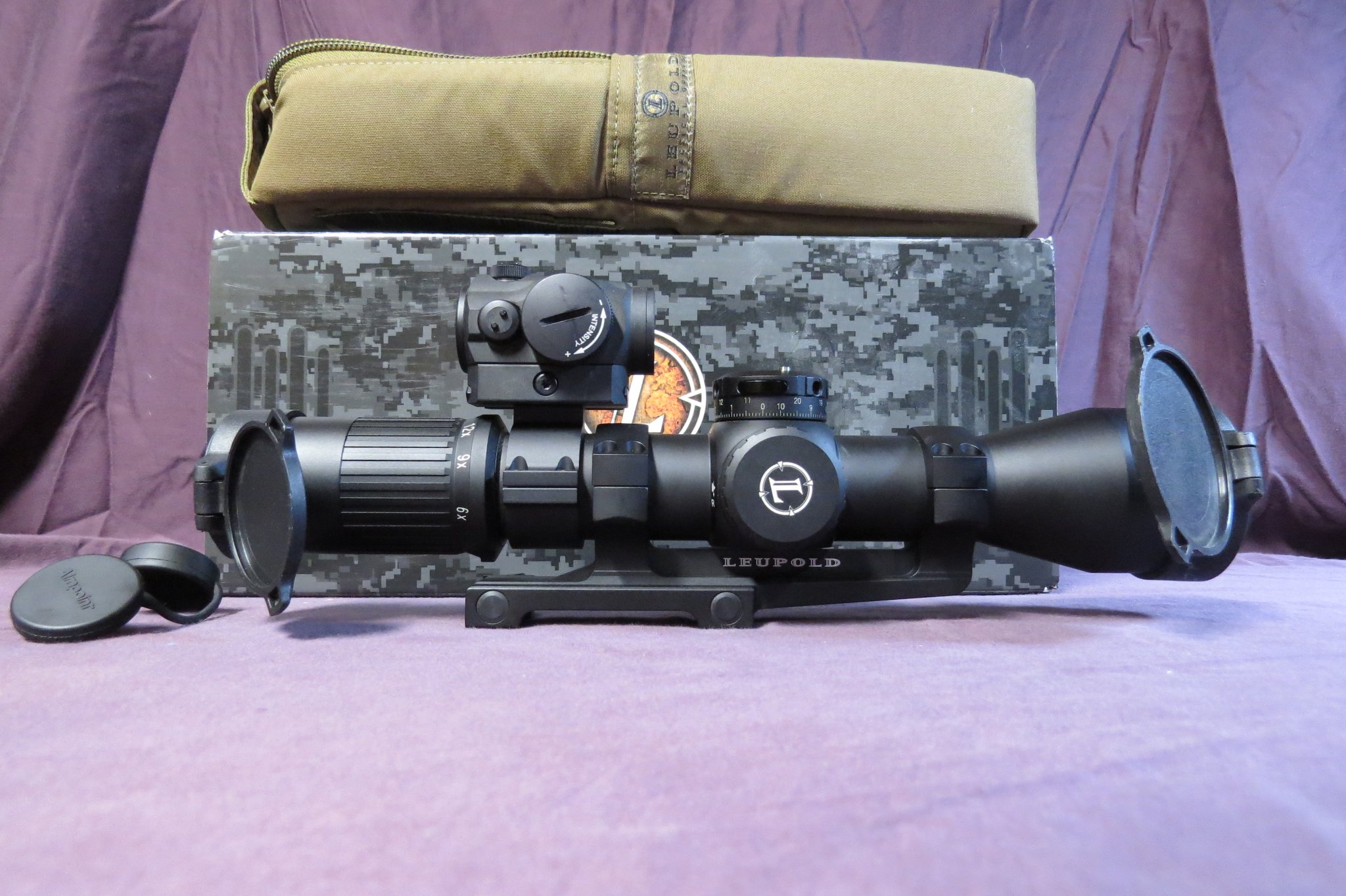

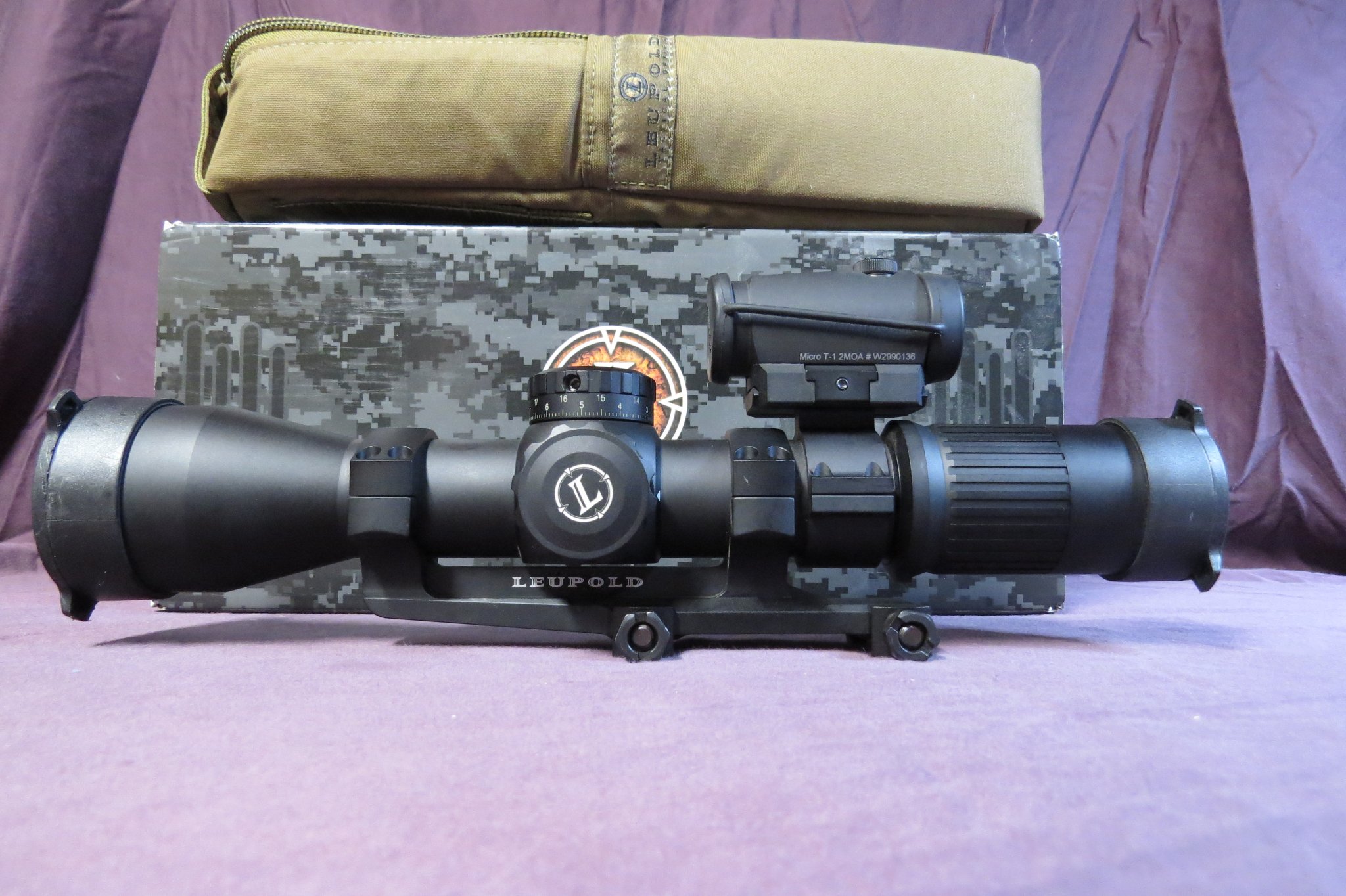

Leupold Dual Aperture Gunsight Riflescope (DAGR) provides a solution for rapid target acquisition and engagement from CQB range to 1,000+ meters. Combining and fully integrating the durability and service record of the Leupold Mark 6 3-18x44 riflescope with the legendary durability of the Aimpoint Micro T-1 combat optic, the DAGR system stands ready to provide short- and long-range aiming solutions.

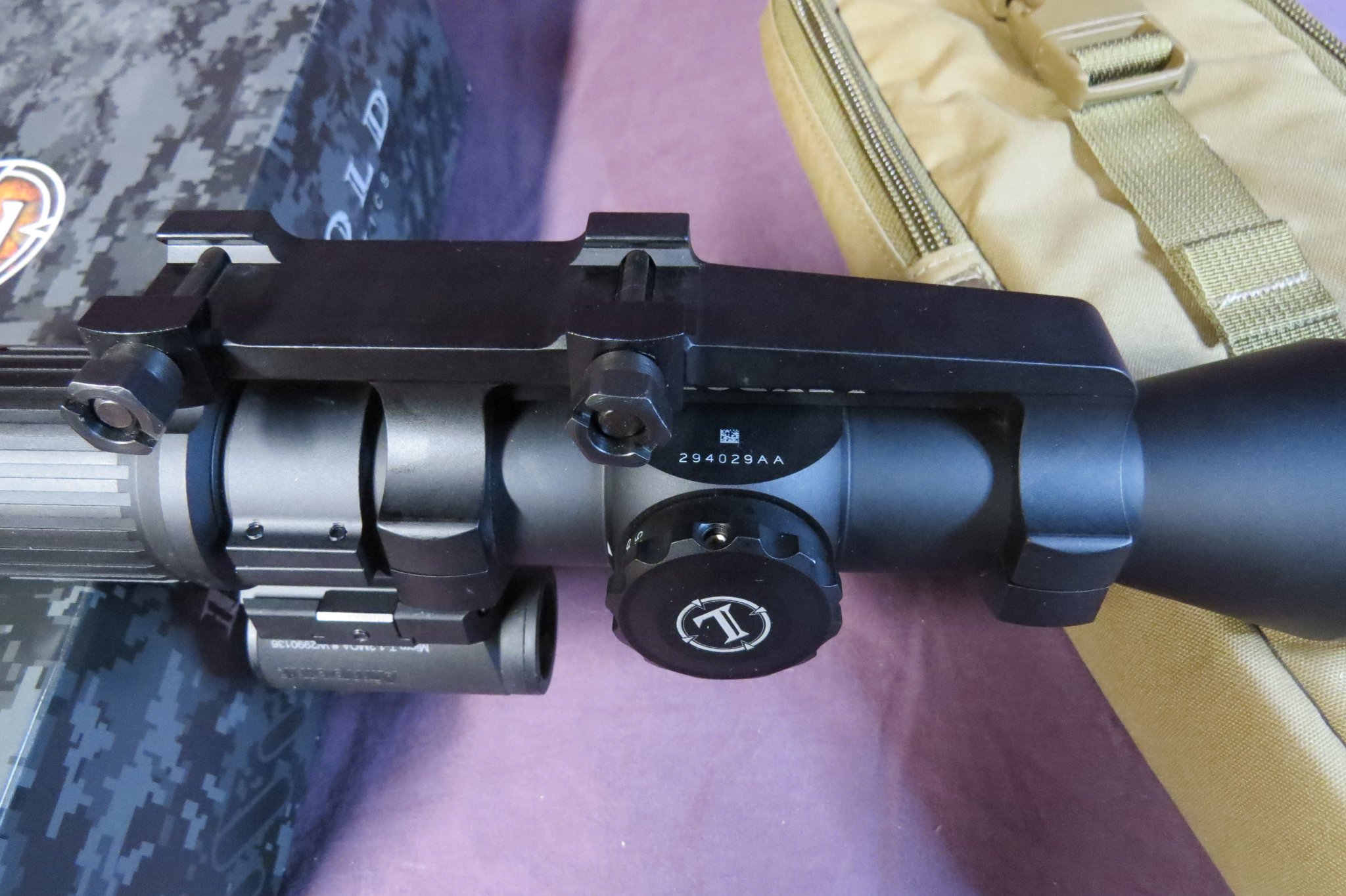

Featuring the Horus H59 ranging reticle, .1 mil adjustments, and a locking turret, the DAGR system's main tube also has only a 1.75" optical centerline difference from the Aimpoint T-1.

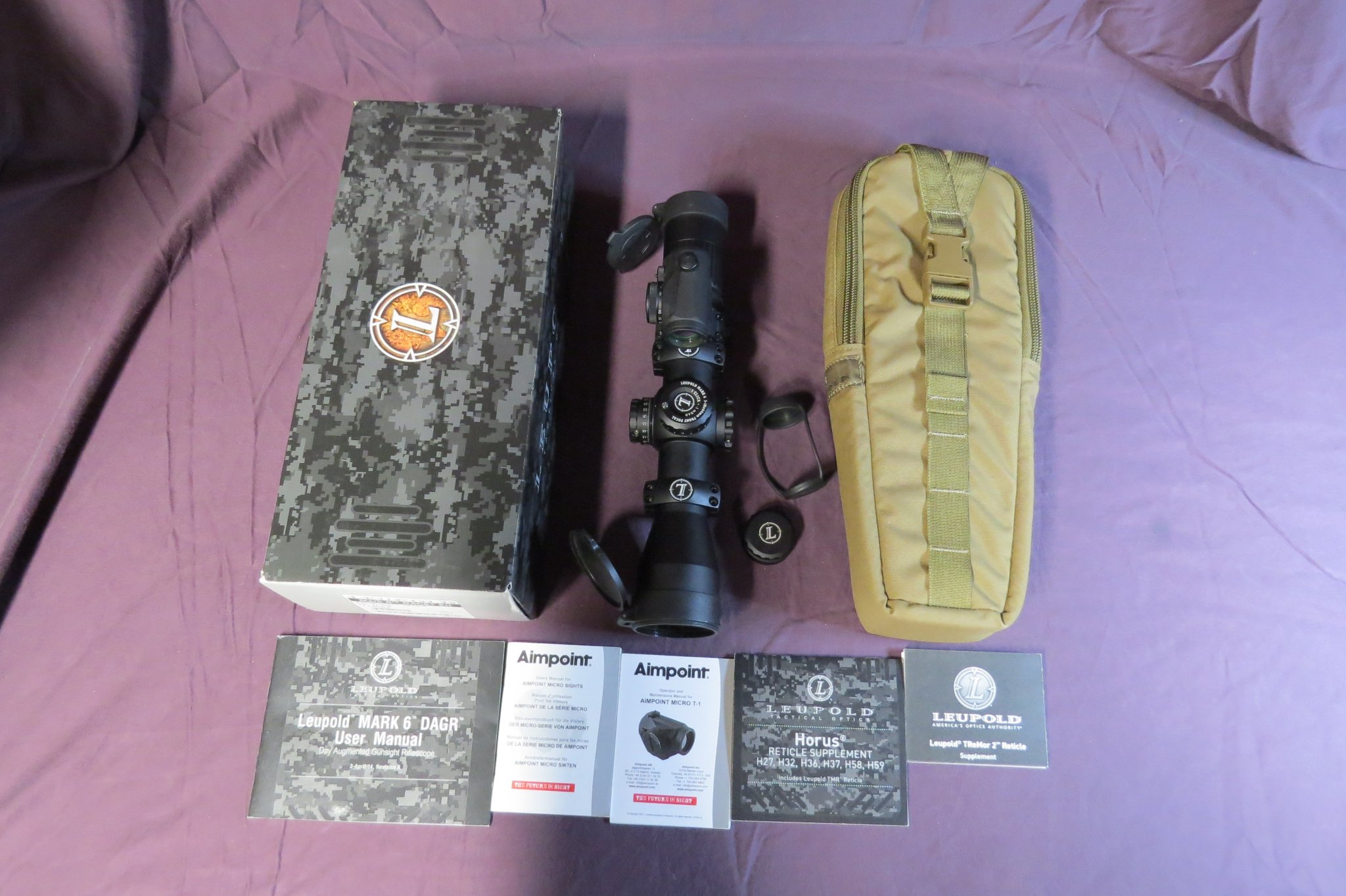

The DAGR system is fully integrated and includes the 3-18x44mm DAGR riflescope, Aimpoint Micro T-1 combat optic, Berry-compliant carrying case, operator's manuals and reference guide, and a battery.
The Leupold Mark 6 3-18x sets the standard for long range tactical rifle scopes. With the ultra-lightweight and compact body less than 12 inches, it is on average 20% lighter and shorted than other tactical scopes on the market. The robust 34mm nitrogen purged tube creates over 28 Mils of elevation adjustment with the M5B2 Auto-locking, Pinch and Turn 1/10 Mil turrets. The M5B2 elevation turret features a resettable double turn zero stop with a tactical revolution indicator detent that can be felt every 5 Mils of travel to help keep track of changes when dialing for long range. Superior light transmission, scratch resistance and crisp edge to edge clarity are three benefits that you will experience when DiamondCoat2 is coupled with the legendary Xtended Twilight Lens System. Other features of the Mark 6 include side focus, locking fast focus eye piece and powerful 6x zoom range. Covered by the Leupold Lifetime Warranty.
The Aimpoint Micro T1 Red Dot sight is engineered to provide the performance of a full size Aimpoint optic in the smallest package possible. It features a 2 MOA aiming dot, 13 brightness settings, integral Picatinny-style base for attachment to any compatible rail and parallax-free operation. Powered by a single CR2032 lithium battery, the Aimpoint Micro will work for up to 50,000 hours (over 5 years) before running out of power.
Technical Information
Tube Diameter: 34mm
Adjustment Click Value: 1/10 Mil
Adjustment Type: Click
Exposed Turrets: Yes
Finger Adjustable Turrets: Yes
Turrets Resettable to Zero: Yes
Zero Stop: Yes
Turret Height: High
Fast Focus Eyepiece: Yes
Lens Coating: Fully multi-coated XT Lens system with DaimondCoat2
Warranty: Full Lifetime
Rings Included: No
Sunshade Included: No
Sunshade Length: N/A
Lens Covers Included: Yes
Power Variability: Variable
Min power: 3x
Max power: 18x
Reticle Construction: Glass Etched
Holdover reticle: Yes
Reticle Focal Plane Location: 1st
Parallax Adjustment: Fixed
Finish: Matte
Water/Fogproof: Yes
Shockproof: Yes
Objective Bell Diameter: 53.34mm
Ocular Bell Diameter: 43.18mm
Eye Relief: 3.8"
Exit Pupil Diameter: 14.6-2.44mm
Weight: 36.8 oz.
Max Internal Adjustment:
$3,800. I will cover Shipping/Insurance in CONUS. Please feel free to reach out with comments or questions. Thanks for looking! Note: PayPal FF or payment terms can be discussed.
Some History:
SOCOM ECOS-O optic contract awarded to Leupold and Aimpoint
Apr 2, 2013
According to a SOCOM spokesperson, the ECOS-O is intended to satisfy the operational need for a system that will allow SOF operators to engage targets in close quarter battle situations as well as providing a long-range high-powered optic system to engage targets at the full range of the weapon system's capability.
ECOS-O combines the Leupold Mark 6 3-18x44mm riflescope and an Aimpoint Micro T-1 (2MOA) mini red dot sight into a compact, night-vision compatible riflescope scope system. The device fulfills the requirement for an environmentally hardened sighting system that offers unmagnified targeting from 0-300 meters and magnified targeting from 300-1000 meters. The system was primarily developed for use with the M4/ M4A1 Carbine and Mk17 SCAR, though it can also serve on the M14, M16, Mk11 or Mk12 rifles.
The ECOS-O contract was originally let as a 5-year, $49.9m solicitation in August 2012. Since, the contract value increased $1.6m dollars and was split into two awards: $42.8m to Leupold for both illuminated and non-illuminated reticle versions of the Mark 6 3-18x44 riflescope with accompanying mounts and $8.7m to Aimpoint for Micro T-1's with accompanying mounts.
SOCOM has so far spent $27,104 on 10 units for user assessment and operational test and evaluation prior to their full rate production decision. The scopes and sights are due to be delivered May 23, 2013.
Leupold originally submitted their Dual Aperture Gunsight Riflescope (DAGR) in response to the Navy's solicitation. NSWC Crane liked the the Mark 6 and the Micro T-1 configuration, but chose to replace Leupold's secondary optic mount, made by LaRue Tactical. Instead, NSWC Crane will source a T-shaped bracket for the Micro T-1, along with the Micro T-1 itself, directly from Aimpoint and assemble the ECOS-O in-house.
Leupold submitted a Mark 6 variant, designated M5C2, featuring a lowered, zero-stop elevation turret and reversed focus knob. The turret knob was made shorter than the commercially available M5B2 version so the 12 o'clock-mounted secondary optic could sits as close to the main optic's boreline as possible without the turret obscuring use of the secondary sight. The 12 o'clock mounting position was a specified requirement. This configuration has a Horus TReMor2 milling reticle in the front focal plane.
While the Navy took the lead on this project, ECOS-O will be fielded by all four services through SOCOM.
Leupold will perform their work in Beaverton, Oregon, while Aimpoint will perform their work in Jagershillgatan, Sweden.
Leupold's Press release:
BEAVERTON, Ore. — Leupold& Stevens and Aimpoint® are pleased to announce they have been awarded five-year contracts by the U.S. Navy Surface Warfare Center, Crane Division for Enhanced Combat Optical Sight – Optimized (ECOS-O) systems.
Leupold & Stevens' $42.8 million contract calls for the longtime supplier of military optics to provide Mark 6® 3-18x44mm riflescopes as the base for the next generation of integrated optical aiming systems for modern small arms. The Oregon-based manufacturer will also provide Mark 6 Integrated Mounting Systems (IMS®).
"This contract award reflects Leupold & Stevens' tremendous commitment to bringing cutting-edge technology to the U.S. military," said Kevin Trepa, Leupold & Stevens' vice president of global sales and business development. "Smaller, lighter, faster—and with more power—is now a reality."
The ECOS-O project integrates the Leupold® Mark 6® 3-18x44mm riflescope with the CQB-proven Aimpoint Micro T-1. With an overall length of less than 12 inches and weighing just 34.2 ounces, the ECOS-O system delivers an incredible field of view and rapid target acquisition at an unmatched length and weight. Adjustable diopter and variable 6X power magnification allows the operator to adapt the optic to any condition encountered in the field.
Aimpoint's $8.7 million contract for T-1 micro red dot sights and mounting brackets will go to the Navy Surface Warfare Center in Crane, Ind., where Crane armorers will integrate the system and deliver them to warfighters in the U.S. Army, Navy, Air Force and Marine Corps.
Built in Leupold's Beaverton, Ore, facility, the Mark 6 3-18x44mm riflescope is the latest in the company's proud military history. Leupold is a leading supplier of long-range optics to the U.S. military and has provided key riflescopes and spotting scopes for all branches since the 1980s.
Description:
Leupold Dual Aperture Gunsight Riflescope (DAGR) provides a solution for rapid target acquisition and engagement from CQB range to 1,000+ meters. Combining and fully integrating the durability and service record of the Leupold Mark 6 3-18x44 riflescope with the legendary durability of the Aimpoint Micro T-1 combat optic, the DAGR system stands ready to provide short- and long-range aiming solutions.
Featuring the Horus H59 ranging reticle, .1 mil adjustments, and a locking turret, the DAGR system's main tube also has only a 1.75" optical centerline difference from the Aimpoint T-1.
The DAGR system is fully integrated and includes the 3-18x44mm DAGR riflescope, Aimpoint Micro T-1 combat optic, Berry-compliant carrying case, operator's manuals and reference guide, and a battery.
The Leupold Mark 6 3-18x sets the standard for long range tactical rifle scopes. With the ultra-lightweight and compact body less than 12 inches, it is on average 20% lighter and shorted than other tactical scopes on the market. The robust 34mm nitrogen purged tube creates over 28 Mils of elevation adjustment with the M5B2 Auto-locking, Pinch and Turn 1/10 Mil turrets. The M5B2 elevation turret features a resettable double turn zero stop with a tactical revolution indicator detent that can be felt every 5 Mils of travel to help keep track of changes when dialing for long range. Superior light transmission, scratch resistance and crisp edge to edge clarity are three benefits that you will experience when DiamondCoat2 is coupled with the legendary Xtended Twilight Lens System. Other features of the Mark 6 include side focus, locking fast focus eye piece and powerful 6x zoom range. Covered by the Leupold Lifetime Warranty.
The Aimpoint Micro T1 Red Dot sight is engineered to provide the performance of a full size Aimpoint optic in the smallest package possible. It features a 2 MOA aiming dot, 13 brightness settings, integral Picatinny-style base for attachment to any compatible rail and parallax-free operation. Powered by a single CR2032 lithium battery, the Aimpoint Micro will work for up to 50,000 hours (over 5 years) before running out of power.
Technical Information
Tube Diameter: 34mm
Adjustment Click Value: 1/10 Mil
Adjustment Type: Click
Exposed Turrets: Yes
Finger Adjustable Turrets: Yes
Turrets Resettable to Zero: Yes
Zero Stop: Yes
Turret Height: High
Fast Focus Eyepiece: Yes
Lens Coating: Fully multi-coated XT Lens system with DaimondCoat2
Warranty: Full Lifetime
Rings Included: No
Sunshade Included: No
Sunshade Length: N/A
Lens Covers Included: Yes
Power Variability: Variable
Min power: 3x
Max power: 18x
Reticle Construction: Glass Etched
Holdover reticle: Yes
Reticle Focal Plane Location: 1st
Parallax Adjustment: Fixed
Finish: Matte
Water/Fogproof: Yes
Shockproof: Yes
Objective Bell Diameter: 53.34mm
Ocular Bell Diameter: 43.18mm
Eye Relief: 3.8"
Exit Pupil Diameter: 14.6-2.44mm
Weight: 36.8 oz.
Max Internal Adjustment:
- Windage: 15 Mil
- Elevation: 26 Mil
- 36.8' @ 3x
- 6.3' @ 18x
Dimensions, in inches unless otherwise stated :
A: 11.9
B: 5.9
C: 1.8
D: 2.5
E: 3.2
F: 2.7
G: 2.1
H: 1.7
| Magnification/Objective Diameter | 3-18x 44mm |
| Finish | Matte Black |
| Waterproof | Yes |
| Weight | 36.8 Ounce |
| Tube Diameter | 34mm |
| Minimum Power | 3 |
| Power Variability | Variable |
| Maximum Power | 18 |
| Adjustment Click Value | 1/10 MIL |
| Adjustment Type | Click |
| Exposed Turrets | Yes |
| Finger Adjustable Turrets | Yes |
| Turrets Resettable to Zero | Yes |
| Zero Stop | Yes |
| Turret Height | Medium |
| Fast Focus Eye Piece | Yes |
| Lens Coating | Diamond Coat 2 |
| Warranty | Leupold Gold Ring Full Lifetime |
| Rings Included | Yes |
| Sun Shade Included | No |
| Lens Covers Included | No |
| Reticle | H59 |
| Reticle Construction | Glass Etched |
| Illuminated Reticle | No |
| Reticle Focal Plane Location | 1st |
| Parallax Adjustment | Side Focus |
| Fog Proof | Yes |
| Shock Proof | Yes |
| Overall Length (A) | 11.9 Inches |
| Eyepiece Bell to Objective Bell Length (B) | 5.9 Inches |
| Objective Bell to Turret Length (C) | 1.8 Inches |
| Eyepiece Bell to Turret Length (D) | 2.5 Inches |
| Eyepiece Length (E) | 3.2 Inches |
| Objective Bell Length (F) | 2.7 Inches |
| Objective Diameter (G) | 2.1 Inches |
| Eyepiece Diameter (H) | 1.7 Inches |
| Objective Lens Diameter | 44 Millimeter |
| Eye Relief | 3.8 Inches |
| Exit Pupil Diameter | 14.5-2.44 Millimeter |
| Field of View @ 100 Yards Minimum Power | 36.8 Feet |
| Field of View @ 100 Yards Maximum Power | 6.3 Feet |
| Maximum Windage Adjustment | 15 MIL |
| Maximum Elevation Adjustment | 26 MIL |
