Since I haven’t found one that exists, how about a Lone Peak Arms Action thread to include experiences with the action?

A thread to share past, present, and future builds?



[SkyScrapin]

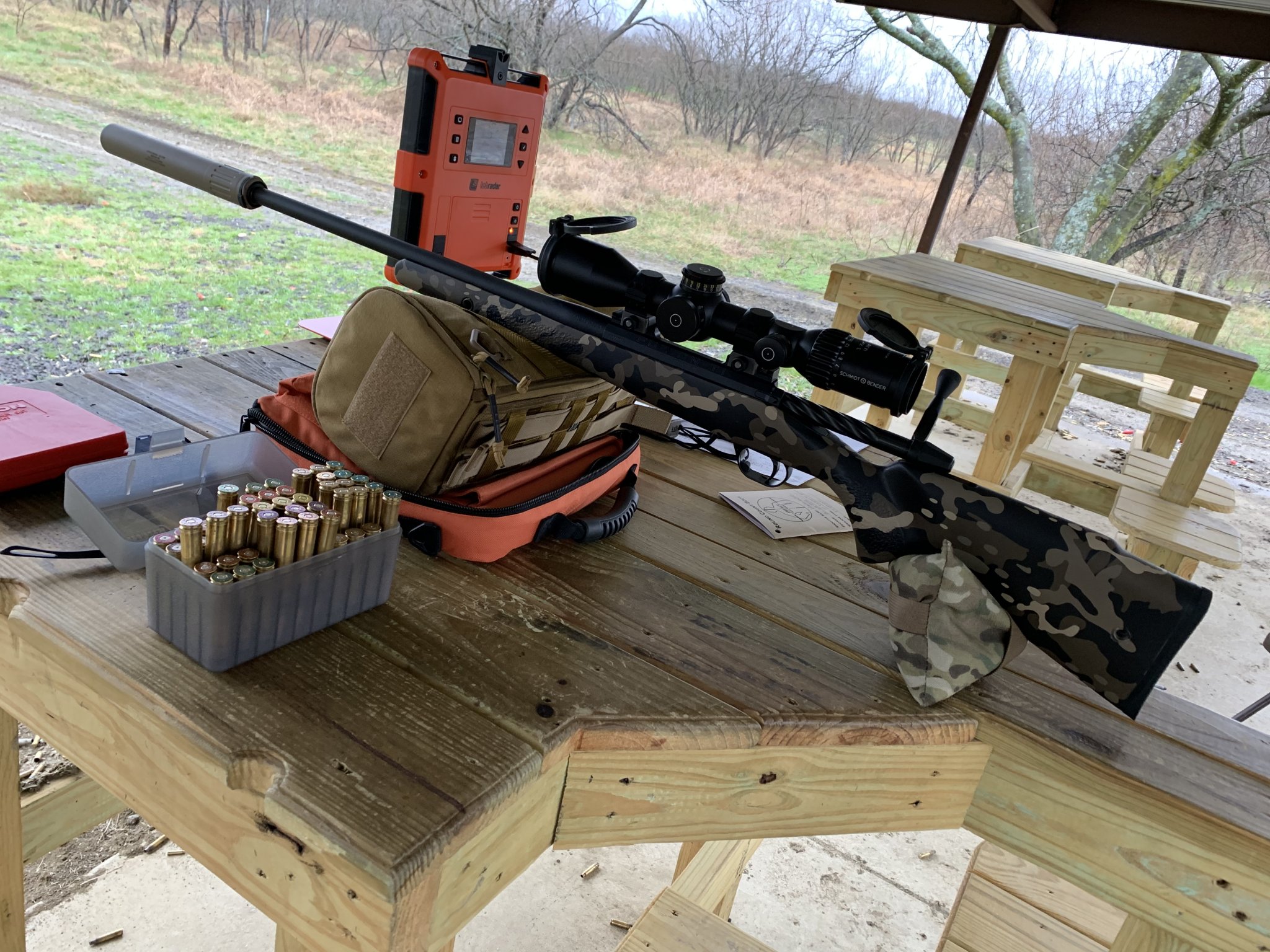

LP Fuzion Ti LA Magnum
Bartlein 10 Twist 300WM @ 19"
AAC Mk13-SD
CG Extreme Mod-22 @ 2.5lb
S&B US 3-20 H2CMR
NF UL 6 screw rings
Manners EH6
Ti BDL with Wiatt's guts

Chad Dixon did the work, but Kalli sexied it up.

She squirts 215g Hybrids at 2600fps with ease... I'm think I'll mess with 175g, 185g, and 200g projos as well.



[charnicus]

View attachment 7097872

Badass looking rifle!



[RTH1800]

I have a Ti Fuzion in .223 AI. It is now in a Manors but will go in an AG Composites stock that is to ship Friday.
Barrel is a Proof CF 7 twist. I am getting 3050 out of an 80 Grain Amax. N540 and Lapua case. CCI 400. 70 degrees.



[RTH1800]

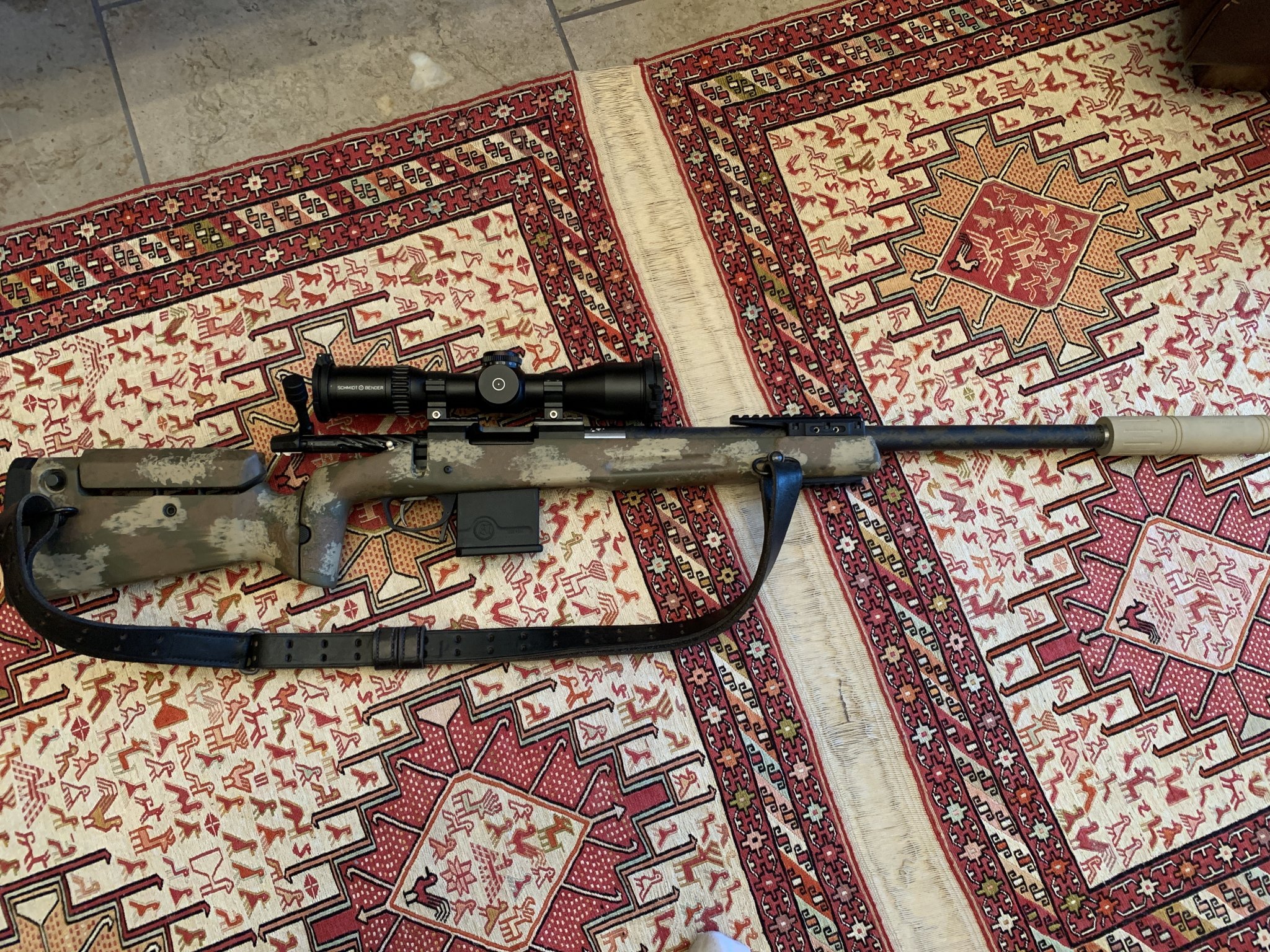

This is the .223 AI. Barrel fitted by LRI. Accuracy is sub 1/2 MOA for 10 shot groups at 100 m. Some as low as .27”



[Moose]

Ti Fusion is a very nice action.TS Customs put a 223AI together for me in a game scout stock and BM barrel and I just love it.



[charnicus]

This is the .223 AI. Barrel fitted by LRI. Accuracy is sub 1/2 MOA for 10 shot groups at 100 m. Some as low as .27”View attachment 7097882

Solid looking rig. Is your action cut for AW?



[Moose]

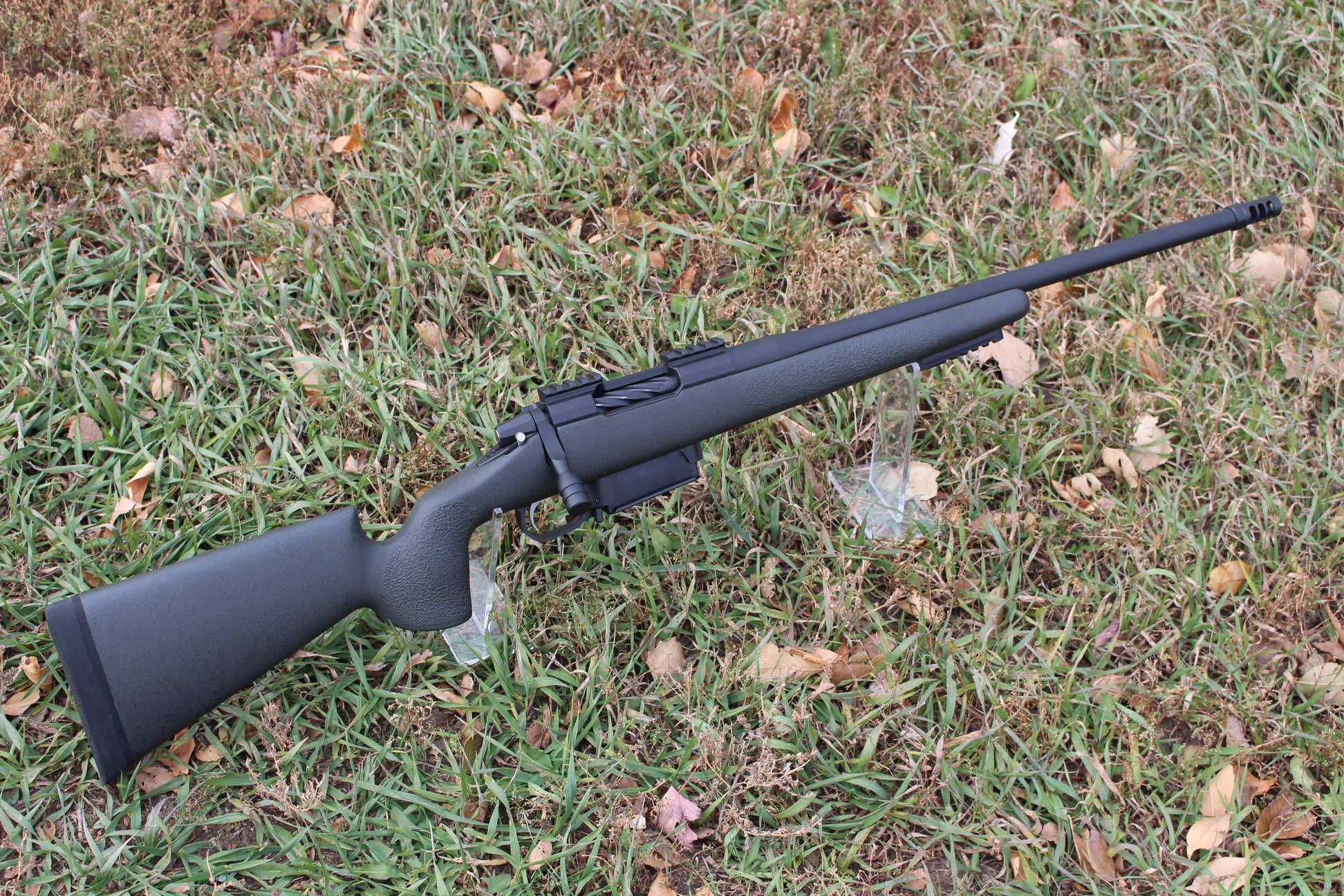

This is the rifle before I put the TT315M scope on it.



[RTH1800]

Solid looking rig. Is your action cut for AW?

I really don't know. It was coated at the factory and will go in a light stock so I did not request anything special. It is far heavier in the heavy Manors that I had hoped for. The AG stock will take off literally a few pounds.



[kthomas]

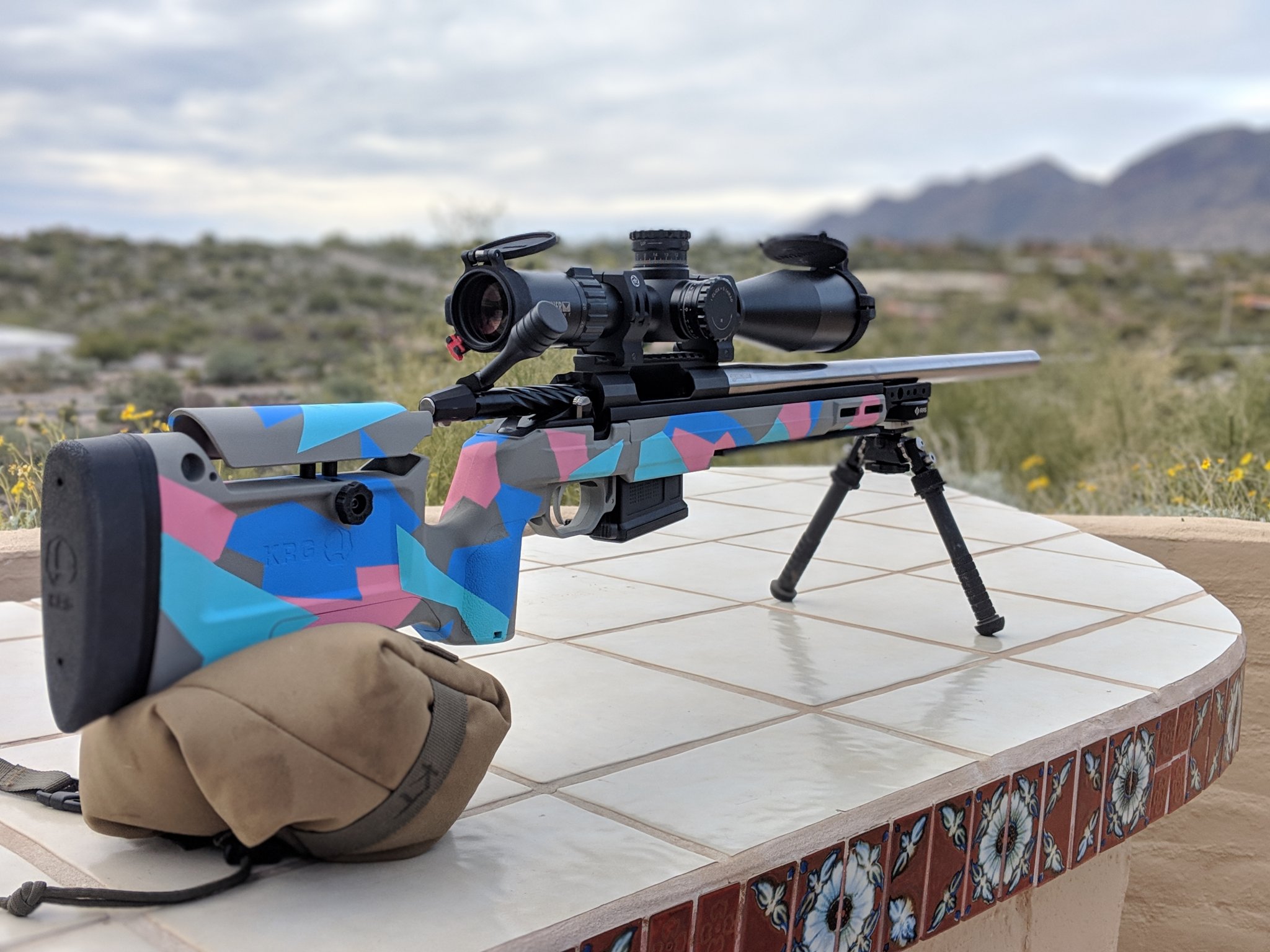

Built a 6BRA rifle for my wife on a Lone Peak Fuzion action. It's a pretty badass push feed action. She only has about ~120 rounds down it so far, but it's breaking in nicely.

The action seems to "snap" open and close, when you run it with a little bit of steam. Runs great dirty or clean. If I was in the market for a push feed action, I'd seriously consider another Lone Peak Fuzion.



[charnicus]

I really don't know. It was coated at the factory and will go in a light stock so I did not request anything special. It is far heavier in the heavy Manors that I had hoped for. The AG stock will take off literally a few pounds.

I was checking out those AG stocks after you mentioned them. They look really sweet.



[charnicus]

Built a 6BRA rifle for my wife on a Lone Peak Fuzion action. It's a pretty badass push feed action. She only has about ~120 rounds down it so far, but it's breaking in nicely.

The action seems to "snap" open and close, when you run it with a little bit of steam. Runs great dirty or clean. If I was in the market for a push feed action, I'd seriously consider another Lone Peak Fuzion.

View attachment 7097897

Love the pattern! I got a Lone Peak on order right now and I’m happy to hear about the feel on open and close. It’s one of my favorite features about the Curtis actions.



[charnicus]

This is the rifle before I put the TT315M scope on it.

Badass. How you liking the TT?



[uncle_smokey]

No pics, as I am in the middle of a move right now, but I run a titanium Razor. It sits in a Manners EH2 with a Proof CF barrel chambered in 300WM. TS Customs built this one as well. Hawkins Precision BDL, Hybrid Rings and 3 Port Brake. Topped with a TT315M, the thing hammers with factory Nosler ammo. It’s been a while since I weighed it, but it’s right around 8.5# loaded with sling.



[RTH1800]

The AG folks are very nice to work with as well. Will post up stock when it arrives.



[kthomas]

Love the pattern! I got a Lone Peak on order right now and I’m happy to hear about the feel on open and close. It’s one of my favorite features about the Curtis actions.

Thanks! The wife certainly loves the colors and patterns I came up with her rifle.

You are going to really like the LP Fuzion, it's a great action.



[Moose]

Badass. How you liking the TT?

The TT315m Is one of my favorite scopes, the only issue is the stiff mag ring.Other then that I just love it.



[charnicus]

The TT315m Is one of my favorite scopes, the only issue is the stiff mag ring.Other then that I just love it.

Gotta be the best looking scopes on the market.



[XLR]

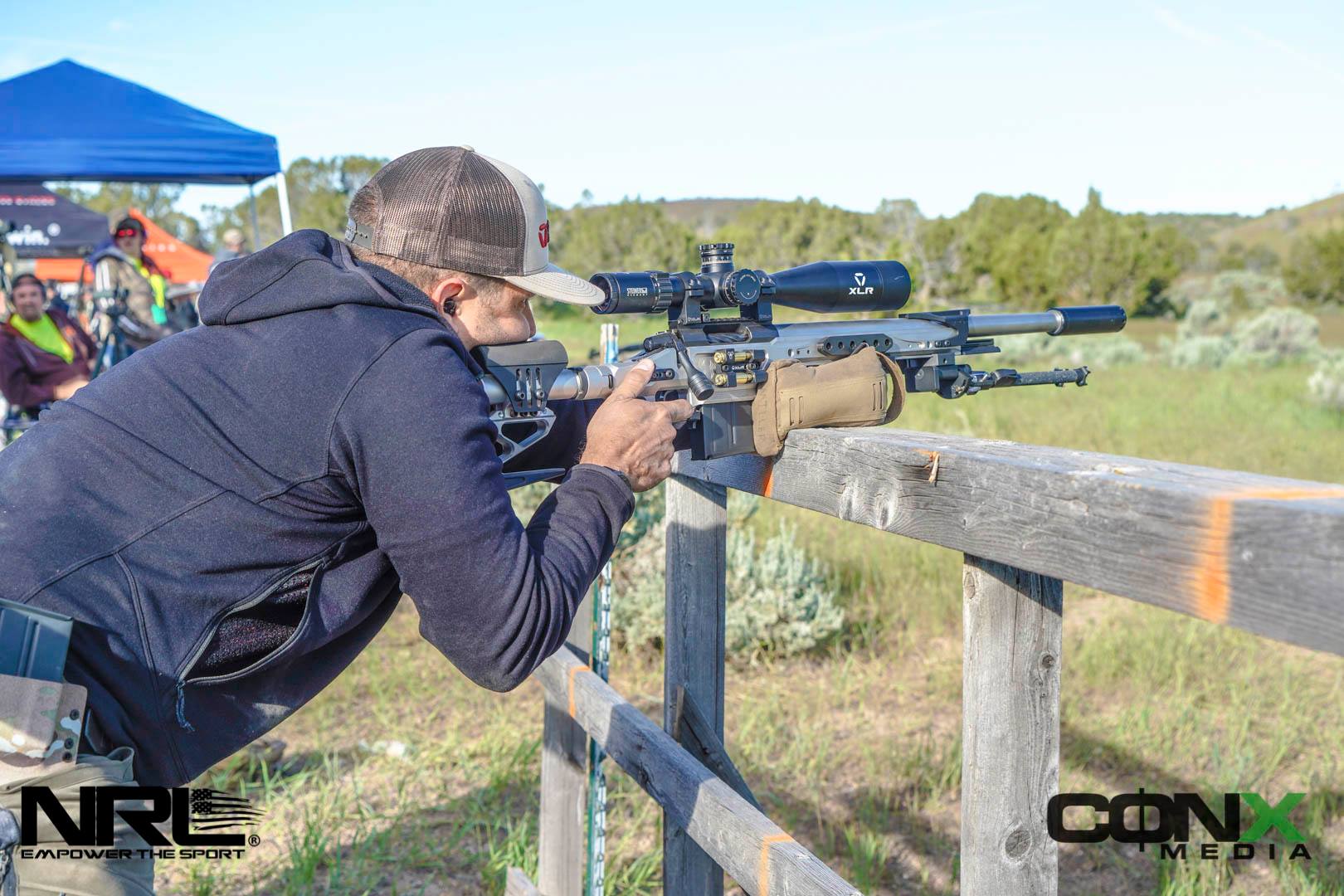

Lone Peak builds excellent actions. Lots of us in the NRL are running them. Mike and Brian are top notch guys as well. I highly recommend them.



[charnicus]

Lone Peak builds excellent actions. Lots of us in the NRL are running them. Mike and Brian are top notch guys as well. I highly recommend them.

View attachment 7097979

That setup brings a little “envy”.



[charnicus]

Does the Lone Peak action have an integral means to stop a magazine from traveling to far into the action?



[XLR]

Does the Lone Peak action have an integral means to stop a magazine from traveling to far into the action?

All Remington style rifles that use an AICS style magazine system reference off the front of the magazine and the receiver. The back, however, floats and is generally stopped by the bolt/feed lips. This is why you get bolt drag on your magazine when you put pressure on the bottom of the magazine. You can get by with minimal drag by running a tighter magazine tolerance but then not all mags will fit the mag well. It is a delicate balance. I suppose someone could build an adjustable stop of some sort but my initial thought is that it would not be practical given the wide variety of magazines out there of which none of them have any published specification/tolerance. There is also minimal room in there for such a stop. Again, just my initial thoughts.

-Kyle ~ XLR



[CStroud]

Lone Peak builds excellent actions. Lots of us in the NRL are running them. Mike and Brian are top notch guys as well. I highly recommend them.

View attachment 7097979

What's the barrel contour and length on that rifle?



[CStroud]

Any significant differences between the Razor and Fuzion actions (non ti) ? Seems you see more Fuzions than Razors.



[charnicus]

All Remington style rifles that use an AICS style magazine system reference off the front of the magazine and the receiver. The back, however, floats and is generally stopped by the bolt/feed lips. This is why you get bolt drag on your magazine when you put pressure on the bottom of the magazine. You can get by with minimal drag by running a tighter magazine tolerance but then not all mags will fit the mag well. It is a delicate balance. I suppose someone could build an adjustable stop of some sort but my initial thought is that it would not be practical given the wide variety of magazines out there of which none of them have any published specification/tolerance. There is also minimal room in there for such a stop. Again, just my initial thoughts.

-Kyle ~ XLR

With there being a reference point at the front of the receiver puts my mind at ease. I have personal experience with a different manufacturer’s action, also cut for AW, where there was no reference at the receiver’s front. An AICS magazine could travel almost all the way to the top causing a 100% bolt stop with any pressure at all.



[Steel head]

What's the barrel contour and length on that rifle?

Chunky isn’t it.
I’m guessing proof competition.



[XLR]

Any significant differences between the Razor and Fuzion actions (non ti) ? Seems you see more Fuzions than Razors.

The Fuzion is a multi-flat receiver with built-in lug and scope base whereas the Razor is a round action with integrated lug with bolt on scope base. Both bolt into a 700 style stock/chassis. Most of us like the scope base being made into the receiver because it is one more thing not to come loose.



[XLR]

What's the barrel contour and length on that rifle?

It is a 22" Barlein Heavy Varmint contour



[RTH1800]

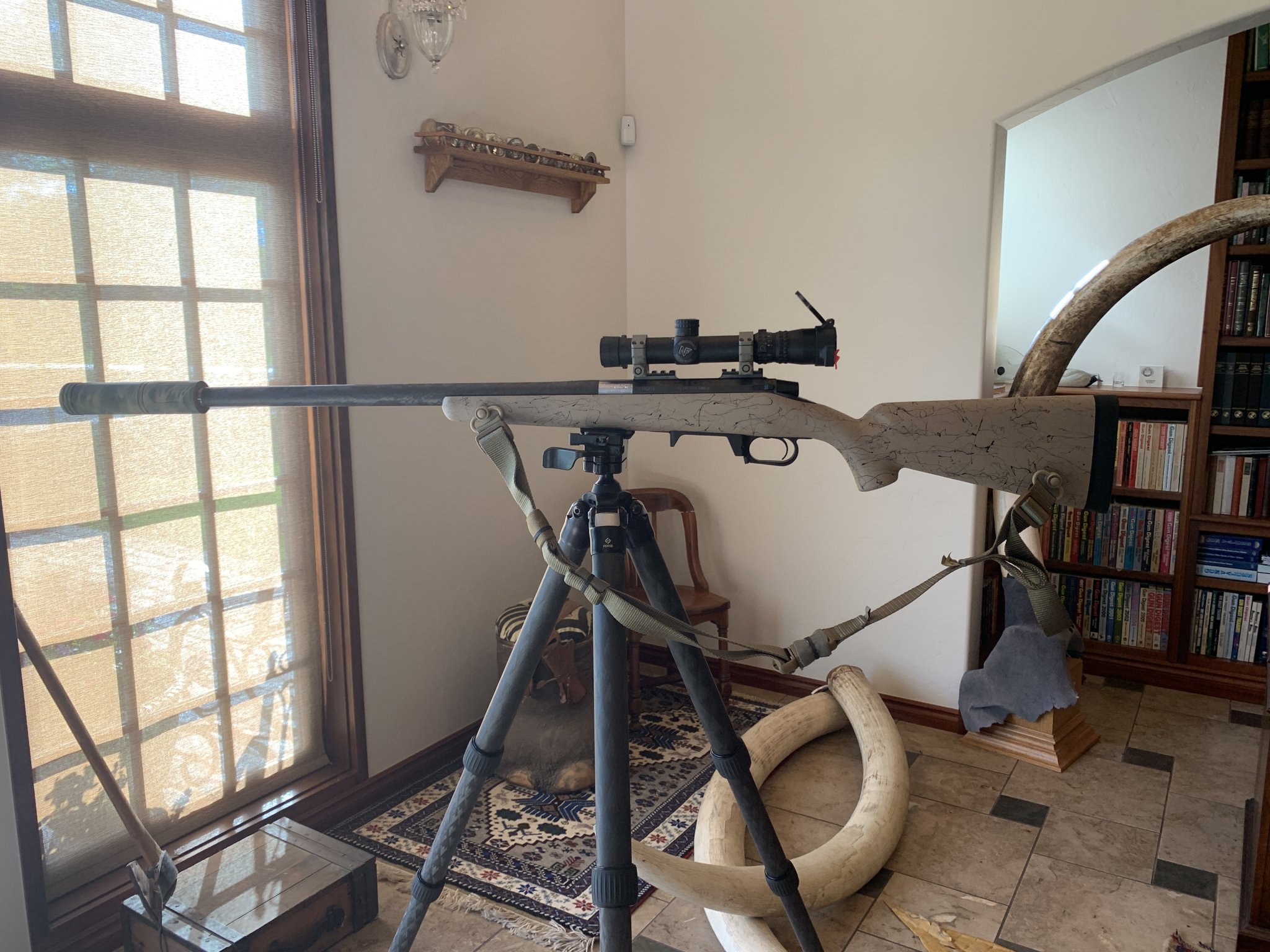

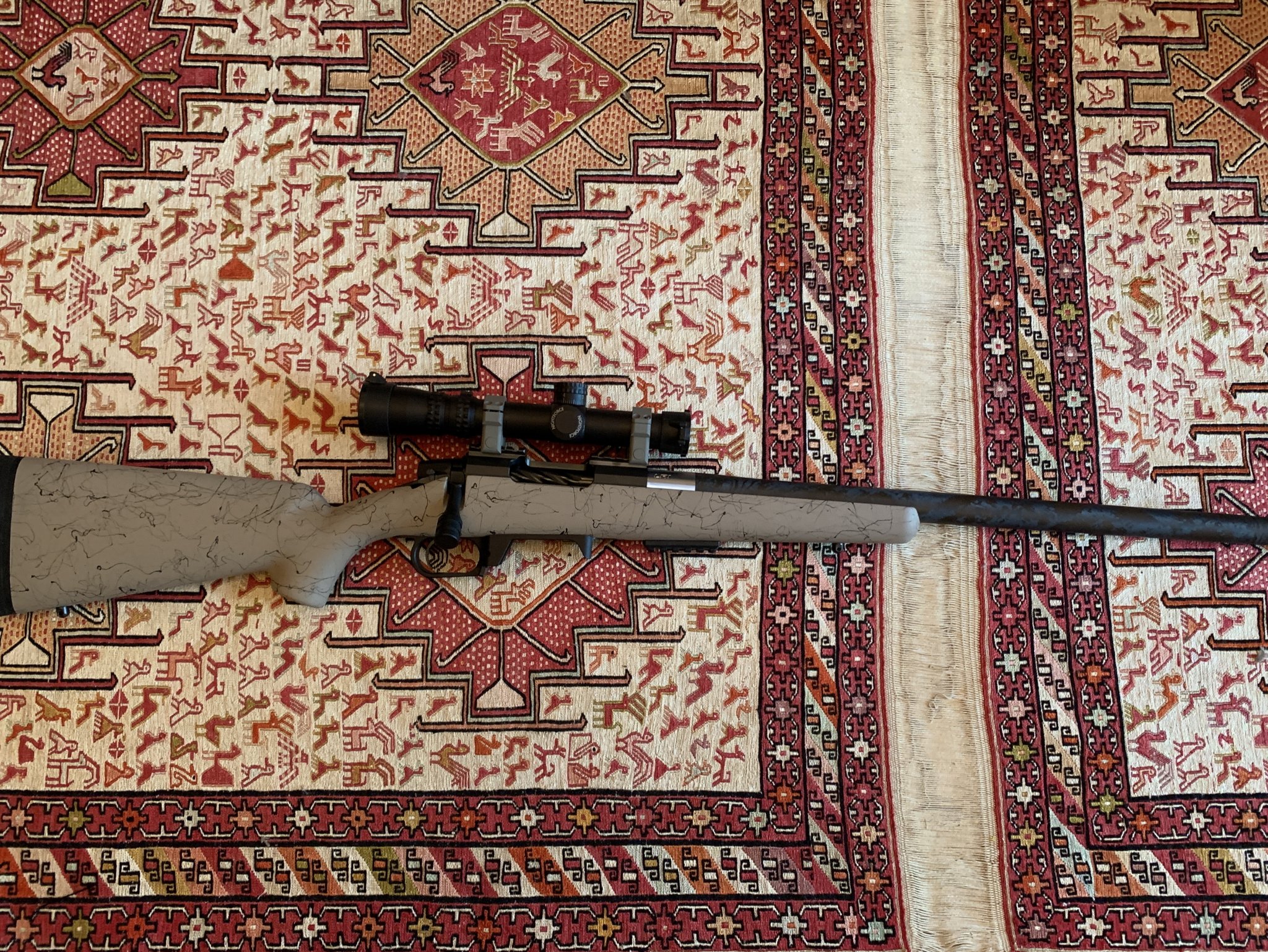

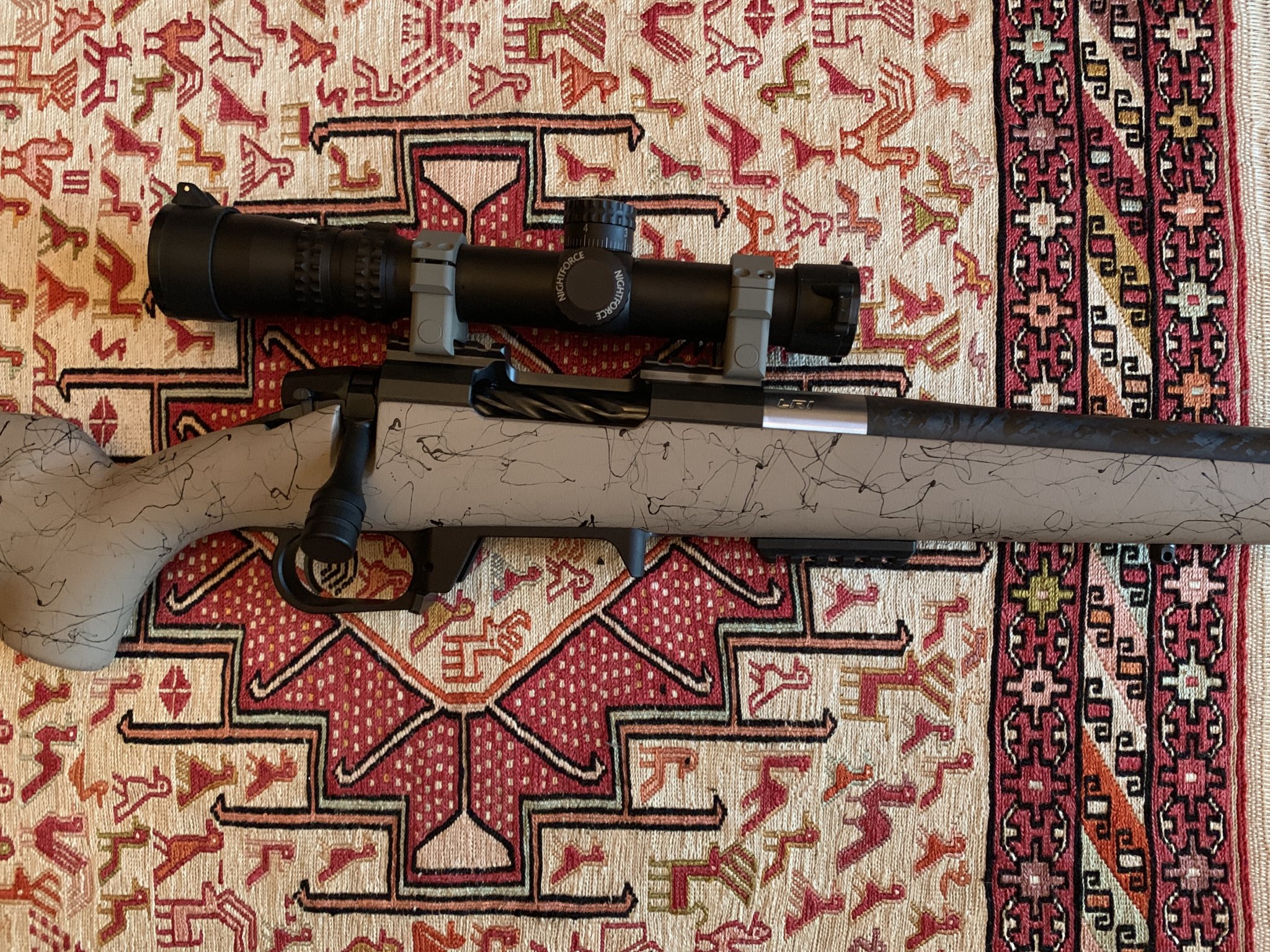

This is the Lone Peak Arms that LRI fitted and chambered the 7 twist Proof CF barrel for. It’s in an AG Composites CF stock.



[RTH1800]

The rifle hit 10 consective .25" dots at 100 yards on first attempt.
It has 320 rounds fired so far.
Shooting 80 grain A Max at 3050 fps. Max load of N540, Lapua case.



[ormandj]

The rifle hit 10 consective .25" dots at 100 yards on first attempt.
It has 320 rounds fired so far.
Shooting 80 grain A Max at 3050 fps. Max load of N540, Lapua case.

Your rifle looks wonderful. Sounds like a shooter too. What contour/length barrel, and what's the rifle weight? Also, what inlet cut on the stock and what bottom metal? Thanks!



[charnicus]

The rifle hit 10 consective .25" dots at 100 yards on first attempt.
It has 320 rounds fired so far.
Shooting 80 grain A Max at 3050 fps. Max load of N540, Lapua case.

Very nice rifle!



[RTH1800]

Your rifle looks wonderful. Sounds like a shooter too. What contour/length barrel, and what's the rifle weight? Also, what inlet cut on the stock and what bottom metal? Thanks!

It is the Proof Sendero contour. Larger than the Rem Sendero.
Barrel is approx 22”.
Weight without suppressor is 8#7 oz. That includes scope and sling.

Thanks for the compliments.



[ormandj]

It is the Proof Sendero contour. Larger than the Rem Sendero.
Barrel is approx 22”.
Weight without suppressor is 8#7 oz. That includes scope and sling.

Thanks for the compliments.

That's great, thank you so much! I've got a MPA chassis setup now, but I think I want to try a more traditional stock and drop a lot of weight. Having a lightweight rifle to go with the boat anchor would be quite nice.



[charnicus]

It is the Proof Sendero contour. Larger than the Rem Sendero.
Barrel is approx 22”.
Weight without suppressor is 8#7 oz. That includes scope and sling.

Thanks for the compliments.

Sounds perfect for packing up the hill.



[CStroud]

Does anyone know if Lone Peak will sell you a replacement bolt (for caliber swaps) like Impact will? I did not see them listed on their website. Also, I thought I read somewhere that pre fits are available through some smiths, can anyone confirm that? Thanks



[Moose]

Your best bet would be to call them and ask, they are good people.



[CStroud]

Your best bet would be to call them and ask, they are good people.

I did send them an email, just thought I'd ask here as well.



[kthomas]

Does anyone know if Lone Peak will sell you a replacement bolt (for caliber swaps) like Impact will? I did not see them listed on their website. Also, I thought I read somewhere that pre fits are available through some smiths, can anyone confirm that? Thanks

I would contact TS Customs - they spin up a lot of barrels for Lone Peak Fuzions. They would be able to spin you up a barrel without seeing your action, and their turnaround times are quick.



[jojotheclown]

LP Fuzion Ti LA Magnum
Bartlein 10 Twist 300WM @ 19"
AAC Mk13-SD
CG Extreme Mod-22 @ 2.5lb
S&B US 3-20 H2CMR
NF UL 6 screw rings
Manners EH6
Ti BDL with Wiatt's guts

Chad Dixon did the work, but Kalli sexied it up.

She squirts 215g Hybrids at 2600fps with ease... I'm think I'll mess with 175g, 185g, and 200g projos as well.


View attachment 7097872



[B-P-UU]

Does anyone know if Lone Peak will sell you a replacement bolt (for caliber swaps) like Impact will? I did not see them listed on their website. Also, I thought I read somewhere that pre fits are available through some smiths, can anyone confirm that? Thanks

Yes, bolts are available from LP.

Yes, prefits are available.. TS Customs can get you whatever you need.



[charnicus]

Yes, bolts are available from LP.

Yes, prefits are available.. TS Customs can get you whatever you need.

This is good to know.



[kthomas]

This is good to know.

TS Customs is my preferred gunsmith these days. He's built me some absolute "hammers" (as the cool kids would say).

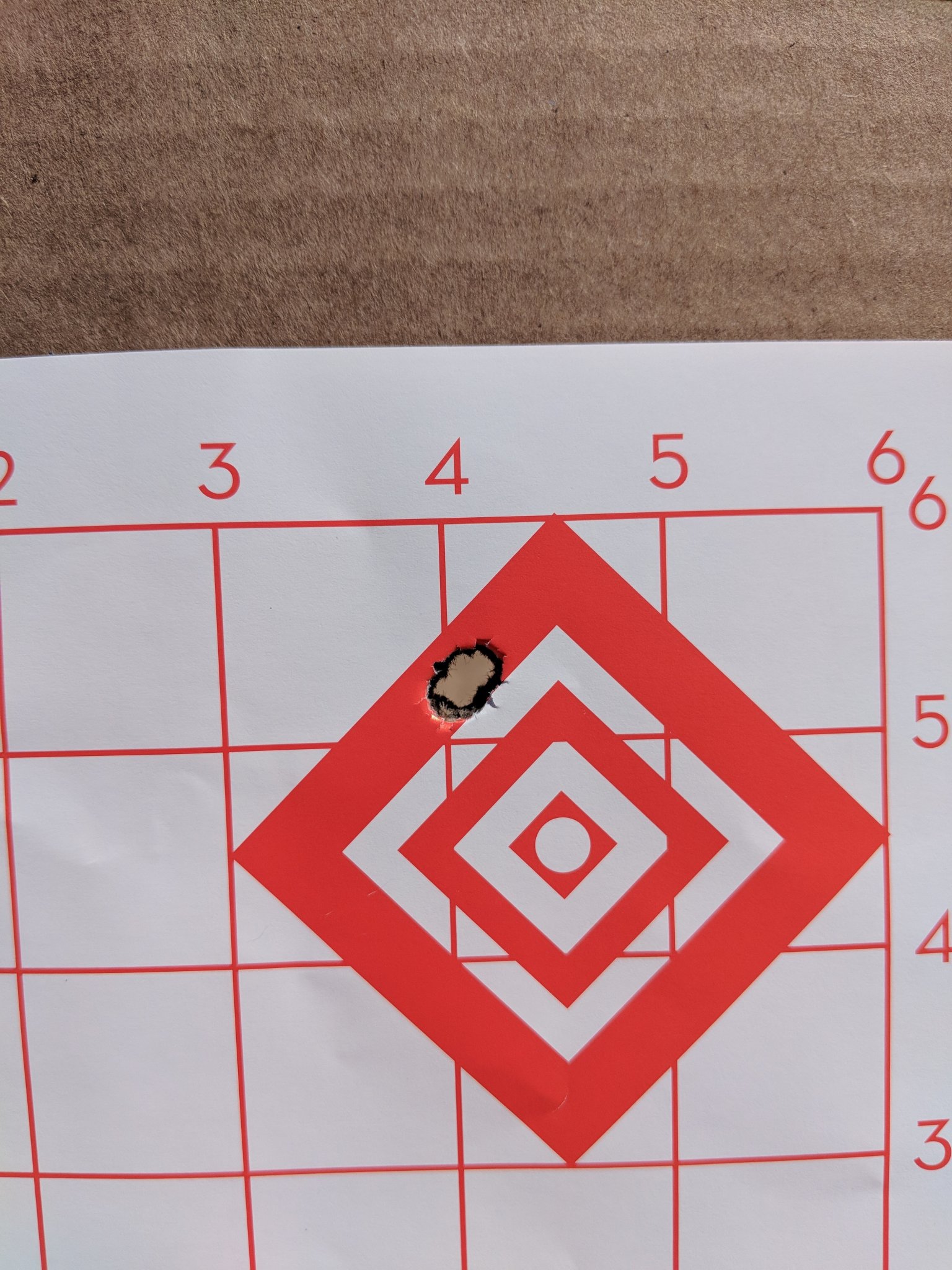

Here's 5 shots at 100 yards with one of his barrels:



[charnicus]

TS Customs is my preferred gunsmith these days. He's built me some absolute "hammers" (as the cool kids would say).

Here's 5 shots at 100 yards with one of his barrels:

View attachment 7106111

That’s an impressive group. Maybe shoulda waited before I direct shipped a barrel to PVA. They don’t do prefits for the Lone Peak so I gotta send it in... But after I smoke it or buy another Lone Peak... haha



[B-P-UU]

I have 2 Fuzions and really like them. I came from a bighorn and the difference is noticable. BH is a great action and really like the TL3 for hunting rigs, but found them gumming up over the course of a day or 2 day match.

Bolt lift and ergos are great on the LP, they handle dust, dirt, rain, and cold really well. Run well from -30F to 90F.

As others have stated, they break in really nice. No complaints here. I'm trying to talk myself out of a Nitrided Ti Fuzion, for a light/compact .223 AI, but not sure I'll be able to.

As to the question about Fuzion vs. Razor, they "feel" the same.. all differences are external geometry (integrated rail, slabbed sides, etc.)



[CStroud]

Yes, bolts are available from LP.

Yes, prefits are available.. TS Customs can get you whatever you need.

Lone peak emailed me back yesterday evening and confirmed they do have bolts for sale. Thanks for the info. Heard a lot of good things about TS customs.



[Wstexhunter]

Since I haven’t found one that exists, how about a Lone Peak Arms Action thread to include experiences with the action?

A thread to share past, present, and future builds?

I own a 7saum built on a Razor Ti, been impressed with action so far.



[charnicus]

I own a 7saum built on a Razor Ti, been impressed with action so far.

Just picked up my Fuzion today. Holy shit was that a good decision. Little bummed out that there was what looks to be a tool skip in the magwell and the bolt catch pin hole is a little peened. The pros way outshine those small flaws. Couldn’t be happier with yet another dealing with @CSTactical. Such great dudes who love what they do, use the products they sell, love talking equipment and about the sport in general.



[CSTactical]

@charnicus please let me know if we can further assist you on anything



[CStroud]

@charnicus please let me know if we can further assist you on anything

Any sa mag bolt faces in stock?
