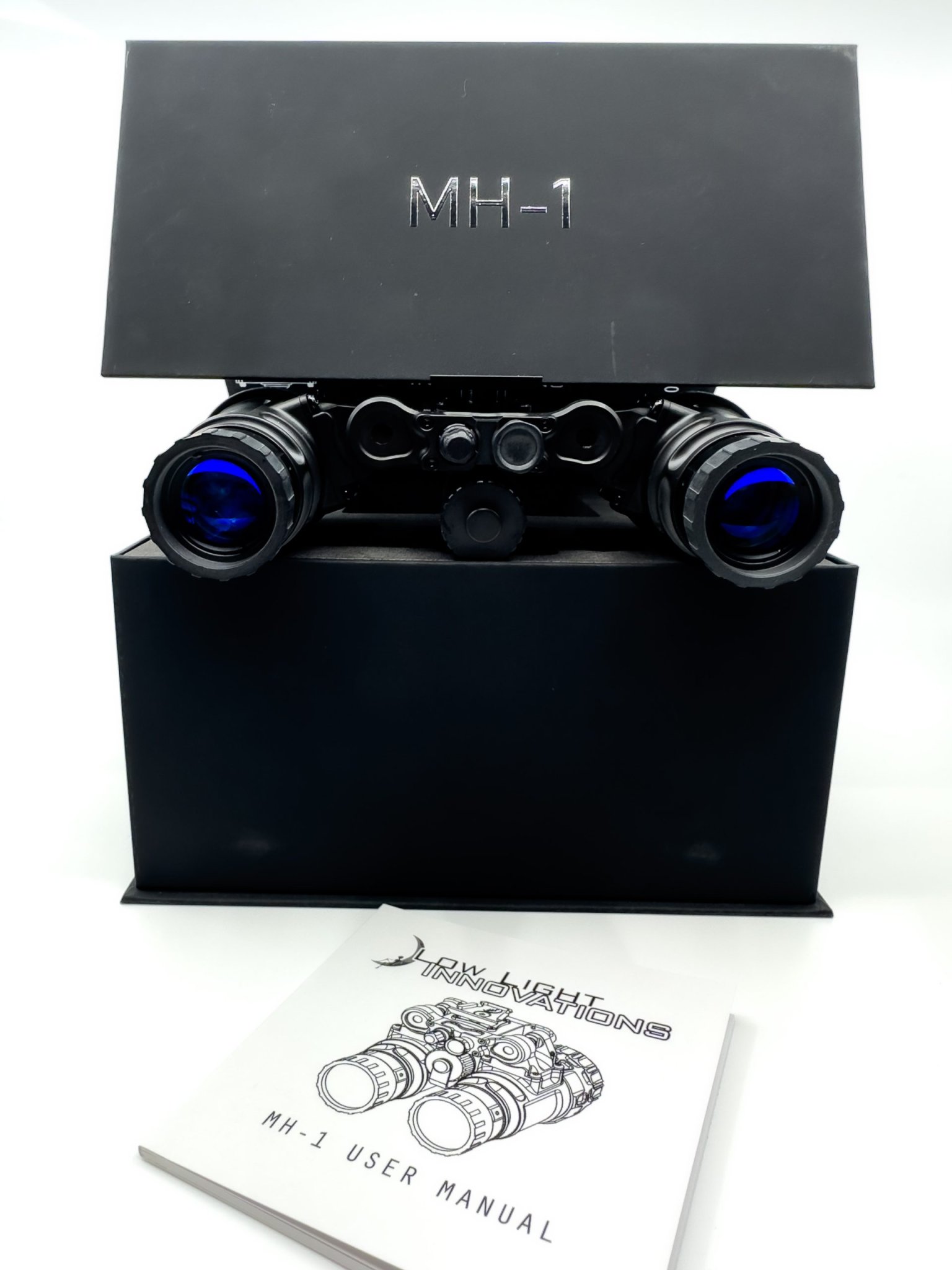

Low Light Innovations MH-1 Magnesium Articulating Housing with Manual Gain and Dual IR illuminators is now available! The MH-1 housing has an impressive weight of only 144 grams (including tube lock rings) and lifetime warranty.

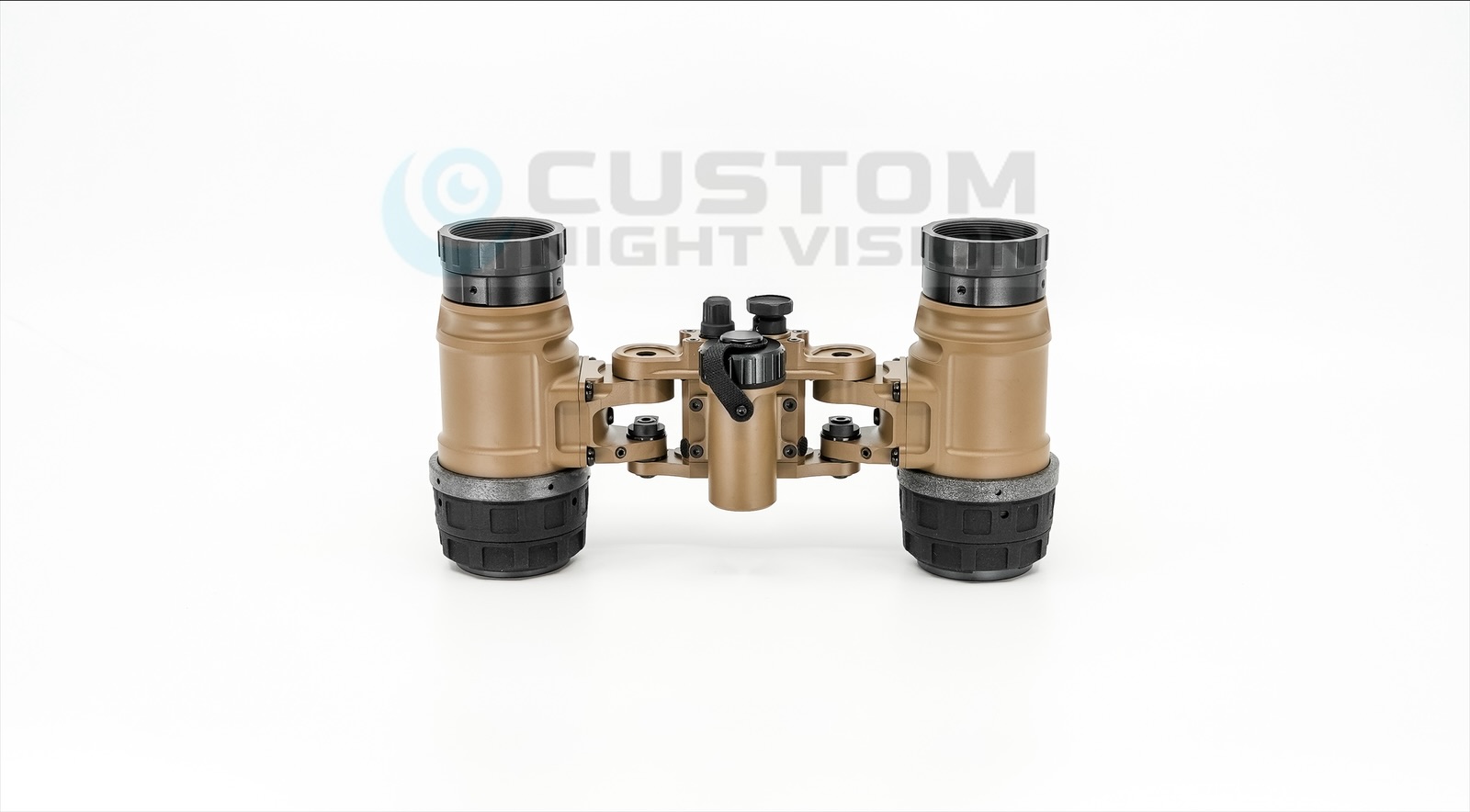

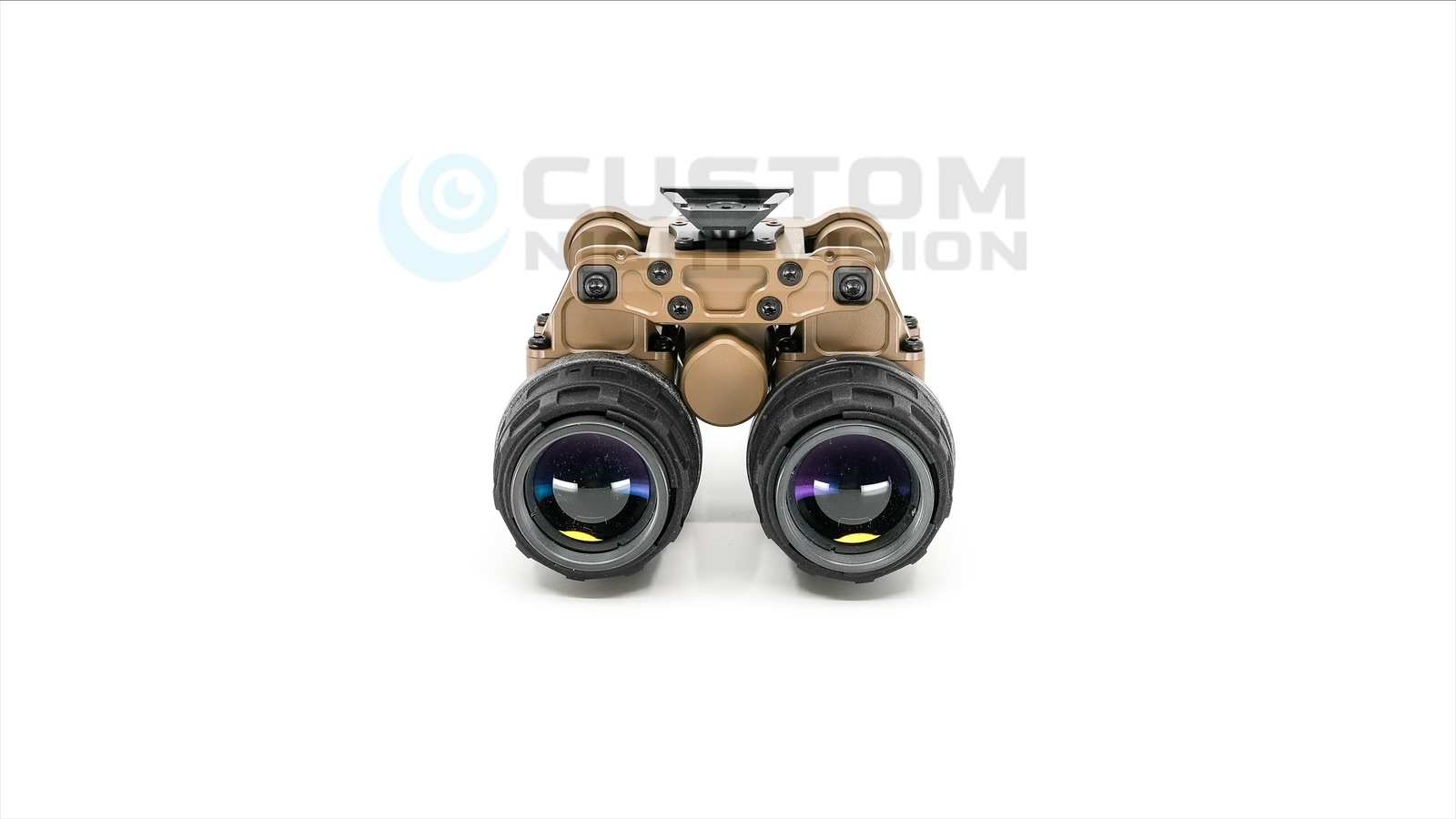

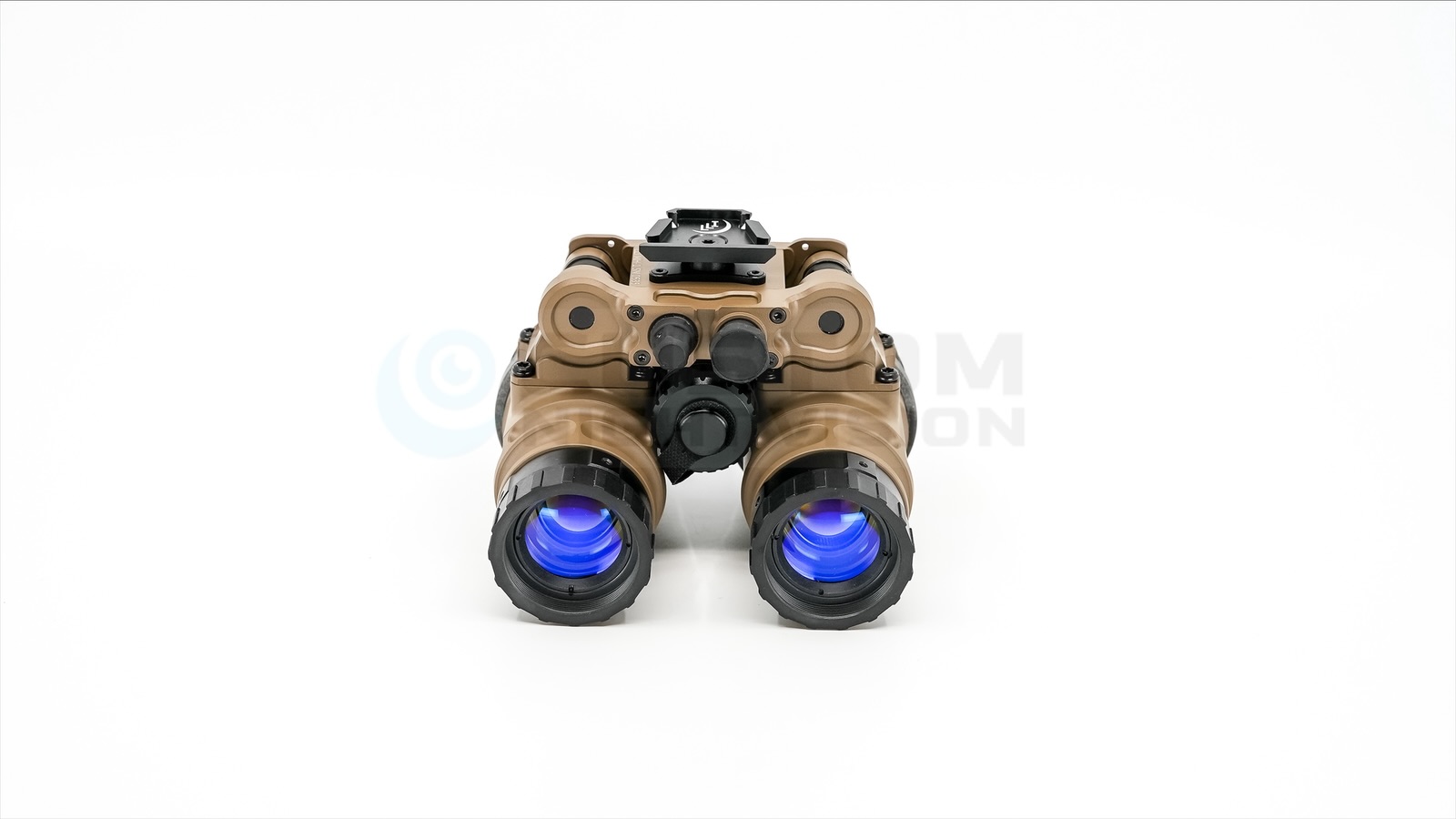

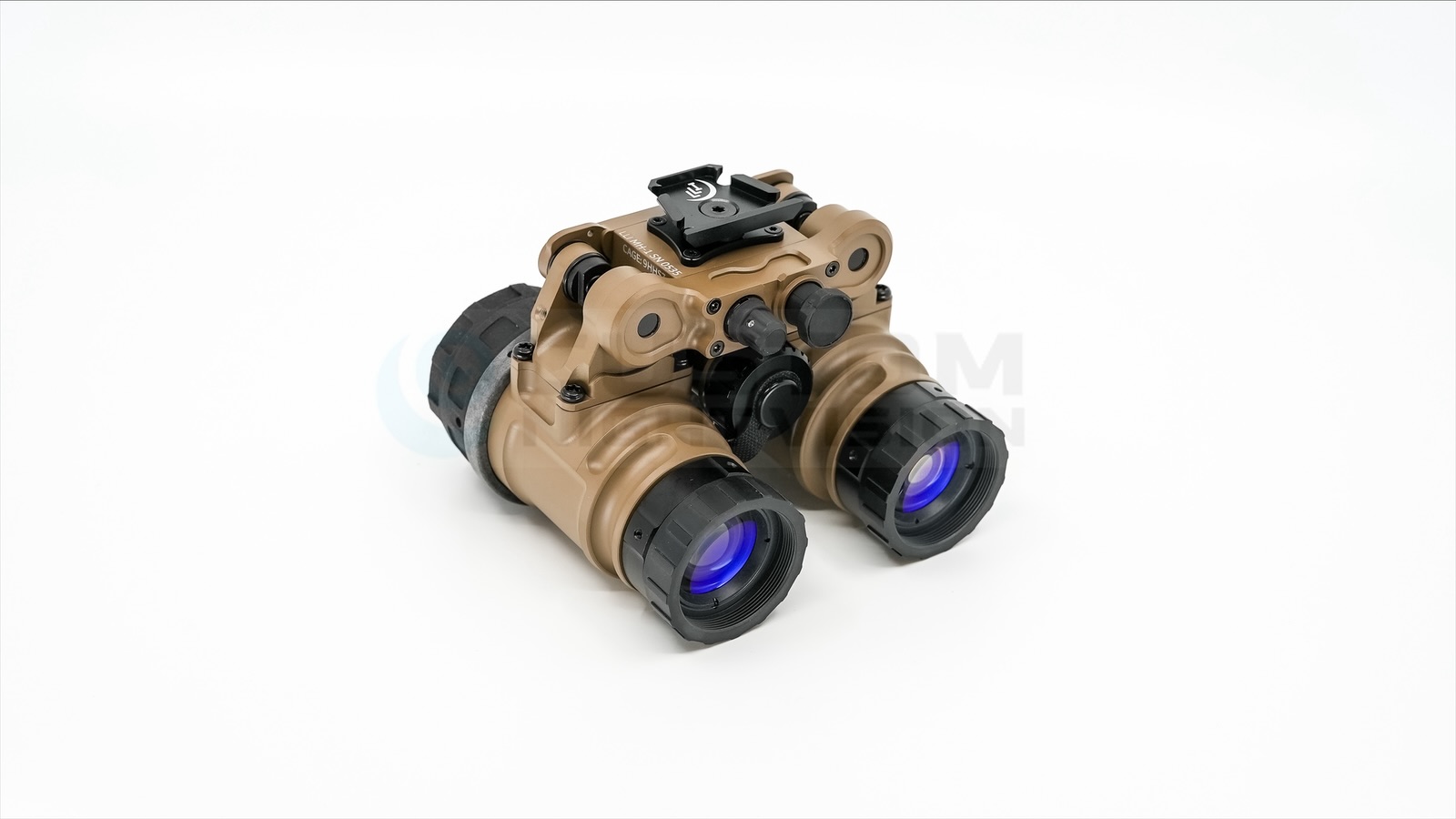

The Low Light Innovation MH-1 Night Vision Goggles are crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.9 ounces with lightweight optics. The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more. Its modularity extends to the ability to split the device into two monoculars using the upcoming Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain night vision feature, which can be achieved via direct plug-in without any soldering, ensuring your tube’s warranty remains intact.
FEATURE LIST:
We offer the MH-1 with the following Intensifier Tube options:
Photonis Echo White Phosphor
Elbit White Phosphor
L3Harris 20UA Filmless White Phosphor – Aviation
L3Harris Supergain Filmless White Phosphor
Housing Swap / Housing Only
We offer three choices of Optics for on every build:
1) Standard Mil Spec
2) Rochester Precision Optics (RPO) 3.0 Ultralight
3) Photonis Defense Boomslang 50 Degree FOV
The Low Light Innovation MH-1 Night Vision Goggles are crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.9 ounces with lightweight optics. The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more. Its modularity extends to the ability to split the device into two monoculars using the upcoming Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain night vision feature, which can be achieved via direct plug-in without any soldering, ensuring your tube’s warranty remains intact.
FEATURE LIST:
- Rotational pod shutoff
- Manual gain control (4 pin plug-in)
- Dual power IR illumination
- IPD stops

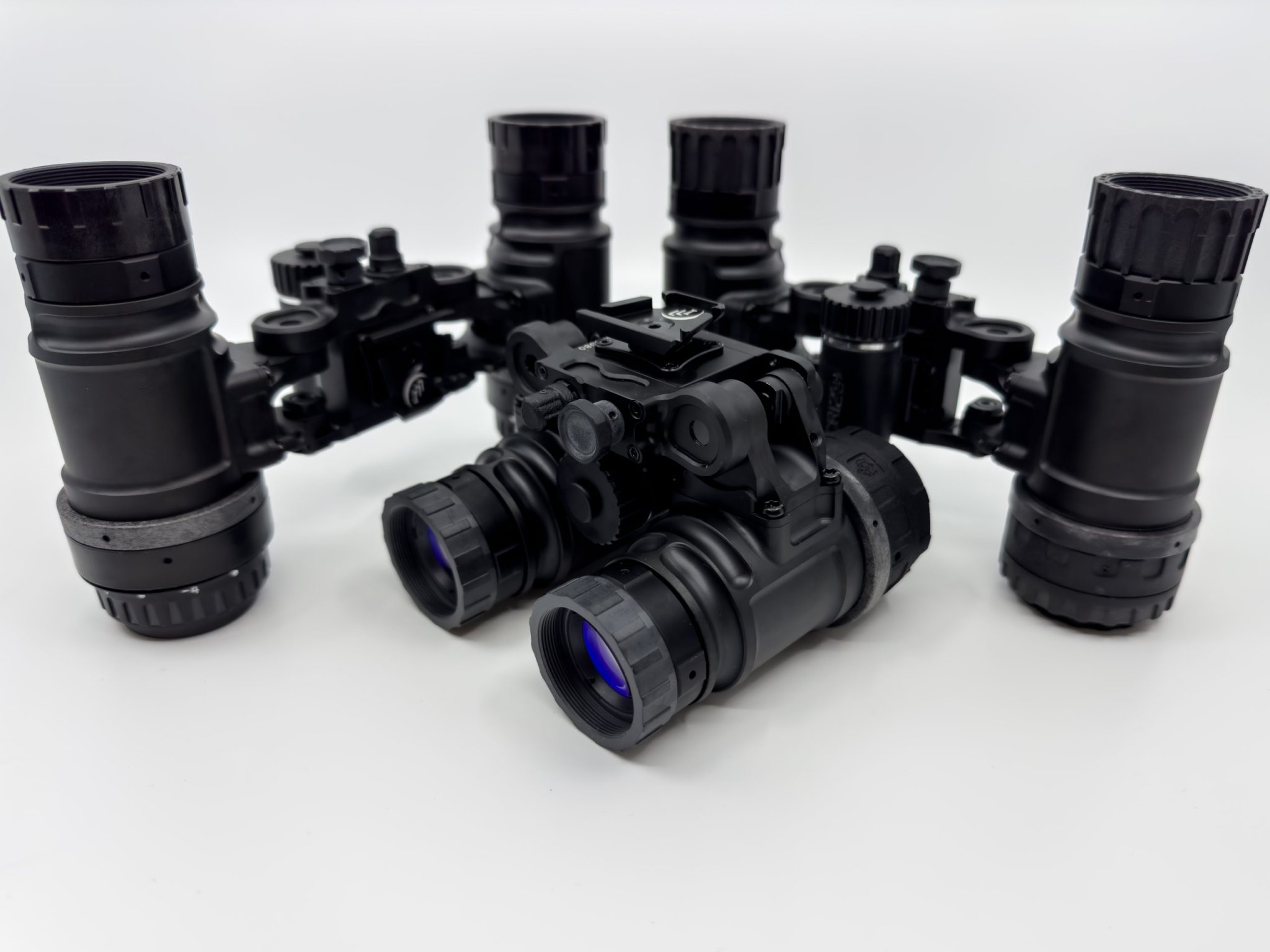

- Modular pods (Ability to split into monos)
- Onboard power (Modular)
- External power (Modular
- Modular mounting platforms (Dovetail/Ball detent)
- Adjustable pod tension
- POWER SOURCE: MODULAR
- FOCUS RANGE: 9.8” TO INFINITY
- OPERATION TIME: APPROXIMATELY 25-90 HOURS
- MAGNIFICATION: (1X) ONE POWER
- FIELD OF VIEW: 40 DEGREES
- INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
- DIOPTER ADJUSTMENT: -6 TO +2
- EYE RELIEF: 25MM
- WEIGHT: 460g
- WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
- INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
We offer the MH-1 with the following Intensifier Tube options:
We offer three choices of Optics for on every build:
1) Standard Mil Spec
2) Rochester Precision Optics (RPO) 3.0 Ultralight
3) Photonis Defense Boomslang 50 Degree FOV
