Gunsmithing M14 x 1 LH AK muzzle brake stuff...

[LRI]

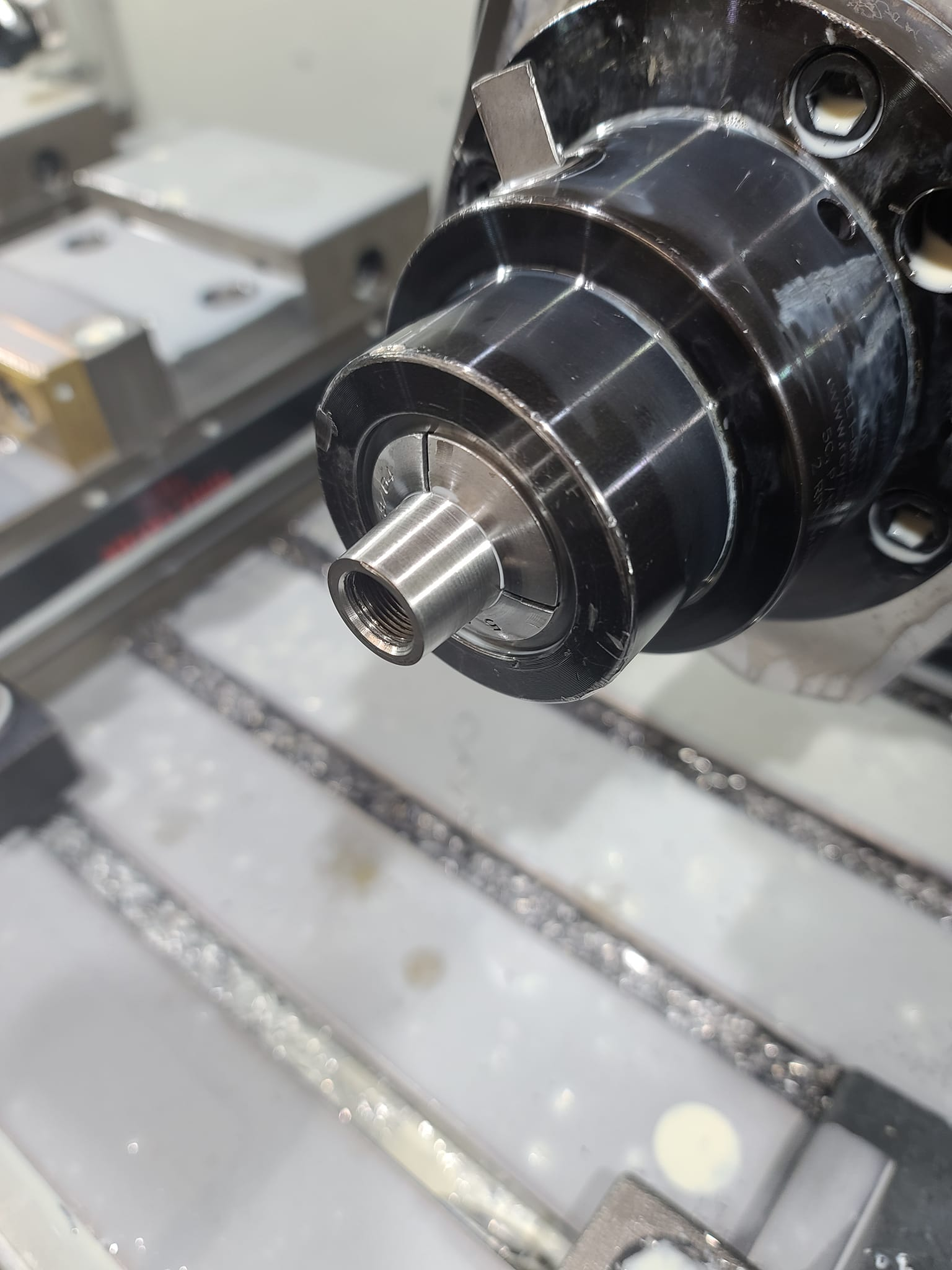

Far quicker for me to ID bore and thread mill than tear a lathe down for LH threading.

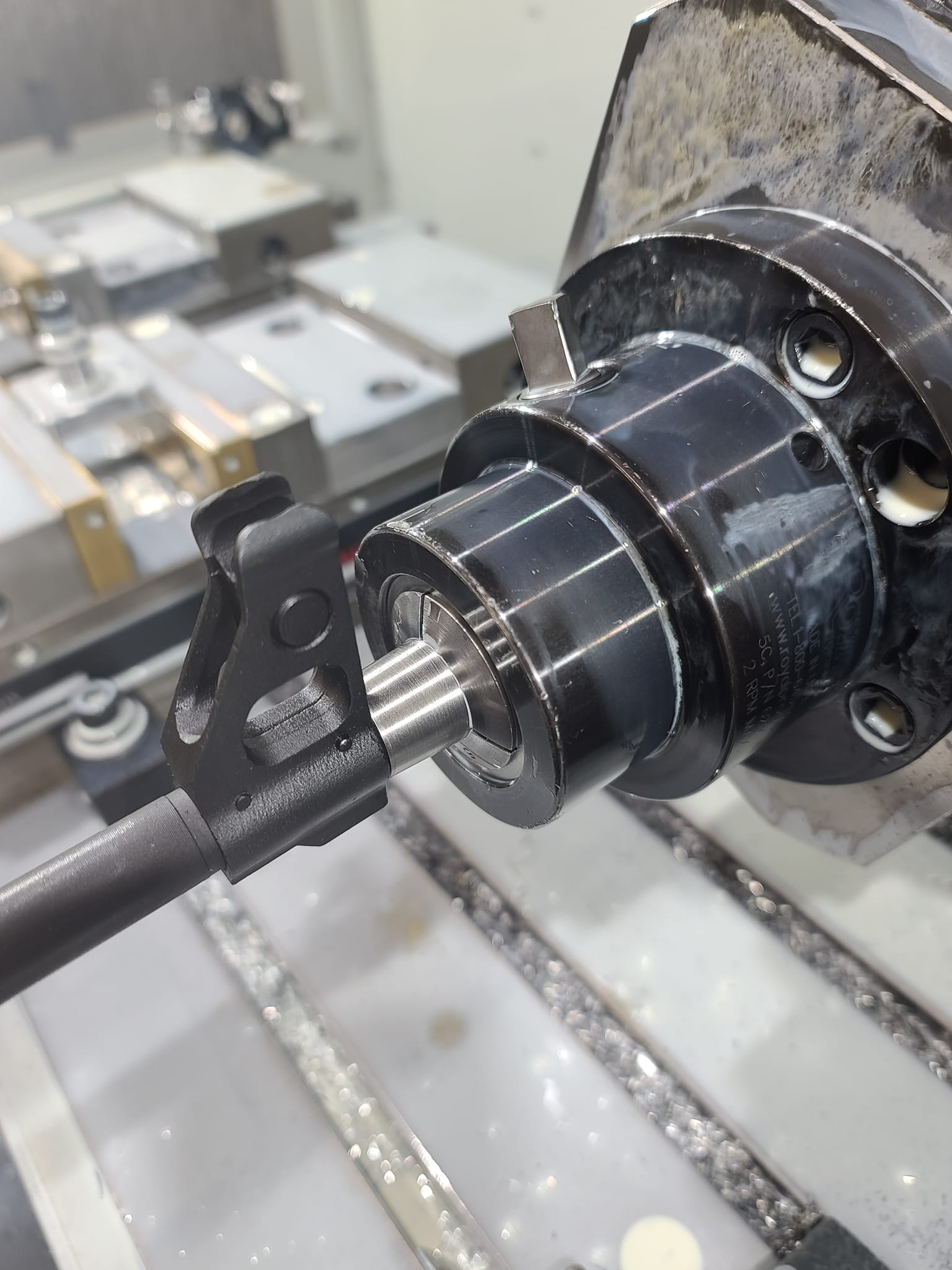

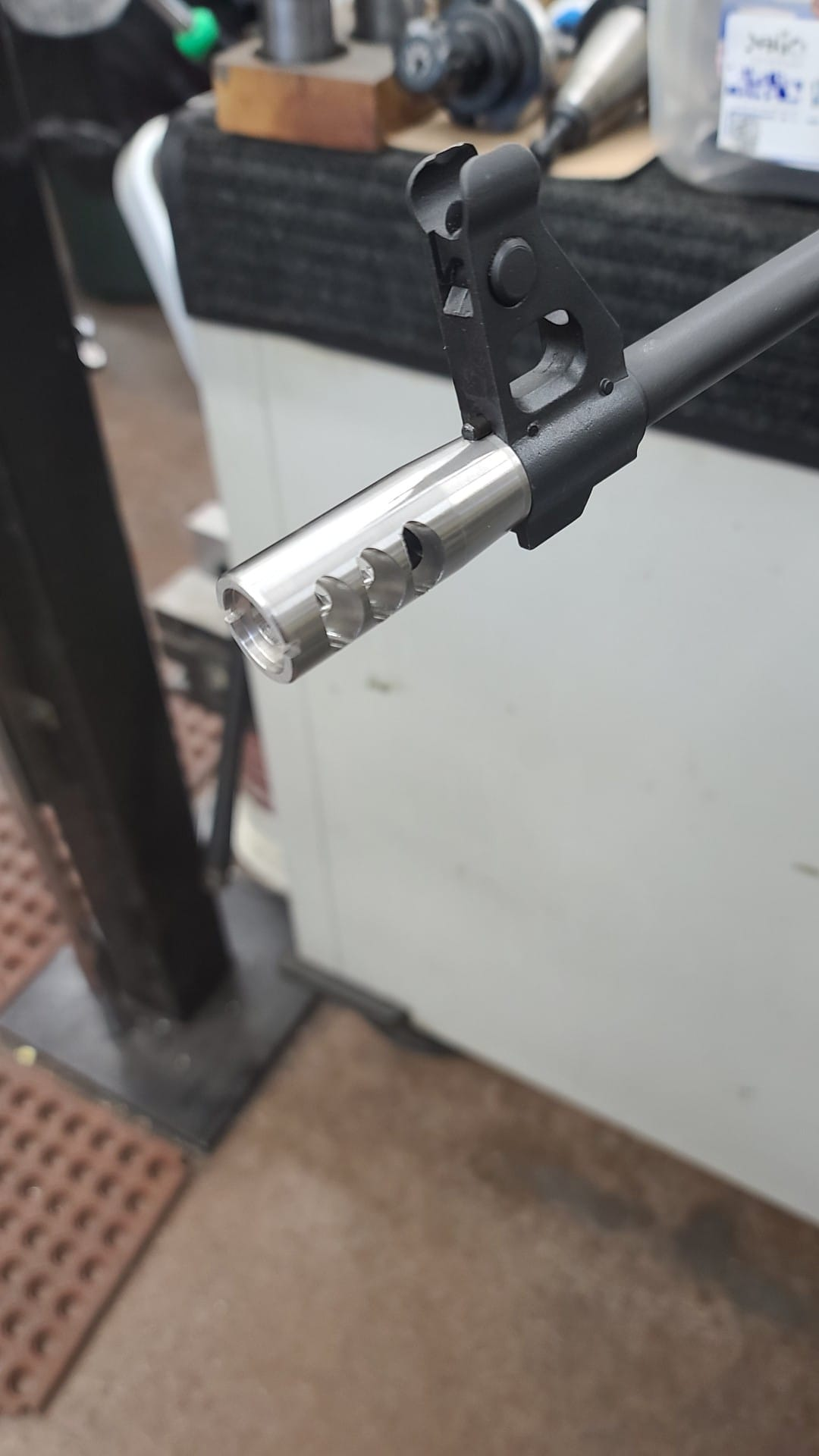

Checking thread fit and setting the timing for the plunger detent.

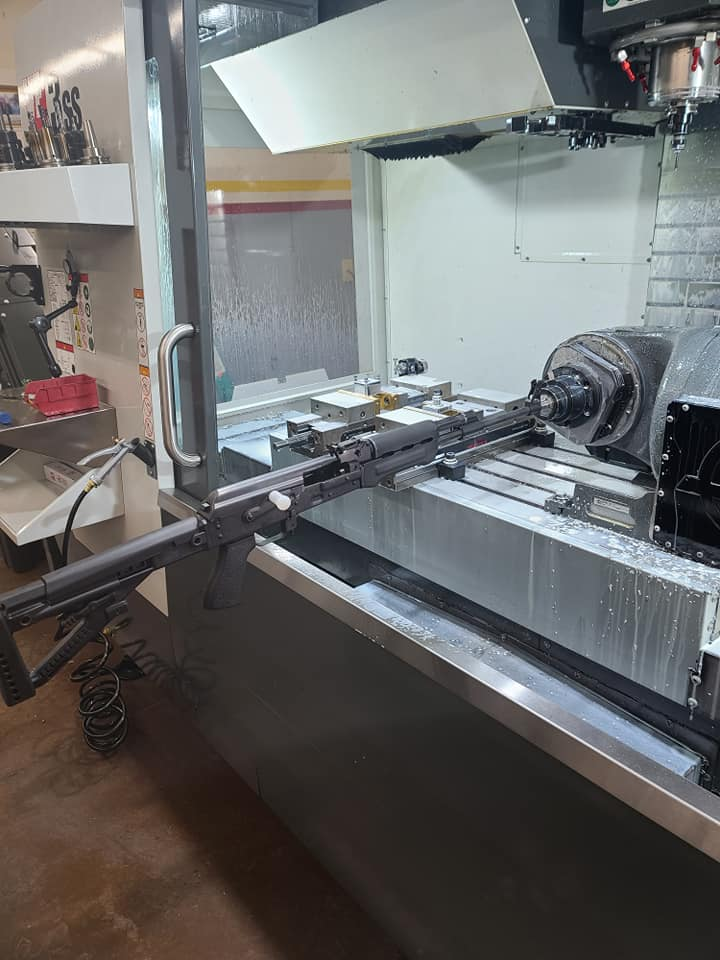

Throw a level over the front sight to set the clock position for the indexing pin slot.

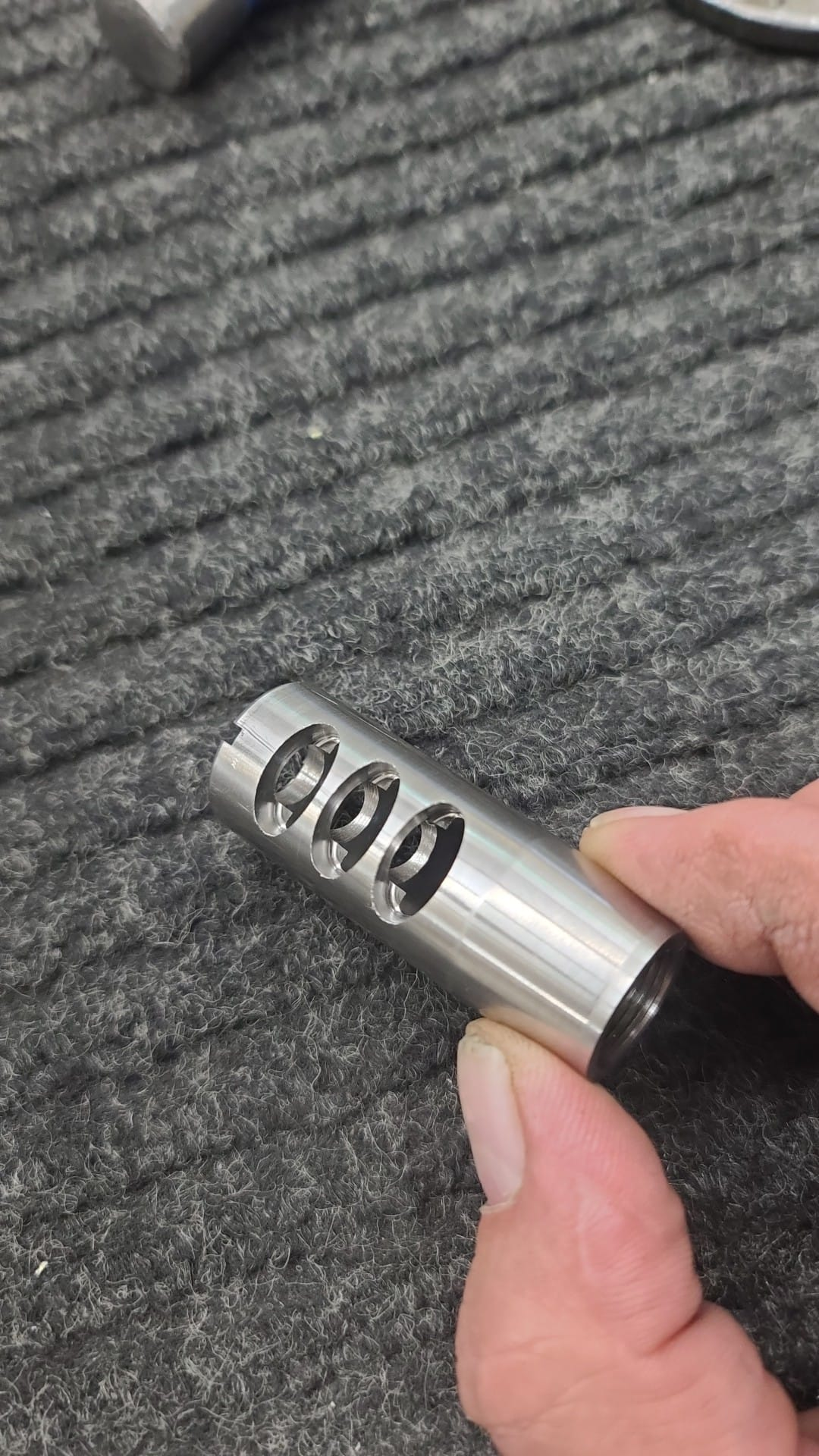

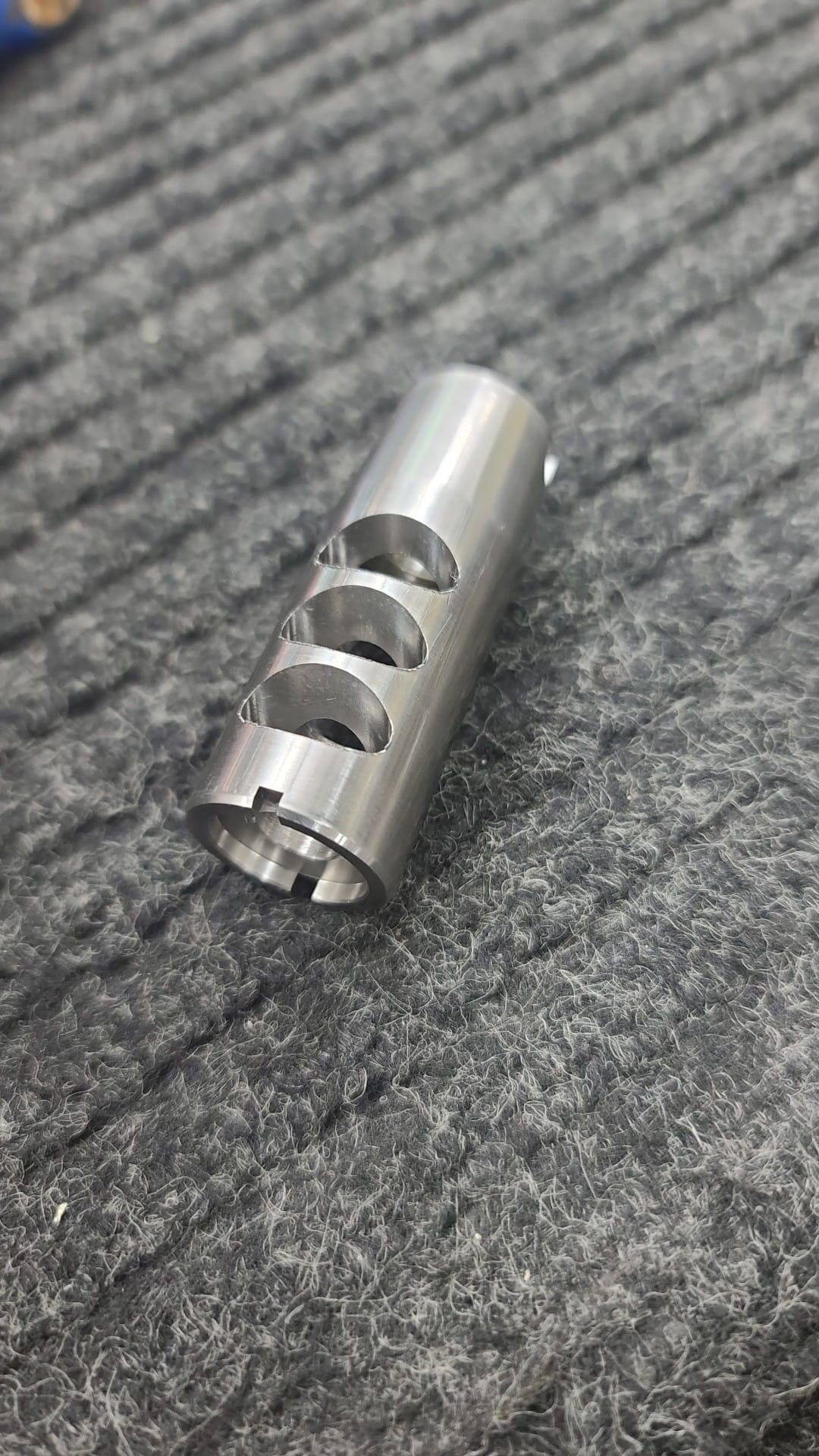

Now that the OD contour and threading are done, we move on to the porting. This is right off the machine, still have to knock the razors off the port edges.



[Bonjourjr]

Just curious…Could you make something like pictured below in M14X1 RH -> M24X1.5 RH? I have a vz58 and would like to use muzzle devices other than the wonky thread pitch they come with.

VZ 58 MUZZLE ADAPTER FOR AK RIFLES ACCESSORIES :: Vz58rifle

www.vz58rifle.com

Thread Adapter, muzzle device, Muzzle adapter,

CNC Warrior is a private corporation in Charlotte, North Carolina. We’ve supplied industrial, aerospace, and military customers with quality machined parts since 1955. We now offer an ever-growing variety of firearms related products to customers throughout the USA. Access to top-notch...

www.cncwarrior.com



[LRI]

We can do that easy enough. I'd have to buy some gauging though to qualify threads. That's where the real expense would be.

Thread Plug Gages - Go & NoGo - In Stock Ready to Ship Fast

Thread Plug Gages also referred to as Thread Plug Gauges are used to check inside major diameter and pitch diameter limits on threaded parts. Thread plug gages are available in ACME, ANPT, Helical Coil, PG Conduit, Reversible, Reversible Trilock, Straight Pipe, Taperpipe, Taperlock, Thread...

westportcorp.com
