Magneto Speed V3 Mounting Options

[TSparger]

So I'm wanting to get an off barrel mounting option for my MS V3 that I can use on both my rimfire (20" barrel) and centerfire rifle (26" barrel). Based on what I've seen in my research I am leaning toward either the Wiser Precision or Gray Ops mounts. Anyone had experience with both of these that can provide any feedback to help me make my decision?



[Dimefox]

You can build a DIY mount for less out of camera rail mounts. I got the idea from here. No idea how it works. My last pieces are showing up today.

https://www.rugerforum.net/threads/my-diy-magnetospeed-holder.400074/



[FuhQ]

So I'm wanting to get an off barrel mounting option for my MS V3 that I can use on both my rimfire (20" barrel) and centerfire rifle (26" barrel). Based on what I've seen in my research I am leaning toward either the Wiser Precision or Gray Ops mounts. Anyone had experience with both of these that can provide any feedback to help me make my decision?

I've been using my MSv2 since they came out in 2013, but the inconvenience of it, has been my only real gripe with it. So I just bought one of these...

SpeedTracker by Bulletseeker Mach 4 Doppler Radar Chronograph

The high frequency of the Bulletseeker Mach 4 Doppler Radar Chronograph allows for a more reliable and accurate projectile detection, and Bulletseekers...

www.midwayusa.com

It's basically a LabRadar, but pocket-sized, and bluetooths to your phone to store your shot strings and data. You can even make profiles for each rifle, and it will store the shot data and weather conditions data using your phone's GPS under each profile.

And a nice solid & sturdy aluminum Neewer mini tripod on Amazon and a Sunwayfoto 3" pic rail ARCA mount.

Mini Tripod

Sunwayfoto 3" Pic ARCA Rail



[Jcarpenter223]

You can build a DIY mount for less out of camera rail mounts. I got the idea from here. No idea how it works. My last pieces are showing up today.

https://www.rugerforum.net/threads/my-diy-magnetospeed-holder.400074/

I did mine a few years ago using an adjustable camera arm. Just had to drill n tap an aluminum piece to connect it. Used a pic rail clamp but have a arca clamp coming in from Amazon so I can use it on my bolt guns a lil bit more efficiently.



[Oryx]

I did mine a few years ago using an adjustable camera arm. Just had to drill n tap an aluminum piece to connect it. Used a pic rail clamp but have a arca clamp coming in from Amazon so I can use it on my bolt guns a lil bit more efficiently.

I have one I built as well from an adjustable camera arm and a cheap picatinny rail piece ... I also have a second MPA RAT mount system for Area Chassis/rails.

Pretty much allows you to shoot with chronograph any time without strapping to barrel. The MPA system literally takes seconds. The camera arm system takes 30 seconds to align



[ECK]

I’ve only used the MK Machine mount for the MS V3 that attaches to the arca rail. Super solid and very versatile. I’ve used it for both centerfire and rimfire, suppressed and non-suppressed.



[iceng]



[strikeeagle1]

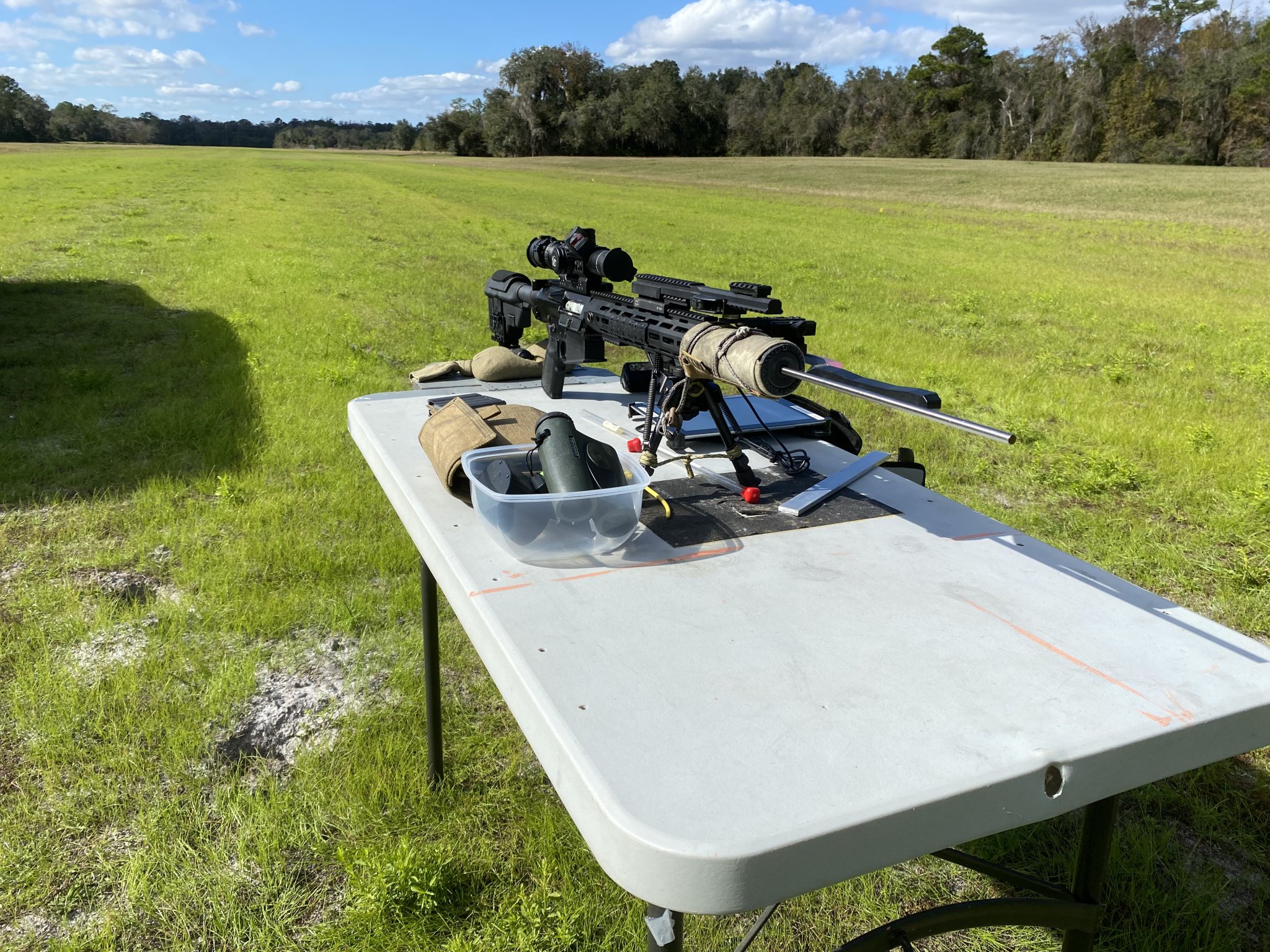

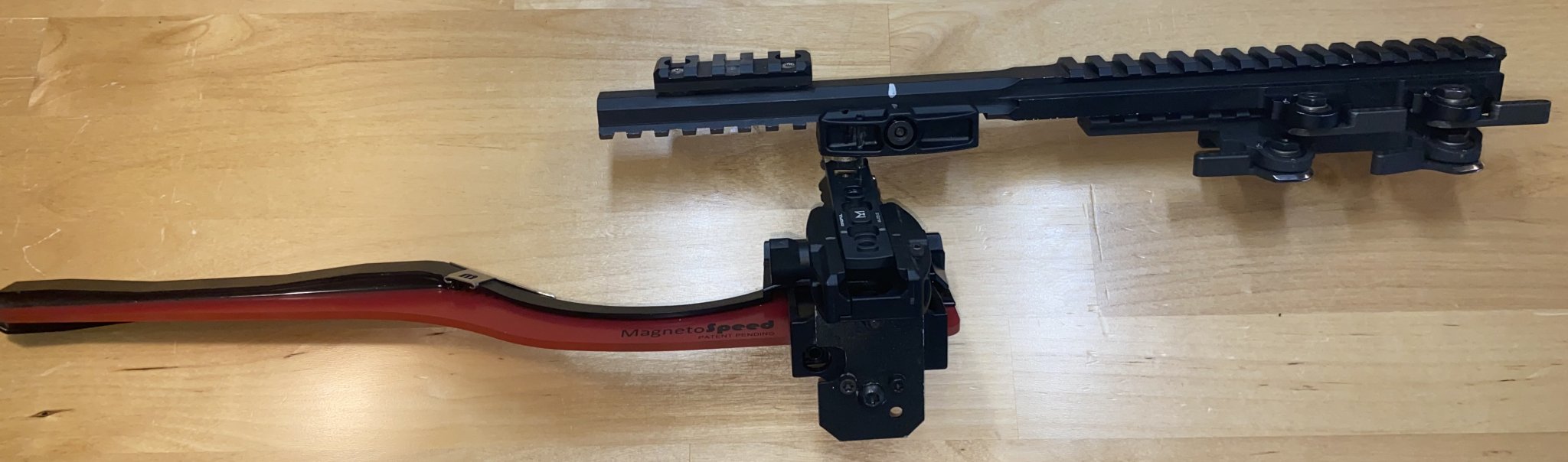

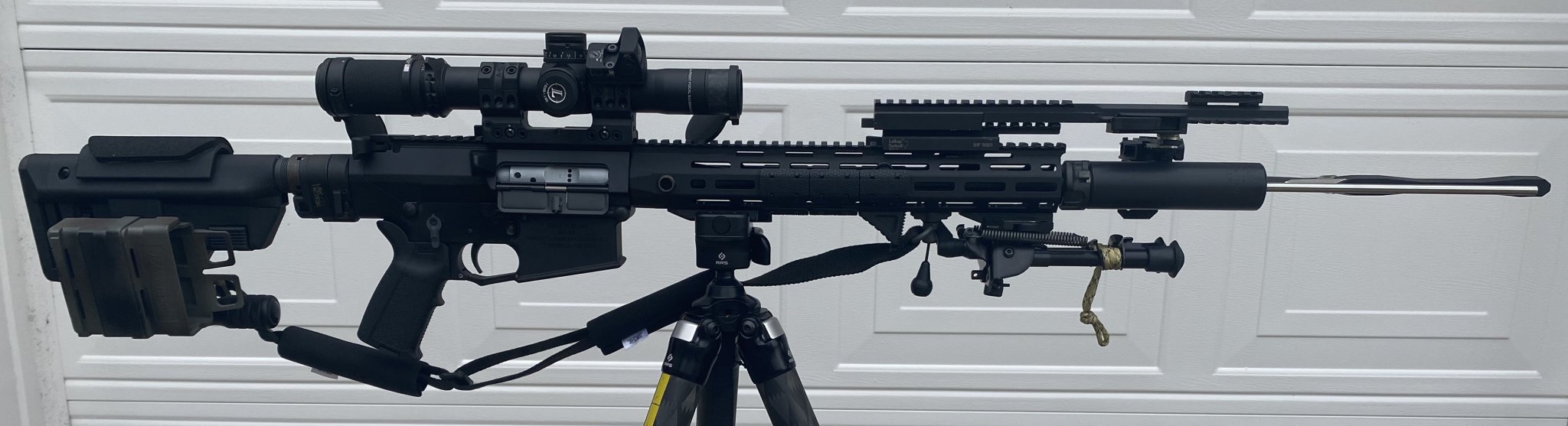

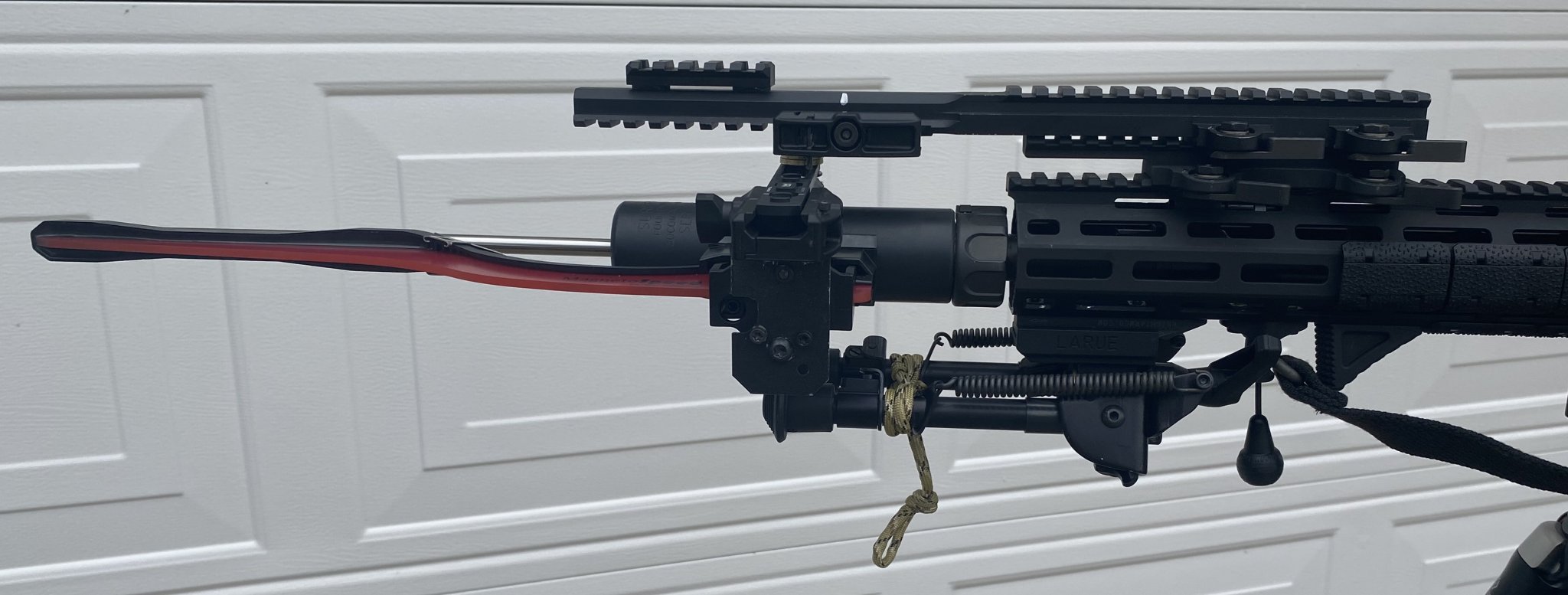

I am using the Labradar now so the MSV3 just sits. A few years ago many of us were configuring off-the-barrel alternatives for using the MSV, especially with suppressors. Combining some simple picatinny rails you can easily fabricate a 3-axis adjustable system.

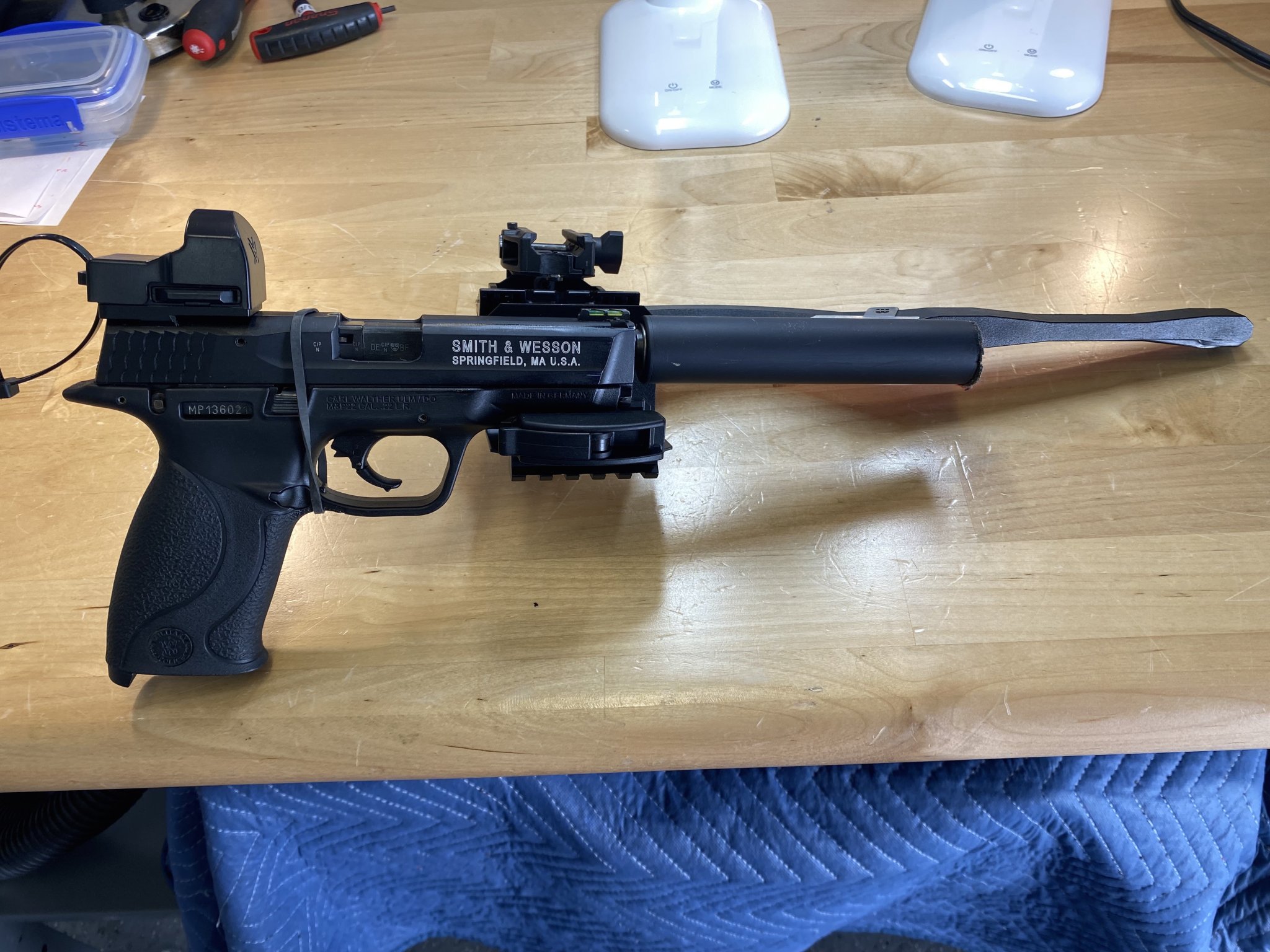

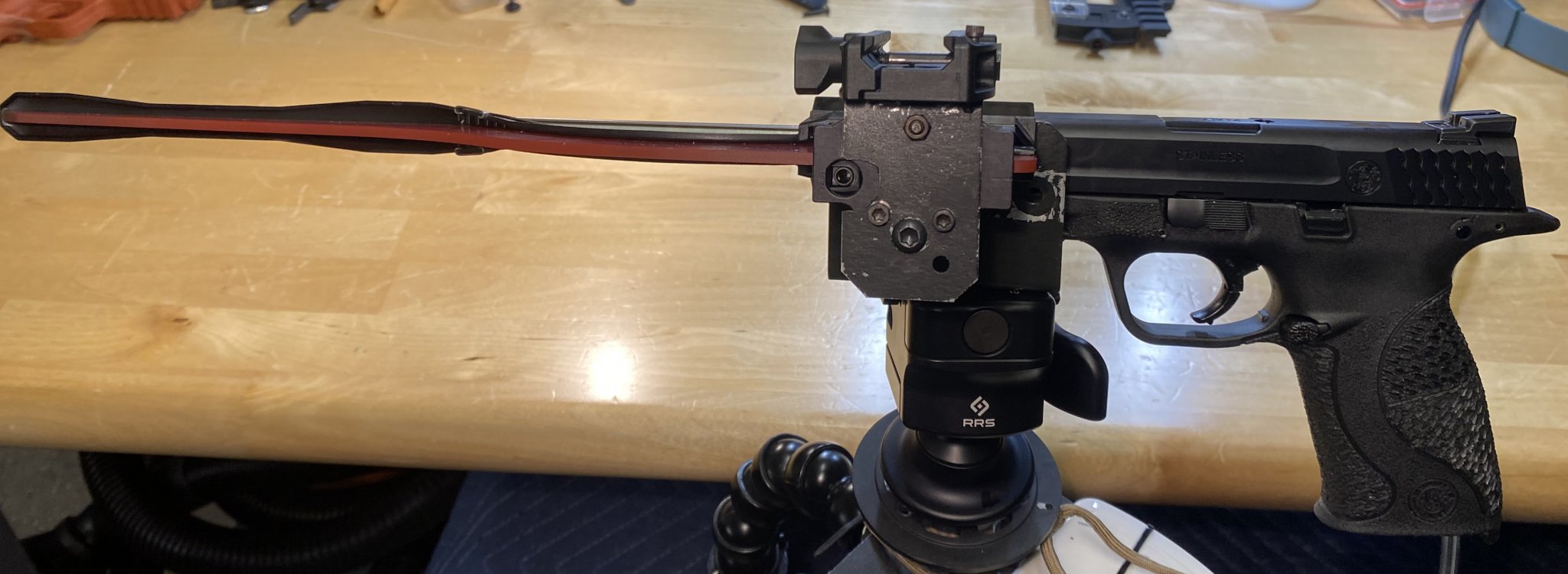

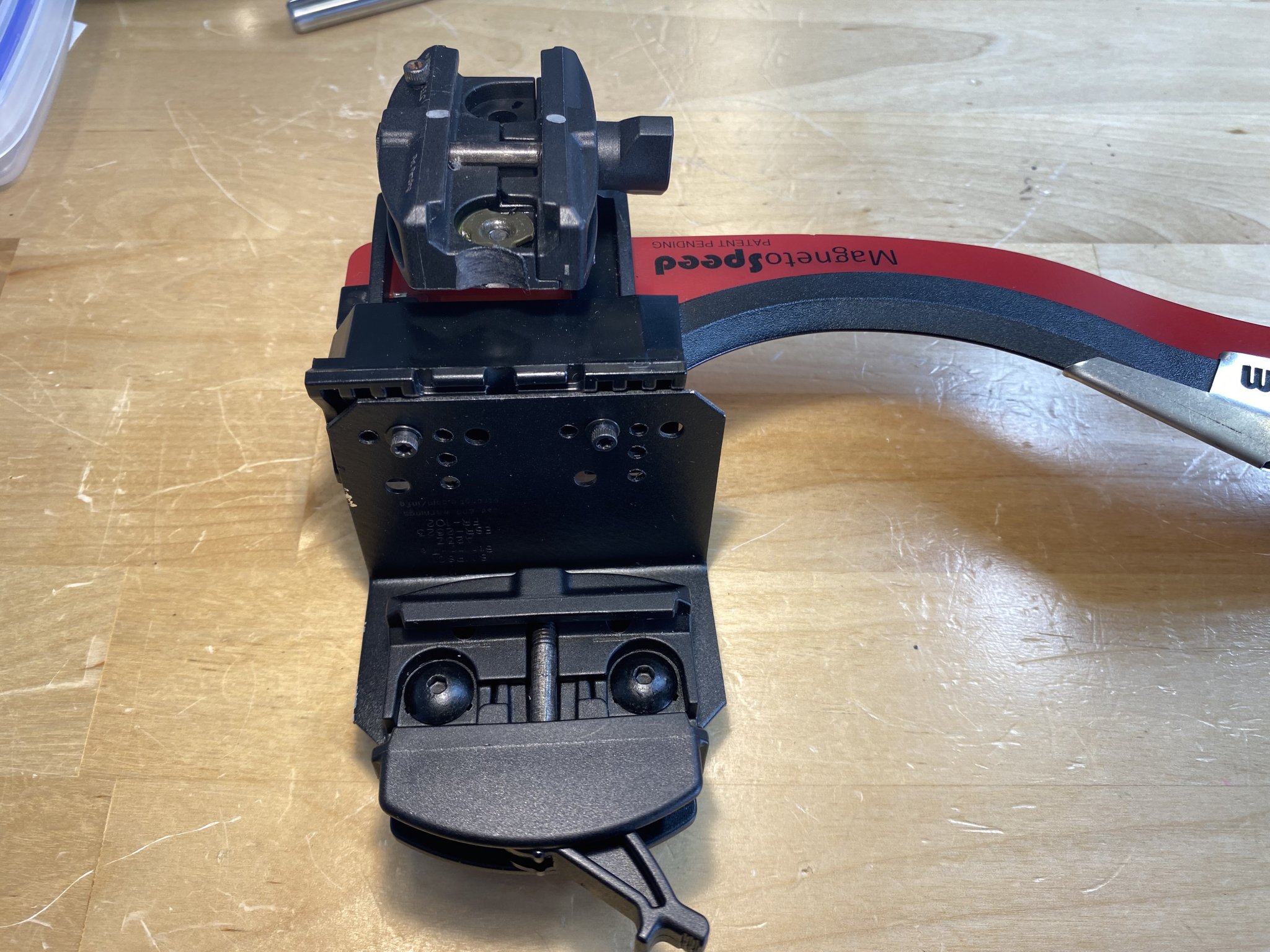

A simple L-bracket and a QD mount allows for use with pistols supressed as well.



[Tyler Kemp]

I've got a batch coming back from anodization tomorrow. There are quite a few of these out there, repeatable and reliable:

MK Machining Gen III Magnetospeed Mount

MK Machining Gen III Magnetospeed Mount We’ve made substantial improvements to our very popular Magnetospeed Mount for better performance.

www.mkmachining.com



[K80/6.5]

I really like my mkm mount only thing I did was add a piece of fiberglass rod instead of the steel rod it works great on suppressor and isn’t near as heavy.



[tho98027]

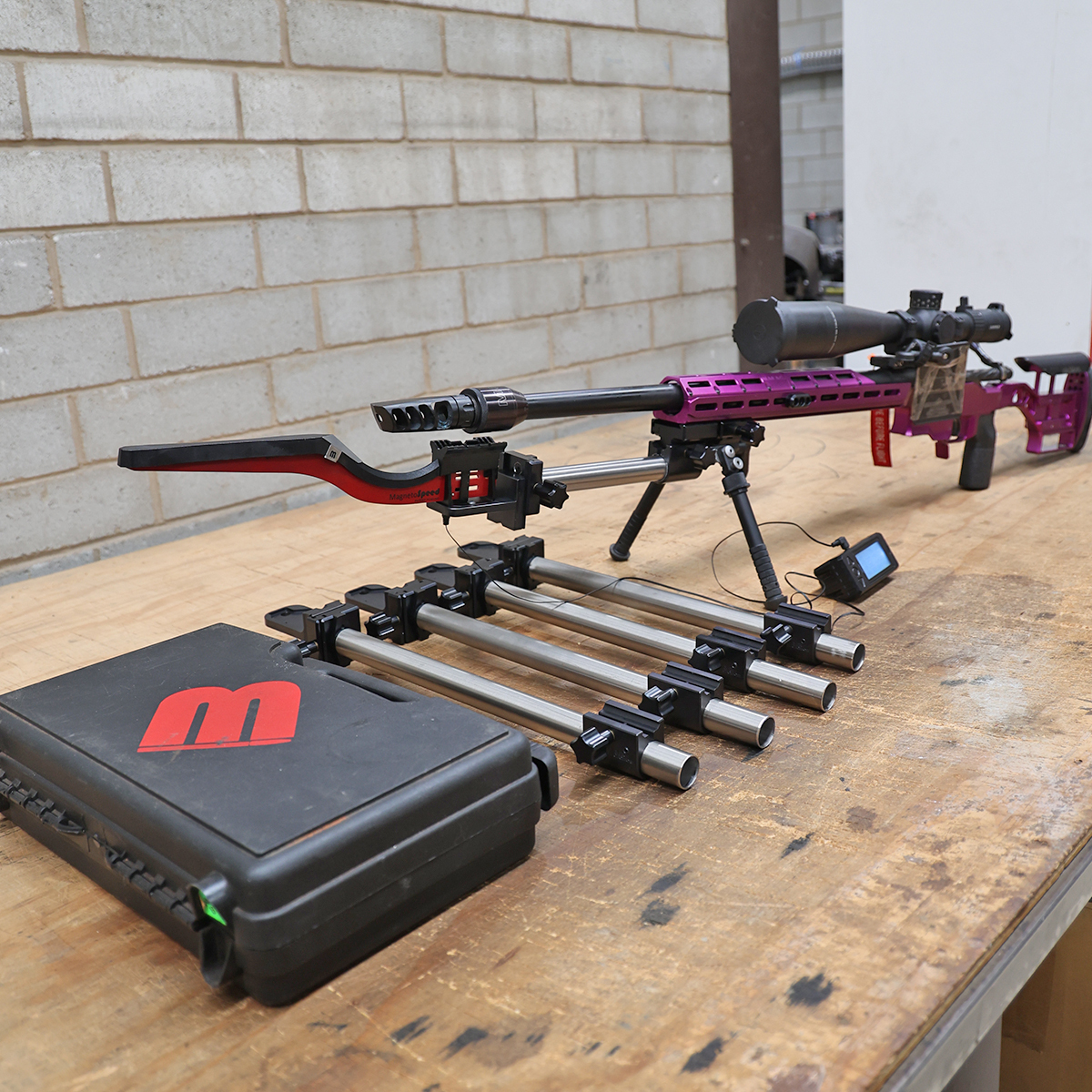

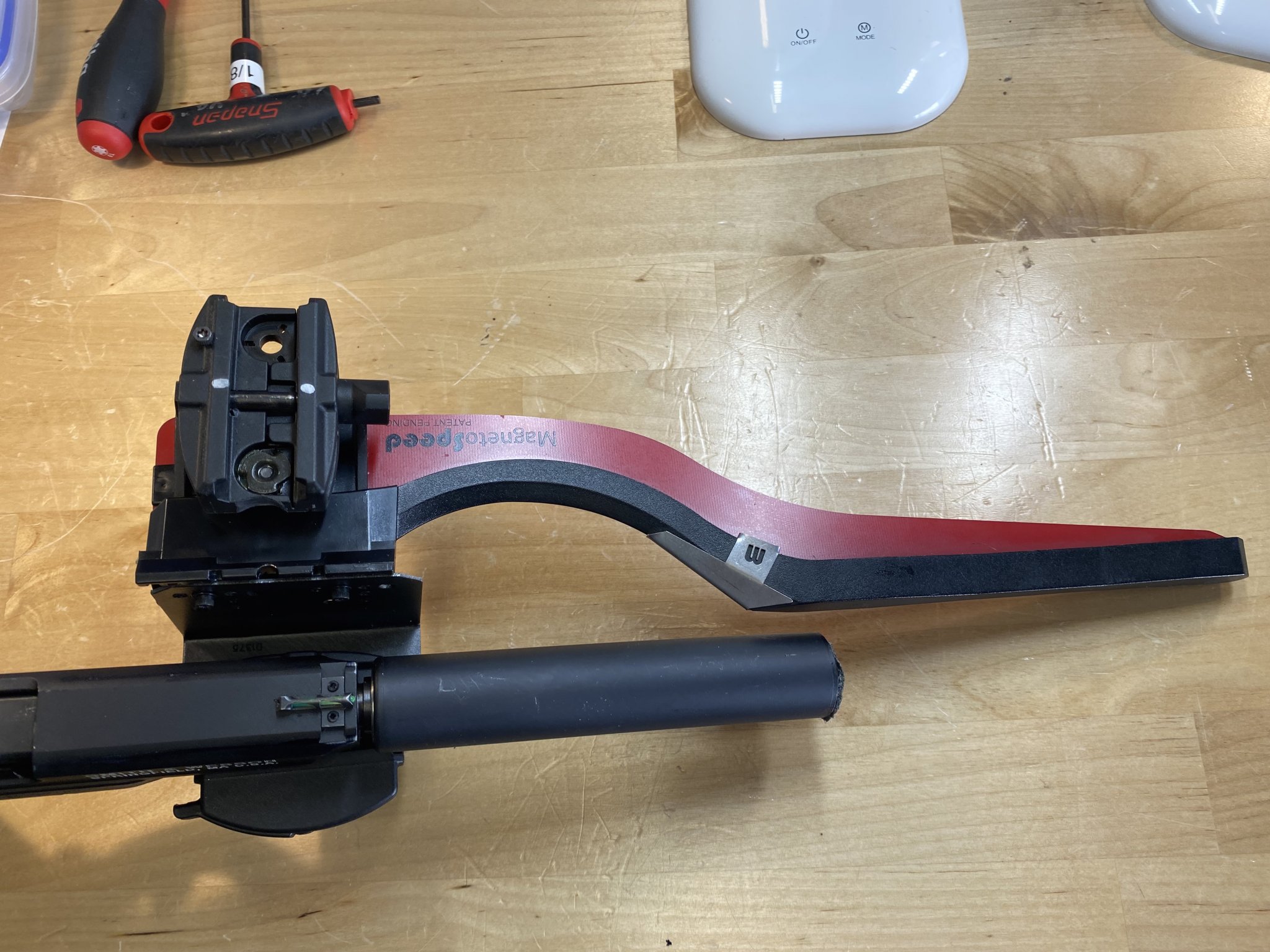

View attachment 8149929

Info please



[Freediver111]

I have the MK machining mount. No complaints at all, except when I mount it directly to the Arca rail on my XLR chassis it moves forward a tad with each shot. After three shots it falls off. I now mount it to a pic rail and problem solved. Not sure why but even if I tightened it down a bunch to the arca rail on the XLR it would slide.



[iceng]

Info please

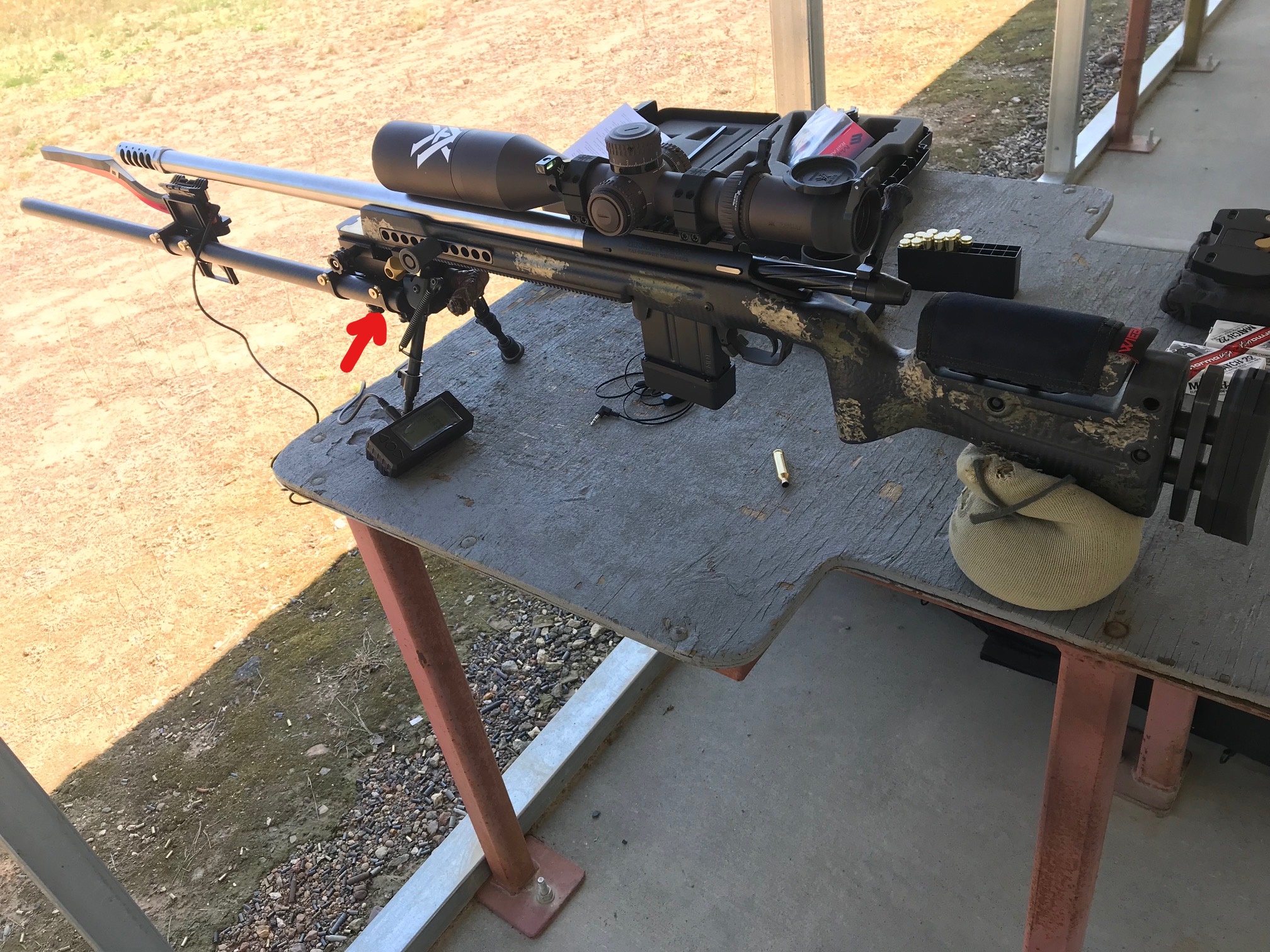

I made it because I needed one. I made a few spares for mates. Attaches to a pic rail on your stock or chassis, and I used a arca->pic rails adaptor for my chassis.

The magneto unit is held on via 2 screws, once you remove the fabric strap. The 3.5mm jack can be put in the bottom or the back, both work and have clearance. The block that the magneto attaches to is arca on the back, so can easily slide up and down for vertical adjustment. The long stainless tube also can slide in and out of the clamp at the back, but having it with an arca mount made it easy.

I have designed a display unit mount for Mlok, but haven't made it yet.

I'm in Australia, so I can't send you one.



[tho98027]

Best design I’ve seen yet. Well done.



[Herb Stoner]

I have the MK machining mount. No complaints at all, except when I mount it directly to the Arca rail on my XLR chassis it moves forward a tad with each shot. After three shots it falls off. I now mount it to a pic rail and problem solved. Not sure why but even if I tightened it down a bunch to the arca rail on the XLR it would slide.

Not all manufacturers use the same “standard” dimensions for Arca rails. There was a thread here somewhere on the topic recently.

I have an MK mount that works very well - fits the rails on my chassis‘ firmly so no issues.



[iceng]

Best design I’ve seen yet. Well done.

I made everything. Muzzle brake, tuner, chassis and the receiver. I'm weird like that.



[Rob01]

I use the Wiser and like it a lot. I use it with everything from an 18" Vudoo out to a 28" 6.5 Creedmoor. With and without brakes and suppressors. I like the Wiser has an angle adjustment so if you have a different angle on the forend you can adjust the bayonet to be flat. It's easy to slide it on and get it adjusted.



[ocabj]

I have the original Wiser. It works well enough even though I've had parts crack over time and had to get replacement parts.

I may try the recent Wiser revision given all the changes they've made in the past few years.
