Magneto Sporter ABS mount

[warnera1102]

Pretty excited to test this out tomorrow
I 3D printed a mount setup for my magneto speed which includes an arca and pic mount. The support rod is a carbon fiber rod I got off Amazon.
Hopefully I'll report good results tomorrow!



[warnera1102]

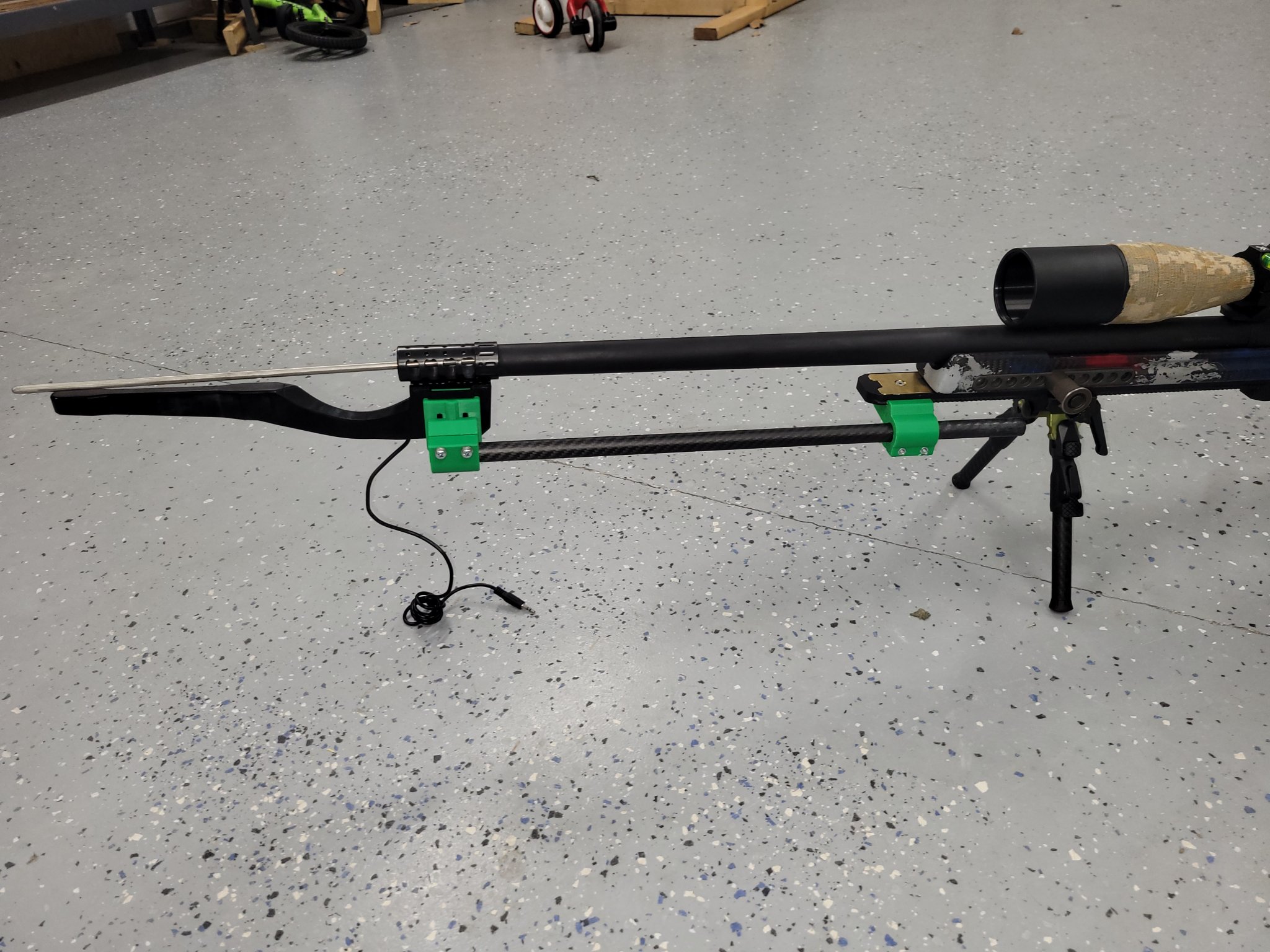

A little more progress but yet some tweaks still need to be made .

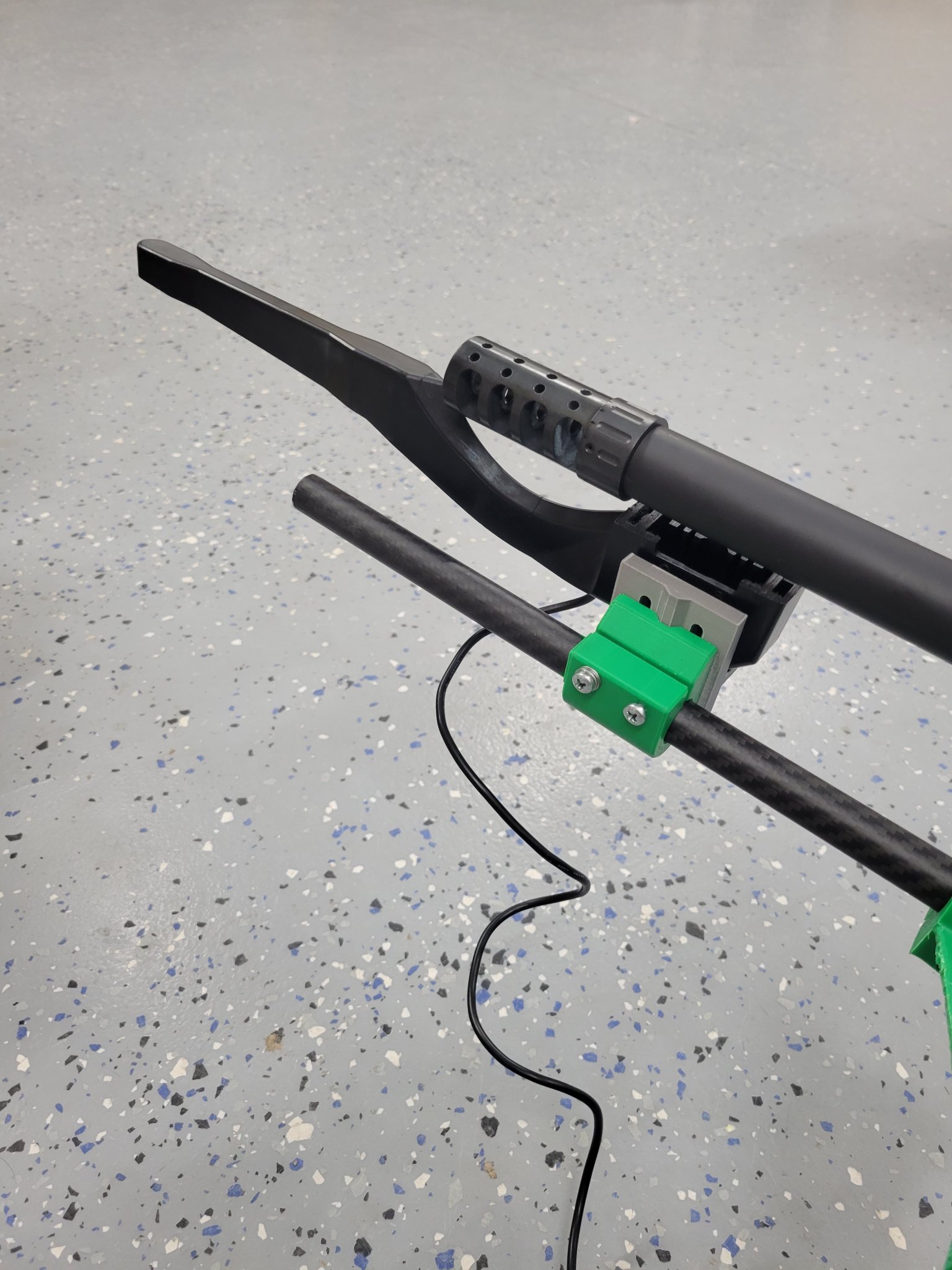

I did have to cut the Sporter strapoint back about 3/8" to get it close to the larger barrel and to work for suppressor. I know it was intended for that but it is now



[Rover31]

is this your own design?
Or this one?

Magnetospeed Sporter Mount by KPTexan | Download free STL model | Printables.com

Magnetospeed Sporter mount for Picatinny/STANAG and Arca Swiss Rails | Download free 3D printable STL models

www.printables.com



[straightshooter1]

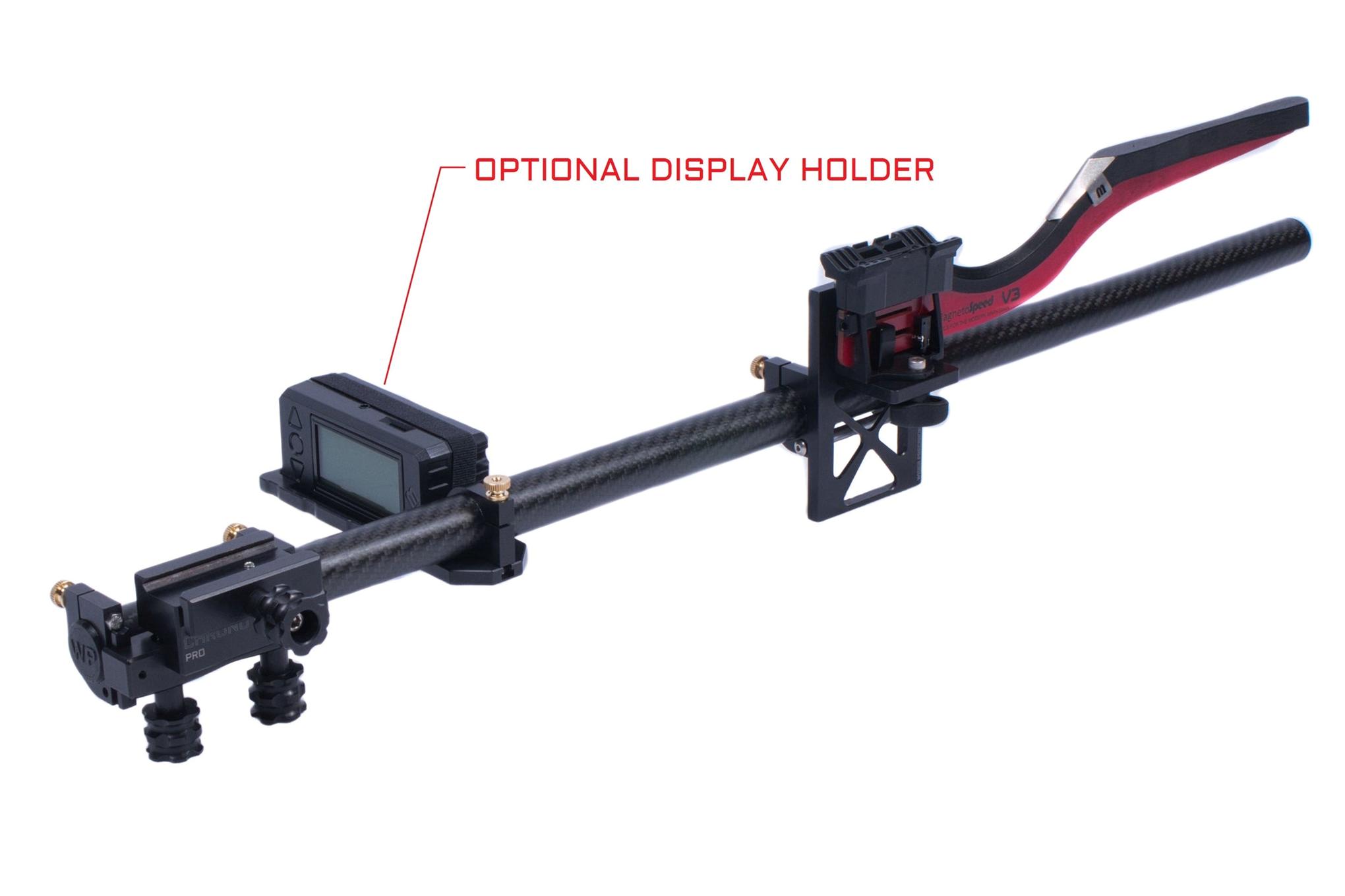

I have the one from Wiser Precision for my V3, mounting parts made from aluminum and a carbon fiber rod. It's a good quality product.



[warnera1102]

is this your own design?
Or this one?

Magnetospeed Sporter Mount by KPTexan | Download free STL model | Printables.com

Magnetospeed Sporter mount for Picatinny/STANAG and Arca Swiss Rails | Download free 3D printable STL models

www.printables.com

I started with that design initially but once I review and test fittted the parts i made alot of changes so the only thing that is original is the arca and pic mount.

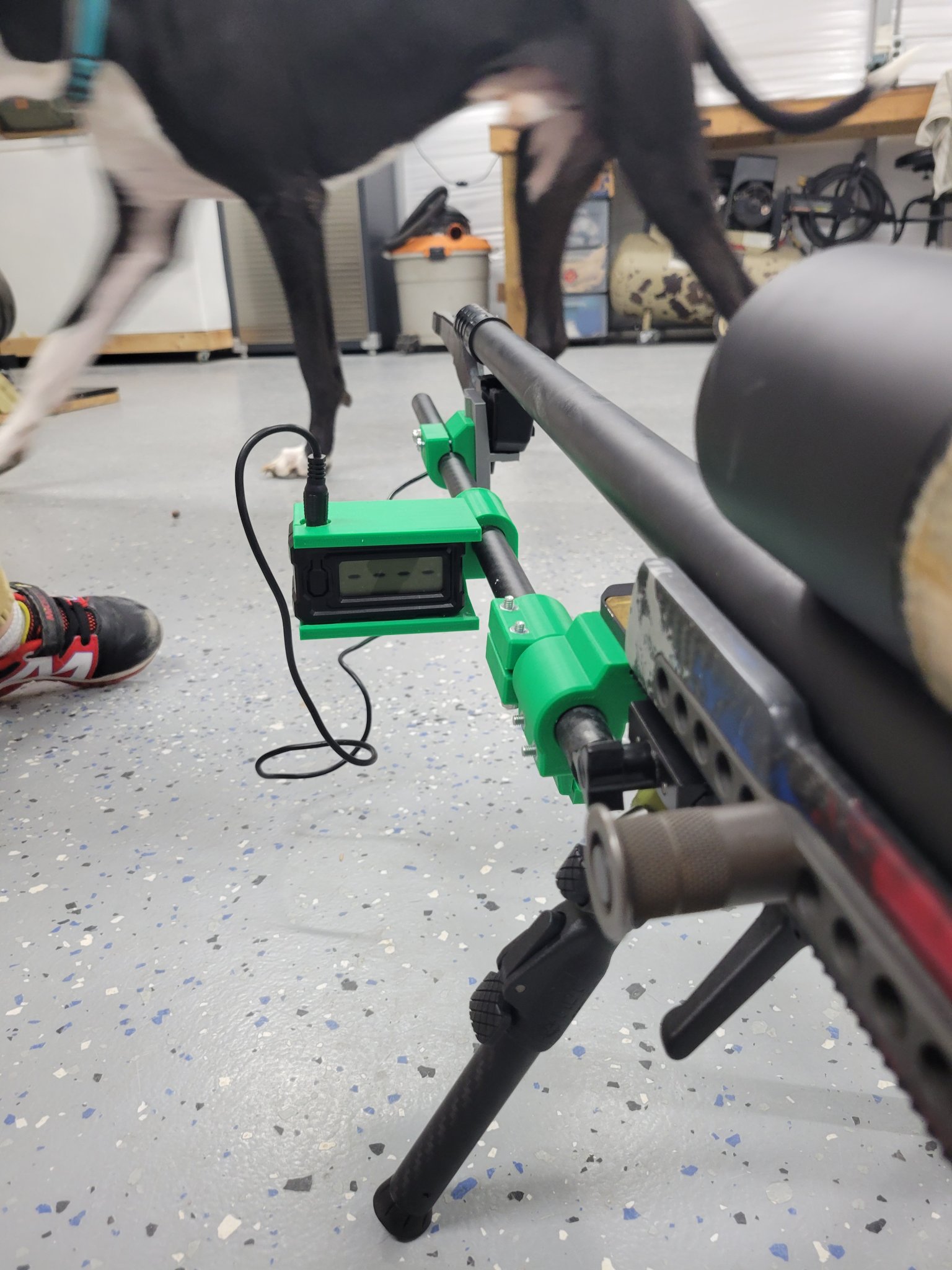

I redesigned the magneto speed mount for more travel,and to work with the modified Sportster bayonet. I made a display bracket that will attached directly to the carbon fiber tube to keep everything together.



[warnera1102]

I have the one from Wiser Precision for my V3, mounting parts made from aluminum and a carbon fiber rod. It's a good quality product.

View attachment 8039978

I have several wiser items and the quality is amazing, I just like to here my 3d printer go brrrr.



[Rover31]

any chance of sharing the files?
If not understand!



[warnera1102]

any chance of sharing the files?
If not understand!

I still have a few things Im tweaking.
I have been tempted to sell the kits being its not a copy design but I am not sure who would be interested
Im actually reprinting a part now.



[KPtexan]

Nice job! Design looks familiar



[TommyD11730]

Also would love the STL file (s) if you care to share.



[warnera1102]

Also would love the STL file (s) if you care to share.

I am still making some modifications to it.
I had to change the hole size as well as some of the arca dimensions.



[Rover31]

@warnera1102 just think, you could be on a beach if only your STLs were publicly traded...

I will say I received the MK Mach mount and can see how it could be tweaked for my needs given my bipod set up. So I totally get the continuing mods.

One thing I really want is the readout mount for my carbon tube. That is one of the best parts of your "design/mod"



[KPtexan]

Also would love the STL file (s) if you care to share.

The OG files can be found here: https://www.printables.com/model/61632-magnetospeed-sporter-mount

The OPs design is a remix of mine and, according to the Creative Commons License my design falls under, he must provide the STL files openly and is not allowed to sell it.

The display mount appears to be his own design, so he can do what he wants with that one.



[warnera1102]

The OG files can be found here: https://www.printables.com/model/61632-magnetospeed-sporter-mount

The OPs design is a remix of mine and, according to the Creative Commons License my design falls under, he must provide the STL files openly and is not allowed to sell it.

The display mount appears to be his own design, so he can do what he wants with that one.

I did give credit (see post 5) i appologize for not doing it in the initial post. This as undergone seveveral modifications since the original picture, these items include but are not limited to the magneto speed mount, arca mount and the magneto speed mount slide.



[KPtexan]

I did give credit (see post 5) i appologize for not doing it in the initial post. This as undergone seveveral modifications since the original picture, these items include but are not limited to the magneto speed mount, arca mount and the magneto speed mount slide.

I'm not trying to bust your balls too hard for it - let's be honest, nobody's getting rich off selling Magnetospeed mounts.

I'm just happy as long as people are using my designs for a hobby we all enjoy, and I'm also thrilled if people are improving on those designs. All I ask is that I get some minimal credit for the effort I've put into it and, if my original design is remixed, that design is shared openly.



[warnera1102]

Once again sorry for the lack of credit.
I will say importing .stl files into solidworks and having the ability to modify them is almost impossible. I had to redraw everything so at this point i am on version 3 haha . I still have a few more tweaks I need to make before it works like I want. The only tricky side is having to cut down the magneto speed mount so it looks like a V3.



[KPtexan]

Once again sorry for the lack of credit.
I will say importing .stl files into solidworks and having the ability to modify them is almost impossible. I had to redraw everything so at this point i am on version 3 haha . I still have a few more tweaks I need to make before it works like I want. The only tricky side is having to cut down the magneto speed mount so it looks like a V3.

No worries, truly. I know how much work it is to design things and I know you've put a lot of effort into it!

Yep, STLs are really difficult to work with so I end up doing most things from scratch. Someone recently asked for the solid files of the Magnetospeed mount, so I uploaded the STEP files to that link. Feel free to use those if you want since it would be much easier than working from the STLs.
