SOLD Manfrotto 322RC2 Heavy Duty Joystick Grip Ball Head

Chingon

Sergeant
Full Member
Minuteman
  • Apr 28, 2012
    1,082
    87
    48
    NOVA
    Normal wear and tear. Add your PIG or HOG saddle and a decent tripod, and you're ready to go! $130.00 shipped.


    Manfrotto 322RC2 Overview

    The 322RC2 Ball Head from Manfrotto can be attached to tripods or other support systems that feature a 3/8"-16 mount. By squeezing the control handle's integrated trigger, the head's ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements. Once the squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place.

    The control handle is initially oriented to provide a horizontal grip for the right hand. However, the included 322RA Quick Release Adapter with 200PL-14 Quick Release Plate are detachable and can be repositioned to enable left-handed use with a horizontal grip. Alternatively, the 322RC2 can be transformed into a joystick-grip ball head suitable for right or left-handed use with the control handle oriented vertically and the quick release adapter attached to the top of the configuration.

    When oriented for a horizontal grip, the 322RC2 has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip. The 322RA Quick Release Adapter features an RC2 quick release cam lock for the 200PL-14 Quick Release Plate. RC2 compatible quick release plates can be removed from the quick release adapter by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached. The cam lock also features a safety catch to prevent a quick release plate from accidentally disconnecting.

    Cameras or accessories that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface.

    322RC2 Ball Head
    • Compatible with tripods or support systems that feature a 3/8"-16 mount
    • Uses ball-and-socket joint with easy-to-grip control handle to help maximize pan-and-tilt flexibility
    • By squeezing the control handle's integrated trigger, the ball-and-socket joint can be quickly swiveled 360°, fully tilted down to a 90° angle, or returned to its upright position
    • When the control handle's squeeze trigger is released, any adjustments to the position of the ball-and-socket joint are locked into place
    • A thumbwheel set within the control handle can be rotated to apply tension control to the ball-and-socket joint's movements
    • Built-in tension-control indicator within the control handle
    • Can provide a horizontal grip for either right or left-handed use
    • Available joystick-grip ball head configuration for right or left-handed use
    • When oriented for a horizontal grip, has a load capacity of 11.0 lb, and 7.0 lb when configured as joystick for a vertical grip
    • 322RA Quick Release Adapter with RC2 quick release cam lock and built-in bubble level
    • Hex key to adjust position of 322RA Quick Release Adapter and tension on ball-and-socket joint

    200PL-14 Quick Release Plate
    • Compatible with Manfrotto RC2 quick release cam lock
    • Measures 1.7 x 2.1 x 0.4" and has a rubberized, non-slip surface
    • 1/4"-20 mount
    • Durable, aluminum-alloy construction


    Attachments

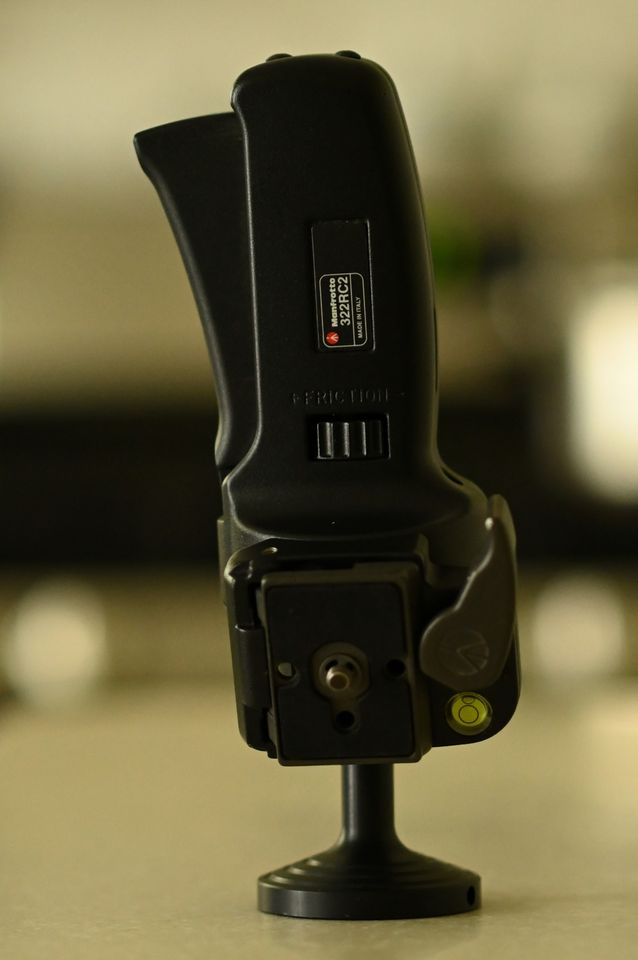

    • 118085354_3577654945600162_5817071279384264870_o.jpg
      38.6 KB · Views: 317
