Manson go/no-gauges: Does this look right?

[Every Day Gun Guy]

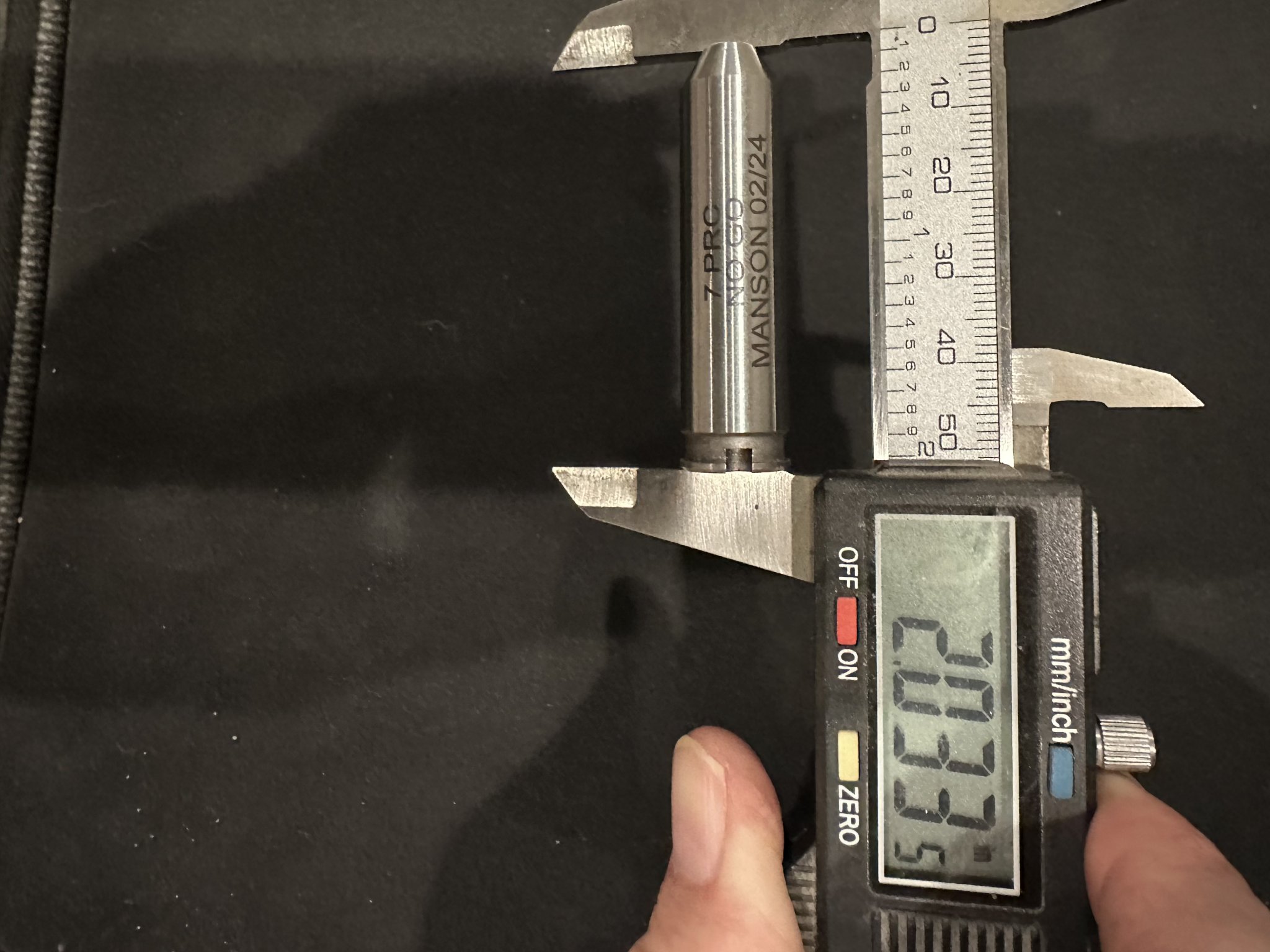

So torqued down my Zermatt Arms /Preferred Barreled action and the no-go closed just as easily as the go. Measured the gauges. Does this look right? You’ll notice that the “Go” gauge is 1.5 thousands longer than the “No-Go”. This repeats exactly the same with every measurement that I take and I’ve measured it a hundred times to ensure that I’m not measuring wrong. Isn’t the “no-go” supposed to be .004”-.006” longer than the “go” gauge?



[Tperry]

The OAL length of the gauges doesn't tell you anything. The important measurement is from the shoulder to base. You would have better luck measuring the difference if you had a shoulder bump gauge or headspace comparator for your cartridge and take a measurement with each gauge.



[Every Day Gun Guy]

The OAL length of the gauges doesn't tell you anything. The important measurement is from the shoulder to base. You would have better luck measuring the difference if you had a shoulder bump gauge or headspace comparator for your cartridge and take a measurement with each gauge.

Thanks Tperry! I knew I had to be measuring wrong! But it still doesn’t fix my headspace problem, lol! Torqued down to 80#s and no-go goes just as easily as go gauge. Even the go gauge with a layer of scotch tape goes.Looks like I’ll reach out to Preferred barrels.



[supercorndogs]

Try no go with tape. A chamber can close on the no go and still be in spec. If it closes on a field gauge it's too much. A field is around .003 over no go.
