Mauser action

[Jakediesel06]

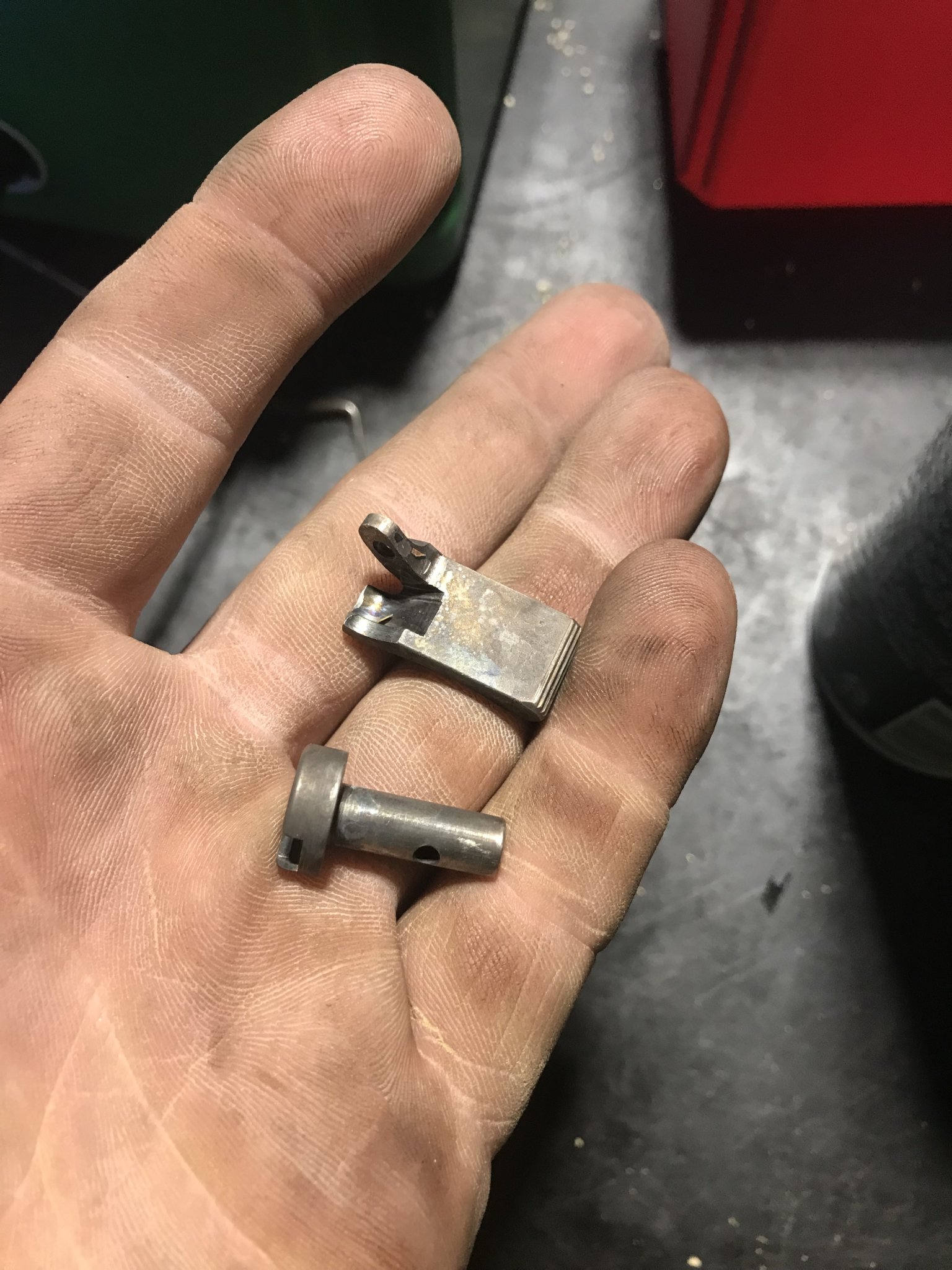

I just recently acquired a Mauser action rifle which I believe is a Spanish action. The saftey is not working properly on it and I am trying to identify exactly what action I have. I have watched several videos on different Mauser actions but I haven’t found on with the saftey having a tiny spring in it. I don’t see a detent for the spring or an place for a detent to go so I’m not sure of the purpose of the spring.

Thankyou Jake.



[sirhrmechanic]

Can you post some pictures
Of the whole action?

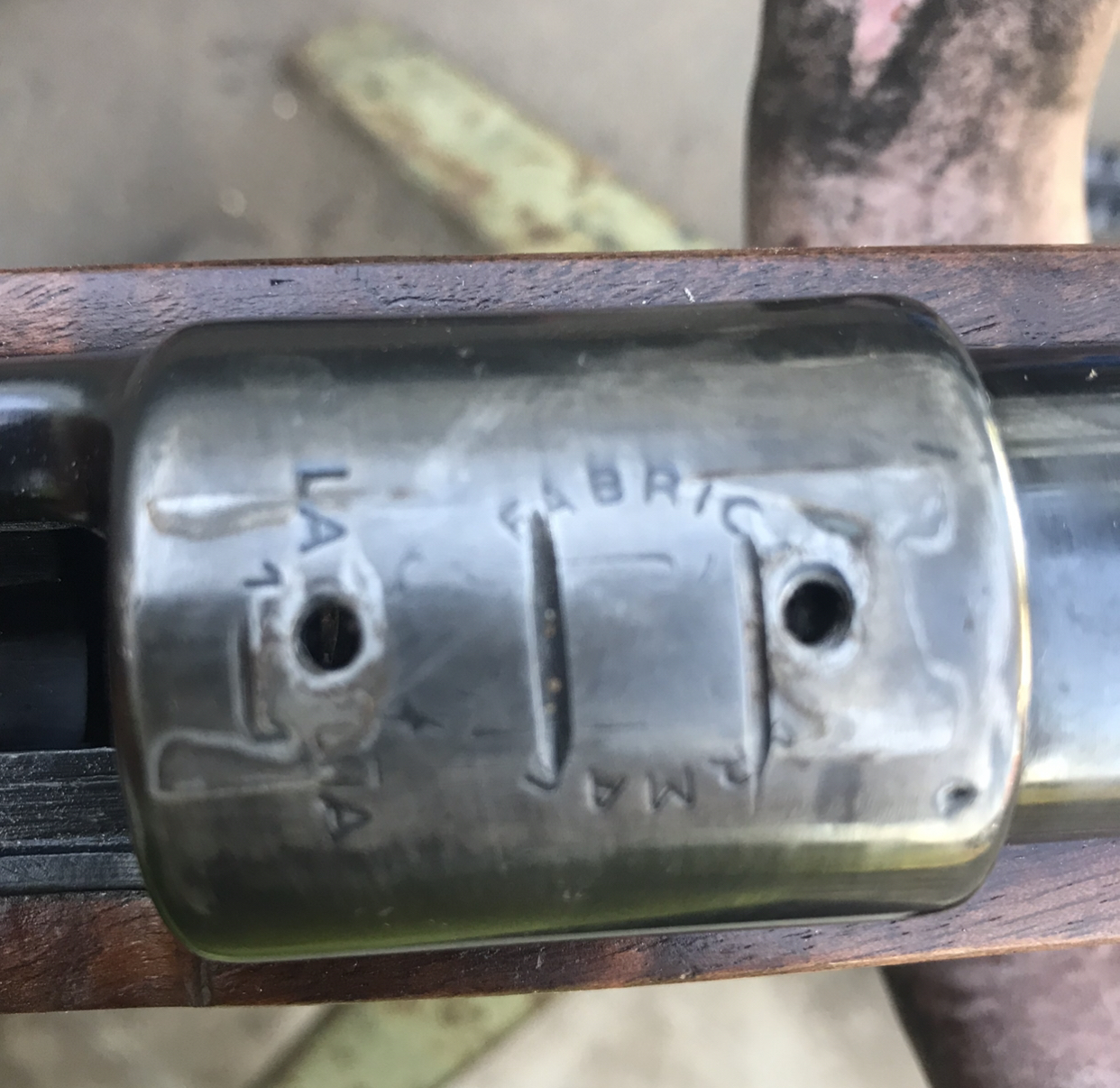

Made at La Coruna Arsenal… which is what fabrik armas means. Just arms factory.

But more info would be helpful! Pictures from further back.

Sirhr



[Jakediesel06]

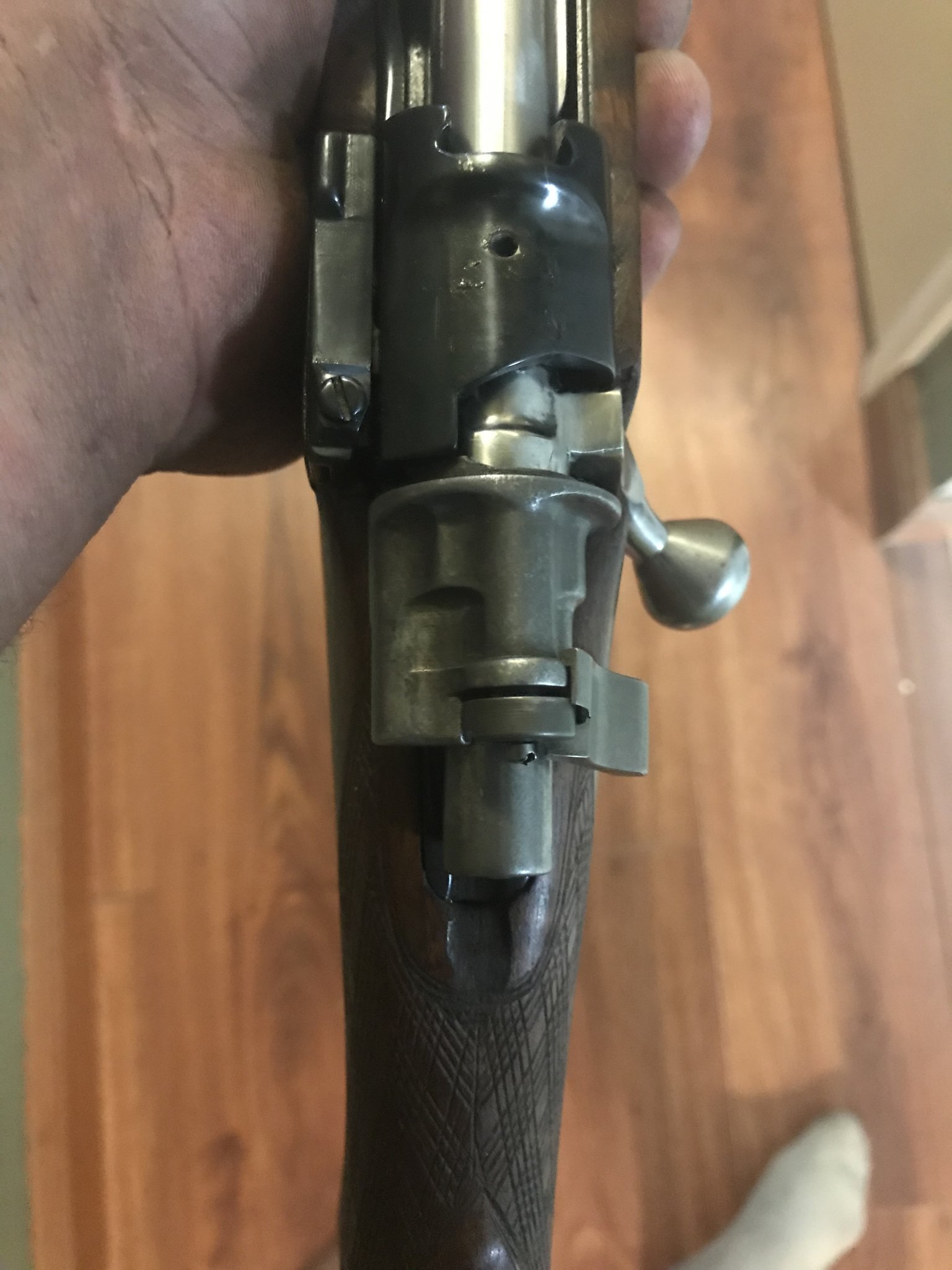

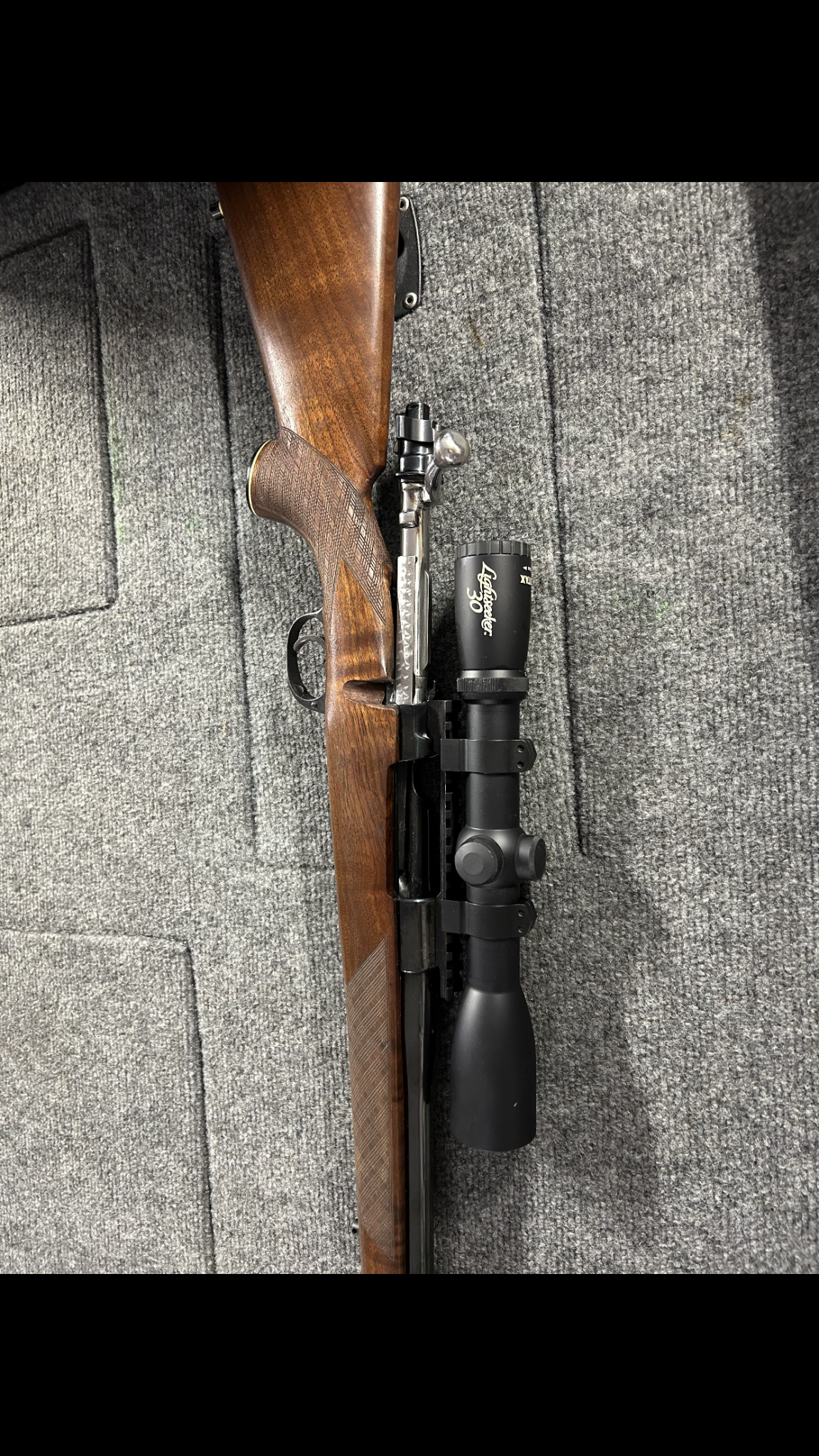

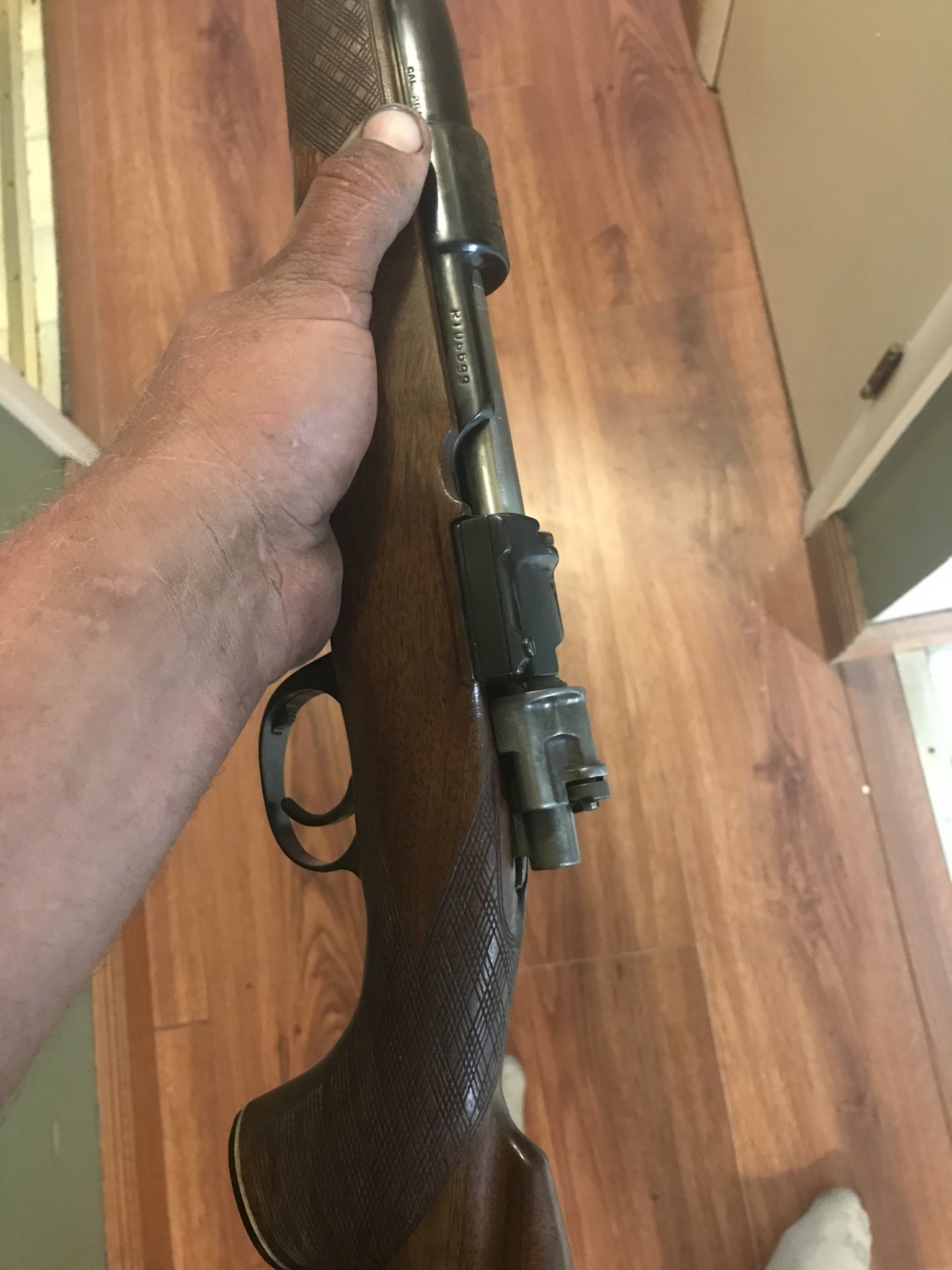

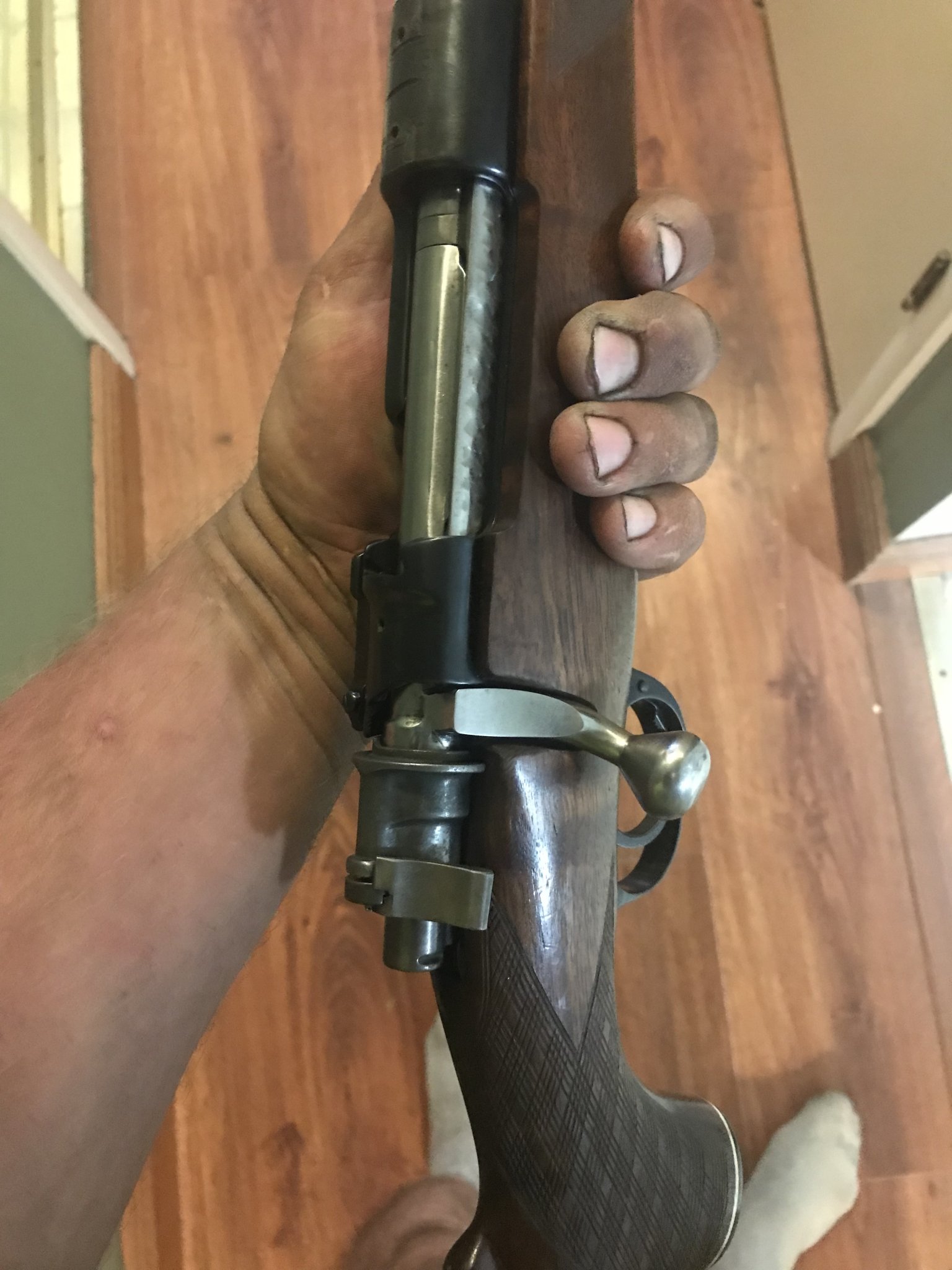

This help I can take more later



[sirhrmechanic]

Some. So you have a heavily sporterized Spanish Mauser… likely 1970’s conversion when skip line was all the rage.

Safety repair should be straightforward.

It’s nicely converted and will make a good shooting deer or sporting rifle. Not any point in restoring it to military.

Parts should be available from Numrich. Gun parts Inc of West Hurley, NY if you need any parts. Search for an exploded view online. Numrich probably had one.

Cheers, Sirhr



[Jakediesel06]

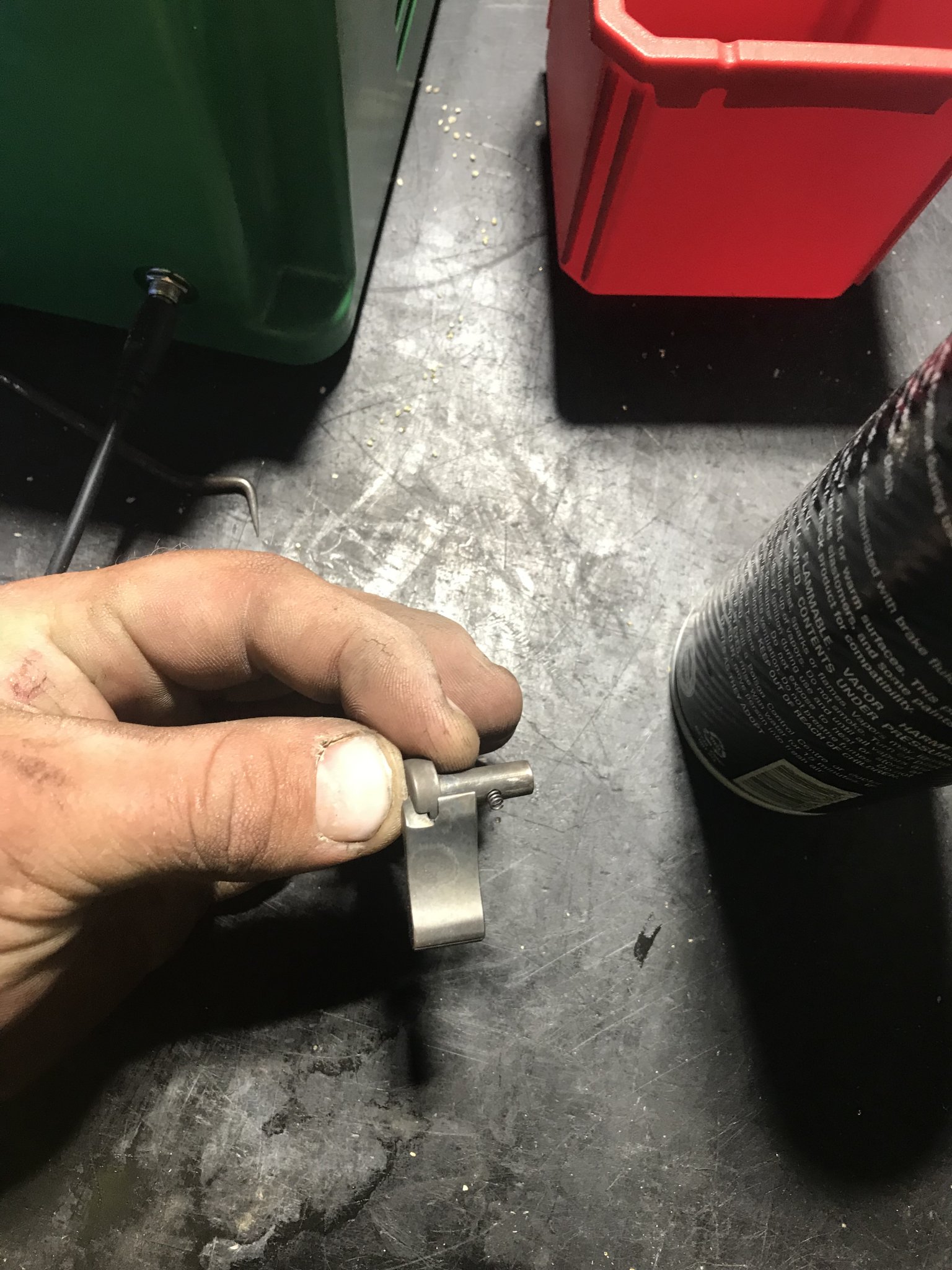

Saftey repair does look really straight forward my only issue is I’ve never seen one with that tiny spring and want to make sure it’s not need for anything or if I’m missing a piece



[Jakediesel06]

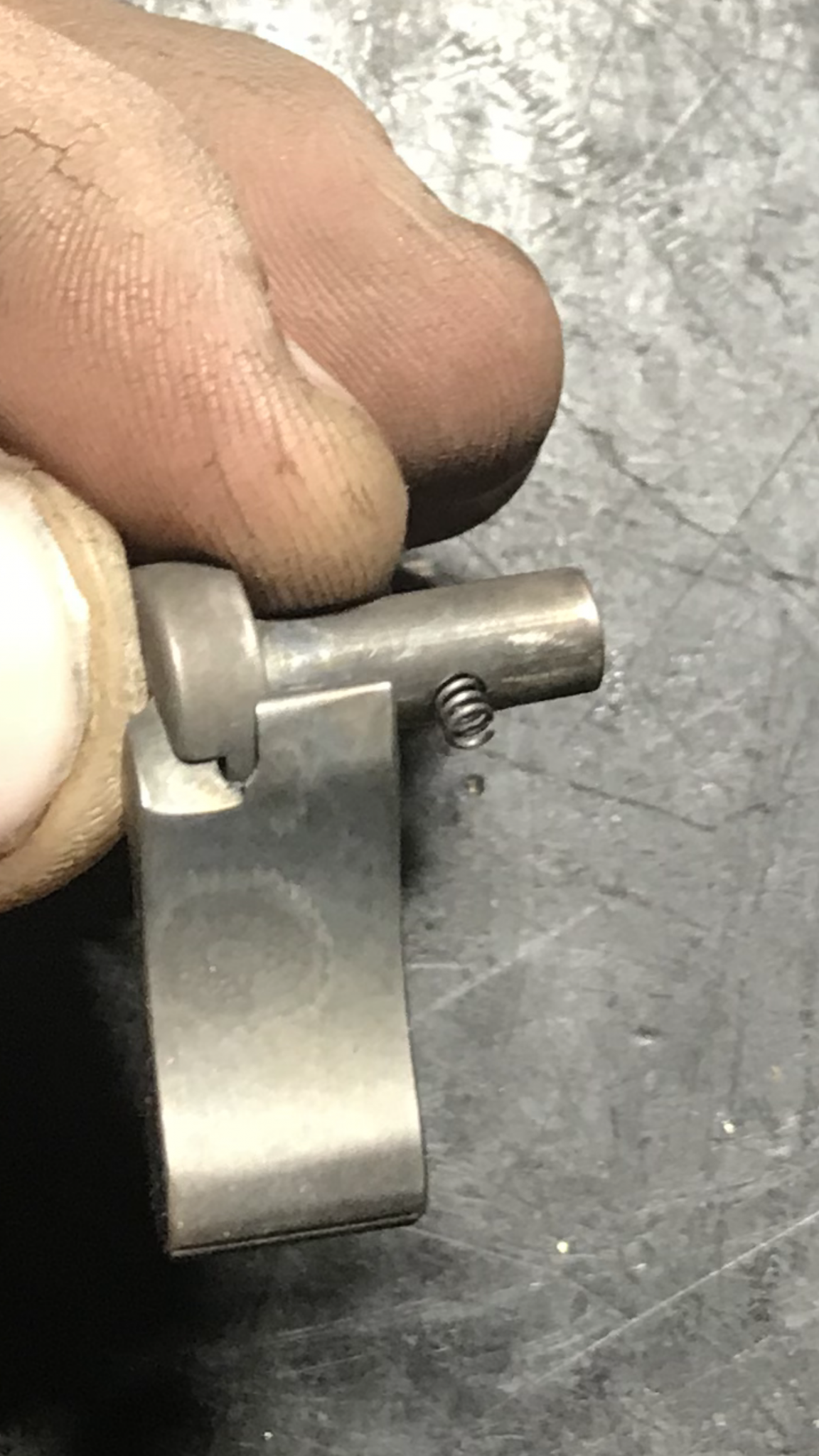

Little spring I’m talking about.



[Hetzer]

Buehler Mauser safety I think.



[Jakediesel06]

Yes you know what the spring is for.



[Hetzer]

Can't say that I do. It just looked familiar is all.



[Hetzer]

Brownells sells a copy. They should be able to help.



[Jakediesel06]

Does anyone know what model action this is?



[sirhrmechanic]

Yes you know what the spring is for.

Probably compresses a pin or ball detente. To give the safety lever a “positive” action. So it snicks In Place and doesn’t flop around.

Aftermarket safety. Very common.

Sirhr



[Hetzer]

Show us the left side of the receiver ring. I think M43 based on what's left of the crest, but that's my guess.



[Darayavaus]

soft steel spanish 98 large ring action.



[Jakediesel06]

Thankyou for your help left hand side of action



[Jakediesel06]

What is the difference between a m43 and 98 large ring.
