Measuring MOA on targets

[BuildingConceptsllc]

Is there an official way to measure MOA for groups? Is it always assumed that you measure from center to center to get your widest spread on a 5 shot group? (I generally do 5 shot vs 3 shot groups, I feel like 3 shot groups just don't tell the tale very well)

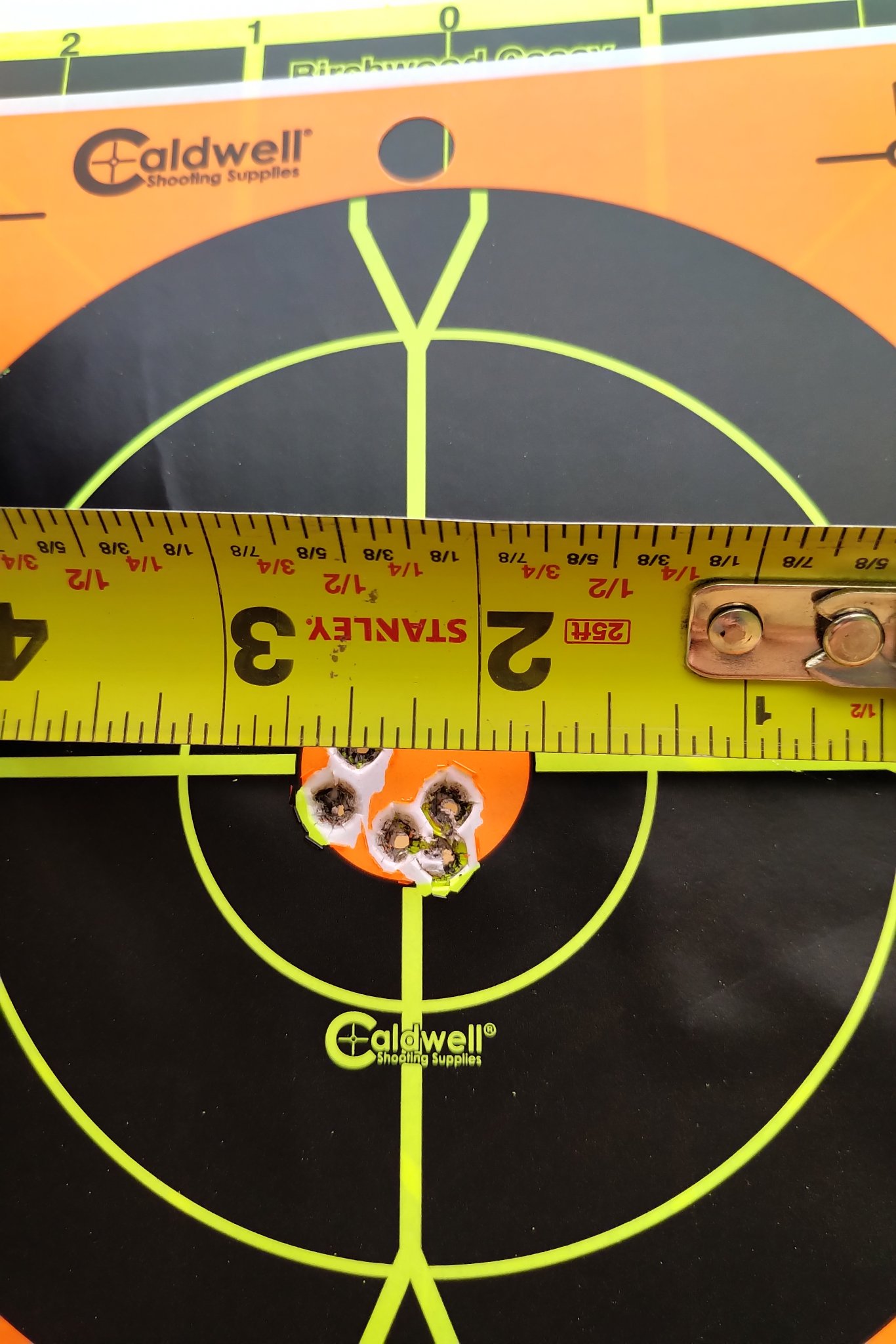

I didn't have my calipers with me on this trip, so I had to just put my tape up there, and this is just store bought, but match grade. What would you guys say this group is?



[DellaDog]

Measure edge to edge and subtract the bullet diameter. IE, 0.723 edge to edge minus .223 = .500. About what yours looks like.



[BadDogPSD]

Measure the two holes that are farthest from each other, center to center, or out side to outside & subtract the diameter of the bullet you're shooting.
Looks to be around 5/8th of an inch or .625 moa.
There are apps you can download to your phone that will figure all this out for you too.



[BuildingConceptsllc]

Measure the two holes that are farthest from each other, center to center, or out side to outside & subtract the diameter of the bullet you're shooting.
Looks to be around 5/8th of an inch or .625 moa.
There are apps you can download to your phone that will figure all this out for you too.

It was 5/8 outside to outside though, so center to center it's much better than that right? It may not quite be 5/8 but that's what I remember it being.

Any app in particular that is better than another? I've seen others post with the overlay and figured that's what it was.



[BuildingConceptsllc]

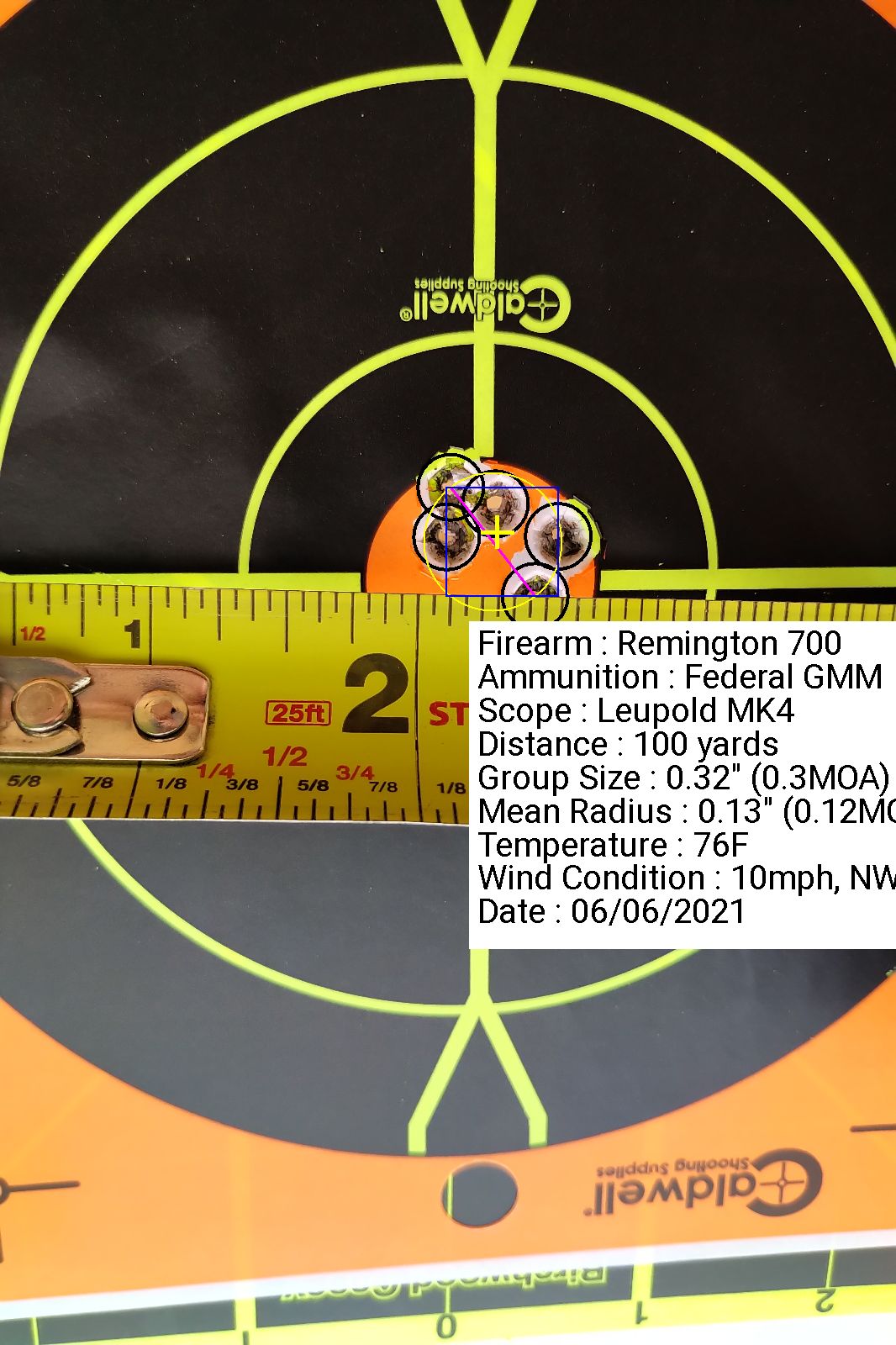

I found this app. Don't know how to put my bullet and scope info in it yet but it's pretty cool.



[nikonNUT]

I've been using Ballistic X and like it a lot. Very simple to use.



[BuildingConceptsllc]

I've been using Ballistic X and like it a lot. Very simple to use.

I will check it out then. Thanks



[nikonNUT]

I will check it out then. Thanks

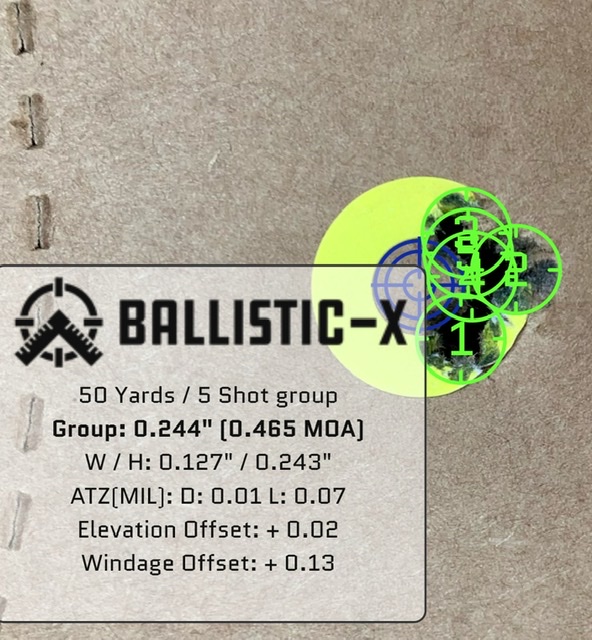

NP. I should add it is an app for your phone. Here’s what the output looks like…



[Baron23]

Fuck apps and doing shit on a tiny touch screen.

I like On Target for a whopping $11 that’s runs on your pc, laptop, or pad.

OnTarget Shooting - Measuring Firearm Precision and Accuracy

OnTarget programs measure firearm precision and accuracy, helping thousands of shooters worldwide improve their shooting performance.

ontargetshooting.com



[derek1ee]

I use something like this, just overlay on top of the target - i like it because it's transparent so you can also see no other flyers that may have been covered.



[308pirate]

It was 5/8 outside to outside though, so center to center it's much better than that right?

Yes, it's better by one bullet diameter

Because math



[BadDogPSD]

It was 5/8 outside to outside though, so center to center it's much better than that right? It may not quite be 5/8 but that's what I remember it being.

Any app in particular that is better than another? I've seen others post with the overlay and figured that's what it was.

Ballistic-X is pretty good.

Looking at the pic you posted, it appears that the top left and bottom right holes are the furthest apart from each other.



[wh20crazy]

It's tough to get a good measurement on that paper. Harder paper (card stock) gives holes that are better defined.

I agree with previous posters in measuring outside to outside, subtracting bullet diameter.
