MK11 MOD 0 Build

[beb0541]

Howdy,

I'm looking for a MK11 barrel, gas block, FF RAS, and front sight. Other than Gunbroker, does anyone have any recommendations and/or resources for these parts? Any help would be tremendously appreciated. Thank you!

Best,
C



[nn8734]

Good luck.

Have you called KAC directly, Presample Depot, Operation Parts, NS Defense and/or Nefarious Arms? These folks may have one or more of those parts but my guess is that they wont however they’re the most well known. They’re may be others. @longshot2000 may also have something in stock.

Assuming you are trying to run the Mk11 suppressor, the only one ive seen for sale in months is on GB for like 10k, lol.

Lastly, if you do find a barrel and it’s already drilled for the gas block taper pins you may need to either find an undrilled gas block or modify a used one.

Do you already have an SR25 upper and lower receiver?



[beb0541]

Good luck.

Have you called KAC directly, Presample Depot, Operation Parts, NS Defense and/or Nefarious Arms? These folks may have one or more of those parts but my guess is that they wont however they’re the most well known. They’re may be others. @longshot2000 may also have something in stock.

Assuming you are trying to run the Mk11 suppressor, the only one ive seen for sale in months is on GB for like 10k, lol.

Lastly, if you do find a barrel and it’s already drilled for the gas block taper pins you may need to either find an undrilled gas block or modify a used one.

Do you already have an SR25 upper and lower receiver?

@nn8734 - Thanks for the info.

Have the can.

Could you provide more detail here re the gas block comment? Are you thinking a used gas block won't marry with an old barrel or the pin holes may be off? Sorry, I want to make sure I'm understanding. Additionally, Do the MK11 and M110 use the same block?

Not 100%, but think I've found a set.

Best,
C



[nn8734]

@nn8734 - Thanks for the info.

Have the can.

Could you provide more detail here re the gas block comment? Are you thinking a used gas block won't marry with an old barrel or the pin holes may be off? Sorry, I want to make sure I'm understanding. Additionally, Do the MK11 and M110 use the same block?

Not 100%, but think I've found a set.

Best,
C

The pin bore alignment may be off to a degree between gas block and barrel. This was told to me by Charlie at Operation Parts, certified KAC armorer. Also, both use a “double high” gas block but the M110’s suppressor docking/anchor pin is at 7 oclock while the Mk11’s is at 6 oclock



[beb0541]

@nn8734 - Thank you! I was under the false impression they were the same.

Roger re the block/barrel alignment.



[nn8734]

@nn8734 - Thank you! I was under the false impression they were the same.

Roger re the block/barrel alignment.

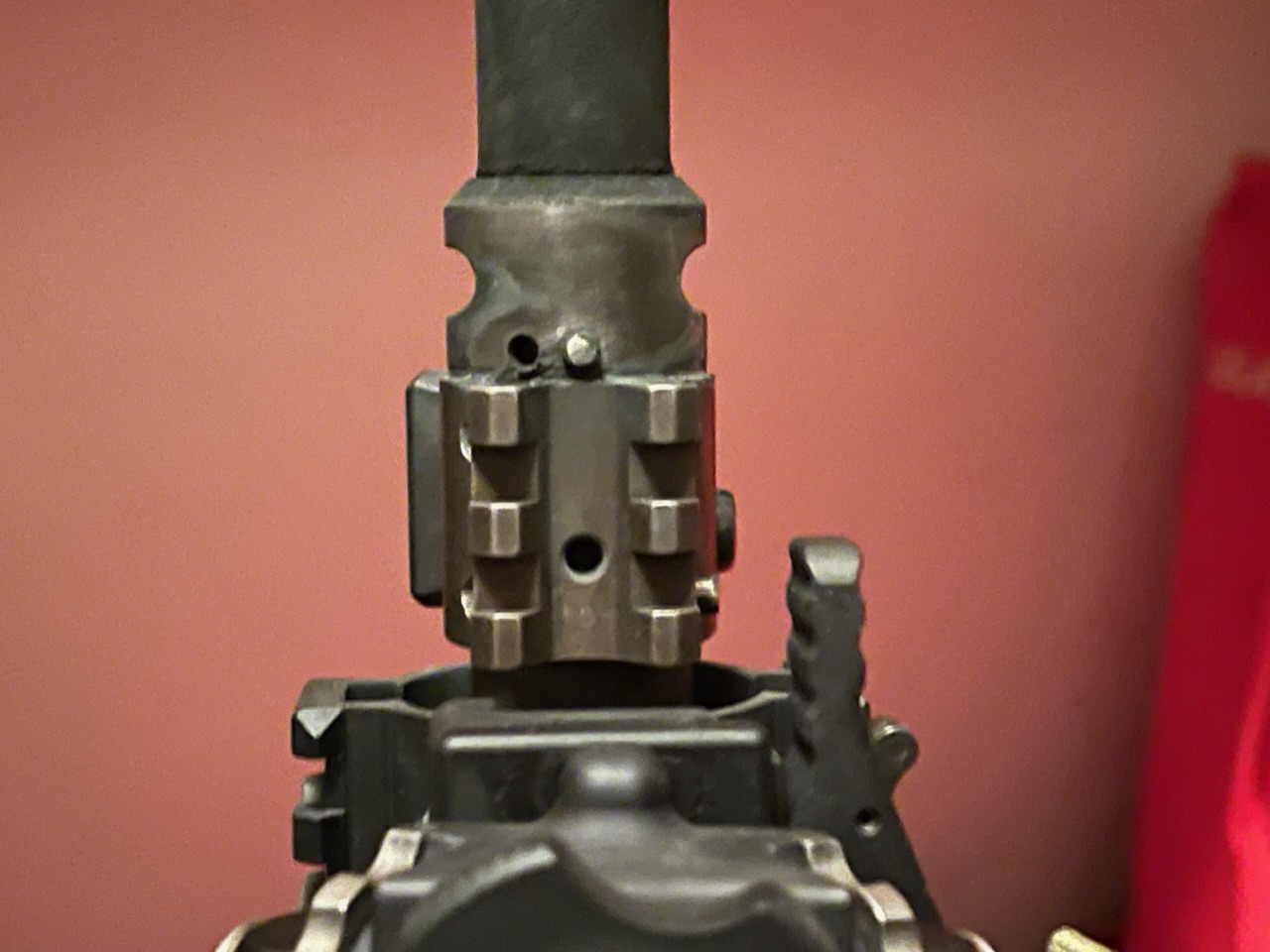

Here’s the underside of my Mk11’s gas block. Im almost positive the same block (at least footprint wise) is used on the M110. There are two pin placement locations; the M110 would need that pin in the 7oclock position but otherwise its the same block.



[j-dubya]

View attachment 8016344

Here’s the underside of my Mk11’s gas block. Im almost positive the same block (at least footprint wise) is used on the M110. There are two pin placement locations; the M110 would need that pin in the 7oclock position but otherwise its the same block.

The blocks have cosmetic differences between the two. The m110 block has the center of the lower rail cut out like your photo above, along with the two horizontal scallops cut out between the gas tube and barrel on each side. A mk11 block is all solid and filled in in these areas. Only other variation is the mk11 mod 1, which used the mk11 block but with the 7 o’clock pin for the m110 suppressor...



[Skunk]

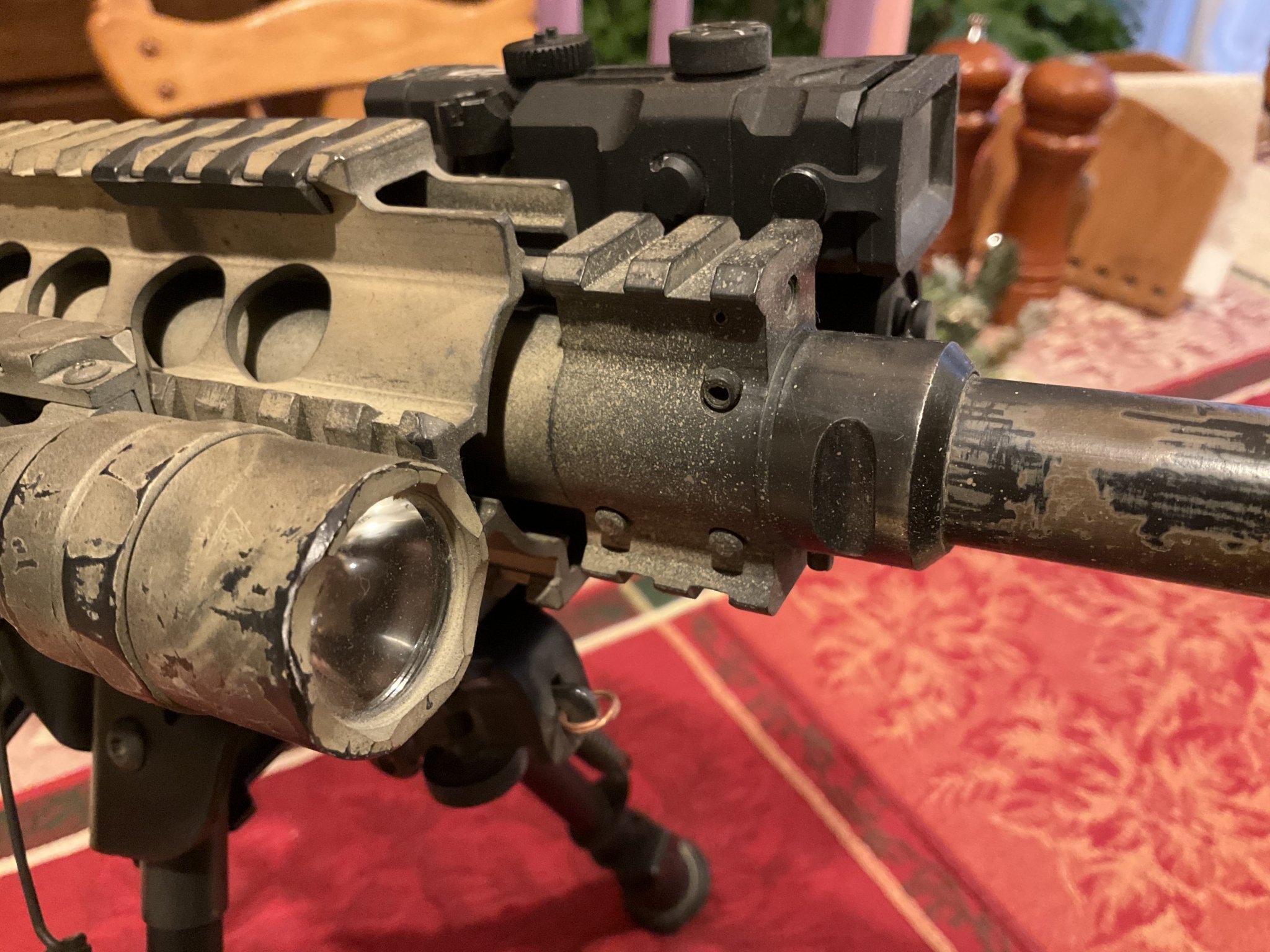

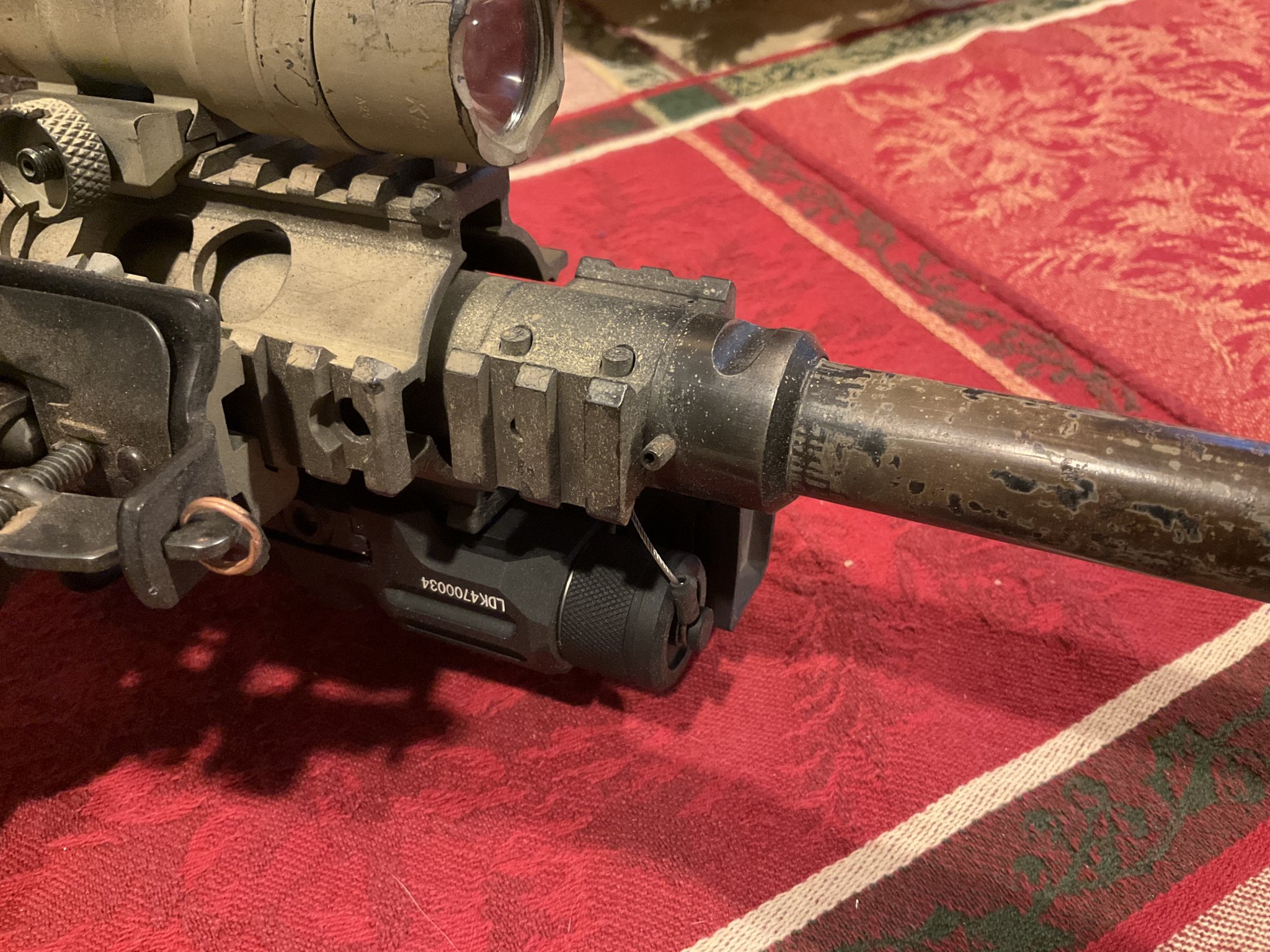

Mk11 Mod 0



[beb0541]

Mk11 Mod 0View attachment 8017138

Thanks for the detailed info!



[S197]

Howdy,

I'm looking for a MK11 barrel, gas block, FF RAS, and front sight. Other than Gunbroker, does anyone have any recommendations and/or resources for these parts? Any help would be tremendously appreciated. Thank you!

Best,
C

This guy often had parts, reach out to him.

Accessories - ilikebmxbikes garage sale

Selling some more odds and ends - all prices include ship w/ usps priority Geissele HK 416 Rail 14.5" - has install marks but otherwise new - $SOLD Badger Ordnance SASR 34mm Rings w/ Oldgen Simrad Cap - 2008 era - m110 - $SOLD Badger Ordnance SASR 34mm Rings 2011 era - m110- $200 Surplus...

www.snipershide.com

sharkarms.com has a bolt, but he is over priced.
