MRAD target diagrams?

[Multi-Tool]

I would like to find some 200/300/600 yard service rifle target diagrams with an MRAD grid superimposed. I have a high power data book laid out with an MOA grid, but I would like an MRAD grid for scope shooting. The closest thing I have found is here, but it is for a 1000 yd F-class target:
https://www.ocabj.net/nra-lr-fc-target-diagram-with-mrad-scale-for-1000-yards/

Is there anything like this available?

Thanks!



[308pirate]

Isn't there a mil grid inside your scope?



[Multi-Tool]

Sure, but this would be useful for load testing when I might fine-tune the scope adjustment after firing a group.



[smoothy8500]

I have not come across actual data books that have the Mil grid, but ShotMarker E-targets have a Mil grid option on the NRA target choices. I'll see if it's possible to copy. If not, you'll have to do the math conversion of MOA to Mils.



[Secant]

What size total for target and what size for dots/circle/etc? Post a sketch and I can draft it up....probably this week?



[308pirate]

Sure, but this would be useful for load testing when I might fine-tune the scope adjustment after firing a group.

I don't know what kind of reticle is in your scope but the reticle (Steiner SCR) in mine has subtensions as fine as .2 mils which means I can resolve down to .1 mil.

You can't get more discriminating than that.



[Secant]

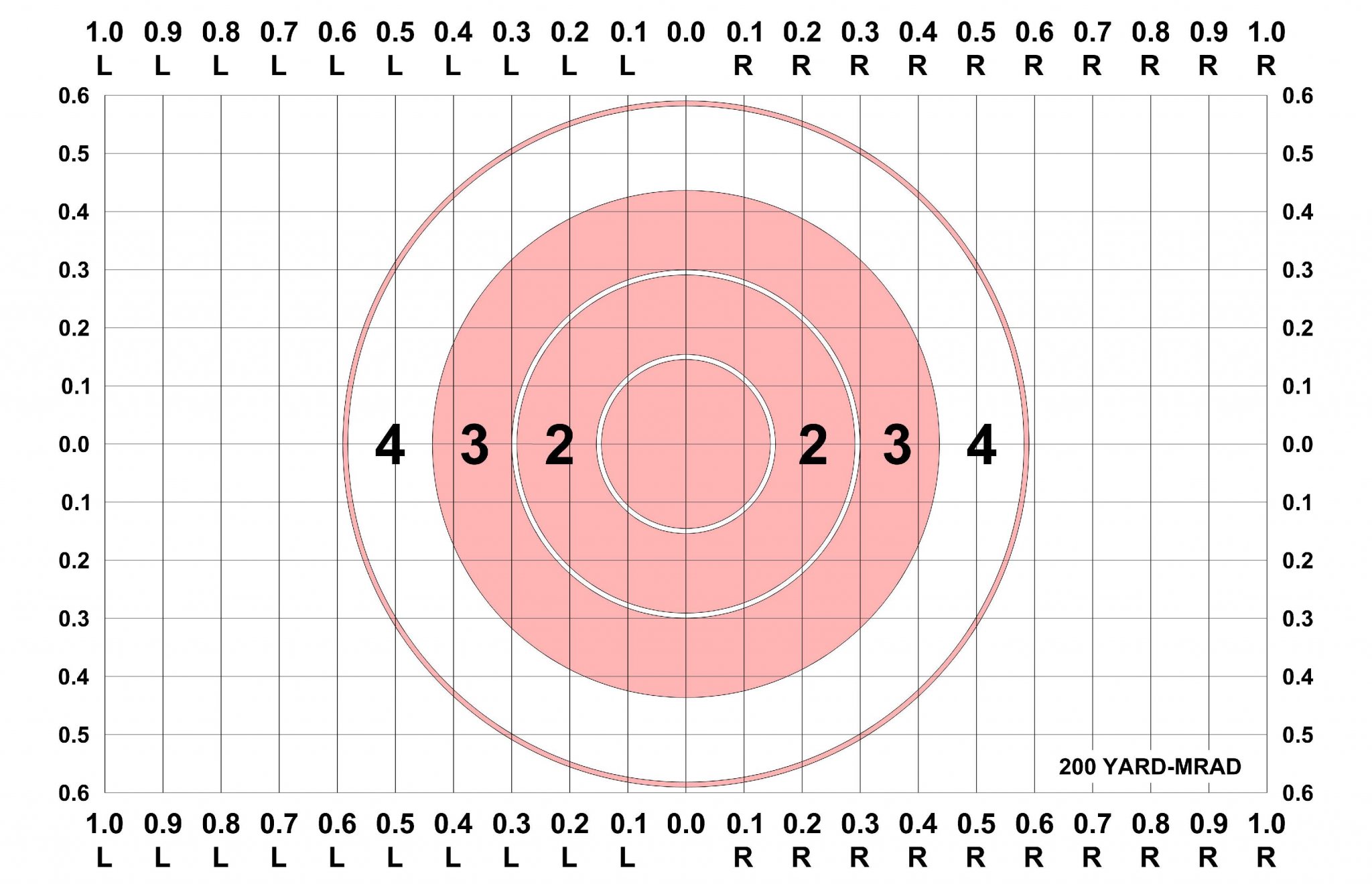

11x17, with mrad grids and MOA circles??? That's kinda what the above linked example looked like it had going on, but we could do MRAD circles, or straight inches, or whatever. It would fit better on 8.5x11. See jpg and attached PDF. Can't actually guarantee that I can make changes this week, but post up your sketch(es) and we can go from there.



[Multi-Tool]

Secant,

Thank you for the offer. See the PM that I sent you for more details.
