Muzzle brake fit issue

[jLorenzo]

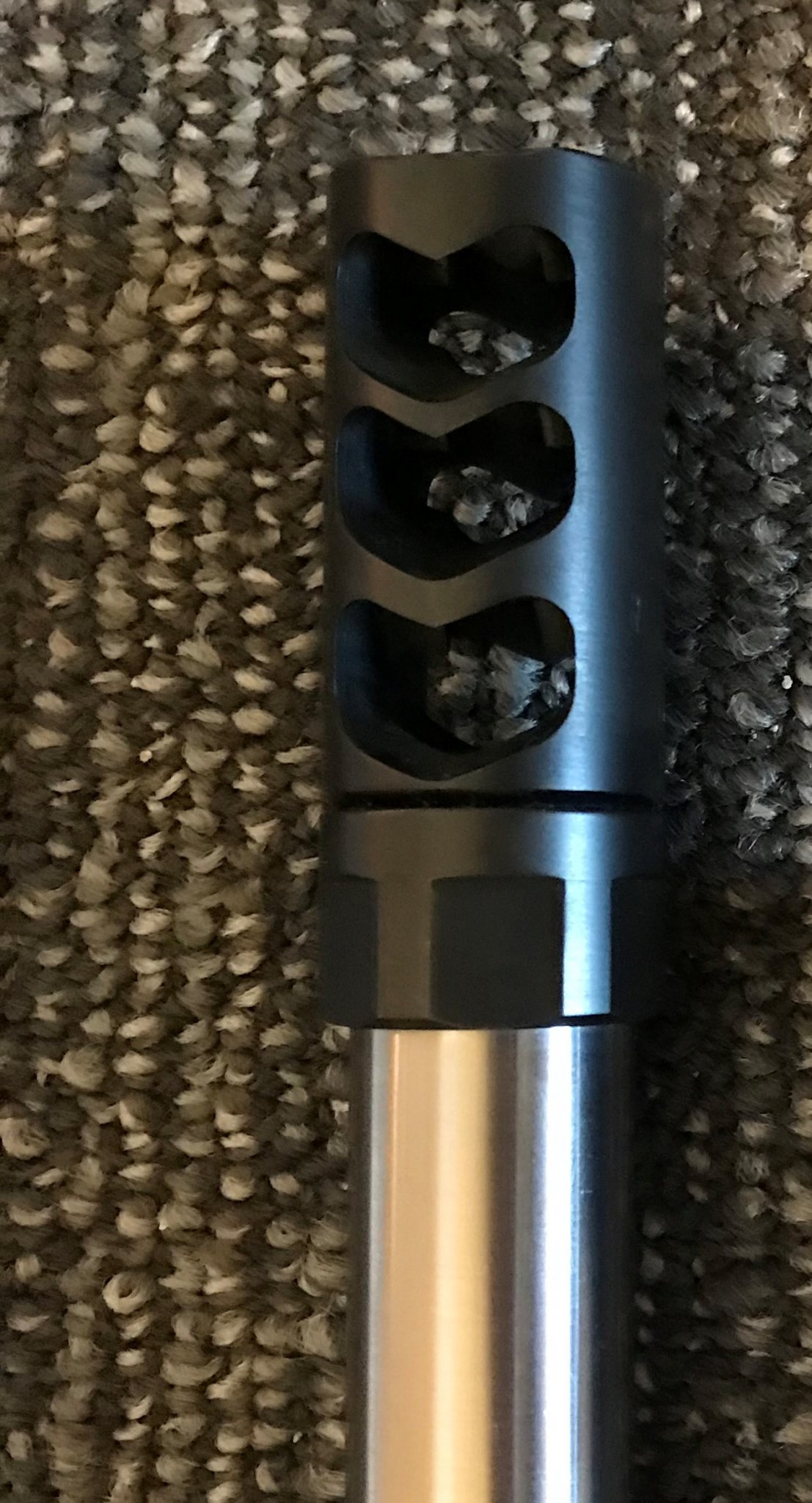

Anyone know where I can find a washer/spacer to fill this gap?
Its an M24 profile, finishes at .91, the brake is a hair bigger. Its timed right pretty much but I have this gap. Gonna get the feeler gauges to see how much exactly, I may end up going with a different brake if I can't remedy this. Bugs me having that gap.



[dimar1492]

You ran out of threads inside the brake?



[msgriff]

Check to see if your muzzle threads have a relief cut at the shoulder, or that the brake has a bevel/recess at the start of the threads. They make a spacer for those situations that don't. You will also need timing shims. OD of the shims/spacer to match the barrel is important if you're concerned about looks.
ETA: Precision Reflex or Griffin Armament



[cro789]

Check with Brownells or Sinclair Reloading. You can search for peel washer. Come to think you can order them from Thunder Beast and they have the size you will need.



[dimar1492]

Why not have someone stick it in a lathe and clean this up right? Time the brake how you want it and blend the back into the shoulder for that clean seamless look.



[b6graham]

Why not have someone stick it in a lathe and clean this up right? Time the brake how you want it and blend the back into the shoulder for that seamless look.

waste of money in reality versus a few dollars for washers

especially if this is a barrel that's going to get shot a lot which being M24 i would assume it is

this is why we run self timing brakes not AR brakes



[dimar1492]

waste of money in reality versus a few dollars for washers

especially if this is a barrel that's going to get shot a lot which being M24 i would assume it is

this is why we run self timing brakes not AR brakes

You're right that the cost probably doesn't make sense here. But sticking washers behind a brake that was tapered like that would bug me almost as much as the gap it currently has.

Ultimately if the OP is happy with the fix then that's all that matters.



[2aBaC̶a̶]

where does it physically stop? assuming you backed away from it physically stopping to get the timing right? if stops on the shoulder close to correct timing you could take some off the back of the brake until it times correctly when torqed down.



[jLorenzo]

You ran out of threads inside the brake?

The picture is it on as tight as it will go



[jLorenzo]

I have a bunch of different shims but the aren't the same diameter as the barrel, much smaller.
If I can find some .91" outside diameter shims Ill be in business. May have to go with another self timing brake though.
I want something small, stainless, 2 ports. Its a 223.
I figured Id give this JP a shot because the price was right. It is a bigger brake than I would like really anyways. If I can get it to fit easily I won't care.



[jLorenzo]

You ran out of threads inside the brake?

I believe so.



[Rob01]

Just get a self timing brake and sell that one. Get it .30 so it can be used with others down the road and it will work fine on a .223. I have a .30 brake on my .223.

Jet Blast Muzzle Brake

[email protected]

patriotvalleyarms.com



[Wannashootit]

Get a set of Accu-washers from Precision Armament if machine work isn't desired.



[TheOE800]

Get a set of Accu-washers from Precision Armament if machine work isn't desired.

Looks terrible on the end of a fat M24.



[jLorenzo]

I have a bunch of different shims, its the outer diameter thats the problem. I would want them to be flush with the outside of the barrel to make it more seamless.
I'm gonna keep looking. Small, slimmer profile, 2 port, stainless, self timing is want I want. I want it on there to protect the threads and crown more than anything. A little recoil reduction is fine but its a m24 barreled 223. recoil isn't an issue.



[jLorenzo]

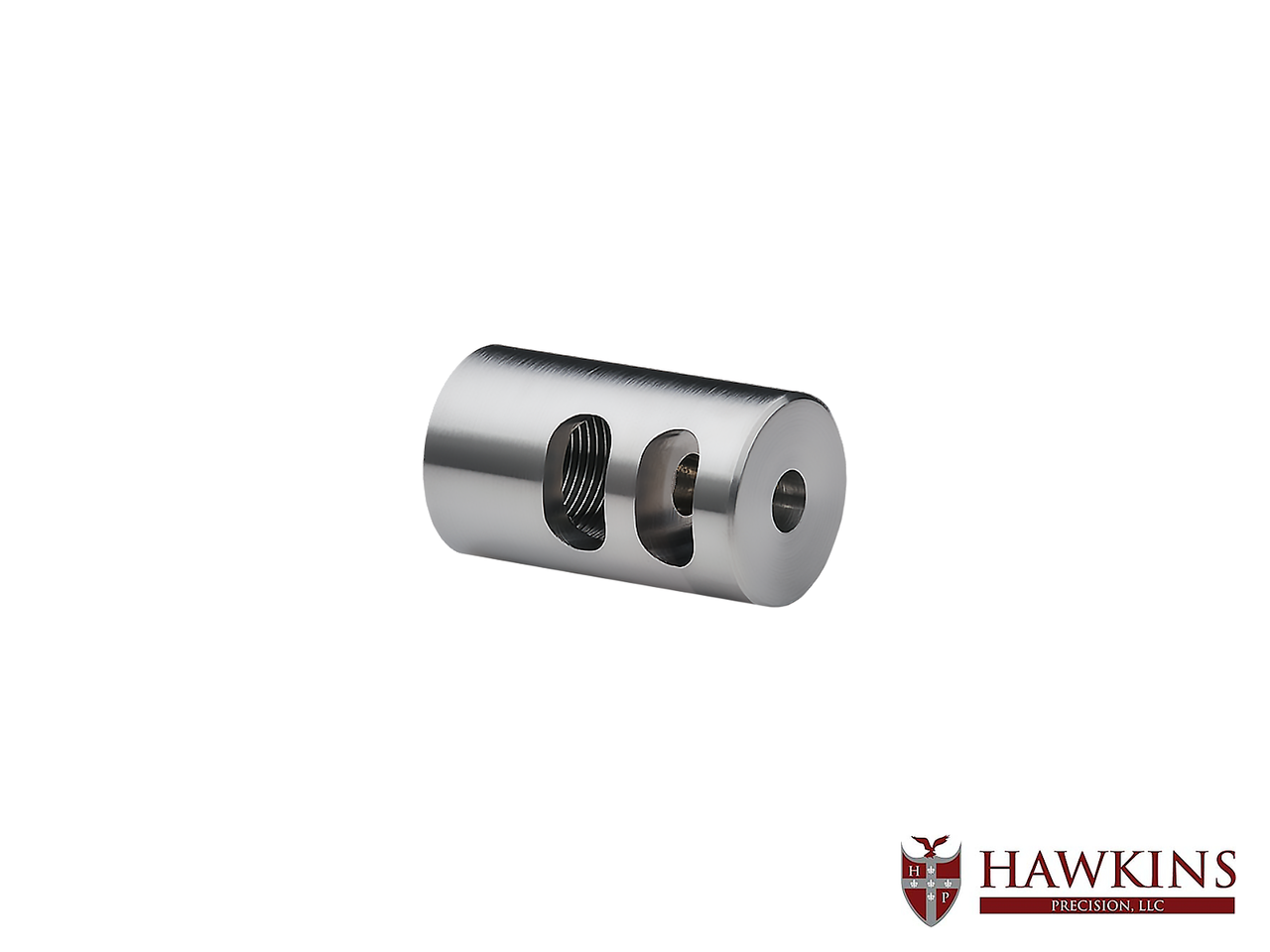

Something like this size wise, but this one isn't drilled and needs to be finished by a smith.



[dimar1492]

For what you're describing, maybe even consider a simple thread protector. If it's mostly about protecting threads and not recoil. Way cheaper and you could sell the brake you have.



[jLorenzo]

For what you're describing, maybe even consider a simple thread protector. If it's mostly about protecting threads and not recoil. Way cheaper and you could sell the brake you have.

problem is the edge of the barrel. I dont have a .91" outside diameter thread protector. I have a generic one that is just slightly wider that the threaded section of the barrel. Leaves the shoulder edge of the barrel out in the open and could easily get dinged up. Ive decided I might as well go with a brake.



[dimar1492]

YANKEE HILL MACHINE CO., INC. .920 BULL THREAD PROTECTOR 5/8-24 | Brownells

Prevent unwanted and expensive damage to your rifle’s muzzle threads and crown with easy-to-install thread protectors. Knurled exterior gives you a firm grasp to install or remove the protector in seconds. Available in popular thread sizes and dia...

www.brownells.com

Should also protect the edge of the shoulder



[Rob01]

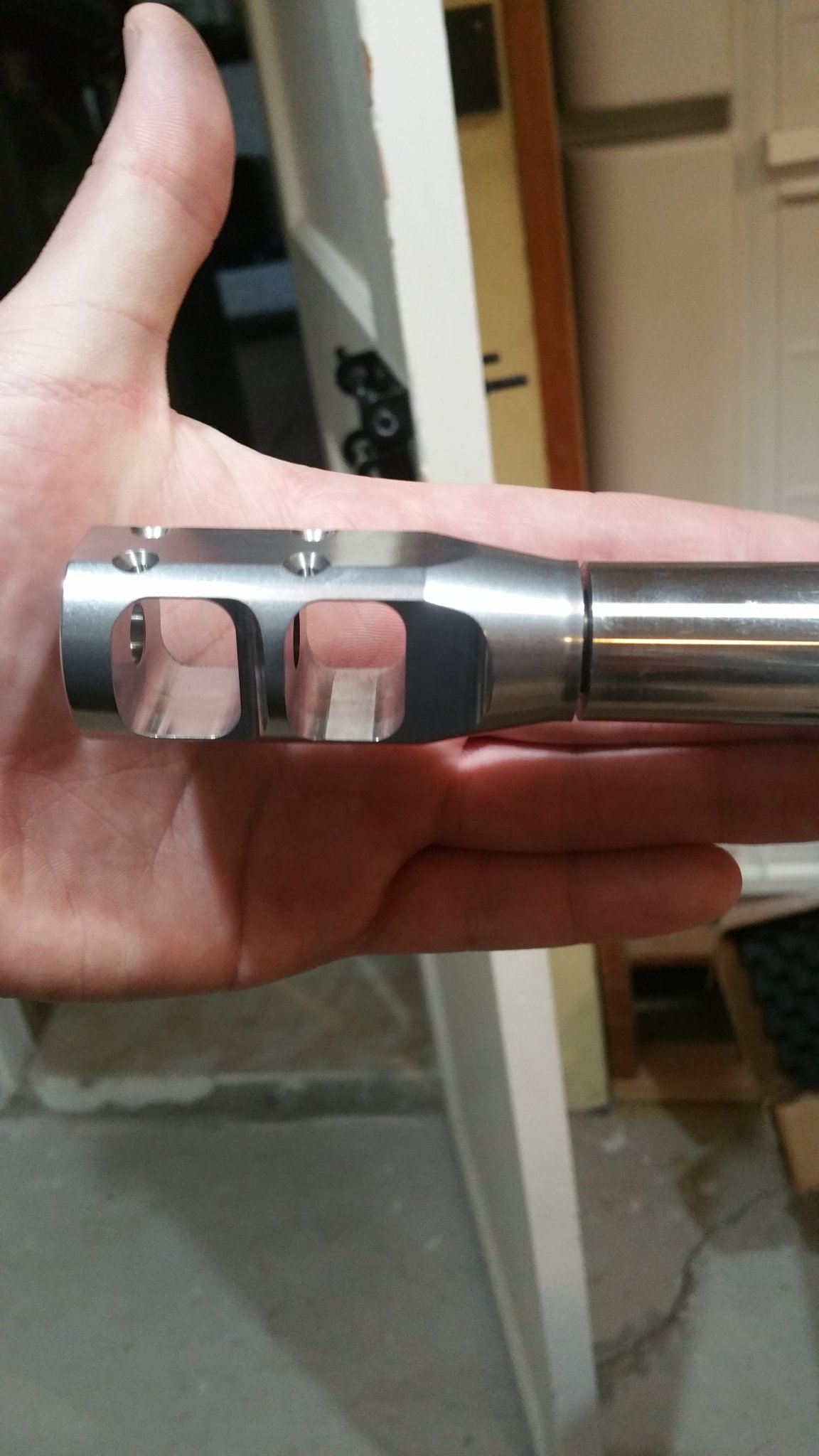

One extra port won't hurt anything and not add a lot of length. Why limit yourself to a unicorn? Here is a pic of the Jet Blast on a Med Palma contour barrel. It would look more streamlined on the M24. And some recoil reduction is the added benefit. It's only 2.4" long.



[b6graham]

Hellfire 2P - Self Timing Muzzle Brake w/ Adapter

Click HERE to add additional adapters Click HERE for the Best-Selling Hellfire Muzzle Brake The HELLFIRE 2P Muzzle Brake is designed to provide an optimized brake for Semi-Automatic and/or hunting weapons systems with barrels of 20″ or less. This brake will offer the greatest performance...

www.area419.com

the inside heathen makes a nice 223 brake as well



[jLorenzo]

Yeah that looks good. I am leaning towards a stainless gen 2 little bastard, 160$ kinda stings for something I don't care much about.

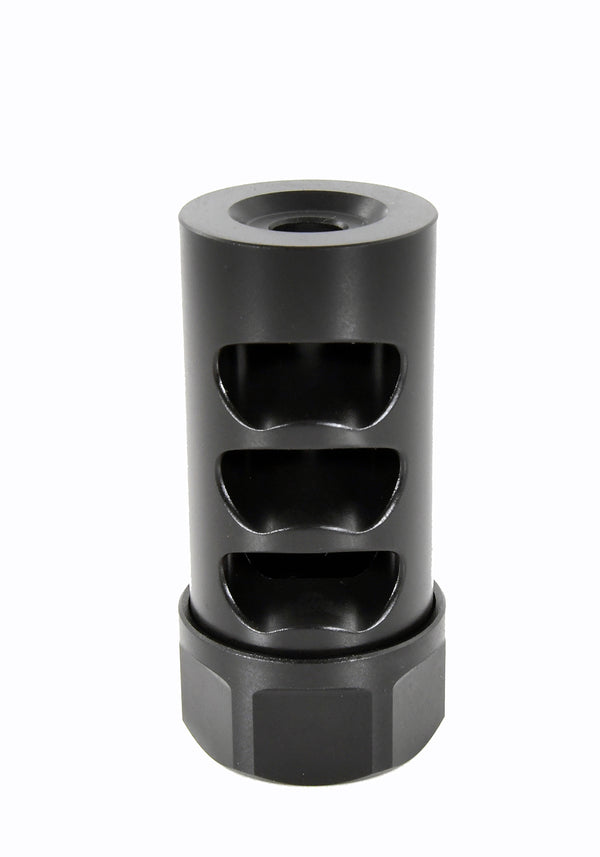

Gen 2 Little Bastard Self Timing Muzzle Brake*

Our muzzle brakes are an industry leader! Our Gen 2 is a two-piece design that allows the shooter to quickly install or remove their muzzle brake for whatever reason. Say goodbye to crush washers, peel washers, or the need for a professional installation. Your hands and a crescent wrench are...

www.americanprecisionarms.com



[Rob01]

Hellfire 2P - Self Timing Muzzle Brake w/ Adapter

Click HERE to add additional adapters Click HERE for the Best-Selling Hellfire Muzzle Brake The HELLFIRE 2P Muzzle Brake is designed to provide an optimized brake for Semi-Automatic and/or hunting weapons systems with barrels of 20″ or less. This brake will offer the greatest performance...

www.area419.com

the inside heathen makes a nice 223 brake as well

Saw those too but not stainless. He wants stainless.



[jLorenzo]

Hellfire 2P - Self Timing Muzzle Brake w/ Adapter

Click HERE to add additional adapters Click HERE for the Best-Selling Hellfire Muzzle Brake The HELLFIRE 2P Muzzle Brake is designed to provide an optimized brake for Semi-Automatic and/or hunting weapons systems with barrels of 20″ or less. This brake will offer the greatest performance...

www.area419.com

the inside heathen makes a nice 223 brake as well

Thats about perfect except I don't see a stainless option



[Rob01]

Yeah that looks good. I am leaning towards a stainless gen 2 little bastard, 160$ kinda stings for something I don't care much about.

Gen 2 Little Bastard Self Timing Muzzle Brake*

Our muzzle brakes are an industry leader! Our Gen 2 is a two-piece design that allows the shooter to quickly install or remove their muzzle brake for whatever reason. Say goodbye to crush washers, peel washers, or the need for a professional installation. Your hands and a crescent wrench are...

www.americanprecisionarms.com

Then get the Jet Blast for $125 and stainless.



[b6graham]

Thats about perfect except I don't see a stainless option

i wonder if they'd leave one raw if you called them

i have other stainless A419 brakes and didn't even check the options



[jLorenzo]

Then get the Jet Blast for $125 and stainless.

Yeah Im thinking thats gonna be the way. I can still return this JP.



[jLorenzo]

Then get the Jet Blast for $125 and stainless.

Ordered one just now. Thanks.



[Rob01]

Ordered one just now. Thanks.

Good deal. I bet you will be happy with it and even though a .223 you will get some recoil reduction too as a bonus.



[dimar1492]

This will certainly be a soft shooting rig now.



[Wannashootit]

Looks terrible on the end of a fat M24.

Yeah- missed the muzzle OD in the original post.
