My build is finally finished

Praetorian

Private
Minuteman
Jul 10, 2017
13
0

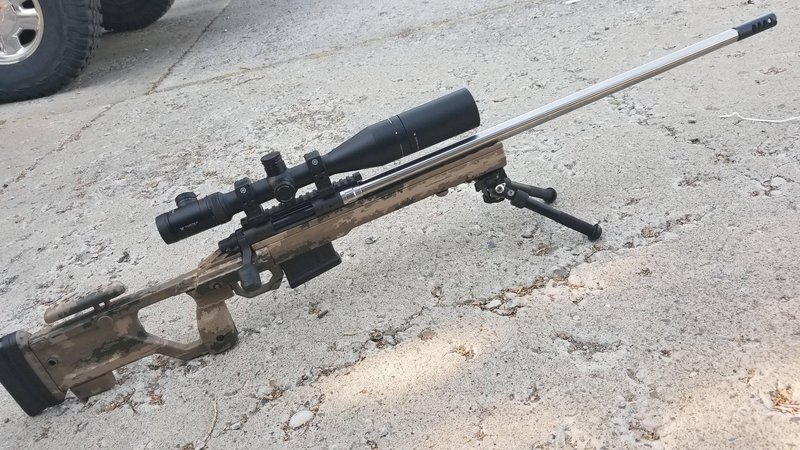

My rifle started life as a run of the mill SPS varmint in 308. I wanted to shoot in local matches so I decided to upgrade a bit.

Specs:
Varmint SPS receiver
26" varmint profile Criterion Remage Barrel in 6.5 Creedmoor with precision ground recoil lug
KRG Xray stock with cerakote job by LRI.
Weaver 20MOA rail
American Rifle Company 30mm scope rings
Vortex PST Viper 4-16x50
LRI Cathedral Muzzle brake
Cadex Defense two stage trigger.

Overall very happy with the rifle. A few things I would still like to upgrade, but just small things. I plan on getting the barrel and action cerakoted this year in FDE. The criterion barrel was the best upgrade I made. The stock barrel was void of rifling in a section of the barrel it would group 1" to 1.5" depending on ammo. However I thought a heavy barreled rifle should be capable of more. I am currently getting groups in the .3" range when I do my part. However I haven't shot the rifle in almost a year so getting consistent groups is a little tough.

The KRG stock is amazing. LRI did a great job on the Cerakote. I purchased the stock lightly used from someone I know. The paint job has held up extremely well and the stock looks new. I could not believe the engineering put into this stock. Everything is machined very well. The V-Block bedding system holds the action firmly.

I am really impressed with the ARC rings. The manual said to torque them to 50in/pounds which I thought was excessive, but spoke to other shooters and they said that was what they were made for. You can tell they were made by aerospace engineers.

Nothing really to talk about with the rail. I will probably upgrade to a steel rail in the future.

The Vortex Viper scope is okay. Not my first choice, but got it on sale for $399. Cabela's advertised it wrong and I decided to capitalize. The sale was supposed to be for the second focal plane, however they advertised if for the first focal plane version.

The LRI brake does the job. Maybe a little loud, but it minimizes recoil.

The cadex trigger was given to me. I couldn't find any real reviews out there on it, but can tell you its a damn good trigger. I have it adjusted for 3 pounds. first stage 1 pound second stage 2 pounds. It hits a wall between stages and you know exactly when its going to break. The trigger is also adjustable fore and aft. This way great to put the trigger right in the "sweet spot" for my finger pad. The safety click in and out audibly. You cannot move the trigger at all when the safety is engaged, even through the first stage. The travel of the second stage is also adjustable, but to be honest it was perfect when I installed it. After the trigger broke the trigger does not travel rearward at all. It also has large openings that allows you to maintain the trigger and clean the dirt out easily. You can also see sear engagement when adjusting the trigger.

So now I have a semi custom rifle build and just purchased some hornady dies to reload. So far shot great with factory ammo, 129 american whitetail and 143 grain ELD X. Have about 100 brass saved up and waiting to find some decent powder. I couldn't be any happier with the rifle.








Attachments

  • photo64777.jpg
    116.5 KB · Views: 41
Looks grea as ist! Save off on the cerakote and get yourself a good trimmer or a chargemaster. You'll appreciate it once you start reloading heavily. Which from the sounds of you and your friends you will be :D

Already set up to reload, just need the powder and bullets. I have the old school Lyman auto scale. Set it to charge a few grains shy and trickle the rest on a manual scale. Seems to go by fairly quick when reloading 100 at a time.

That's a good looking rifle! I'm seriously considering an XRay for my match rifle. Where is the balance point of your rifle, if you don't mind me asking? Looks like it may be a bit further forward than a traditional A5/T4..

That's a good looking rifle! I'm seriously considering an XRay for my match rifle. Where is the balance point of your rifle, if you don't mind me asking? Looks like it may be a bit further forward than a traditional A5/T4..

Thank you! It balances just slightly forward of the barrel nut.

"Finished."

That is a bunch of BS and I am sure we all know it! lol

I am jealous, I still need a chassis and rings to finish my SPS "build". Nice rifle

Like I said, there are a few small changes I would like to see. Haha. Mainly the 20moa rail and cerakote for cosmetic reasons. I would also like to try a different muzzle brake, but I received the LRI for free so I can't complain. Would really like to try a PVA mad scientist.

However, I really like the rifle the way it is. Changing anything at this point is me nitpicking it to death.

This is the stages of my rifle for anyone following.


Normal SPS


Bell and Carlson (Note I started with a Falcon Menace scope, broke two months later)


Wanted a magazine system and ordered the Magpul Hunter. Should have just stuck with the Bell and Carlson.
