Not sure if I've seen another one of these on this site so I figured I would share..

I was on a mission to find 22lr accuracy.. i explored cz's, Kidd's, factory Rugers and savages and this is what I ended up with.. I will post progress of my groups so you can see if this procedure is actually work it..

Here is a little blip about what Connecticut Precision Chambering does...

10/22 Gunsmith Notes: Ruger 10/22 barrels are cut with a standard SAAMI .22 reamer which cuts .062" too deep. Production speed machine reaming often leaves burrs in throat and chambers not concentric to bore. Aftermarket barrels have tighter, shorter chambers (sometimes too tight) than the SAAMI print but seldom short or concentric enough for maximum accuracy.
CPC designs its own reamers for the 10/22 called CPC Freebore chamber for ideal function and accuracy. Setback is .187" to .250" on breech end. The newly cut area on barrel shank is oversize for a 'line to line' tight fit into the receiver stabilizing the two parts. A steel spacer is cut and hand fit into the barrel lockdown cut to insure proper retightening. CPC fits a reamer pilot to the exact bore size and re-reams each barrel by hand. New chamber throat and crowns are cut concentric to bore within .0002".

The thing that intrigued me was that they actually thread the barrel into the receiver and do away with the V-block all together..also tune the trigger and true the bolt to the barrel.

What I found out quickly is if you don't have your 10/22 in a decent stock you're wasting your time and ammo. I originally had this BA in a archangel deluxe stock which was stiff but still had up and down movement of the receiver. Since I put it in a Titan with a rear tang it is a night and day difference! I mounted a Athlon Midas Tac 6-24 on top. The only thing I didn't realize is how short the comb is on the Titan so I think I'll have a better check weld once I get their cheek riser system.

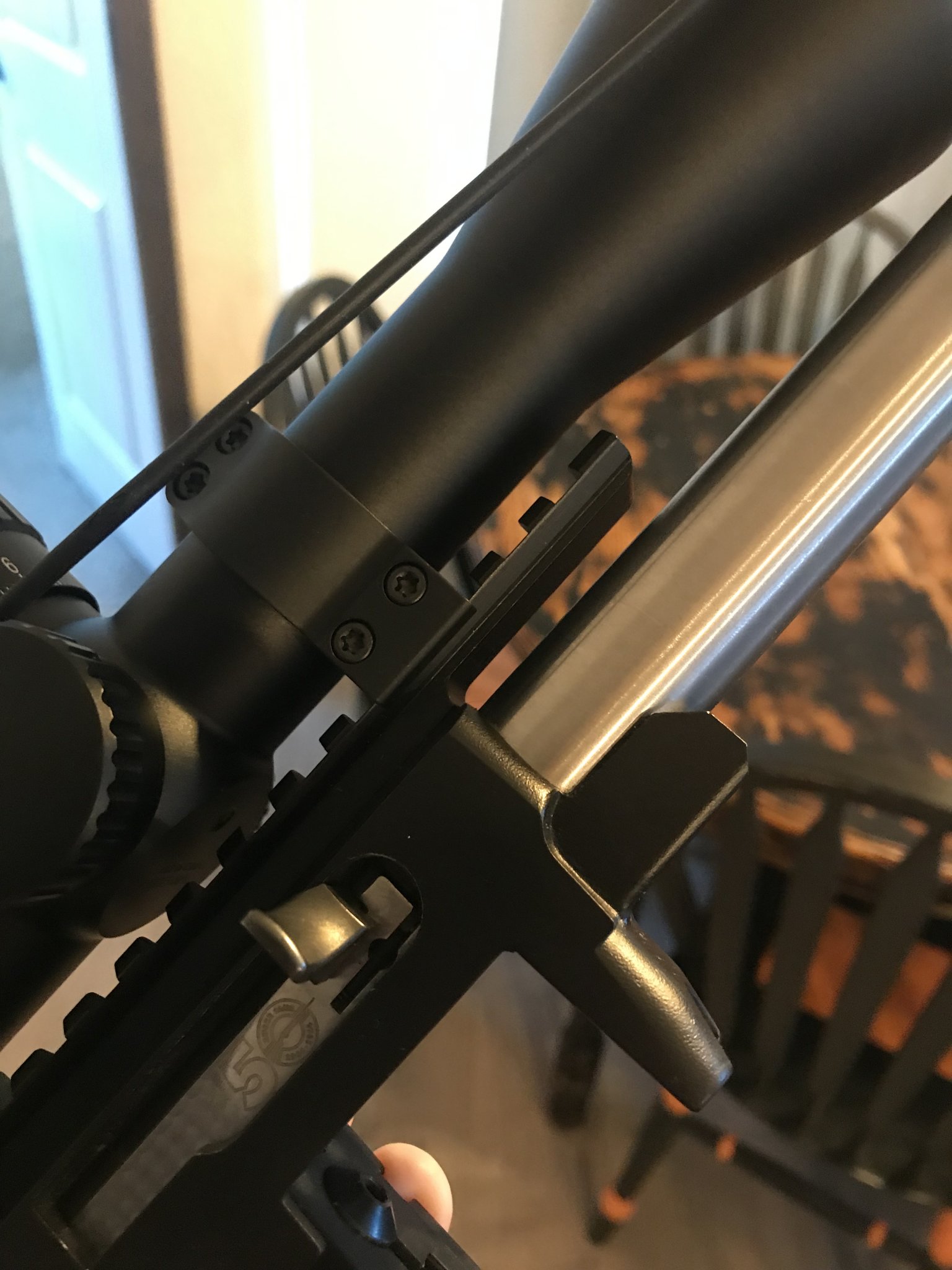

Btw this BA came with a cleaning port and the cutout for a Kidd rear tang.

So far I've tried Wolf match, Cci SV, Aguila Rifle Match and Lapua Center X. Some were shot with the old stock

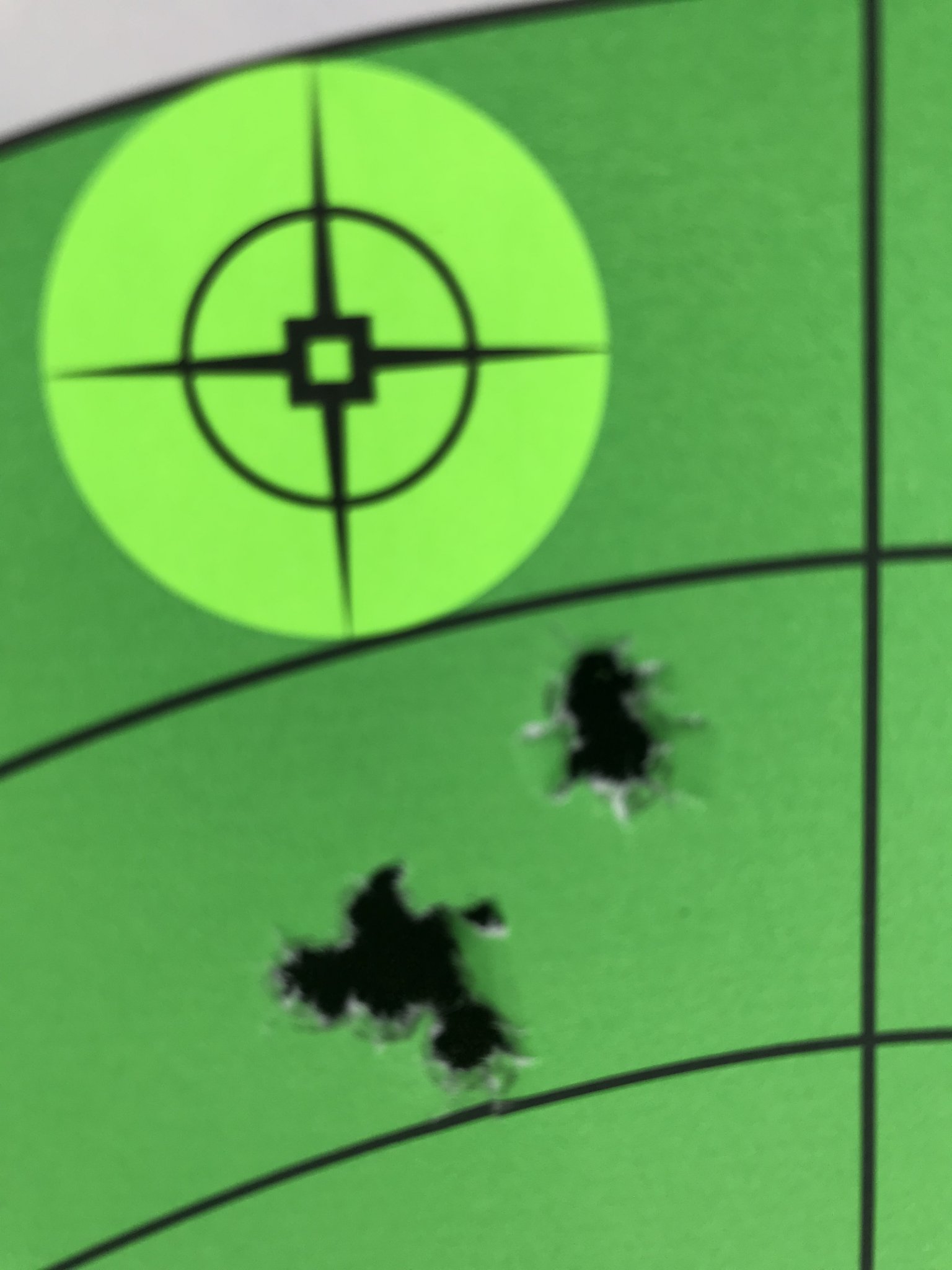

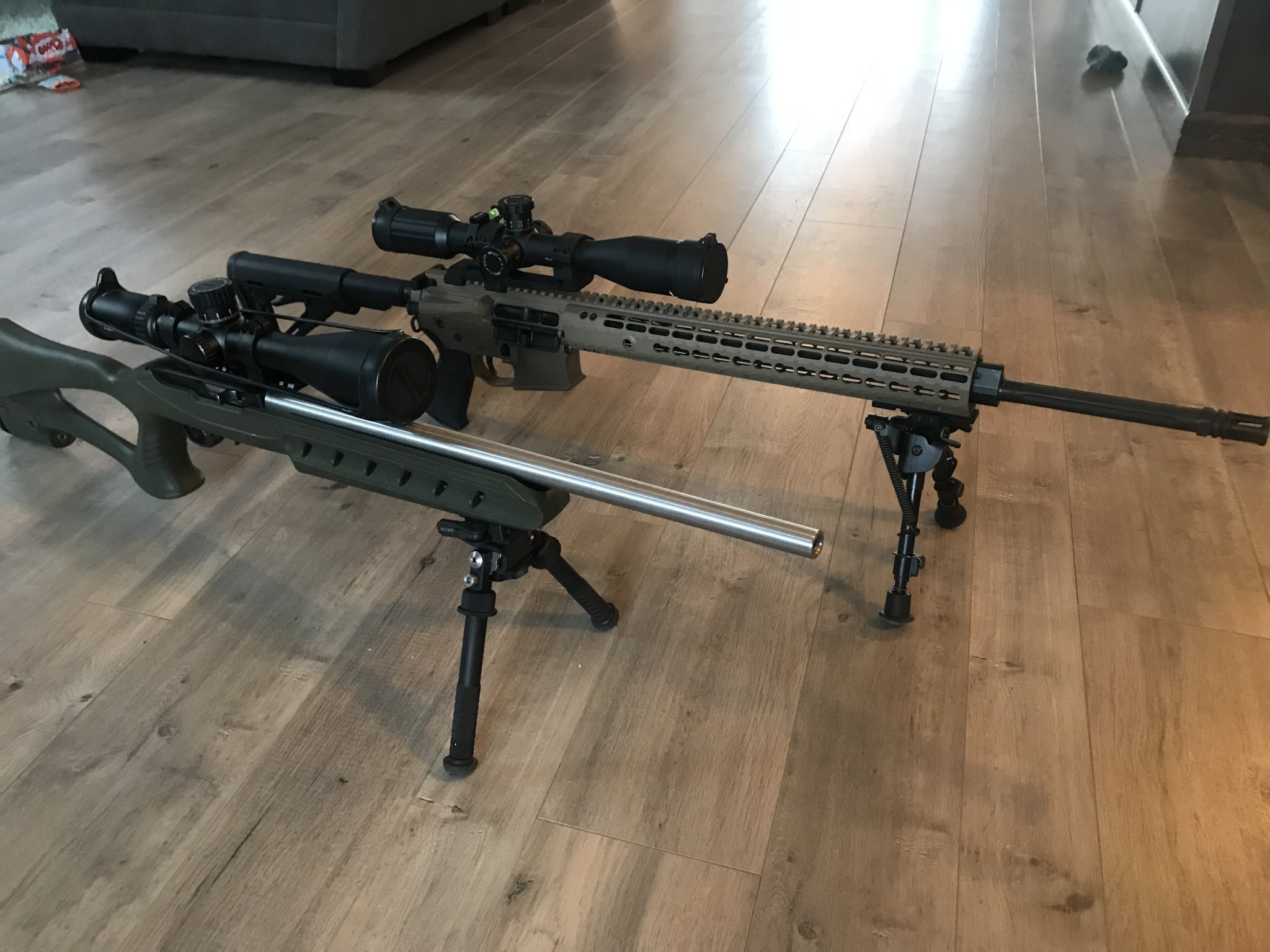

Below are the pics of the original stock and the only pics I took of groups..


Attachments

  • 2C873D24-192C-42F9-BE72-B39B4293A7FB.jpeg
    406.5 KB · Views: 307
  • 07D3D39D-DB21-4483-88CC-10729B167BB8.jpeg
    406.5 KB · Views: 344
  • 6812A285-64CD-47A1-B751-D617AC49CAAF.jpeg
    339.6 KB · Views: 260
  • 0A7BB8F0-8FBA-40CC-AA51-17F8B0ABED56.jpeg
    214.3 KB · Views: 279
  • B5E426D9-AF71-4CA8-B185-103F69315E59.jpeg
    307.3 KB · Views: 285
  • Like
Reactions: Westcoast308

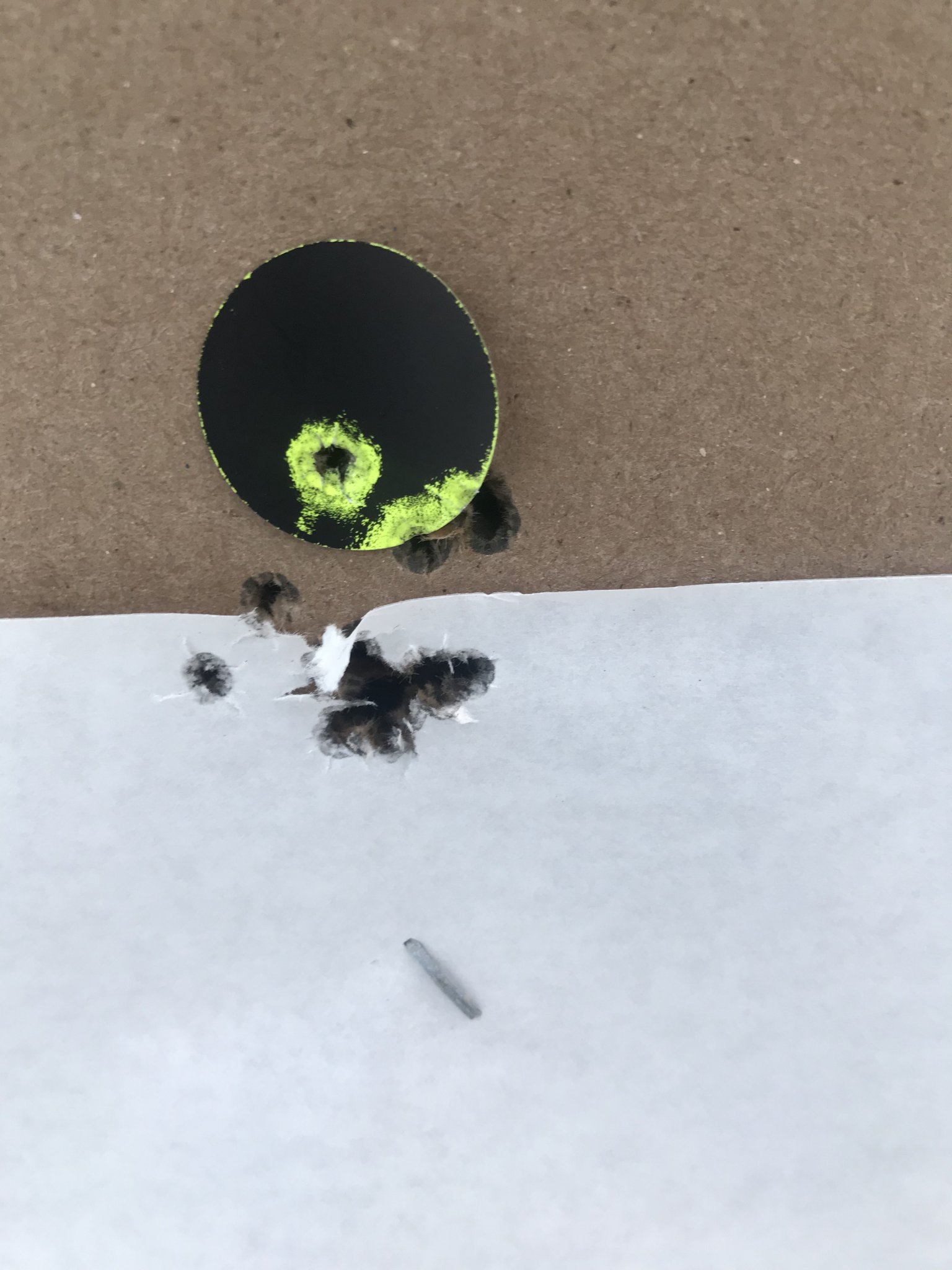

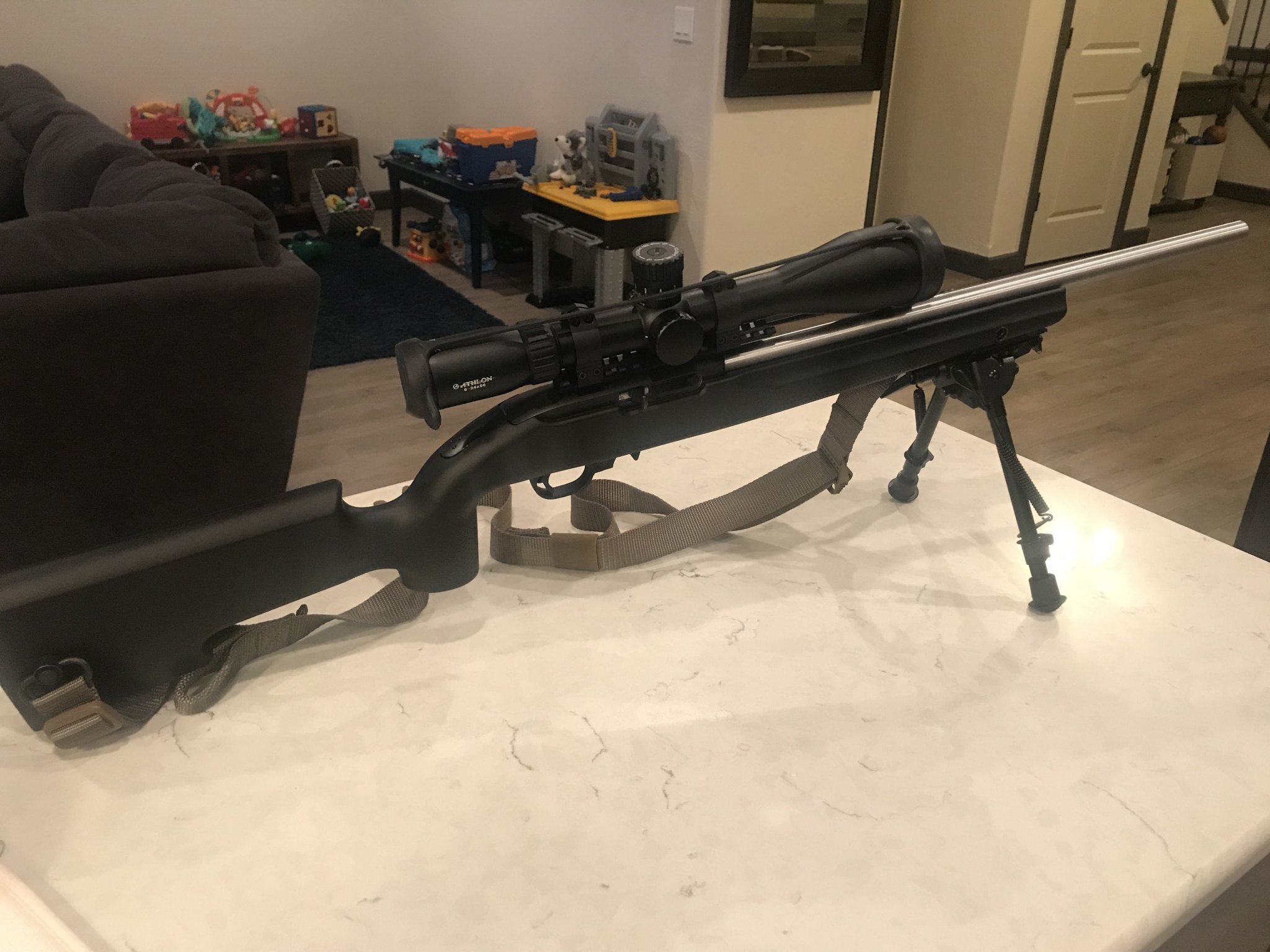

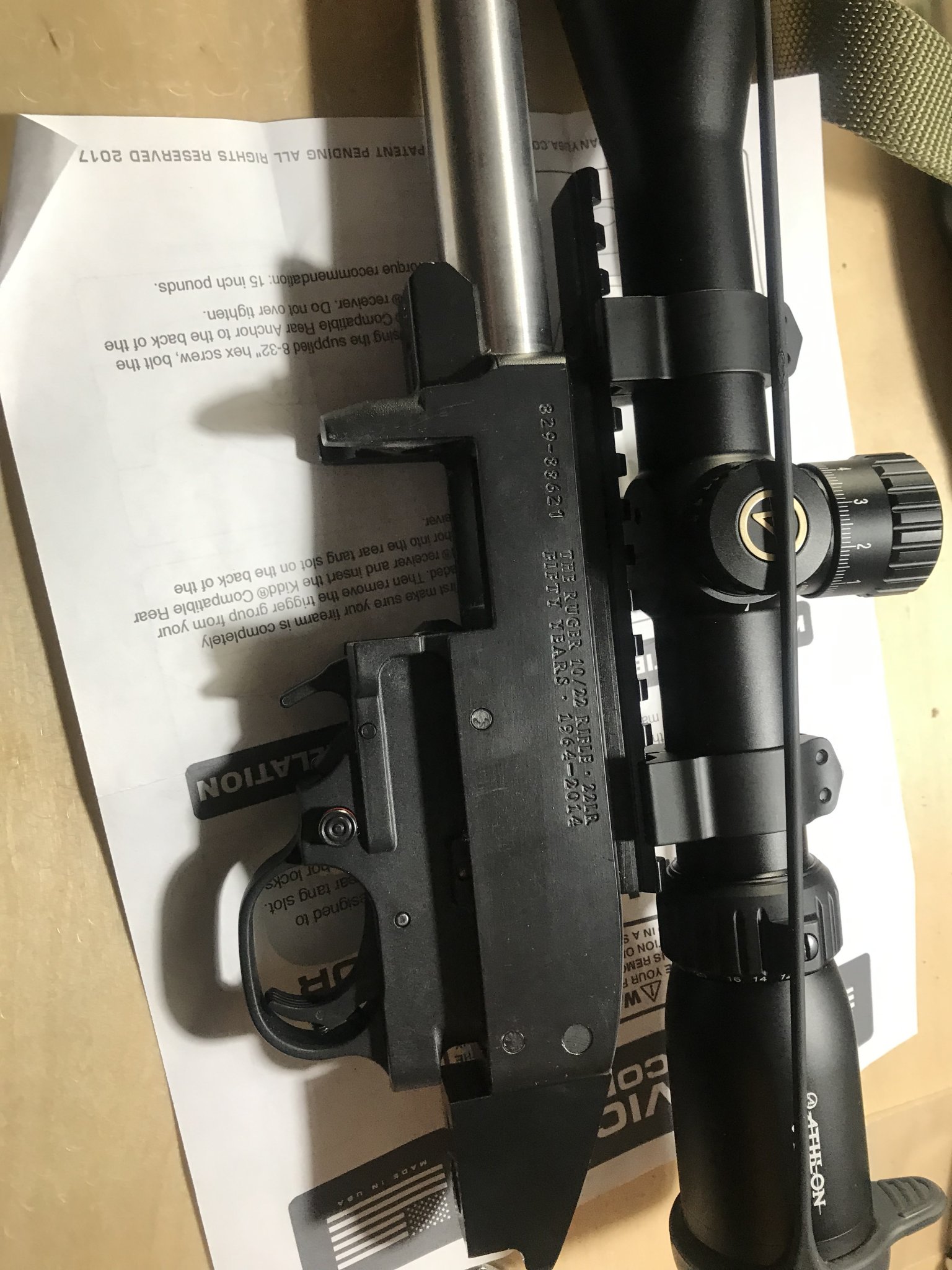

Here is the rig with the titan stock and a few groups.. the shoot and see is at 50 and my best group at 100


Attachments

  • ED521D9E-545B-4A8D-B6DA-9915C1CED89B.jpeg
    397.7 KB · Views: 231
  • FC5DD13B-F16D-4D98-899C-B0A2A3983625.jpeg
    364.8 KB · Views: 254
  • 8B7EB785-6638-4375-8A8A-E6CF0A5B35D1.jpeg
    298.9 KB · Views: 236
  • CDDBE7D2-592F-462A-8460-38F9E93569F8.jpeg
    284.6 KB · Views: 223
I've read some very good things about CPCs work before. From what others have said Randy takes a base 10/22 and make it a whole other class of rifle.

Did CPC modify the receiver to accept Titan rear tang? When I was looking over the CPC 10/22 services a few months back I must have missed it.

I've read some very good things about CPCs work before. From what others have said Randy takes a base 10/22 and make it a whole other class of rifle.

Did CPC modify the receiver to accept Titan rear tang? When I was looking over the CPC 10/22 services a few months back I must have missed it.

Yes.. Mine has a rear tang and cleaning port

The trigger work is not to be over looked either.

Not sure if I've seen another one of these on this site so I figured I would share..

I was on a mission to find 22lr accuracy.. i explored cz's, Kidd's, factory Rugers and savages and this is what I ended up with.. I will post progress of my groups so you can see if this procedure is actually work it..

Here is a little blip about what Connecticut Precision Chambering does...

10/22 Gunsmith Notes: Ruger 10/22 barrels are cut with a standard SAAMI .22 reamer which cuts .062" too deep. Production speed machine reaming often leaves burrs in throat and chambers not concentric to bore. Aftermarket barrels have tighter, shorter chambers (sometimes too tight) than the SAAMI print but seldom short or concentric enough for maximum accuracy.
CPC designs its own reamers for the 10/22 called CPC Freebore chamber for ideal function and accuracy. Setback is .187" to .250" on breech end. The newly cut area on barrel shank is oversize for a 'line to line' tight fit into the receiver stabilizing the two parts. A steel spacer is cut and hand fit into the barrel lockdown cut to insure proper retightening. CPC fits a reamer pilot to the exact bore size and re-reams each barrel by hand. New chamber throat and crowns are cut concentric to bore within .0002".

The thing that intrigued me was that they actually thread the barrel into the receiver and do away with the V-block all together..also tune the trigger and true the bolt to the barrel.

What I found out quickly is if you don't have your 10/22 in a decent stock you're wasting your time and ammo. I originally had this BA in a archangel deluxe stock which was stiff but still had up and down movement of the receiver. Since I put it in a Titan with a rear tang it is a night and day difference! I mounted a Athlon Midas Tac 6-24 on top. The only thing I didn't realize is how short the comb is on the Titan so I think I'll have a better check weld once I get their cheek riser system.

Btw this BA came with a cleaning port and the cutout for a Kidd rear tang.

So far I've tried Wolf match, Cci SV, Aguila Rifle Match and Lapua Center X. Some were shot with the old stock

Below are the pics of the original stock and the only pics I took of groups..

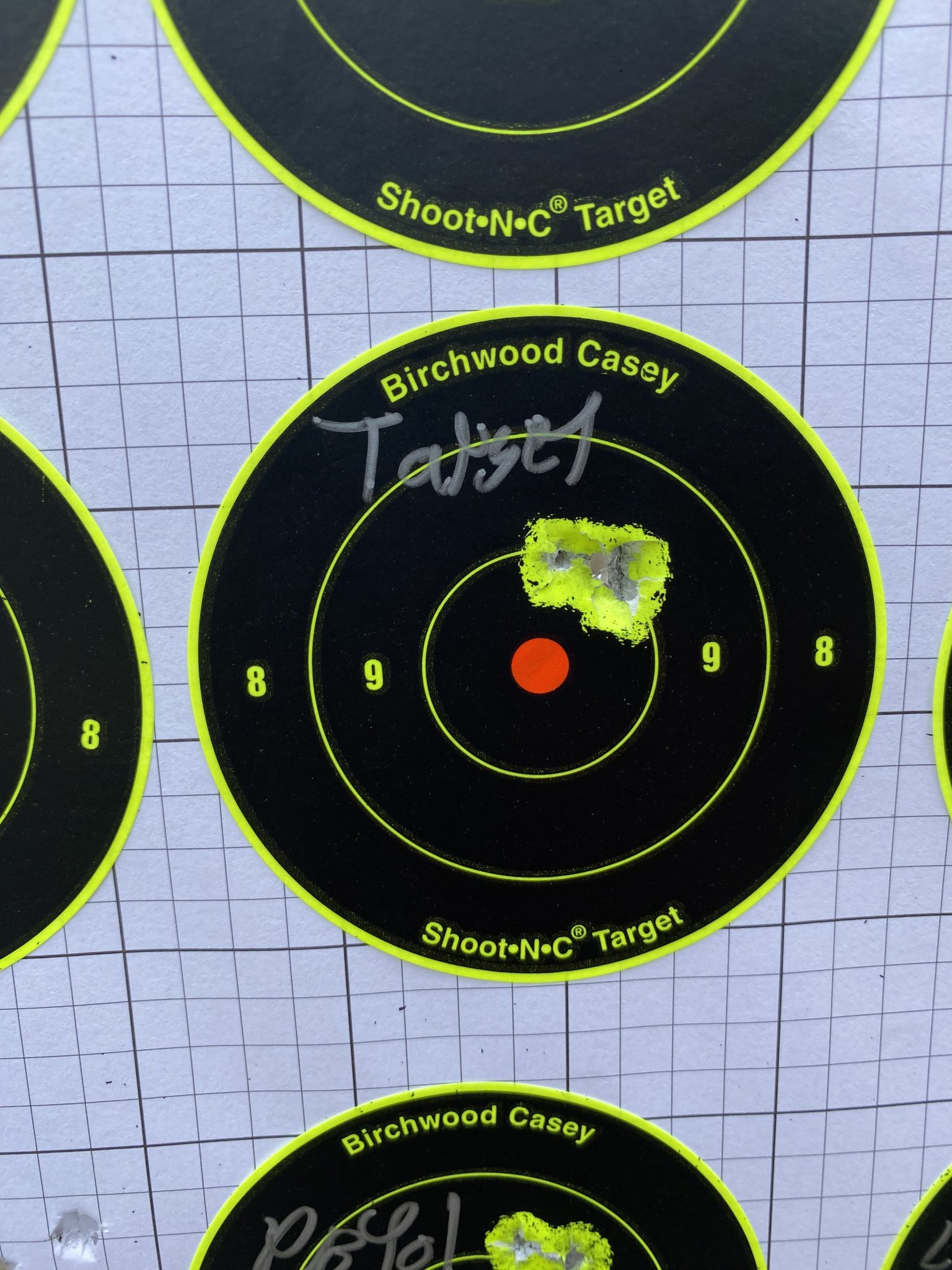

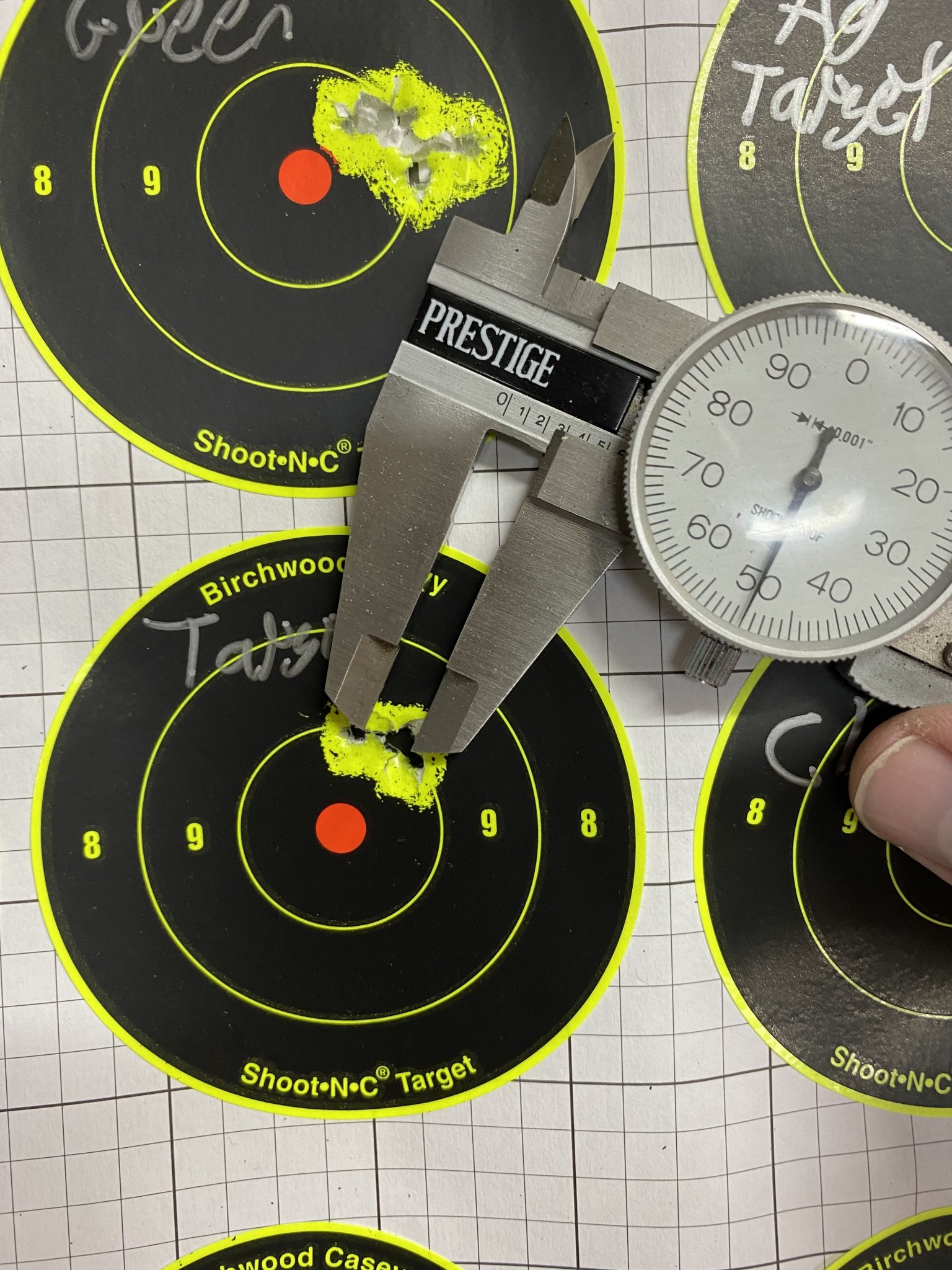

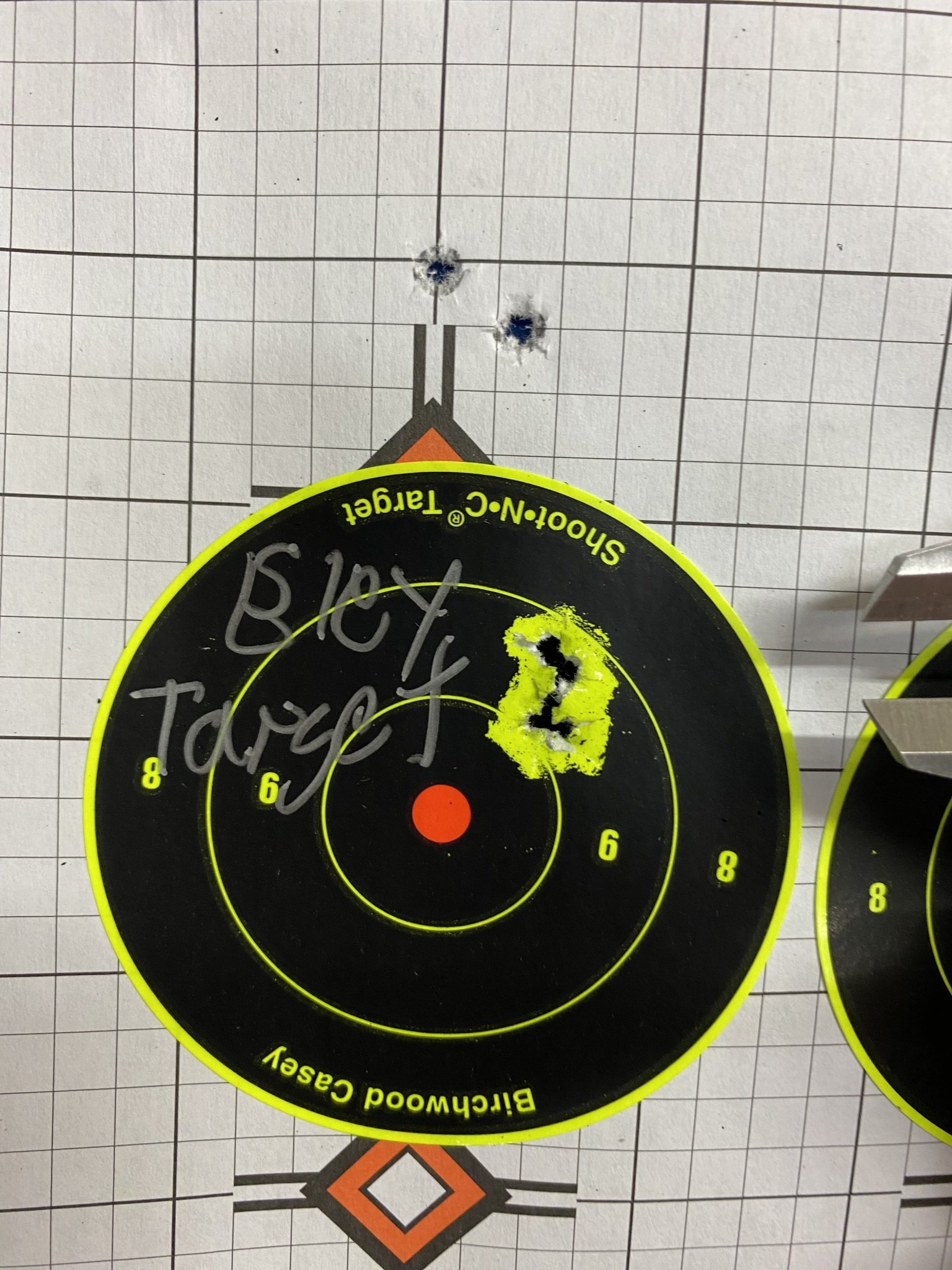

Here is my all factory CPC tuned rifle with a Victor Titan stock. I just used the Victor recommended action torque and shot groups, the gun has maybe 300-400 rounds through it, so it could get a bit better yet. Groups are at 50yrds 5shots 3-9x scope off a sand bag. Best deal in the gun world and it’s more reliable now he had it back to my porch in less than a month too. Eley Target and Force are the best I’ve tried $6.50 a box too. CCI standard shoots almost as good with throwing the occasional flyer but even 10-shot groups are about 1/2” at 50yrds. With these red I have not bothered to get any of the pricey stuff. Cheers


Attachments

  • IMG_5037.jpeg
    484.1 KB · Views: 61
  • IMG_5036.jpeg
    551.2 KB · Views: 54
  • IMG_5032.jpeg
    446.9 KB · Views: 53
  • IMG_5029.jpeg
    466.2 KB · Views: 57
Last edited:
Years ago when Walmart sold their exclusive international model, I sent them my barrel and bolt, I did my own trigger.
Additionally cryo tempering was the rage, so I sent it to be treated. When Ruger released the target/tactical I bought one of those, it never held a candle to the one I built. Both those are gone, but I've got a hankering to build another now. I was looking them up and stumbled upon this thread...

Years ago when Walmart sold their exclusive international model, I sent them my barrel and bolt, I did my own trigger.
Additionally cryo tempering was the rage, so I sent it to be treated. When Ruger released the target/tactical I bought one of those, it never held a candle to the one I built. Both those are gone, but I've got a hankering to build another now. I was looking them up and stumbled upon this thread...
Buy a target model then send it to Randy at CPC. You’ll take that rifle out every time you have the chance and it will never wear out the barrel. It’s a plenty accurate with CCI standard too.
