Pictures first....
Full details and available for purchase at
mcleodprecision.com
Kestrel Mount -
Full details and available for purchase at
mcleodprecision.com
Kestrel Mount -
- Designed to work with the Optics Bridge or any other universal mounting need for your Kestrel.
- Includes a 4 sided ARCA on the bottom so it can be rotated 90 degrees if needed for your clamp orientation. Can also be hard mounted via a standard 1/4-20 camera style screw in the center or via 10-32 tapped holes in a standard ARMS17 pattern.
- The grip fingers are designed to slide directly into the slots cut in the sides of your Kestrel with the perfect amount of tension. The rear of the Kestrel does not contact the back of the mount, preventing chafing.
- Made from 6061-T6 aluminum in the USA. Carbon Grey Cerakote applied.
- Includes the Kestrel Mount, (2) 10-32 screws and (1) 1/4-20 camera style screw.

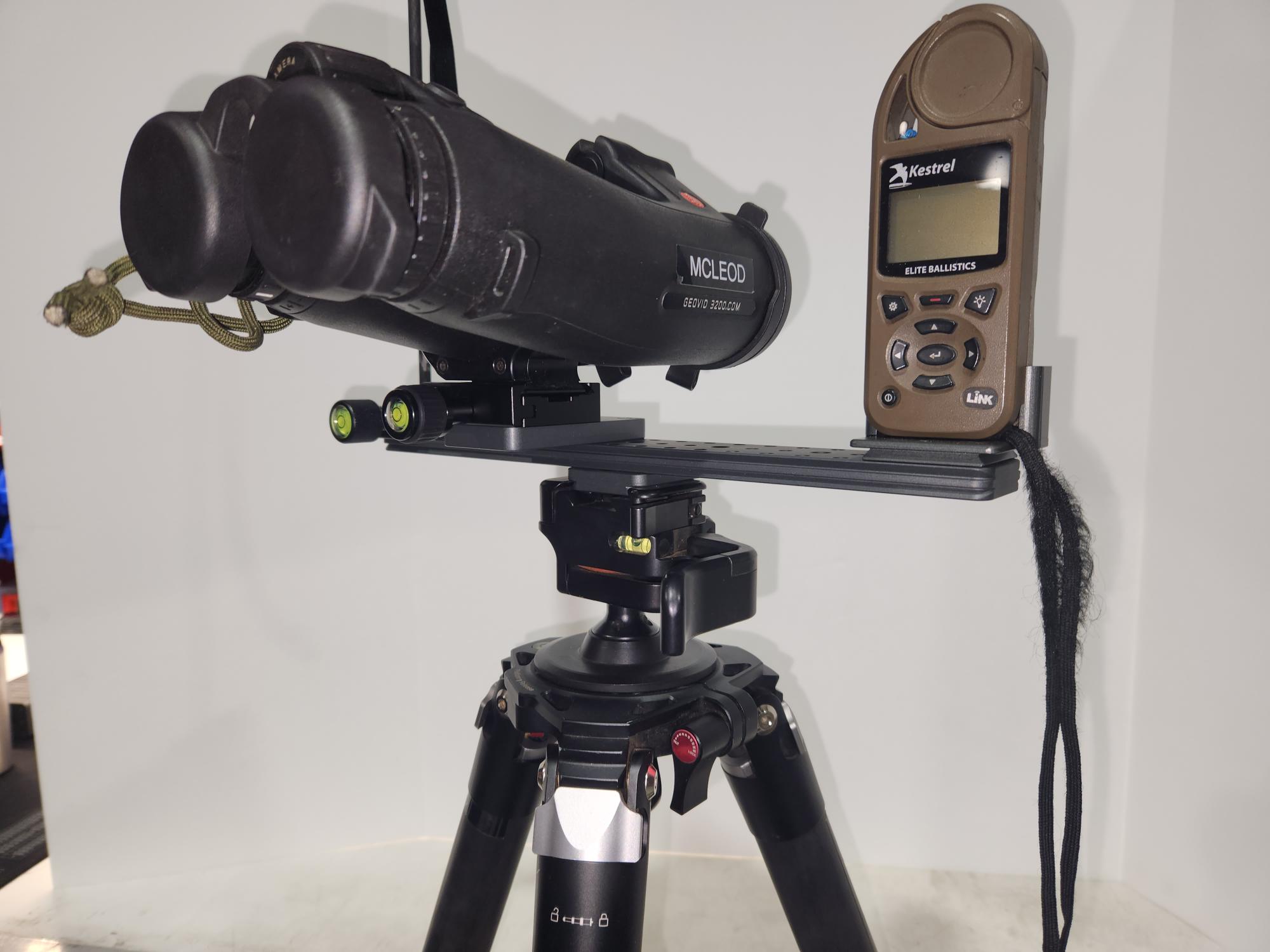

Optics Bridge -- Clamp the Optics Bridge into your ball head and attach your optics, kestrel, range finder and wind flag.
- Provides countersunk holes for common 1/4"-20 camera style screws to attach directly to those type of mounts on your devices.
- 10-32 tapped holes set on a 1.1" ARMS17 standard pattern throughout, allowing attachments of clamps anywhere, top or bottom.
- Full length, double sided ARCA rail. "Rotator" ARCA block included that allows a 90 degree presentation to your ball head. Very important for ball heads like the anvil-30 so the operating handle stays in the proper orientation.
- The "Rotator" can be moved anywhere on the bottom of the rail for offset if you prefer all of your accessories on one side of your optics.
- Made from 6061-T6 aluminum in the USA.
- 11.9" Long X .4" Thick X 1.5" wide at 8.8 oz weight. Extremely rigid.
Xero Sled V2 -- V2 update - added in 3 center holes tapped 1/4"-20 so you can thread in your mini Xero Tripod or anything else interesting. Also check out the Kestrel Mount which clamps into the existing clamp on the Xero Sled and now you have a great benchrest setup or for your other non ARCA setup rifles.
Thanks for looking at the new stuff. Everything is in stock. Let me know if you have questions.
