Spotters Picatinny/STANAG to ARCA Adapter Plate Available

bohem

PVA's HMFIC
Commercial Supporter
Full Member
Minuteman
Jan 6, 2009
8,120
3,315
Southeast, PA
www.patriotvalleyarms.com
I ran into a need for something recently and the more I thought about it the more I realized that there appears to be a lot of utility for this plate and there's a hole in the market.

So... here it is:

PVA ARCA to PIC plate, short version.

The plate is designed for a light, robust, easy option that allows a mounted scope (already in rings or mount) to be clipped to this plate and then to a ball head. Mounting is super simple.

As I play with it we have more an more uses.

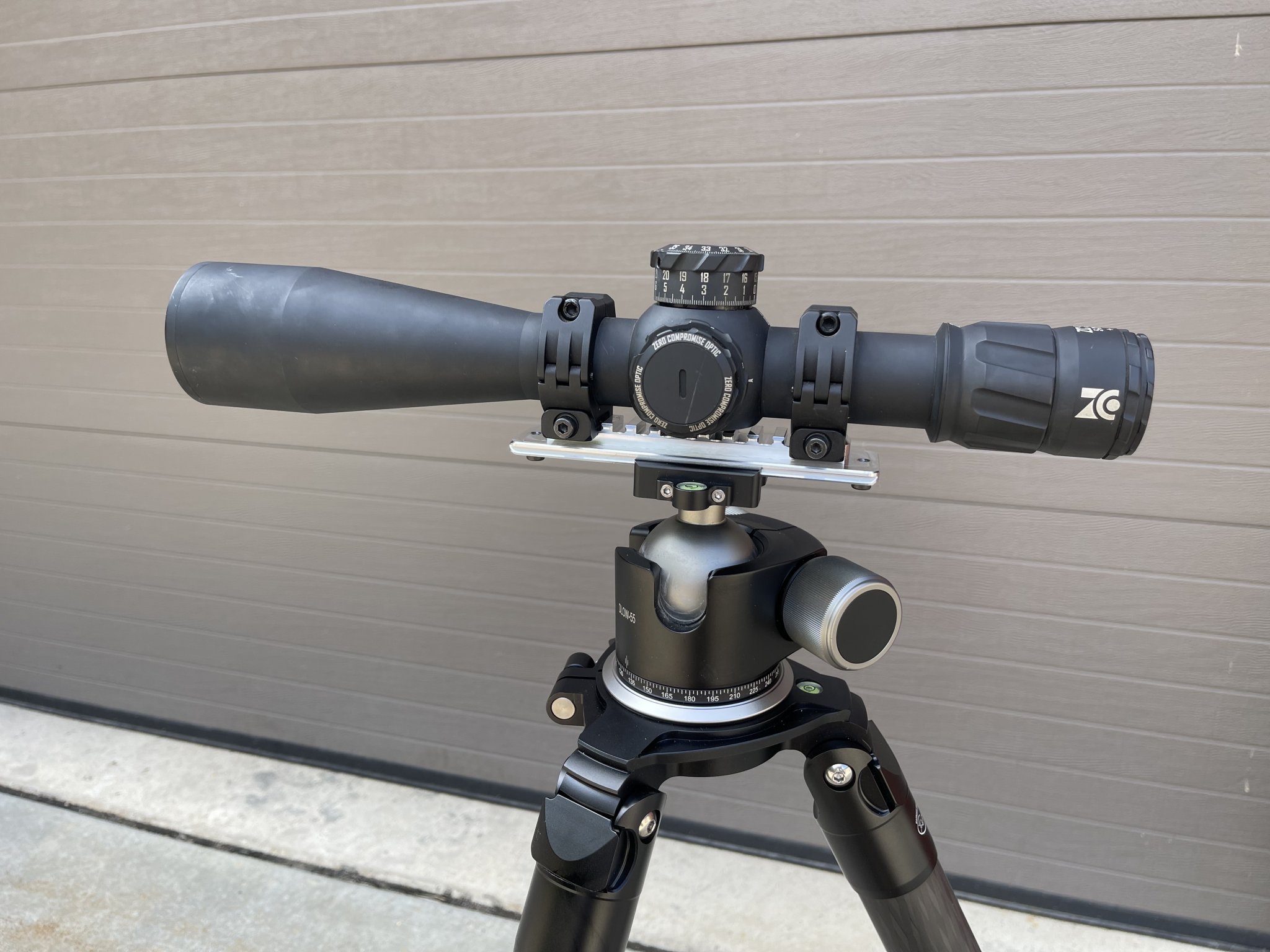

Using a rifle scope as a spotter has major utility for match weekends where you really don't need 60x, overload from mirage and a mediocre reticle. It is also highly useful for light hunting applications. This plate weighs a couple ounces, and my spare rifle scope assembled with the plate weighs 2 pounds less than the spotting scope. Plus, if I need to I can swap the spare scope onto the rifle. I can't do that with a spotter.

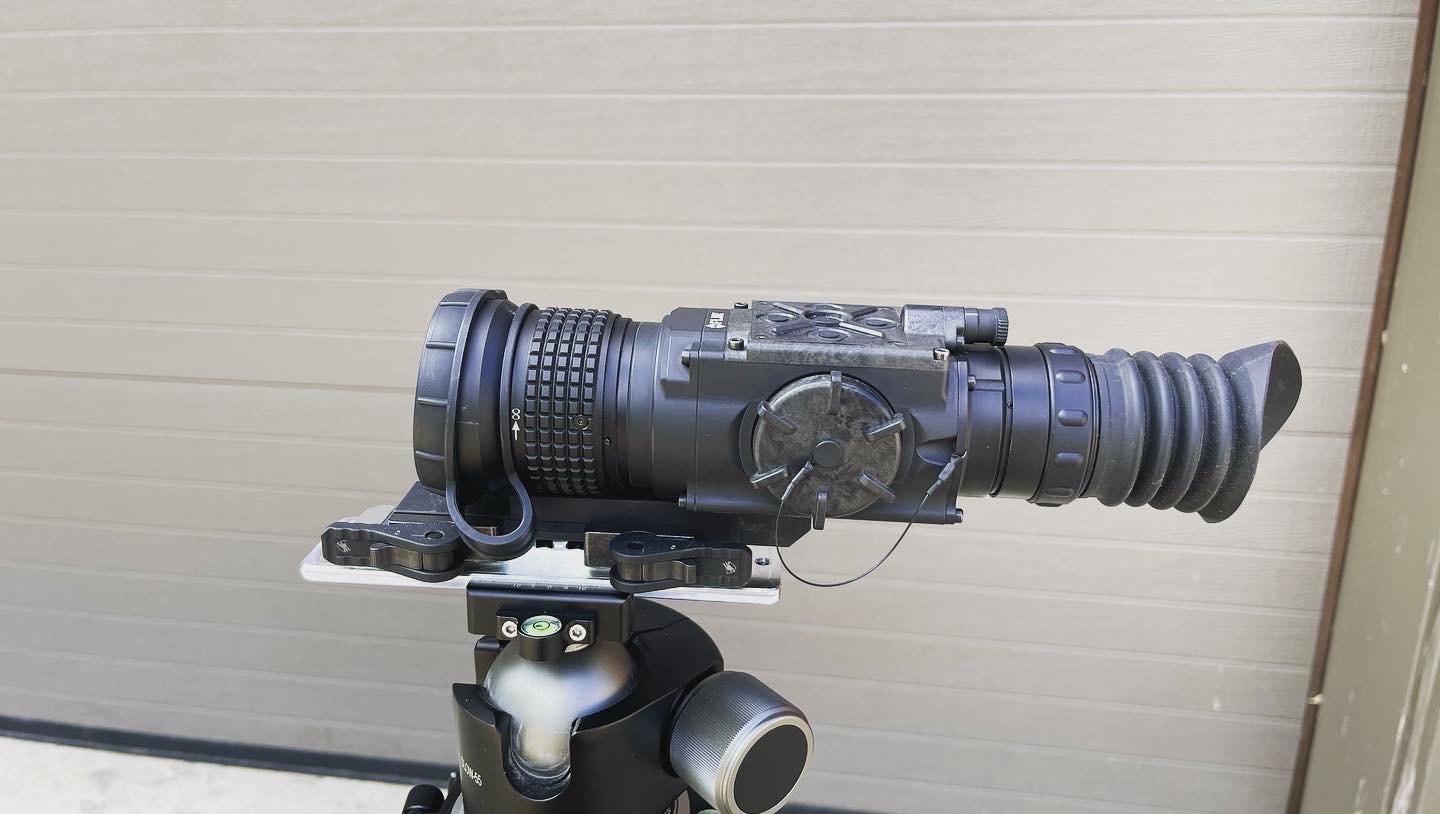

A Thermal mounts directly to it, and makes a great detection tool. With an IR illuminator mounted to the thermal we have a solution that allows a spotter to act as the detection and illumination with a steady hand. The guy on NV doesn't need to be "talked onto" the target, he just gets a gigantic IR spotlight to look at.

6061 AL Type 3 anodize (mil spec Hard Coat ano)
STANAG 6693 and PIC 1913 compatible rail on top, 11 T slots
ARCA 1.5" dovetail on the bottom
5.9x 1.5 x 5/8 inches in size
Markings for T-slots and plate location rule included

For that specific Sniper's Hide Forum Member, a disclaimer: The product is for (1) ARCA to Picatinny plate, part number PVA-2208-A1. Even though the photographs show a scope, thermal, rings, tripod, etc those are there to demonstrate the effective use to the PVA-2208-A1 product. They are not included. Plate is shown "raw" without anodizing for clarity in product photo. All parts come black anodized. IYKYK.


The PVA website link is here:


Free shipping through 9/15/22 for launch orders.


Attachments

  • Image (1).jpeg
    Image (1).jpeg
    331.8 KB · Views: 174
  • Image (2).jpeg
    Image (2).jpeg
    275.7 KB · Views: 175

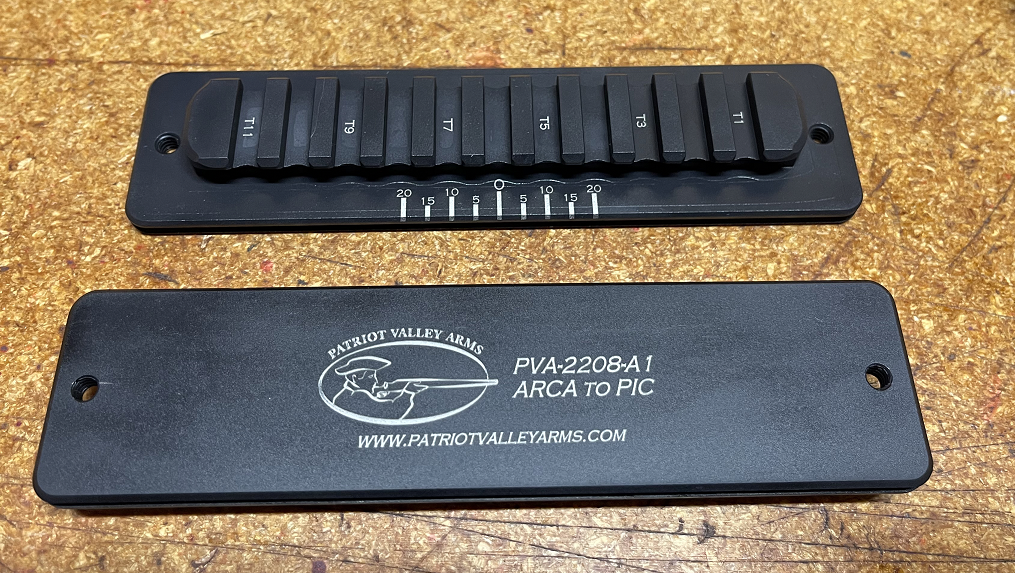

  • PVA-2208-A1 top and bottom.png
    PVA-2208-A1 top and bottom.png
    1.4 MB · Views: 180
Last edited:

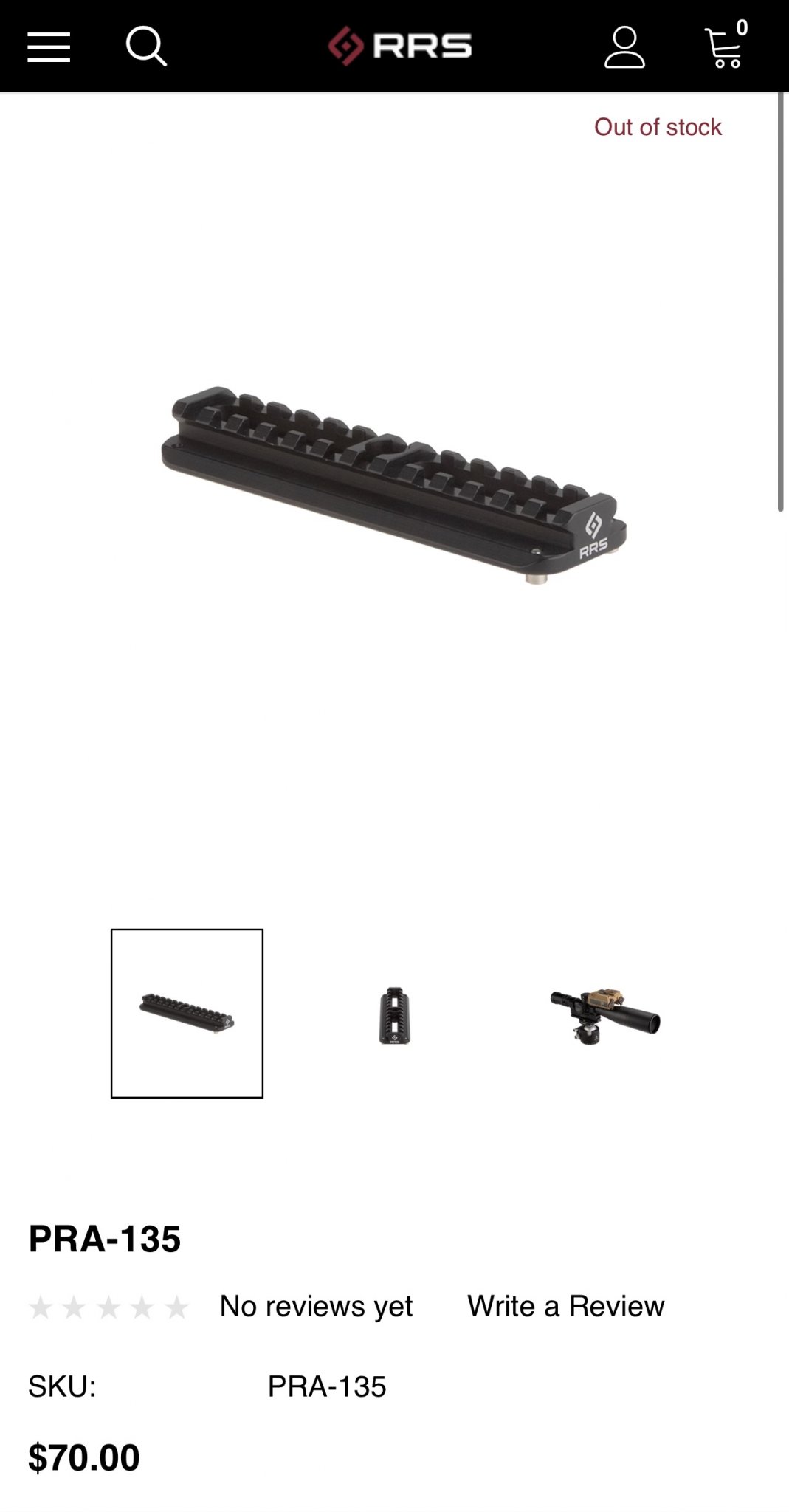

View attachment 7941748Looks like the RRS mount.

Not having seen the RRS one I can't see anything special about either. But there is one big difference: The PVA product is in stock.

Though different takes on a design isn't exactly news in the gun industry. Striker fired pistols, bolt action rifles, tripods and ball heads for shooting... nah, there's only 1 company that makes any of them right?

Last edited:
Interesting solution. Some years ago I bought a few picatinny rail sections that were pre-drilled and threaded for a 1/4-20 attachment. I have been using these with whatever adapter plates I needed. Having it already integrated with an Arca dovetail definitely makes things easier, although I would have preferred to have the base pre-drilled for other mounting options. I do oddball things with these.

Interestingly, I am struggling to remember who I bought those rails from. I want to say Samson, but I could be wrong. A brief web search did not show anything like the rails I have, but these rom Z-bolt did show up: https://www.z-bolt.com/Tripod-Rail-Mount-1913-Picatinny-Interface_p_553.html#parentHorizontalTab2

They are more expensive though and still require a tripod adapter plate, while yours are already integrated. I'll keep that in mind next time I need one. It looks like there is plenty of space there to drill a few holes if I need other attachment options.

ILya

I’ve done that a long time ago when I had a Pulsar thermal scope with QD mount. I used a cheap thin aluminum arca standard mount and then drilled and tapped and jb welded a pic rail on it.

  • Like
Reactions: bohem
Interesting solution. Some years ago I bought a few picatinny rail sections that were pre-drilled and threaded for a 1/4-20 attachment. I have been using these with whatever adapter plates I needed. Having it already integrated with an Arca dovetail definitely makes things easier, although I would have preferred to have the base pre-drilled for other mounting options. I do oddball things with these.

Interestingly, I am struggling to remember who I bought those rails from. I want to say Samson, but I could be wrong. A brief web search did not show anything like the rails I have, but these rom Z-bolt did show up: https://www.z-bolt.com/Tripod-Rail-Mount-1913-Picatinny-Interface_p_553.html#parentHorizontalTab2

They are more expensive though and still require a tripod adapter plate, while yours are already integrated. I'll keep that in mind next time I need one. It looks like there is plenty of space there to drill a few holes if I need other attachment options.

ILya

I think a lot of this is the necessity of use like you ran into. The plate has quite a bit of real estate if you want to bolt something else to it. It's wide open on the bottom.

Ordered. And I don't even have a tripod yet. Probably won't for a while anyway.
Thank you sir!

I’ve done that a long time ago when I had a Pulsar thermal scope with QD mount. I used a cheap thin aluminum arca standard mount and then drilled and tapped and jb welded a pic rail on it.
Pretty handy to have a thermal on a tripod isn't it?

I think a lot of this is the necessity of use like you ran into. The plate has quite a bit of real estate if you want to bolt something else to it. It's wide open on the bottom.


Thank you sir!


Pretty handy to have a thermal on a tripod isn't it?
Yeah it’s great since I was too poor to have a handheld thermal scanner and a thermal scope. That being said I was wondering back then how come no one made these so I just bubba smith butchered my own but it worked !

  • Like
Reactions: bohem
Any update on these? it looks like the intro batch is sold out. are these going to be regular production run product? the web sitetalks about intro pricing supposedly good to (9/15).
Yep, they sold out. The next batch is being cut now. I wasn't expecting quite how fast they sell out so as soon as the second batch is done I'll extend the intro pricing for that batch.
