PID controlled Salt Bath Annealing- How TO & Results

[sabrecross]

Intro & background:

I completed my build and salt bath annealing system and I want to share it for those of you who are interested in it. I did an enormous amount of research before I decided on this method and my goal was to have a dummy-proof set-up where I could spend the least amount of time possible annealing my brass.

I use to Cast Boolits so I am familiar with PID Controllers and Lee pots.

I have a couple of videos I took illustrating my set-up and annealing virgin Norma 7mm RM brass. I'll include a list of items I used to build the PID Temperature controller, the Lee pot, and the low temperature salts. With the proper safeties in place, this can be a economical way to anneal brass. For me, the proof is in the pudding. I used Tempilaq 750* on my 20 or so pieces of test brass before going for it and I annealed 100 BRAND NEW virgin pieces of Norma brass @ 1.25 each!

And a note, it is 32* outside today and the PID has no problem maintaining the temperature.


Lee Precision Reloading Precision Lead Melting Pot 90021- https://www.ebay.com/itm/Lee-Precision-Reloading-Precision-Lead-Melting-Pot-90021/233058679208?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

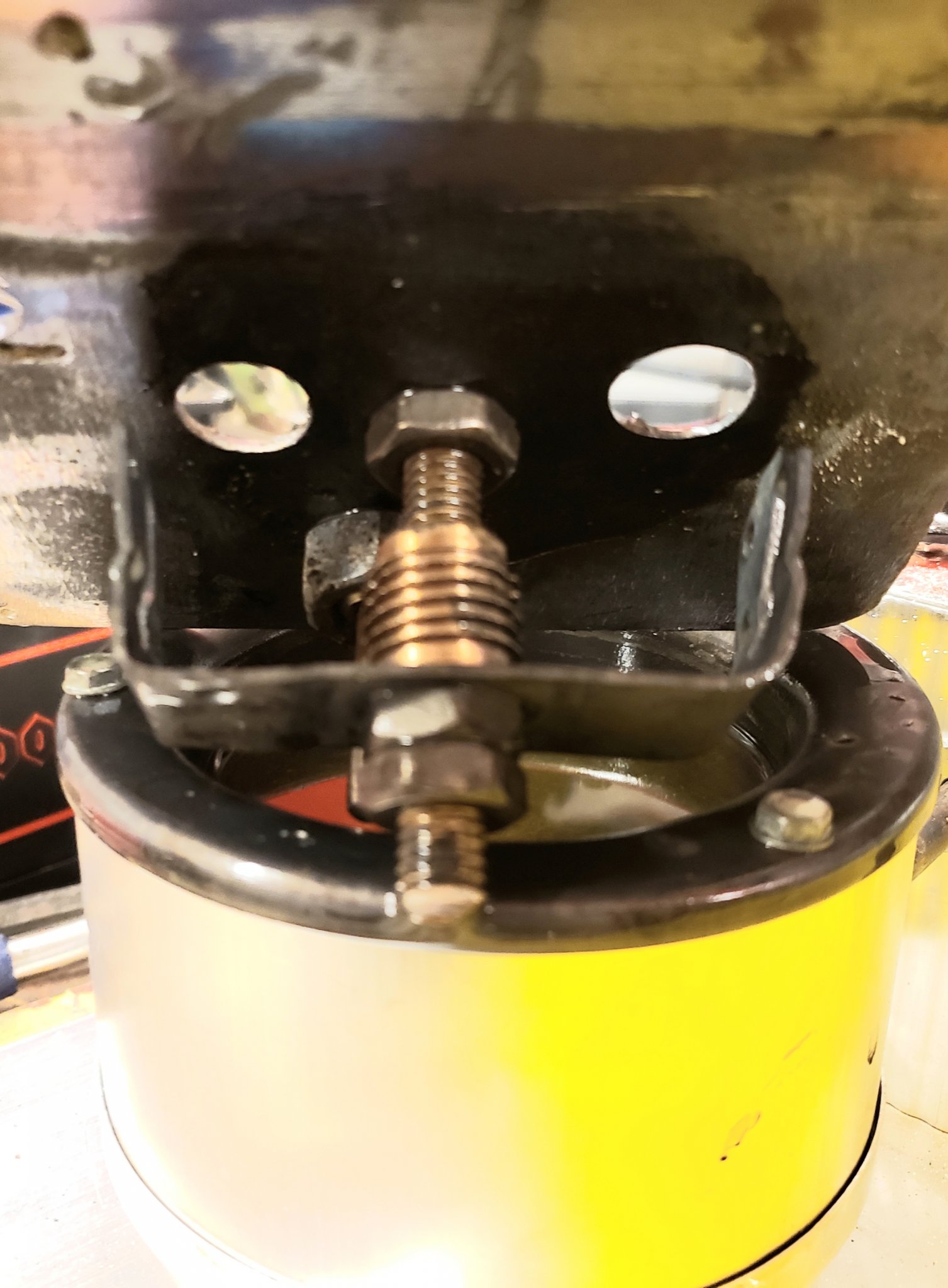

Top plate and shell holder- I used some 1/8" steel plate that I had in a scrap pile, the bottom part of the plate that is in direct contact with the salt solution is bare metal. For the shell holder, I used some scrap pieces of brass that I had from a plumbing project. YOU DO NOT WANT TO USE ALUMINUM, the salts will eat it.

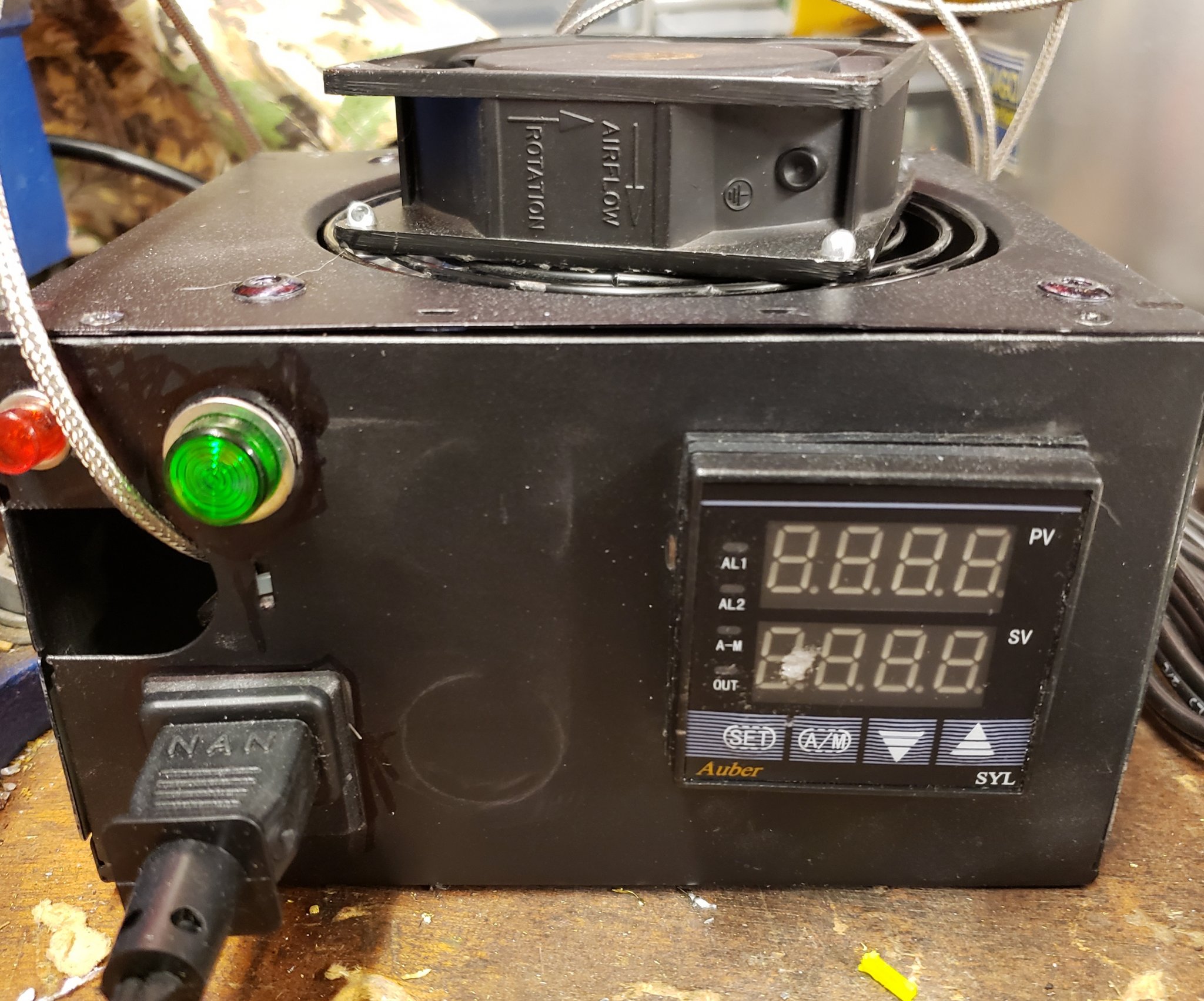

PID Build-
https://www.auberins.com/index.php?main_page=product_info&cPath=1&products_id=3
https://www.auberins.com/index.php?main_page=product_info&cPath=2_30&products_id=9
https://www.auberins.com/index.php?main_page=product_info&cPath=7_33&products_id=606
Ball Bearing PC Computer Case Cooling Fan120x120x25mm AC 115V Metal link depot
https://www.auberins.com/index.php?main_page=product_info&cPath=61_63&products_id=274
High Performance Silver Thermal Grease CPU Heatsink Compound Paste Syringe
Heatsink heat sink for a 25A SSR Solid State Relay
Temp Thermocouple K type, stainless Steel Probe, 2m (6.5ft), teflon sealed
https://www.ebay.com/itm/AC-Distrib...=item26102a2f45:g:UikAAOSwBPRcDzH2:rk:42:pf:0
I used a 500w computer power supply (stripped) that already had a male power socket and a power switch. If you use a different enclosure, you will need a power switch and male power socket. I used 14-18 gauge wire to wire everything and I also used wire connectors that I had already. At a later time, I can include a wiring schematic but I'll have to create that because I modified my last PID build. I have the 100V fan wired directly to the Solid State Relay (SSR) so that the fan only comes on when the SSR is running. It is not hard to build the PID...even a caveman can do it!

Salts-
Low Temperature Salts for Heat Treating Quick Temper 275 by Hubbard-Hall
I ordered 3 lbs due to the high shipping charges http://www.hightemptools.com/salts.html

Metronome- I downloaded a basic metronome to my phone so I can be precise on inserting and taking out the brass. I set it to 50 beats per minute and my brass calls for 8 seconds @ 943* F. YMMV...

I think that is everything...

VIDEOS:




Pictures:



[918v]

You ruined that brass



[spife7980]

You ruined that brass

Why do you say that?



[Mordamer]

You ruined that brass

Why would you say that? Looks great to me.



[Milo 2.5]

In all our quests to simplify our processes, and the tech to do just that, this seems draconian.



[Threadcutter308]

When the PID Controller is set up properly, it will provide extremely consistent temperature of the salt bath. With a non PID control, the faster you go, the more the temp of the bath drops and the longer you have to wait for the temp to come back up and stabilize. This setup greatly reduces that, or eliminates that problem altogether.

He did a great job and he’s right it isn’t too terribly difficult to build/set up. Conversely, if a person were looking for something “out of the box”, this probably isn’t for them.



[918v]

Why would you say that? Looks great to me.

Looks?

You don’t anneal based on looks.

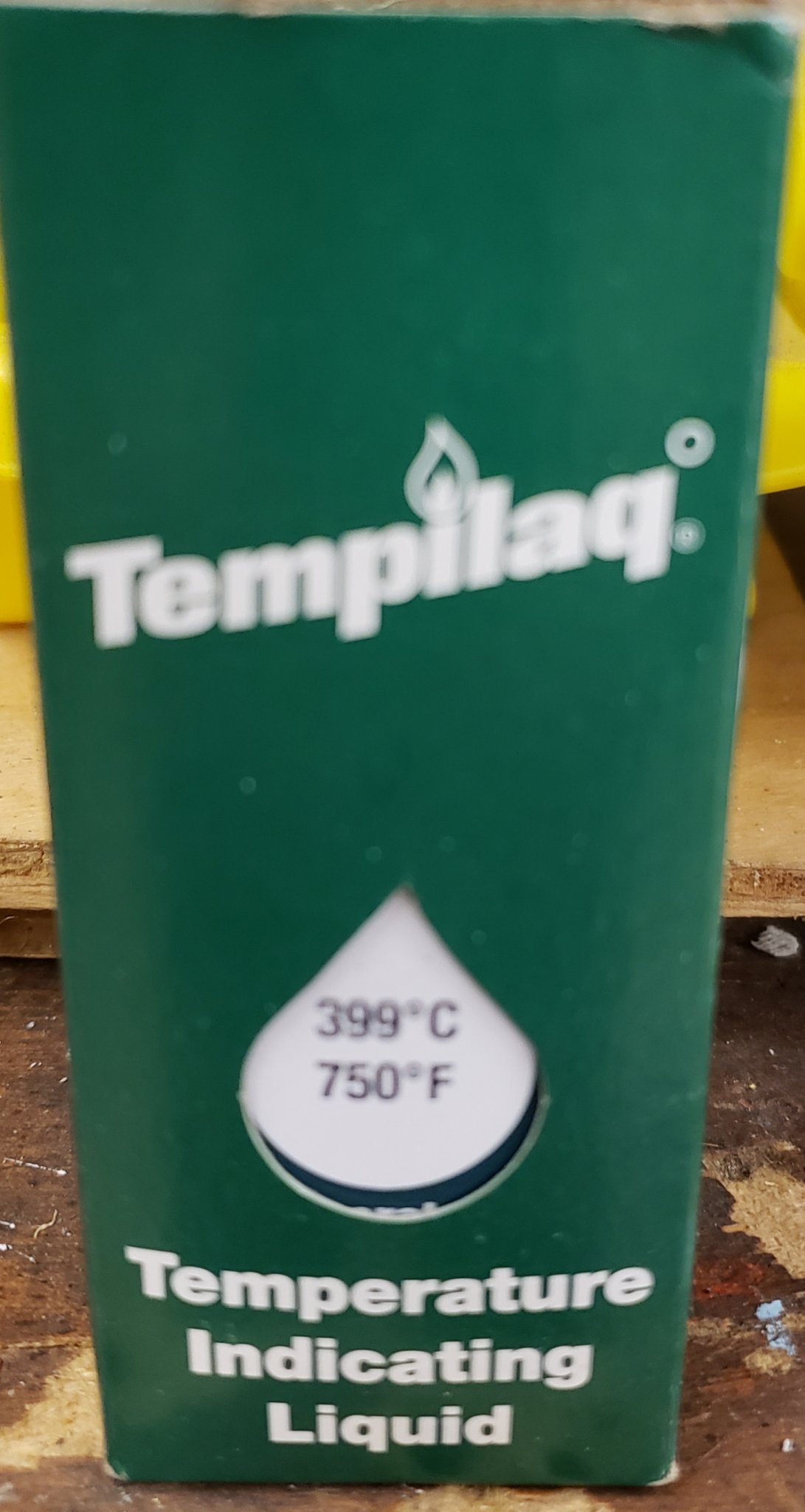

You don’t dip Tempilaq into a molten liquid. It’s designed to take its temperature from the brass not the liquid.

While the temperature control is excellent, everything else is poor. You might as well be eyeballing the orange glow.



[Mordamer]

Looks?

You don’t anneal based on looks.

You don’t dip Tempilaq into a molten liquid. It’s designed to take its temperature from the brass not the liquid.

While the temperature control is excellent, everything else is poor. You might as well be eyeballing the orange glow.

I was talking about his whole system and method looks good. You still have no supporting statement to "You ruined that brass." He absolutely did not ruin that brass. Your statement is incorrect.



[918v]

Yes he did. The brass was properly annealed from the manufacturer and he annealed it again. Even if he did not over cook it, the brass was annealed twice without first having been work hardened, therefore it is now overannealed.

You absolutely CAN overanneal brass by maintaining annealing temperature for too long. Annealing is temperature + time.



[Mordamer]

Yes he did. The brass was properly annealed from the manufacturer and he annealed it again. Even if he did not over cook it, the brass was annealed twice without first having been work hardened, therefore it is now overannealed.

You absolutely CAN overanneal brass by maintaining annealing temperature for too long. Annealing is temperature + time.

You could run that brass through his process 100 times in a row without firing it and it would be absolutely fine to use after. You apparently know very little about material science. You can't anneal it twice and make it softer if it was fully annealed the first time. The only way you ruin brass casings is by annealing the case head. He did not anneal the case head, so he is good to go. The brass probably did not need to be annealed since it was virgin and had most certainly been annealed after being stamped, but he didn't hurt it by annealing it again. These myths about over annealing case necks and shoulders need to go away. He certainly didn't over anneal at 8 seconds in 900 degree Fahrenheit salt.

The definition of ruined is "To reduce to a state of irreparable damage or harm." So if you think it is ruined then what are the side effects that you claim he will experience? The brass won't hold a seated bullet? The brass will give horrible accuracy? The brass will give high ES and SD? The brass will explode? The rounds won't go off? If these or other side effects are your claims then try to articulate them to us.

Once again, your statement is incorrect. You are wrong about the brass being ruined. I predict he can obtain excellent precision and velocity variation with that brass if the rest of his reloading procedures are consistent.



[sabrecross]

You ruined that brass

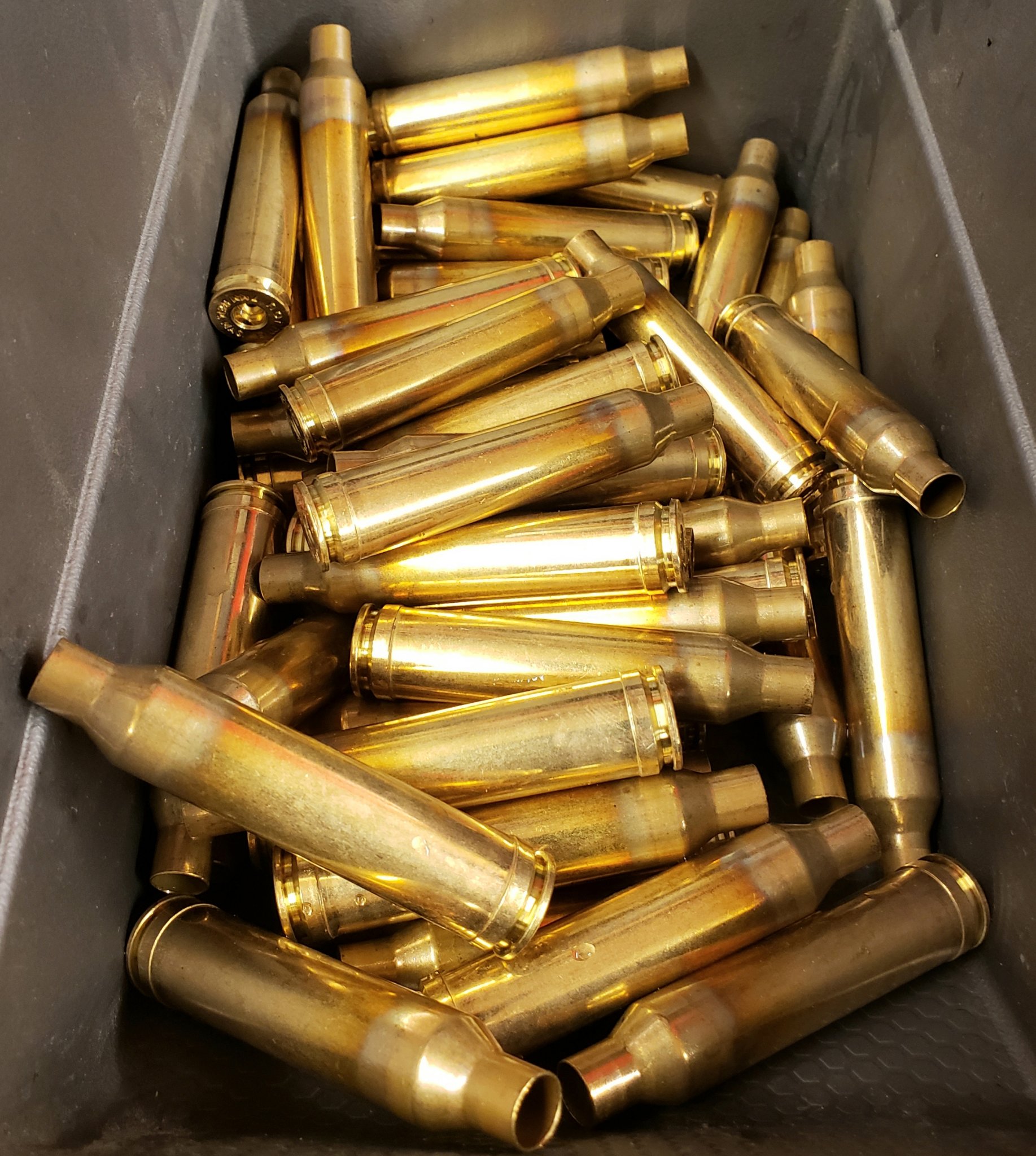

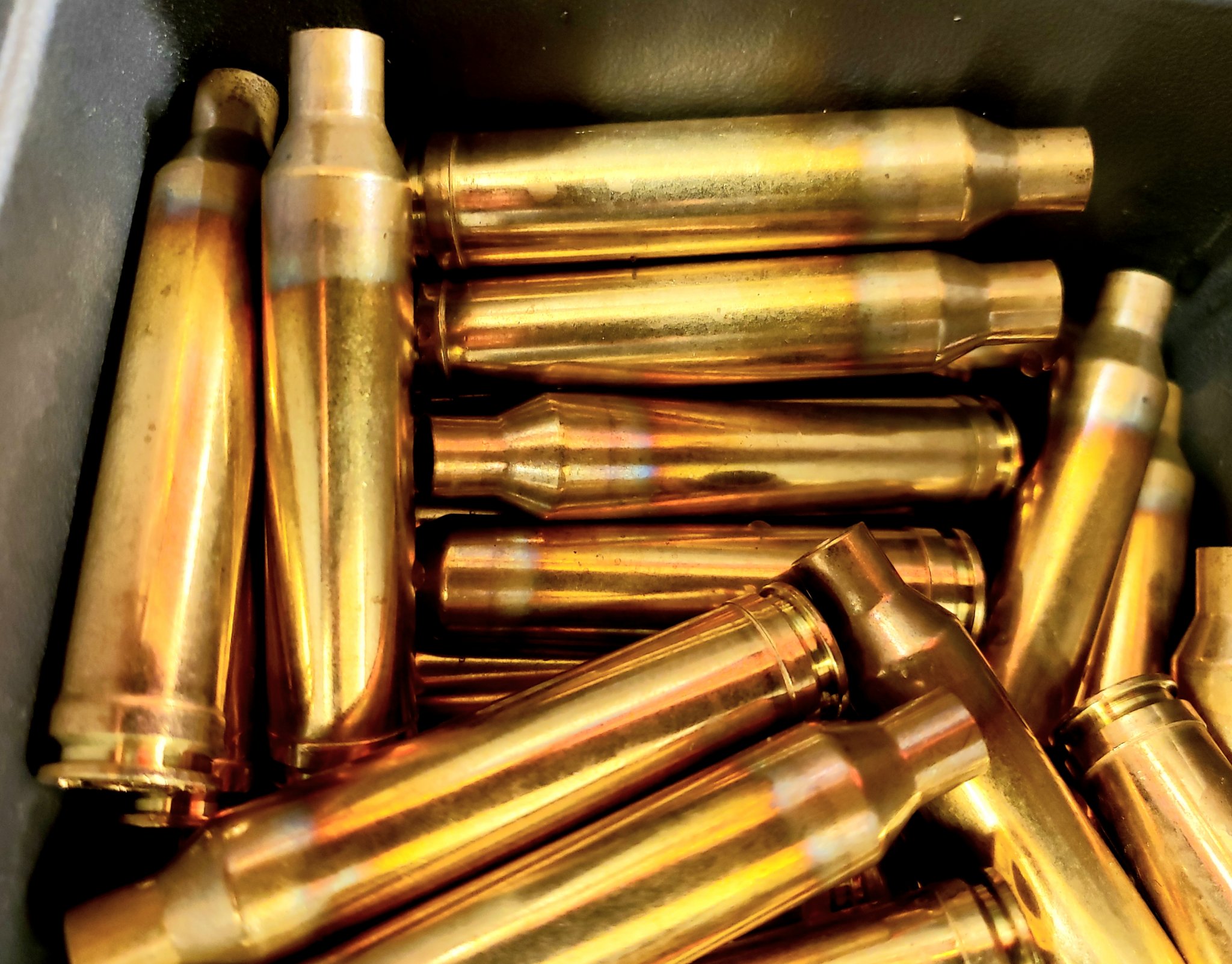

Hopefully the weather will cooperate this week and I will be able to shoot. After annealing the brass, I sonic cleaned the brass. I neck-sized them, primed them, added powder, and seated the bullets. The neck tension was consistent and I checked the bullet-runout. It was < .001. If the gun blows up in my face, then you will be correct that I ruined the necks.
