PSA: Don't let your bolt gun fall with the bolt open while cleaning it. **UPDATE: FIXED**

clcustom1911

Muppet Extraordinaire
Supporter
Full Member
Minuteman
  • Oct 23, 2017
    9,897
    33,108
    In a van, down by the river.

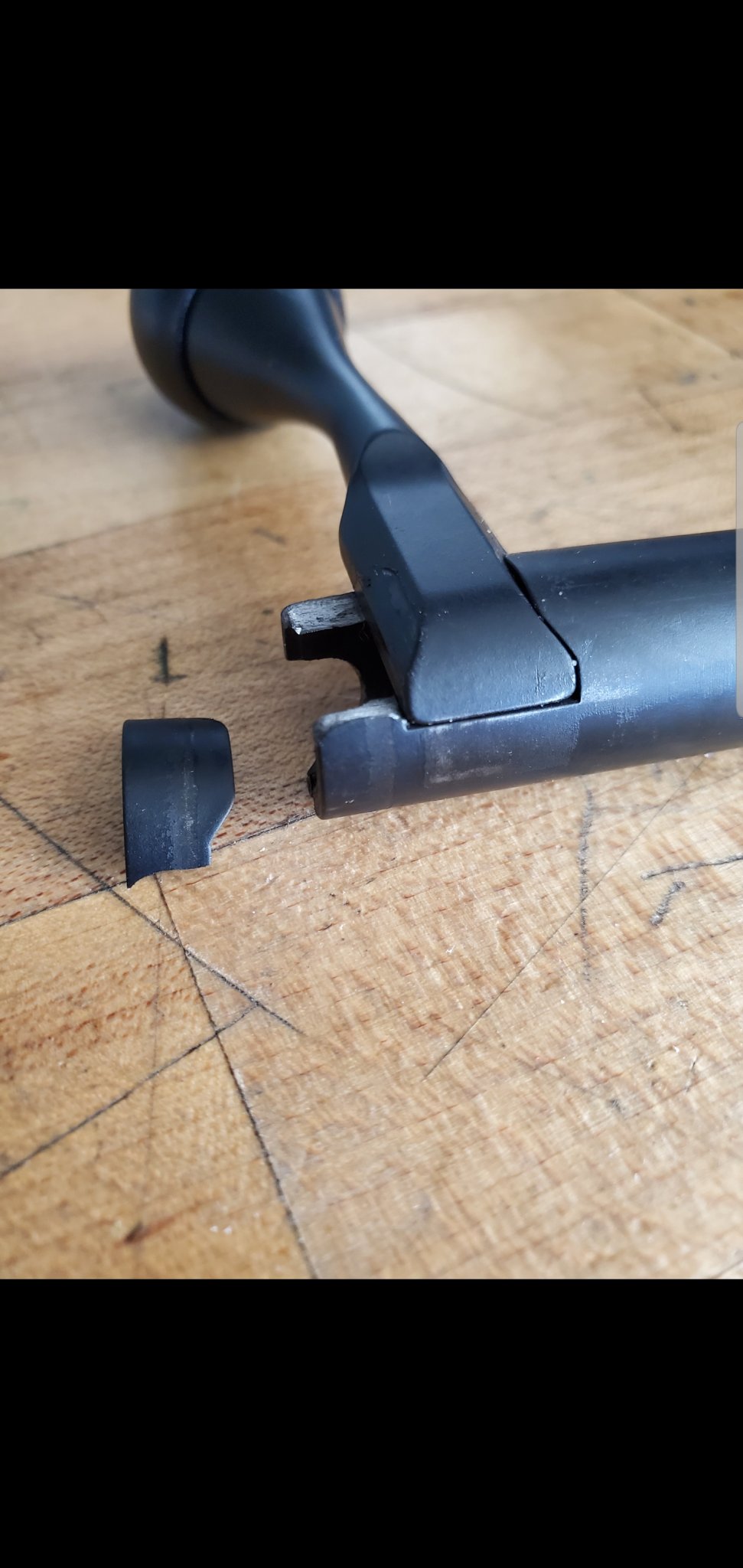

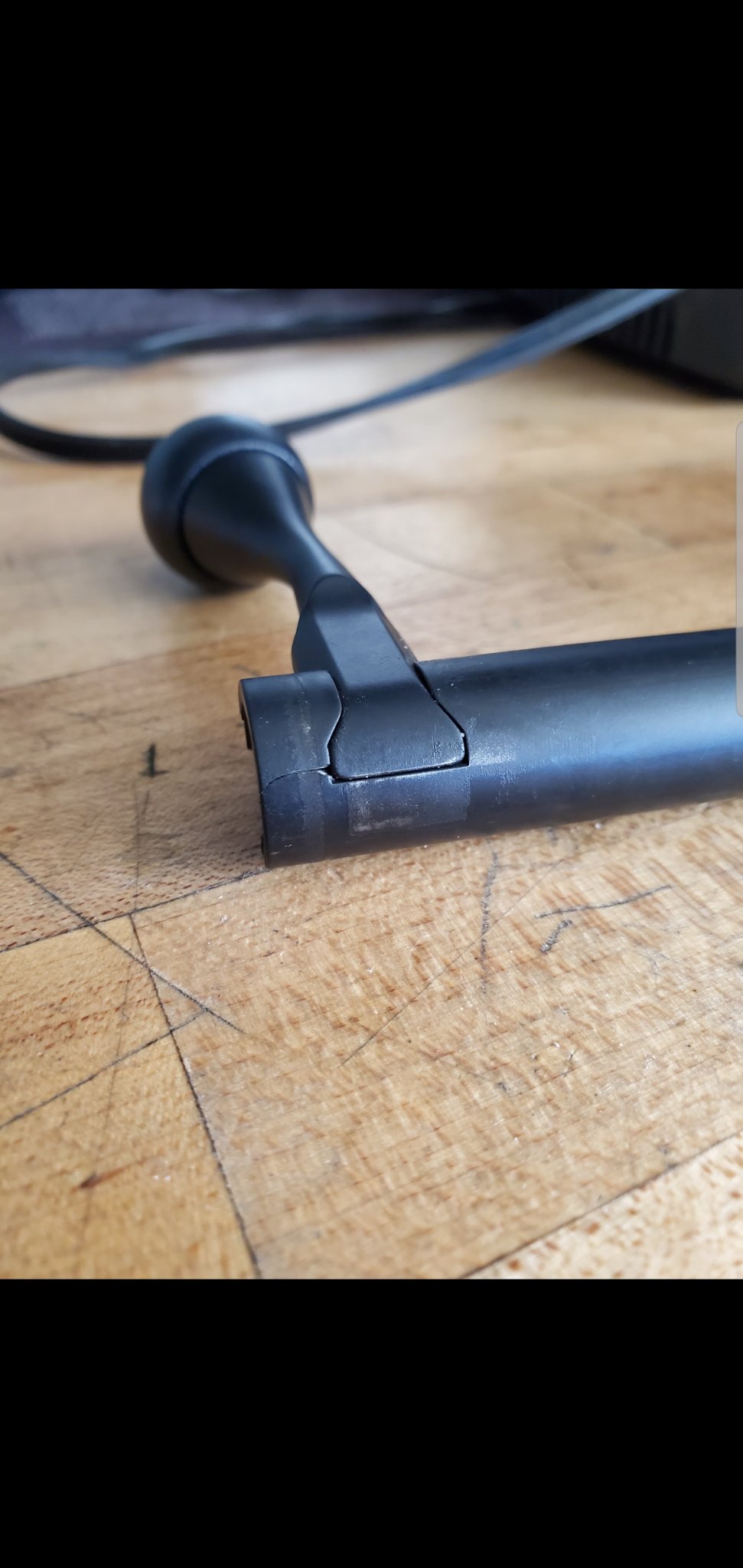

    Because this happens when you have your sexy Tikka T3x Tac A1 on the work bench, on the bipod, then you bump it, and it falls to the ground... landing on the bolt handle....





    giphy (10).gif

    Last edited:
    Wow. This appears to be a violation of one cardinal rule of user-friendly product design, which is "try really hard to ensure that the cheapest and/or easiest-to-replace part fails first".

    Hopefully the manufacturer gets you back up and running ASAP.

    Ouch.

    Hopefully the new bolt headspaces very close to the old bolt... otherwise you might be looking at a barrel setback and rechambering too. I think Tikka holds pretty good tolerances though.

    If they won't warranty it a new bolt body from Midwest gun works looks to be about $250...

    Fuck it. I remembered I found a precision TIG welding/machine shop near me. I've used him before and he's good peoples.

    Being the crack is at the tail of the bolt and doesn't seem to have cracked through the cocking cam area, I think I'd try to TIG it too if the factory won't replace it under warranty. Wouldn't be too difficult of a job. Since it's at the tail of the bolt I wouldn't worry about the hardness change in the heat affected zone.

    Last edited:
    • Like
    Reactions: clcustom1911
    That sucks they discontinued the 308 lh bolt bodies as a replacement part. I was just looking at Brownells and Midwest and saw Midwest had some rh bolt bodies and assemblies, but didn't realize yours was left hand.

    I'd try and TIG that thing but also keep searching for a left hand bolt body, or if you have to, a complete used left handed rifle.

    • Like
    Reactions: clcustom1911
    Looks like if the lugs failed that bolt would of wound up in your face if the body was that weak.

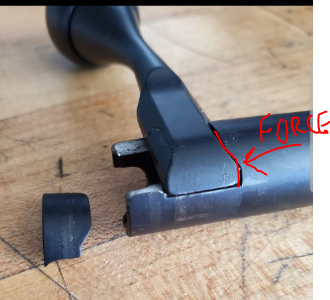

    Wrong. The forces are going the wrong way for that little section to have any load bearing responsibilities. The bolt would push on the opposite side of the handle.

    Force on the bolt goes to the rear, not to the front. You would have to shear the entire length of the bolt body ahead of the handle for it to fail similarly.

    Wrong. The forces are going the wrong way for that little section to have any load bearing responsibilities. The bolt would push on the opposite side of the handle.

    Force goes to the rear, not to the front. You would have to shear the entire length of the bolt body ahead of the handle for it to fail similarly.
    View attachment 7205792

    So thats the bolt that broken not the action.
