Recommendation for solid sling swivel to picatinny rail adapter

[Greyswandir]

Hello Hide members,

I checked the search function on here and didn't see to many threads or posts on this topic. I recently purchased an Atlas Cal gen 2 bipod and want to mount it to my Bergara HMR pro in 6.5cm. I need to find a solid sling swivel to picatinny adapter. The two I've seen so far are the black hawk adapter and the Accu-Tac adapter. Both listed below. If anyone has any recommendations or suggestions it would be much appreciated!

https://www.opticsplanet.com/accu-tac-sling-stud-adapter-rail-for-bipod.html
https://www.opticsplanet.com/blackhawk-swivel-stud-picatinny-rail-adapter.html



[Billl223]

I just ordered this https://www.midwayusa.com/product/3...irmation&utm_content=product-description-link from Midway. I have a short piece of rail with the same Atlas bipod mounted to it, I'm going mount the sling mount in front of the bipod.



[spife7980]

I just ordered this https://www.midwayusa.com/product/3...irmation&utm_content=product-description-link from Midway. I have a short piece of rail with the same Atlas bipod mounted to it, I'm going mount the sling mount in front of the bipod.

Thats the opposite of what he is trying to do. He has sling studs and hes wanting a picatinny interface.

OP, measure thoe two sling studs you have to see how how far apart they are center to center. Then get a picatinny rail that can replace them. The sling studs will just screw out and should go back in their place or you can use cap head screws for appearances if that matters to you.

Both of these accushots provide a flush cup sling attachment point
1.76-2.78" https://www.accu-shot.com/catalog_new/accessories-official-manufacturer/69-bt17-4-1913-rail.html
2.2-3.5" https://www.accu-shot.com/catalog_new/accessories-official-manufacturer/69-bt17-4-1913-rail.html

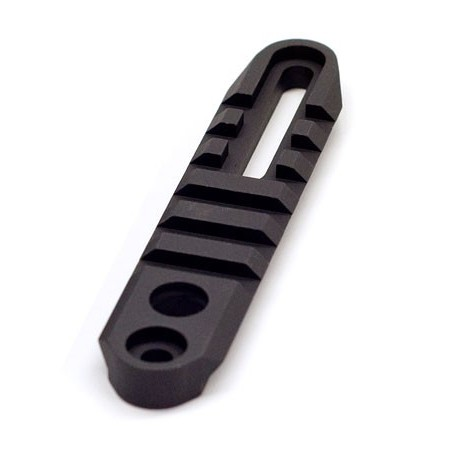

The seekins provides a sling swivel attachment if one of their 2, 2.5 or 3" spacing rails will fit.

SRS Rail

https://www.seekinsprecision.com/product/bolt-rifle-parts/srs-rail-1.html

www.seekinsprecision.com

I reserve the right to be wrong but this looks like bergara uses the 4" rail



[Greyswandir]

Thank you! That's exactly what i need. Appreciate your help!



[HUNTERVASSER]

I am trying to figure out the same set up, THANKS!



[Greyswandir]

I ended up getting the BT17 1913 4” adapter For my bergara hmr pro. Works great! I have a atlas cal 2 on it. It’s rock solid



[Ratman]

I used the exact setup for a Bergara HMR Pro after seeing this post. Thanks for the advise!



[Greyswandir]

The BT17 4" adapter was a solid set up but I've since moved to an Area 419 arca rail with barricade stop. While the BT17 was on it was solid as a rock. Used it mostly for my Bipod, but also used it with an Anvil30 set up.



[Huskerhunter]

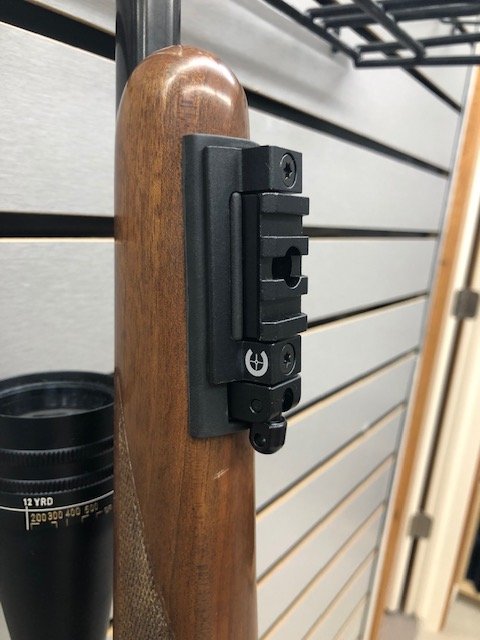

I've got a number of the BT units and they're great and very solid. I also have been pleasantly surprised at this inexpensive Caldwell solution. It's great for lighter guns with angled/traditional hunting forends as you can adjust the cant.

Amazon link



[Mean_Man]

Looking for a very similar part to the OP now in 2024, but with a 3 1/8" spacing for a CZ 600 Range, and those companies websites aren't loading up.....and I can't seem to find anything similar at midwayusa or brownells etc. does anyone know of a vendor making a similar quality part?



[Trigger Monkey]

Looking for a very similar part to the OP now in 2024, but with a 3 1/8" spacing for a CZ 600 Range, and those companies websites aren't loading up.....and I can't seem to find anything similar at midwayusa or brownells etc. does anyone know of a vendor making a similar quality part?

https://accu-shot.com/shop/accessories-official-manufacturer/1913-picatinny-rails/bt17-4-1913-rail/



[strikeeagle1]

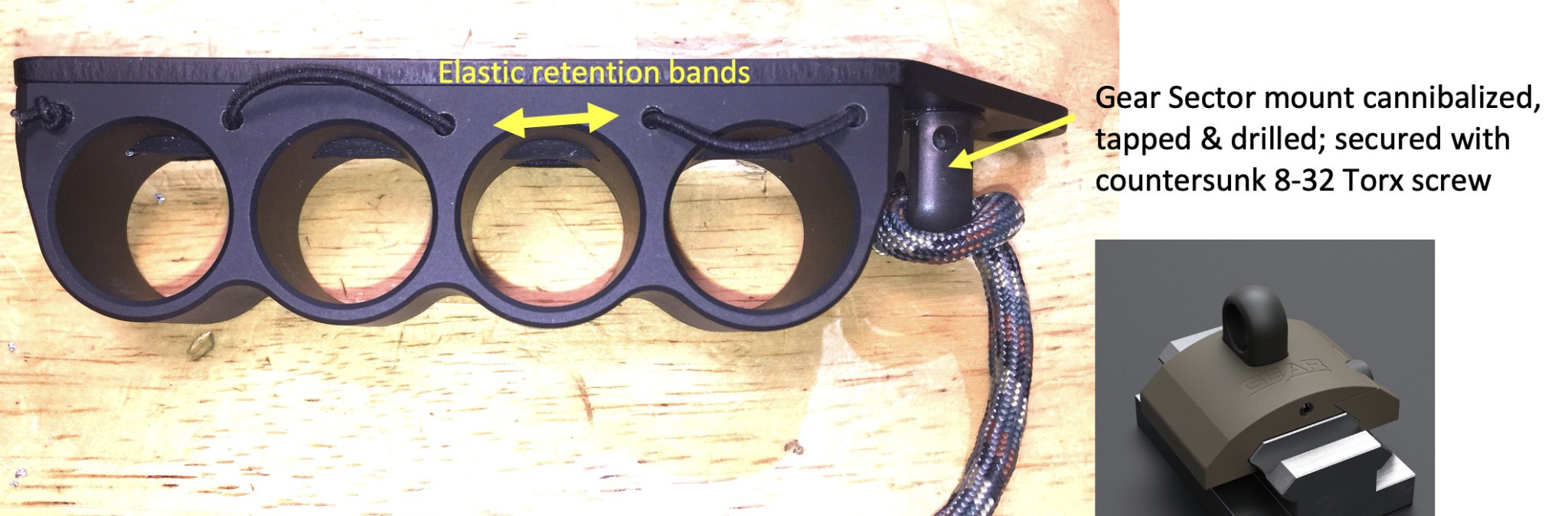

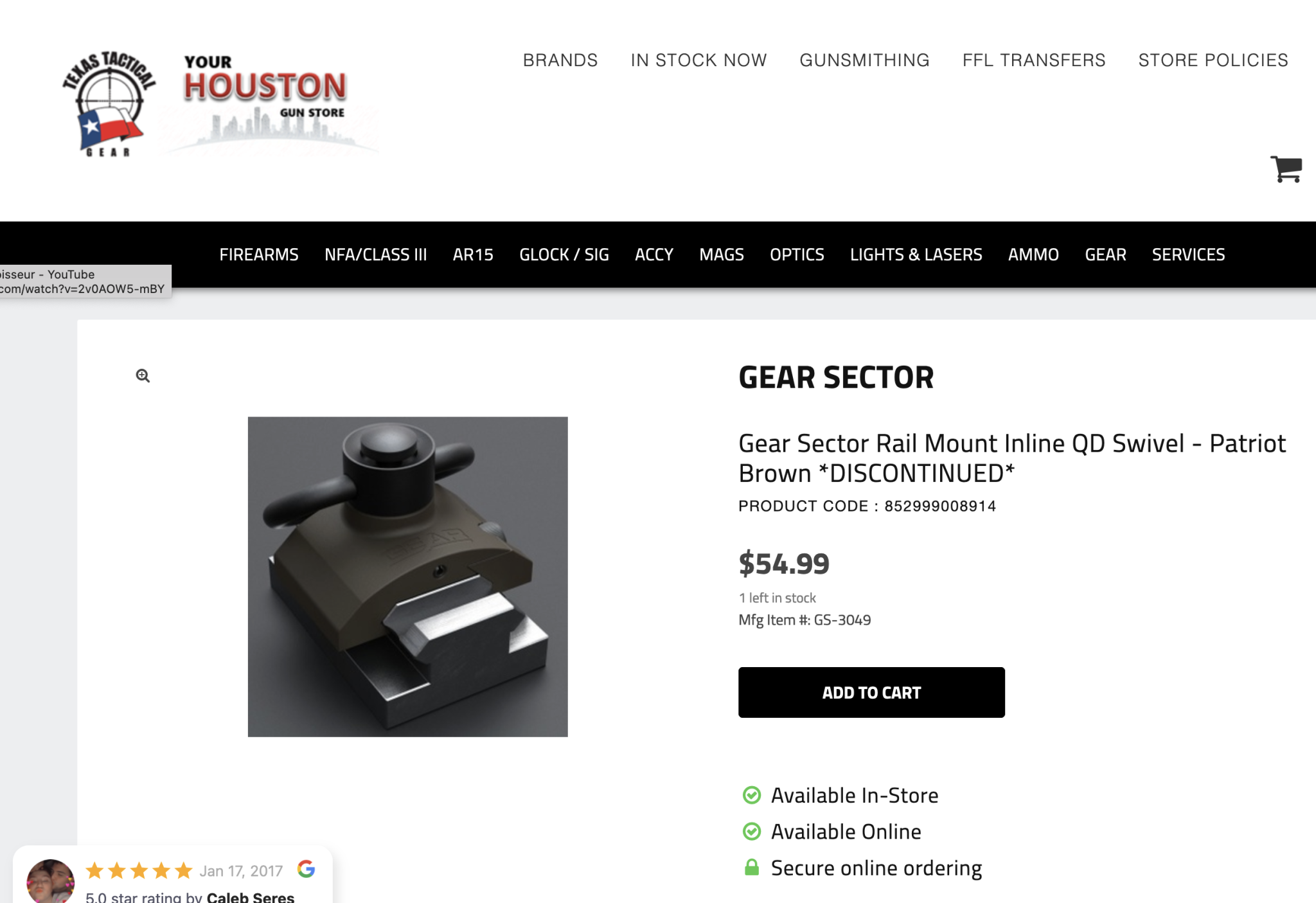

I used a Gear Sector mfg. picatinny-swivel mount years ago; cannabalized it for another project.

Kinda of looks like what someone was looking for.

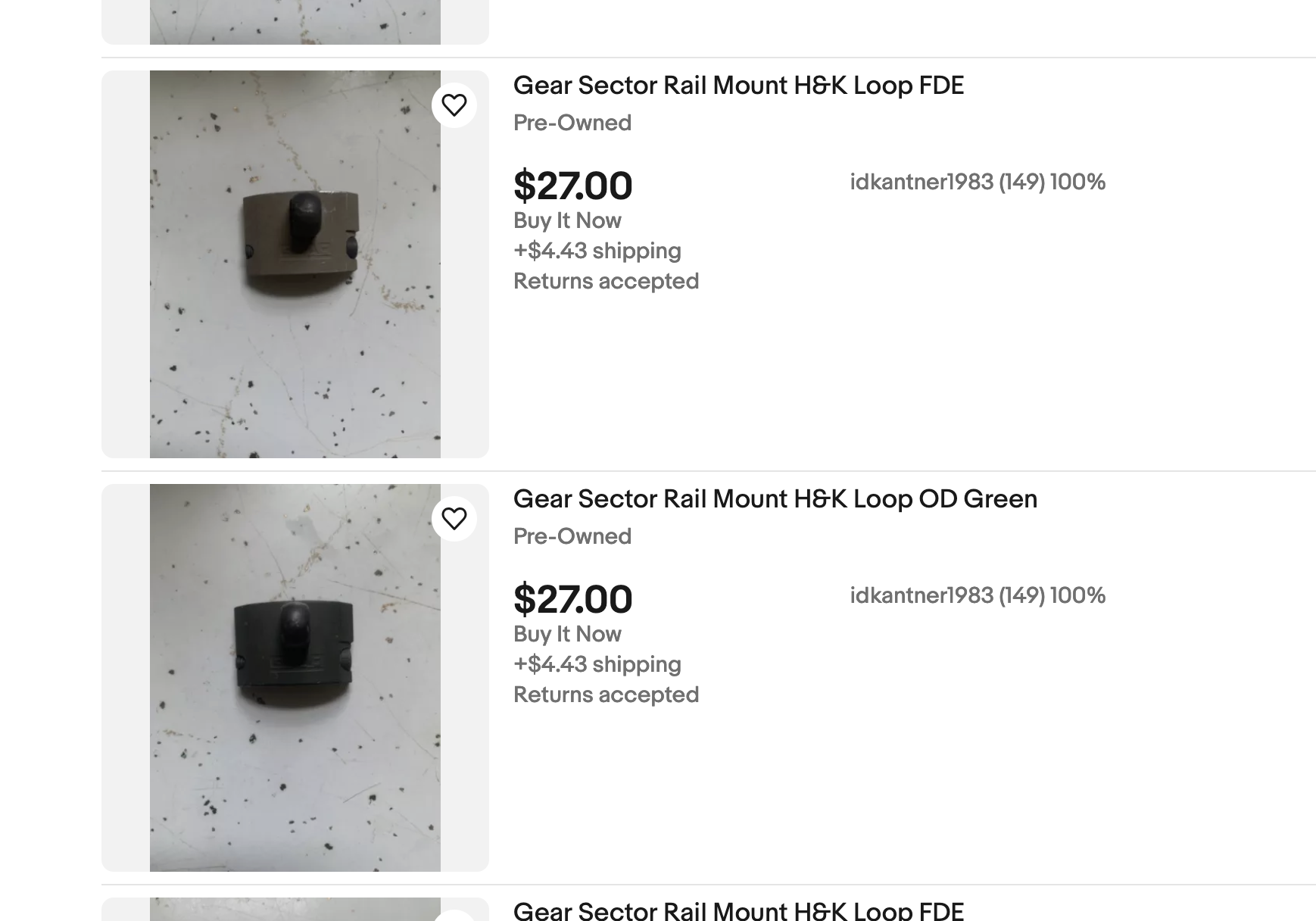

Ebay currently has something like it as well.

It would be easy to drill and tap any aluminum picatinny rail for the on-end loop component and cut the rail to exactly
the length you want.



[Trigger Monkey]

So did you see sling swivel to pictainny rail adapter and Leeroy Jenkins yourself into the thread without picking up any context? lol



[Mean_Man]

https://accu-shot.com/shop/accessories-official-manufacturer/1913-picatinny-rails/bt17-4-1913-rail/

That is exact i was look for, thank you sir!
